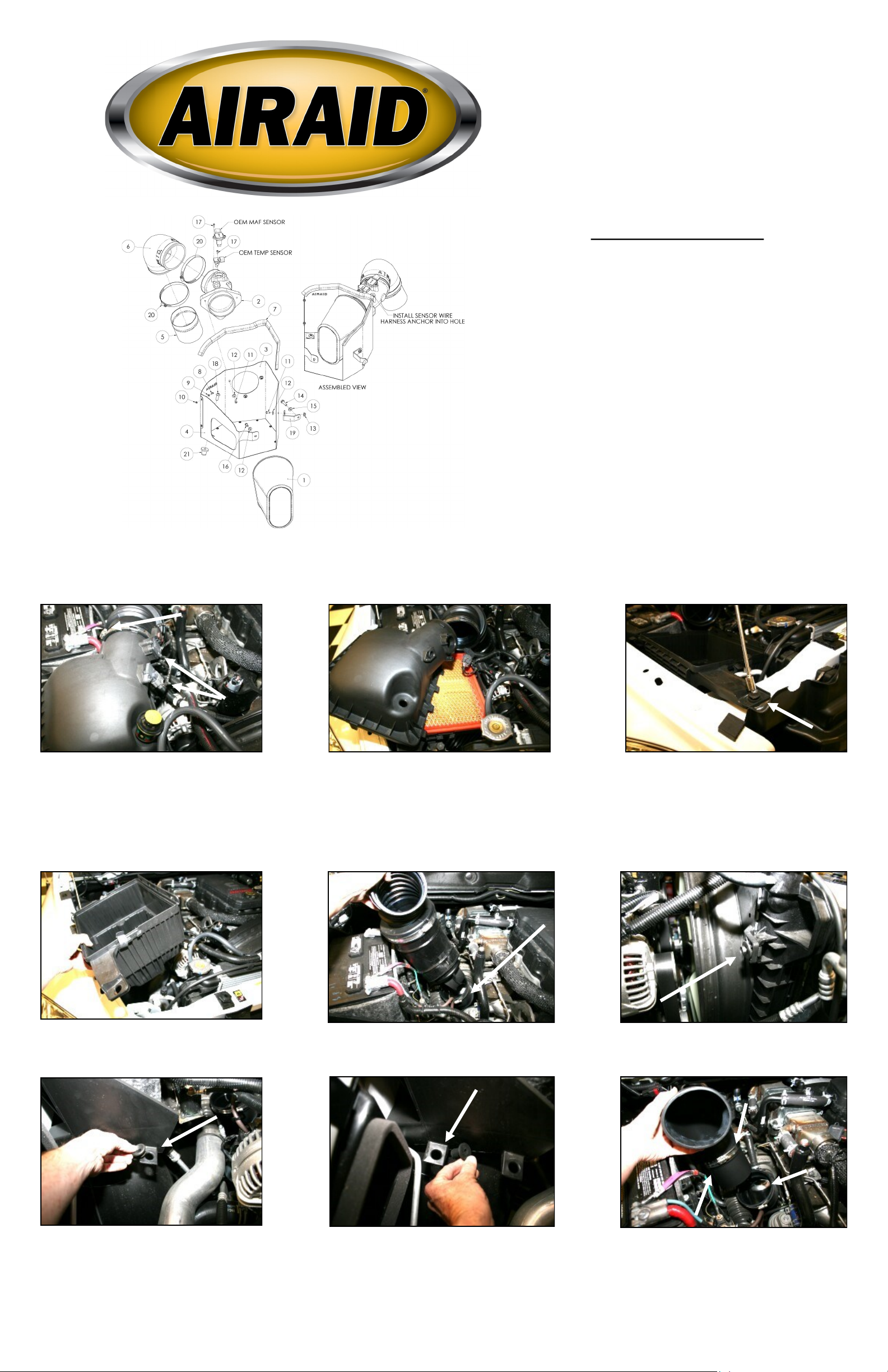

Installation Instructions
For Part Numbers:
300-209 720-128 Airaid Oiled Media Filter
301-209 721-128 SynthaMax Dry Media Filter - Red
302-209 722-128 SynthaMax Dry Media Filter - Black
303-209 723-128 SynthaMax Dry Media Filter - Blue
2007-09 Dodge Ram 2500-5500
6.7L I6 Cummins Diesel
Component Identification
1. Airaid Premium Filter 1
2. Airaid Filter Adapter 1
3. MAF Panel 1
4. Bottom Panel 1
5. Metal Tube 1
6. 4 1/2”x 90° Rubber Elbow 1
7. Weather Strip 24” 1
8. 6-32x5/16” Screw 7
9. #6 Flat Washer 7
10. 6-32 Keps Nut 7
11. 1/4-20 x 1/2” Button Head Bolt 4
12. 1/4” Flat Washer 5
13. 1/4” Serrated Nut 1
14. 8mm x 1.25 x 30mm Hex Bolt 1
15. 5/16” Flat Washer 1
16. 6mm x 1 x 12mm Hex Bolt 1
17. 8-32x1/2” Button Head Screw 3
18. 3/8-16 x1 1/4” Button Head Bolt 1
19. #193 Bracket 1
20. #80 Hose Clamp 2
21. Well Nut 1
22. T20 Torx Bit 1
Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.
B.
A.
1. Disconnect the negative battery cables.
A) Using the supplied #20 Tor x bit, remove
two screws from the Mass Air Flow sensor, and
one screw from the temperature sensor. Remove
both sensors and the wiring harness anchor from
the airbox lid, and set them aside. C) Loosen the
hose clamp that holds the factory intake tube to
the airbox lid.
2. Unsnap the two metal clips that hold the airbox lid to
the base, and remove the lid. Next, remove the factory
paper air filter from the base.
3. Using a 10mm socket, remove the nut that
holds the front of the airbox base and grommet
assembly to the radiator support.
4. Gently rock the airbox base back and forth
while pulling up, to remove it from it’s mounting grommets, and remove it from the vehicle.
7. Remove the two factory rubber grommets
that held the factory airbox base in place.
5. Loosen the factory hose clamp at the base of
the factory plastic intake tube assembly, and
remove the tube from the vehicle.
8. Install the supplied well nut (#21) into the
support bracket hole that is closest to the fender.
6. Using a 13mm socket, remove the factory bolt
that holds the fan shroud to the radiator.
B.
C.
A.
9. A) Install the metal tube (#5) into the r ub-
ber elbow (#6) until the rolled bead touches the
side. B) Install one #80 hose clamp (#20)
around the elbow at the metal tube, and tighten.
C) Install the t ube assembly into the factory
rubber elbow on the turbocharger. Leave the
factory hose clamp loose until final adjustments
are made.
10. Assemble the Cool Air Dam panels as
shown using the seven 6-32x5/16” screws (#8),
#6 flat washers (#9), and keps nuts (#10). Next
install the Airaid filter adapter thru the CAD
panel using three 1/4-20x1/2” button head bolts
(#11), and 1/4” flat washers (#12). (See Arrow)

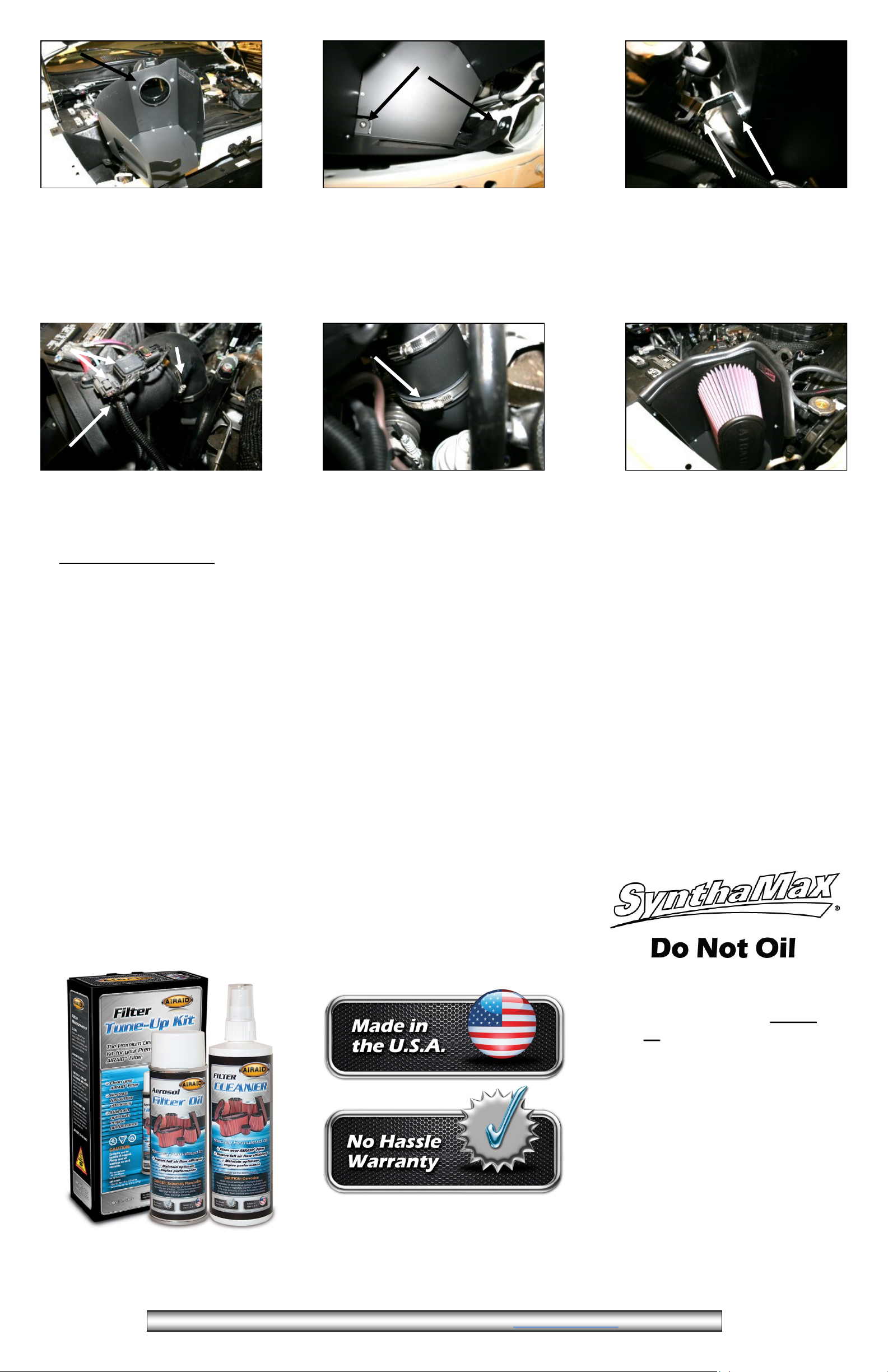

11. Install the CAD assembly into the vehicle,
and install the 3/8-16x1 1/4” button head bolt
(#18) thru the panel, and into the well nut. Next
install the 6x1x12mm hex bolt (#16), and 1/4”
flat washer (#12), thru the panel, and into the
captured nut in the radiator support. Leave all
bolts loose until final adjustment.
12. Using one 1/4-20x1/2” button head bolt
(#11), 1/4” flat washer (#12), and 1/4” serrated
nut (#13), and the 8x1.25x30mm hex bolt
(#14), and 5/16” flat washer (#15), mount the
supplied bracket (#19) between the CAD panel,
and the fan shroud mounting boss as shown.
Tighten all CAD mounting bolts at this time.
B
A
C
13. A) Slide t he r ubber elbow over the
Airaid filter adapter, install one #80 hose clamp
(#20), and tighten the hose clamp. B) Using
three 8-32x1/2” button head screws (#13), reinstall the factory Mass Air Flow sensor, and
temperature sensor into the Airaid filter adapter. Do Not Use The Factory Screws! C) Rein-
stall the wiring harness anchor into the hole in
the filter adapter just below the temperature
sensor.
14. Tighten the factory hose clamp where the
Airaid metal tube slips into the factory rubber elbow on the turbocharger.
15. Install the Airaid Premium Filter (#1) onto
the Airaid filter adapter, and tighten the hose
clamp. Install the weather strip (#7) onto the
top of the CAD, starting at the fender, and
working your way towards the radiator.
16. Double check your work!
Make sure there is no foreign material in the intake path. Make sure all clamps, hoses, bolts, and
screws are tight. Periodically check the tightness of all hose clamps.
17. Reconnect the negative battery cables!
Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and
packaged. Check that no parts are missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air
filter element is protected from direct exposure to water and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILTY! The air filter is reusable and should be cleaned periodically.
FILTER IDENTIFICATION
720-128 Airaid Oiled Media 721-128 Airaid SynthaMax Dry Media - Red
722-128 Airaid SynthaMax Dry Media - Black 723-128 Airaid SynthaMax Dry Media - Blue
For your Oiled media filter we
suggest using the AIRAID Filter
Tune-Up Kit!
P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray
Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951 AiraidInfo@airaid.com www.airaid.com
Synthamax Air Filters do not require oil. Service air filter as needed by cleaning with common nonpetroleum all-purpose household
cleaner and water. Simple Green®,
Formula 409® or equivalent works
great. Apply cleaner to outside of
air filter and allow to soak. Then
flush filter clean from the inside out
with a garden hose and repeat steps
if necessary. Do not apply high
pressure water or air to clean filter.
Allow filter to air dry and reinstall.
REV.11.5.13
