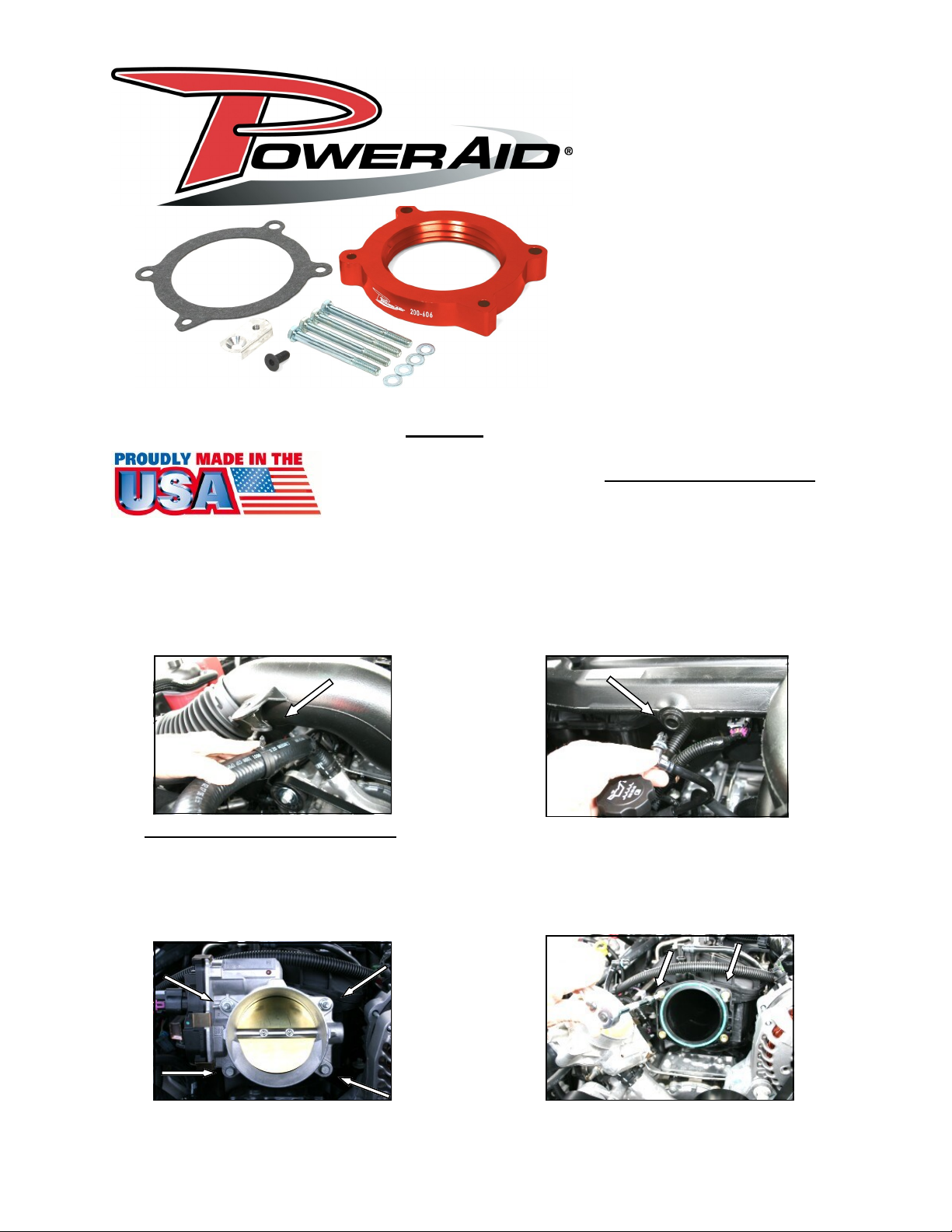

Parts List
#1 Poweraid Spacer x1
#2 6mmx65mm Bolts x4
#3 6mm Flat Washers x4
#4 Fiber Gasket x1
#5 3/4” Extension Plate x1
#6 6mm Flat Head Bolt x1
Installation Instructions
Part Number 200-606
Poweraid Spacer For
2014-2015 Chevrolet Silverado
2500/3500
2007-2013
Chevrolet Silverado 2500/3500
GMC Sierra 2500/3500
GMT-900 Series Trucks & SUVs
4.8L, 5.3L, 6.0L, 6.2L
2008-09 Hummer H-2
05-06 Pontiac GTO 6.0L
06-08 Chevrolet Trailblazer 5.3L
06-08 GMC Envoy 5.3L
Tools Required For Installation
10mm Deep Socket
4mm, 5/16” Sockets
5/32” Allen Wrench
Thank you for purchasing the Poweraid Throttle Body Spacer. Please read the instruction manual carefully before proceeding with the installation. Contact AIRAID @ (800) 498-6951 8:00 AM - 5:00 PM MST Weekdays
for questions regarding fit or instructions that are not clear to you. Your Poweraid Throttle Body Spacer was carefully inspected and packaged. Check that no parts are missing, or were damaged during shipping. If any parts
are missing, please contact AIRAID.
1. Disconnect the negative battery cable!
Lift up on the front of the and beauty cover and
remove it from the vehicle. Push down on the radiator hose, and separate the tube from the plastic
clamp.
2. Disconnect the breather tube from the intake
tube, by gently pulling towards you. An O-ring is
all that holds it in place. Next loosen the hose clamp
on the intake tube at the throttle body, and at the
Mass Air Sensor, and remove the tube from the vehicle.
3. With a 10mm socket remove the two nuts, and
the two bolts that hold the throttle body to the intake
manifold. Without disconnecting the wiring harness,
set the throttle body aside.
4. With a 4mm socket, remove the two studs that
held the throttle body to the intake manifold.
Throttle body
Fiber Gasket
Poweraid
“Ball Stud”
Spacer
Countersunk
Allen bolt &
3/4” Spacer

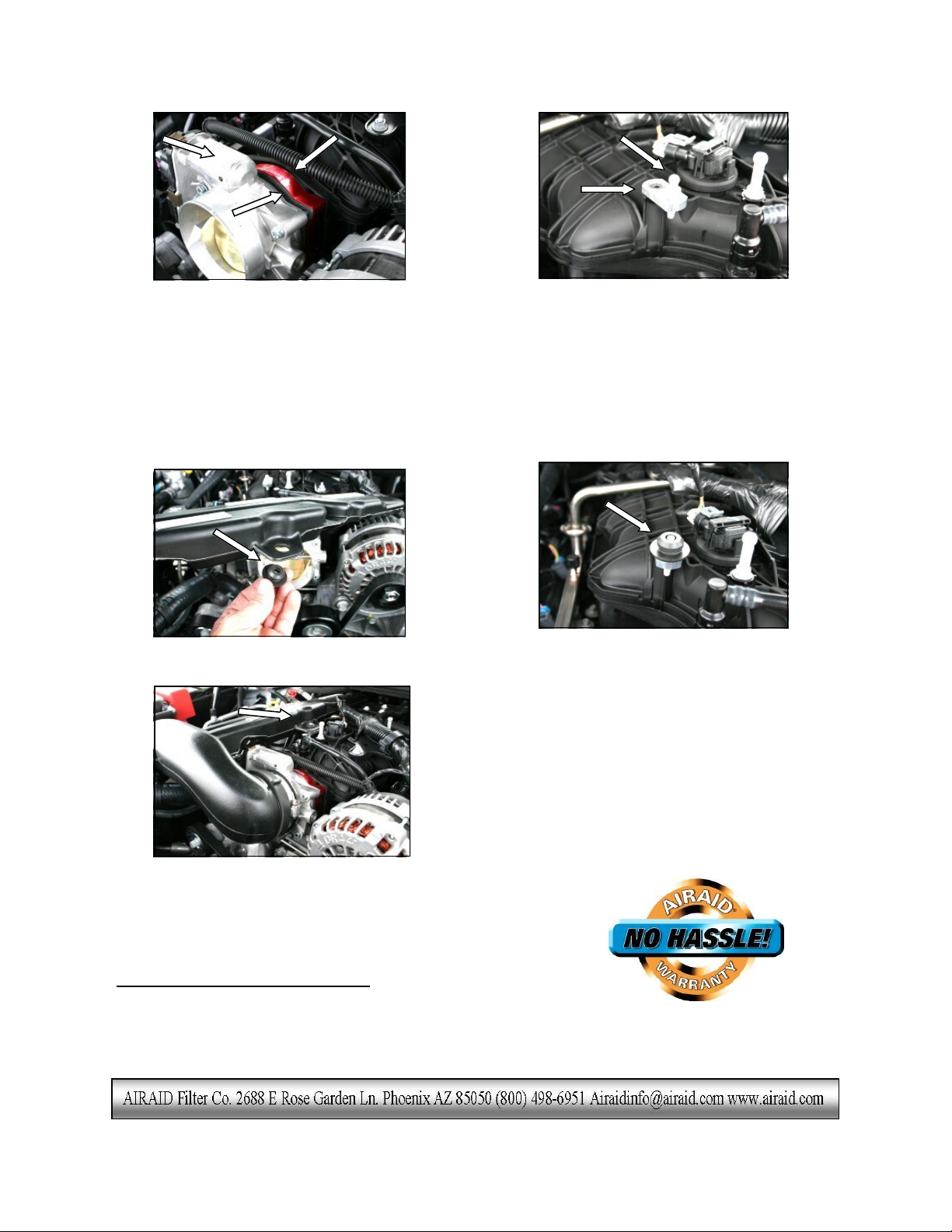

5. Install 2 of the supplied bolts (#2) and washers
(#3) thru the two holes in the top of the throttle
body, thru the supplied fiber gasket (#4), thru the
Poweraid Spacer, and into the two brass inserts in
the intake manifold. Run the bolts in a few threads
with your fingers. Use caution not to cross-thread
the bolts. Next install the 2 remaining bolts (#2) and
washers (#3) in the two bottom holes of the throttle
body, and tighten in a cross pattern to the vehicle
manufacture’s specifications.
Grommet
7. Remove the factory grommet from the intake
tube.
Grommet
6. Remove the “ball stud” from the top of the intake
manifold, insert the countersunk Allen bolt (#6) thru
the countersunk hole in the provided 3/4” spacer
plate (#5). Thread the countersunk bolt into the hole
where you removed the “ball stud”, face the spacer
towards the front of the vehicle, and tighten the
countersunk Allen bolt. Next thread the “ball stud”
into the forward hole in the 3/4” spacer and tighten.
8. Install the grommet from step #7 on the “ball
stud”, with the small diameter facing up as shown.
9. Re-install the intake tube using caution to center the intake tube
hole over the previously installed grommet. Some adjustment may be
required to seat the grommet correctly back into the intake tube.
Tighten the hose clamps on the tube. Re-connect the breather tube. Re
-install the plastic holder from step #1. Re-install the beauty cover.
Re-connect the negative battery cable!
The sound of power...The “whistle” means its working!
