Airaid 200-215 Installation Instructions

Installation Instructions

For Part Numbers:

200-215 720-472 Airaid Oiled Media Filter
201-215 721-472 SynthaMax Dry Media Filter - Red
202-215 722-472 SynthaMax Dry Media Filter - Black
203-215 723-472 SynthaMax Dry Media Filter - Blue

2007-10 Chevrolet Silverado 2500HD/3500HD
2007-10 GMC Sierra 2500HD/3500HD

6.6L V8 Duramax Diesel “LMM”
GMT-900 Platform

Component Identification

1. Airaid Premium Filter 1

2. MAF Panel 1

3. Rear Panel 1

4. MAF Adapter Tube 1

5. Weather Strip 20 3/4” 1

6. 1/4 -20x1/2” Button Head 3

7. 1/4” Flat Washer 7

8. 8-32x1/2” Button Head Screw 2

9. M6-1x25 Hex Bolt 4

10. 6-32x 5/16” Screw 5

11. #6 Flat Washer 5

12. 6-32 Keps Nut 5

13. Rubber Trim 7” 1

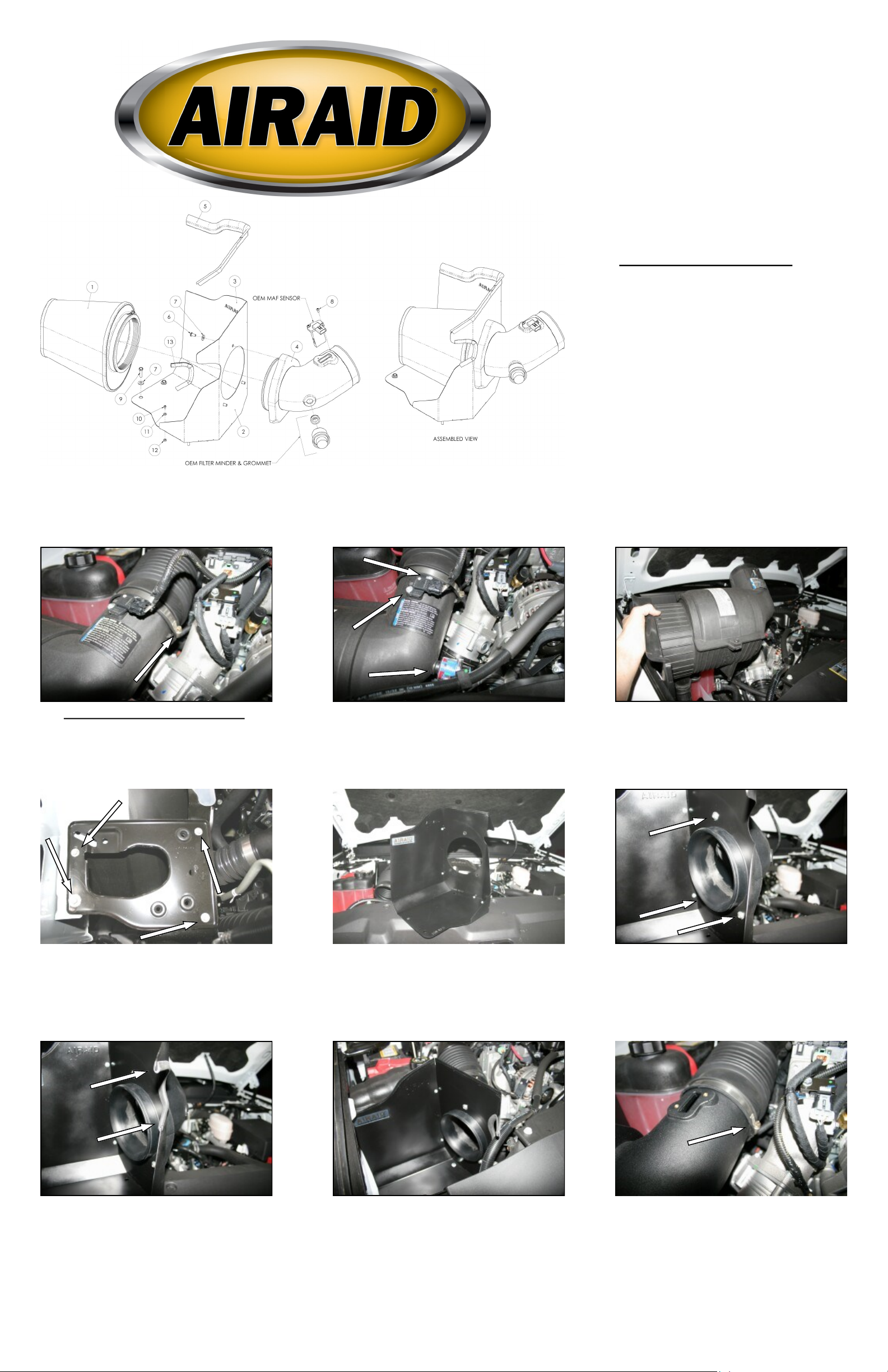

Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.

1. Disconnect the negative battery cable.
Using a 5/16” socket or flat screwdriver, loosen
the hose clamp that holds the factory airbox to the
flexible intake tube.

2. With a #20 Torx bit, remove 2 screws holding
the Mass Air Flow sensor to the factory airbox
tube. Remove the MAF and set it aside. Remove
the factory filter minder and grommet from the
factory airbox. Save them for later use in step
#10.

3. Slide the flexible intake tube off of the factory
airbox and then rock the airbox back and forth to
free it from the mounting grommets, then lift it
straight up and remove it from the vehicle.

4. Using a 10mm socket, remove 4 bolts from the
factory airbox mounting plate. Remove the plate
from the vehicle.

7. Install the supplied rubber trim (#13) onto the
Cool Air Dam as shown.

5. Assemble the two Cool Air Dam panels (#2)
and (#3) as shown, using the five 6-32 screws
(#10), washers (#11), and nuts (#12).

8. Install the Cool Air Dam into the vehicle
where you removed the factory mounting plate in
step #4, using the four supplied M6-1x25 bolts
(#9), and flat washers (#7).

6. Install the Airaid intake tube (#4) into the Cool
Air Dam using the three 1/4”-20x1/2” button
head bolts (#6), and washers (#7) as shown.

9. Reconnect the factory intake tube to the Airaid
Intake Tube, and tighten the hose clamp.

12. Double check your work!

Make sure there is no foreign material in the intake
path. Make sure all clamps, hoses, bolts, and
screws are tight.

13. Reconnect the negative battery cable!

10. Reinstall the Mass Air Flow Sensor into the

Airaid Intake Tube using the supplied 8-32x1/2”
button head screws (#8).
Do Not Use The Factory Screws!
Do Not Over Tighten the screws!
Reinstall the factory grommet, and filter minder.

WARNING! If your vehicle has a Vehicle Emission Contr ol Infor mation deca l affixed to the fact or y air ­box, a new replacement label must be obtained and installed in a readily visible position in the engine compart­ment in order to remain CARB compliant. Failure to do so will prevent the vehicle from passing a smog check.
Replacement labels can be ordered from your local dealership. Regulations state that the VECI label shall not be
affixed to any equipment which is easily detached from the vehicle. Label placement, under the hood on a paint­ed surface is recommended.

11. Install the Airaid Premium Filter (#1) onto the
Airaid intake tube (#4), and tighten the hose
clamp. Now install the provided weather strip (#5)
on the top of the CAD. For ease of installation,
start near the fender and work your way towards
the radiator.

Thank you for purchasing the Airaid Intake System. Contact Airaid @ [phone] 8:00 AM - 5:00 PM MST week­days for questions regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and
packaged. Check that no parts are missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air
filter element is protected from direct exposure to water and debris; care should be taken not to drive through deep water. WA­TER INGESTION IS THE DRIVERS RESPONSIBILITY! The air filter is reusable and should be cleaned periodically.

FILTER IDENTIFICATION

720-472 Airaid Oiled Media 721-472 Airaid SynthaMax Dry Media - Red

722-472 Airaid SynthaMax Dry Media - Black 723-472 Airaid SynthaMax Dry Media - Blue

For your Oiled media filter we

suggest using the AIRAID Filter

Tune-Up Kit!

P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray

Synthamax Air Filters do not require
oil. Service air filter as needed by
cleaning with common non-petroleum
all-purpose household cleaner and
water. Simple Green®, Formula
409® or equivalent works great. Ap­ply cleaner to outside of air filter and
allow to soak. Then flush filter clean
from the inside out with a garden
hose and repeat steps if necessary. Do
not apply high pressure water or air
to clean filter. Allow filter to air dry
and reinstall.
