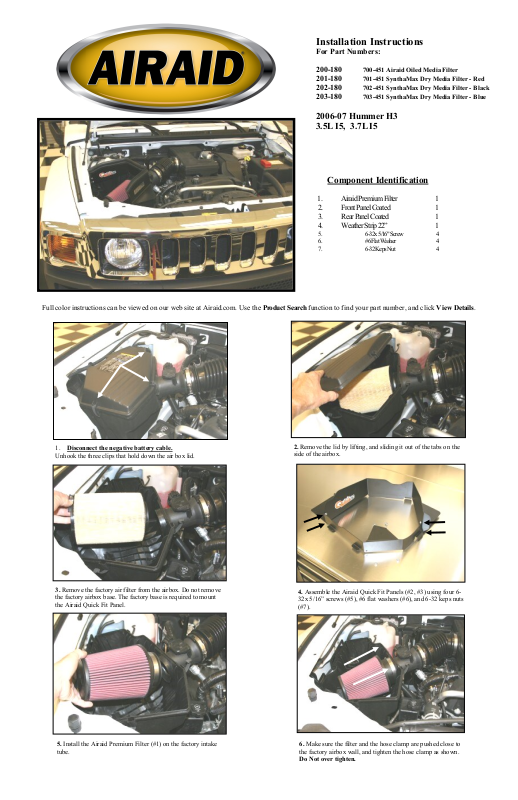

Airaid 200-180 Installation Instructions

Installation Instructions

For Part Numbers:

200-180 700-451 Airaid Oiled Media Filter
201-180 701-451 SynthaMax Dry Media Filter - Red
202-180 702-451 SynthaMax Dry Media Filter - Black
203-180 703-451 SynthaMax Dry Media Filter - Blue

2006-07 Hummer H3

3.5L I5, 3.7L I5

Component Identification

1. Airaid Premium Filter 1

2. Front Panel Coated 1

3. Rear Panel Coated 1

4. Weather Strip 22” 1

5. 6-32x 5/16" Screw 4

6. #6 Flat Washer 4

7. 6-32 Keps Nut 4

Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.

1. Disconnect the negative battery cable.
Unhook the three clips that hold down the air box lid.

2. Remove the lid by lifting, and sliding it out of the tabs on the
side of the airbox.

3. Remove the factory air filter from the airbox. Do not remove
the factory airbox base. The factory base is required to mount
the Airaid Quick Fit Panel.

5. Install the Airaid Premium Filter (#1) on the factory intake
tube.

4. Assemble the Airaid Quick Fit Panels (#2, #3) using four 6­32x 5/16” screws (#5), #6 flat washers (#6), and 6-32 keps nuts
(#7).

6. Make sure the filter and the hose clamp are pushed close to
the factory airbox wall, and tighten the hose clamp as shown.

Do Not over tighten.

A.

B.

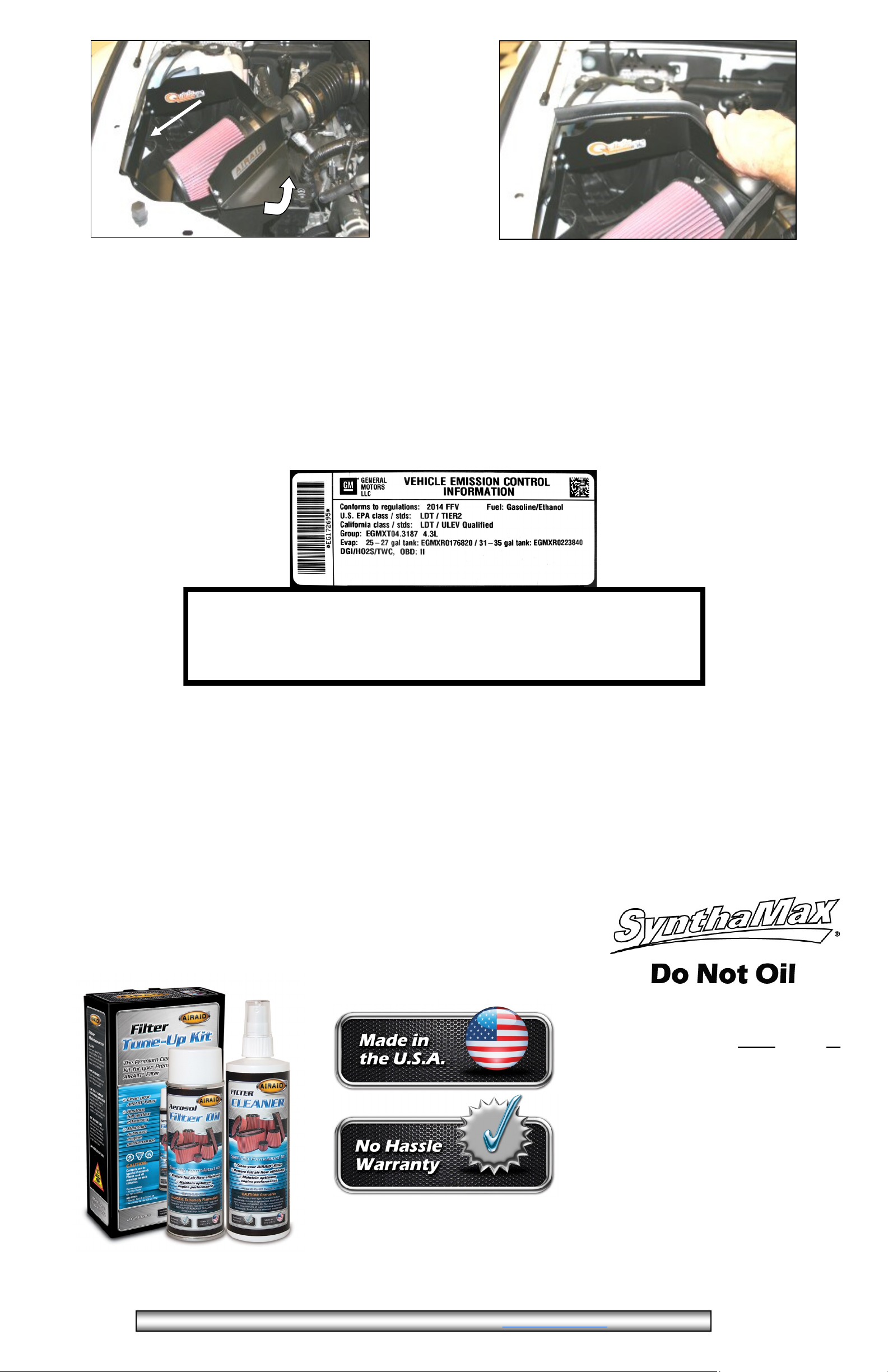

7. A.) Th er e are two tabs on t he Quick F it Panel, inser t

the one closest to the headlight first into the slot on the facto­ry airbox.
B.) Next, car efully r otate the Quick Fit Pa nel counter ­clockwise until the factory clips line up with the tabs on the
Quick Fit Panel. Make sure the filter tab retains the Airaid
Premium Filter. Using the factory clips, lock down the panel.

8. Starting at one end of the Quick Fit Panel, install the weather
strip (#4) as shown.

9. Double check your work!

Make sure there is no foreign material in the intake path. Make sure all clamps, hoses, bolts, and screws are tight.

10. Reconnect the negative battery cable!

WARNING! If your vehicle has a Vehicle Emission C ontr ol Infor mation deca l a ffixed to the factor y air -

box, a new replacement label must be obtained and installed in a readily visible position in the engine compart­ment in order to remain CARB compliant. Failure to do so will prevent the vehicle from passing a smog check.
Replacement labels can be ordered from your local dealership. Regulations state that the VECI label shall not be
affixed to any equipment which is easily detached from the vehicle. Label placement, under the hood on a paint­ed surface is recommended.

Thank you for purchasing the Airaid Intake System. Contact Airaid @ [phone] 8:00 AM - 5:00 PM MST weekdays for questions
regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are
missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to wa­ter and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILITY! The air filter
is reusable and should be cleaned periodically.

FILTER IDENTIFICATION

700-451 Airaid Oiled Media 701-451 Airaid SynthaMax Dry Media - Red

702-451 Airaid SynthaMax Dry Media - Black 703-451 Airaid SynthaMax Dry Media - Blue

For your Oiled media filter we

suggest using the AIRAID Filter

Tune-Up Kit!

Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning
with common non-petroleum all-purpose
household cleaner and water. Simple
Green®, Formula 409® or equivalent
works great. Apply cleaner to outside of
air filter and allow to soak. Then flush
filter clean from the inside out with a gar­den hose and repeat steps if necessary.
Do not apply high pressure water or air
to clean filter. Allow filter to air dry and
reinstall.

P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray

Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 [phone] [e-mail] www.airaid.com

REV.11.14.13
