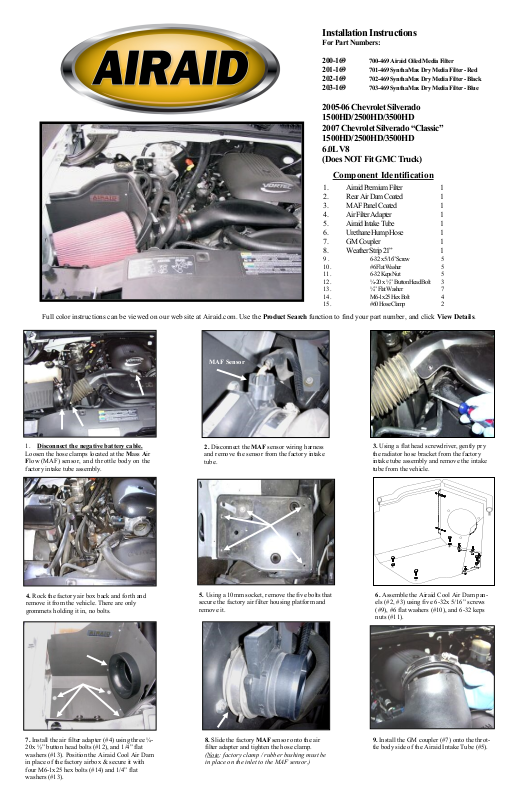

Airaid 200-169 Installation Instructions

Installation Instructions

For Part Numbers:

200-169 700-469 Airaid Oiled Media Filter
201-169 701-469 SynthaMax Dry Media Filter - Red
202-169 702-469 SynthaMax Dry Media Filter - Black
203-169 703-469 SynthaMax Dry Media Filter - Blue

2005-06 Chevrolet Silverado
1500HD/2500HD/3500HD
2007 Chevrolet Silverado “Classic”
1500HD/2500HD/3500HD

6.0L V8
(Does NOT Fit GMC Truck)

Component Identification

1. Airaid Premium Filter 1

2. Rear Air Dam Coated 1

3. MAF Panel Coated 1

4. Air Filter Adapter 1

5. Airaid Intake Tube 1

6. Urethane Hump Hose 1

7. GM Coupler 1

8. Weather Strip 21” 1

9 . 6-32 x 5/16” Screw 5

10. #6 Flat Washer 5

11. 6-32 Keps Nut 5

12. ¼-20 x ½” Button Head Bolt 3

13. ¼” Flat Washer 7

14. M6-1x25 Hex Bolt 4

15. #60 Hose Clamp 2

Full color instructions can be viewed on our web site at Airaid.com. Use the Product Search function to find your part number, and click View Details.

MAF Sensor

1. Disconnect the negative battery cable.
Loosen the hose clamps located at the Mass Air
Flow (MAF) sen sor , an d thr ottle b ody on the
factory intake tube assembly.

4. Rock the factory air box back and forth and
remove it from the vehicle. There are only
grommets holding it in, no bolts.

2. Disconnect the MAF sensor wiring harness
and remove the sensor from the factory intake
tube.

5. Using a 10mm socket, remove the five bolts that
secure the factory air filter housing platform and
remove it.

3. Using a flat head screwdriver, gently pry
the radiator hose bracket from the factory
intake tube assembly and remove the intake
tube from the vehicle.

6. Assemble the Airaid Cool Air Dam pan­els (#2, #3) using five 6-32x 5/16” screws
(#9), #6 flat washers (#10), and 6-32 keps
nuts (#11).

7. Install the air filter adapter (#4) using three ¼­20x ½” button head bolts (#12), and 1/4” flat
washers (#13). Position the Airaid Cool Air Dam
in place of the factory airbox & secure it with
four M6-1x25 hex bolts (#14) and 1/4” flat
washers (#13).

8. Slide the factory MAF sensor onto the air
filter adapter and tighten the hose clamp.

(Note: factory clamp / rubber bushing must be
in place on the inlet to the MAF sensor.)

9. Install the GM coupler (#7) onto the throt­tle body side of the Airaid Intake Tube (#5).

10. Install the urethane hump hose (#6) onto
the Airaid Intake Tube (#5) and the MAF sen­sor with two #60 hose clamps (#15). Install
the tube assembly onto the engine. (Hint: slide

the hump hose all the way onto the end of the
tube.)

11. Reconnect the wiring harness to the
MAF sensor .

12. Press the weather strip (#8) along the top

edges of the Airaid Cool Air Dam; assure that it
is fully seated along the edges. (Hint: B egin at a
corner and work toward the ends). Mount the
Airaid Premium Filter (#1) onto the air filter
adapter and tighten the hose clamp.

13. Double check your work!

Make sure there is no foreign material in the intake path. Make sure all clamps, hoses, bolts, and screws are tight.

14. Reconnect the negative battery cable!

Note: Provisions have been made to mount the factory filter minder if you choose. A 17mm hole must be drilled on the back side of the tube. A circular impression on the
rear of the tube indicates the correct location for the hole. Use the factory grommet to mount the filter minder.

WARNING! If your vehicle has a Vehicle Emission Control Infor mation decal affixed t o the factor y air ­box, a new replacement label must be obtained and installed in a readily visible position in the engine compart­ment in order to remain CARB compliant. Failure to do so will prevent the vehicle from passing a smog check.
Replacement labels can be ordered from your local dealership. Regulations state that the VECI label shall not be
affixed to any equipment which is easily detached from the vehicle. Label placement, under the hood on a paint­ed surface is recommended.

Thank you for purchasing the Airaid Intake System. Contact Airaid @ [phone] 8:00 AM - 5:00 PM MST weekdays for questions
regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are
missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to wa­ter and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILITY! The air filter
is reusable and should be cleaned periodically.

FILTER IDENTIFICATION

700-469 Airaid Oiled Media 701-469 Airaid SynthaMax Dry Media - Red

702-469 Airaid SynthaMax Dry Media - Black 703-469 Airaid SynthaMax Dry Media - Blue

For your Oiled media filter we

suggest using the AIRAID Filter

Tune-Up Kit!

P/N 790-551 Aerosol Spray
P/N 790-550 Squeeze Spray

Synthamax Air Filters do not require oil.
Service air filter as needed by cleaning
with common non-petroleum all-purpose
household cleaner and water. Simple
Green®, Formula 409® or equivalent
works great. Apply cleaner to outside of
air filter and allow to soak. Then flush
filter clean from the inside out with a gar­den hose and repeat steps if necessary.
Do not apply high pressure water or air
to clean filter. Allow filter to air dry and
reinstall.

Airaid Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 [phone] [e-mail] www.airaid.com

REV.11.14.13
