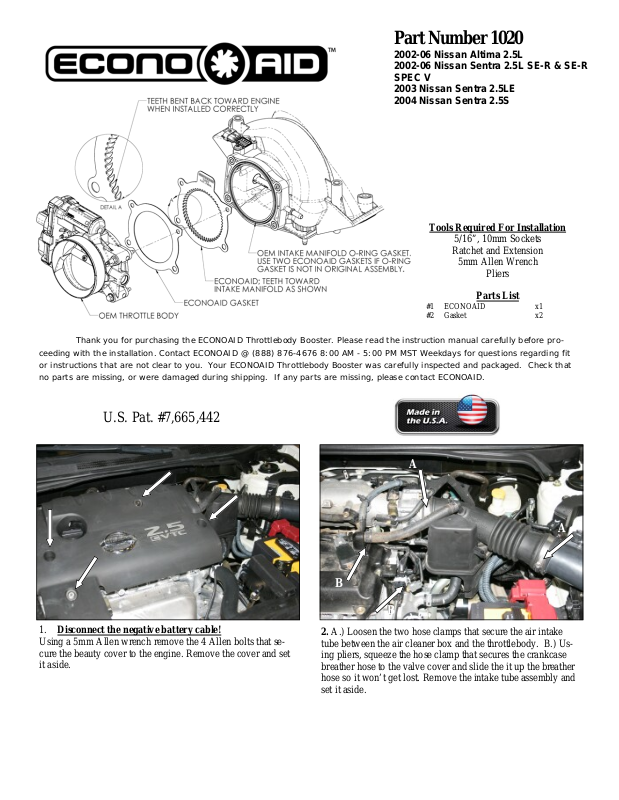

Airaid 1020 User Manual

Part Number 1020

2002-06 Nissan Altima 2.5L
2002-06 Nissan Sentra 2.5L SE-R & SE-R
SPEC V
2003 Nissan Sentra 2.5LE
2004 Nissan Sentra 2.5S

Tools Required For Installation

5/16”, 10mm Sockets

Ratchet and Extension

5mm Allen Wrench

Pliers

#1 ECONOAID x1
#2 Gasket x2

Thank you for purchasing the ECONOAID Throttlebody Booster. Please read the instruction manual carefully before pro­ceeding with the installation. Contact ECONOAID @ [phone] 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit
or instructions that are not clear to you. Your ECONOAI D Throttlebody Booster was carefully inspected and packaged. Check that
no parts are missing, or were damaged during shipping. If any parts are missing, please contact ECONOAID.

Parts List

U.S. Pat. #7,665,442

A

A

B

1. Disconnect the negative battery cable!
Using a 5mm Allen wrench remove the 4 Allen bolts that se­cure the beauty cover to the engine. Remove the cover and set
it aside.

B

2. A.) Loosen the two hose clamps that secure the air intake

tube between the air cleaner box and the throttlebody. B.) Us­ing pliers, squeeze the hose clamp that secures the crankcase
breather hose to the valve cover and slide the it up the breather
hose so it won’t get lost. Remove the intake tube assembly and
set it aside.

ECONOAID

Fiber Gaskets

3. Remove the 4 bolts that secure the throttlebody to the in-

take manifold. Remove the throttlebody from the intake mani­fold and remove the old gasket.

5. Reinstall the throttlebody onto the intake manifold and
tighten all four bolts to the vehicle manufacturer’s specifica­tions. Before starting the engine, open and close the throttle­body to make sure there are no obstructions. Reinstall the
intake tube and the beauty cover in the reverse order that they
were removed.

4. Install one of the supplied gaskets on each side of the
ECONOAID Throttlebody Booster and then install the
ECONOAID between the intake manifold and the throttle­body making sure that the logo is facing the throttlebody.

6. Double check your work. Make sure there is no foreign
material in the intake tract. Make sure all clamps, connectors,
hoses, nuts, and bolts are secure.

Reconnect the negative battery cable.

Included with your ECONOAID Throttlebody Booster
is a decal with the California Air Resources Board
( C.A.R.B. ) Executive Order number D-520-4. This
decal must be placed in plain view inside the engine
compartment. Failure to do may prevent you from
passing a smog inspection.

Instructions Revision

11/12/10

ECONOAID 2688 E Rose Garden Ln. Phoenix, AZ 85050 [phone] www.ECONOAID.com
