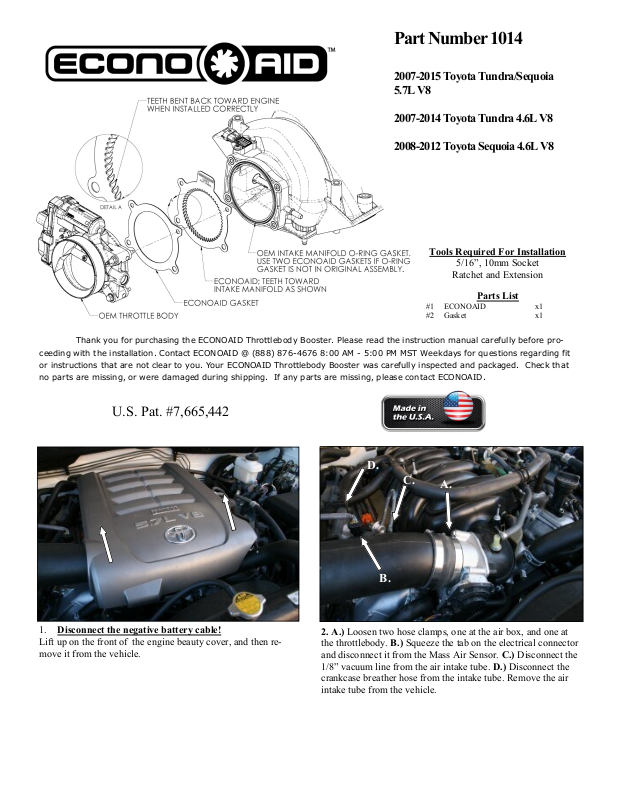

Airaid 1014 User Manual

Part Number 1014

2007-2015 Toyota Tundra/Sequoia

5.7L V8

2007-2014 Toyota Tundra 4.6L V8

2008-2012 Toyota Sequoia 4.6L V8

Tools Required For Installation

5/16”, 10mm Socket

Ratchet and Extension

#1 ECONOAID x1
#2 Gasket x1

Thank you for purchasing the ECONOAID Throttlebody Booster. Please read the instruction manual carefully before pro­ceeding with the installation. Contact ECONOAID @ [phone] 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit
or instructions that are not clear to you. Your ECONOAID Throttlebody Booster was carefully inspected and packaged. Check that
no parts are missing, or were damaged during shipping. If any parts are missing, please contact ECONOAID.

Parts List

U.S. Pat. #7,665,442

D.

C.

B.

A.

1. Disconnect the negative battery cable!
Lift up on the front of the engine beauty cover, and then re­move it from the vehicle.

2. A.) Loosen two hose clamps, one at the air box, and one at
the throttlebody. B.) Squeeze the tab on the electrical connector
and disconnect it from the Mass Air Sensor. C.) Disconnect the
1/8” vacuum line from the air intake tube. D.) Disconnect the
crankcase breather hose from the intake tube. Remove the air
intake tube from the vehicle.

ECONOAID

Fiber Gasket

3. Remove the four bolts that hold the throttlebody to the in-

take manifold.

1.

4.

3.

2.

5. Reinstall the factory bolts and tighten them in a cross pattern

to the manufacturer’s specifications. Before starting the engine,
open and close the throttlebody to make sure there are no ob­structions.

4. Install the ECONOAID Throttlebody Booster against the
intake manifold with the logo facing the throttlebody. Next
install the supplied gasket between the ECONOAID and the
throttlebody.

6. Reinstall the air intake tube and reconnect the hoses and elec­trical connectors. Tighten all hose clamps. Reinstall the beauty
cover.

7. Double check your work. Make sure there is no foreign
material in the intake tract. Make sure all clamps, hoses, con­nectors, nuts, and bolts are secure.

Reconnect the negative battery cable.

ECONOAID 2688 E Rose Garden Ln. Phoenix, AZ 85050 [phone] www.ECONOAID.com

Instructions Revision

12.09.14
