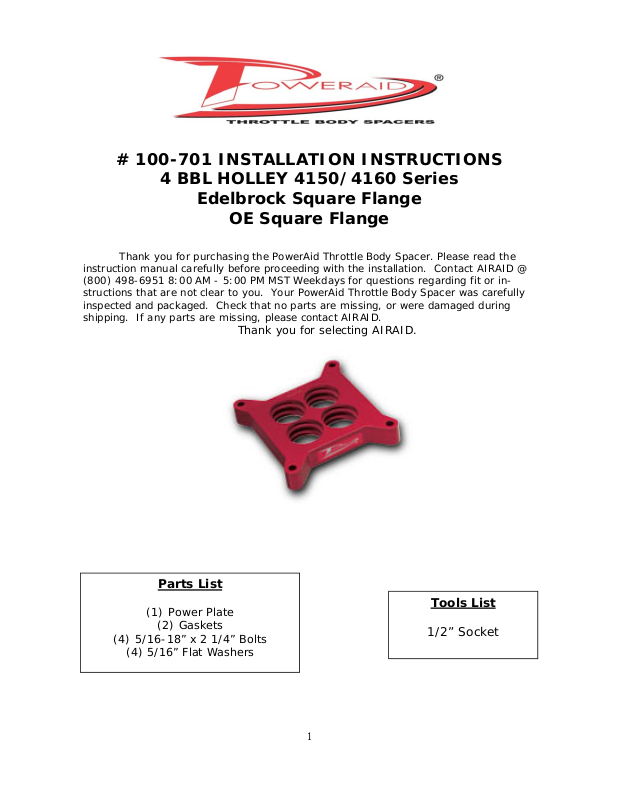

# 100-701 INSTALLATION INSTRUCTIONS
4 BBL HOLLEY 4150/4160 Series
Edelbrock Square Flange
OE Square Flange
Thank you for purchasing the PowerAid Throttle Body Spacer. Please read the
instruction manual carefully bef ore proceeding with the installation. Cont ac t AIRAID @
(800) 498-6951 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit or instructions that are not clear to you. Your PowerAid Throttle Body Spacer was carefully
inspected and packaged. Check that no parts are missing, or were damaged during
shipping. If any parts are missing, please contact AIRAID.
Thank you for selecting AIRAID.
Parts List
(1) Power Plate
(2) Gaskets
(4) 5/16-18” x 2 1/4” Bolts
(4) 5/16” Flat Washers
Tools List
1/2” Socket
1
Installation Instructions. Read Me!
1. DISCONNECT NEGATIVE (-) BATTERY CABLE.
2. Remove air cleaner.
3. Remove (4) bolts.
4. Remove carburetor.
5. Remove gasket and clean surfaces.
6. Install power plate with (2) gaskets.
A. (1) between carburetor and power plate.
B. (1) between power plate and manifold.
7. Install (4) 5/16-18” x 2 1/4” bolts and (4) 5/16” flat washers, using Step #2 as an example.
8. Inspect & Test throttle linkage for full Open & Closed travel be fore driving. Some cruise or kickdown cables
may require adjustment. Please refer to your vehicles service manual for proper adjusting.
9. Reinstall the air cleaner.
10. Reconnect battery cable. Enjoy!
The sound of power...The “whistle” means its working!
Rev. 02-05-07
AIRAID Filter Co. 2688 E Rose Garden Ln. Phoenix AZ 85050 (800) 498-6951 Airaidinfo@airaid.com www.airaid.com
