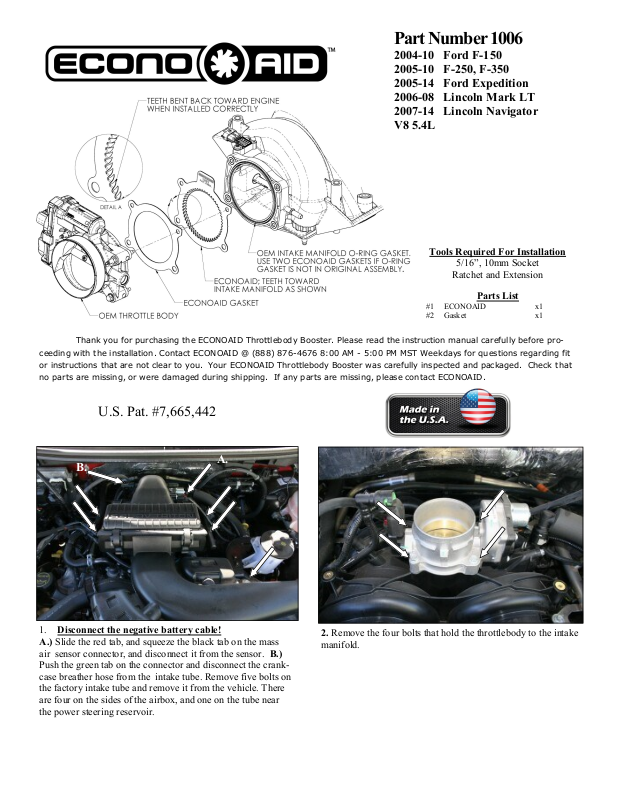

Airaid 1006 User Manual

Part Number 1006

2004-10 Ford F-150
2005-10 F-250, F-350
2005-14 Ford Expedition
2006-08 Lincoln Mark LT
2007-14 Lincoln Navigator
V8 5.4L

Tools Required For Installation

5/16”, 10mm Socket

Ratchet and Extension

#1 ECONOAID x1
#2 Gasket x1

Thank you for purchasing the ECONOAID Throttlebody Booster. Please read the instruction manual carefully before pro­ceeding with the installation. Contact ECONOAID @ [phone] 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit
or instructions that are not clear to you. Your ECONOAID Throttlebody Booster was carefully inspected and packaged. Check that
no parts are missing, or were damaged during shipping. If any parts are missing, please contact ECONOAID.

Parts List

U.S. Pat. #7,665,442

B.

A.

1. Disconnect the negative battery cable!
A.) Slide the red tab, and squeeze the black tab on the mass

air sensor connector, and disconnect it from the sensor. B.)
Push the green tab on the connector and disconnect the crank­case breather hose from the intake tube. Remove five bolts on
the factory intake tube and remove it from the vehicle. There
are four on the sides of the airbox, and one on the tube near
the power steering reservoir.

2. Remove the four bolts that hold the throttlebody to the intake
manifold.

1.

4.

Fiber Gasket

ECONOAID

3. Install the ECONOAID Throttlebody Booster against the

intake manifold with the logo facing the throttlebody. Next
install the supplied gasket between the ECONOAID and the
throttlebody.

3.

4. Reinstall the factory bolts and tighten them in a cross pat-

tern to the manufacturer’s specifications. Before starting the
engine, open and close the throttlebody to make sure there are
no obstructions.

6. Double check your work. Make sure there is no foreign ma­terial in the intake tract. Make sure all clamps, hoses, connect­ors, nuts, and bolts are secure.

Reconnect the negative battery cable.

2.

5. Reinstall the intake tube and tighten the five bolts. Recon-

nect the mass air sensor. Reconnect the crankcase breather
hose.

ECONOAID 2688 E Rose Garden Ln. Phoenix, AZ 85050 [phone] www.ECONOAID.com

Instructions Revision

10.07.14
