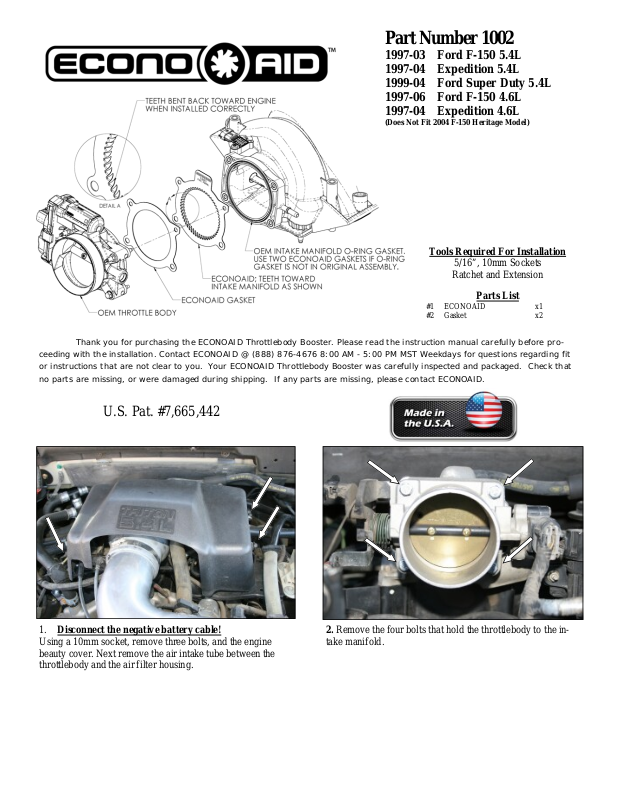

Airaid 1002 User Manual

Part Number 1002

1997-03 Ford F-150 5.4L
1997-04 Expedition 5.4L
1999-04 Ford Super Duty 5.4L
1997-06 Ford F-150 4.6L
1997-04 Expedition 4.6L

(Does Not Fit 2004 F-150 Heritage Model)

Tools Required For Installation

5/16”, 10mm Sockets

Ratchet and Extension

#1 ECONOAID x1
#2 Gasket x2

Thank you for purchasing the ECONOAID Throttlebody Booster. Please read the instruction manual carefully before pro­ceeding with the installation. Contact ECONOAID @ [phone] 8:00 AM - 5:00 PM MST Weekdays for questions regarding fit
or instructions that are not clear to you. Your ECONOAI D Throttlebody Booster was carefully inspected and pack aged. Check that
no parts are missing, or were damaged during shipping. If any parts are missing, please contact ECONOAID.

Parts List

U.S. Pat. #7,665,442

1. Disconnect the negative battery cable!
Using a 10mm socket, remove three bolts, and the engine
beauty cover. Next remove the air intake tube between the
throttlebody and the air filter housing.

2. Remove the four bolts that hold the throttlebody to the in­take manifold.

Rear Gasket

Front Gasket

ECONOAID

3. Pull the throttlebody away from the intake manifold, install

the ECONOAID Throttlebody Booster against the intake
manifold in between the two supplied gaskets with the logo
facing the throttlebody. Reinstall the throttlebody onto the
intake manifold using the factory hardware.

5. Reinstall the intake tube and beauty cover. Double check
your work! Make sure all nuts, bolts, hoses, clamps, and con­nectors are tight.

Re connect the negative battery cable!

4. Before starting the engine, open the throttlebody to make

sure that there are no obstructions.

Included with your ECONOAID Throttlebody Booster is a
decal with the California Air Resources Board ( C.A.R.B. )
Executive Order number D-520-4. This decal must be placed
in plain view inside the engine compartment. Failure to do
may prevent you from passing a smog inspection.

Instructions Revision

11/11/10

ECONOAID 2688 E Rose Garden Ln. Phoenix, AZ 85050 [phone] www.ECONOAID.com
