Aiphone PB-1 User Manual

AlPHONE

832665 PB-11-0384®

PAGING ADAPTOR

MODEL PB-1

With automatic background music cutout

Allows connection of AlPHONE TB-F and TB-H systems to most existing paging or background music
system.

- INSTRUCTIONS -

NAMES AND FUNCTIONS

Volume control for background
Bass control for background music.
Treble control for background music.

(J) Volume control for paging.

music.

Bass control for paging.
Treble control for paging.
Connections.

(^Volume control for pre-tone.

AlPHONE PB-1 paging adaptor controls allow individual adjustment of paging or background music volume or both

before entering a single input on any standard P.A. amplifier.

SPECIFICATIONS

PB-1

* Power source:
* Current consumption:

* Output:
* Tone controls for music:
* Tone controls for paging:
* Music input:

12V DC. Use PS-12A (or PS-12C) power supply which must be connected directly

to PB-1 and then may be extended to phone network.
20 mA maximum.

5K ohm; 1.5 volt maximum.
Treble : at lOK Hz, 12 dB. Bass : at 100 Hz, 12 dB.
Treble : at lOK Hz, 12 dB. Bass : at 100 Hz., 12 dB.

17K ohm; 0.3 volt, IK Hz for full output.

AMPLIFIER REQUIREMENTS
* Input:

TUNER OUTPUT REQUIREMENTS
* Use audio output:

TAPE OUTPUT REQUIREMENTS
* Use low level output:

Connect to either AUX or PHONO terminal 100K-500K ohm, 0.12-0.5 volt.
RANGE; 100 mV-1.2V, lOK ohm or less.

RANGE; 100 mV-1.2V, 600 ohm.

FEATURES:

* Provides a single zone paging when used with Aiphone TB-F system.
* Any number of separate zones of paging may be established when used with Aiphone TB-H system. One potential phone

must be deducted for each paging block installed.

* Separate paging channel from conversation channel. A conversation taking place on any phone will not be broadcast

over paging speakers.

* Individual volume and tone controls for background music and paging.
* Pre-tone prior to paging announcement to attract attention of people.
* Talkback paging may be added when used in conjunction with PB-2.
* Hardware for wall mounting included.

INSTALLATION

Do not attempt to install your PB-1 adaptor until you have read and thoroughly understood the installation procedure.
Requirements indicated under SPECIFICATIONS on page one of this manual MUST BE MET. Aiphone’s warranty for the
adaptor and the system is void if adaptor is installed in a manner other than described in this manual.

ACTUAL PB-1 TERMINAL LOCATIONS

if—

-----

©O

DC power connections.
For paging input, (and block

+

w

M

— P

GND

P2

P,

©

.i i

C

GND

A

(M)(gNS)

selection in TB-H system)
Connect to the music output.
Connect to the amplifier input.
Not required for TB-F or TB-H

WIRING REQUIRED

system.

1) From phone network to PB-1;

( a) with TB-F system;

I b) with TB-H system:

2) From BGM source to PB-1;

3) From PB-1 to paging amplifier;

4) From paging amplifier to speakers;

3 conductors.
2 common plus one per PB-1.
2 conductors (shielded cable must be used).
2 conductors (shielded cable must be used).
2 conductors.

TB-F PHONE SYSTEM WITH SINGLE ZONE PAGING

AIPHONE Model TB-F provides a separate channel for paging and does not require any potential phone to be

deducted from your communication network and thus allows independent paging announcement with phone-to-phone
communication present.

* One PB-1, one paging amplifier and appropriate paging speakers must be used in addition to the TB-F system powered by

PS-12A (or PS-12C) power supply.

NON-POLAR I ZED

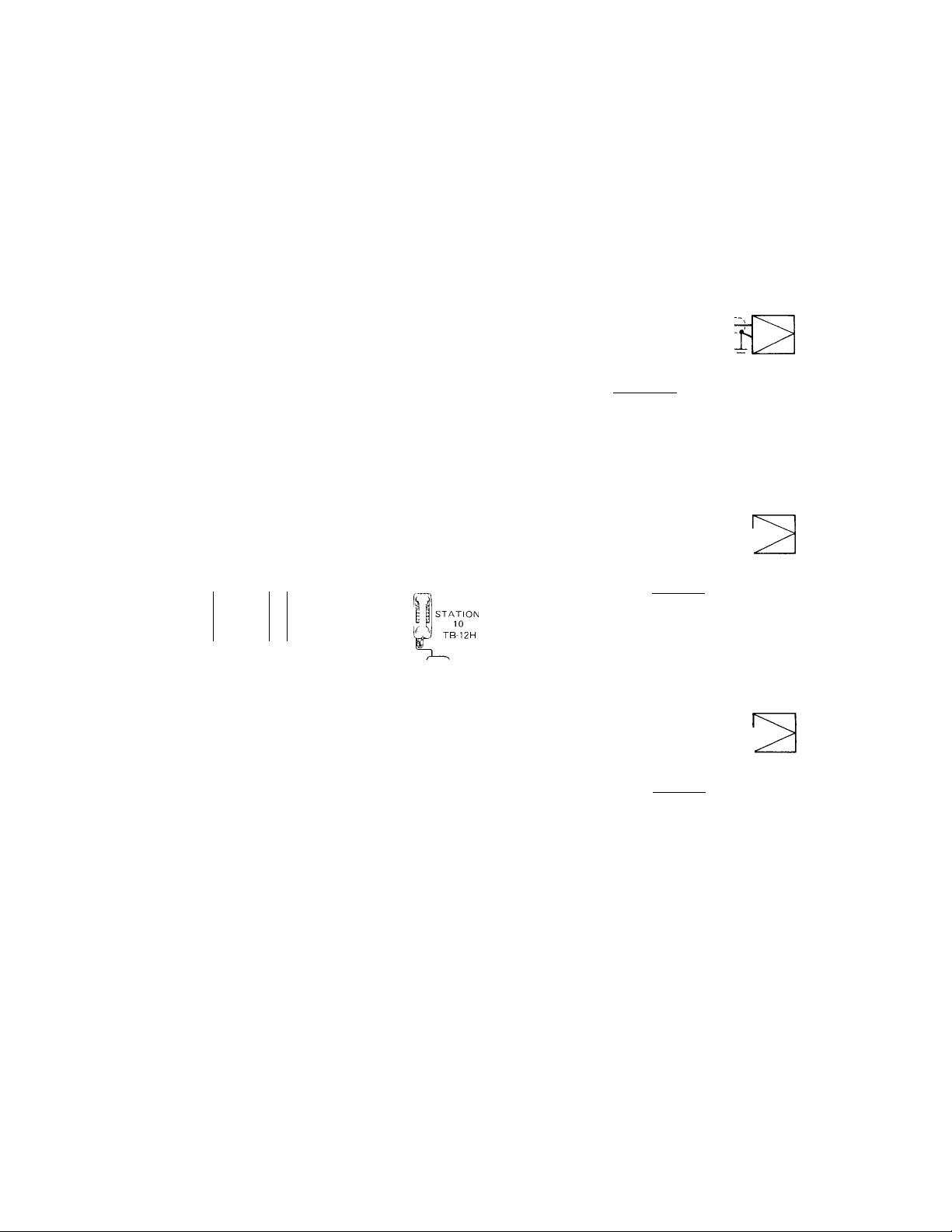

TB-H PHONE SYSTEM WITH THREE PAGING BLOCKS

AlPHONE MODEL TB-H is a multi-channel system allowing not only multiple separate communications between

phone stations but also multiple separate paging operations at the same time.

1) You may install paging blocks as selector
capability of your TB-H system allows.

2) One potential phone must be deducted from
phone network for each paging block

installed.

3) OnePB-1, one paging amplifier and appropri
ate paging speakers must be used for each
block.

In this example selector button # 10 on each
phone operates block # 1, selector button #11
operates block # 2 and selector button # 12
operates block # 3.

0 0 0 0 0 0

P

____

+ I- Im Ignd a gnd

BLOCK #1

PAGING
SPEAKER

BLOCK #2

PAGING
SPEAKER j

___

"Sr

____

I i

V-

STATION

TB-12H

3^

5^
eW

0

W
1 1

7

STATION

o

STATION

8

TB-12H TB-12H

9

p

T0

10

W

30

40

^0

GND A GND

PAGING

SPEAKER

BLOCK #3

r\j.

______

. ■■ PB-1

^ ^ 0

2)

'60

0

80

GND A GND

9^

90

w
'W

100

1,0
120

D0

0

10

0
0

0

lEM

07

0^

71

PS-12A or
PS-12C
Power Supply

nZ2

BACKGROUND
MUSIC SOURCE

ADJUSTING CONTROLS

1) Set PB-1 volume, treble, and bass controls for both background music and paging at midpoint.

2) Adjust volume control on paging amplifier to desired level for paging. If paging amplifier has treble and bass controls,
set them at midpoint.

3) Adjust PB-1 background music volume control to achieve desired background music level. Fine tune background
music treble and bass by adjusting controls on PB-1.

4) Fine tune paging treble and bass controls on PB-1.

TB-F PAGING OPERATION

Pick up the handset and make announcement by pushing and holding the paging button. Background music will

1)
automatically cut out during paging.

2) If you wish a reply, wait by holding the handset but releasing the paging button (a called person can reply from a
nearest phone).

NOTE: Separate paging channel allows paging announcement while a conversation takes place between other phones. A

conversation with door, however, uses the paging channel and will be interupted by paging announcement.

TB-H PAGING OPERATION

1) Pick up the handset and depress the selector button.

2) Make paging announcement by pushing and holding the paging button. Background music will automatically cut out
during paging.

3) If you wish a reply, wait by holding the handset but releasing the paging button (a called person can reply by
depressing the selector button corresponding to the block now paged on a nearest phone).

We at AIPHONE are proud of our products. Our designers and engineers strive to bring you the finest in com
munication equipment. Each item has been carefully tested and inspected before leaving our factory. Properly installed
and used, your Aiphone intercom system should give years of trouble-free service.
We are pleased to offer the following warranty;

WARRANTY

Aiphone warrants its products to be free from defects of material and workmanship under normal
use and service for a period of one year after delivery to the ultimate user and will repair free of
charge or replace at no charge, should it become defective upon which examination shall disclose
to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final
decision whether there is a defect in materials and/or workmanship; and whether or not the prod
uct is within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect,
accident, or to use in violation of instructions furnished, nor extended to units which have been
repaired or altered outside of the factory.
This warranty does not cover batteries or damage caused by batteries used in connection with the
product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place des
ignated in writing by Aiphone. Aiphone will not be responsible for any costs incurred involving on
site service calls.
