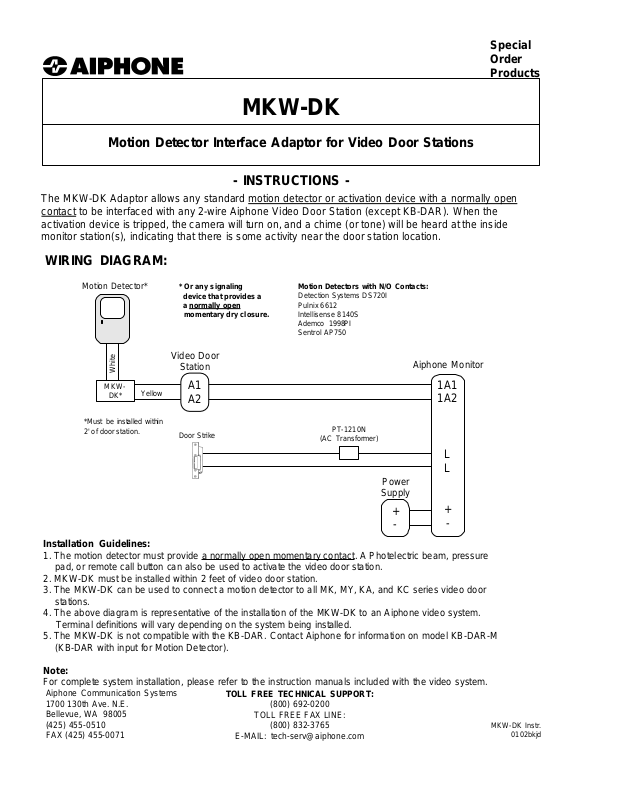

MKW-DK

Motion Detector Interface Adaptor for Video Door Stations

- INSTRUCTIONS -

The MKW-DK Adaptor allows any standard motion detector or activation device with a normally open
contact to be interfaced with any 2-wire Aiphone Video Door Station (except KB-DAR). When the

activation device is tripped, the camera will turn on, and a chime (or tone) will be heard at the inside
monitor station(s), indicating that there is some activity near the door station location.

WIRING DIAGRAM:

Motion Detector*

* Or any signaling
device that provides a

a normally open

momentary dry closure.

Motion Detectors with N/O Contacts:

Detection Systems DS720I
Pulnix 6612
Intellisense 8140S
Ademco 1998PI
Sentrol AP750

Video Door

White

MKW-

DK*

*Must be installed within
2' of door station.

Yellow

Station

A1
A2

Door Strike

PT-1210N

(AC Transformer)

Aiphone Monitor

1A1
1A2

L
L

Power

Supply

+

-

Installation Guidelines:

1. The motion detector must provide a normally open momentary contact. A Photelectric beam, pressure
pad, or remote call button can also be used to activate the video door station.

2. MKW-DK must be installed within 2 feet of video door station.

3. The MKW-DK can be used to connect a motion detector to all MK, MY, KA, and KC series video door
stations.

4. The above diagram is representative of the installation of the MKW-DK to an Aiphone video system.
Terminal definitions will vary depending on the system being installed.

5. The MKW-DK is not compatible with the KB-DAR. Contact Aiphone for information on model KB-DAR-M
(KB-DAR with input for Motion Detector).

+

-

Note:

For complete system installation, please refer to the instruction manuals included with the video system.
