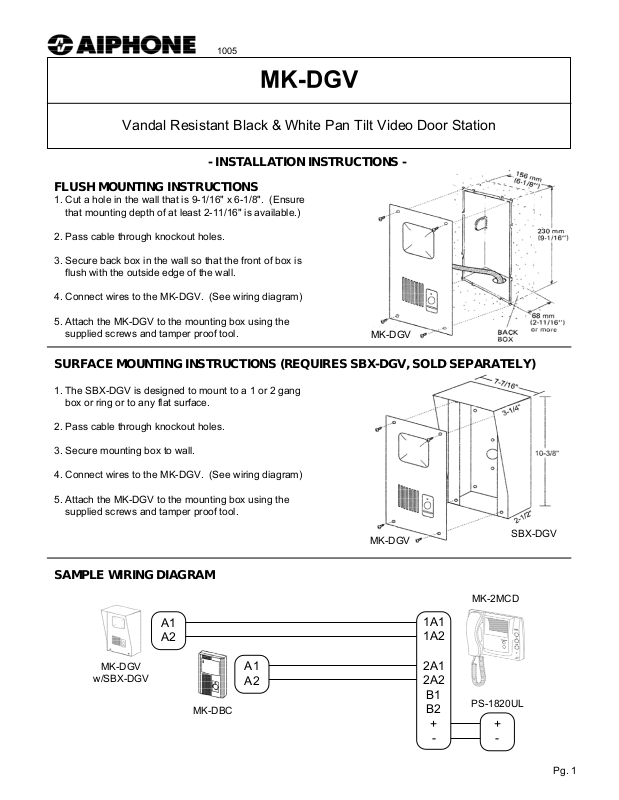

Aiphone MK-DGV INSTALLATION INSTRUCTIONS

1005

Vandal Resistant Black & White Pan Tilt Video Door Station

- INSTALLATION INSTRUCTIONS -

FLUSH MOUNTING INSTRUCTIONS

1. Cut a hole in the wall that is 9-1/16" x 6-1/8". (Ensure that mounting depth of at least 2-11/16" is available.)

2. Pass cable through knockout holes.

3. Secure back box in the wall so that the front of box is flush with the outside edge of the wall.

4. Connect wires to the MK-DGV. (See wiring diagram)

5. Attach the MK-DGV to the mounting box using the supplied screws and tamper proof tool.

MK-DGV

SURFACE MOUNTING INSTRUCTIONS (REQUIRES SBX-DGV, SOLD SEPARATELY)

1. The SBX-DGV is designed to mount to a 1 or 2 gang box or ring or to any flat surface.

2. Pass cable through knockout holes.

3. Secure mounting box to wall.

4. Connect wires to the MK-DGV. (See wiring diagram)

5. Attach the MK-DGV to the mounting box using the supplied screws and tamper proof tool.

MK-DGV

SBX-DGV

SAMPLE WIRING DIAGRAM

MK-2MCD

A1 A2

1A1 1A2

MK-DGV

w/SBX-DGV

MK-DBC

A1 A2

2A1 2A2

B1 B2

PS-1820UL

Pg. 1

WIRING PRECAUTIONS

1. Keep video wires at least 12" away from AC 100~240V power lines.

2. Use 2 conductor non-shielded wire with PE insulation. (Aiphone 871802 wire.) Coax-cable cannot be used.

3. If there are unused wires in the cable, install a 120Ω resistor between each pair of unused conductors.

4. Do no mix audio/video wires with those of another video door station or device in the same cable.

MK-DGV

IMAGE VIEW AREA (approx.) when panned-and-tilted

MK-2MCD

•The image viewing area is a guideline and may vary according to environment.

•The peripheral part of the monitor may be slightly distorted.

•The image may have reflective light coming into the lens from the camera cover.

MOUNTING LOCATIONS & HEIGHT

Do not install the video door station in the following locations:

- Places subject to temperature/humidity extremes.

- Places subject to dust, vapor, smoke, or chemicals.

- Places that are strongly backlit.

- Places where direct sunlight or strong light comes

into the camera lens.

OPERATION

Calling: Momentarily press CALL button on the door station.

After person at the monitor station replies, talk hands free while standing in front of the camera.

TECHNICAL PRECAUTIONS

Caulking seals: Do not apply any caulking seals around the video door station. Water drainage holes on the

bottom will help water or moisture to dissipate.

Cleaning: Clean MK-DGV with a soft cloth dampened with neutral household cleanser. Never use any

harsh cleanser or cloth. Do not spray high-pressure water on the video door station.

Pg. 2
