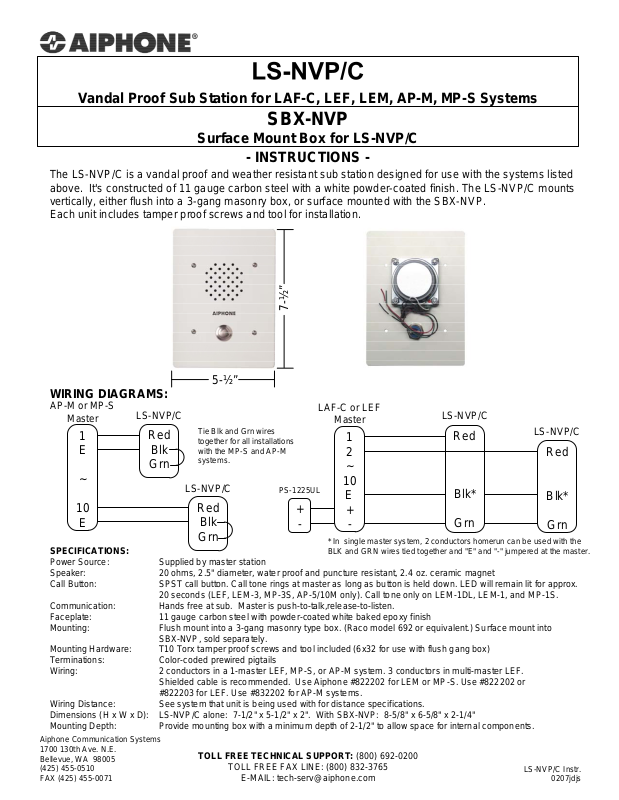

Aiphone LS-NVP/C Instruction Manual
Vandal Proof Sub Station for LAF-C, LEF, LEM, AP-M, MP-S Systems
SBX-NVP
Surface Mount Box for LS-NVP/C
- INSTRUCTIONS -
The LS-NVP/C is a vandal proof and weather resistant sub station designed for use with the systems listed
above. It's constructed of 11 gauge carbon steel with a white powder-coated finish. The LS-NVP/C mounts
vertically, either flush into a 3-gang masonry box, or surface mounted with the SBX-NVP.
Each unit includes tamper proof screws and tool for installation.
7-½”
5-½”
WIRING DIAGRAMS:
AP-M or MP-S
Master
1
E
LS-NVP/C
Red
Blk
Grn
Tie Blk and Grn wires
together for all installations
with the MP-S and AP-M
systems.
~
10
E
LS-NVP/C
Red
Blk
PS-1225UL
Grn
SPECIFICATIONS:
Power Source: Supplied by master station
Speaker: 20 ohms, 2.5" diameter, water proof and puncture resistant, 2.4 oz. ceramic magnet
Call Button: SPST call button. Call tone rings at master as long as button is held down. LED will remain lit for approx.
20 seconds (LEF, LEM-3, MP-3S, AP-5/10M only). Call tone only on LEM-1DL, LEM-1, and MP-1S.
Communication: Hands free at sub. Master is push-to-talk,release-to-listen.
Faceplate: 11 gauge carbon steel with powder-coated white baked epoxy finish
Mounting: Flush mount into a 3-gang masonry type box. (Raco model 692 or equivalent.) Surface mount into
SBX-NVP, sold separately.
Mounting Hardware: T10 Torx tamper proof screws and tool included (6x32 for use with flush gang box)
Terminations: Color-coded prewired pigtails
Wiring: 2 conductors in a 1-master LEF, MP-S, or AP-M system. 3 conductors in multi-master LEF.
Shielded cable is recommended. Use Aiphone #822202 for LEM or MP-S. Use #822202 or
#822203 for LEF. Use #832202 for AP-M systems.
Wiring Distance: See system that unit is being used with for distance specifications.
Dimensions (H x W x D): LS-NVP/C alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4"
Mounting Depth: Provide mounting box with a minimum depth of 2-1/2" to allow space for internal components.
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
TOLL FREE TECHNICAL SUPPORT: (800) 692-0200
TOLL FREE FAX LINE: (800) 832-3765
E-MAIL: tech-serv@aiphone.com
LAF-C or LEF
+
-
* In single master system, 2 conductors homerun can be used with the
BLK and GRN wires tied together and "E" and "-" jumpered at the master.
Master
1
2
~
10
E
+
-
LS-NVP/C
Red
Blk*
Grn
LS-NVP/C
Red
Blk*
Grn
LS-NVP/C Instr.
0207jdjs
