Aiphone LS-NVP-B INSTALLATION INSTRUCTIONS
Special
Order
Products
LS-NVP/B
Vandal Proof Sub Station for LAF-C, LEF, LEM, AP-M, MP-S Systems
SBX-NVP
Surface Mount Box for LS-NVP/B
- INSTRUCTIONS -
The LS-NVP/B is a vandal proof and weather resistant sub station designed for use with the systems listed
above. It's constructed of 11 gauge carbon steel with a white powder-coated finish. The LS-NVP/B mounts
vertically, either flush into a 3-gang masonry box, or surface mounted with the SBX-NVP.
Each unit includes tamper proof screws and tool for installation.

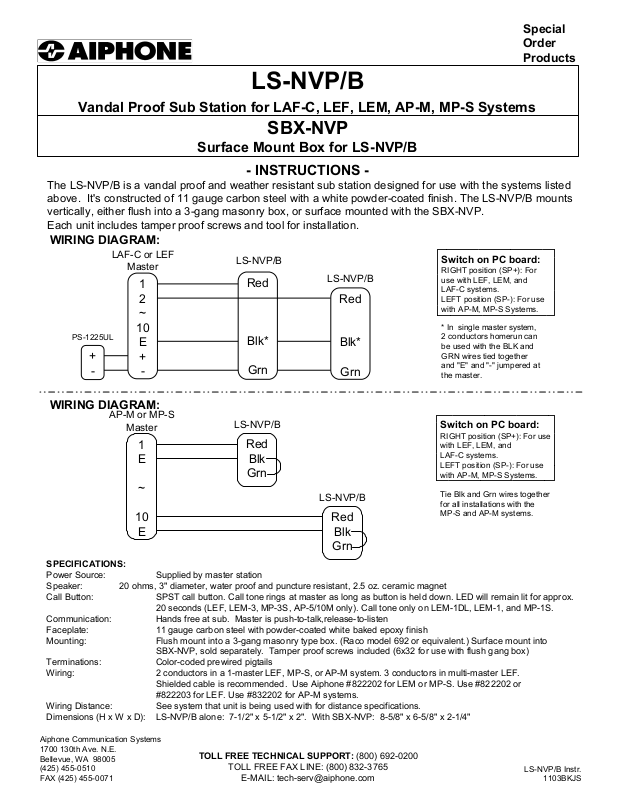

WIRING DIAGRAM:
PS-1225UL
+
-
LAF-C or LEF
Master
1
2
~
10
E
+
-
LS-NVP/B
Red
Blk*
Grn
LS-NVP/B
Red
Blk*
Grn
Switch on PC board:
RIGHT position (SP+): For
use with LEF, LEM, and
LAF-C systems.
LEFT position (SP-): For use
with AP-M, MP-S Systems.
* In single master system,
2 conductors homerun can
be used with the BLK and
GRN wires tied together
and "E" and "-" jumpered at
the master.
WIRING DIAGRAM:
AP-M or MP-S
Master
1
E
~
10
E
LS-NVP/B
Red
Blk
Grn
LS-NVP/B
Red
Blk
Switch on PC board:
RIGHT position (SP+): For use
with LEF, LEM, and
LAF-C systems.
LEFT position (SP-): For use
with AP-M, MP-S Systems.
Tie Blk and Grn wires together
for all installations with the
MP-S and AP-M systems.
Grn
SPECIFICATIONS:
Power Source: Supplied by master station
Speaker: 20 ohms, 3" diameter, water proof and puncture resistant, 2.5 oz. ceramic magnet
Call Button: SPST call button. Call tone rings at master as long as button is held down. LED will remain lit for approx.
20 seconds (LEF, LEM-3, MP-3S, AP-5/10M only). Call tone only on LEM-1DL, LEM-1, and MP-1S.
Communication: Hands free at sub. Master is push-to-talk,release-to-listen
Faceplate: 11 gauge carbon steel with powder-coated white baked epoxy finish
Mounting: Flush mount into a 3-gang masonry type box. (Raco model 692 or equivalent.) Surface mount into
SBX-NVP, sold separately. Tamper proof screws included (6x32 for use with flush gang box)
Terminations: Color-coded prewired pigtails
Wiring: 2 conductors in a 1-master LEF, MP-S, or AP-M system. 3 conductors in multi-master LEF.
Shielded cable is recommended. Use Aiphone #822202 for LEM or MP-S. Use #822202 or
#822203 for LEF. Use #832202 for AP-M systems.
Wiring Distance: See system that unit is being used with for distance specifications.
Dimensions (H x W x D): LS-NVP/B alone: 7-1/2" x 5-1/2" x 2". With SBX-NVP: 8-5/8" x 6-5/8" x 2-1/4"
Aiphone Communication Systems
1700 130th Ave. N.E.
Bellevue, WA 98005
(425) 455-0510
FAX (425) 455-0071
TOLL FREE TECHNICAL SUPPORT:
TOLL FREE FAX LINE: (800) 832-3765
E-MAIL: tech-serv@aiphone.com
(800) 692-0200
LS-NVP/B Instr.
1103BKJS
