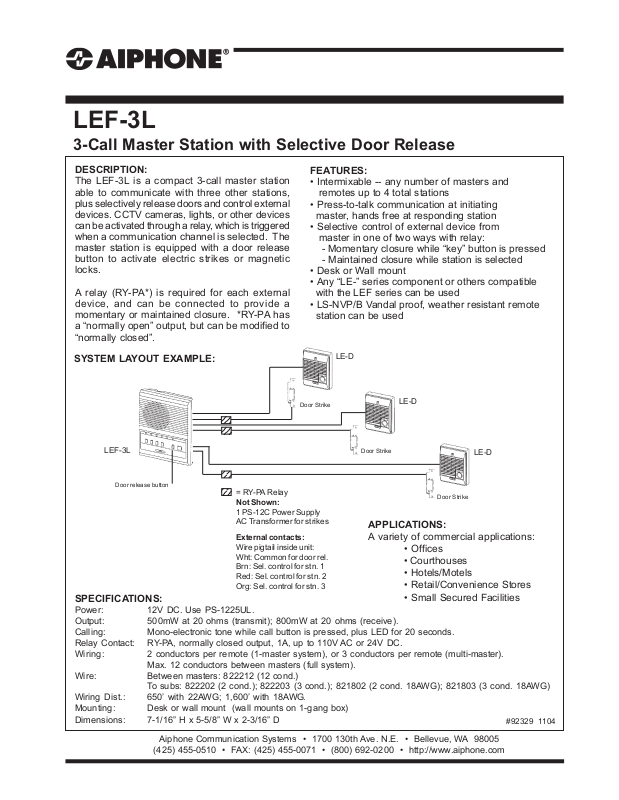

Aiphone LEF-3C Specsheet

LEF-3L

3-Call Master Station with Selective Door Release

DESCRIPTION:

The LEF-3L is a compact 3-call master station able to communicate with three other stations, plus selectively release doors and control external devices. CCTV cameras, lights, or other devices can be activated through a relay, which is triggered when a communication channel is selected. The master station is equipped with a door release button to activate electric strikes or magnetic locks.

A relay (RY-PA*) is required for each external device, and can be connected to provide a momentary or maintained closure. *RY-PA has a “normally open” output, but can be modified to “normally closed”.

SYSTEM LAYOUT EXAMPLE:

LEF-3L

FEATURES:

• Intermixable -- any number of masters and remotes up to 4 total stations

• Press-to-talk communication at initiating master, hands free at responding station

• Selective control of external device from master in one of two ways with relay:

- Momentary closure while “key” button is pressed

- Maintained closure while station is selected

• Desk or Wall mount

• Any “LE-” series component or others compatible with the LEF series can be used

• LS-NVP/B Vandal proof, weather resistant remote station can be used

LE-D

Door Strike

LE-D

Door release button

SPECIFICATIONS:

Power: 12V DC. Use PS-1225UL. Output: 500mW at 20 ohms (transmit); 800mW at 20 ohms (receive). Calling: Mono-electronic tone while call button is pressed, plus LED for 20 seconds. Relay Contact: RY-PA, normally closed output, 1A, up to 110V AC or 24V DC. Wiring: 2 conductors per remote (1-master system), or 3 conductors per remote (multi-master).

Max. 12 conductors between masters (full system).

Wire: Between masters: 822212 (12 cond.)

To subs: 822202 (2 cond.); 822203 (3 cond.); 821802 (2 cond. 18AWG); 821803 (3 cond. 18AWG) Wiring Dist.: 650’ with 22AWG; 1,600’ with 18AWG. Mounting: Desk or wall mount (wall mounts on 1-gang box) Dimensions: 7-1/16” H x 5-5/8” W x 2-3/16” D

Aiphone Communication Systems • 1700 130th Ave. N.E. • Bellevue, WA 98005

(425) 455-0510 • FAX: (425) 455-0071 • (800) 692-0200 • http://www.aiphone.com

= RY-PA Relay

Not Shown:

1 PS-12C Power Supply AC Transformer for strikes

External contacts:

Wire pigtail inside unit: Wht: Common for door rel. Brn: Sel. control for stn. 1 Red: Sel. control for stn. 2 Org: Sel. control for stn. 3

Door Strike

APPLICATIONS:

A variety of commercial applications:

• Offices

• Courthouses

• Hotels/Motels

• Retail/Convenience Stores

• Small Secured Facilities

#92329 1104
