o AlPHONE
LOUDSPEAKER INTERCOM SYSTEM
832551 0687 Q)
MODEL: LAF-3A (Type A) (3-call master)
- INSTRUCTIONS -
CONTROLS AND FUNCTIONS
(D Call annunciator LED
(?) Occupied lamp
Speaker/Microphone
(?) Off button
(s) Directory card
(?) Selector button
(7) Privacy button
(S) Talk button
(^ Volume control
(Tffl Volume control for call tone
SPECIFICATIONS:
MAY BE INTERMIXED WITH AIPHONE MODELS: LAE-5, LAF-10, LAF-IOS AND LAE-B SEMI-FLUSH MOUNT MASTERS AND SUBS.
* Power source:
* Current consumption:
* Power output:
* Master station calling:
* Wiring:
DC 12V. Use PS-12A (or PS-12C in North America) power supply.
250 mA maximum.
450 mW maximum at 20 ohm.
Push button station selection.
Press privacy and talk buttons simultaneously to call by tone.
Occupied lamp illuminates when the system is in use.
4 common wires plus 1 individual wire per station between masters or 2 common wires plus
individual wire per sub station to master station are required.
FEATURES:
* BGM and All Call can be incorporated, using LAF-IOS, LAF-7B or LAF-IOB/A, BG-1A/BG-IB and PG-IOA/PG-IOB.
* Straight paging is available through a 8 ohm horn, using PG-3.
* A call from another master — if no privacy is required - may be replied hands free.
* Privacy button on master and privacy type sub station prevent monitoring and eavesdropping.
* Separate call tone and communication volume controls on master station.
* Eight different sub stations to suit various needs.
* Automatic annunciator lamp memory for sub station call in (LED annunciation is a timed circuit).
* Calling from LAF-3A (Type A) either by tone or voice.
* Designed for desk or wall use.
- 1 -
EQUIPMENT AVAILABLE EOR USE WITH YOUR LAF-3A/A LOUDSPEAKER INTERCOM SYSTEM
LAF-3A (Type A):
3 call master station.
LAF-5: 5 call master station.
✓
LAF-10: 10 call master station.
LAF-IOS: 10-call master.
Includes all call and door release
buttons.
LA-A: Standard sub station.
LA-AN: Privacy type sub station.
LA-A3: 3 call sub station.
Places to and receives calls from up to thre<
y master stations.
LA-AN3: 3 call privacy type sub station.
LA-D: Weather resistant sub station.
LA-DA: Flush-mount door station.
PG-3: 3-watt paging amplifier.
LT-1: 20 ohm to 8 ohm matching trans
former. Connects LAF master station to
a 8 ohm paging horn.
PS-12A: Power supply (not available in
North America).
PS-12C: CSA & LIL Listed power supply
(available only in N. America).
NOTES: *For specification/installation information for Model PG-3, please refer to the Instructions packed with each PG-3
unit.
INSTALLATION
Do not attempt to install your intercom system until you have read and thoroughly understood the installation pro
cedure. Aiplione’s warranty is void if system is installed in a manner other than described in this manual.
, (T) Bottom cover. Do not open except for repair purpose.
(2) Volume control for call tone. Adjust to desired level using
screw driver.
Terminal block;
1,2, 3
C
E
R
+ , -
WALL MOUNTING INSTALLATION
1) Attach mounting bracket to wall or box with supplied
screws.
2) Mount station upon the mounting bracket.
for connecting relative stations
for receiving a call
for common communication
for occupied lamp
for power supply
WIRING
Lay out your system in advance. Determine the exact location of each station. Make a sketch showing the number of
wires required from each station to other stations. Assign station numbers at this time.
Begin your installation with master station #1. All masters included in your system should be connected and tested
before beginning sub station installation. A space is provided at the left of the diagram to write in your color code. Note the
position of C terminal on each master station. Be sure you wire each station correctly.
After installing your second station we recommend the power supply be connected to plus and minus and a test be made
for all functions calling and talking between each station. Unplug power supply while making connections.
Refer to the chart below and select the proper wire gauge to meet your requirements.
AWG WIRE SIZE
DISTANCE
DIAMETER OF WIRE
DISTANCE
24 AWG
400'
22 AWG
650'
0.5 mm 0.65 mm 0.8 mm 1.0 mm
120m
200m

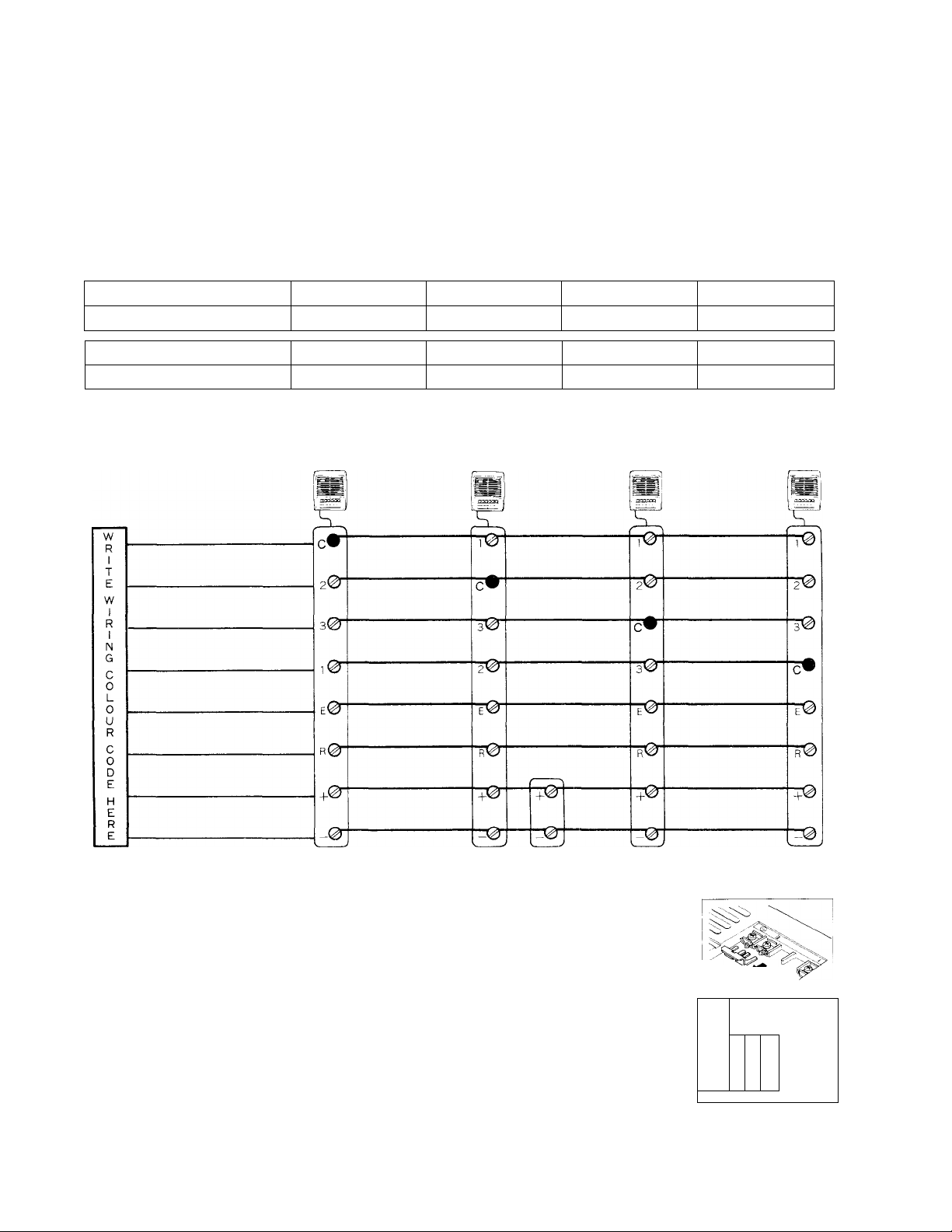

LAF-3A/A ALL MASTER SYSTEM USING PS-12A (or PS-I2C) POWER SUPPLY
STATION
1
LAF-3A/A
STATION
2
LAF-3A/A
20 AWG
18 AWG
1000' 1600'
300m
STATION
3
LAF-3A/A
480m
STATION
LAF-3A/A
4
* Locate a power supply near center of the system.
LCf-
SUB STATION INSTALLATION INFORMATION
LA-A, LA-AN and LA-D/DA: Before attempting to install, remove the shorting link
attached to terminals E and © on LA-A, LA-AN and LA-D/DA sub stations. Connect
E, © and #1 terminals on sub station to E, 0 and number terminals on master
station.
/ LA-A3 and LA-AN3: Extend 5 conductors from LA-A3 or LA-AN3 to E, © and
number terminals on first master station and then remainning 2 conductors to number
terminals on second and third master stations. Do not wire in a home-run manner.
- 3
AC 12V DC
PS-12A or PS-12C
POWER SUPPLY
LA-A & Jumper
LA-AN j remove.
©@e
i01i
0
Jumper
© ©
LA-A3 & LA-AN3
LA-D
♦
REMOVE
©

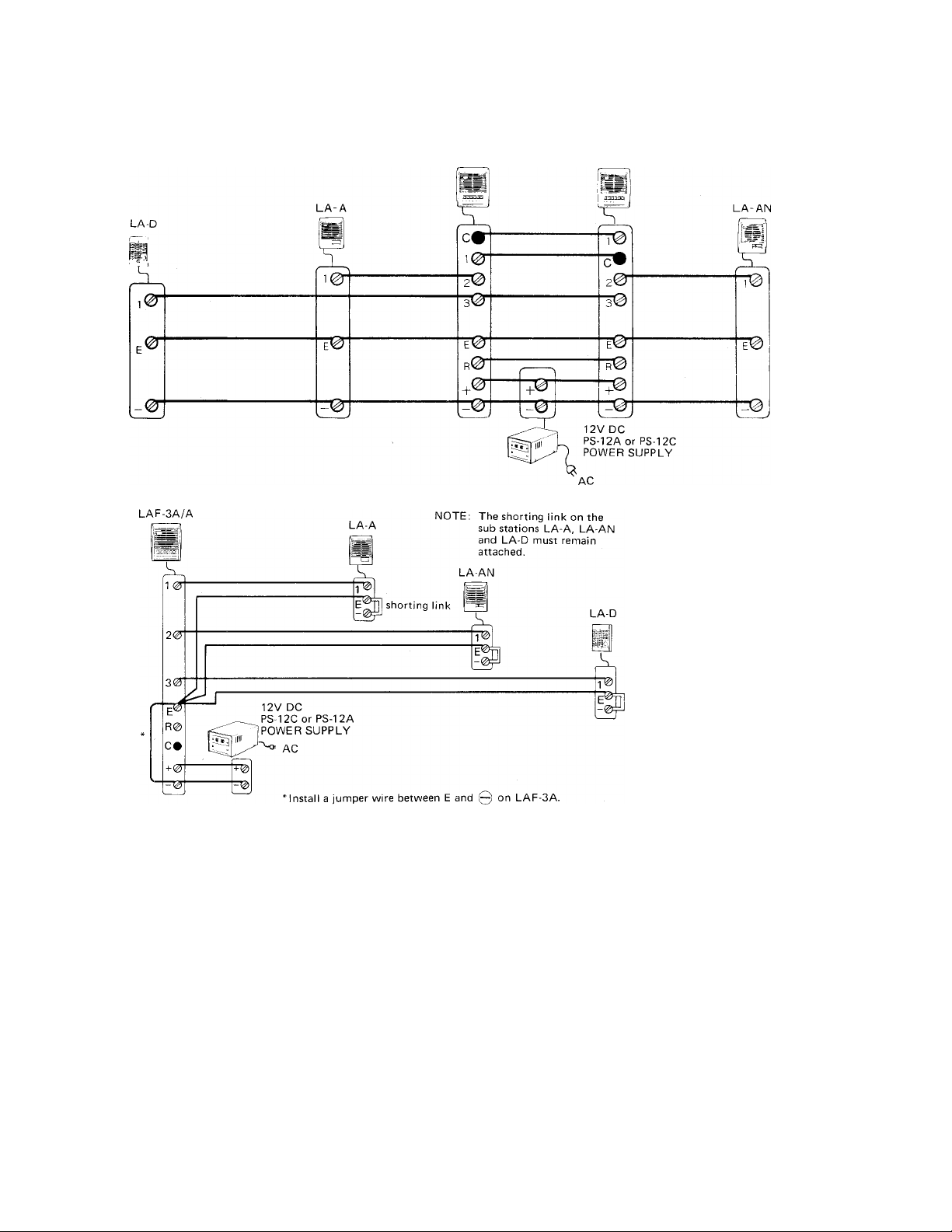

LAF-3A/A SYSTEM WITH LA-A, LA-AN AND LA-D SUBSTATIONS
In this example a call from LA-D will be received by both masters and can be replied to by either master.
LAF-3A/A LAF-3A/A
LAL-3A/A SYSTEM WITH THREE SUB STATIONS
SUB STATION OPERATING INSTRUCTIONS
LA-A & LA-D/DA:
1. Depress mometarily call button. You will hear a call tone. Wait for master to answer. After master replies, communication
from LA-A is hands free.
2. If no call tone is heard when LA-A call button is depressed, the system is occupied with another conversation. Please call
later.
LA-AN:
Calling and talking operation same as LA-A.
LA-AN has privacy switch which allows a call to be received from master but prevents sound going back to master. To place
LA-AN in privacy position, depress PRIV button. To release privacy switch for conversation, momentarily depress call botton.
LA-A3:
Same as LA-A except three buttons allowing calling and talking to three masters.
LA-AN3:
Before placing a call, unlock the privacy switch. Calling and talking operation same as LA-A3. At conclusion of conversation,
depress privacy button.

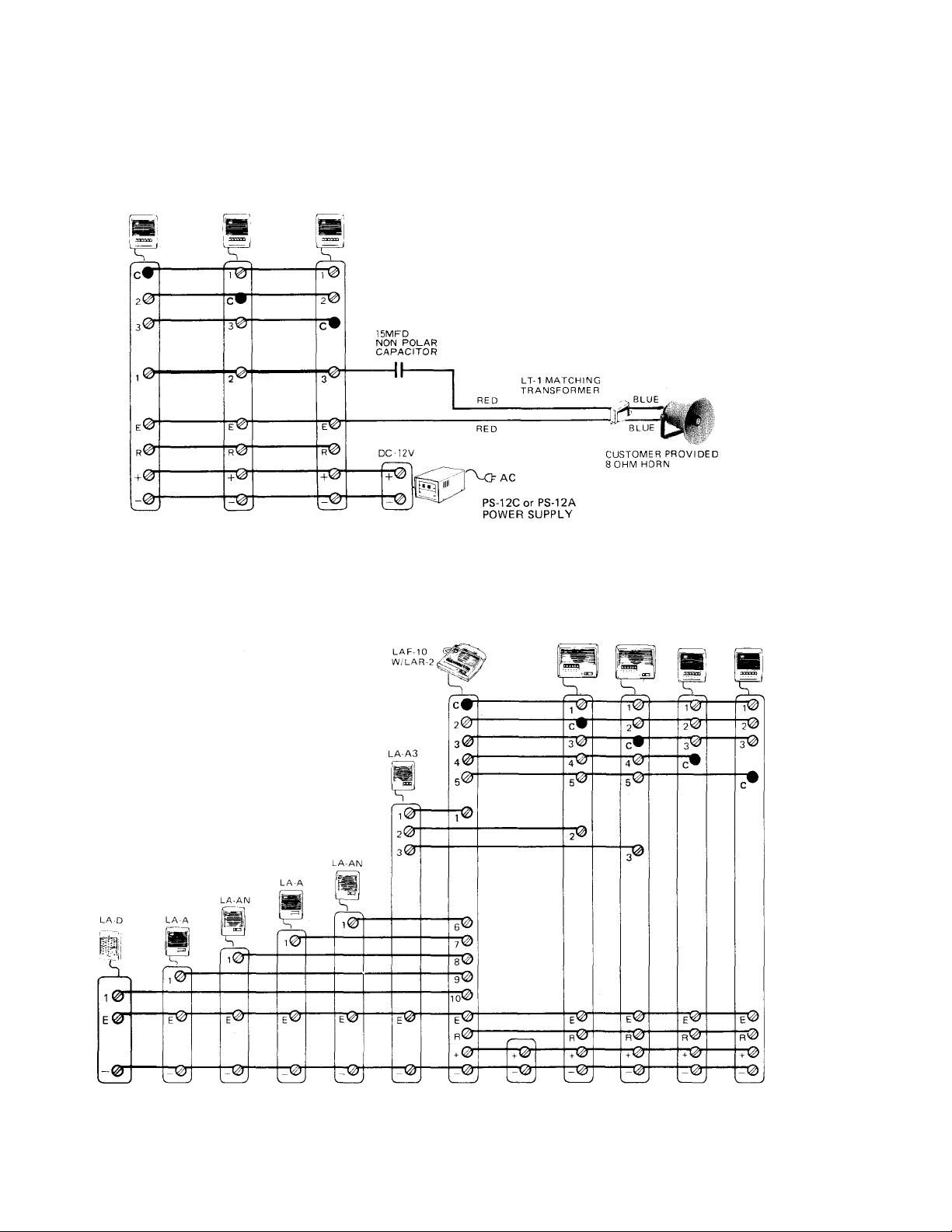

LAF-3A/A SYSTEM WITH TALKBACK PAGING HORN
Your LAP system can not be connected to a standard paging system. In addition your LAP system was not
designed to incorporate talkback paging horn substations. However, a talkback paging horn may be added to your
system as shown below.
LT-1 matching transformer is designed for using a standard 8 ohm horn in place of a substation.
15 MPD non-polarized capacitor must be installed between number terminal on master and a red lead of LT-1.
LAF-3A/A
LAF-3A/A LAF-3A/A
INTERMIXED MASTER STATIONS AND SUBSTATIONS
* Equipment available for use with a LAP system can be intermixed to provide a communications network to meet
your requirements. With proper pre-installation planning, your LAP system can become one of the most useful and
versatile intercom networks available.
LAF-6 LAF-3A/A LAF-3A/A
NOTE: 1) LAF-3A/A can not be equipped with LAR-2 optional handset.
2) Por installation information for Models: LAP-5 and LAF-10, please refer to the sheet packed with each
unit. ._5 .
12V DC
ГАС PS-12C or PS-12A
POWER SUPPLY
LAF-3A/A MASTER STATION OPERATION
* Placing a call;
Calling
(1) Select (2) Depress both
(3)OFFi| call by tone.
1) If occupied lamp is not illuminated, depress a selector button of the desired
station. Then depress talk button to call by voice direct. To call by tone,
depress privacy and talk buttons simultaneously.
2) Depress talk button to talk, and release to listen.
3) U p on completing conversation, depress off button.
NOTE: OFF button on LAF-3A/A master station, when depressed, puts station in standby mode as well as off
mode. OFF button MUST BE DEPRESSED AND LOCKED DOWN on all master stations except station
initiating a call or system will not work.
* Receiving a call from another master;
1) When your station is non-privacy position, no action is required and communication is hands free.
2) When your station is switched for privacy, release privacy switch by depressing talk button, then resume hands free
communication. Upon completing conversation, lock privacy switch or you can be monitered by other stations.
NOTE: There is no lamp annunciation between master stations except the occupied lamp.
Receiving a call from a sub station;
1) An incoming call is annunciated both by tone and lamp. Depress a
Receiving a call from sub;
(1) Depress(2) Depress
<31 OFF I I j_ to talk
selector button above the lighted call lamp.
2) Use talk button to control communications. Upon completing conver
sation depress off button.
NOTE: When yo u receive calls f rom another master and a sub at the s am e tim e rep ly first to master and, after the
occupied lamp goes out, depress the selector button of the calling sub and communicate.
DO NOT DEPRESS THE SELECTOR BUTTON WHILE OCCUPIED LAMP ILLUMINATES.
CLEANING YOUR INTERCOM STATIONS
* Your Aiphone intercom .stations may be cleaned with a soft cloth dampened with household cleanser, such as Mr. Clean
or Fantastik.
* * *
We at AIPHONE are proud of our products. Our designers and engineers strive to bring you the finest in communication
equipment. Each item has been carefully tested and inspected before leaving our factory. Properly installed and used, your
Aiphone intercom system should give years of trouble-free service.
We are pleased to offer the following warranty:
Tirrmuir 111 xuii liÎtJÎÎÎMJ g
WARRANTY
Aiphone warrants its products to be free from defects of material and workmanship under normal
use and service for a period of one year after delivery to the ultimate user and will repair free of
charge or replace at no charge, should it become defective upon which examination shall disclose
to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final
decision whether there is a defect in materials and/or workmanship; and whether or not the prod
uct is within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect,
accident, or to use in violation of instructions furnished, nor extended to units which have been
repaired or altered outside of the factory.
This warranty does not cover batteries or damage caused by batteries used in connection with the
product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place des
ignated in writing by Aiphone. .Aiphone will not be responsible for any costs incurred involving on
site service calls.
Aiphone Co., Ltd., Nagoya, Japan
Aiphone Corporation, Bellevue, Washington
INTERCOM SYSTEMS
o AIPHONE
HOME, BUSINESS, INDUSTRY
PRINTED IN JAPAN (E)
