Aiphone AX-8MV, AX-8MV-W Specsheet

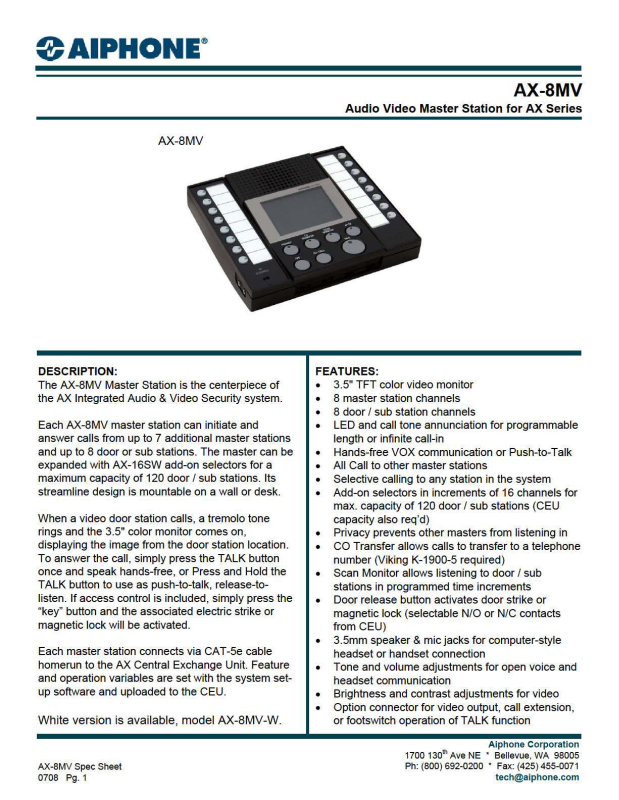

AX-8MV

Audio Video Master Station for AX Series

FEATURE CALL-OUTS:

FEATURE CALL-OUT DEFINITIONS:

[1] Door station selector button w/LED
[2] Master station selector button w/LED
[3] Door release button
[4] Scan monitor button w/LED
[5] CO transfer button w/LED
[6] Privacy button w/LED
[7] TALK button w/LED
[8] ALL CALL button
[9] OFF button (standby)
[10] Occupied LED
[11] Speaker
[12] Microphone
[13] 3.5 inch color LCD monitor
[14] Receive volume control switch (low, med, high)
[15] Transmit volume control switch (low, med, high)
[16] Tone volume control
[17] LCD brightness control
[18] Headset receiver jack
[19] Headset microphone jack
[20] Master station directory card / card cover
[21] Door station directory card / card cover
[22] Desktop stand
[23] Headset receiver volume control
[24] Headset microphone volume control
[25] Reset switch
[26] RJ45 jack for wiring to CEU
[27] Optional connector input
[28] Connector for AX-16SW add-on selector

AX-8MV with optional desk stand:

Model MCW-S/A (adjustable to 45° or 60° angle)

SPECIFICATIONS:

Power Source: 24V DC Supplied from CEU
Call Tone: Tremolo ring tone & blinking LED
Communication: Open voice hands-free

(VOX or Push-to-Talk)
Video Monitor: 3-½” direct view TFT color LCD
Scanning Lines: 525 lines
Video Output: NTSC Standard 1Vpp (0.7-1.4Vpp)
Headset Jack: 3.5mm mic and speaker jacks
Calling Capacity: Up to 7 additional master stations

Up to 120 door / sub stations
Mounting: Desk with flip-up stands, or wall

mount with provided metal bracket
Wall mount box: 2-gang electrical box or ring
Wiring: CAT-5e homerun to CEU
Wiring Connection:RJ45 jack
Housing: ABS Resin
Color: Black

Operating Temp: 32 – 104

° F (0 ~ 40° C)

Dimensions (HxWxD):

6-7/8" x 7-5/8" x 1-7/8"

(175 x 194 x 48 mm)
Weight: 1.21 lbs (550g)
