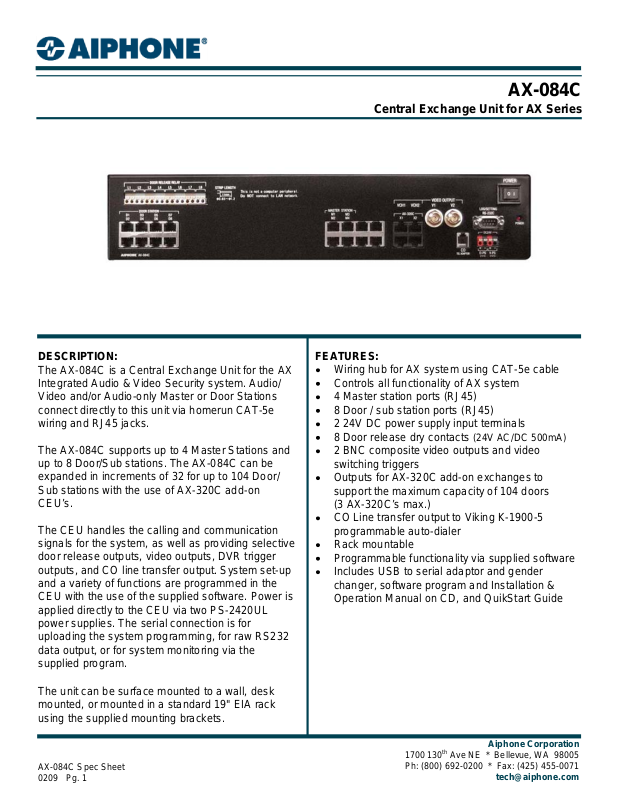

Aiphone AX-084C User Manual
AX-084C
Central Exchange Unit for AX Series
DESCRIPTION:
The AX-084C is a Central Exchange Unit for the AX
Integrated Audio & Video Security system. Audio/
Video and/or Audio-only Master or Door Stations
connect directly to this unit via homerun CAT-5e
wiring and RJ45 jacks.
The AX-084C supports up to 4 Master Stations and
up to 8 Door/Sub stations. The AX-084C can be
expanded in increments of 32 for up to 104 Door/
Sub stations with the use of AX-320C add-on
CEU’s.
The CEU handles the calling and communication
signals for the system, as well as providing selective
door release outputs, video outputs, DVR trigger
outputs, and CO line transfer output. System set-up
and a variety of functions are programmed in the
CEU with the use of the supplied software. Power is
applied directly to the CEU via two PS-2420UL
power supplies. The serial connection is for
uploading the system programming, for raw RS232
data output, or for system monitoring via the
supplied program.
FEATURES:
Wiring hub for AX system using CAT-5e cable
Controls all functionality of AX system
4 Master station ports (RJ45)
8 Door / sub station ports (RJ45)
2 24V DC power supply input terminals
8 Door release dry contacts (24V AC/DC 500mA)
2 BNC composite video outputs and video
switching triggers
Outputs for AX-320C add-on exchanges to
support the maximum capacity of 104 doors
(3 AX-320C’s max.)
CO Line transfer output to Viking K-1900-5
programmable auto-dialer
Rack mountable
Programmable functionality via supplied software
Includes USB to serial adaptor and gender
changer, software program and Installation &
Operation Manual on CD, and QuikStart Guide
The unit can be surface mounted to a wall, desk
mounted, or mounted in a standard 19" EIA rack
using the supplied mounting brackets.
AX-084C Spec Sheet
0209 Pg. 1
1700 130
Ph: (800) 692-0200 * Fax: (425) 455-0071
th
Ave NE * Bellevue, WA 98005
Aiphone Corporation
tech@aiphone.com
AX-084C
Central Exchange Unit for AX Series
FEATURE CALL-OUTS:
[9]
Y
A
A
E
S
R
E
O
D
O
L
1
1
D
2
D
X
A
N
E
A
H
P
I
O
L
R
E
R
L
E
L
5
3
L
4
L
L
2
D
5
D
3
D
D
6
D
4
D
8
4
C
0
-
L
8
L
7
L
6
7
8
[2]
FEATURE CALL-OUT DEFINITIONS:
[1] Power switch
[2] Door station ports
[3] Master station ports
[4] Add-on exchange unit port
[5] CO line port (Viking K-1900-5 auto dialer required)
[6] Setting/log port
[7] Video output ports
[8] Video output trigger ports
[9] Door release relay ports (L1 corresponds to door
station D1, L2 to door station D2, etc.)
[10] Power supply ports
[11] Power/Communications error display LE
PACKAGE CONTENTS:
[1]
[1] AX-084C Exchange Unit
[2] Mounting screws
[2]
[5]
[3]
[6]
[3] Rack/Wall mounting brackets
[4] Installation CD, including set-
[4]
up software program and
instruction manual
[5] Mounting screws (for 19-inch
rack mounting)
[6] USB to serial programming
cable with driver
[7] QuikStart guide
[7]
[8]
M
3
1
M
4
M
M
2
[7]
I
V
1
V
2
H
C
1
H
C
V
V
2
X
T
U
1
O
X
0
2
C
-
3
X
A
[6]
R
E
W
O
P
T
U
O
O
E
D
2
V
-
3
C
2
2
S
R
+
-
+
-
C
O
-
S
P
V
S
-
D
P
[10]
[3]
[4]
SPECIFICATIONS:
Power Source: 24V DC, 2A. PS-2420UL (x2)
(1 for audio-only system,
2 for audio/video system)
Current
Consumption: Video(Max) 0.62A, Audio(Max) 0.65A
Door
Release Contact: 24V AC/DC, 500mA
Mounting: Desk, wall, or 19: EIA rack with
supplied brackets
Wiring: RJ45 plugs for CAT-5e homerun wire
runs from each master and door/sub
2 Conductor wire from PS-2420UL to
power input terminals
CO Line Port: RJ11 for Viking K-1900-5
programmable auto-dialer
Housing: Metal
Color: Black
Operating Temp: 32 – 104
° F (0 ~ 40° C)
Dimensions: 3-7/16" x 1' 6-7/8" x 1' 1-3/16"
(HxWxD) (88 x 480 x 335 mm)
[5]
[1]
[11]
AX-084C Spec Sheet
0209 Pg. 2
Weight: 10.35 lbs (4,700g)
