- 37 -

8-1

Calling a master station from door station and communicating

There are two priority levels for calls from door stations,

"Normal"and "Priority".

1. Press the door station CALL button.

2. The calling tone rings on the master station (for a normal call, an intermittent tremolo sound; for a priority call, a rapid intermittent tremolo sound) and the selector button LED for the individual door station flashes (two flashes in a row for a priority call). If the door station has a camera, the video from the door station is displayed on the master station monitor. The call tone continues to ring until answered or is timed out (based on setting). You can stop calling tone by pressing the OFF button.

3. If you press the individual door station selector button, the LED stops flashing and stays lit and you can talk hands-free to that station. If only the TALK button is pressed to answer a call, hands-free communication initiates with the door station at the highest priority call. The Talk LED lights when you talk and goes off as you listen to the caller.

4. Press the OFF button again to end the communication. The call also ends automatically when the set talk time limit is reached.

NOTES: 1. If you hold down the TALK button for at least one

second, communication switches to press-to-talk mode. Hold down the TALK button to talk and release to listen to the caller. You cannot switch back from press-to-talk communication to hands-free communication.

2. If other master station press selector button of in use door station or in use master station, the busy signal (beep-beep-beep) is heard at the master station.

3. The microphone is muted while you hold down the privacy button on the master station at communication.

4. You can connect a footswitch and use it the same way as the TALK button.

5. The master station can display calls up to eight stations at the same time. If more than eight calls, they will be displayed in order of priority.

6. You can adjust the calling tone, transmit volume, and receive volume with the volume controls at the bottom of the master station.

7. You can use a headset (not included in the system) instead of built-in the master station's speaker and microphone.

Selector button LED displayCalling tone

Intermittent tremolo sound Rapid intermittent tremolo sound

Slow flashing

Rapid flashing

Call (normal)

Call (priority)

OPERATIONS

- 38 -

8-2

8-3

Privacy (PRIV)function

1. To make the master into privacy mode (prevent monitoring from other stations), press the privacy button (LED lights up).

2. To cancel privacy mode, press the privacy button again (LED goes out).

∗ The privacy setting cannot be changed while in communication.

PRIV LEDPrivacy setting

Lit

Off

Setting up

Not set

Communicating with master station

• Microphone mute

• If you hold down the TALK button for at least one second, communication switches to press-to-talk.

• Microphone enabled

• The microphone is muted while you hold down the PRIV button.

Communicating with door station

• Microphone enabled

• The microphone is muted while you hold down the PRIV button.

• Microphone enabled

• The microphone is muted while you hold down the PRIV button.

Calling a master station from a master station and communicating

1. Press individual selector button of master station.

2. The pre-tone (Pi-Po-n) sounds both master stations, and starts hands-free communication. The Talk LED lights when you talk and goes off as you listen to the caller.

3. Press the OFF button to end the communication. You can end the call either master station. The call also ends automatically when the set talk end time is reached.

If the called master station has privacy mode set (the privacy settings button is lit up), communication is only one-way, from the calling master station to the called master station, and nothing can be heard from the called master side. Press the TALK button on the called master station for at least one second. Press-to-talk communication starts. Hold down the TALK button to talk and release to listen to the caller.

NOTES: 1. You can connect a foot switch and use it the same

way as the TALK button.

2. You can adjust the receive volume with the volume control at bottom of the master station.

3. You cannot call a master station while it is communicating. You will hear the busy signal (Pi-PiPi).

Calling tone TALK button

LED display Pi-Po-n Po-o-n

Lit Lit (called)

Flashing (calling) Flashing Error in device or

wiring. Contact the system manager.

Call and talk All call

Equipment error

- 39 -

8-4 8-5

CO line call from door station and communicating

1. If the CALL button is pressed at a door station while CO Transfer feature is set (with CO Transfer button lit), the call tone rings on the master station (for a normal call, an intermittent tremolo sound; for a priority call, a rapid intermittent tremolo sound) and the selector button LED for the individual door station flashes (two flashes in a row for a priority call). At the same time, a telephone call is placed to the programmed CO line number.

2. You can communicate with the door station from telephone.

3. You can end communication at the telephone. The communication also ends automatically when the set talk time limit is reached. About 10 seconds before end of the call, you will hear a alarm sound (beep-beep-beep) on the telephone.

1. The maximum duration for a CO line call is 300 seconds (5 min), even if the call timer is set to "Infinite".

2. Using this function requires the K-1900-5 Hot-Line Pulse Dialer made by Viking Electronics, Inc. Set the dialer according to the instructions in this user's manual.

NOTES: 1. If there are multiple calls, the call from the door

station with the highest call priority is transferred.

2. Answering at any master station during CO transfer feature will stop the CO transfer.

3. There are no functions for door release, dial-in, etc. from the telephone.

All call (normal) (master station paging)

1. When you press the ALL CALL button on the master station, all the individual master station selector button LEDs flash slowly. You can clear an undesired master station from the All Call by pressing the individual master station selector button with the flashing LED, which will turn off the LED. Pressing that button again makes that master station part of the All Call again and makes the LED flash.

2. If you press the TALK button, the send LED lights up and all the individual master station selector buttons stop flashing and stay lit. The pre-tone sounds on the target master station(s) and they can be talked to. At this time, you cannot hear audio from the other master stations.

3. Press the OFF button to end. You can end the call for an individual master station by pressing its OFF button.

NOTES: 1. All Call announcement does not go to master stations

that are being used.

2. During an All Call, if you press the individual master station selector button on the calling master station or press the individual master station selector button or TALK button on one of the other master stations, communications switch to hands-free between master stations.

3. There is no function for handsfree reply from a called master station during All Call mode.

4. If you press down the ALL CALL button but do not start talking within 30 seconds, the system goes back to standby mode. You can also return to standby by pressing the OFF button.

- 40 -

8-6

8-7

Monitor

1. If you press an individual door station selector button, you can hear the audio and if that door station has a camera, you can see the image.

2. Press the OFF button to end. The call also ends automatically when the set talk end time is reached.

NOTES: 1. While the door station is communicating with or

monitored by other master station, you cannot monitor the door station.

2. If you press the TALK button while monitoring, hands-free communication mode starts with that door station.

All call (priority) (master station paging)

1. When you press the ALL CALL button on the master station, all the individual master station selector button LEDs flash slowly.

2. If you press the ALL CALL button again, the flashing speeds up again. You can clear an undesired master station from the All Call by pressing the individual master station selector button with the LED flashing.The LED goes out. Pressing that button again makes that master station part of the All Call again and makes the LED flash.

3. If you press the TALK button, the TALK LED lights up and all the individual master station selector buttons stop flashing and stay lit. The pre-tone (bong) sounds on all the master stations and all can be called. At this time, you cannot hear audio from the other master stations.

4. Press the OFF button to end. You can end the call for an individual master station by pressing its OFF button.

NOTES: 1. The communication of the master station being used

is cancelled and the All Call takes priority. Before the communication of the master station being used is cancelled, you hear a cancel warning sound (beepbeep-beep).

3. There is no function for talk back from a called master station.

4. If you press down the ALL CALL button but do not start talking within 30 seconds, the system goes back to standby. You can also return to standby by pressing the OFF button.

Monitor Available Not available (sounds Pi-Pi-Pi) Not available (sounds Pi-Pi-Pi) Not available (sounds Pi-Pi-Pi) Communication established

Standby

Door station status

Communicating with telephone Communicating with maser station Monitoring Calling

- 41 -

8-8

8-9

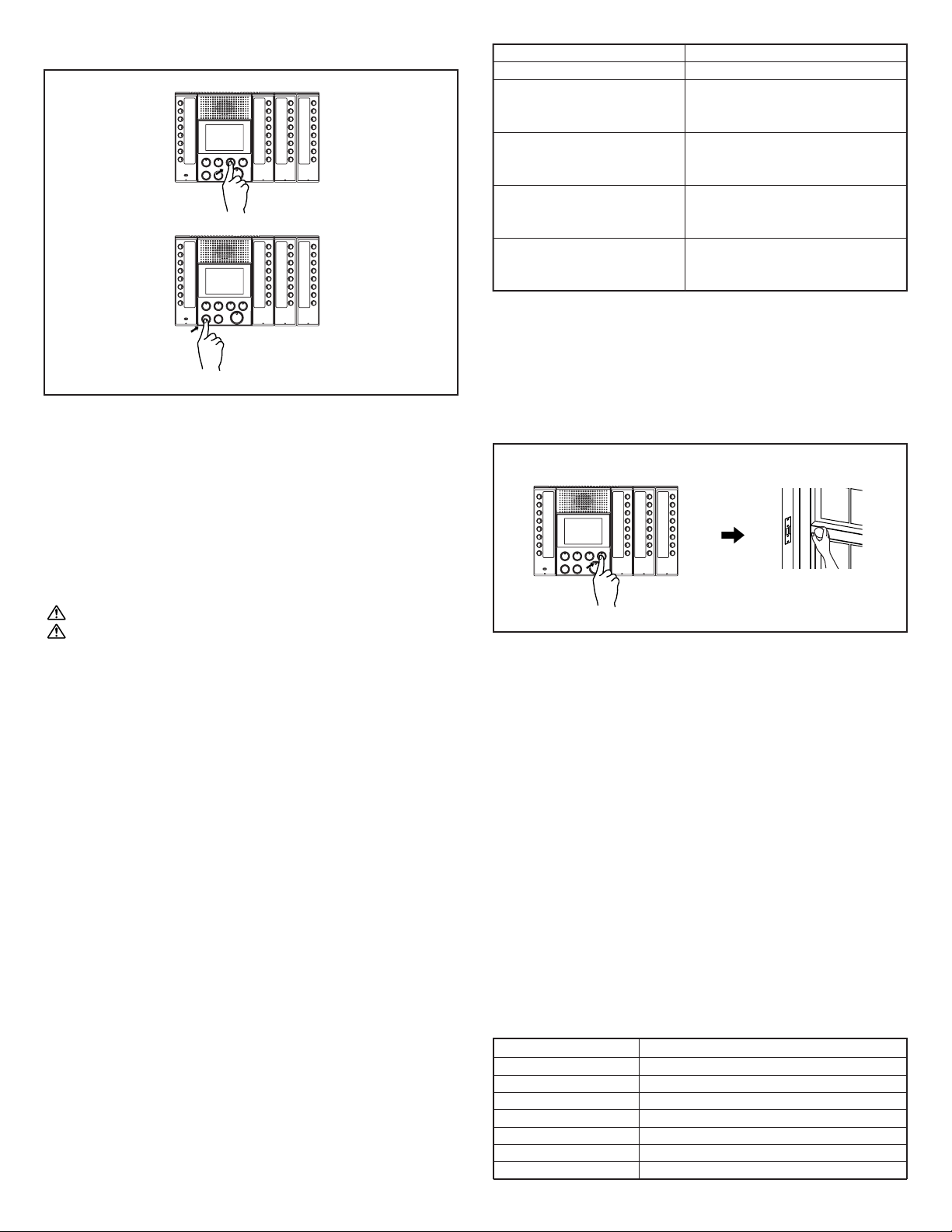

Scan monitor

1. When the scan monitor button is pressed, the setting door stations can be monitored sequentially each set time interval.

• Normally, monitoring is in order from the target door station

with the lowest number.

• If you press the scan monitor button while individually

monitoring a target door station, monitoring starts with next to that door station.

• If you press the scan monitor button while monitoring a non-

target door station,monitoring starts in the usual order.

2. Press the OFF button to end.

1. When the camera is switched, the image may be distorted.

2. Communication/video channel 2 is always used for scan monitoring. Scan monitoring is not possible when communication/video channel 2 is being used even if the Busy LED is not lit up.

NOTES: 1. Only one master station at a time can perform scan

monitoring.

2. If you press the TALK button during scan monitoring, hands-free communication mode starts with that door station.

3. If you press an individual door station selector button or scan monitor button during scan monitoring, the monitoring switches to monitoring the individual door station.

4. If the master station receives a call from the door station during scan monitoring, the scan monitor function ends automatically.

5. Scan monitoring continues without limit until it is cancelled, but the master station LCD monitor goes out after 10 minutes (although the outside video output continues even with the LCD off). If you press the scan monitor button with the LCD off, the LCD lights up again.

6. During scan monitoring, the video signal is always outputted from video output port 2 (V2).

7. If you press the TALK button during scan monitoring, communication mode starts with the door station being monitored.

Priority

• The "earlier call" has priority over the "later call".

• "Communication" takes priority over "calling" and "calling" takes priority over "monitoring and scan monitoring".

• For a "call" or "All Call", those with a call level of "priority" take priority over those with a call level of "normal".

Communication priority

Door station - telephone line communication All call (priority)

Door station to master station communication Master to master communication

1 (High) 2 3 4

All call (normal) Monitor

Scan monitor

5 6 7 (Low)

8-10

Activating door release

1. Press the door release button during communication or

monitoring with door station.

2. The door release function will be activated, and releasing the

door lock.

NOTES: 1. You cannot operate the door from an outside

telephone.

2. The LED stays lit while the door release function.

Not available: The door station is skipped and the next door station is scanned.

Calling

Available: The communication continues as is and audio monitoring is not available.

Monitoring

Available: The communication continues as is and audio monitoring is not available.

Communicting with master station

Available: The communication continues as is and audio monitoring is not available.

Communicting with telephone

AvailableStandby

Scan monitorDoor station status

- 42 -

8-11

List of function button operations for each own master station mode

• Each operation is carried out when the audio channel is empty.

• Even when a sub-station call only uses the video channel, the audio channel is also treated as filled. (The audio and video channels form a pair.)

Current status

(own master station) Master station all call (priority) Making call

Microphone mute (while held down)

Privacy setting On/Off

Microphone mute (while held down)

Disabled

Privacy setting On/Off

Microphone mute (while held down)

Disabled

Privacy setting On/Off

Privacy

Outside line setting On/Off

CO Transfer

End of communication Scan monitor

Scan monitor

Monitor

Scan monitor

All call end Scan monitor

End of communication Scan monitor

Scan monitor

All call end Scan monitor

End of communication Scan monitor

Scan monitor

Scan Monitor

Door release

Disabled

Door release

Disabled

Lock

New event (button operation on that master station)

Operation button

Communication end, standby

Disabled

Calling tone pause

Communication end, standby

Selection end, standby

Communication end, standby

End, standby

OFF

End of communication All call normal select

Monitor end All call normal select

Scan monitor end All call normal select

All call normal select

Disabled

Priority 씮 Normal all call select

Disabled

Normal 씮 Priority all call select

ALL CALL

Hold down for one second for PTT communication

Communication

Disabled

Communication

Hold down for one second for PTT communication

TALK

All call end Master-master communic

All call start

Hold down for one second for PTT communication

All call end Master-master communic

All call start

Master station all call (priority) Receiving call

Master station all call (priority) Selecting

Sub-station master station communication underway

Sub-station call (priority) being called

Sub-station call (normal) being called

Master master communication underway

Master station all call (normal) Making call

Master station all call (normal) Receiving call

Master station all call (normal) Selecting

Monitoring

Scan monitoring

Standby

8-12

New called event

Current status (own master station)

Sub-station master station communication underway

Master master communication underway

Monitoring

Scan monitoring

Standby

Sub-station call (priority) being called

Sub-station call (normal) being called

Master station all call (priority) Making call

Master station all call (priority) Receiving call

Master station all call (priority) Selecting

Master station all call (normal) Making call

Master station all call (normal) Receiving call

Master station all call (normal) Selecting

End of communication All call incoming

Monitor end All call incoming

Scan monitor end All call incoming

All call incoming

All call incoming (Sub-station incoming call hold)

Select end All call incoming

All call end All call incoming

Select end All call incoming

All call (priority)

Monitor end All call incoming

Scan monitor end All call incoming

All call incoming

Not possible

All call incoming (Sub-station incoming call hold)

Select end All call incoming

All call (normal)
