Page 1

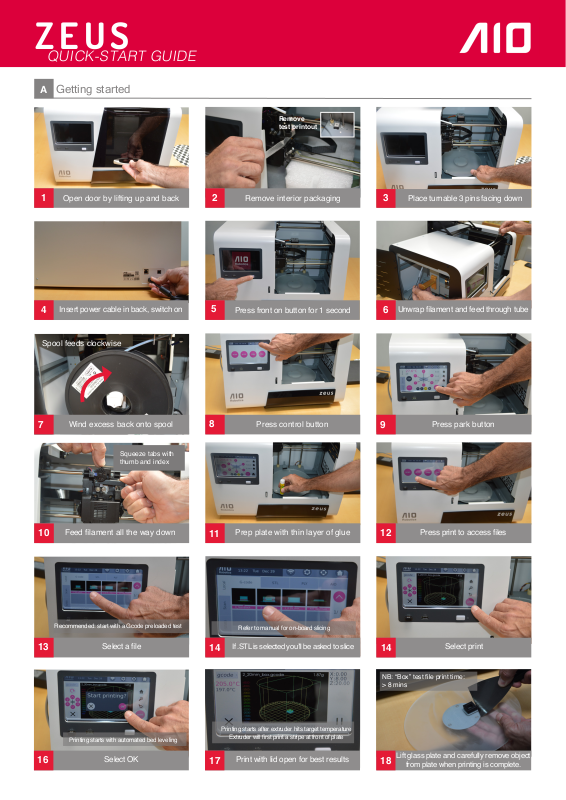

ZEUS
QUICK-START GUIDE
A
Getting started
Remove
test printout
4
Open door by lifting up and back
1
Insert power cable in back, switch on
4
Spool feeds clockwise
7
Wind excess back onto spool
Squeeze tabs with
thumb and index
2
5
8
Remove interior packaging
Press front on button for 1 second
Press control button
Place turnable 3 pins facing down
3
Unwrap lament and feed through tube
6
9
Press park button
Feed lament all the way down
10
Recommended: start with a Gcode preloaded test
13
Printing starts with automated bed leveling
16
Select a le
Select OK
Prep plate with thin layer of glue
11
Refer to manual for on-board slicing
If .STL is selected you’ll be asked to slice
14
Printing starts after extruder hits target temperature
Extruder will rst print a stripe at front of plate
Print with lid open for best results
17
12
14
NB: “Box” test le print time:
> 8 mins
18
Press print to access les
Select print
Lift glass plate and carefully remove object
from plate when printing is complete.
Page 2
Included Accessories
B
Filament
Glue Stick
Connecting ZEUS to the web
C
Insert wi dongle
File Transfer Options (refer to manual for details) D
Optional:ethernet
Scanner Calibration Pattern
Wi dongle Power supply Turn table
Select WIFI icon
Scan powder + applicator
Select your local
wireless network.
Enter password.
Spatula (printout remover)
A. Wi is connected
B. Ethernet is
connected (defaults
to ethernet if
connected)
A
B
When ZEUS is off line
1
For le transfer via wi or ethernet, enter IP address (A or B) in computer browser to access Pydio. Login: aio Password: aiorobotics
ZEUS UI - the basicsE
Home
WarningsF
Use caution when handling the Thunderbolt Extruder. Do not touch when extruder lights are blue.
Never remove the extruder during or immediately after printing.
USB
Control
2
Wi
System menu
NB: “Box” test le print time:
> 8 mins
3
Online settings
Ethernet
