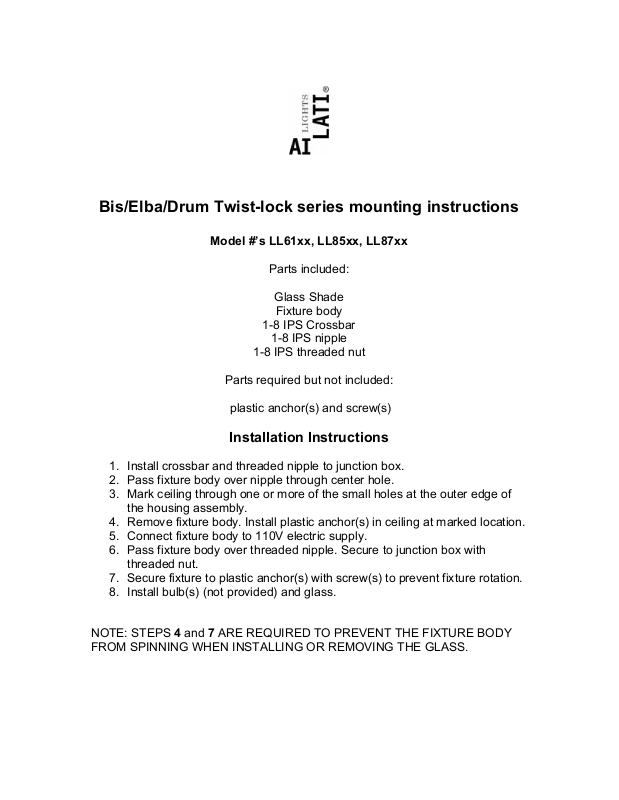

Bis/Elba/Drum Twist-lock series mounting instructions
Model #’s LL61xx, LL85xx, LL87xx
Parts included:
Glass Shade
Fixture body
1-8 IPS Crossbar
1-8 IPS nipple
1-8 IPS threaded nut
Parts required but not included:
plastic anchor(s) and screw(s)
Installation Instructions
1. Install crossbar and threaded nipple to junction box.
2. Pass fixture body over nipple through center hole.
3. Mark ceiling through one or more of the small holes at the outer edge of
the housing assembly.
4. Remove fixture body. Install plastic anchor(s) in ceiling at marked location.
5. Connect fixture body to 110V electric supply.
6. Pass fixture body over threaded nipple. Secure to junction box with
threaded nut.
7. Secure fixture to plastic anchor(s) with screw(s) to prevent fixture rotation.
8. Install bulb(s) (not provided) and glass.
NOTE: STEPS 4 and 7 ARE REQUIRED TO PREVENT THE FIXTURE BODY
FROM SPINNING WHEN INSTALLING OR REMOVING THE GLASS.
