Mains Powered
Ei3028 / 3018
Alarms
Instruction Manual
Read and retain carefully for as long as the product is being used. It contains vital
information on the operation and installation of your Alarm. The leaflet should be
regarded as part of the product.
If you are just installing the unit, the leaflet MUST be given to the householder. The
leaflet is to be given to any subsequent user.
Contents
Installer Guide 4
1. Introduction 4
1.1 Overview 6
1.2 Technical Specifications 8
2. Installation 10
2.1 Important Safety Instructions 11
2.2 Where to locate the Alarm? 12
2.3 Which Alarm in what room? 13
2.4 Where in the room? 14
2.5 Unsuitable locations 15
2.6 Mounting and wiring 17
2.7 Interconnecting Alarms 21
2.8 Removing the Alarm 23
2
User Guide 24
3. What is Carbon Monoxide? 24
3.1 Symptoms of CO poisoning 26
3.2 How to protect your family against CO 27
3.3 How does your Alarm work 28
4. Testing 32
4.1 Testing and maintaining your Alarm 33
4.2 Cleaning your Alarm 35
5. What to do in case of fire alarm 37
6. What to do in case of CO alarm 39
7. Troubleshooting and Indicator summary tables 41
8. Important safeguards 51
9. Service and Guarantee 54
9.1 Getting your Alarm serviced 55
9.2 Guarantee 55
3
Installer Guide
1
Introduction
4
The Ei3028 is a dual sensor Heat and Carbon Monoxide (CO) Alarm. It contains a proven electrochemical
CO sensor to detect the presence of toxic levels of Carbon Monoxide as well as an independent fast
acting Class A1 Thermistor sensor to detect dangerous levels of heat. The combination of CO and
Heat detection makes it an ideal Alarm for kitchens, utility rooms and garages where fuel burning
appliances maybe installed.
The Ei3018 is a Carbon Monoxide Alarm which contains a proven electrochemical CO sensor to detect
the presence of toxic levels of Carbon Monoxide (CO). It is ideal for kitchens, garages, utility rooms
and other areas where fuel burning appliances maybe installed.
Up to 12 Alarms can be interconnected so that if one senses fire or dangerous levels of CO, all
Alarms sound. It can be a hardwired interconnection or a wireless interconnection (for the latter an
Ei3000MRF SmartLINK module needs to be added to each Alarm – sold separately)
The Ei3000 series is supplied with a base that allows very quick and simple installation of the Alarm
as it automatically connects both mains power and battery as the detector head slides onto the base.
Each Alarm comes with built-in rechargeable backup batteries to power the Alarm in the event of a
mains failure.
AudioLINK
The Ei3000 series Alarms are AudioLINK enabled. This feature allows the user to download information
from the Alarm through the use of a mobile App. For more information on using this feature, please
refer to the relevant section on www.eielectronics.com or www.aico.co.uk.
5
1.1 Overview
6
Red LED Alarm Indicator
‘FIRE’ & ‘CO’
LED Display
(normally hidden)
Yellow LED Fault Indicator
Green LED Power Indicator
Carbon Monoxide Sensor Entry Holes
Ei3028 Heat / Carbon Monoxide Alarm
Test / Hush Button
Alarm Sounder
Heat Sensor
(Thermistor)
RF Module
LED Indicator
RF Module
Learn Switch
Alarm
Removal
Latch
Ei3018 Carbon Monoxide Alarm
Green LED
Power Indicator
Yellow LED
Fault Indicator
Red LED
Alarm Indicator
Carbon Monoxide
Sensor Entry Holes
Test / Hush Button Alarm Sounder
Alarm
Removal
Latch
RF Module
LED Indicator
RF Module
Learn Switch
7
1.2 Technical Specifications
Heat Sensor
Carbon Monoxide Sensor
Power Supply
Battery Backup
Alarm Sounder
Alarm Sound Level
Memory Feature
Display
Se lf Test
Test/Hush Button
Visual indicators
8
Thermistor (Ei3028) Class A1 detection – Alarm is triggered at 58°C
Electrochemical (Ei3028 and Ei3018)
100-250V AC, 50Hz, 0.25W
Built-in 10-year rechargeable Vanadium Pentoxide Lithium cells. Fully
charged, the battery will provide up to 6 months (without module
fitted) or 3 months (with module fitted) back-up without mains power
Piezoelectric Horn
85dB(A) at 3 meters (min)
Indicates that the Alarm has previously detected fire and or dangerous
levels of CO
Ei3028 - indicates FIRE or CO
Sensors, battery and electronics are automatically tested periodically
Checks sensors, electronics, display, interconnection and sounder.
If the unit is in alarm when pressed, it silences the alarm for 10min
(if alarming due to heat), 4 minutes (if alarming due to <150ppm CO)
Green LED – Power supply Yellow LED – Fault, EOL Red LED –
memory, pre-alarm or alarm (if coincides with horn sounding)
AudioLINK
Operational Life
Interconnection
Fixings
Operating Temperature
Humidity Range
Plastic Material
Dimensions
Weig ht
Warranty
Approvals
Enabled
10 years
Up to 12 units can be interconnected via a hardwired or wireless
system (using optional Ei3000MRF SmartLINK module)
Supplied with Easi-fit anti-tamper mounting plate with integral
terminal block and wiring cover, includes screws and wall plugs
Normal: -10°C to +40°C (Storage: -10°C to +40°C) *
15% to 95% RH (non-condensing)
UL94V-0 flame retardant rated
Ei3028: Product: - Ø150mm x 66mm Package - 155 x 155 x 70mm
Ei3018: Product: - Ø150mm x 63mm Package - 155 x 155 x 65mm
350g (including packaging)
5 year (limited)
KM86596, KM83678, EN50291-1:2010+A1:2012, BS5446-2:2003
* Temperature and Humidity conditions are for normal operation and storage. Units will function outside
these ranges as required by the specific product Standards. Extended exposure to conditions outside
these ranges can reduce product life. For advice on prolonged operation outside these ranges consult
the manufacturer.
9
2
Installation
10
2.1 Important Safety Instructions
Mains operated Alarms should be installed and interconnected by a qualified electrician in
accordance with the local appropriate Regulations for Electrical Installations. Failure to install
this Alarm correctly may expose the user to shock or fire hazards and damage the product.
The Alarm is designed to be permanently mounted, using its own built-in terminal block to
connect it to the mains. The mounting plate can be screwed directly to the ceiling. Alternatively,
it can be screwed to a standard junction box (BS 4662 single gang accessory box). It requires
a typical current of 3mA. The Alarm must not be exposed to dripping or splashing. There are
important markings on the underside of the Alarm.
It is a requirement that CO Alarms must be installed by a competent person.
Alternative Energy Sources - (Wind, Solar, UPS etc.)
This product is designed to be connected to a Pure or True Sine Wave 230V AC supply.
If connecting to a power source that utilises an inverter, e.g. PV solar panel, the Total Harmonic
Distortion (THD) must be less than 5%. If in doubt please check with the manufacturer of the
inverter. This also applies to battery powered UPS (Uninterruptible Power Supply) inverters.
Light Dimmer Circuits – The Alarms must not be powered from a light dimmer circuit.
Do not install Alarms in new or renovated buildings until all work is completed.
The Alarm must not be connected when the house wiring insulation is being checked with
high voltages. i.e. Do not use a high voltage insulation tester on the Alarm.
11
The Alarm must be continuously powered 24 hours a day so it is important that it is not on a
circuit that can be turned off by a switch.
(UK) BS 5839-6: 2013 gives the following recommendations regarding the mains supply to be
used in a Grade D system. The power supply for the Alarms should be derived from the public
electricity supply to the dwelling. The mains supply to the Alarms should take the form of either:
(a) an independent circuit at the dwelling’s main distribution board, in which case no other
electrical equipment should be connected to this circuit (other than a dedicated monitoring
device installed to indicate failure of the mains supply to the Alarms); or
(b) a separately electrically protected, regularly used local lighting circuit.
Alarms should be connected on a single final circuit, unless the means of interconnection is
by radio signals (e.g. RadioLINK). (See BS 5839-6: 2013 for further information)
(IRE) Please refer to ET101: 2008: National Rules for Electrical Installations.
2.2 Where to locate the Alarm
The Ei3028 Heat and CO Alarm can be installed for dual protection against Fire and Carbon Monoxide
anywhere a Heat Alarm is recommended/specified. It is ideal for kitchens, garages, boiler houses and
other areas where there are normally high levels of fumes, smoke or dust i.e. places where Smoke
Alarms cannot be installed without the risk of excessive nuisance alarms and where often a fuel
burning appliance is present.
A Carbon Monoxide Alarm like the Ei3018 should be installed in:
- Every room containing a fuel burning appliance
- Remote rooms where occupants spend a considerable amount of time
- Every bedroom
12
However, if the number of CO Alarms is limited, the following points should be considered when
deciding where best to fit the alarm(s).
- If there is an appliance in a room where people sleep, place a CO Alarm in this room
- Locate a CO Alarm in a room containing a flueless or open-flued appliance
- Locate a CO Alarm in a room where the occupant(s) spend most of their time (e.g. living room)
- In a bedsit, the CO Alarm should be placed as far away from the cooking appliance as possible, but
near to where the occupant sleeps
- If the appliance is in a room not normally used (such as a boiler room) the CO Alarm should be
placed just outside the room so that the alarm will be heard more easily.
2.3 Which Alarm In what room?
Location
Kitchens with Fuel Burning appliance
Garages with Fuel Burning appliance
Boiler houses
Areas with high levels of fumes, smoke or dust and
risk of CO
Any other rooms with Fuel Burning appliance
Any other rooms with risk of CO poisoning
Ei3028
Heat and CO
Alarm
✔
✔
✔
✔
Ei3018
CO
Alarm
✔
✔
13
2.4 Where in the room?
300mm
150mm
1 to 3 m
1 to 3 m
DEAD AIR
ON'T LOCATE
HERE
CO Alarm
300mm
CO Alarm
The locations must comply with applicable building regulations
In a room WITH a fuel burning appliance
- The CO alarm should be a horizontal
distance of between 1m and 3m from the
potential CO source
- If there is a partition in the room, the CO
Alarm should be located on the same side of
the partition as the potential source.
14

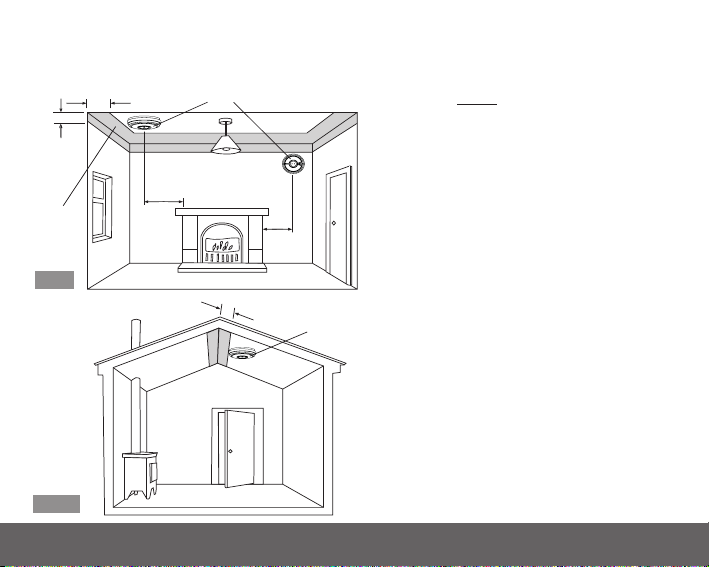

Fi g.1
Fig.2
Ceiling Mounted
If it is mounted on the ceiling it should be at
least 300mm from any wall or light fitting.
In rooms with sloped ceilings, the CO Alarm
should be located at the high side of the room.
Wall Mounting (Ei3018 only)
If ceiling mounting is impractical, ONLY the
Ei3018 CO Alarm can be mounted on a wall.
It should be located at a height greater than
the height of any door or window but still be
at least 150mm from the ceiling.
CO Alarm
about
1 to 2m
Fig.3
In a room WITHOUT a fuel burning appliance
Wall mounted (Ei3018 only)
- At breather level (approx.. 1 to 2m above the
floor) so it is possible to view the three light
indicators.
WARNING: The Ei3028 Heat and Carbon
Monoxide Alarm is not suitable for wall
mounting
2.5 Unsuitable locations
Do not place the Alarm in any of the following areas:
• In a bathroom or other areas where the Alarm may be exposed to water splashes, dripping or
condensation (e.g. above an electric kettle).
• In very high or awkward areas where it may be difficult to reach the Alarm (for testing, hushing
etc.) or fit the screwdriver to release the Alarm from its mounting plate.
• Next to or directly above heaters or air conditioning vents, doors, windows, extractor fans or
anywhere that it would be affected by draughts.
• Directly above a sink or cooker.
• In an area where the temperature could drop below –10°C or rise above 40°C.
• Outside the building.
15
• In an enclosed space (e.g. in or below a cupboard).
• In a damp or humid area.
• Where it would be obstructed, e.g. by curtains or furniture.
• Where dirt or dust could block the sensor.
• Near paint, thinners, solvent fumes or air fresheners.
• Locate the Alarm at least 1.5m and route wiring at least 1m away from fluorescent light fittings
as electrical “noise” and/or flickering may affect the Alarm. Do not wire into the same circuit as
fluorescent lights or dimmers.
• Locate the Alarm at least 1m from dimmer controlled lights and wiring as some dimmers can cause
interference.
16
2.6 Mounting and wiring
1. Select a location complying with the advice
in previous sections.
2. Disconnect the AC mains supply from the
circuit that is going to be used.
3. Lift off the wiring cover as shown in Figure 4.
Foam ceiling gasket
(must be in place)
Fig.4
Insert screwdriver
to lift and remove
wiring cover
The wiring must be connected to the terminal
block on the mounting plate as follows:
L: Live - connect to the house wires coloured
brown or marked L.
N: Neutral - connect to the house wires
coloured blue or marked N.
IC: Interconnect - see figures 5 and 6 and
further information in Section 2.6.
Note: Wiring must be installed in compliance
with local regulations.
17
Warning: Mixing the Live and Neutral connections when interconnecting Alarms may damage all
the Alarms - ensure that the same colours are used throughout the premises for Live, Neutral and
Interconnect wires.
We strongly recommend that you check for the following before connecting the Alarm:
• check for Live and Neutral using a two probe tester.
• check for Live using a neon tester.
• check that the Interconnect wire is NOT connected to Live, Neutral or Earth. Do not use an Earth
wire for the Interconnect line.
Note: The Alarm does not need to be earthed. However the terminal marked is provided for the
convenience of the installer so that any copper Earth wire or cable coloured green and yellow, can
be safely terminated.
To interconnect Alarms connect all the IC terminals together as shown in Figure 9 (see “Interconnecting
Alarms” section).
4. If the mains wires are recessed, bring the wires through the rear hole in the mounting plate as
shown in Figure 5.
18
Loading...
