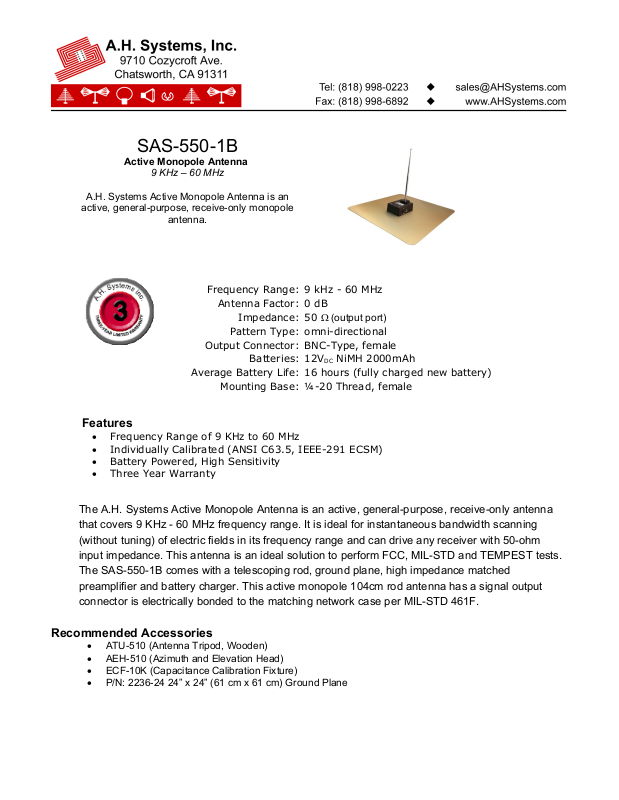

SAS-550-1B
Active Monopole Antenna
9 KHz – 60 MHz
A.H. Systems Active Monopole Antenna is an
active, general-purpose, receive-only monopole
antenna.
Frequency Range: 9 kHz - 60 MHz
Antenna Factor: 0 dB
Impedance:
50 (output port)
Pattern Type: omni-directional
Output Connector: BNC-Type, female
Batteries: 12VDC NiMH 2000mAh
Average Battery Life: 16 hours (fully charged new battery)
Mounting Base: ¼-20 Thread, female
Features
Frequency Range of 9 KHz to 60 MHz
Individually Calibrated (ANSI C63.5, IEEE-291 ECSM)
Battery Powered, High Sensitivity
Three Year Warranty
The A.H. Systems Active Monopole Antenna is an active, general-purpose, receive-only antenna
that covers 9 KHz - 60 MHz frequency range. It is ideal for instantaneous bandwidth scanning
(without tuning) of electric fields in its frequency range and can drive any receiver with 50-ohm
input impedance. This antenna is an ideal solution to perform FCC, MIL-STD and TEMPEST tests.

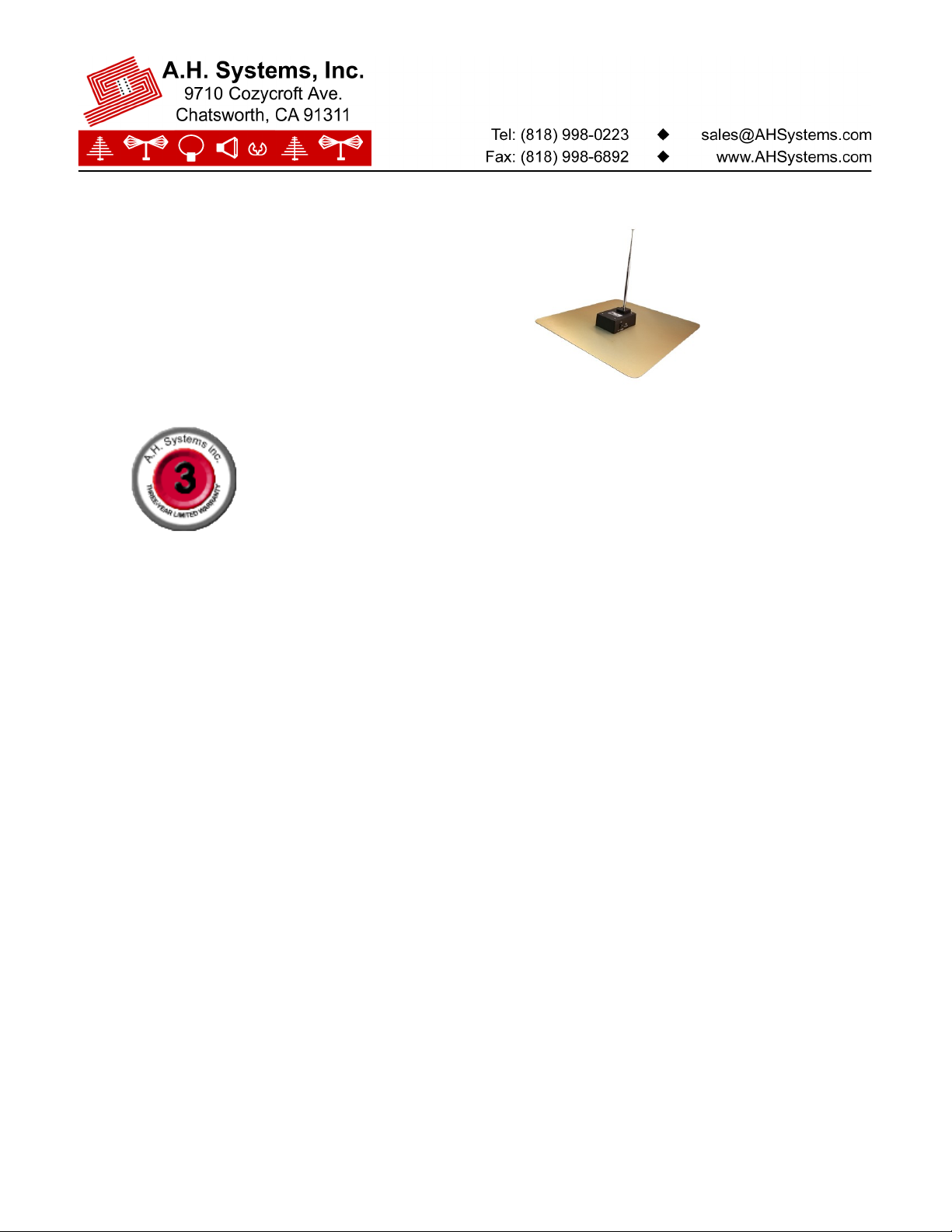

The SAS-550-1B comes with a telescoping rod, ground plane, high impedance matched
preamplifier and battery charger. This active monopole 104cm rod antenna has a signal output
connector is electrically bonded to the matching network case per MIL-STD 461F.
Recommended Accessories
ATU-510 (Antenna Tripod, Wooden)
AEH-510 (Azimuth and Elevation Head)
ECF-10K (Capacitance Calibration Fixture)
P/N: 2236-24 24” x 24” (61 cm x 61 cm) Ground Plane

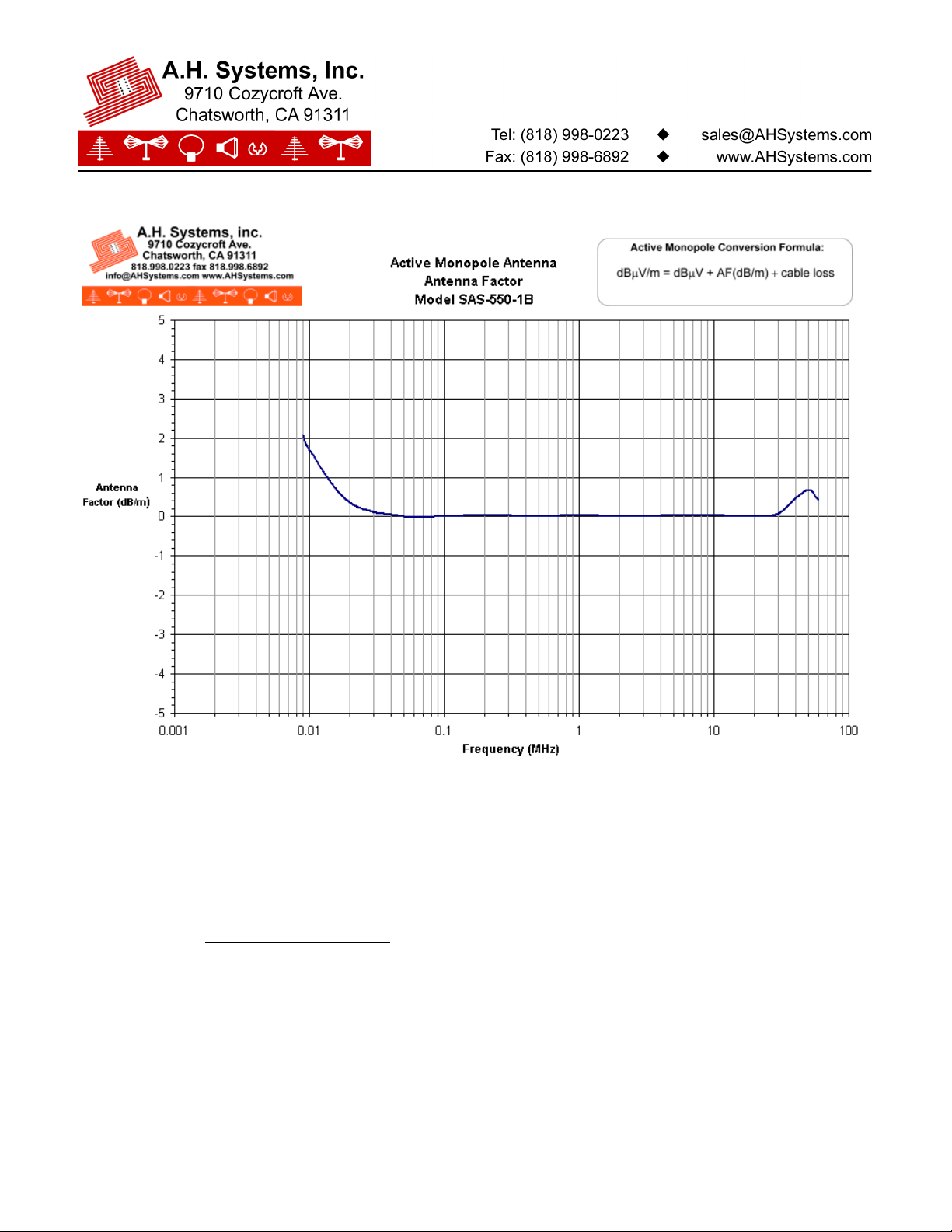

Page 2
Physical Dimensions:
Ground Plane Dimensions:
18 in. X 18 in. (45.7 cm x 45.7 cm)
Optional 24" (60cm) is available
Rod Length: 8.5 in. - 43 in. (21.6 cm x 109.2 cm)
Weight: 4.7 lb.'s (2.13 kg)
