Agtatec RAD270 Users Manual

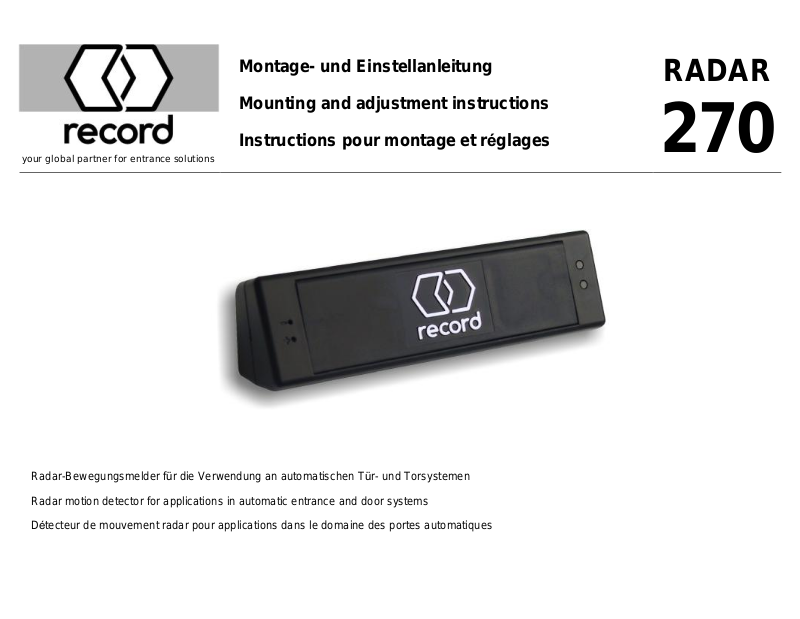

Montage- und Einstellanleitung
Mounting and adjustment instructions

RADAR

your global partner for entrance solutions

Instructions pour montage et ré glages

270

Radar-Bewegungsmelder fü r die Verwendung an automatischen Tü r- und Torsystemen
Radar motion detector for applications in automatic entrance and door systems
Détecteur de mouvement radar pour applications dans le domaine des portes automatiques

D

A

Speisespannung: 12...24 VAC/DC
Anschlussleistung: ca. 1.8 W
Max. Anschlussabsicherung bei
Fremdspeisung: 2.5 A
Temp. Bereich: –20...+50 ° C
Betriebsfrequenz ( -Band): 13.7 GHz
Betriebsfrequenz (X-Band): 10.525 GHz
Ausgangsleistung: 5 mW
Anschlusskabellä nge: 2.5 m

E

Supply voltage: 12...24 VAC/DC
Connected load: 1.8 W approx.
Max. fuse protection if
separately supplied: 2.5 A
Temp. range: – 20...+ 50 ° C
Frequency ( -Band): 13.7 GHz
Frequency (X-Band): 10.525 GHz
Power output: 5 mW
Wire length: 2.5 m

Important hints, when using the radar RAD270 in the US

Technische Daten

Technical data

F

Caracté ristiques techniques

Tension d’alimentation: 12...24 VAC/DC
Consommation: 1.8 W environ
Protection de raccordement max.
lors d'une alimentation externe: 2.5 A
Température: –20...+50 ° C
Fréquence (bande ): 13.7 GHz
Fréquence (bande X): 10.525 GHz
Puissance de sortie: 5 mW
Longueur du câble: 2.5 m

15.19: This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

15.21: Warning: Changes or modifications made to this equipment not expressly approved by agtatec ag may void the FCC authorization to operate this equipment.

15.105: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.
