OWNER’S MANUAL
RM 55 HORIZONTAL
HYPRO 6 ROLLER PUMP
BOOMJET, BOOMEXTENDER, KLC, HAMILTON
&
AG 4 ROW DELUXE BOOM
1
Page 2
RM 55 HORIZONTAL
AG SPRAY EQUIPMENT OWNER’S MANUAL
______________________________________________________________________________
Congratulations on purchasing your new three point hitch field sprayer. This manual is designed to aid
you in operating your new sprayer. Also enclosed is a parts breakdown on your roller pump, pressure
regulator, 43L-AL spray gun, and calibration on the KLC-18, Boomjet, Hamilton, Boomextender
boomless nozzles & 4 row deluxe boom.
WARRANTY
All Field Sprayers are under warranty by Ag Spray Equipment for a one year period from the date of
purchase. This warranty only applies to defects in workmanship or manufacturers defects in their
components. This warranty does not cover any misuse, abuse or parts that may freeze & break. Owners
are responsible for these issues. Parts proven defective within the one year period will be replaced at no
charge.
Ag Spray Equipment must be notified immediately of any defects or parts broken due to shipping during
the warranty period. After the one year period, all warranty is void. No product will be accepted for
return without authorization. All returned goods must be packaged securely and shipped with
transportation charges prepaid.
For further information regarding parts or warranty, contact:
Ag Spray Equipment
1100 New Industry Lange
Hopkinsville, KY 42240
Phone: 1-800-637-7172
Operation & Instructions of New Sprayer
First, back your tractor up to the sprayer, let lift arms all the way down and insert the lift pins into the lift
arms of the tractor and secure with lock pins. Secondly, hook up the top link on the tractor to the very top
hole of the frame. Connect the pump to the PTO shaft on your tractor by pulling the orange coupler back
while sliding it onto the PTO shaft until the balls lock into the grooves on the shaft. After pump is secure
take the chain and wrap it around the drawbar of the tractor using the snap link to snap the chain together
to keep pump from twisting hoses when PTO is engaged.
Next, fill the tank at least _ to _ full of plain water with no chemicals. Screw the pressure regulator (part
#23120-3/4-pp) part of the way out (gray knob). This ensures that you do not over pressurize and break
the gauge. Also, make sure valve underneath tank is open (handle should be turned going with the line).
You are now ready to try out your sprayer. Engage the PTO lever and pull throttle to the 540RPM mark
on the RPM gauge. Turn boom valve on & adjust to the desired operating pressure with the pressure
regulator (gray knob, part #23120-3/4-pp).
2
Page 3
CALIBRATING YOUR SPRAYER
HAMILTON NOZZLE 654101
CALIBRATING YOUR SPRAYER
To determine pressure & GPA with a boomless nozzle use this calibration formula.
EXAMPLE:
Refer to Chart
Number
#10
GPA =
495(constant) x 4.2GPM = 2079
4mph x 50ft swath = 200
OPERATING DATA OF 180° NOZZLES
SPRAYERS ARE SUPPLIED WITH #10
GPM Swath GALLON PER ACREOffice
PSI 180° 180° 3 MPH 4 MPH 5 MPH 8 MPH 10 MPH
30 3.7 50 ft. 12.2 9.2 7.3 4.6 3.7
40 4.2 50 ft. 13.9 10.4 8.3 5.2 4.2
50 4.6 52 ft. 14.6 10.9 8.8 5.5 4.4
60 5.0 52 ft. 15.8 11.9 9.5 5.9 4.8
495 x GPM
MPH x Swath in feet
2079
= 10.395 GPA
200
GPM = Gallons Per Minute
GPA = Gallons Per Acre
MPH = Miles Per Hour
PSI = Pressure Per Square Inch
3
Page 4
SPRAYING SYSTEMS 5880 BOOMJET NOZZLE
*NOTE: BOOMJET SPRAYERS ARE STANDARD WITH #10 NOZZLE & HYPRO 6 ROLLER
PUMP.
HYPRO BOOM X TENDER TIPS
Recommended Spray Height is 48”
*NOTE: YELLOW TIP-XT024 IS USED
4
Page 5

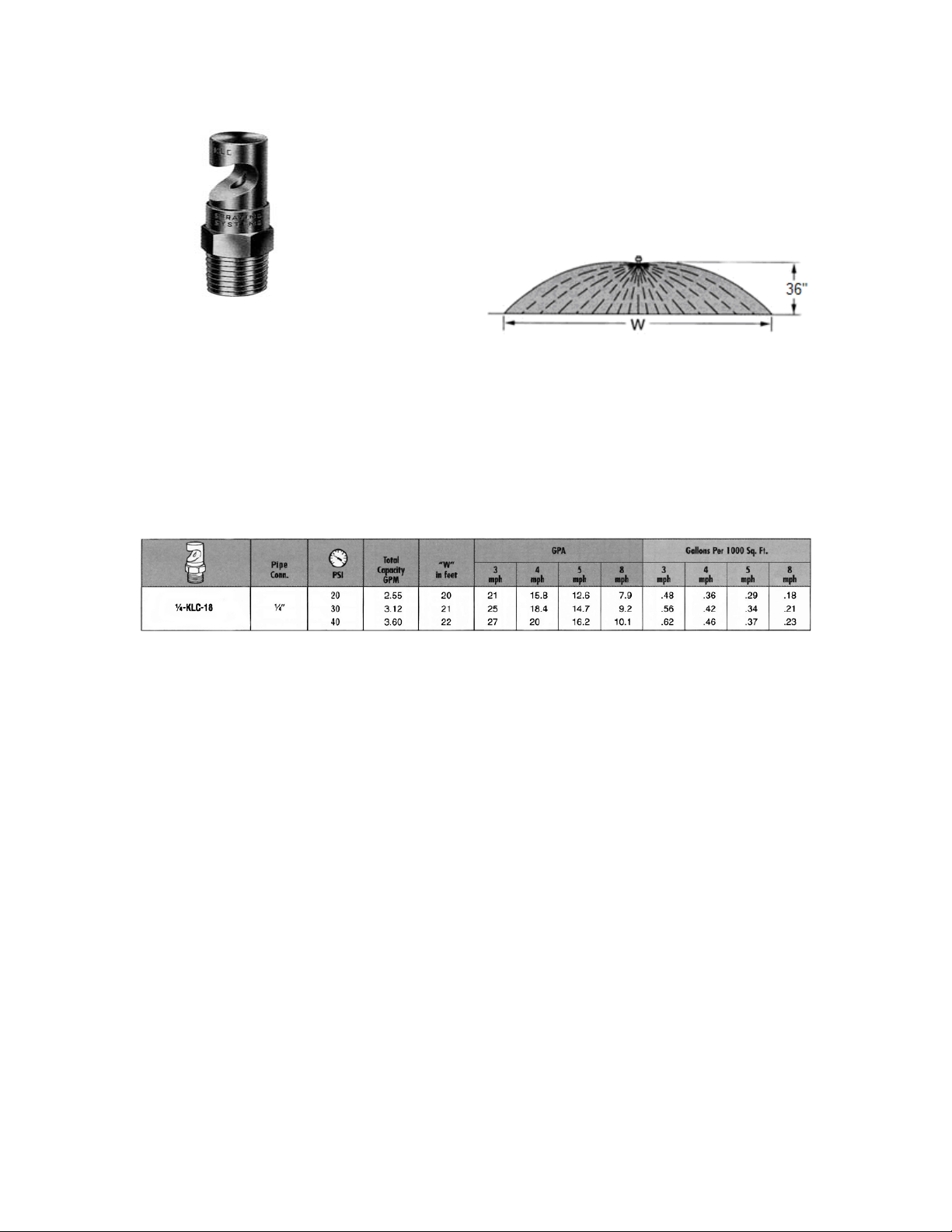

KLC DIAGRAM & CALIBRATION
1/4 in. KLC 18
NOZZLE
CHART FOR KLC NOZZLE:
Determine speed you will be applying & adjust your pressure according to the gallons per acre (GPA)
recommended.
KLC DIAGRAM OF THE
PATTERN
5
Page 6
TEEJET SPRAY TIP CALIBRATION
BA4DSQ
All standard booms come w/ 8003VP poly tips.
The 4 Row booms have 9 nozzles.
Formula:
Example:
GPM =
20GPA x 4MPH x 20 in.
5940
GPA x MPH x Nozzle Spacing.
5940
1600
=
5940
= .27gpm
Take the GPM that you figured & look down the GPM chart to figure what pressure you need to run at
that desired speed.
*NOTE: If spraying liquid nitrogen you will need to multiply the conversion factor w/ the gpa, mph, &
nozzle spacing.
Conversion Factor:
28% Nitrogen - 10.65 lbs. per gal. - 1.13
32% Nitrogen - 11.00 lbs. per gal. - 1.15
Example:
20GPA x 4MPH x 20 in. x 1.13
5940
1808
=
5940
= .31gpm

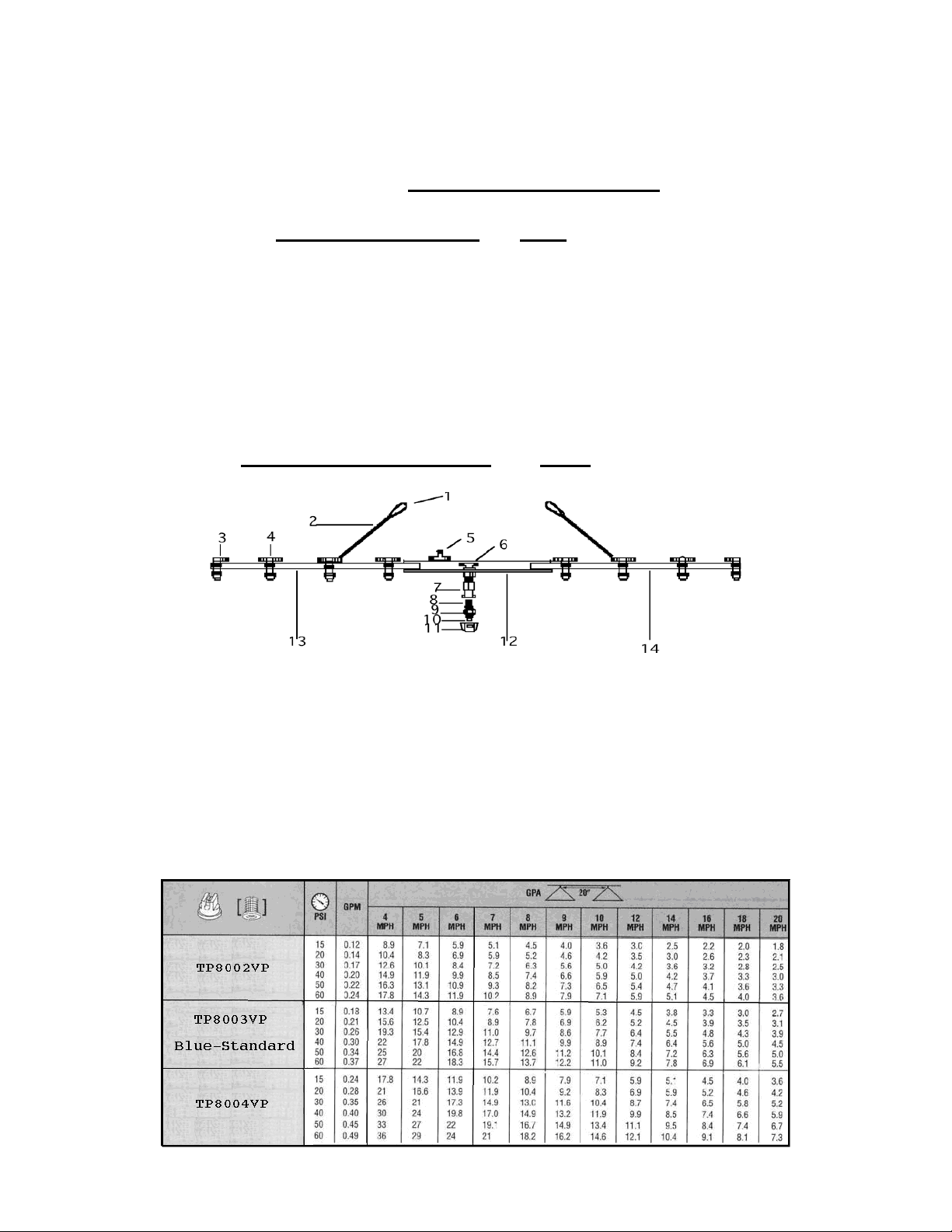

1. Snap Link (SL14) 8. 50 Mesh Poly Strainer (8079-PP-5O)
2. Breakaway Spring (SP4-6) 9. EPDM Gasket (CP19438-EPR)
3. 18635-111-406 – 3/8” QJ Body – Elbow 10. 8003VP Tip (TP8003VP)
4. 18636-112-406 – 3/8” QJ Body – Tee 11. Quick Jet Slotted Cap (25612-2-NYR)
5. T38 N
6. NTT38 N
7. QJT-NYB Quickjet adapter 14. Right Arm Boom Pipe – 6’ Long
12. Center Section
13. Left Arm Boom Pipe – 6’ Long
15. Boom Clamp (QJ111SQ-1) Not Shown
6
Page 7

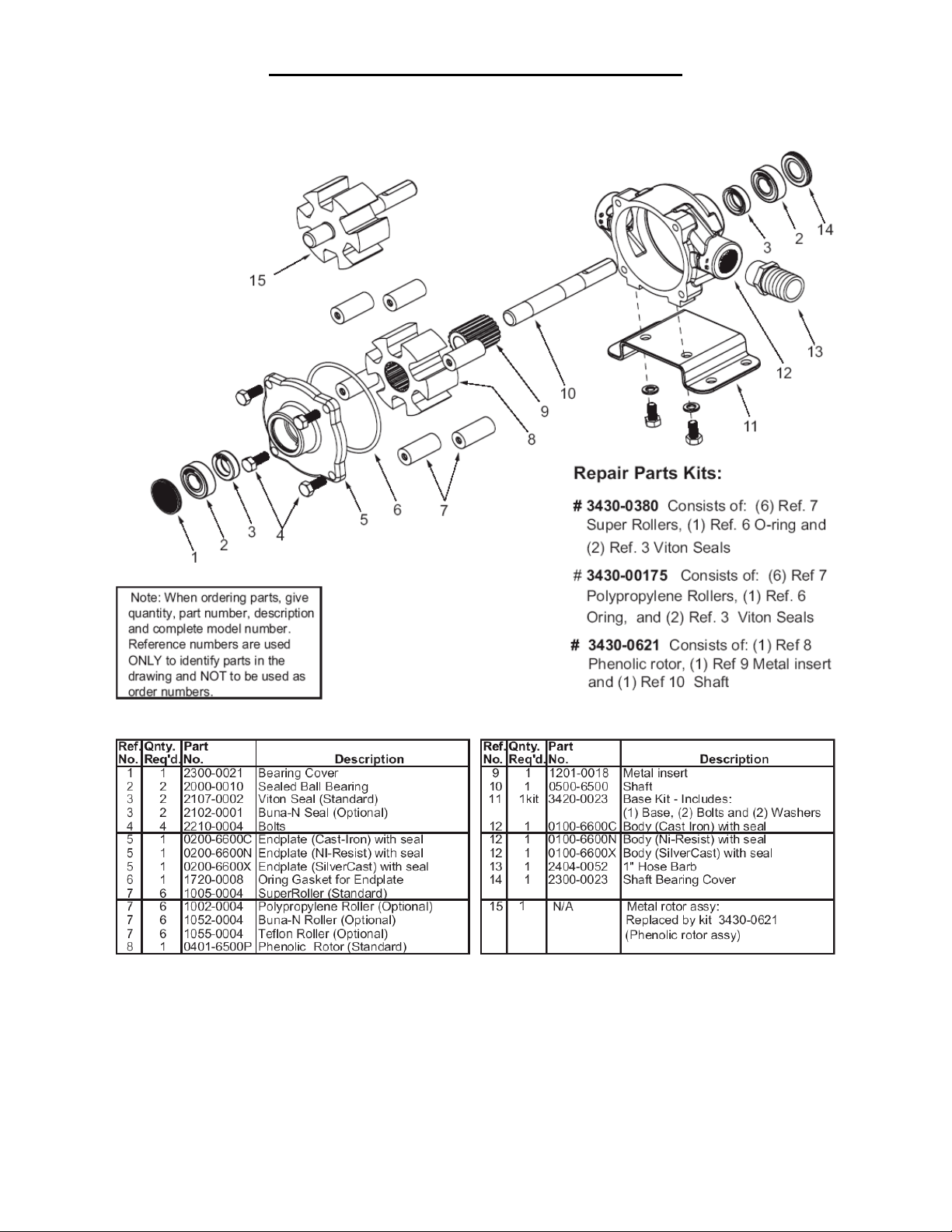

HYPRO 6500C, 6500N, & 6500XL
7
Page 8

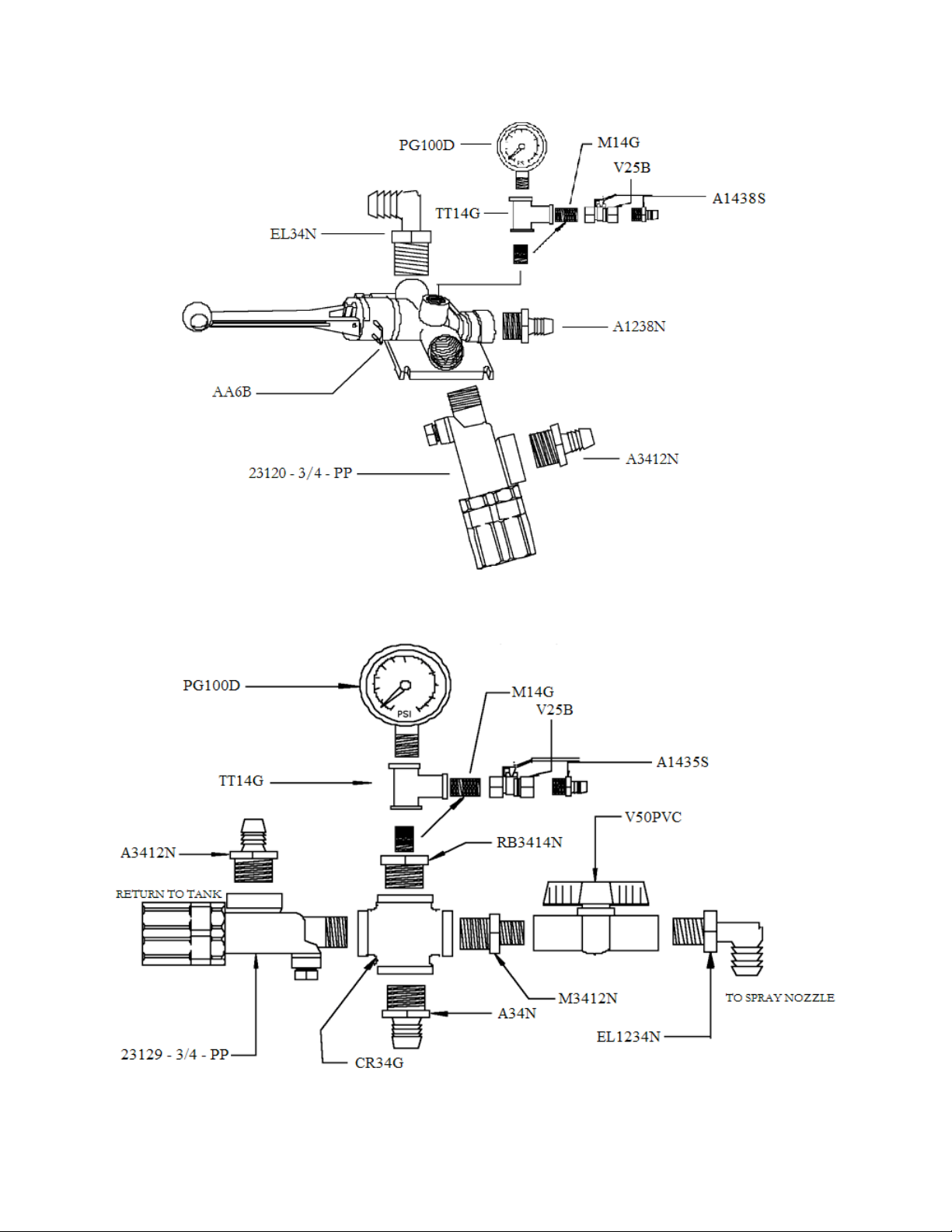

PRESSURE HEADS
PRESSURE HEAD FOR RM 554DH43L
PRESSURE HEAD FOR RM 55 H BOOMJET, HAMILTON, KLC, & BXT
8
Page 9

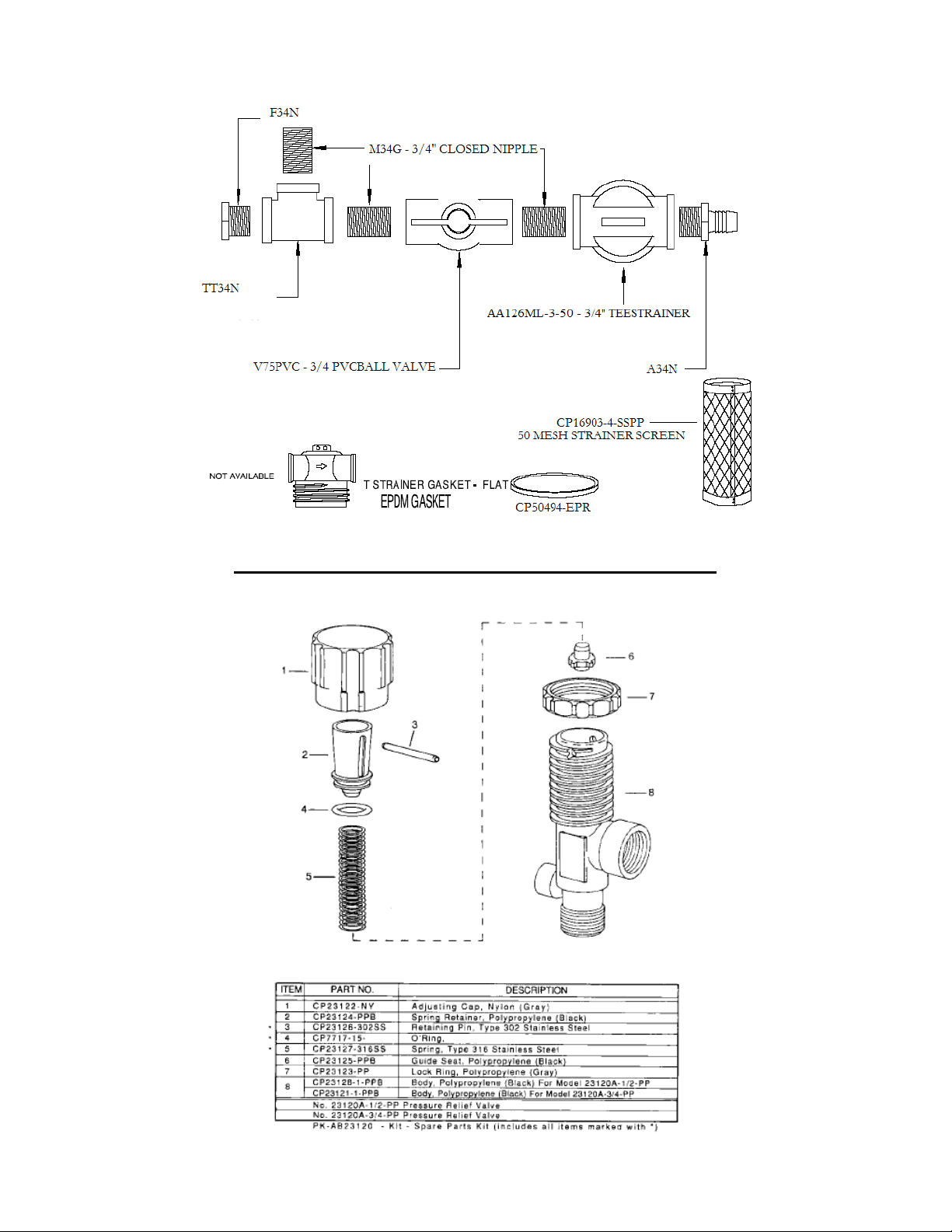

TANK PLUMBING
SPRAYING SYSTEMS 23120 REGULATOR
9
Page 10

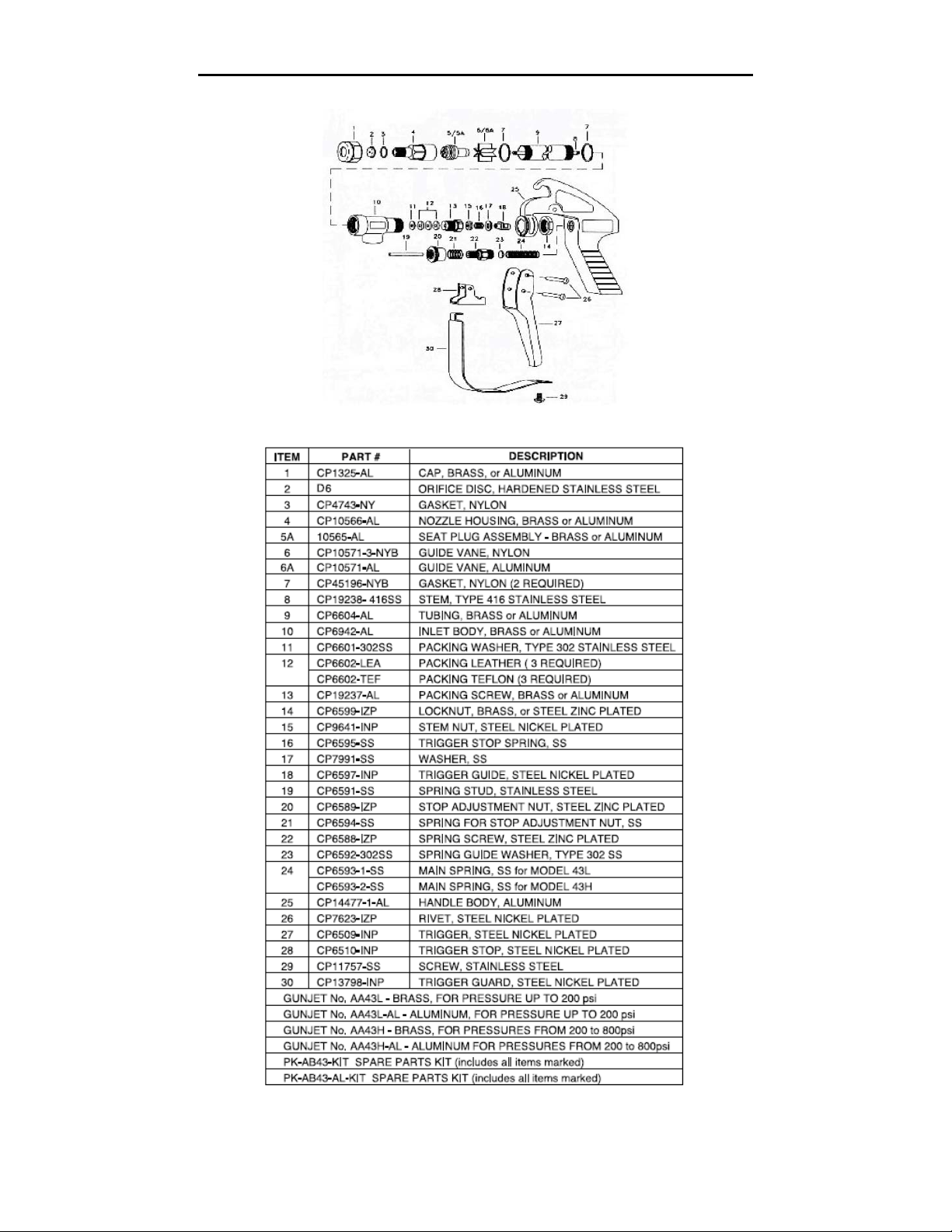

SPRAYING SYSTEMS 43L-AL SPRAY GUN
10
Page 11
TROUBLE SHOOTING
PROBLEM CAUSE
1. NO PRESSURE A. STRAINER CLOGGED
B. PUMP SUCKING AIR or PUMP HAS AIR
LOCK. CHECK HOSES FOR CRACKS
or HOLES. MAKE SURE FITTINGS
ARE TIGHT.
C. SUCTION LINE COLLAPSING – NEED
STIFFER HOSE.
D. WORN or LEAKING SEALS.
2. PUMP RUNS, BUT LOW PRESSURE A. SUCTION LINE & FITTINGS STOPPED
UP or HOSE KINKED.
B. WORN ROLLERS or PUMP HOUSING.
C. STOPPED UP STRAINER.
3. PUMP PRESSURE GOOD BUT LOW
OUTPUT THROUGH NOZZLES
4. EXCESSIVE VIBRATION or NOISE
FROM PUMP
A. NOZZLE SIZE MAY BE TOO SMALL.
CHECK CALIBRATION & GALLONS
PER ACRE.
B. INLET LINE TOO SMALL or BLOCKED
OFF.
C. BY-PASS OPEN TOO MUCH. CLOSE
SLIGHTLY.
A. POSSIBLE LOOSE COUPLER –
DAMAGED SHAFT.
B. EXCESSIVE PTO or ENGINE SPEED.
C. ROTOR or INTERNAL PROBLEM.
11
