Page 1
Before commissioning the machine, read operating instructions
and observe warnings and safety instructions.
&
Power Machines for Soil Cultivation,
Grass and Property Maintenance
3959, 3960
Operating Instructions
for AGRIA
®
Grassland Mower Hopper 5000
Operating Instructions No. 998 723 02.97
5000 011 Compact
5000 021 Comfort
Page 2
2 Grassland Mower Hopper 5000 Edition 02.97
Index
Amount of Delivery ........................ 3
Recommendations
Lubricants, Anti-Corrosive Agents ... 4
Fuel ................................................... 4
Maintenance and Repair .................. 4
Designation of Parts....................... 5
Assembly ..................................... 7–8
1. Safety Instructions ............... 9–13
2. Specifications

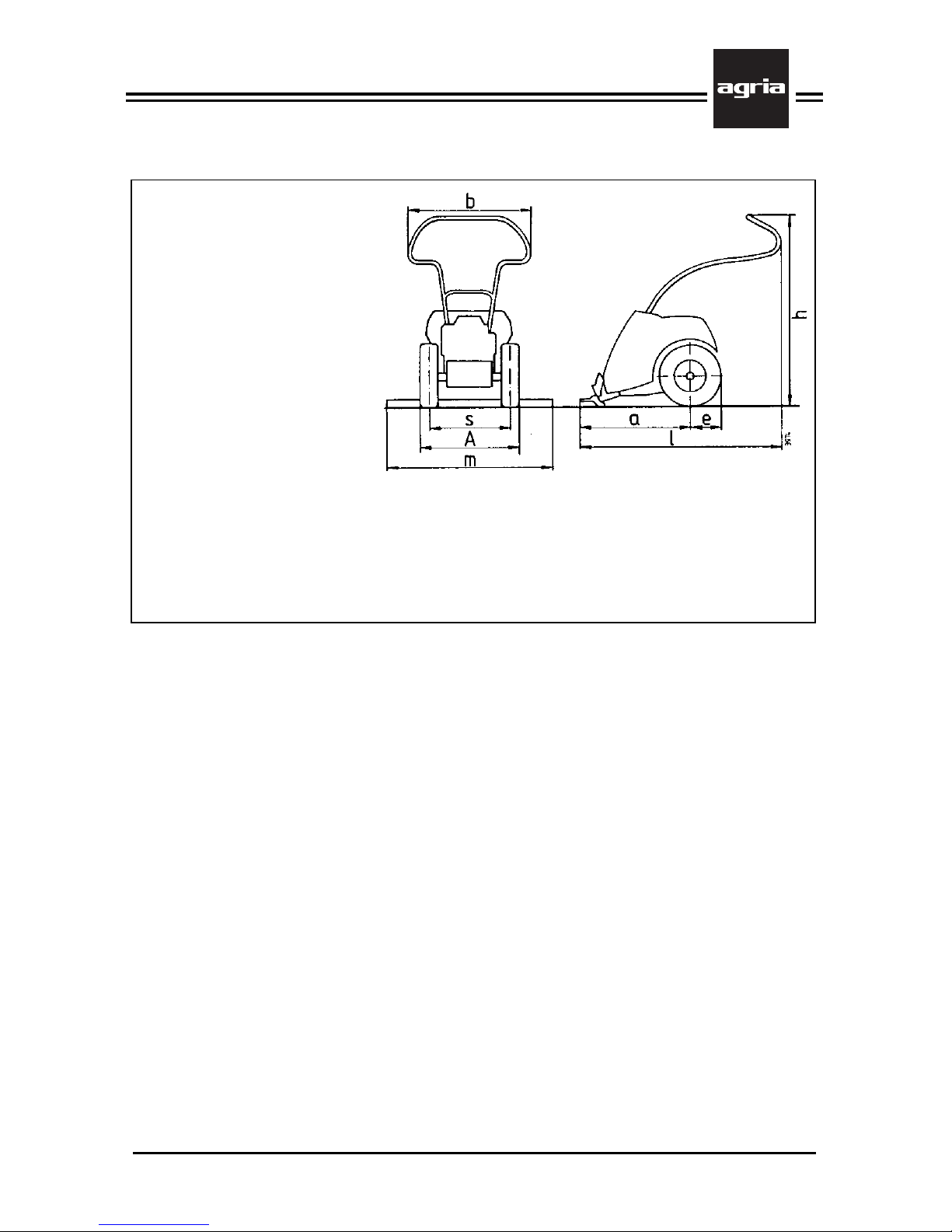

Dimensions ..................................... 14
Grassland Mower............................ 14
Noise Level ..................................... 14
Vibration Acceleration Value........... 14
Operation on Slopes................. 15, 16
Engine, Compact Version ............... 15
Engine, Comfort Version................. 16
3. Devices and Operating Elements
Engine............................................. 17

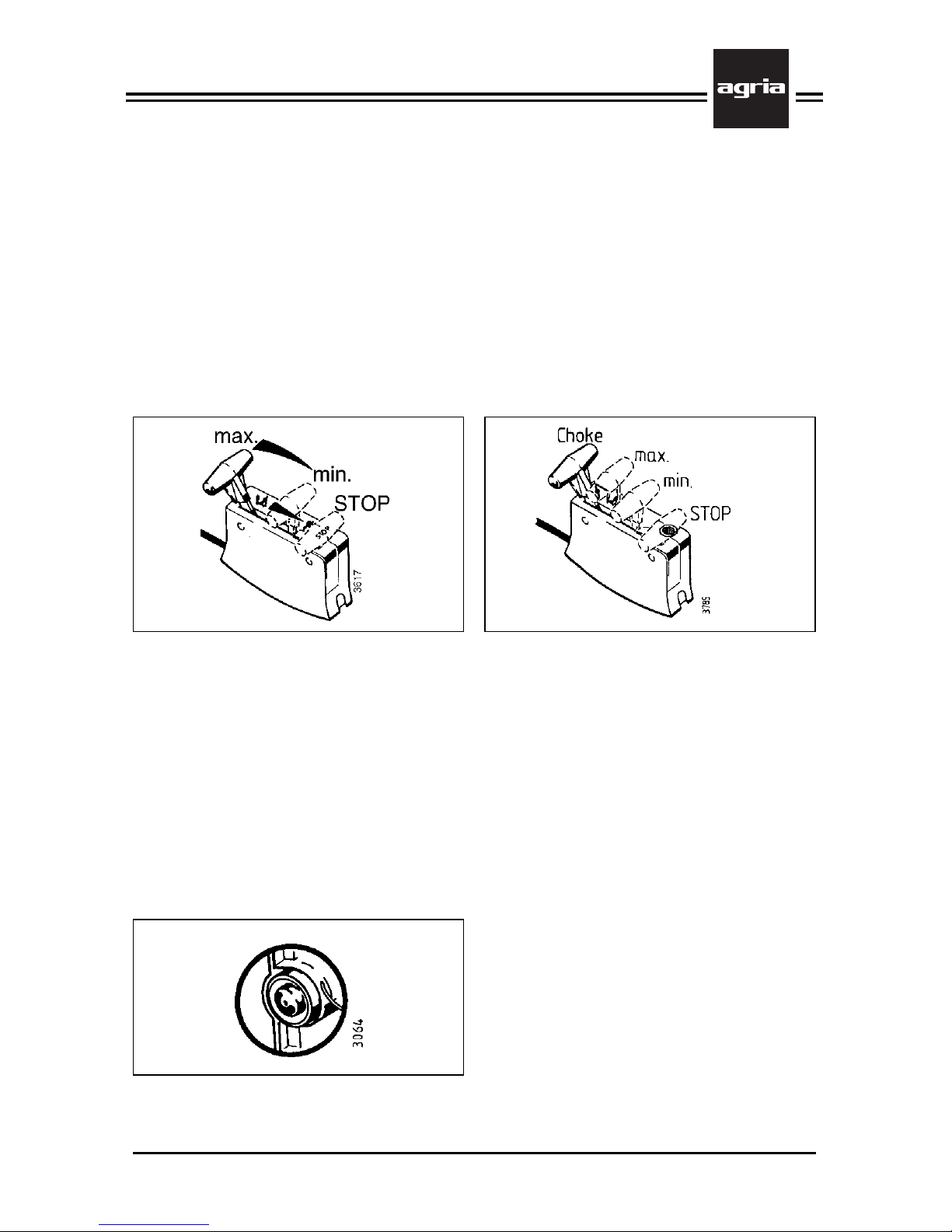

Speed Control Lever....................... 18
Clutch.............................................. 18
Wheel drive and Cutter Bar Drive .. 19
Drive-Wheels .................................. 20
Handle to lift the Machine............... 20
Engine Panel .................................. 20
Cutter Bar ....................................... 21
4. Commissioning and Operation
Commissioning the Machine .......... 22

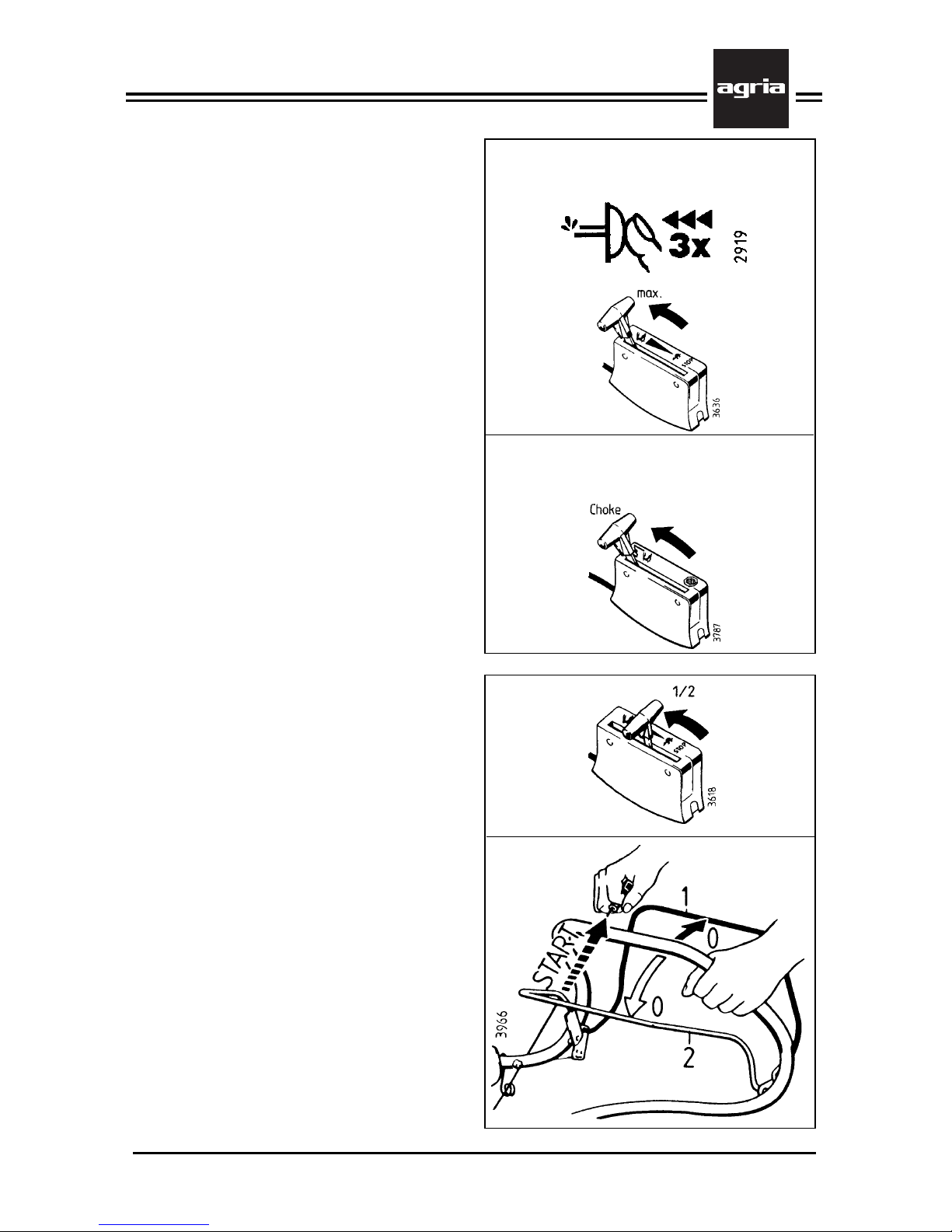

Starting the Engine ......................... 23

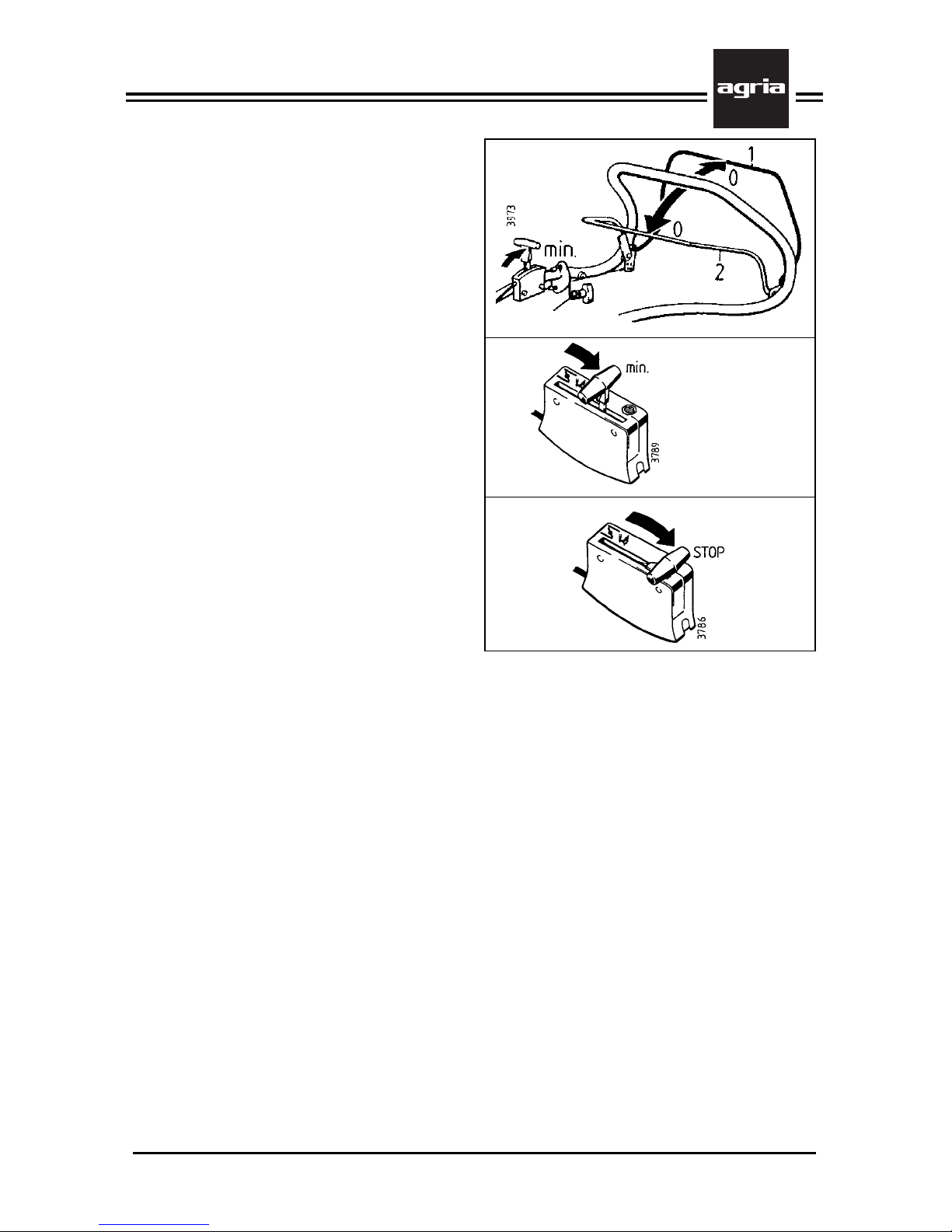

Shutting off the Engine ................... 24

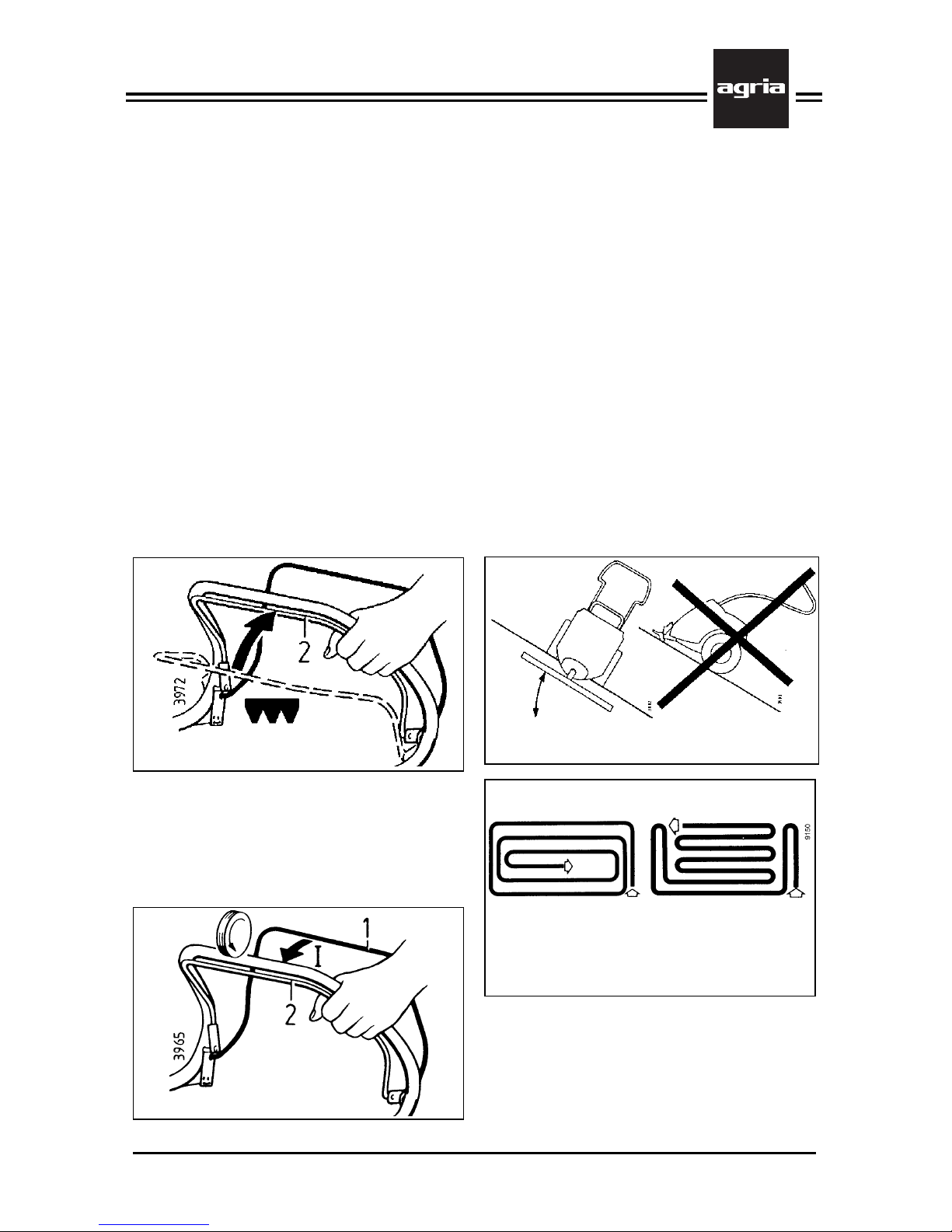

Mowing............................................ 25
5. Maintenance
Machine .......................................... 26
Clutch play ...................................... 26
Drive-wheels ................................... 27
Mowing Attachment ........................ 28
Cutter Bar ....................................... 29

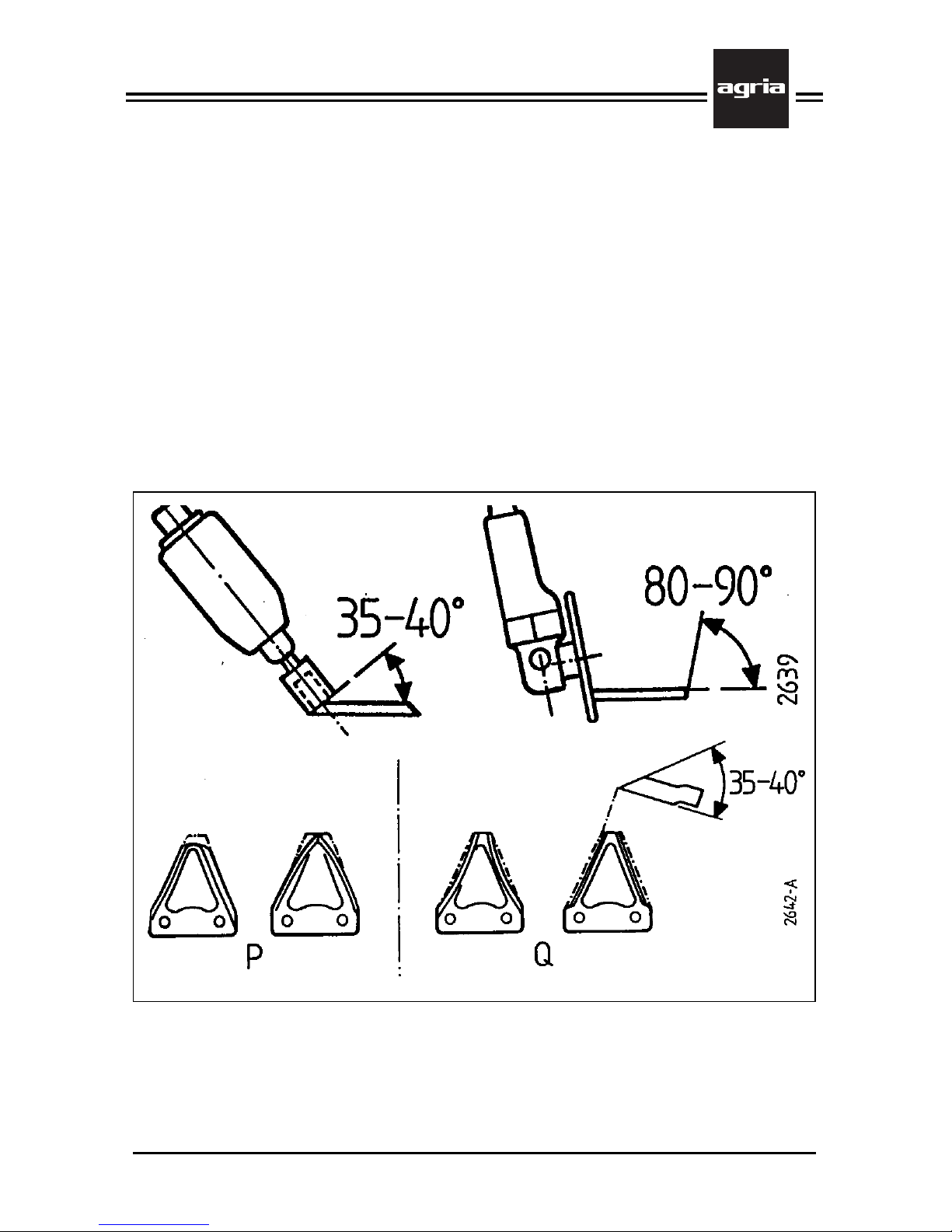

Grinding the Knives ........................ 30
Engine............................................. 31

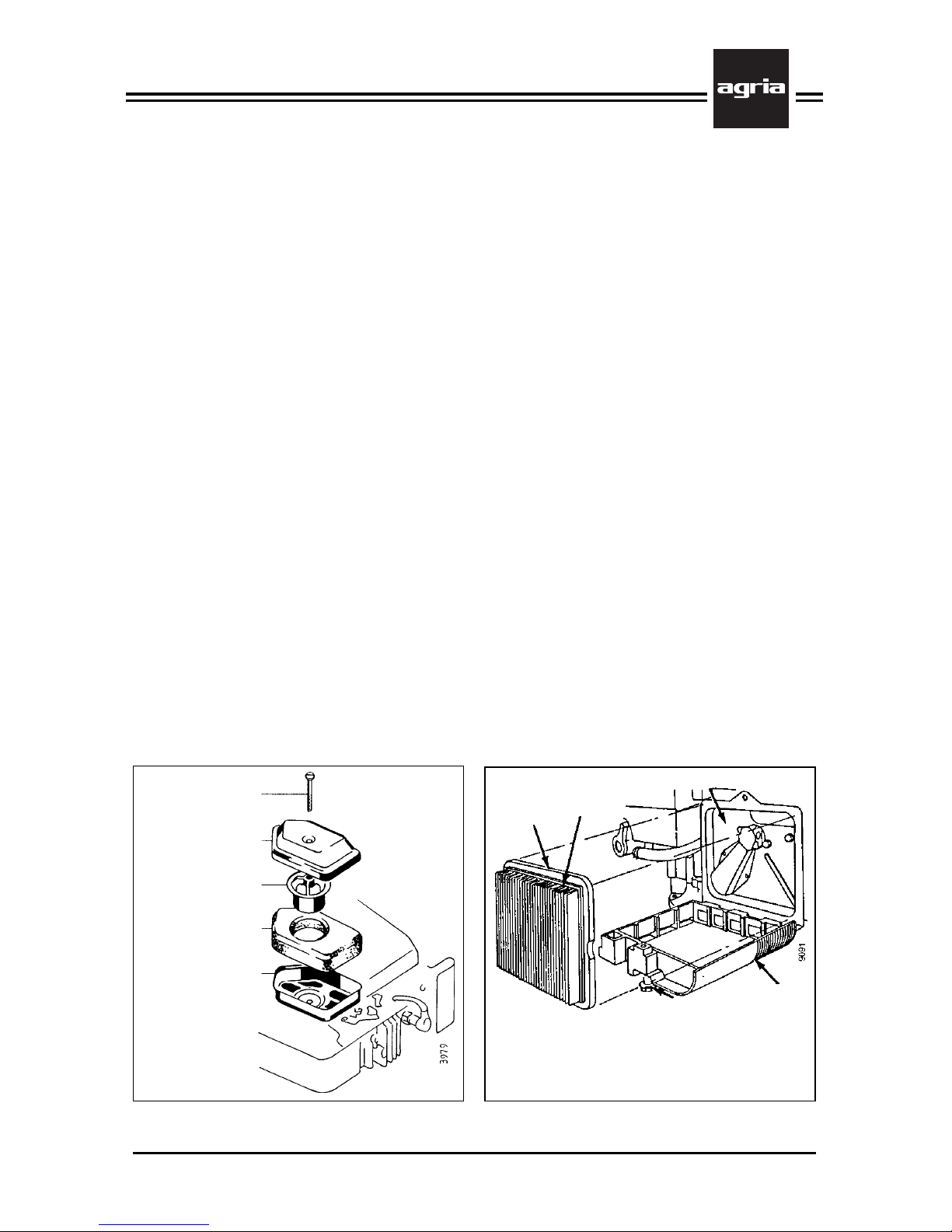

Air Filter .......................................... 32
Fuel System.................................... 32

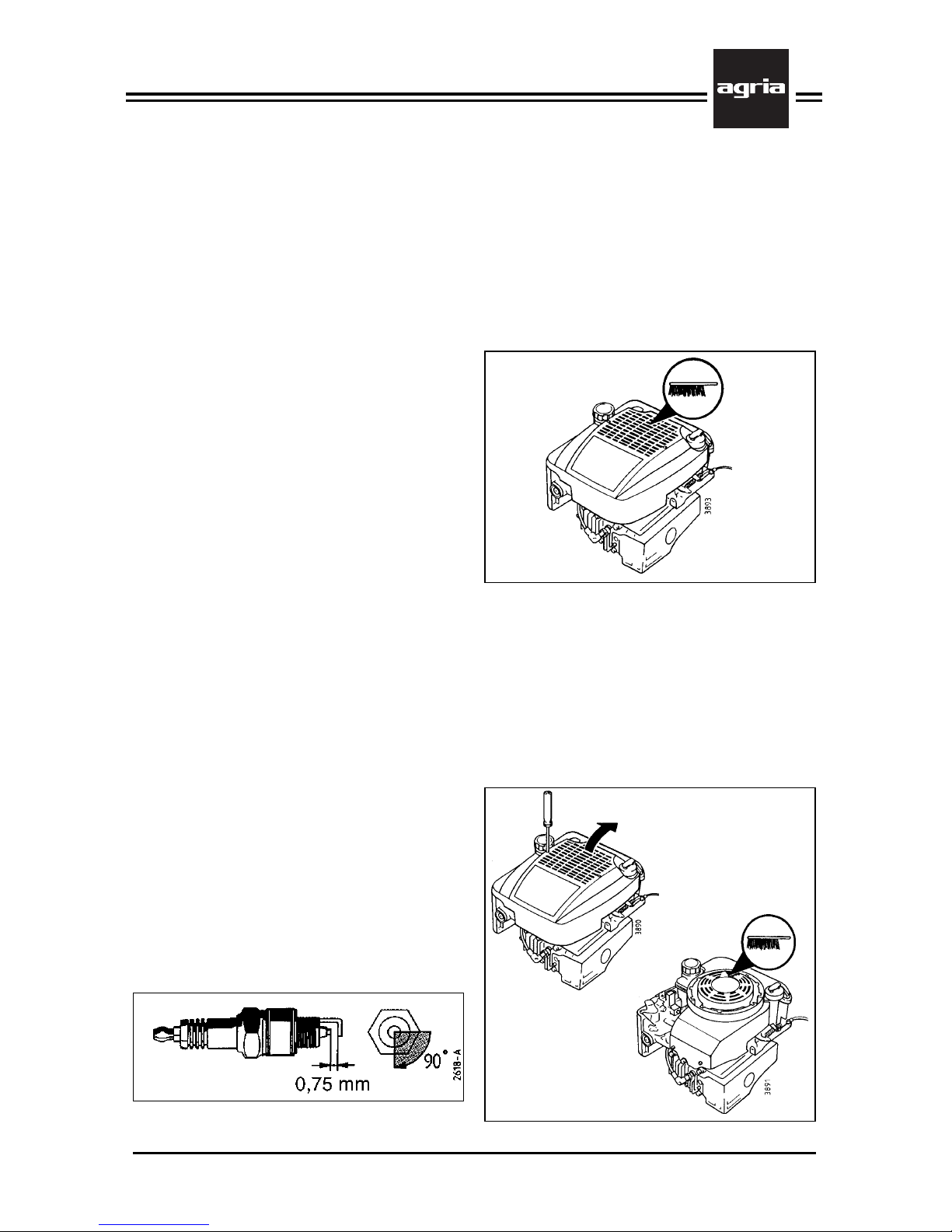

Spark Plug ...................................... 33
Cooling System .............................. 33
Governor ......................................... 34
Exhaust........................................... 34
Speed Actuating Devices ............... 34
Carburetor Setting .......................... 34
Dead Stop....................................... 34
Machine .......................................... 34
General ........................................... 35
Cleaning.......................................... 36
Storage ........................................... 36
Lubricants, V arnishes,
Wear Parts ..................................... 37
6. T roubleshooting .................. 38–39
Inspection and
Maintenance Chart ....................... 40
Conformity Declaration................ 41
Note fold-out pages!
Fig. A ................................................ 5
Fig. B, Engine Quantum XM 45 ..... 5
Fig. C + D, Engine CLASSIC 35 ..... 5
Page 3
Edition 02.97 Grassland Mower Hopper 5000 3
Symbols, Name Plate
Symbols
Warning – Danger
Important information
Fuel
Choke
Oil
Mowing drive
Wheel drive
Open
Closed
Please complete:
Machine Type No. ..........................
ID/Machine No.
.......................................................
Engine Type: ..................................
Engine No.......................................
Date of Purchase: ..........................
For name plate, refer to p5/fig. A/18.
For Engine type and number, refer to
p5/fig. B/7 or C/7.
Please state these data when ordering
spare parts to avoid wrong deliveries.
Only use original A GRIA spare parts!
Specifications, figures and dimensions
stated in these instructions are not binding. No claims can be derived from them.
We reserve the right for improvements
without changing these instructions.
This delivery comprises:
l
Operating instructions
l
Grassland mower – basic machine
l
Handlebar with fixing parts
l
1 pair of drive-wheels
l
2 linch pins
l
2 anti-winding tubes
l
Tool kit
Page 4
4 Grassland Mower Hopper 5000 Edition 02.97
Recommendations
Lubricants and
Anti-Corrosive Agents
Use the specified lubricants for en-
gine and gearbox (see “Specifica-
tions”).
We recommend using bio-lubricat-
ing oil or bio-lubricating grease for
“open” lubricating points or nipples (as
specified in the operating instruc-
tions).
We recommend using bio-slushing oil
for preservation of machines and im-
plements (do not apply on painted
external covers). Oil can be br ushed
or sprayed on.
Anti-corrosive agents are environ-
mentally friendly and degrade fast.
Using ecologically safe bio-lubricants
and bio-anti-corrosives, you contrib-
ute to environmental protection and
to the wellbeing of humans, animals
and plants.
Fuel
This engine runs smoothly on com-
mercial unleaded regular and
supergrade petrol as well as on
leaded supergrade petrol.
Do not add oil to petrol.
If, for environmental reasons, you use
unleaded petrol, make sure the fuel is
drained completely when shutting down
the engine for more than 30 days. This
is to prevent resin residue from depositing in the caburetor , fuel filter, and tank.
Or add a fuel stabilizing liquid.
When storing the grassland mower at
the end of the season, also drain leaded
fuel completely or add a fuel stabilizing
liquid.
For further instructions refer to “Engine
Preservation”.
Maintenance and
Repair
The trained mechanics of your AGRIA
workshop carry out expert maintenance
and repair.
You should only carry out major maintenance work and repairs on your own,
if you have the proper tools and knowledge of machines and internal combustion engines.
Do not hammer against the flywheel with
a hard object or metal tools as it might
crack and shatter in operation causing
injuries and damage. Only use suitable
tools for pulling the flywheel.
Page 5
Edition 02.97 Grassland Mower Hopper 5000 5
Designation of Parts
Figure A
Figure C
CLASSIC 35
Figure B
CLASSIC 35
Figure D
Quantum XM 45
Page 6
6 Grassland Mower Hopper 5000 Edition 02.97
Figure A
1 Clutch control lever for wheel-drive
2 Clutch control lever for mowing drive
3 Speed control lever
4 Starter handle
5 Handlebar
6 Steering bar / handle to lift the machine
7 Knurled nut for handlebar attachment
8 Round and flat bolt for handlebar attachment
9 Mowing drive hood
10 Rocker arm with grass deflector
11 Knife driver with driving stone
12 Cutter bar
13 Knife guard
14 Drive-wheel
15 Linch pin
16 Engine
17 Engine panel (only on Comfort version)
18 Name plate (ID no.)
Figures B, C, D
Briggs & Stratton engine
1 Fuel tank cap
2 Starter handle
3 Cooling grille
4 Engine filler and drain plug with oil dip-stick
5 Air filter
6 Carburetor
7 Engine type/Type no.
8 Spark plug, spark plug connector
9 Guarded exhaust
10 PRIMER (CLASSIC 35 version only)
Designation of Parts
Page 7
Edition 02.97 Grassland Mower Hopper 5000 7
Assembly
1 Steering bar
2 Handlebar
3 Clip for Bowden cable
4 Bolt for handlebar attachment
5 Oval washer with square hole
6 Grip nut
7 Starter cord bracket
8 Starter cord
l
Open the top of the cardboard box.
l
Cut the box open on all four corners
and fold down the sides.
Fitting the handlebar
l
Remove the grip nut (6) and remove
the bolt (4) together with the oval washer
(5).
l
Align the ends of the handlebar (2)
with the steering bar (1).
l
Insert the bolt (4) with the oval washer
(5) in the holes on the handlebar and
steering bar from the outside. Ensure
that the square end of the bolt is fitted
properly in the square hole in the oval
washer.
l
Attach the grip nut (6) and tighten it.
l
Attach the Bowden cables to the handlebar using the clip (3). Ensure that all
cables are routed properly. Ensure the y
are not bent or squeezed.
Page 8
8 Grassland Mower Hopper 5000 Edition 02.97
Assembly
1 Cutter bar
2 Knife driver
3 Locking washer
4 Hex head bolt
5 Driving stone
6 Hex head bolt
7 Locking nut
8 Cutter bar carrier pin
1 Linch pin
2 Drive-wheel
3 Anti-winding tube
4 Wheel shaft
l
Fit the starter cord (8) into the bracket
(7) and guide it anti-clockwise through
the coil windings.
Fitting the Drive-Wheels
l
Slide the anti-winding tubes (3) on
both ends of the wheel shaft (4)
l
Fit the drive-wheels on the wheel
shaft (4) in such a way that the tread
lugs point forward (seen from above)
while the hub holes which accommodate
the linch pins point outside
l
Insert the linch pin (1) through the
hole in the hub and wheel-shaft and lock
the pin.
Fitting the Cutter Bar
l
Attach the knife driver (2) to the knif e
with the hex head bolts (4) M8 x 12 and
the locking washers (3). Tighten the
bolts at a torque of 23 Nm (2.3kpm).
l
Insert the knife driving stone (5) into
the knife driver in such a way that both
holes are aligned axially.
l
Attach the cutter bar carrier pin (8)
with hex head bolts (6) and locking n uts
(7) to the cutter bar . Tighten the locking
nuts at 23 Nm (2.3 kpm).
l
Attach the cutter bar to the mower
(see p21)
Commissioning the machine
For start-up procedures, follow the instructions on p22.
Page 9
Edition 02.97 Grassland Mower Hopper 5000 9
1. Safety Instructions
Before starting the engine, read the operating instructions and note:
Warning
This symbol marks all paragraphs which
affect y our safety. P ass all safety instructions to other users and operators.
Due Use
The grassland mower has exclusively
been designed for all common applications and tasks in forestry, grass and
park maintenance, and winter service
(due use).
Any other type of operation is considered undue. The manufacturer is not liable for any damages resulting from
undue use, for which the risk lies with
the user alone.
Due use includes compliance with
manufacturer’s instructions on operation, maintenance and repair.
Any unauthorized changes to the mower
render manufacturer liability null and
void.
General Instructions on
Safety and Accident
Prevention
Basic Rule:
The standard accident prevention regulations must be adhered to, as well as
all other generally accepted rules governing operational safety, occupational
health and road traffic regulations.
For drives on public roads, the national
traffic code applies.
Accordingly , check the gr assland mower
for road and operational safety each
time you take up operation.
Only persons familiar with the mower
and instructed on the hazards of operation are allowed to use, maintain and
repair the mower.
Teenagers of 16 years or younger may
not operate the grassland mower!
Only work in good light and visibility.
Operator’ s clothes should fit tight. A void
wearing loose fitting clothes. Wear solid
shoes.
Note the warning and instruction signs
on the mower for safe operation. Compliance is for your own safety.
When transporting the mower on vehicles or trailers outside the area to be
mowed, ensure that the engine is turned
off.
Careful with rotating tools – keep at a
safe distance!
Page 10
10 Grassland Mower Hopper 5000 Edition 02.97
1. Safety Instructions
Beware of coasting tools. Before you
start any maintenance or repair on them,
wait until tools hav e come to a complete
stop.
Foreign pow ered parts shear and crush!
Riding on the attachment during opera-
tion is not permitted.
Implements and their weight affect the
driving, steering, braking, and tip-over
characteristics of the mower . Therefore,
ensure steering and braking functions
are sufficient. Match operating speed to
conditions.
Do not change settings of governor . High
engine speed increases risk of accidents.
Working Area and
Hazardous Area
The user is liable to third parties working within the mower’s working range.
Staying in hazardous area is not permitted.
Check the immediate surroundings of
the mower before y ou start it. W atch out
for children and animals.
Before you start work, clear the area
from any foreign object. During operation, always w atch out for further objects
and remove them in time.
For operation in enclosed areas, ensure
that a safety distance is kept to enclosures to prevent damage to tools.
Operation and Safety
Devices
Before you start the engine
Become familiar with the devices and
operating elements and their functions.
Above all, learn how to turn the engine
off quickly and safely in an emergency.
Ensure that all protective devices are
mounted and positioned to provide protection.
With no implement mounted, make sure
PTO-shaft is covered with the protective cap.
Starting the engine
Do not start engine in closed rooms. The
carbon monoxide contained in the exhaust fume is extremely toxic when inhaled.
Before you start the engine set all operating elements to neutral or idling position.
For starting the engine, do not step in
front of the mower and the implement.
Do not use assist-starting liquids when
using electrical assist-starting devices
(jumper cable). Danger of explosion.
Operation
Never leave the operator’s position at
the steering handle while mower is at
wor k.
Never adjust the oper ating handles during work – danger!
Page 11
Edition 02.97 Grassland Mower Hopper 5000 11
1. Safety Instructions
During operation the operator must keep
at a distance as defined by the steering
handle, especially when turning the
machine.
Riding on the implement during operation or in transport is not permitted.
If clogging occurs in the implement, turn
off the engine and clean the implement
with an appropriate tool.
In case of damage to the grassland
mower or to the implement, immediately
turn off the engine and have it repaired.
If steering causes problems, immediately bring the mower to a halt and turn
it off. Have the malfunction removed
without delay.
To prevent the mower from sliding on
slopes, make sure it is secured by another person using a bar or a rope. This
person must be located at a higher position than the vehicle and at a saf e distance from the attachment at work.
If possible, always work horizontally on
the slope.
End of Operation
Never lea ve the mow er unattended with
the engine running.
Before you leave the grassland mower,
turn off the engine.
Secure grassland mower against unauthorized use. If mower is equipped with
ignition key, remove the k ey . For all other
versions, remov e spark plug connector .
Implements
Only mount implements with the engine
and PTO switched off.
Always use appropriate tools and wear
gloves when changing implements and
parts thereof.
For mounting and dismounting implements bring support leg into proper position and ensure stability.
Secure mower and implements against
rolling off (parking brake, wheel chocks).
Beware of injuries while coupling implements.
Mount implements as specified and only
couple at specified points.
Secure mower and implement against
unauthorized use and rolling off when
you leav e the machine. If necessary, install transport or security devices and
secure.
Mowing Attachment
Handle with care! Sharp blades of the
cutter bar may cause injuries! Remove
protective knife strips only for mowing
and refit immediately after work has finished.
For transport and storage always mount
the protective knife strips. Secure finger bars additionally with tension
springs.
Do not transport the dismounted cutter
bar without protective strips.
Page 12
12 Grassland Mower Hopper 5000 Edition 02.97
1. Safety Instructions
Before mounting and dismounting the
cutter bar , make sure all blades are protected by the protective strip.
To exchange the mowing knife and to
mount/dismount the knife driver, make
sure that you turn screws away from
cutting edges.
For grinding the mowing kniv es, alwa ys
wear safety goggles and gloves.
Weights
Always fit weights onto appropriate
weight mounting devices.
Snow Clearing
Ensure snow dozer is mounted correctly! Wear slip-proof shoes.
When swivelling the snow dozer watch
out for crush and shear points. Adjust
working speed to conditions. Operator
may be injured when the mache comes
in contact with solid objects.
Maintenance
Never carry out any maintenance or
cleaning with the engine running.
Before you work on the engine, always
remove spark plug connector (petrol
engine only).
Check regularly and, if necessary, replace all protecting devices and tools
subject to wear and tear.
Replace damaged cutting tools.
Always wear safety gloves and use
proper tools when exchanging cutting
tools.
Do not carry out repairs like welding,
grinding, drilling, etc. on structural and
safety-relevant parts (e.g. coupling devices)!
Keep mower and implement clean to
avoid risk of fire.
Check nuts and scre ws regularly for tight
fit and re-tighten, if necessary.
After maintenance and cleaning, ensure
that you re-install all safety and protective devices and adjust them properly.
Only use original AGRIA spare parts.
All other commercial spare parts must
correspond to quality and technical requirements specified by AGRIA.
Storage
It is not allowed to store the mower in
rooms with open heating.
Never park the mower in closed rooms
with fuel left in tank. Fuel vapours are
hazardous.
Engine, Fuel, and Oil
Nev er let the engine run in closed rooms.
Extreme danger of intoxication! For the
same reason, also replace damaged
exhaust pipe immediately.
Be careful when dealing with fuel. Great
danger of fire! Never refill fuel close to
open fire, inflammable sparks or hot
engine parts. Do not refill fuel in closed
rooms. Do not smoke when refilling!
Refill only with the engine switched off
and cooled down.
Do not spill any fuel, use a proper filling
device .
Page 13
Edition 02.97 Grassland Mower Hopper 5000 13
1. Safety Instructions
In case of fuel spillage, pull the grassland mower away from the spillage before you start the engine.
Make sure fuel is of specified quality.
Store fuel in approved cans only.
Store anti-corrosive agents and stabi-
lizing liquids out of reach of children. If
sickness and vomiting occur , see a doctor. If fuel has contacted eyes, rinse
them thoroughly, avoid inhaling of vapours.
Read and observe enclosed instructions.
Before you dispose of opened and
seemingly empty pressurised tins (e.g.
of assist-starting liquids) make sure they
are completely empty. Empty them in
ventilated places safe from spark formation or flames. If necessary, dispose
of tins in hazardous waste deposits.
Be careful when draining hot oil, danger of burns.
Make sure oil is of specified quality . Storage is in approved cans only.
Dispose of oil, greases, and filters
seperately and properly.
Tyres and
Tyre Air Pressure
When working on tyres, make sure
grassland mow er is parked properly and
secured against rolling off.
Any repairs are to be carried out by
trained mechanics only and with the
appropriate tools.
Regularly check tyre air pressure. Excessive pressure may cause bursts.
Use appropriate tyre air pressure when
mounting weights or implements.
Re-tighten attachment bolts of drivewheels or check tightness when doing
maintenance work.
Electrical System and
Battery
Persons having a pacemaker must not
touch live parts of ignition system when
the engine is running.
Explanation of
Warning Signs
Before any cleaning, maintenance , and
repair work switch off the engine and
pull spark plug connector.
With engine running, keep at a safe distance from cutting tools.
Page 14
14 Grassland Mower Hopper 5000 Edition 02.97
2. Specifications
Grassland Mower
Machine Dimensions:
a ........................................ 600 mm
b ........................................ 480 mm
e ........................................ 180 mm
h ...................................... 1040 mm
l........................................ 1140 mm
m ............................ 710 or 910 mm
(depending on cutter bar version)
s......................................... 430 mm
A ........................................ 525 mm
Tyres:.................... 3.50 - 6 (field tyre)
T yre air pressure:................... 0.8 bar
Transmission:...................Worm gear
with integrated conus clutch
and chain drive
Ground speed:
Forward.................................. 2.8km/h
Cutter bar drive: .. Central rocker arm
drive with V-belt clutch
Only use original AGRIA V -belts! (see
list of wear parts p37)
Reciprocating shaft speed..... 850 rpm
Stroke ...................................... 60 mm
Steering handle: Vibration dampened
Weight including cutter bar:
Compact 71 cm ...................... 47.5 kg
Comfort 91 cm ........................... 50 kg
Noise level:
In accordance with German 3rd Ordinance on machine-safety law:
Noise level
at operator’s ear.................... 84 dB(A)
(in accordance with regulations of German
Agricultural Association)
Vibration acceleration value:
on handlebar grip:........ a
hwz
= 4.5 m/s
2
in accordance with ISO 5349 at 85% of rated
engine speed with tools at work
Page 15
Edition 02.97 Grassland Mower Hopper 5000 15
2. Specifications,
Compact Version
Engine
Manufacturer: ........ Briggs & Stratton
Type: ............................... CLASSIC 35
95 902 – 0224
Version: ....................... Fan-air-cooled
1-cylinder-4-stroke engine (petrol)
Bore: ..................................... 65.1 mm
Stroke:.................................. 44.4 mm
Cubic capacity: ................... 148 ccm
Power: ................ 2.2 kW at 3000 rpm
Torque: ...............5.2 Nm at 2600 r pm
Spark plug: ....... Champion RJ 19 LM
Gap: ...................................... 0.75 mm
Ignition system:
Electronic magnet ignition, ignition
point is pre-set, radio remote
screened according to VDE 0879
Valve lash (engine cold):
Intake: .................0.10 mm – 0.15 mm
Outlet: .................0.18 mm – 0.23 mm
Starter: ..........................Recoil starter
Fuel tank capacity: .................. 0.95 l
Fuel:....................... Commercial petrol
octane number min. 85 RON
(refer to fuel recommendations)
Air filter: .......... Foamed filter element
Carburetor: ................ Hor izontal float
Mix control screw:
in basic setting.....approx. 1 turn open
Top no-load speed: ............ 3100 rpm
Idling speed:....................... 1400 r pm
Engine oil: ................... Multi-grade oil
SAE 10W-40 API-SC
Filling quantity................. approx. 0.6 l
Operability on Slopes:
Engine is suited for use on slopes (with
oil level at “max” = upper level mark)
Continuous operation
possible up to ....25° inclination (55%)
Temporary operation
up to ...................30° inclination (66%)
Page 16
16 Grassland Mower Hopper 5000 Edition 02.97
2. Specifications,
Comfort V er sion
Engine
Manufacturer: ........ Briggs & Stratton
Type: ......................... Quantum XM 45
127 802 - 0899
Version: ....................... Fan-air-cooled
1-cylinder-4-stroke engine (petrol)
Bore: ........................................ 68 mm
Stroke:..................................... 52 mm
Cubic capacity: ................ 189.6 ccm
Power: ................ 3.0 kW at 3000 rpm
Torque: ...............7.8 Nm at 2400 r pm
Spark plug: ....... Champion RJ 19 LM
Gap: ...................................... 0.75 mm
Ignition system:
Electronic magnet ignition, ignition
point is pre-set, radio remote
screened according to VDE 0879
Valve lash (engine cold):
Intake: .................0.10 mm – 0.15 mm
Outlet: .................0.18 mm – 0.23 mm
Starter: ..........................Recoil starter
Fuel tank capacity: .................... 1.5 l
Fuel:....................... Commercial petrol
octane number min. 85 RON
(refer to fuel recommendations)
Air filter: ................. Dr y filter element
Carburetor: ................ Horizontal float
Mix control screw:
in basic setting..... approx. 1 turn open
Top no-load speed: ............3100 r pm
Idling speed:.......................1400 r pm
Engine oil: ...................Multi-grade oil
SAE 10W-40 API-SC
Filling quantity................. approx. 0.6 l
Operability on Slopes:
Engine is suited for use on slopes (with
oil level at “max” = upper level mark)
Continuous operation
possible up to ....25° inclination (55%)
Temporary operation
up to ...................30° inclination (66%)
Page 17
Edition 02.97 Grassland Mower Hopper 5000 17
3. Devices and Operating Elements
The grassland mower AGRIA 5000 is
suited for horticultural, agricultural, and
forestal operations, for grass and park
maintenance and for winter service operation. The following cutter bars are
available:
l
Cutter bar – Z
71 cm
91 cm
Engine
The four-stroke petrol engine runs on
commercial petrol (refer to fuel recommendations p4).
During the first 20 operating hours
(break-in period) do not operate the
engine at maximum speed.
Even after the break-in period never
operate the engine at higher speed than
is necessary for the work in hand.
I
High engine speed is harmful to any engine and consid-
erably affects its longevity.
This applies especially for no load
operation. Any overspeed (have the
engine roar) can result in immediate
damage.
Cooling System
The cooling system is fan-cooled. Therefore keep the grille on the recoil star ter
and the cooling fins on the cylinder clean
and free from sucked-in plant trash.
Always ensure that idling-speed is adjusted correctly. At low speeds and with
the speed control lever set to idle, the
engine is supposed to run smoothly and
without run-out.
Air Filter
The air filter purifies the air intake. A
clogged filter reduces engine output.
Ignition System
The engine is equipped with a maintenance-free, contactless electronic ignition system. We recommend to have
necessary check-ups done by an expert
only .
Page 18
18 Grassland Mower Hopper 5000 Edition 02.97
3. Devices and Operating Elements
Compact V ersion
Speed Control Lever
(Engine-shut-off switch)
The speed control lever (A/3) on the
steering handle has two functions: it
steplessy controls ground speed and
shuts off the engine in an emergency.
For the appropriate positions in the shift
gate see the illustration.
I
The speed control lever also
serves as engine dead stop.
In an emergency move the lever to position „STOP“ to shut off the
engine instantly.
PRIMER
The engine type CLASSIC 35 is
equipped with a PRIMER (C/10) instead
of a choke to inject fuel for cold starts.
Comfort V ersion
Speed Control Lever
(Engine-shut-off switch)
The speed control lever (A/3) on the
steering handle has two functions: it
steplessy controls ground speed and
shuts off the engine in an emergency.
For the appropriate positions in the shift
gate see the illustration.
I
The speed control lever also
serves as engine dead stop.
In an emergency move the lever to position „STOP“ to shut off the
engine instantly.
Page 19
Edition 02.97 Grassland Mower Hopper 5000 19
3. Devices and Operating Elements

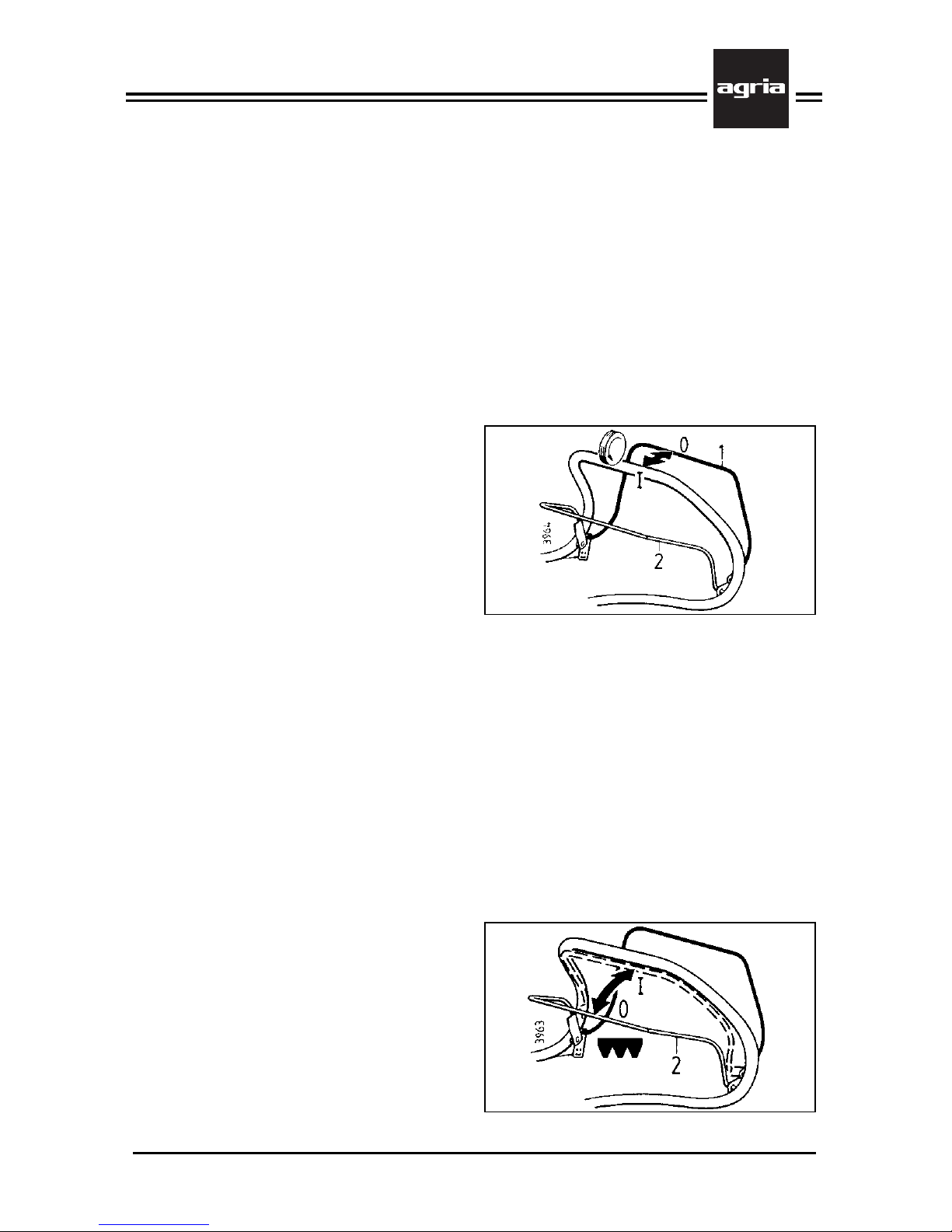

Clutch
The machine is equipped with a conus
clutch which is integrated in a worm gear
to drive the wheels and with a V-belt
clutch with pulley to drive the cutter bar .
Actuation is via the clutch control lever
for wheel-drive (A/1) and via the clutch
control lev er f or the mowing drive (A/2).
The clutch levers simultaneously serve
as a dead man’s handle. Upon release
of the handle the clutch is disengaged
and the engine stops driving the wheels
and the cutter bar.
Both clutches can be actuated independently.
The handles are factory-set to a play of
at least 10 mm to prev ent the clutch from
slipping during work.
Check the clutch play after the first operating hour and readjust the play if necessary (see maintenance instructions).
I
The clutch control levers are
designed as dead stop. Upon
release, the handles will automatically go to position „STOP“ to shut
off the engine instantly.
W
Do not tie the dead man’s
handles.
Transmission
The grassland mower is equipped with
one forward speed.
Forward speed is engagad/disengaged
with the clutch control lever (A/1):
l
Engage forward speed: move clutch
control lever (A/1) towards the handlebar.
l
Disengage forward speed: Release
the clutch control lever (A/1).
Mowing drive
The knives are driven via a roc ker drive.
The mowing drive is engaged/disen-
gaged with the clutch control lever (A/2):
l
Engage mowing drive:
Pull the clutch control lever (A/2) towards the handlebar
l
Disengage the mowing drive:
Release the clutch control lever (A/2)
Page 20
20 Grassland Mower Hopper 5000 Edition 02.97
3. Devices and Operating Elements
1 Linch pin
2 Drive wheel
3 Anti-winding-tube
4 Wheel shaft
Handle to lift the Machine
The steering bar on the grassland
mower is shaped like a handle (A/6) to
allow the operator to lift the machine at
a favourable point of gravity.
Do not try to lift the mower on the plastic panels!
Drive-wheels
The drive-wheels (2) are attached to the
wheel shaft (4) with linch pins (1). This
allows attaching and removing the
wheels without tools.
Anti-winding tubes (3) are fitted on both
ends of the wheel shaft. These prevent
grass from winding around the shafts.
Removing grass that has wound around
the shaft is easy: simply remove the
drive-wheels without tools and slide off
the tubes.
Engine Panel
The Comfort engine version is equipped
with a rear engine panel (A/17).
Remove this panel to inspect and service the engine.
Removing the engine panel
l
Remove the grip nut and pull the
panel from the threaded pin to the rear
l
Remove the panel from bracket 2,
pulling it upwards at an angle and towards the handlebar
Mounting the engine panel
l
To replace the panel, reverse the
above order.
Page 21
Edition 02.97 Grassland Mower Hopper 5000 21
3. Devices and Operating Elements

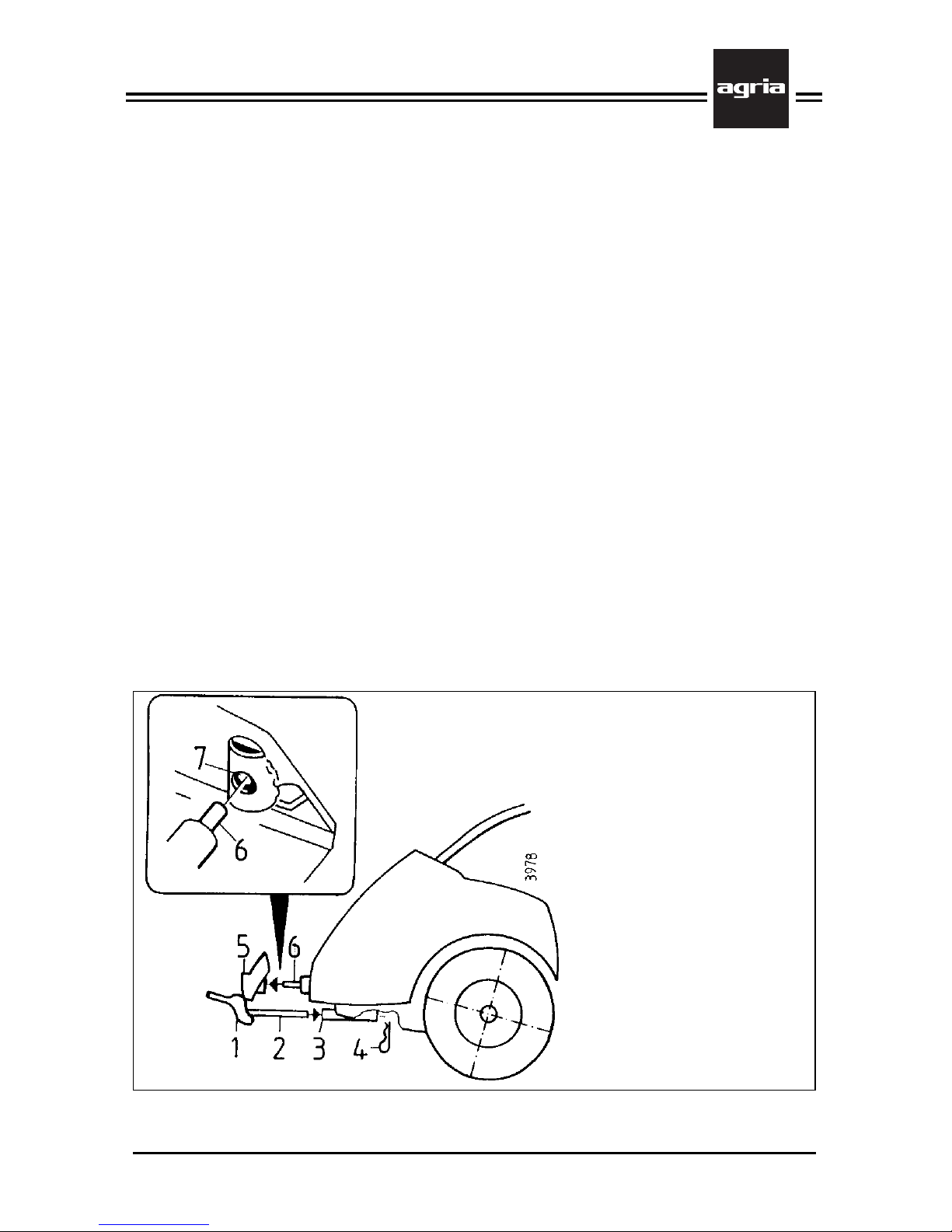

1 Cutter bar
2 Carrier pin
3 Hole to accommodate the
cutter bar
4 R-clip
5 Knife driver
6 Driver pin
7 Driving stone
Attaching the Cutter Bar
The following cutter bars are available
for attachment to the basic machine:
Cutter bar Z............................... 71 cm
Cutter bar Z............................... 91 cm
W
When attaching/removing the
cutter bar to/from the machine fit the knife guard (A/13)
and wear safety gloves!
l
Ensure the driving stone (7) is fitted
in the knife driver (5) and its hole is axially aligned with the knive driver's hole.
l
Brush Bio-lubricating grease on the
driver pin (6) and the carrier pin (2).
l
Insert the driver pin (6) in the hole in
the driving stone (7) and insert the carrier pin (2) in the hole (3) on the basic
machine.
l
Lock the carrier pin with an R-clip (4).
To remove the cutter bar from the ba-
sic machine reverse the above order.
I
For knife adjustment and replacement see ”Maintenance”
p29.
Page 22
22 Grassland Mower Hopper 5000 Edition 02.97
4. Commissioning and Operation
Oil dip-stick Oil filler neck
I
Caution: The engine is
delivered without engine oil
for reasons of transport
safety!
Before y ou take the machine into operation, fill in engine oil!
Commissioning the
Machine
Please note that engine longevity and
operational reliability depend to a large
extent on its breaking-in. Always allow
a cold engine to warm up for some minutes and never operate it at full throttle
at the beginning. Make sure the air filter
is serviced regularly and to use clean
fuel.
Please note: for the first 20 hours of
operation (break-in period) do not use
the engine at full power.
For this purpose, park the grassland
mower in such a way that the engine is
level. For the proper oil filling quantity
and quality see ”Specifications”.
Check the oil level after filling.

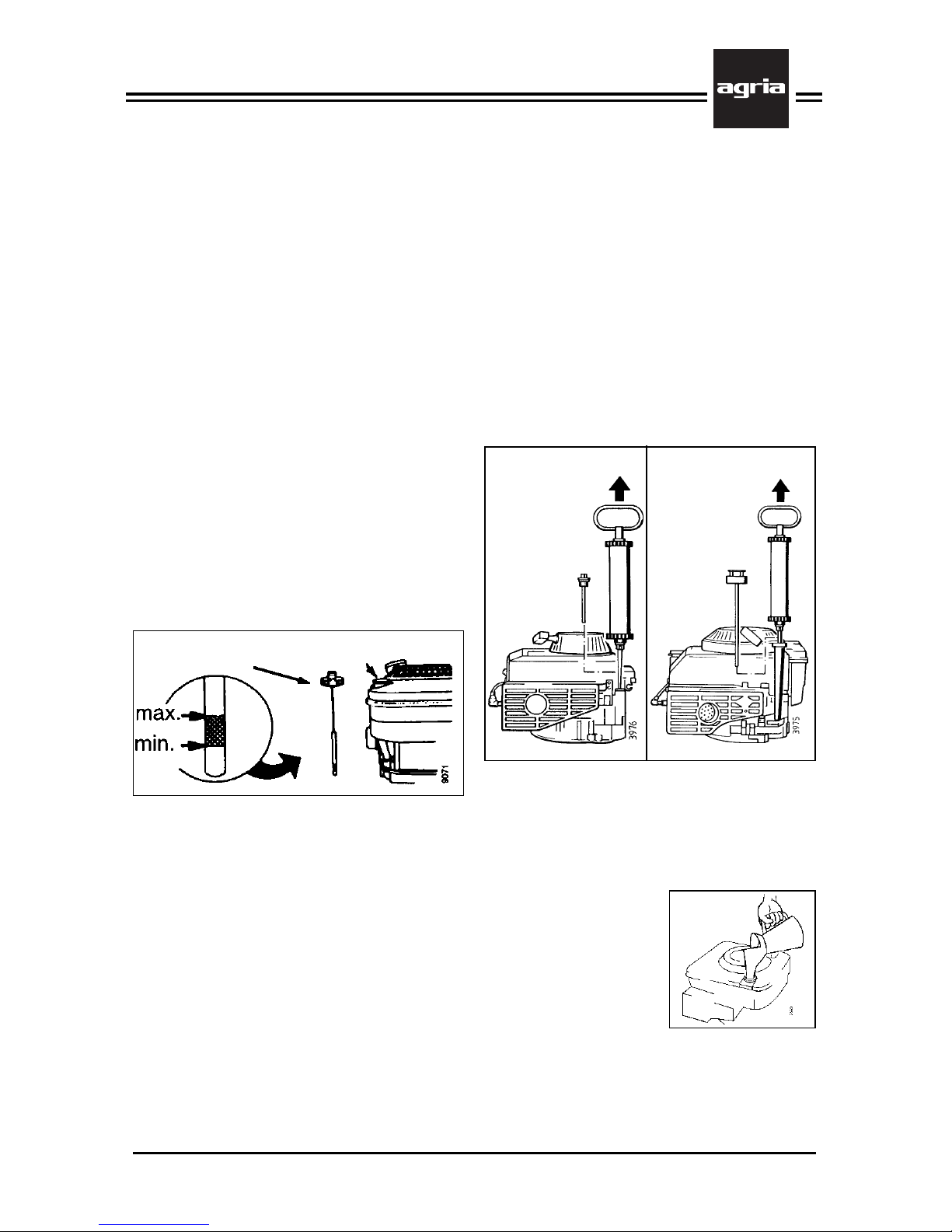

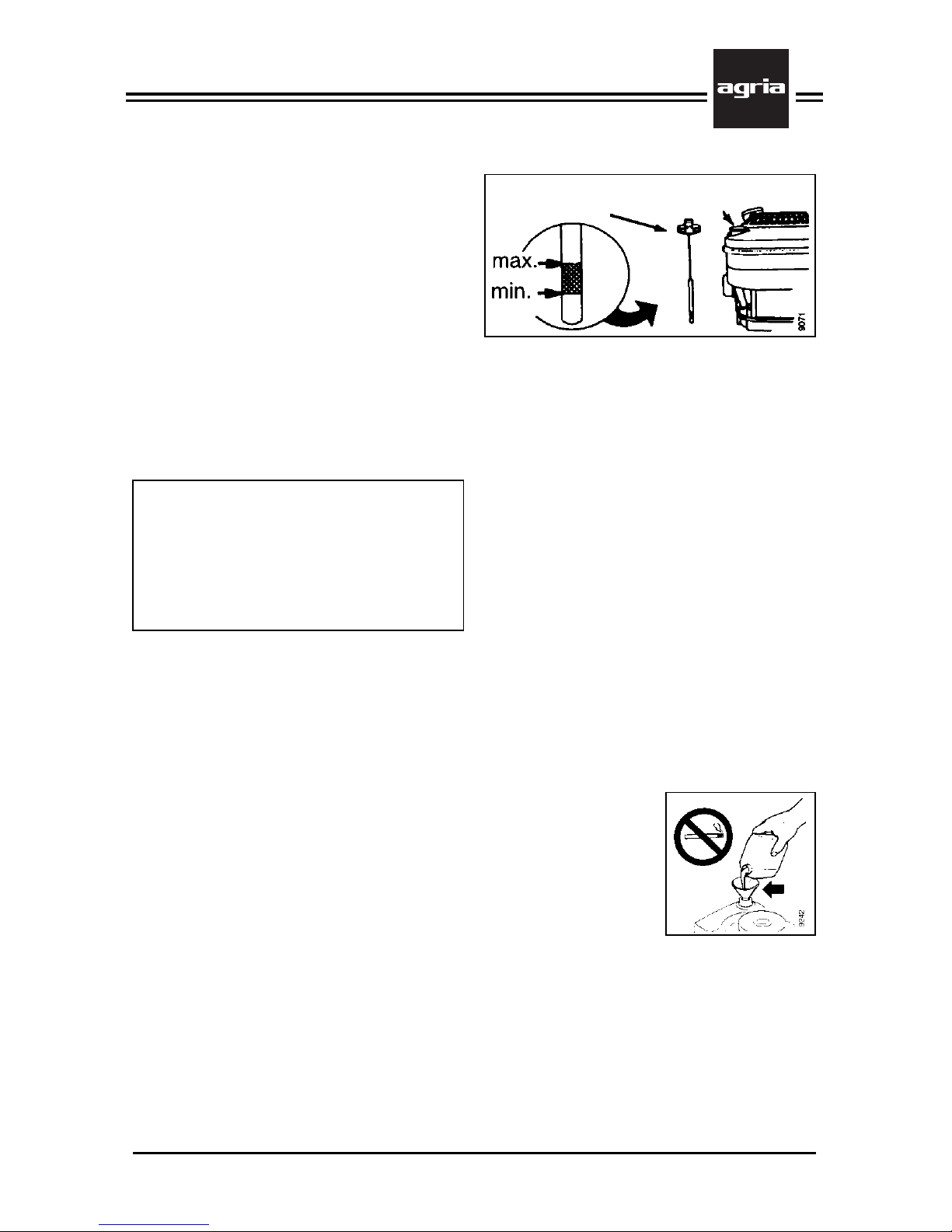

Check oil level
l
Remove the oil dip-stick (B/4 and
D/4) and clean it with a clean cloth.
l
Screw the oil dip-stick all the way
down.
l
Remove the oil dip-stick and read the
oil level.
Ensure that the dip-stick sits tight in the
oil filler neck when the engine is running.
To avoid starting problems, top up fuel
before the first start-up and after longer
storage.
Before each start-up:
l
Check the engine oil-level, and top
up oil if necessary – do not add too much
oil.
l
Check whether the fuel tank contains
enough fuel.
Do not fill the fuel tank until the fuel overflows. Leave enough room (approx. 5
mm) for the fuel to expand.
W
Be careful when dealing with
fuel. Great danger of fire! Nev er
refill fuel close to open fire, inflammable sparks or hot engine parts.
Do not refill fuel in closed rooms. Do not
smoke when refilling!
Refill only with the engine shut off and
cooled down.
Do not refill fuel in closed rooms.
Do not smoke while
your are filling the
fuel tank!
Do not spill any fuel,
use a proper filling
device.
W
Do not start the engine in
closed rooms. Exhaust fumes
contain carbon monoxide
which acts toxic when inhaled.
Before you start the engine move all
controls to neutral or idling.
Keep your feet clear off the engaged
attachment.
Page 23
Edition 02.97 Grassland Mower Hopper 5000 23
4. Commissioning and Operation
Compact version:
(for cold start only)
Comfort version:
(for cold start only)
Starting the Engine
Engine cold:
Compact version.
Engine type CLASSIC 35
l
Press PRIMER (B/10) 3 times to in-
ject fuel
l
Move speed control lever (A/3) to
”max” (FULL THROTTLE).
Comfort version:
Engine type Quantum XM 45
l
Move speed control le ver to ”CHOKE”
position
Engine warm:
l
Move speed control lever (A/3) to
operating position midway between
idling speed and full speed
l
The operator is behind the handlebar
l
Keep off harzardous area (in particular children)
l
Leave both clutch control le v ers (A/1
and A/2) in off-position
l
Pull the starter cord handle (A/4) until
you feel the starter clutch engage. Then
pull hard and fast to start the engine.
After the start, let the cord glide back.
Do not let it snap back.
l
Once the engine is started move the
speed control lever slowly midway between idling speed and full speed and
let it warm up for a short time.
Page 24
24 Grassland Mower Hopper 5000 Edition 02.97
4. Commissioning and Operation
6
30 sec
Shutting off the Engine
l
Release both clutch control levers
(the clutches are disengaged)
l
Move speed control lever (A/3) to
idling speed and let the engine run idling
for a about 30 seconds.
l
Move speed control le v er all the way
to STOP position
l
To stop the engine do not move the
control lever to CHOKE position – risk
of fire!
W
The speed control lever also
serves as engine dead stop.
In an emergency move the lever to position „STOP“ to shut off the
engine instantly.
Page 25
Edition 02.97 Grassland Mower Hopper 5000 25
4. Commissioning and Operation
Mowing on flat areas Mowing on slopes
Always turn the machine
towards the slope when
mowing on banks.
max. 25°
(55 %)
Mowing
W
Before you start off check the
immediate surroundings for chil-
dren and animals.
Before you start work remove any for-
eign objects from the area to be mowed.
Watch out for foreign objects during
work.
l
Remove the knife guard
l
Start the engine
l
Engage the mowing drive
Pull the clutch control lev er to engage the
mowing drive (A/2) and mov e the speed
control lev er to the desired speed at the
same time; the knives start moving
l
Engage wheel drive:
Move the clutch control lever for wheeldrive (A/1) towards the handlebar: the
mower mov es ahead and starts mowing.
After operation or in case of
blockages:
l
Release the clutch control lev er (A/1).
The mower will stop but the kniv es continue running. This will remove any
blockages from the cutter bar
l
Release the clutch control lever for
mowing drive (A/2)
l
Shut off the engine
l
Re-attach the knife guard
W
For any cleaning that becomes necessary during
work shut off the engine and
remove the spark plug connector for
safety reasons.
Page 26
26 Grassland Mower Hopper 5000 Edition 02.97
5. Maintenance
Apart from adhering to operating instructions for grassland mowers, it is also
important to observe the following maintenance instructions.
W
Warning: Only do maintenance work with the engine
shut off.
To prevent accidental start while
working on the cutter bar or the engine, always remove the spark plug
connector from the spark plug.
Machine
Worm Gear
The worm gear is permanently lubricated. Lubricating and ser vicing is not
necessary.
Checking and Adjusting Clutch
Play
For smooth clutch operation ensure that
the play on each clutch control lever is
at least 10mm. Check the clutch play
while the drives are disengaged.
If the clutch play needs readjustment,
adjust the cable-setting screws.

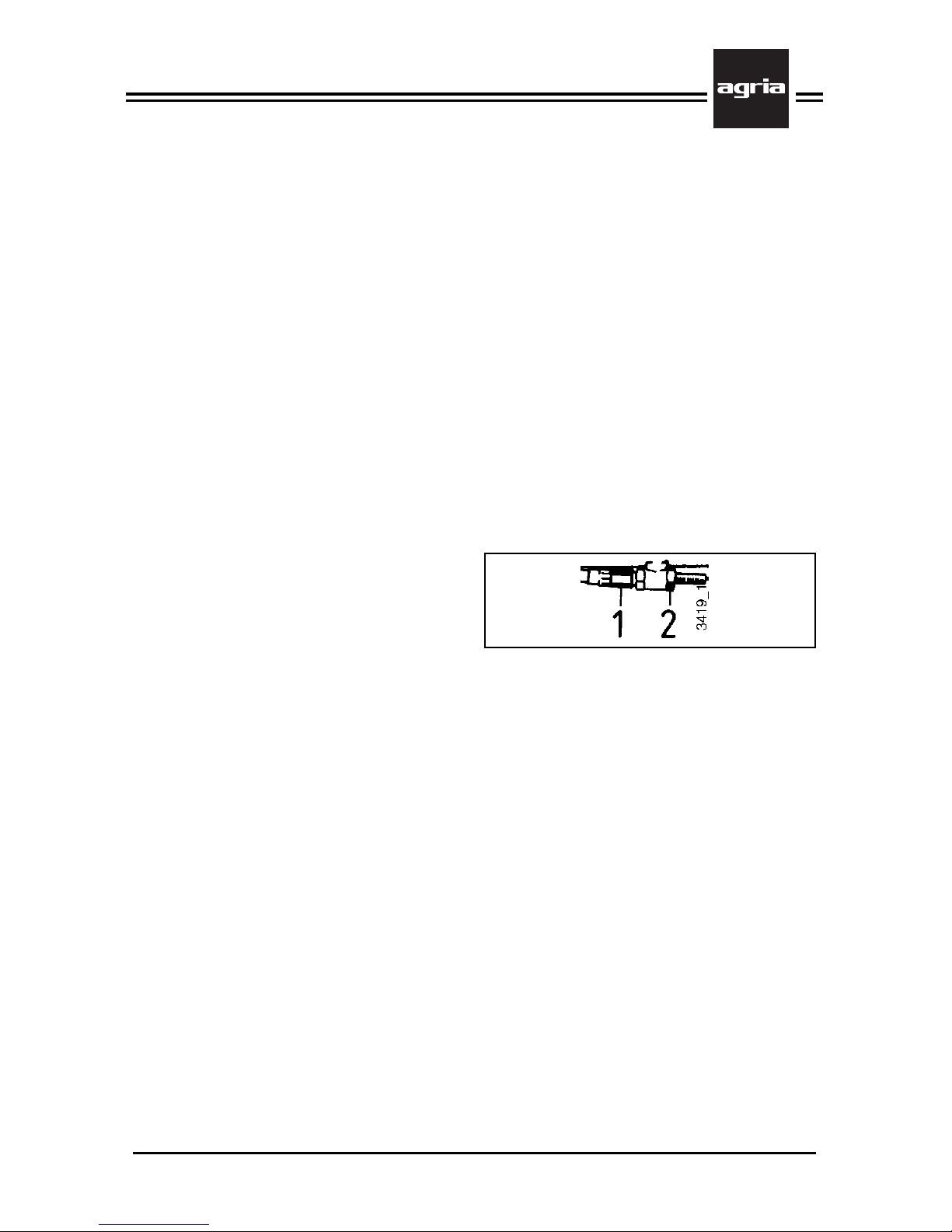

Adjustment
l
Undo locking nut (2)
l
Adjust the setting screw (1) in such
a way that the pla y on the clutch control
lever is at least 10mm.
l
Retighten the locking nut (2)
Ensure that the drives are disengaged when the clutch control lever s
are in position ”0”, this means wheels
and cutter bar come to a stop.
If it is no longer possible to adjust the
clutch play, the V-belt will need replacement. For this purpose, contact your
professional AGRIA workshop.
Page 27
Edition 02.97 Grassland Mower Hopper 5000 27
5. Maintenance
1 Bearing: gearshaft (both ends)
2 Bearing: wheel shaft (both ends)
3 Bearing: cutter bar rocker arm
(on top + underneath)
4 Lubrication point: drive chain
5 Bottom plate
6 Star washer
7 Hex bolt
V-Belts
Inspect the condition of the V-belts at
least once per year.
l
Tur n the mower over to its left side
and remove the bottom plate (5)
l
If the V-belts are worn, replace them
Only use original AGRIA V-belts!
– see ”wear parts”
For V-belt change and the f ollowing ad-
justment, contact your AGRIA work-
shop!
Chain Drive
Wet the drive chain (4) with chain oil
once a year and after cleaning the
mower with a pressure washer.
Bearing Bushes
Apply a few drops of Bio-slushing oil to
the bearing bushes (1–3) once a year
and after cleaning with a pressure
washer. For this purpose, turn the
mower ov er onto its left side and remove
the bottom plate (5)
Drive-wheels
l
Inspect the tyre pressure at regular
intervals. In particular, ensure that the
pressure on both wheels is equal to
ensure a smooth running.
l
Fit the wheels in such a way that the
lugs point in travelling direction to give
full traction (seen from above).
l
Check the wheel shaft permanently
for any grass stems that have wound
around it. Remove any grass. If necessary, remove the drive-wheels for this
purpose.
Page 28
28 Grassland Mower Hopper 5000 Edition 02.97
5. Maintenance
Mowing Attachment
The cutter bar is exposed to extreme
strain. Theref ore , it needs careful maintenance and adjustment.
l
Each time before you take up operation and after every 8 operating
hours, lubricate all gliding parts with Biolubricating grease or Bio-lubricating oil.
l
Approximately after every 30 minutes of operation, re-tighten all nuts and
bolts on the mowing drive and the cutter bar (especially on the knife driver).
Cleaning
After each operation, clean the cutter
bar thoroughly with water. Above all,
remove the dirt which has collected between knife blades. For this purpose
remove the knife.
After cleaning, apply Bio-lubricating oil
or Bio-lubricating grease to all gliding
parts.
For longer stor age, spray the cutter bar
with Bio-slushing oil.

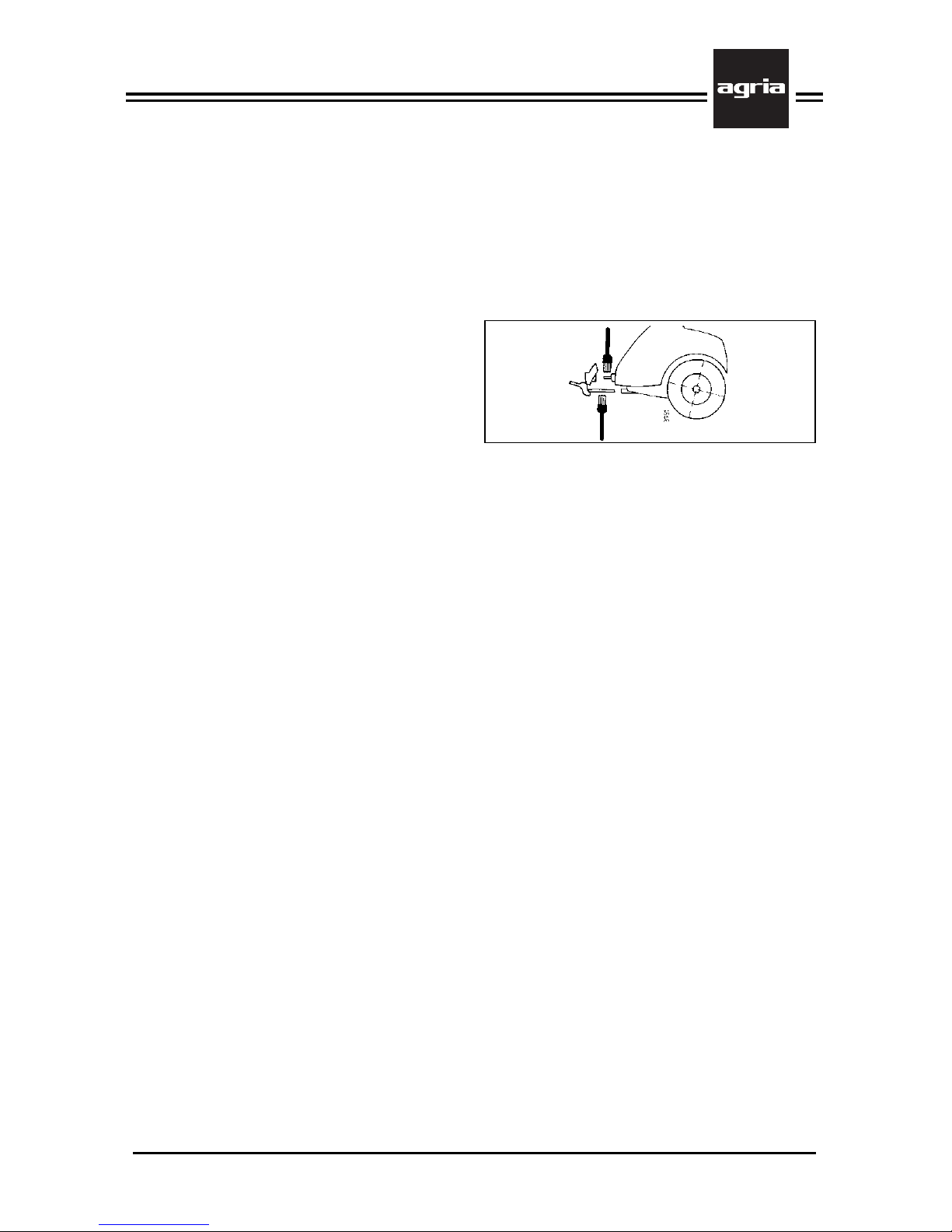

Driver Pin,
Cutter Bar Carrier Pin
l
Lubricate the driver pin and the carrier pin with Bio-lubricating grease each
time the cutter bar is attached and after
cleaning with a pressure washer.
Page 29
Edition 02.97 Grassland Mower Hopper 5000 29
5. Maintenance

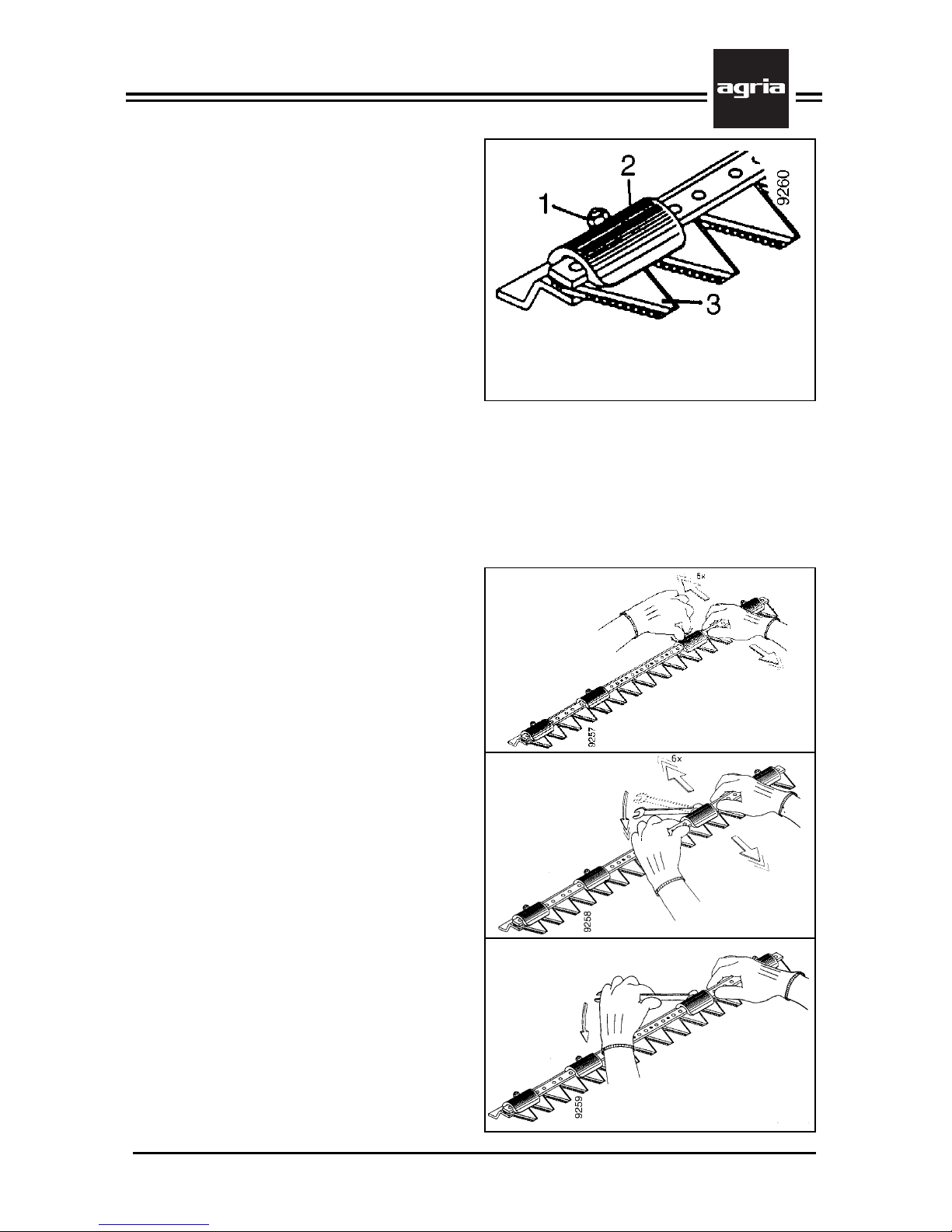

1Hex nut
2 Knife holder
3 Knife
Cutter Bar Z
W
Wear safety gloves when
working on the cutter bar!
Removing the knife
Loosen the hex nuts (1) on the knife
holders (2). Then remove the knife holders and the knife (3).
Fitting the knife
After cleaning the knives thoroughly and
applying some Bio-lubricating grease (in
particular to the gliding faces and attachment areas on the knife holder):
l
Replace knife and knife holder; the
hex nuts must turn easily. If this is not
the case oil them.
l
Adjust the knife holder
Adjusting the knife holders
I
On cutter bars equipped with 4
knife holders adjust the two
middle holders first!
l
Slightly tighten the hex nut (1) with 2
fingers while your other hand oscillates
the knife (3) as indicated by the arrow
l
Place a slightly angled ring spanner
at an angle of about 45° on the nut and
oscillate the knife with both hands while
you press on it. While you are doing this,
the ring spanner will move through the
angle. If this is not enough, place the
spanner again on the nut and repeat the
procedure.
l
Tighten hex nut (1)
l
Then adjust the remaining knife holders in the same way
Page 30
30 Grassland Mower Hopper 5000 Edition 02.97
5. Maintenance
Grinding the Mowing
Knives
W
Wear safety goggles and
gloves!
After 4–20 operating hours, depending
on the wear on the knives, these become dull and regrinding is necessary.
For this purpose, we recommend using
a hand grinder of 15,000 – 20,000 rpm
with a pot-shaped grinding pin of 25 mm
in diameter and approx. 35 mm in length
or a special grinding tool.
Grinding the knives is essential for a
clean and smooth operation.
l
Grinding is done using the front of
the grinding pin only, guiding it from the
back of the knife to the tip of the blade.
l
Blades must not heat in the process.
They are destro yed when they turn blue
(glowed out and soft).
l
Do not round off the blade tips (P).
l
Do not grind the blades in a curve
(P).
l
Use a grinding stone to remove any
burr.
Bottom knife
ESM universal-municipal
cutter bar
Top knife
Wrong grinding Correct grinding
Page 31
Edition 02.97 Grassland Mower Hopper 5000 31
5. Maintenance
CLASSIC 35 QUANTUM XM 45
Oil dip-stick Oil filler neck
Engine
Check Engine Oil Level
Each time before you take up operation and after every 5 operating
hours!
l
Check only with the engine shut off
and in horizontal position.
l
Clean the oil filler plug (B/4 and D/4)
and its surrounding parts.
l
Remove the oil filler plug. Clean the
oil-dipstick with a clean cloth and put it
all the way back in. Remove the oil dipstick and read the oil level.
l
Refill oil, if the oil level is below the
bottom dip-stick mark. Refill engine oil
(see „Specifications“) up to the top mark
on the dip-stick.
Change Engine Oil
The first oil change is after 5 operating hours. Subsequent oil change in-
tervals are after 50 operating hours or
once a year, depending on which pe-
riod is completed first. At e xtreme strain
and high temperatures, change oil after
25 operating hours.
l
Remove the dr ain and filler plug (B/4
and D/4).
l
Pump the oil out through the filler
neck using a suction pump.
l
Dispose of old oil properly!
l
Fill fresh engine oil.
For oil quantity and quality, refer to chapter „Specifications“.
If possible, use a
funnel or a similar
device to fill in oil.
Only change oil while
the engine is still
warm, but not hot –
danger of burns!
Page 32
32 Grassland Mower Hopper 5000 Edition 02.97
5. Maintenance
Screw
Cap
Central piece
Insert
Filter pot
Rear wall
Insert
Lip
Lid
Bolt
To fit the insert, ensure that the lip is
flush with the rear wall as indicated.
Air Filter
Clean the air filter insert after every 3
months or after every 25 operating
hours at the latest (earlier in very dusty
conditions). For this purpose, proceed
as follows:
Compact Ver sion:
– Engine type CLASSIC 35
l
Remove the screw and remove the
cap.
l
Remove the filter insert and wash it
in non-foaming, warm suds. Do not use
detergents containing paraffine (petrol
etc.). Rinse it thoroughly in running water, rinse until the water stays clear.
l
Squeeze the insert like a sponge,
wrap it in cloth and press it until it is dry
l
Soak the insert with some engine oil
and press surplus oil out
l
Replace the insert in the filter pot together with the central piece.
l
Attach the screw and tighten it
Comfort Version:
– Engine type Quantum XM45
l
Remove the bolt and fold down the
cover.
l
Tap the filter insert on a smooth surface and wash it in non-foaming, warm
suds. Do not use detergents containing paraffine (petrol etc.). Rinse it inside
out in running water, rinse until the water stays clear.
l
Let the insert air-dry completely,
before you put it back in.
l
Do not treat the insert with oil and do
not do not blow it clean with compressed
air .
l
Replace a heavily soiled air-filter insert (see wear par ts).
Page 33
Edition 02.97 Grassland Mower Hopper 5000 33
5. Maintenance
clean here
Fuel System
l
Each time you maintain the machine,
check fuel hose, fuel tank, and
carburetor for leakages. Repair, if necessary, immediately replace a leaking
or porose fuel hose.
l
Replace fuel hoses after every 2
years.
l
If engine fuel supply is too high, move
the speed control lev er to FULL THR OTTLE and crank the engine with the recoil starter until the engine starts again.
Do not crank the engine when the spark
plug is removed.
Spark Plug
l
After every 50 operating hours clean
the spark plug and reset the gap to
0.75 mm. Clean the spark plug only with
a steel brush and wash it with a conventional detergent.
l
Exchange the spark plug at intervals
of approx. 100 operating hours.
l
Exchanging spark plug:
Turn the new spark plug into cylinder
head by hand. Then continue with a
spark plug wrench. Turn wrench at 90°
or a torque of 20…30 Nm.
l
With spark plug or spark plug cable
removed, do not check the ignition for
spark formation. Only use approved
testing equipment.
Cleaning Cooling Grille
After long operation, dirt can clogg the
cooling system. To avoid overheating
and damage to the engine, clean the
cooling grille regularly.
Check each time before you take up
operation.
Air-Cooling System
Clean internal cooling fins and surfaces
at least ev ery 100 operating hours (earlier in very dusty conditions).
For this purpose, contact your professional AGRIA workshop.
clean here
Page 34
34 Grassland Mower Hopper 5000 Edition 02.97
5. Maintenance
Governor
For smooth engine performance keep
governor linkages, springs and actuating devices clean and free from dust and
dirt. Do not bend or twist parts. (Governor linkages on carburetor B/6 and D/6).
Exhaust
Regularly clean surrounding parts of the
muffler (B/9 and D/9). F ree it from grass,
dirt and inflammable deposits.
– Danger of fire!
Check each time before you take up
operation.
Removing Carbon
Deposits
After every 100 hours of operation take
off the cylinder head and remove carbon deposits on the cylinder, cylinder
head, piston crown, and valves and renew head gasket. For this purpose,
contact your professional AGRIA
workshop.
Carburetor Settings
Small differences in fuel, temperature,
height or strain may require slight adjustment of the carburetor. Only let engine run with air filter and air filter cap
fitted.
T o adjust the carburetor , contact your
AGRIA workshop!
Speed Control
Devices for actuating engine speed
must be adjusted correctly to start, operate and switch off the engine at correct speed rates.
To adjust the speed, contact your
AGRIA workshop!
Dead Stop
l
Check the dead stop function each
time you maintain or service the machine.
l
Upon release of the dead man’ s handles (A/1 and A/2) the clutches must
disengage and wheel-drive and mower
drive must come to a stop.
If necessary , contact your A GRIA work-
shop.
Page 35
Edition 02.97 Grassland Mower Hopper 5000 35
5. Maintenance
General
l
Watch out f or fuel and oil leakage and
repair, if necessary.
l
Regularly check bolts and nuts for
tight fit and retighten, if necessary.
l
Slightly grease all gliding and moving parts (e.g. speed control le ver, hand
lever bearing, etc.) with Bio-lubricating
grease and Bio-slushing oil.
Cleaning
After each cleaning (washing with water, especially with pressure washer)
lubricate all lubrication points, oil and
let the mower run for a short time to
press water out.
Apply grease generously to leave a
grease ring around bearings to prevent
water , plant sap , and dirt from penetrating.
Clean the engine only with a cloth.
Avoid spraying with air-compressed
water jets, as water might leak into ignition and fuel system, causing malfunctions.
Page 36
36 Grassland Mower Hopper 5000 Edition 02.97
5. Maintenance
Storage
For longer periods of no operation
prepare the grassland mower for
storage. Proceed as follows:
a) Clean thoroughly
Repair paint coat, lubricate lubrication
points and operate mower for a short
time. Then spray all shining parts, in
particular cutter bar, with Bio-slushing
oil.
b) Engine preservation
l
Change engine oil
l
Drain fuel completely and let the engine run until it comes to stop due to
lack of fuel or add fuel stabilizer (A GRIA
No. 673 50).
Method: Fill fuel tank, add anti-corrosive and stabilizing liquid (amount “ON”
stabilizes 4l of fuel). Let engine run for
approx. 1 minute. (Observe enclosed
instructions).
l
Fill a tea-spoon (approx. 0.03l) of
engine oil into spark plug opening.
Slowly crank the engine.
l
Set the piston to compression with
the recoil starter to keep the valves
closed.
l
Slowly crank the engine every 2–3
week (spark-plug connector is removed). Then set the piston to compression again.
W
Warning! Keep anti-corrosive
agent and stabilizer out of
reach of children at all times.
Do not inhale vapours! In case of
sickness and vomiting see a doctor
immediately! In case of eye contact
with liquids, rinse eyes thoroughly.
c) Drive-wheels
Support drive-wheels in such a way that
tyres have no ground contact. Pneumatic tyres are quickly destroyed, if left
standing under load and unsupported.
d)
T o park, transport, or store the grassland mower, do not tilt it forward, back-
ward, or sideward. Due to inclination, engine oil may get into the cylinder and
into the combustion engine, which may
result in starting problems and heavy
oil carbonization.
Do not park the grassland mower in
humid rooms, in rooms where fertilizer
is stored, in stables or adjacent rooms
because of severe corrosion.
e)
Protect machine with cloth or a simi-
lar cover.
Page 37
Edition 02.97 Grassland Mower Hopper 5000 37
5. Maintenance
Lubricants, Varnishes, Wear Parts
AGRIA Order No.
Lubricants and Anti-Corrosive Agents
118 24 Engine oil 10 W-40 tin 1l
690 34 Bio-lubrication oil bottle 500ml
690 35 Bio-lubrication grease cartridge 400g
690 36 Bio-Slushing oil bottle 500ml
673 50 Fuel stabilizer bottle 125ml
Please read and observe enclosed instructions!
Varnishes
181 03 Spray varnish birch-green spray tin 400ml
712 98 Spray varnish red, RAL 2002 spray tin 400ml
509 68 Spray varnish black spray tin 400ml
Wear Parts
672 44 Air filter insert for Quantum XM45 engine
686 34 Spark plug RJ 19 LM
753 75 V-belt for transmission
753 77 V-belt for mowing drive
Spare Parts
997 097 Grassland mower 5000
Page 38
38 Grassland Mower Hopper 5000 Edition 02.97
6. Troubleshooting
W
Observe safety instructions! Have all serious malfunctions on the machine or engine repaired by
your AGRIA workshop. They have the proper tools. Improper repairs can only add to the damage.
Problem Possible cause Remedy Page
Engine -Spark plug connector not connected Connect spark plug connector
does not start -Speed control lever not in Move speed control lever to
position CHOKE position “CHOKE” 33
-Fuel tank empty or poor fuel Fill fresh fuel 22
-Fuel line clogged Clean fuel line 33
-Defective spark plug Clean, adjust or exchange spark plug 33
-Engine too much fuel Dry and adjust spark plug and
(“flooded engine”) start at full throttle 33
-Inleaked air due to loose caburetor Tighten attachment bolts 35
and suction line
Misfirings in -Engine running in CHOKE range Move speed control-lever to operating position, 23
engine if necessary, adjust speed control ¬ 34
-Loose ignition cable Fit connector tightly on spark plug
Fix ignition cable retaining device
-Clogged fuel line or poor fuel Clean fuel line, fill fresh fuel 33
-Vent opening in fuel tank cap clogged Exchange fuel tank cap
-Water or dirt in fuel system Drain fuel and fill fresh fuel 33
-Air filter clogged Clean air filter or exchange 32
-Carburetor misadjusted Re-adjust carburetor ¬ 34
Excessive -Low engine oil level Refill oil immediately 31
temperature -Impaired cooling Clean cooling fan grille, 33
in engine clean internal cooling fins ¬ 33
-Air filter clogged Clean air filter 32
-Carburetor misadjusted Re-adjust carburetor ¬ 34
Misfirings -Short firing intervals Adjust spark plug 33
in engine -Incorrect idle mix Adjust carburetor ¬ 34
at high speeds
Engine -Firing interval too long, Adjust or replace spark plug 33
frequently defective spark plug
stalls -Carburetor misadjusted Re-adjust carburetor ¬ 34
in idle -Air filter clogged Clean air filter 32
Engine does -Speed control linkages are Clean speed control 34
not run smoothly clogged or jammed linkages
Page 39
Edition 02.97 Grassland Mower Hopper 5000 39
6. Troubleshooting
Problem Possible cause Remedy Page
Engine -Speed and engine stop are not Readjust speed control ¬ 34
does not stop properly adjusted
when set
to stop
Engine -Loose cylinder head or Tighten cylinder head, ¬
output too low damaged gasket exchange gasket
-Poor compression Have engine checked ¬
-Air filter clogged Clean the air filter 32
Wheel drive -Incorrect hand clutch lever adjustment Adjust hand clutch lever ¬ 26
or mowing drive
does not stop
with clutch pulled
Excessive -Attachment bolts loosened Tighten attachment bolts 35
vibration -Mowing knife loosened, warped or Immediately turn off engine!
incorrectly adjusted Check cutter bar carrier, knife driver ,
all bolts and nuts for tightness,
exchange damaged parts,
adjust knife guides. 28, 29
Uneven cut/ -Dull mowing knives Re-grind mowing knives 30
plant trash -Knife guides Adjust knife guides 2 9
gets caught not properly adjusted
between -Knives not straight Have knives re-aligned or exchanged ¬
knives -Blades are not aligned Have blades re-aligned ¬
-Blades are not on top of each other Have cutter bar re-aligned ¬
Blade tips of -T op knife protrudes too far Adjust knife guides and wear plates 29
bottom knife over bottom knife
work into blades
of top knife
¬ = For this purpose contact your AGRIA workshop.
Page 40
40 Grassland Mower Hopper 5000 Edition 02.97
Inspection and Maintenance Chart
After operating hours min. min.
A 5 8 25 50 100 250
3month
yearly B pag
e
Clean engine,
check bolts and nuts
K
K
35
Check engine oil level, refill, if necessary
K K
31
First engine oil change
subsequent oil changes
W
W
31
Check air filter
K
32
Clean air filter insert
W W
32
Replace air filter insert,
earlier, if required (only Quantum XM 45)
W
32
Replace fuel hoses
W *
33
Clean cylinder head
W
34
Clean cooling-screen
K
33
Clean guide plates, cooling fins –
earlier, if required
W
33
Clean spark plug,
adjust spark plug gap
W
33
Exchange spark plug
K
33
Check dead stop function
K
34
Lubricate all gliding parts
K K
35
Check free play of hand lever
K
26
Oil drive chain
K
27
Oil bearings on gear shaft, wheel shaft,
clutch control lever
K
27
Grease driver pin and carrier pin, also each time
you fit the cutter bar
K K
28
Cutter bar: check knife guides for play
– also each time you change knives
K K K
28
Cutter bar: Check play of wear plates,
also, each time you change knives
K
29
Regrind knives,
earlier if required
W
30
A = Each time before you take up operation
B = After each cleaning
K = Checks and maintenance to be executed by operator
W = Maintenance to be executed by professional workshop
* = after 2 years
Page 41
Edition 02.97 Grassland Mower Hopper 5000 41
EC Conformity Declaration
in accordance with the EC directive
We,
AGRIA-Werke, GmbH
D-74215 Möckmühl/Württ.
herewith declare in sole responsibility that the product
Grassland Mower Hopper, Type 5000
to which this declaration refers, corresponds to
the standard fundamental safety and health requirements
as stipulated in EC directive 89/392/EEC
and EMC directive 89/336/EEC.
Möckmühl, 10th February 1997
on behalf of Gregor Czaja Dipl. Ing. Thomas Ilchmann
Head, Qualitity Control Head, Research and Development
Page 42
Power hoes One-wheel hoes Hobby two-wheelers
AllShredd Cutterbar mowers
Lawn mowers Verticutters All-purpose machines
AGRIA-Werke GmbH, D-74215 Möckmühl, Phone 0049 6298/39-0, Fax 0049 6298/39-11 1
Contact your authorised agria dealer for service and prompt delivery of spare parts
AGRIA® -- a tradition of quality
All you need to succeed
Loading...
