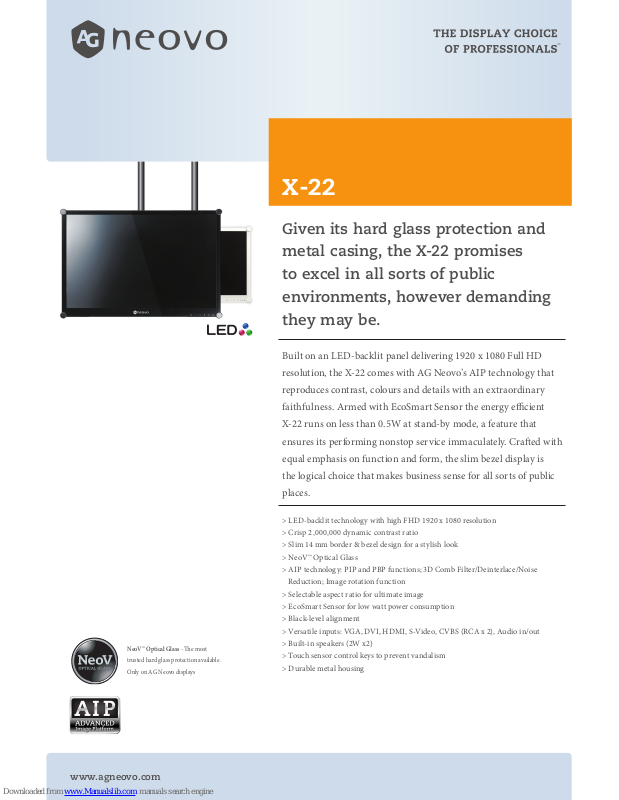

AG Neovo X-22 Specifications

www.agneovo.com

NeoV™ Optical Glass - e most

trusted hard glass protection available.

Only on AG Neovo displays

Given its hard glass protection and
metal casing, the X-22 promises
to excel in all sorts of public
environments, however demanding
they may be.

Built on an LED-backlit panel delivering 1920 x 1080 Full HD

resolution, the X-22 comes with AG Neovo’s AIP technology that

reproduces contrast, colours and details with an extraordinary

faithfulness. Armed with EcoSmart Sensor the energy ecient

X-22 runs on less than 0.5W at stand-by mode, a feature that

ensures its performing nonstop service immaculately. Craed with

equal emphasis on function and form, the slim bezel display is

the logical choice that makes business sense for all sorts of public

places.

> LED-backlit technology with high FHD 1920 x 1080 resolution

> Crisp 2,000,000 dynamic contrast ratio

> Slim 14 mm border & bezel design for a stylish look

> NeoV™ Optical Glass

> AIP technology: PIP and PBP functions; 3D Comb Filter/Deinterlace/Noise

Reduction; Image rotation function

> Selectable aspect ratio for ultimate image

> EcoSmart Sensor for low watt power consumption

> Black-level alignment

> Versatile inputs: VGA, DVI, HDMI, S-Video, CVBS (RCA x 2), Audio in/out

> Built-in speakers (2W x2)

> Touch sensor control keys to prevent vandalism

> Durable metal housing

X-22

Specications X-22

All specications are subject to change without prior notice.

Copyright © 2013 AG Neovo. All rights reserved. e name AG Neovo is a trademark of AIC.

All other trademarks are the property of their respective owners.

P/C: X2200, Version 1.2, 20130101

Panel Panel Type

Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V)
Display Colour
Response Time

LED-backlit TFT LCD

21.5”
FHD 1920 x 1080

0.2482 mm
250 cd/m2 (Typical)
2,000,000 : 1 (DCR)
170°/160° (Typical)

16.7M
3 ms (GTG)

Frequency (H/V ) H: 24 kHz - 83 kHz

V: 50 Hz - 85 Hz

Input VGA

DVI
CVBS
S-Video
HDMI

15-Pin D-Sub
24-Pin DVI-D
RCA x 2
4-Pin mini DIN
HDMI x 1

Audio Audio In

Audio Out Speaker

1 x stereo audio in for PC (audio
jack, 3.5 Ø)
1 x stereo audio in for CV BS (RCA)
or S-Video
2W x 2

Power AC-DC Adaptor

Power
Consumption

Exter nal DC 12V
100 – 240V, 50 – 60Hz
<25W (On)
<0.5W (Active Off)
<0.5W (Off)

NeoV™
Optical Glass

Thickness
Reection Rate
Transmission Rate
Coating Hardness

3.0 mm (0.12”)
< 1%
> 96%
> 9H

Operating
Conditions

Temperat ure
Humidity

0°C ~ 40°C (32°F~104°F)
10%~90% (No condensation)

Storage
Conditions

Temperat ure
Humidity

-20°C ~ 60°C (-4°F~140°F)
5%~95% (No condensation)

Mounting VESA FPMPMI Yes (100mm x 100mm & 75mm x

75 mm)

Dimensions Product

(W x H x D)
Packaging
(W x H x D)

513 x 369 x 155 mm
(20.2” x 14.5” x 6.1”)
633 x 497 x 213 mm
(24.9” x 19.6” x 8.4”)

Weight (net) Product Weight

Packaging Weight

6.9 kg (15.2 lbs)

9.5 kg (20.9 lbs)

Regulation
Approval

Certications &
Compliance

FCC, CB, CE, BSMI, RoHS, WEEE,
REACH

Accessories Supplied CD ROM(user manual), power

cord, power adapter, 15-Pin D-Sub
cable, audio cable

X-22

NeoV™ Optical Glass protects against scratches,

impacts and other physical damage

On top of PIP and PBP, Smart Omni Viewer oers selectable

aspect ratios and the option of 180° image rotation

Available in black or white

Multiple video inputs (HDMI, DVI, VGA, CVBS, S-Vid eo)

make possible eortless system integration

EcoSmart Sensor and versatile capabilities ensure

round-the-clock operations

Light environment

(Brightness increased)

Dark environment

(Brightness reduced)
