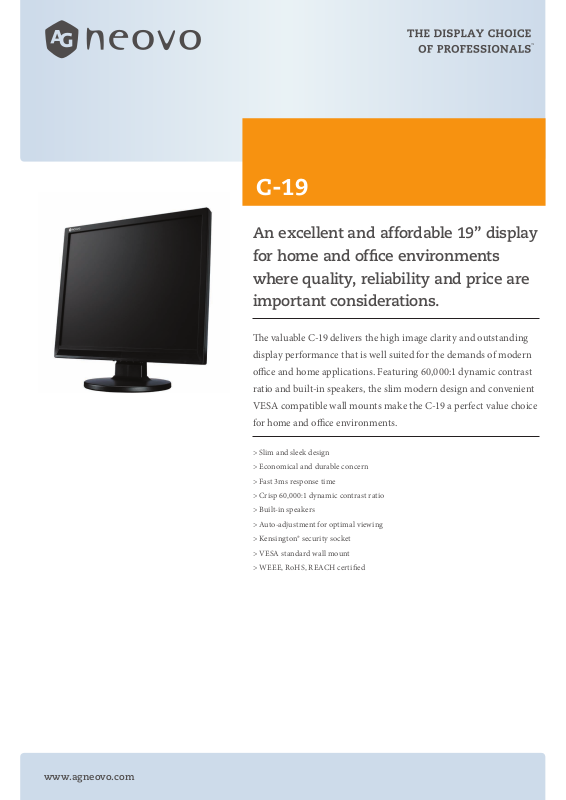

C-19
An excellent and affordable 19” display
for home and office environments
where quality, reliability and price are
important considerations.
e valuable C-19 delivers the high image clarity and outstanding
display performance that is well suited for the demands of modern
oce and home applications. Featuring 60,000:1 dynamic contrast
ratio and built-in speakers, the slim modern design and convenient
VESA compatible wall mounts make the C-19 a perfect value choice
for home and oce environments.
> Slim and sleek design
> Economical and durable concern
> Fast 3ms response time
> Crisp 60,000:1 dynamic contrast ratio
> Built-in speakers
> Auto-adjustment for optimal viewing
> Kensington® security socket
> VESA standard wall mount
> WEEE, RoHS, REACH certied
www.agneovo.com
C-19
Specifications C-1 9
Panel Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Surface Treatments
Viewing Angle (H/V)
Display Colour
Response Time
Frequency ( H/V) H: 30 kHz - 83 kHz
Input Analogue
Digital
Audio Audio In
Speaker
Power AC-DC Adaptor
Power
Consumption
Plug & Play VESA DCC 2B
TFT LCD
19.0” (482 mm)
SXGA 1280 x 1024
0.294 mm
250cd /m2 (Typical)
60,000:1 (DCR)
Hard Coating (3H),
Anti-glare treatment
170°/160° (Typical)
16.7M
3ms (GTG)
V: 55 Hz - 75 Hz
15-Pin D-Sub
24-Pin DVI-D
3.5mm Audio Line-in
1W x 2
Internal
AC 100 - 240 V, 50 - 60 Hz
< 28 W (On)
< 1 W (Stand-by)
< 1 W (Off)
Sleek design with anti-glare display panel for
superior viewing comfort
Operating
Conditions
Storage
Conditions
Mounting VESA FPMPMI Yes (100 mm)
Tilt Tilt -5° ~ +20°
Dimensions Product
Weight Product Weight
Regulation
Approval
Accessories Supplied CD ROM (user manual), 15-Pin
Temperature
Humidity
Temperature
Humidity
(W x H x D)
Packaging
(W x H x D)
Packaged Product Weight
Certifications &
Compliance
0 °C ~ 40 °C
10% ~ 85%
-25 °C ~ 55 °C
5% ~ 85%
410 x 412 x 210 mm
(16.1” x 16.2” x 8.3”)
470 x 451 x 124 mm
(18.5” x 17.8” x 4.9”)
4.2 kg (9.2 lbs)
5.6 kg (12.3 lbs)
FCC, CB, CE, GOST-R, WEEE,
RoHS, REACH
D-Sub cable, audio cable, AC
power cord
VESA standard wall mount allows for secure
mounting almost anywhere
Built-in speakers provide easy access to multimedia
applications
Copyright © 2011 AG Neovo. All rights reserved. e name AG Neovo is a trademark of AIC.
All specications are subject to change without prior notice.
All other trademarks are the property of their respective owners.
P/C: C19000 Version 1.1 20110701
