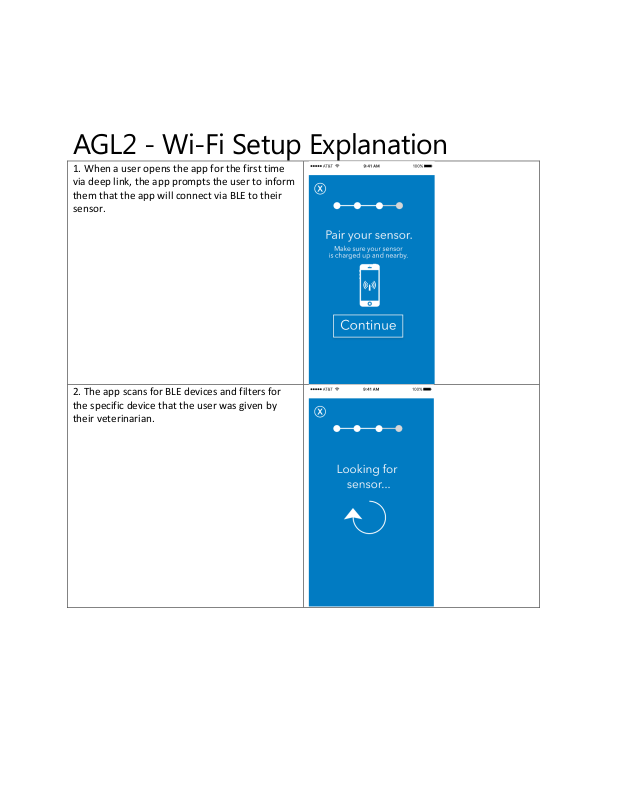

Page 1
1. When a user opens the app for the first time
via deep link, the app prompts the user to inform
them that the app will connect via BLE to their
sensor.
2. The app scans for BLE devices and filters for
the specific device that the user was given by
their veterinarian.
AGL2 - Wi-Fi Setup Explanation
Page 2
3. When the app successfully connects via BLE,
the user is shown a success message
4. The user then needs to set their home wifi
network SSID and password for their sensor.
Page 3
5. After entering the values, this data is written
via BLE and saved on the sensor.
6. A success message is shown to the user when
the data has been successfully written to the
device via BLE.
At no point is Wifi operating during the BLE setup
process.
Page 4
AGL Certification Information
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o- and on, the user is encouraged to try
to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Canadian Compliance Statement: This Device complies with Industry Canada License-exempt RSS
standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference, including interference that may cause undesired
operation of the device.
Note: Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Ce dispositif est conforme aux normes CNR exemptes de licence d'Industrie Canada. Le fonctionnement
de ce dispositif est autorisé sous réserve des deux conditions suivantes:
1. Ce dispositif ne doit pas produire de brouillage et
2. L'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu même si ce
brouillage est susceptible de compromettre le fonctionnement du dispositif.
Remarque: Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
Page 5
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique
à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la
puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à
l'établissement d'une communication satisfaisante.
