AGI Security SYS-16HN44P User Manual

Network Video Recorder User’s Manual

V 1.8.0

Table of Contents

1 Features and Specifications ...............................................................................................................1

1.1 Overview ........................................................................................................................................1

1.2 Features .........................................................................................................................................1

1.3 Specifications ................................................................................................................................2

1.3.1 NVR100/100-P Series ..........................................................................................................2

1.3.2 NVR11/11-P Series ...............................................................................................................4

1.3.3 NVR11H/11H-P Series .........................................................................................................7

1.3.4 NVR41/41-P/41-8P/41-W Series.........................................................................................9

1.3.5 NVR41H/41H-P/41H-8P Series......................................................................................... 11

1.3.6 NVR42/42-P/42-8P Series .................................................................................................12

1.3.7 NVR42-4K/42-8P-4K Series ..............................................................................................14

1.3.8 NVR44/44-8P/44-16P Series .............................................................................................16

1.3.9 NVR48/48-16P Series ........................................................................................................18

1.3.10 NVR72/72-8P Series ...........................................................................................................20

1.3.11 NVR74/74-8P/74-16P Series .............................................................................................21

1.3.12 NVR78/78-16P/78-RH Series ............................................................................................23

1.3.13 NVR70/70-R Series .............................................................................................................25

1.3.14 NVR42V-8P Series..............................................................................................................27

2 Front Panel and Rear Panel .............................................................................................................30

2.1 Front Panel ..................................................................................................................................30

2.1.1 NVR11/11-P/41/41-P/41-W Series ...................................................................................30

2.1.2 NVR11H/11H-P/41H/41H-P/41H-8P Series ....................................................................30

2.1.3 NVR41-8P Series ................................................................................................................31

2.1.4 NVR42/42-P/42-8P/72/72-8P Series ................................................................................31

2.1.5 NVR42-4K/42-8P-4K Series ..............................................................................................33

2.1.6 NVR44/44-8P/44-16P/74/74-8P/74-16P Series ..............................................................33

2.1.7 NVR48/48-16P/78/78-16P Series .....................................................................................35

2.1.8 NVR78-RH Series ...............................................................................................................38

2.1.9 NVR70/70-R Series .............................................................................................................40

2.1.10 NVR42V-8P Series ..............................................................................................................41

2.2 Rear Panel ..................................................................................................................................42

2.2.1 NVR100/100-P Series ........................................................................................................42

2.2.2 NVR11/11-P Series..............................................................................................................43

2.2.3 NVR41/41-P/41-8P/41-W Series.......................................................................................44

2.2.4 NVR11H/11H-P/41H/41H-P/41H-8P Series ....................................................................47

2.2.5 NVR42/42-P/42-8P Series .................................................................................................48

2.2.6 NVR42-4K Series ................................................................................................................50

2.2.7 NVR42-8P-4K Series ..........................................................................................................51

2.2.8 NVR44/44-8P/44-16P Series .............................................................................................53

2.2.9 NVR48/44-16P Series ........................................................................................................55

2.2.10 NVR72 Series ......................................................................................................................57

2.2.11 NVR72-8P Series ................................................................................................................58

2.2.12 NVR74 Series ......................................................................................................................60

i

2.2.13 NVR74-8P/74-16P Series ..................................................................................................62

2.2.14 NVR78 Series ......................................................................................................................64

2.2.15 NVR78-16P Series ..............................................................................................................65

2.2.16 NVR78-RH Series ...............................................................................................................67

2.2.17 NVR70 Series ......................................................................................................................69

2.2.18 NVR70-R Series ..................................................................................................................71

2.2.19 NVR42V-8P Series ..............................................................................................................73

2.3 Alarm Connection .......................................................................................................................74

2.3.1 Alarm Port .............................................................................................................................74

2.3.2 Alarm input port ...................................................................................................................75

2.3.3 Alarm input and output port................................................................................................76

2.3.4 Alarm relay specifications ..................................................................................................76

2.4 Bidirectional talk .........................................................................................................................77

2.4.1 Device-end to PC-end ........................................................................................................77

2.4.2 PC-end to the device-end ..................................................................................................77

2.5 Mouse Operation ........................................................................................................................78

3 Device Installation ..............................................................................................................................80

3.1 Check Unpacked NVR ...............................................................................................................80

3.2 About Front Panel and Rear Panel..........................................................................................80

3.3 HDD Installation ..........................................................................................................................80

3.3.1 NVR100/100-P Series ........................................................................................................80

3.3.2 NVR11/11-P/41/41-P/41-8P/41-W Series .......................................................................81

3.3.3 NVR11H/11H-P/41H/41H-P/41H-8P Series ....................................................................82

3.3.4 NVR42/42-P/42-8P/72/72-8P/42-4K/42-8P-4K Series ..................................................82

3.3.5 NVR44/44-8P/44-16P/74/74-8P/74-16P/ Series ............................................................83

3.3.6 NVR48/48-16P/NVR78/78-16P Series.............................................................................84

3.3.7 NVR78-RH Series ...............................................................................................................85

3.3.8 NVR70/70-R Series .............................................................................................................86

3.3.9 NVR42V-8P Series..............................................................................................................87

3.4 CD-ROM Installation ..................................................................................................................87

3.5 Connection Sample ....................................................................................................................89

3.5.1 NVR100/NVR100-P Series ................................................................................................89

3.5.2 NVR11/11-P/41/41-P/41-8P/41-W Series .......................................................................90

3.5.3 NVR11H/11H-P/41H/41H-P/41H-8P Series ....................................................................91

3.5.4 NVR42/42-P/42-8P Series .................................................................................................92

3.5.5 NVR42-4K Series ................................................................................................................93

3.5.6 NVR42-8P-4K Series ..........................................................................................................94

3.5.7 NVR44/44-8P/44-16P Series .............................................................................................94

3.5.8 NVR48/48-16P Series ........................................................................................................95

3.5.9 NVR72 Series ......................................................................................................................96

3.5.10 NVR72-8P Series ................................................................................................................96

3.5.11 NVR74 Series ......................................................................................................................97

3.5.12 NVR74-8P/74-16P Series ..................................................................................................98

3.5.13 NVR78 Series ......................................................................................................................99

3.5.14 NVR78-16P Series ............................................................................................................100

3.5.15 NVR78-RH Series .............................................................................................................101

ii

3.5.16 NVR70 Series ....................................................................................................................102

3.5.17 NVR70-R Series ................................................................................................................103

3.5.18 NVR42V-8P Series............................................................................................................104

4 Local Basic Operation .....................................................................................................................106

4.1 Boot up and Shutdown ............................................................................................................106

4.1.1 Boot up ................................................................................................................................106

4.1.2 Shutdown ............................................................................................................................106

4.2 Startup Wizard ..........................................................................................................................106

4.3 Navigation Bar .......................................................................................................................... 110

4.3.1 Main Menu .......................................................................................................................... 110

4.3.2 Dual-screen operation ...................................................................................................... 110

4.3.3 Output Screen .................................................................................................................... 111

4.3.4 Tour ...................................................................................................................................... 111

4.3.5 PTZ ...................................................................................................................................... 111

4.3.6 Color .................................................................................................................................... 111

4.3.7 Search ................................................................................................................................. 111

4.3.8 Alarm Status ....................................................................................................................... 111

4.3.9 Channel Info ....................................................................................................................... 111

4.3.10 Remote Device .................................................................................................................. 112

4.3.11 Network ............................................................................................................................... 112

4.3.12 HDD Manager .................................................................................................................... 112

4.3.13 USB Manager..................................................................................................................... 112

4.4 Smart Add.................................................................................................................................. 112

4.5 Remote Device ......................................................................................................................... 115

4.5.1 Remote Device Connection ............................................................................................. 115

4.5.2 Short-Cut Menu ................................................................................................................. 117

4.5.3 Image .................................................................................................................................. 117

4.5.4 Channel Name ................................................................................................................... 119

4.5.5 Upgrade ..............................................................................................................................120

4.5.6 UPNP ..................................................................................................................................120

4.5.7 Built-in Switch Setup .........................................................................................................121

4.6 Preview ......................................................................................................................................121

4.6.1 Preview ...............................................................................................................................121

4.6.2 Preview control interface ..................................................................................................122

4.6.3 Right Click Menu ...............................................................................................................123

4.6.4 Preview Display Effect Setup ..........................................................................................124

4.6.4.1 Video Color ................................................................................................................124

4.6.4.2 Display .......................................................................................................................126

4.6.4.3 TV adjust ....................................................................................................................127

4.6.5 Preview Tour Parameters ................................................................................................127

4.7 PTZ .............................................................................................................................................128

4.7.1 PTZ Settings.......................................................................................................................128

4.7.2 PTZ Control ........................................................................................................................130

4.7.2.1 PTZ Function Setup .................................................................................................132

4.7.2.2 Call PTZ Function .....................................................................................................134

4.8 Record and Snapshot ..............................................................................................................135

iii

4.8.1 Encode ................................................................................................................................135

4.8.1.1 Encode .......................................................................................................................135

4.8.1.2 Overlay .......................................................................................................................136

4.8.1.3 Snapshot ....................................................................................................................137

4.8.2 Schedule .............................................................................................................................138

4.8.2.1 Schedule Record ......................................................................................................138

4.8.2.2 Schedule Snapshot ..................................................................................................141

4.8.3 Motion detect record/snapshot ........................................................................................143

4.8.3.1 Motion detect record ................................................................................................143

4.8.3.2 Motion Detect Snapshot ..........................................................................................145

4.8.4 Alarm Record/Snapshot ...................................................................................................146

4.8.4.1 Alarm Record ............................................................................................................146

4.8.4.2 Alarm Snapshot ........................................................................................................147

4.8.5 Manual Record/Snapshot .................................................................................................148

4.8.5.1 Manual Record .........................................................................................................148

4.8.5.2 Manual Snapshot......................................................................................................149

4.8.6 Holiday Record/Snapshot ................................................................................................149

4.8.6.1 Holiday Record .........................................................................................................149

4.8.6.2 Holiday Snapshot .....................................................................................................151

4.8.7 Other Record/Snapshot ....................................................................................................151

4.9 Playback and Search ...............................................................................................................151

4.9.1 Real-time Playback ...........................................................................................................151

4.9.2 Search Interface ................................................................................................................152

4.9.2.1 Smart Search ............................................................................................................156

4.9.2.2 Accurate playback by time ......................................................................................156

4.9.2.3 Mark Playback ..........................................................................................................157

4.9.3 Picture Playback ................................................................................................................158

4.10 Backup .......................................................................................................................................158

4.10.1 File Backup .........................................................................................................................158

4.10.2 Import/Export ......................................................................................................................160

4.10.3 Backup Log.........................................................................................................................161

4.10.4 USB Device Auto Pop-up .................................................................................................161

4.11 Alarm ..........................................................................................................................................162

4.11.1 Detect Alarm.......................................................................................................................162

4.11.1.1 Motion Detect ............................................................................................................162

4.11.1.2 Tampering ..................................................................................................................166

4.11.1.3 Video Loss .................................................................................................................167

4.11.2 Alarm output .......................................................................................................................168

4.11.3 Alarm Setup ........................................................................................................................169

4.11.4 Abnormality.........................................................................................................................174

4.12 Network ......................................................................................................................................176

4.12.1.1 TCP/IP ........................................................................................................................176

4.12.1.2 Connection ................................................................................................................178

4.12.1.3 WIFI AP ......................................................................................................................179

4.12.1.4 WIFI ............................................................................................................................180

4.12.1.5 3G ...............................................................................................................................181

iv

4.12.1.6 PPPoE ........................................................................................................................182

4.12.1.7 DDNS Setup ..............................................................................................................183

4.12.1.8 UPnP ..........................................................................................................................185

4.12.1.9 IP Filter .......................................................................................................................186

4.12.1.10 Email ..........................................................................................................................188

4.12.1.11 FTP.............................................................................................................................189

4.12.1.12 SNMP ........................................................................................................................191

4.12.1.13 Multicast ....................................................................................................................191

4.12.1.14 Alarm Centre ............................................................................................................193

4.12.1.15 Auto register .............................................................................................................193

4.12.1.16 P2P ............................................................................................................................194

4.12.1.17 Easy Space ...............................................................................................................195

4.12.1.18 SWITCH ....................................................................................................................196

4.12.2 Network Test .......................................................................................................................197

4.12.2.1 Network Test..............................................................................................................197

4.12.2.2 Network Load ............................................................................................................198

4.13 HDD Setup ................................................................................................................................199

4.13.1 Format .................................................................................................................................199

4.13.2 HDD Information ................................................................................................................200

4.13.3 Advanced ............................................................................................................................202

4.13.4 HDD Detect ........................................................................................................................204

4.13.4.1 Manual Detect ...........................................................................................................205

4.13.4.2 Detect Report ............................................................................................................205

4.13.5 RAID Manager ...................................................................................................................207

4.13.5.1 RAID Config ..............................................................................................................207

4.13.5.2 Hotspare disks ..........................................................................................................208

4.14 Basic Setups .............................................................................................................................209

4.14.1 Device Setup ......................................................................................................................209

4.14.2 Data and Time ...................................................................................................................210

4.14.3 Holiday ................................................................................................................................ 211

4.15 Device Maintenance and Manager ........................................................................................ 211

4.15.1 System Info......................................................................................................................... 211

4.15.1.1 Version ....................................................................................................................... 211

4.15.1.2 BPS ............................................................................................................................212

4.15.1.3 Online User ...............................................................................................................212

4.15.1.4 Remote Device Information ....................................................................................213

4.15.1.5 Remote.......................................................................................................................214

4.15.1.5.1 Device Status...........................................................................................................214

4.15.1.5.2 Firmware .................................................................................................................215

4.15.2 Log .......................................................................................................................................216

4.15.3 Voice ....................................................................................................................................217

4.15.3.1.1 File Manage ............................................................................................................217

4.15.3.1.2 Schedule ..................................................................................................................218

4.15.4 Account ...............................................................................................................................218

4.15.4.1 Add/Modify Group ....................................................................................................220

4.15.4.2 Add/Modify User .......................................................................................................221

v

4.15.5 Update .................................................................................................................................222

4.15.6 Default .................................................................................................................................223

4.15.7 RS232 .................................................................................................................................223

4.15.8 Auto Maintain .....................................................................................................................224

4.15.9 Logout /Shutdown/Restart ................................................................................................225

5 Web Operation ..................................................................................................................................226

5.1 General Introduction ................................................................................................................226

5.1.1 Preparation .........................................................................................................................226

5.1.2 Log in ...................................................................................................................................227

5.2 LAN Mode..................................................................................................................................228

5.3 Real-time Monitor .....................................................................................................................230

5.4 PTZ .............................................................................................................................................231

5.5 Image/Alarm-out .......................................................................................................................233

5.5.1 Image ..................................................................................................................................233

5.5.2 Alarm output .......................................................................................................................233

5.6 Zero-channel Encode ..............................................................................................................233

5.7 WAN Login ................................................................................................................................234

5.8 Setup ..........................................................................................................................................235

5.8.1 Camera ...............................................................................................................................235

5.8.1.1 Remote Device .........................................................................................................235

5.8.1.2 Image .........................................................................................................................237

5.8.1.3 Encode .......................................................................................................................240

5.8.1.3.1 Encode.......................................................................................................................240

5.8.1.3.2 Snapshot ....................................................................................................................241

5.8.1.3.3 Video Overlay ...........................................................................................................242

5.8.1.3.4 Path ...........................................................................................................................242

5.8.1.4 Channel Name ..........................................................................................................243

5.8.1.5 IPC Upgrade .............................................................................................................243

5.8.2 Network ...............................................................................................................................244

5.8.2.1 TCP/IP ........................................................................................................................244

5.8.2.2 P2P .............................................................................................................................245

5.8.2.3 Connection ................................................................................................................245

5.8.2.4 WIFI AP ......................................................................................................................246

5.8.2.5 WIFI ............................................................................................................................247

5.8.2.6 3G ...............................................................................................................................248

5.8.2.6.1 CDMA/GPRS ...........................................................................................................248

5.8.2.6.2 Mobile .......................................................................................................................249

5.8.2.7 PPPoE ........................................................................................................................250

5.8.2.8 DDNS .........................................................................................................................250

5.8.2.9 IP filter ........................................................................................................................251

5.8.2.10 Email...........................................................................................................................252

5.8.2.11 UPnP ..........................................................................................................................253

5.8.2.12 SNMP .........................................................................................................................254

5.8.2.13 Multicast .....................................................................................................................255

5.8.2.14 Auto Register ............................................................................................................256

5.8.2.15 Alarm Centre .............................................................................................................256

vi

5.8.2.16 HTTPS .......................................................................................................................257

5.8.2.16.1 Create Server Certificate .........................................................................................257

5.8.2.16.2 Download root certificate ........................................................................................258

5.8.2.16.3 View and set HTTPS port .......................................................................................261

5.8.2.16.4 Login .......................................................................................................................261

5.8.3 Event ...................................................................................................................................261

5.8.3.1 Video detect ..............................................................................................................261

5.8.3.1.1 Motion Detect ...........................................................................................................261

5.8.3.1.2 Video Loss ................................................................................................................265

5.8.3.1.3 Tampering .................................................................................................................266

5.8.3.2 Alarm ..........................................................................................................................266

5.8.3.2.1 Local Alarm ..............................................................................................................266

5.8.3.2.2 Net Alarm ..................................................................................................................269

5.8.3.2.3 IPC external alarm ....................................................................................................269

5.8.3.2.4 IPC Offline Alarm .....................................................................................................270

5.8.3.3 Abnormality ...............................................................................................................271

5.8.4 Storage ................................................................................................................................273

5.8.4.1 Schedule ....................................................................................................................273

5.8.4.2 HDD Manager ...........................................................................................................275

5.8.4.2.1 Local Storage ............................................................................................................275

5.8.4.2.2 HDD ..........................................................................................................................275

5.8.4.2.3 FTP ............................................................................................................................275

5.8.4.3 Record Control ..........................................................................................................276

5.8.4.4 RAID Manager ..........................................................................................................277

5.8.4.4.1 RAID Config .............................................................................................................277

5.8.4.4.2 Hotspare disks ...........................................................................................................277

5.8.4.5 Storage .......................................................................................................................278

5.8.4.5.1 Main Stream ..............................................................................................................278

5.8.4.5.2 Sub Stream ................................................................................................................278

5.8.4.5.3 Snapshot ....................................................................................................................279

5.8.5 Setting .................................................................................................................................279

5.8.5.1 General ......................................................................................................................279

5.8.5.1.1 General ......................................................................................................................279

5.8.5.1.2 Date and time ............................................................................................................280

5.8.5.1.3 Holiday Setup............................................................................................................281

5.8.5.2 Account ......................................................................................................................281

5.8.5.2.1 User name .................................................................................................................282

5.8.5.2.2 Group ........................................................................................................................283

5.8.5.3 Display .......................................................................................................................285

5.8.5.3.1 Display ......................................................................................................................285

5.8.5.3.2 Tour ...........................................................................................................................285

5.8.5.4 Alarm Out...................................................................................................................286

5.8.5.5 Default ........................................................................................................................287

5.8.5.6 Import/Export.............................................................................................................287

5.8.5.7 Auto maintain ............................................................................................................288

5.8.5.8 Upgrade .....................................................................................................................288

vii

5.8.5.9 RS232 ........................................................................................................................289

5.8.5.10 PTZ .............................................................................................................................289

5.9 Information ................................................................................................................................291

5.9.1 Version ................................................................................................................................291

5.9.2 Log .......................................................................................................................................291

5.9.3 Online User.........................................................................................................................292

5.10 Playback ....................................................................................................................................292

5.10.1 Search Record ...................................................................................................................293

5.10.2 File List ................................................................................................................................293

5.10.3 Playback .............................................................................................................................294

5.10.4 Download ............................................................................................................................295

5.10.5 Load more...........................................................................................................................295

5.10.5.1 Download By File......................................................................................................295

5.10.5.2 Download by Time ....................................................................................................296

5.10.5.3 Watermark .................................................................................................................297

5.11 Alarm ..........................................................................................................................................297

5.12 Log out .......................................................................................................................................298

5.13 Un-install Web Control .............................................................................................................299

6 Glossary.............................................................................................................................................300

7 FAQ ....................................................................................................................................................301

8 Appendix A HDD Capacity Calculation .........................................................................................306

9 Appendix B Compatible Network Camera List.............................................................................307

10 Appendix F Toxic or Hazardous Materials or Elements ..........................................................312

viii

Welcome

Thank you for purchasing our network video recorder! This user’s manual is designed to be a reference tool for your system. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag.

ix

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electric shock caused by improper handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

3．Installation

Keep upwards. Handle with care. Do not apply power to the NVR before completing installation. Do not place objects on the NVR.

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair.

5．Environment

The NVR should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. This series product shall be transported, storage and used in the specified environments. Environment which needs to comply with the following conditions:  The function of the ITE being investigated to IEC 60950-1 is considered not likely to require

connection to an Ethernet network with outside plant routing, including campus environment.

 The installation instructions clearly state that the ITE is to be connected only to PoE networks

without routing to the outside plant.

6. Accessories

Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery Improper battery use may result in fire, explosion, or personal injury! When replace the battery, please make sure you are using the same model!

CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

Before your operation please read the following instructions carefully.

 Installation environment

x

 Keep away from extreme hot places and sources；  Avoid direct sunlight；  Keep away from extreme humid places；  Avoid violent vibration；  Do not put other devices on the top of the NVR；  Be installed in well ventilated place; do not block the vent.

 Accessories

Check the following accessories after opening the box：

 Please refer to the packing list in the box *

xi

Real-time Surveillance

 VGA, HDMI port. Connect to monitor to realize real-time surveillance.

Some series support TV/VGA/HDMI output at the same time.

 Short-cut menu when preview.  Support popular PTZ decoder control protocols. Support preset, tour

and pattern.

Playback

 Support each channel real-time record independently, and at the same

time it can support search, forward play, network monitor, record search, download and etc.

 Support various playback modes: slow play, fast play, backward play

and frame by frame play.

 Support time title overlay so that you can view event accurate occurred

time

 Support specified zone enlargement.

User Management

 Each group has different management powers that can be edited freely.

Every user belongs to an exclusive group.

Storage

 Via corresponding setup (such as alarm setup and schedule setup), you

can backup related audio/video data in the network video recorder.

 Support Web record and record local video and storage the file in the

client end.

Alarm

 Respond to external alarm simultaneously (within 200MS), based on

user’s pre-defined relay setup, system can process the alarm input correctly and prompt user by screen and voice (support pre-recorded audio).

 Support central alarm server setup, so that alarm information can

remotely notify user automatically. Alarm input can be derived from various connected peripheral devices.

 Alert you via email/sms.

1 Features and Specifications

1.1 Overview

This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function.

This series product supports centre storage, front-end storage and client-end storage. The monitor zone in the front-end can be set in anywhere. Working with other front-end devices such as IPC, NVS, this series product can establish a strong surveillance network via the CMS. In the network system, there is only one network cable from the monitor centre to the monitor zone in the whole network. There is no audio/video cable from the monitor centre to the monitor zone. The whole project is featuring of simple connection, low-cost, low maintenance work.

This series NVR can be widely used in many areas such as public security, water conservancy, transportation and education.

1.2 Features

1

Network Monitor

 Through network, sending audio/video data compressed by IPC or NVS

to client-ends, then the data will be decompressed and display.

 Support max 128 connections at the same time.  Transmit audio/video data by HTTP, TCP, UDP, MULTICAST,

RTP/RTCP and etc.

 Transmit some alarm data or alarm info by SNMP.  Support WEB access in WAN/LAN.

Window Split

 Adopt the video compression and digital process to show several

windows in one monitor. Support 1/4/8/9/16/ 25/36-window display when preview and 1/4/9/16-window display when playback.

Record

 Support normal/motion detect/alarm record function. Save the recorded

files in the HDD, USB device, client-end PC, or network storage server. You can search or playback the saved files at the local-end or via the Web/USB device.

Backup

 Support network backup, USB2.0 record backup function, the recorded

files can be saved in network storage server, peripheral USB2.0 device, burner and etc.

Network Management

 Supervise NVR configuration and control power via Ethernet.  Support management via WEB.

Peripheral Equipment Management

 Support peripheral equipment management such as protocol setup and

port connection.

 Support transparent data transmission such as RS232 (RS-422), RS485

(RS-485).

Auxiliary

 Support switch between NTSC and PAL.  Support real-time system resources information and running statistics

display.

 Support log file.  Local GUI output. Shortcut menu operation via mouse.  IR control function (For some series product only.). Shortcut menu

operation via remote control.

 Support IPC or NVS remote video preview and control.

Model

100 Series

100-P Series

System

System Resources

4/8-ch series product support 4/8 HD connection respectively. Total bandwidth supports 28/56Mbps respectively.

OS

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Decode

H.264/MJPEG

1.3 Specifications

1.3.1 NVR100/100-P Series

2

Model

100 Series

100-P Series

Type

Decode Capability

Max 2-ch 1080P 30fps or 4-ch 720P 30fps or 8-ch D1 30fps

Video

Video Input

4/8-ch network compression video input

Video Output

1-channel VGA analog video output

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8-window

Audio

Audio Input

N/A

Audio Output

N/A

Audio Compression Standard

G.711a

Alarm

Alarm Input

N/A

Alarm Output

N/A

Funciton

Storage

1 built-in 2.5-inch SATA port

Multiple-Chann el Playback

Max 8-channel D1 or 4-channel 720P or 2-channel 1080P playback

Port and Indicator

RS232 Port

N/A

RS485 Port

N/A

USB Port

2 peripheral USB2.0 ports.

3

Model

100 Series

100-P Series

Network Connection

1 RJ45 10/100Mbps self-adaptive Ethernet port.

PoE

N/A

4

Power Port

1 power socket. Power adapter power supplying mode. DC 5V 2A power.

1 power socket. Power adapter power supplying mode. DC 48V

1.25A power.

Power Button

N/A

Power On-off Button

N/A

IR Receiver Window

N/A

Clock

Built-in clock.

Indicator Light

N/A

General

Power Consumption

＜10W (Exclude HDD)

Working Temperature

﹣10℃～﹢55℃

Working Humidity

10℅～90℅

Air pressure

86kPa～106kPa

Dimension

191.8mm×128.2mm×35.8mm

Weight

0.32kg～0.36kg (Exclude HDD)

Installation Mode

Desk installation

Model

11 Series

11-P Series

1.3.2 NVR11/11-P Series

4

Model

11 Series

11-P Series

System

System Resources

4/8-ch series product support 4/8 HD connection respectively. Total bandwidth supports 28/56Mbps respectively.

OS

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Decode Type

H.264/MJPEG

Decode Capability

Max 2-ch 1080P 30fps or 4-ch 720P 30fps or 8-ch D1 30fps

Video

Video Input

4/8-ch network compression video input

Video Output

1-channel VGA analog video output

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compression Standard

G.711a

Alarm

Alarm Input

N/A

Alarm Output

N/A

Funciton

Storage

1 built-in SATA port

5

Model

11 Series

11-P Series

Multiple-Chann el Playback

Max 8-channel D1 or 4-channel 720P or 2-channel 1080P playback

Port and Indicator

RS232 Port

N/A

RS485 Port

N/A

USB Port

2 peripheral USB2.0 ports.

Network Connection

1 RJ45 10/100Mbps self-adaptive Ethernet port.

PoE

N/A

4

Power Port

1 power socket. Power adapter power supplying mode. DC 12V power.

1 power socket. Power adapter power supplying mode. DC 48V power.

Power Button

N/A

Power On-off Button

N/A

IR Receiver Window

N/A

Clock

Built-in clock.

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

General

Power Consumption

＜10W (Exclude HDD)

Working Temperature

﹣10℃～﹢55℃

Working Humidity

10℅～90℅

Air pressure

86kPa～106kPa

6

Model

11 Series

11-P Series

Dimension

205mm×206.75mm×45.2mm

Weight

0.5kg～1kg (Exclude HDD)

Installation Mode

Desk installation

Model

11H Series

11H-P Series

System

System Resources

4/8-ch series product support 4/8 HD connection respectively. Total bandwidth supports 28/56Mbps respectively.

OS

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Decode Type

H.264/MJPEG

Decode Capability

Max 2-ch 1080P 30fps or 4-ch 720P 30fps or 8-ch D1 30fps

Video

Video Input

4/8-ch network compression video input

Video Output

1-channel VGA analog video output

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

1.3.3 NVR11H/11H-P Series

7

Model

11H Series

11H-P Series

Audio Compression Standard

G.711a

Alarm

Alarm Input

N/A

Alarm Output

N/A

Funciton

Storage

1 built-in SATA port

Multiple-Chann el Playback

Max 8-channel D1 or 4-channel 720P or 2-channel 1080P playback

Port and Indicator

RS232 Port

N/A

RS485 Port

N/A

USB Port

2 peripheral USB2.0 ports.

Network Connection

1 RJ45 10/100Mbps self-adaptive Ethernet port.

PoE

N/A

4

Power Port

1 power socket. Power adapter power supplying mode. DC 12V power.

1 power socket. Power adapter power supplying mode. DC 48V power.

Power Button

N/A

Power On-off Button

N/A

IR Receiver Window

N/A

Clock

Built-in clock.

8

Model

11H Series

11H-P Series

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

General

Power Consumption

＜10W (Exclude HDD)

Working Temperature

﹣10℃～﹢55℃

Working Humidity

10℅～90℅

Air pressure

86kPa～106kPa

Dimension

325mm×250.58mm×51mm

Weight

0.5kg～1kg (Exclude HDD)

Installation Mode

Desk installation

Model

41 Series

41-P Series

41-8P Series

41-W Series

System

System Resources

4/8/16-ch series product support 4/8/16 HD connection respectively. Total bandwidth supports 28/56/80Mbps respectively.

OS

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Decode Type

H.264/MJPEG/MJPEG4

Decode Capability

Max 2-ch 5M 25fps or 4-ch 3M 25fps or 4-ch 1080P 30fps or 8-ch 720P 30fs

Video

Video Input

4/8/16-ch network compression video input

Video Output

1-channel VGA analog video output

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

1/4-window

1.3.4 NVR41/41-P/41-8P/41-W Series

9

Model

41 Series

41-P Series

41-8P Series

41-W Series

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compression Standard

G.711a

Alarm Alarm Input

N/A

Alarm Output

N/A

Funciton

Storage

1 built-in SATA port

Multiple-Chann el Playback

Max 4-channel 1080P playback

WIFI AP

N/A

Yes

Port and Indicator

RS232 Port

N/A

RS485 Port

N/A

USB Port

2 peripheral USB2.0 ports.

Network Connection

1 RJ45 10/100Mbps self-adaptive Ethernet port.

PoE Port

N/A

4 8 N/A

Power Port

1 power socket. Power adapter power supplying mode. DC 12V power.

1 power socket. Power adapter power supplying mode. DC 48V power.

1 power socket. Power adapter power supplying mode. DC 12V power.

Power Button

1 button

Power On-off Button

N/A

IR Receiver Window

N/A

Clock

Built-in clock.

Indicator Light

One power status indicator light. One network status indicator light.

One HDD status indicator light.

General

Power Consumption

＜10W (Exclude HDD)

Working Temperature

﹣10℃～﹢55℃

10

Model

41 Series

41-P Series

41-8P Series

41-W Series

Working Humidity

10℅～90℅

Air pressure

86kPa～106kPa

Dimension

205mm×206.75mm×45.2mm

270mm×204m m×42mm

205mm×206.7 5mm×45.2mm

Weight

0.5kg～1kg (Exclude HDD)

Installation Mode

Desk installation

Model

41H Series

41H-P Series

41H-8P Series

System

System Resources

4/8/16-ch series product support 4/8/16 HD connection respectively. Total bandwidth supports 28/56/80Mbps respectively.

OS

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Decode Type

H.264/MJPEG/MJPEG4

Decode Capability

Max 2-ch 5M 25fps or 4-ch 3M 25fps or 4-ch 1080P 30fps or 8-ch 720P 30fs

Video

Video Input

4/8/16-ch network compression video input

Video Output

1-channel VGA analog video output

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compression Standard

G.711a

Alarm Alarm Input

N/A

Alarm Output

N/A

Funciton

Storage

1 built-in SATA port

Multiple-Chann el Playback

Max 4-channel 1080P playback

1.3.5 NVR41H/41H-P/41H-8P Series

11

Model

41H Series

41H-P Series

41H-8P Series

Port and Indicator

RS232 Port

N/A

RS485 Port

N/A

USB Port

2 peripheral USB2.0 ports.

Network Connection

1 RJ45 10/100Mbps self-adaptive Ethernet port.

PoE Port

N/A

4

8

Power Port

1 power socket. Power adapter power supplying mode. DC 12V power.

1 power socket. Power adapter power supplying mode. DC 48V power.

Power Button

1 button

Power On-off Button

N/A

IR Receiver Window

N/A

Clock

Built-in clock.

Indicator Light

One power status indicator light. One network status indicator light.

One HDD status indicator light.

General

Power Consumption

＜10W (Exclude HDD)

Working Temperature

﹣10℃～﹢55℃

Working Humidity

10℅～90℅

Air pressure

86kPa～106kPa

Dimension

325mm×250.58mm×51mm

Weight

0.5kg～1kg (Exclude HDD)

Installation Mode

Desk installation

Model

42 Series

42-P Series

42-8P Series

System

System Resource

4/8/16/32-channel series product support 4/8/16/32-channel HD connection respectively. Main stream bandwidth supports 40/80/160/160Mbps

1.3.6 NVR42/42-P/42-8P Series

12

s

respectively.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG/MPEG4

Decode Capacity

Max supports 16-channel D1, or 8-channel 720P, or 4-channel 1080P, or 4*3M or 2*5M decode.

Video

Video Input

4/8/16/32-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

4-ch alarm input

Alarm Output

2-ch alarm output

Function

Storage

2 built-in SATA ports.

Multiple-c hannel Playback

Max 8-channel 720P/4-channel 1080P playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

Three peripheral USB2.0 ports.

Network Connecti on

1 RJ45 10/100/1000Mbps self-adaptive Ethernet port.

13

Power Port

One power port, power adapter. Input DC 12V.

Two power ports. Input DC 12V/DC 48V.

One power ports. Input 100-240V ， 47~63Hz.

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

General

Power Consump tion

＜30W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

375mm×287mm×52m m

375mm×287mm×52mm

295mm×275mm×47m m

Weight

1.5kg～2.5kg（Exclude HDD）

Installatio n

Desk installation

Model

NVR42-4K Series

NVR42-8P-4K Series

System

System Resource s

8/16/32-channel series product support 8/16/32-channel HD connection respectively. The main stream bandwidth supports 48/96/192Mbps.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG/MPEG4

1.3.7 NVR42-4K/42-8P-4K Series

14

Decode Capacity

H.264: Max supports 16-channel D1, or 8-channel 720P, or 4-channel 1080P decode. H.265: Max supports 16-channel D1, or 8-channel 720P, or 4-channel 1080P decode.

Video

Video Input

8/16/32-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

8-ch alarm input

Alarm Output

3-ch alarm output

Relay output. Relay （DC 30V /1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function

Storage

2 built-in SATA ports.

Multiple-c hannel Playback

Max 8-channel 720P/4-channel 1080P/1-channel 4K playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB Port

2 peripheral USB ports: One USB2.0 at the front panel and one USB3.0 at the rear panel.

Network Connecti on

One RJ45 10/100/1000Mbps self-adaptive Ethernet port.

Power Port

One power socket. Power adapter power supplying. Input DC 12V power.

One power port. Input 100-240V， 47~63Hz.

Power Button

One button. At the rear panel.

Power On-off Button

N/A

15

IR Receiver Window

N/A

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light. One device running status indicator light.

Power Consump tion

＜20W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

1U, 375mm(W) × 49.8mm(H) × 250mm(D)

Weight

1.65kg（Exclude HDD）

Installatio n

Desk/rack installation

Model

NVR44 Series

NVR44-8P Series

NVR44-16P Series

System

System Resource s

8/16/32-channel series product support 8/16/32-channel HD connection respectively. The main stream bandwidth supports 200Mbps.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG/MPEG4

Decode Capacity

Max supports 16-channel D1, or 8-channel 720P, or 4-channel 3M or 2*5M decode.

Video

Video Input

8/16/32-ch network compression video input

Video Output

1-channel VGA analog video output.

1.3.8 NVR44/44-8P/44-16P Series

16

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

16-ch alarm input

Alarm Output

4-ch alarm output

Relay output. Relay （DC 30V /1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function

Storage

4 built-in SATA ports. 1 external eSATA port.

Multiple-c hannel Playback

Max 8-channel 720P/4-channel 1080P playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

2 peripheral USB2.0 ports. One at the front panel and one at the rear panel.

Network Connecti on

One RJ45 10/100/1000Mbps self-adaptive Ethernet port.

Power Port

One power port. Input 100-240V，50~60Hz.

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

17

Power Consump tion

＜30W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

1.5U, 440mm × 460mm × 68mm

Weight

5kg～6kg（Exclude HDD）

Installatio n

Desk installation

Model

NVR48 Series

NVR48-16P Series

System

System Resource s

8/16/32-channel series product support 8/16/32-channel HD connection respectively. The main stream bandwidth supports 200Mbps.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG/MPEG4

Decode Capacity

Max supports 16-channel D1, or 8-channel 720P, or 4-channel 3M or 2*5M decode.

Video

Video Input

8/16/32-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres

G.711a

1.3.9 NVR48/48-16P Series

18

sion

Alarm

Alarm Input

16-ch alarm input

Alarm Output

4-ch alarm output

Relay output. Relay （DC 30V /1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function

Storage

4 built-in SATA ports. 1 external eSATA port.

Multiple-c hannel Playback

Max 8-channel 720P/4-channel 1080P playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

3 peripheral USB2.0 ports. Two at the front panel and one at the rear panel.

Network Connecti on

One RJ45 10/100/1000Mbps self-adaptive Ethernet port.

Power Port

One power port. Input 100-240V，50~60Hz.

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

Power Consump tion

＜30W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air

86kpa－106kpa

19

pressure

Dimensio n

440mm × 460mm × 89mm

Weight

5.5kg～6.5kg（Exclude HDD）

Installatio n

Desk installation

Model

NVR72 Series

NVR72-8P Series

System

System Resource s

8/16/32/64-channel series product support 8/16/32/64-channel HD connection respectively. The main stream bandwidth supports 48/96/192/192Mbps.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG

Decode Capacity

Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P decode.

Video

Video Input

8/16/32/64-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16/25/36-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

8-ch alarm output

Alarm Output

3-ch alarm output

Relay output. Relay （DC 30V/1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function Storage

2 built-in SATA ports.

Multiple-c

Max 16-channel 720P/8-channel 1080P playback at the same time.

1.3.10 NVR72/72-8P Series

20

hannel Playback

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

2 peripheral USB2.0 ports. One at the front panel and one at the rear panel.

Network Connecti on

1 RJ45 10/100Mbps self-adaptive Ethernet port.

Power Port

One power port, power adapter. Input DC 12V.

One power port. Input 100-240V， 47~63Hz.

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

Power Consump tion

＜30W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

1U case. 295mm×275mm×47mm

Weight

1.5kg～2.5kg (Exclude HDD）

Installatio n

Desk installation

1.3.11 NVR74/74-8P/74-16P Series

21

Model

NVR74 Series

NVR74-8P Series

NVR74-16P Series

System

System Resource s

8/16/32/64-channel series product support 8/16/32/64-channel HD connection respectively. The main stream bandwidth supports 48/96/192/192Mbps.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG

Decode Capacity

Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P decode.

Video

Video Input

8/16/32/64-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16/25/36-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

16-ch alarm input

Alarm Output

6-ch alarm output

Relay output. Relay （DC 30V /1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function

Storage

4 built-in SATA ports. 1 external eSATA port.

Multiple-c hannel Playback

Max 16-channel 720P/8-channel 1080P playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

3 peripheral USB2.0 ports. One at the front panel and two at the rear panel.

22

Network Connecti on

Two RJ45 10/100Mbps self-adaptive Ethernet ports.

One RJ45 10/100Mbps self-adaptive Ethernet port.

Power Port

One power port. Input 100-240V，50~60Hz.

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

Power Consump tion

＜30W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

1.5U, 440mm × 460mm × 68mm

Weight

5kg～6kg（Exclude HDD）

Installatio n

Desk installation

Model

NVR78 Series

NVR78-16P Series

NVR78-RH Series

System

System Resource s

8/16/32/64-channel series product support 8/16/32/64-channel HD connection respectively. The main stream bandwidth supports 48/96/192/192Mbps.

Operation System

Embedded Linux real-time operation system

1.3.12 NVR78/78-16P/78-RH Series

23

Operation Interface

WEB/Local GUI

Decode

Video Compres sion

H.264/MJPEG

Decode Capacity

Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P decode.

Video

Video Input

8/16/32/64-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

2-ch HDMI output (from different video sources)

Window Split

1/4/8/9/16/25/36-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

16-ch alarm input

Alarm Output

6-ch alarm output

Relay output. Relay （DC 30V/1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function

Storage

8 built-in SATA ports. 1 external eSATA port.

8 built-in SATA ports at the front panel. Support hot swap, Raid0, Raid1, Raid5, Raid6. 1 external eSATA port.

Multiple-c hannel Playback

Max 16-channel 720P/8-channel 1080P playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

4 peripheral USB2.0 ports. Two at the front panel and two at the rear panel.

Network Connecti

Two RJ45 10/100/1000 Mbps self-adaptive

One RJ45 10/100/1000 Mbps self-adaptive

Two RJ45 10/100/1000 Mbps self-adaptive

24

on

Ethernet ports.

Ethernet port.

Ethernet ports.

Power Port

One power port. Input 100-240V，50~60Hz.

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

Power Consump tion

＜35W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

440mm×460mm×89mm

444mm×430mm×89m m

Weight

5.5kg～6.5kg（Exclude HDD）

8.5kg～9.5kg（Exclude HDD）

Installatio n

Desk installation

Model

NVR70 Series

NVR70-R Series

System

System Resource s

8/16/32/64-channel series product support 8/16/32/64-channel HD connection respectively. The main stream bandwidth supports 48/96/192/192Mbps.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

1.3.13 NVR70/70-R Series

25

Decode

Video Compres sion

H.264/MJPEG

Decode Capacity

Max supports 32-channel D1, or 16-channel 720P, or 8-channel 1080P decode.

Video

Video Input

8/16/32/64-ch network compression video input

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output.

2-ch HDMI output (from different video sources)

Window Split

1/4/8/9/16/25/36-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compres sion

G.711a

Alarm

Alarm Input

16-ch alarm input

Alarm Output

6-ch alarm output

Relay output. Relay （DC 30V/1A，AC 125V/0.5A（Activation output）） Including one controllable DC +12V output.

Function

Storage

16 built-in SATA ports at the front panel. Support removable HDD installation mode. 1 external eSATA port.

16 built-in SATA ports at the front panel. Support hot swap, Raid0, Raid1, Raid5, Raid6. 1 external eSATA port.

Multiple-c hannel Playback

Max 16-channel 720P/8-channel 1080P playback at the same time.

Port and Indicator

RS232 Port

One RS232 port to debug transparent COM data.

RS485 port

One RS485 port to control PTZ. Support various protocols.

USB2.0 Port

4 peripheral USB2.0 ports. Two at the front panel and two at the rear panel.

Network Connecti on

Two RJ45 10/100Mbps self-adaptive Ethernet ports.

Power Port

One power port. Input 100V～240V，50~60Hz.

26

Power Button

One button. At the rear panel.

Power On-off Button

One button. At the front-panel.

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

General

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light.

Power Consump tion

＜35W(Exclude HDD)

Working Temperat ure

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimensio n

3U case: 448mm×490mm×133.2mm

Weight

10.5kg～11.5kg（Exclude HDD）

Installatio n

Desk installation

Model

NVR42V-8P

System

System Resources

8/16/32-channel series product support 8/16/32-channel HD connection respectively. Main stream bandwidth supports 80/160/160Mbps respectively.

Operation System

Embedded Linux real-time operation system

Operation Interface

WEB/Local GUI

Decode

Video Compression

H.264/MJPEG/MPEG4

Decode Capacity

Max supports 16-channel D1, or 8-channel 720P, or 4-channel 1080P, or 4*3M or 2*5M decode.

Video

Video Input

8/16/32-ch network compression video input

1.3.14 NVR42V-8P Series

27

Video Output

1-channel VGA analog video output.

HDMI

1-ch HDMI output. Version number is 1.4

Window Split

1/4/8/9/16-window

Audio

Audio Input

1-ch bidirectional talk input

Audio Output

1-ch bidirectional talk output

Audio Compression

G.711a

Alarm

Alarm Input

2-ch alarm input

Alarm Output

1-ch alarm output

Functio n

Storage

2 built-in SATA ports.

Multiple-chann el Playback

Max 8-channel 720P/4-channel 1080P playback at the same time.

Port and Indicato r

RS232 Port

N/A

RS485 port

N/A

USB Port

Two USB2.0 ports at the front panel and one USB3.0 port at the rear panel. .

Network Connection

1 RJ45 10/100/1000Mbps self-adaptive Ethernet port and 8 PoE ports.

Power Port

One power port. Input DC 53V--2.3A

Power Button

One button. At the rear panel.

Power On-off Button

N/A

IR Receiver Window

Support IR remote control

Clock

Built-in clock.

Indicator Light

One power status indicator light. One network status indicator light. One HDD status indicator light. One alarm status indicator light.

General

Power Consumption

＜30W(Exclude HDD)

Working Temperature

-10℃～+55℃

Working Humidity

10℅－90℅

Air pressure

86kpa－106kpa

Dimension

100mm×220mm×146mm

28

Weight

1.5kg～2.5kg（Exclude HDD）

Installation

Desk installation

29

SN

Name

Function

1

HDD status indictor light

The red light becomes on when HDD is abnormal.

2

Power indicator light

The red light becomes on when the power connection is OK.

3

Network status indicator light

The red light becomes on when the network connection is abnormal.

2 Front Panel and Rear Panel

2.1 Front Panel

2.1.1 NVR11/11-P/41/41-P/41-W Series

The front panel is shown as in Figure 2-1.

Figure 2-1

Please refer to the following sheet for detailed information.

2.1.2 NVR11H/11H-P/41H/41H-P/41H-8P Series

The front panel is shown as in Figure 2-2.

Please refer to the following sheet for detailed information.

Figure 2-2

30

Icon

Name

Function

NET

Network status indicator light

The red light becomes on when the network connection is abnormal.

PWR

Power indicator light

The red light becomes on when the power connection is OK.

HDD

HDD status indictor light

The red light becomes on when HDD is abnormal.

IR

Remote control receiver

It is to receive signal from the remote control.

SN

Name

Function

1

Network status indicator light

The red light becomes on when the network connection is abnormal.

2

Power indicator light

The red light becomes on when the power connection is OK.

3

HDD status indictor light

The red light becomes on when HDD is abnormal.

4

USB

USB port

Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

2.1.3 NVR41-8P Series

The front panel is shown as below. See Figure 2-3.

Figure 2-3

Please refer to the following sheet for detailed information.

2.1.4 NVR42/42-P/42-8P/72/72-8P Series

The front panel is shown as below. See Figure 2-4.

Please refer to the following sheet for front panel button information.

Figure 2-4

31

Shift

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Up/1 Down/4

、

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4 (English character G/H/I)

Left/2 Right/3

 

Shift current activated control,

When playback, click these buttons to control playback bar. In text mode, input number 2(English character A/B/C) /3(English character D/E/F)

ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER

Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Slow play/8

Multiple slow play speeds or normal playback. In text mode, input number 8 (English character T/U/V).

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Fast play/7



Various fast speeds and normal playback. In text mode, input number 7 (English character P/Q/R/S).

Play previous/0

|

In playback mode, playback the previous video In text mode, input number 0.

Reverse/Pau se/6

||

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.

32

Play Next/9

|

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list. In text mode, input number 9 (English character W/X/Y/Z)

Play/Pause /5

||

In normal playback click this button to pause playback In pause mode, click this button to resume playback. In text mode, input number 5(English character J/K/L).

USB port

To connect USB storage device, USB mouse.

Network abnormal indicator light

Net

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD abnormal indicator light

HDD

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Record light

1-16

System is recording or not. It becomes on when system is recording.

IR Receiver

IR

It is to receive the signal from the remote control.

Icon

Name

Function

STATUS

Status indicator light

The blue light is on when the device is malfunction.

HDD

HDD status indicator

light

The red light is on when the HDD is malfunction.

NET

Network status indicator light

The red light is on when the network connection is abnormal.

POWER

Power status indicator light

The red light is on when the power connection is OK.

USB2.0 port

Connect to peripheral USB 2.0 storage device, mouse, burner and etc.

2.1.5 NVR42-4K/42-8P-4K Series

The front panel is shown as in Figure 2-5.

Figure 2-5

Please refer to the following sheet for front panel button information.

2.1.6 NVR44/44-8P/44-16P/74/74-8P/74-16P Series

The front panel is shown as in Figure 2-6.

33

Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Shift

In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Up/1 Down/4

、

Activate current control, modify setup, and then move up and down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

In text mode, input number 1/4 (English character G/H/I)

Left/2 Right/3

 

Shift current activated control,

When playback, click these buttons to control playback bar. In text mode, input number 2(English character A/B/C) /3(English character D/E/F)

ESC

Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER

Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Slow play/8

Multiple slow play speeds or normal playback. In text mode, input number 8 (English character T/U/V).

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

Figure 2-6

Please refer to the following sheet for front panel button information.

34

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

Realize other special functions.

Fast play/7



Various fast speeds and normal playback. In text mode, input number 7 (English character P/Q/R/S).

Play previous/0

|

In playback mode, playback the previous video In text mode, input number 0.

Reverse/Pau se/6

||

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.

Play Next/9

►│

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list. In text mode, input number 9 (English character W/X/Y/Z)

Play/Pause /5

►||

In normal playback click this button to pause playback In pause mode, click this button to resume playback. In text mode, input number 5(English character J/K/L).

USB port

To connect USB storage device, USB mouse.

Network abnormal indicator light

Net

Network error occurs or there is no network connection, the light becomes red to alert you.

HDD abnormal indicator light

HDD

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Record light

1-16

System is recording or not. It becomes on when system is recording.

Name

Icon

Function

2.1.7 NVR48/48-16P/78/78-16P Series

The Front panel is shown as follows. See Figure 2-7.

Please refer to the following sheet for front panel button information.

Figure 2-7

35

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Number button

0-9

Input Arabic number Switch channel

Input number more than 10

-/--

If you want to input a number more than 10, please click this button and then input.

Shift



In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Enable or disable tour.

Up/ Down

、 Activate current control, modify setup, and then move up and

down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

Left/ Right

  Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

ESC

ESC Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Slow play

Multiple slow play speeds or normal playback.

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for

1.5seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt)

Realize other special functions.

36

Fast play



Various fast speeds and normal playback.

Play previous

|

In playback mode, playback the previous video

Reverse/Pause



In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.

Play Next

|

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list.

Play/Pause



In normal playback click this button to pause playback In pause mode, click this button to resume playback.

Window switch

Mult

Click it to switch one-window/multiple-window.

Shuttle(outer ring)

In real-time monitor mode it works as left/right direction key. Playback mode, counter clockwise to forward and clock wise to backward.

Jog(inner dial)

Up/down direction key. Playback mode, turn the inner dial to realized frame by frame playback. (Only applies to some special versions.)

USB port

To connect USB storage device, USB mouse.

Remote control indicator light

ACT

Remote control indicator light

Status indicator light

Status

If there is Fn indicator light , current status indicator light is null.

Power indicator light

PWR

Power indicator light

Channel indictor light

1-32

For 4/8/16-channel series product.

The corresponding channel light becomes on when system is recording.

For 32/64-channel series product:

When the light flashes slowly, it means the corresponding channel of 1-16 channel is recording now (Such as channel 1). When the light flashes fast, it means the corresponding channel of 17-32 channel is recording now (Such as channel 17) When the light becomes on, It means the corresponding 2 channels are recoding now (Such as channel 1 and channel 17.).

IR Receiver

IR

It is to receive the signal from the remote control.

37

Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Number button

0-9

Input Arabic number Switch channel

Input number more than 10

-/--

If you want to input a number more than 10, please click this button and then input.

Shift



In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc.

Enable or disable tour.

Up/ Down

、 Activate current control, modify setup, and then move up and

down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

Left/ Right

  Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

ESC

ESC Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER Confirm current operation

Go to default button

Go to menu

Record

REC

Manually stop/start recording, working with direction keys or numeral keys to select the recording channel.

Slow play

Multiple slow play speeds or normal playback.

2.1.8 NVR78-RH Series

The front panel is shown as below. See Figure 2-8.

Figure 2-8

Please refer to the following sheet for front panel button information.

38

Assistant

Fn

One-window monitor mode, click this button to display assistant function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for

1.5 seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to realize setup.

In text mode, click it to switch between numeral, English character(small/capitalized) and etc.

In HDD management interface, you can click it to switch HDD record information and other information (Menu prompt)

Realize other special functions.

Fast play



Various fast speeds and normal playback.

Play previous

|

In playback mode, playback the previous video

Reverse/Pause

||

In normal playback or pause mode, click this button to reverse playback In reverse playback, click this button to pause playback.

Play Next

|

In playback mode, playback the next video In menu setup, go to down ward of the dropdown list.

Play/Pause

||

In normal playback click this button to pause playback In pause mode, click this button to resume playback.

Window switch

Mult

Click it to switch one-window/multiple-window.

Shuttle(outer ring)

In real-time monitor mode it works as left/right direction key. Playback mode, counter clockwise to forward and clock wise to backward.

Jog(inner dial)

Up/down direction key. Playback mode, turn the inner dial to realized frame by frame playback. (Only applies to some special versions.)

USB port

To connect USB storage device, USB mouse.

Remote control receiver

IR

It is to receive signal from the remote control.

Remote control indicator light

ACT

Remote control indicator light

39

Status indicator light

Status

The light is on if device operates properly.

Power indicator light

POWER

Power indicator light Record light

1-16

It becomes on when system is recording.

HDD abnormal status indictor light

HDD

It becomes on when there is no HDD, HDD error occurs, or HDD is full.

SN

Name

Icon

Function

1

Power button

Press it once to turn on the device. Press it for a long time to turn off the device (Usually we do not recommend). Press power button for a long time or pull out the power cable may result in device auto restart.

2

System HDD Indicator light

The blue light flashes when system is reading or writing the system HDD. In the system HDD, there are device important configuration file, factory default configuration file, device initial boot up data.

3

Alarm indicator light

The alarm indicator light becomes on once an alarm occurred. It becomes on via the software detection. The alarm includes local alarm, no disk and etc.

4

Network indicator light

The network indicator light is blue and it flashes when you connect the device to the network.

2.1.9 NVR70/70-R Series

The front panel is shown as in Figure 2-9.

Figure 2-9

Please refer to the following sheet for front panel button information.

40

SN

Name

Icon

Function

5

USB2.0 port

Connect to USB2.0 storage device, mouse, USB burner and etc.

6

16 HDD slot

-

/

After you remove the front panel, you can see there are 16 HDDs. From the left to the right and from the top to the bottom, it ranges from 1~4, 5~8, 6~12, 13~16. See Figure 2-10. You can see there are two indicator light s on the HDD bracket.  The power indicator light is at the top. The light is yellow after you connected the device to the

power.

 The read-write indicator light is at the bottom. The blue light flashes when system is reading or

writing the data.

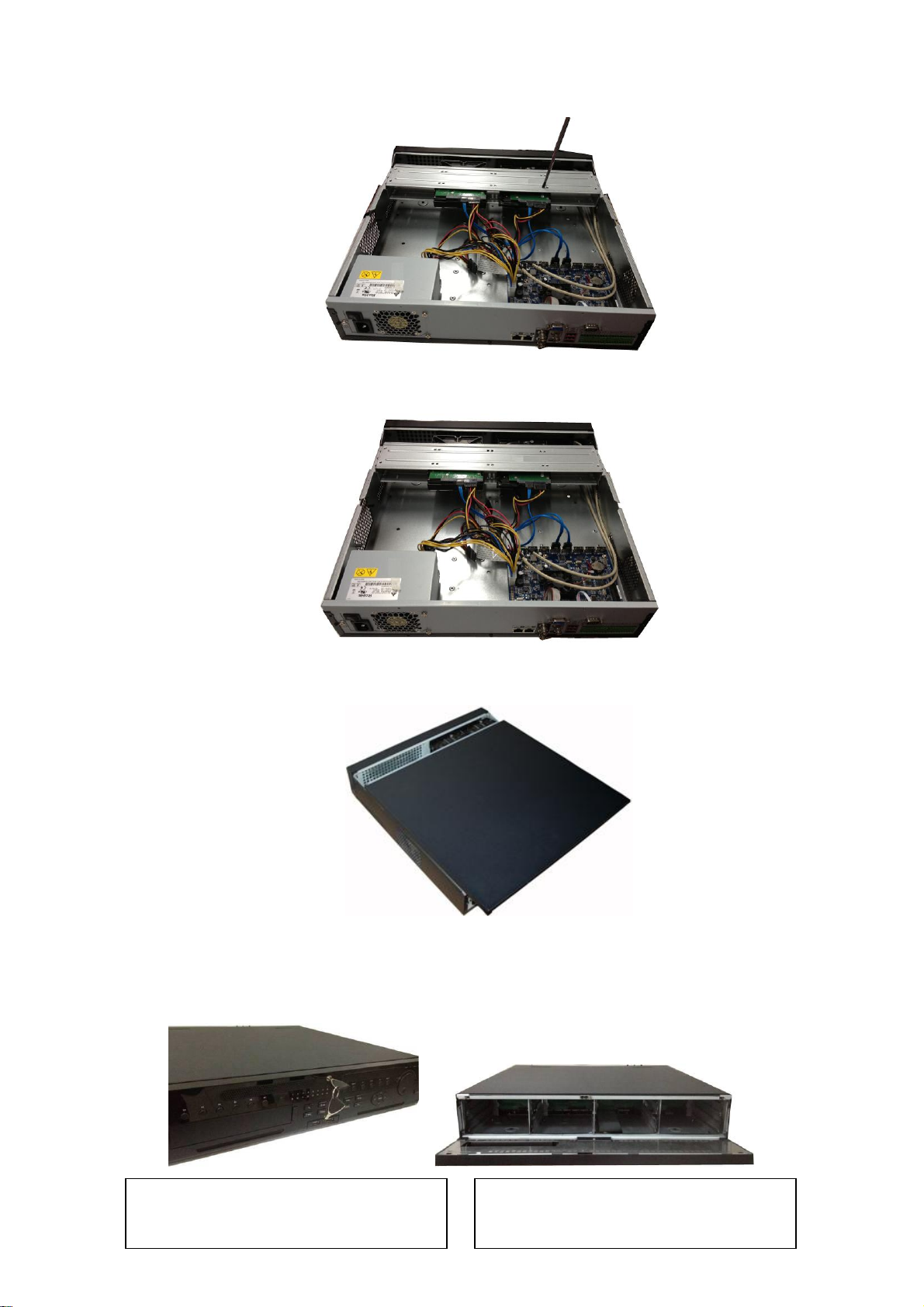

Figure 2-10

2.1.10 NVR42V-8P Series

The front panel is shown as below. See Figure 2-11

Figure 2-11

41

Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Assistant

Fn

 One-window monitor mode, click this button to display

assistant function: PTZ control and image color.

 Backspace function: in numeral control or text control,

press it for 1.5 seconds to delete the previous character before the cursor.

 In motion detection setup, working with Fn and direction

keys to realize setup.

 In text mode, click it to switch between numeral, English

character (small/capitalized) and etc.

 In HDD management interface, you can click it to switch

HDD record information and other information (Menu prompt)

 Realize other special functions.

USB2.0 port

To connect USB2.0 storage device, USB2.0 mouse, burner and etc.

IR receive window

It is to receive the IR signal from the remote control.

Power indicator light

Power indicator light.

HDD abnormal indicator light

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Network abnormal indicator light

Network error occurs or there is no network connection, the light becomes red to alert you.

Alarm indicator light

The light becomes on when an alarm occurred.

Please refer to the following sheet for front panel button information.

2.2 Rear Panel

2.2.1 NVR100/100-P Series

The NVR100 rear panel is shown as below. See Figure 2-12.

The NVR100-P rear panel is shown as below. See Figure 2-13.

Figure 2-12

42

Port Name

Connection

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

Network port

10M/100Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

Power input port

Power socket.

 For NVR100 series, input DC 5V/2A.  For NVR100-P series, input DC 48V/1.25A.

PoE PORT

PoE port

Built-in switch. Support PoE function. For PoE series product, you can use this port to

provide power to the network camera.

Figure 2-13

Please refer to the following sheet for detailed information.

2.2.2 NVR11/11-P Series

The NVR11 rear panel is shown as below. See Figure 2-14.

The NVR11-P rear panel is shown as below. See Figure 2-15.

Figure 2-14

43

Port Name

Connection

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

Network port

10M/100Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

GND

Ground end

Power input port

Power socket.

 For NVR11 series, input DC 12V/2A.  For NVR11-P series, input DC 48V/1.25A.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

PoE PORT

PoE port

Built-in switch. Support PoE function. For PoE series product, you can use this port to

provide power to the network camera.

Figure 2-15

Please refer to the following sheet for detailed information.

2.2.3 NVR41/41-P/41-8P/41-W Series

The NVR41 rear panel is shown as below. See Figure 2-16.

44

Figure 2-16

The NVR41-P rear panel is shown as below. See Figure 2-17.

Figure 2-17

The NVR41-8P rear panel is shown as below. See Figure 2-18.

Figure 2-18

The NVR41-W rear panel is shown as below. See Figure 2-19.

45

Port Name

Connection

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

Network port

10M/100Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

GND

Ground end

/

Power input port

Power socket.

 For NVR41 series, input DC 12V/2A.  For NVR41-P series, input DC 48V/1.5A.  For NVR41-8P series, input DC 48V/2A.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

Figure 2-19

Please refer to the following sheet for detailed information.

46

Port Name

Connection

Function

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

PoE PORT

PoE port

Built-in switch. Support PoE function. For PoE series product, you can use this port to

provide power to the network camera.

Wireless AP

Support wireless hotspot function. Use WIFI to connect to the network camera when there is a hotspot.

For 41-W series only.

Port Name

Connection

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

2.2.4 NVR11H/11H-P/41H/41H-P/41H-8P Series

The NVR11H/41H rear panel is shown as in Figure 2-20.

Figure 2-20

The NVR11H-P/41H-P rear panel is shown as in Figure 2-21.

Figure 2-21

The NVR41H-8P rear panel is shown as in Figure 2-22.

Figure 2-22

Please refer to the following sheet for detailed information.

47

Port Name

Connection

Function

Network port

10M/100Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

GND

Ground end

/

Power input port

Power socket.

 For NVR41 series, input DC 12V/2A.  For NVR41H-P series, input DC 48V/1.5A.  For NVR11H-P series, input DC 48V/1.25A.  For NVR41H-8P series, input DC 48V/2A.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

PoE PORT

PoE port

Built-in switch. Support PoE function. For PoE series product, you can use this port to

provide power to the network camera.

2.2.5 NVR42/42-P/42-8P Series

The NVR42 series rear panel is shown as below. See Figure 2-23.

The NVR42-P series rear panel is shown as below. See Figure 2-24.

Figure 2-23

48

Name

Function

Power switch

/

Power on/off button.

Power input socket

/

Input AC 100~240V. For NVR42-8P series product only.

Power input port

Input DC 12V/5A. For NVR42 series product only.

Power input port

Switch power port. Input DC 48//1.04A. For NVR42-P series product only.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

1～4

Alarm input port 1～4

 There are two types; NO (normal open)/NC

(normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

N1, N2

Alarm output port 1～2

 2 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

 NO：Normal open alarm output port.  C：Alarm output public end.

C1, C2

A

RS-485 communication

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

Figure 2-24

The NVR42-8P series rear panel is shown as below. See Figure 2-25.

Figure 2-25

Please refer to the following sheet for detailed information.

49

Name

Function

B

port

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

USB2.0

port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

PoE PORTS

/

Bult-in Switch. Support PoE. The 4 PoE series product supports total 48V 50W. The 8 PoE series product supports total 48V 120W. One PoE port max supports 15W.

Icon

Port Name

Function

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

USB3.0 port

USB3.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

2.2.6 NVR42-4K Series

The NVR42-4K series rear panel is shown as below. See Figure 2-26.

Figure 2-26

50

Icon

Port Name

Function

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

1～8

Alarm input port 1～8

 There are two groups. The first group is from port 1

to port 4; the second group is from port 5 to port 8. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO3

Alarm output port 1～3

 3 groups of alarm output ports. (Group 1：port

NO1 ～ C1,Group 2:port NO2 ～ C2,Group 3:port NO3～C3）).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

 NO：Normal open alarm output port.  C：Alarm output public end.

C1～C3

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Power input port

Input DC 12V/4A.

Power switch

/

Power on/off button.

2.2.7 NVR42-8P-4K Series

The NVR42-8P-4K series rear panel is shown as below. See Figure 2-27.

Figure 2-27

51

Icon

Port Name

Function

Power socket

/

Input AC 220V.

Power switch

/

Power on/off button.

PoE PORTS

PoE port

Built-in Switch，support PoE. The PoE PORTS can provide power to the network camera. The 8 PoE ports series product can support 48V 120W.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

USB3.0 port

USB3.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

1～4

Alarm input port 1～4

 They are to receive the signal from the external

alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

N1,N2

Alarm output port 1～2

 2 groups of alarm output ports.（group 1：port

NO1～C1, group 2：port NO2～C2）. Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

 NO：Normal open alarm output port.  C：Alarm output public end.

C1～C2

Please refer to the following sheet for detailed information.

52

Icon

Port Name

Function

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

2.2.8 NVR44/44-8P/44-16P Series

The NVR44 series rear panel is shown as below. See Figure 2-28.

Figure 2-28

The NVR44-8P series rear panel is shown as below. See Figure 2-29.

Figure 2-29

The NVR44-16P series rear panel is shown as below. See Figure 2-30.

Figure 2-30

Please refer to the following sheet for detailed information.

53

Name

Function

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

Video output port

CVBS output

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

54

Name

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

PoE PORTS

8 PoE ports

Built-in Switch. Support PoE. The 8 PoE ports series products supports total 48V 120W power. One PoE port max supports 15W.

PoE PORTS

16 PoE ports

Built-in Switch. Support PoE. The 16 PoE ports series products supports total 150W power. One PoE port max supports 15W.

Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

2.2.9 NVR48/44-16P Series

The NVR48 series rear panel is shown as below. See Figure 2-31.

Figure 2-31

The NVR48-16P series rear panel is shown as below. See Figure 2-32.

Figure 2-32

Please refer to the following sheet for detailed information.

55

Name

Function

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output.

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

One 10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

56

Name

Function

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

PoE PORTS

16 PoE ports

Built-in Switch. Support PoE. The 16 PoE ports series products supports total 150W power. One PoE port max supports 15W.

Name

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

2.2.10 NVR72 Series

The NVR72 series rear panel is shown as below. See Figure 2-33.

Figure 2-33

Please refer to the following sheet for detailed information.

57

Name

Function

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

1～8

Alarm input port 1～8

 There are two groups. The first group is from port

1 to port 4, the second group is from port 5 to port

8. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO3

Alarm output port 1～3

 3 groups of alarm output ports. (Group 1：port

NO1～ C1,Group 2:port NO2～ C2,Group 3:port NO3～ C3） ).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

 NO：Normal open alarm output port.  C：Alarm output public end.

C1～C3

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Power input port

Input DC 12V/5A.

Power switch

/

Power on/off button.

2.2.11 NVR72-8P Series

The NVR72-8P series rear panel is shown as below. See Figure 2-34.

Figure 2-34

58

Name

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

1～8

Alarm input port 1～8

 There are two groups. The first group is from

port 1 to port 4; the second group is from port 5 to port 8. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using

external power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO3

Alarm output port 1～3

 3 groups of alarm output ports. (Group 1：port

NO1 ～ C1,Group 2:port NO2 ～ C2,Group 3:port NO3～C3）).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

 NO：Normal open alarm output port.  C：Alarm output public end.

C1～C3

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Power input port

Input AC 100~240V. Power switch

/

Power on-off button.

PoE PORTS

/

Bult-in Switch. Support PoE. The 8 PoE series product supports total 48V 120W. One PoE port max supports 15W.

Please refer to the following sheet for detailed information.

59

Name

Function

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

Icon

Name

Function

Power switch

Power on/off button.

Power input port

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3.

2.2.12 NVR74 Series

The NVR74 series rear panel is shown as below. See Figure 2-35.

Figure 2-35

Please refer to the following sheet for detailed information.

60

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using

external power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：

port NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm

signal to the alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

One 10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

61

Port Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

2.2.13 NVR74-8P/74-16P Series

The NVR74-8P series rear panel is shown as below. See Figure 2-36.

Figure 2-36

The NVR74-16P series rear panel is shown as below. See Figure 2-37.

Figure 2-37

Please refer to the following sheet for detailed information.

62

Port Name

Function

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

PoE PORTS

8 PoE ports

Built-in Switch. Support PoE. The 8 PoE ports series products supports total 48V 120W power. One PoE port max supports 15W.

63

Port Name

Function

PoE PORTS

16 PoE ports

Built-in Switch. Support PoE. The 16 PoE ports series products supports total 150W power. One PoE port max supports 15W.

Port Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port

 5 groups of alarm output ports. (Group 1：port

2.2.14 NVR78 Series

The NVR78 series rear panel is shown as below. See Figure 2-38.

Figure 2-38

Please refer to the following sheet for detailed information.

64

Port Name

Function

C1～C5

1～5

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS-232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

2.2.15 NVR78-16P Series

The NVR78-16P series rear panel is shown as below. See Figure 2-39.

65

Port Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

Figure 2-39

Please refer to the following sheet for detailed information.

66

Port Name

Function

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

PoE PORTS

16 PoE ports

Built-in Switch. Support PoE. The 16 PoE ports series products supports total 150W power. One PoE port max supports 15W.

2.2.16 NVR78-RH Series

The NVR78-RH series rear panel is shown as below. See Figure 2-40.

Figure 2-40

67

Port Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

Please refer to the following sheet for detailed information.

68

Port Name

Function

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3. The two HDMI ports to output video from different video sources.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

Port Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

2.2.17 NVR70 Series

The NVR70 series rear panel is shown as below. See Figure 2-41.

Figure 2-41

Please refer to the following sheet for detailed information.

69

Port Name

Function

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

70

Port Name

Function

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

Port Name

Function

Power switch

/

Power on-off button

Power input port

/

Input AC 100~240V.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

2.2.18 NVR70-R Series

The NVR70-R series rear panel is shown as below. See Figure 2-42.

Please refer to the following sheet for detailed information.

Figure 2-42

71

Port Name

Function

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

VIEDEO OUT

Video output port

CVBS output

1～16

Alarm input port 1～16

 There are four groups. The first group is from

port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16. They are to receive the signal from the external alarm source. There are two types; NO (normal open)/NC (normal close).

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

NO1～NO5

Alarm output port 1～5

 5 groups of alarm output ports. (Group 1：port

NO1～C1,Group 2:port NO2～C2,Group 3:port NO3～C3, Group 4：port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the

alarm device. Please make sure there is power to the external alarm device.

 NO: Normal open alarm output port.  C: Alarm output public end.  NC: Normal close alarm output port.

C1～C5

NC5

A

RS-485 communication port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

B

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

CTRL 12V

/

Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.

+12V

/

+12V power output port. It can provide the power to some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

72

Port Name

Function

USB2.0 port

USB2.0 port. Connect to mouse, USB storage device, USB burner and etc.

RS-232

RS232 debug COM.

It is for general COM debug to configure IP address or transfer transparent COM data.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.3. The two HDMI ports to output video from different video sources.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

Name

Function

Power switch

/

Power on/off button.

Power input port

Input DC 53V--2.3A

2.2.19 NVR42V-8P Series

The interface is shown as in Figure 2-43.

Please refer to the following sheet for detailed information.

Figure 2-43

73

Name

Function

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

 Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback.

1～2

Alarm input port 1～2

 When your alarm input device is using external

power, please make sure the device and the NVR have the same ground.

GND

Alarm input ground port.

C

Alarm output public port

Alarm output public end. NO

Normal open

Normal open alarm output port.

Network port

10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable.

USB3.0 port

USB3.0 port. Connect to mouse, USB storage device, USB burner and etc.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device. HDMI version is 1.4.

VGA

VGA video output port

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

PoE PORT

/

Bult-in Switch. Support PoE. The 8 PoE series product supports total 48V 120W. One PoE port max supports 15W.

2.3 Alarm Connection

2.3.1 Alarm Port

The alarm port is shown as below. See Figure 2-44. The following figure is based on the 78 series.

74

Icon

Function

1～16

ALARM1～ALARM16. The alarm becomes activated in the low level.

NO1 C1，NO2 C2，NO3 C3，NO4 C4

Four NO activation output groups. (On-off button). NO5 C5 NC5

One NO/NC activation output group. (On-off button).

CTRL 12V

Control power output. Disable power output when alarm is canceled. Current is 500mA.

＋12V

Rated current output. Current is 500mA.

GND

A/B

485 communication port. They are used to control devices such as PTZ. Please parallel connect 120TΩ between A/B cables if there are too many PTZ decoders.

Figure 2-44

Note

 Different models support different alarm input ports. Please refer to the specifications sheet for

detailed information.

 Slight difference may be found on the alarm port layout.

2.3.2 Alarm input port

Connect the positive end (+) of the alarm input device to the alarm input port (ALARM IN 1～16) of the

NVR. Connect the negative end (-) of the alarm input device to the ground end ( ) of the NVR.

75

Model:

JRC-27F

Material of the

touch

Silver

Rating

（Resistance Load）

Rated switch capacity

30VDC 2A, 125VAC 1A

Maximum switch power

125VA 160W

Maximum switch voltage

250VAC, 220VDC

Maximum switch currency

1A

Insulation

Between touches with same polarity

1000VAC 1minute

Figure 2-45

Note

 There are two alarm input types: NO/NC.  When connect the ground port of the alarm device to the NVR, you can use any of the GND ports

( ).

 Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR.  When there is peripheral power supplying for the alarm device, please make sure it is earthed with

the NVR.

2.3.3 Alarm input and output port

 There is peripheral power supplying for the external alarm device.  In case overload may result in NVR damage, please refer to the following relay specifications for

detailed information.

 A/B cable of the RS485 is for the A/B cable connection of the speed PTZ.

2.3.4 Alarm relay specifications

76

Between touches with different polarity

1000VAC 1minute

Between touch and winding

1000VAC 1minute

Surge voltage

Between touches with same polarity

1500V (10×160us)

Length of open

time

3ms max

Length of close

time

3ms max

Longevity

Mechanical

50×106 MIN (3Hz)

Electrical

200×103 MIN (0.5Hz)

Temperature

-40℃ ~+70℃

2.4 Bidirectional talk

2.4.1 Device-end to PC-end

Device Connection

Please connect the speaker or the pickup to the first audio input port in the device rear panel. Then connect the earphone or the sound box to the audio output port in the PC. Login the Web and then enable the corresponding channel real-time monitor. Please refer to the following interface to enable bidirectional talk. See Figure 2-46.

Figure 2-46

Listening Operation

At the device end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the pc-end. See Figure 2-47.

Figure 2-47

2.4.2 PC-end to the device-end

Device Connection

Connect the speaker or the pickup to the audio output port in the PC and then connect the earphone or the sound box to the first audio input port in the device rear panel.

77

Left click mouse

When you have selected one menu item, left click mouse to view menu content.

Modify checkbox or motion detection status.

Click combo box to pop up dropdown list

In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

In numeral input mode: _ stands for clear and ← stands for deleting the

previous numeral.

Double left click mouse

Implement special control operation such as double click one item in the file list to playback the video.

Login the Web and then enable the corresponding channel real-time monitor. Please refer to the above interface (Figure 2-46) to enable bidirectional talk.

Listening Operation

At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the device-end. See Figure 2-48.

Figure 2-48

2.5 Mouse Operation

Please refer to the following sheet for mouse operation instruction.

78

In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode.

Right click mouse

In real-time monitor mode, pops up shortcut menu.

Exit current menu without saving the modification.

Press middle button In numeral input box: Increase or decrease numeral value.

Switch the items in the check box.

Page up or page down

Move mouse

Select current control or move control

Drag mouse Select motion detection zone

Select privacy mask zone.

79

○

1 Draw out the HDD bracket

○

2 Make sure the HDD metal

surface is facing up and then put the HDD into the bracket

○

3 Put the HDD into the device.

3 Device Installation

Note: All the installation and operations here should conform to your local electric safety rules.

3.1 Check Unpacked NVR

When you receive the NVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the NVR can protect most accidental clashes during transportation. Then you can open the box to check the accessories. Please check the items in accordance with the list. Finally you can remove the protective film of the NVR.

3.2 About Front Panel and Rear Panel

The model number in the stick on the bottom of NVR is very important; please check according to your purchase order. The label in the rear panel is very important too. Usually we need you to represent the serial number when we provide the service after sales.

3.3 HDD Installation

Important： Please turn off the power before you replace the HDD.

The pictures listed below for reference only.

For the first time install, please be aware that whether the HDDs have been installed. You can refer to the Appendix for HDD space information and recommended HDD brand. Please use HDD of 7200rpm or higher. Usually we do not recommend the PC HDD. Please follow the instructions below to install hard disk.

3.3.1 NVR100/100-P Series

Please make sure the metal surface of the HDD is facing up when you are installing!

This series NVR has only one 2.5-inch SATA HDD. Please follow the instructions below to install HDD.

80

horizontally. After the HDD is in

the proper position, the columns on the two sides can lock the screw holes of the HDD to secure it.

1. Loosen the screws of the upper cover and side panel.

2. Fix four screws in the HDD (Turn just three rounds).

3. Place the HDD in accordance with the four holes in the bottom.

4. Turn the device upside down and then turn the screws in firmly.

5. Fix the HDD firmly.

6. Connect the HDD cable and power cable.

When you remove the HDD, please refer to the following figure to pull the spring up and then remove the HDD.

3.3.2 NVR11/11-P/41/41-P/41-8P/41-W Series

81

1. Loosen the screws of the upper cover and side panel.

2. Fix four screws in the HDD (Turn just three rounds).

3. Place the HDD in accordance with the four holes in the bottom.

7. Put the cover in accordance with the clip and then place the upper cover back.

8. Secure the screws in the rear panel and the side panel.

1. Loosen the screws of the rear panel and side panel.

2. Fix four screws in the HDD (Turn just three rounds).

3. Place the HDD in accordance with the four holes in the bottom.

4. Turn the device upside down and then turn the screws in firmly.

5. Fix the HDD firmly.

6. Connect the HDD cable and power cable.

7. Put the cover in accordance with the clip and then place the upper cover back.

8. Secure the screws in the rear panel and the side panel.

3.3.3 NVR11H/11H-P/41H/41H-P/41H-8P Series

3.3.4 NVR42/42-P/42-8P/72/72-8P/42-4K/42-8P-4K Series

The following figures are based on the NVR 72-8P series.

82

4. Turn the device upside down and then turn the screws in firmly.

5. Fix the HDD firmly.

6. Connect the HDD cable and power cable.

7. Put the cover in accordance with the clip and then place the upper cover back.

8. Secure the screws in the rear panel and the side panel.

3.3.5 NVR44/44-8P/44-16P/74/74-8P/74-16P/ Series

The following figures are based on the NVR74 series.

① Use the screwdriver to loose the screws of the rear panel and then remove the front cover.

83

② Put the HDD to the HDD bracket in the chassis and then line up the four screws to the four holes in

the HDD. Use the screwdriver to fix the screws firmly to secure HDD on the HDD bracket

③ Connect to the HDD data cable to the main board and the HDD port respectively. Loosen the power

cable of the chassis and connect another end of the power cable to the HDD port.

④ After connect the cable, put the front cover back to the device and then fix screws of the rear panel.

3.3.6 NVR48/48-16P/NVR78/78-16P Series

The following figures are based on the NVR78 series.

84

1. Turn the key into the hole in the front panel.

2. Open the front panel.

④ Use the screwdriver to loose the screws of the rear panel and then remove the front cover.

⑤ Put the HDD to the HDD bracket in the chassis and then line up the four screws to the four holes in

the HDD. Use the screwdriver to fix the screws firmly to secure HDD on the HDD bracket

⑥ Connect to the HDD data cable to the main board and the HDD port respectively. Loosen the power

cable of the chassis and connect another end of the power cable to the HDD port.

④ After connect the cable, put the front cover back to the device and then fix screws of the rear panel.

3.3.7 NVR78-RH Series

85

① Use four screws to secure the HDD.

② Put the HDD to the HDD box at the

front panel of the device. .

3. Put the HDD to the slot and adjust the handle to secure it.

4. Put the front panel back and use the key to fix firmly.

1. Line up the handle to the HDD side (without the interface)

2. Use the screwdriver to fix the handle on the HDD.

HDD Handle Installation

3.3.8 NVR70/70-R Series

86

③ Please pull the handle up when you are

inputing the HDD box in case the the handle collides with the front panel

④ After put the HDD box to the SATA

board, put the handle back..

①Use 4 screws to secure the HDD

②Put the HDD to the HDD box at the front.

③Pull the HDD knob up when you put the HDD

into the box in case the knob buckle may strike

the front panel.

④Put the knob back after you insert the HDD

to the SATA board.

3.3.9 NVR42V-8P Series

3.4 CD-ROM Installation

Please follow the steps listed below.

87

① Open top cover and then remove the

HDD bracket

② Take off the bottom of the HDD bracket and

CD-ROM bracket.

③ Fix the CD-ROM bracket at the HDD

bracket.

④ Install a pair of the CD-ROM bracket. Please make

sure the reverse side is secure too.

⑤ Install SATA burner. Line up the SATA

burner to the hole positions.

⑥ User screwdriver to fix the screws.

88
