Dual Stage Rotary Vane
Pumps
DS102 1Ph, DS202 1Ph, DS302 1Ph,
DS402 1Ph, DS402 3Ph, DS602 1Ph,
DS602 3Ph
Models
949-9315, 949-9320, 949-9325, 949-9330,
949-9331, 949-9335, 949-9336,
Manuale di istruzioni
Bedienungshandbuch
Notice de mode d’emploi
User Manual
87-900-937-01(L)
05/2011
Notices
© Agilent Technologies, Inc. 2011
No part of this manual may be
reproduced in any form or by any
means (including electronic storage
and retrieval or translation into a
foreign language) without prior
agreement and written consent from
Agilent Technologies, Inc. as governed
by United States and international
copyright laws.
Manual Part Number
Publication Number: 87-900-937-01(L)
Edition
Edition 05/2011
Printed in ITALY
Agilent Technologies Italia S.p.A.
Vacuum Products Division
Via F.lli Varian, 54
10040 Leinì (TO)
ITALY
Warranty
The material contained in this
document is provided “as is,” and is
subject to being changed, without
notice, in future editions. Further, to
the maximum extent permitted by
applicable law, Agilent disclaims all
warranties, either express or implied,
with regard to this manual and any
information contained herein,
including but not limited to the
implied warranties of merchantability
and fitness for a particular purpose.
Agilent shall not be liable for errors
or for incidental or consequential
damages in connection with the
furnishing, use, or performance of
this document or of any information
contained herein. Should Agilent and
the user have a separate written
agreement with warranty terms
covering the material in this
document that conflict with these
terms, the warranty terms in the
separate agreement shall control.
Technology Licenses
The hardware and/or software
described in this document are
furnished under a license and may be
used or copied only in accordance
with the terms of such license.
Restricted Rights Legend
If software is for use in the
performance of a U.S. Government
prime contract or subcontract,
Software is delivered and licensed as
“Commercial computer software” as
defined in DFAR 252.227-7014 (June
1995), or as a “commercial item” as
defined in FAR 2.101(a) or as
“Restricted computer software” as
defined in FAR 52.227-19 (June 1987)
or any equivalent agency regulation or
contract clause. Use, duplication or
disclosure of Software is subject to
Agilent Technologies’ standard
commercial license terms, and nonDOD Departments and Agencies of the
U.S. Government will receive no
greater than Restricted Rights as
defined in FAR 52.227-19(c)(1-2) (June
1987). U.S. Government users will
receive no greater than Limited Rights
as defined in FAR 52.227-14 (June
1987) or DFAR 252.227-7015 (b)(2)
(November 1995), as applicable in any
technical data.
Trademarks
Windows and MS Windows are U.S.
registered trademarks of Microsoft
Corporation.
Safety Notices
CAUTION
A CAUTION notice denotes a hazard.
It calls attention to an operating
procedure, practice, or the like that, if
not correctly performed or adhered to,
could result in damage to the product
or loss of important data. Do not
proceed beyond a CAUTION notice
until the indicated conditions are fully
understood and met.
WARNING
A WARNING notice denotes a
hazard. It calls attention to an
operating procedure, practice, or the
like that, if not correctly performed
or adhered to, could result in
personal injury or death. Do not
proceed beyond a WARNING notice
indicated conditions are
until the
fully understood and met.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
DS102 – DS202 – DS302 – DS402 – DS602
DS102 – DS202 – DS302 – DS402 – DS602
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 3/140
DS102 – DS202 – DS302 – DS402 – DS602
4/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Contents
Contents
1 Istruzioni per l’uso 9
Informazioni generali 10
Immagazzinamento 11
Preparazione per l'installazione 12
Installazione 13
Uso 15
Manutenzione 16
Smaltimento 18
2 Gebrauchsanleitung 19
Allgemeine Hinweise 20
Lagerung 21
Vor der Installation 22
Installation 23
Gebrauch 25
Wartung 26
Entsorgung 28
3 Mode d’emploi 29
Indications Generales 30
Emmagasinage 31
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 5/140
Contents
Préparation pour l'installation 32
Installation 33
Utilisation 35
Maintenance 36
Mise au rebut 38
4 Instructions for Use 39
General Information 40
Storage 41
Preparation for Installation 42
Installation 43
Use 45
Maintenance 46
Disposal 48
5 Technical Description 49
SECTION I 51
Technical Description 51
Lubrication 53
Vacuum Seals 53
Gas Ballast Valve 53
Anti-Suckback Device 54
Technical Data 60

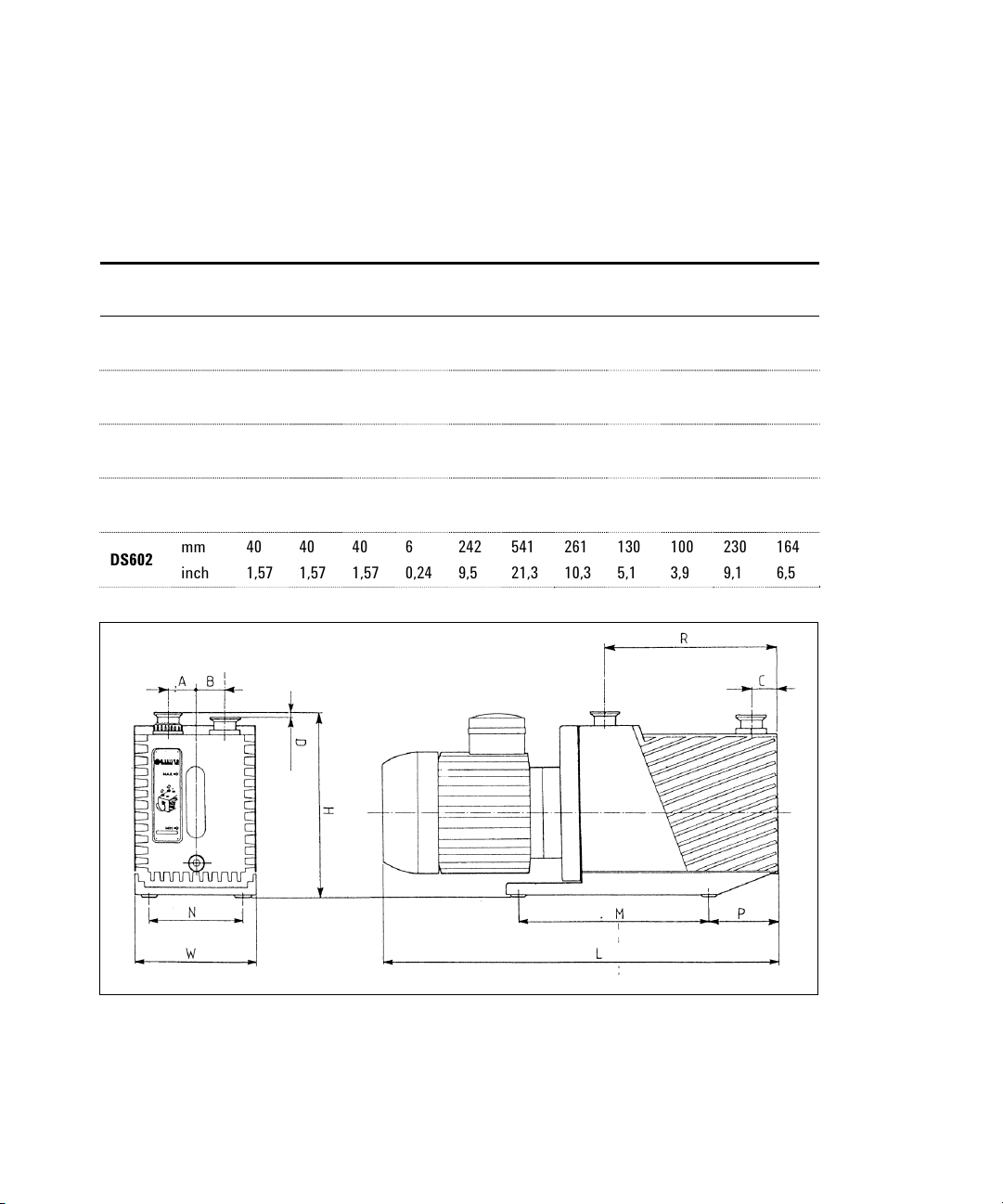

Dimensions 62
6/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Contents
Safety Precautions 64
Transport and Installation 64
Preliminary Operations 66
SECTION II 67
Electrical motors 67
Three Phase Universal Motors 70
Connections to the Inlet and Exhaust Flanges 73
Starting and Running the Pump 74
Stopping the Pump 75
Safety Rules 76
Warning Notes 76
Caution notes 78
Maintenance Actions 79

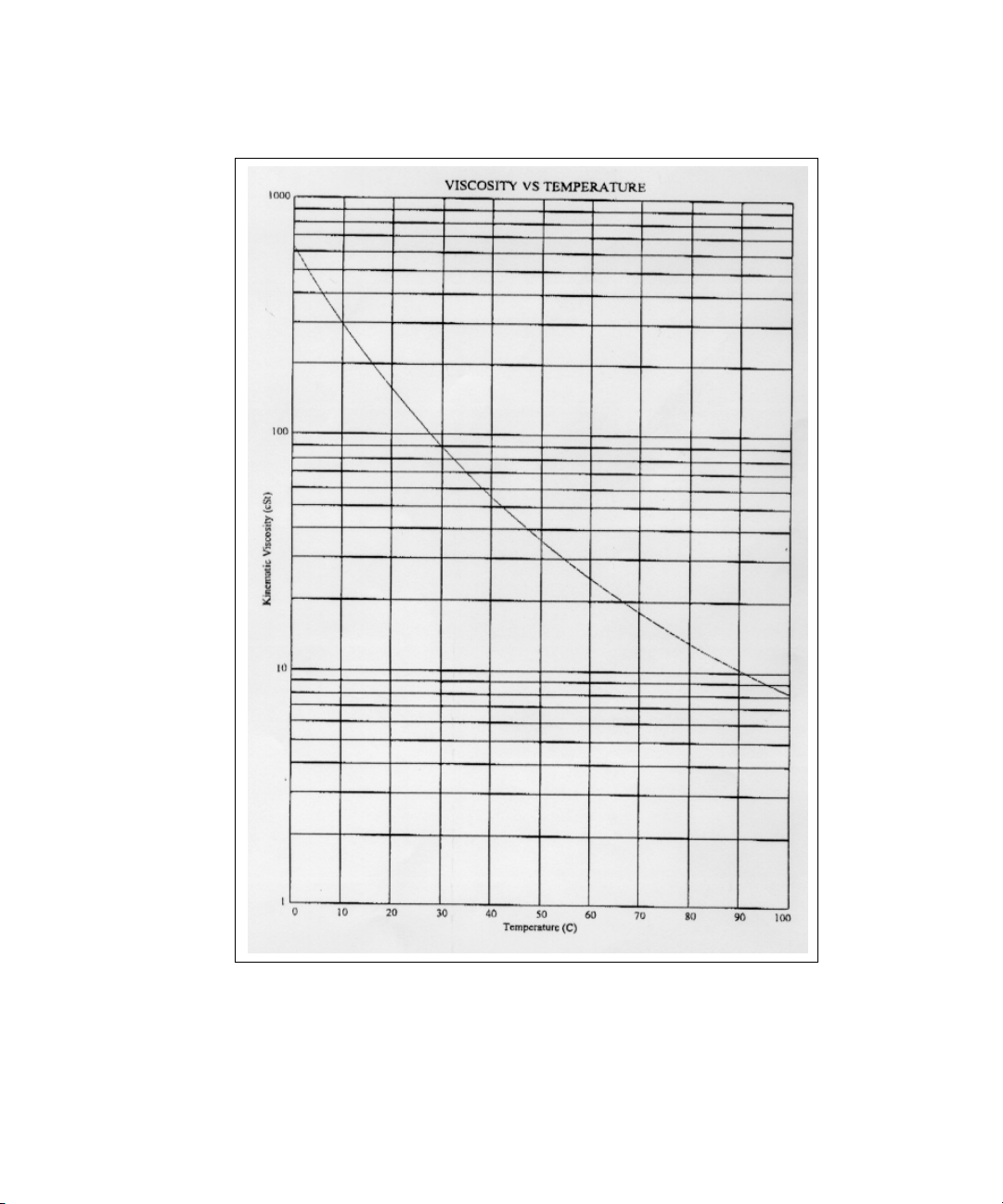

Lubricants 80
Scheduled Maintenance Cards 85
Troubleshooting and Corrective Action 129
Spare Parts List 133
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 7/140
Contents
8/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Dual Stage Rotary Vane Pumps User Manual
1
Istruzioni per l’uso
Informazioni generali 10
Immagazzinamento 11
Preparazione per l'installazione 12
Installazione 13
Uso 15
Manutenzione 16
Smaltimento 18
Traduzio
ne delle istruzioni originali
9/140
Istruzioni per l’uso
1
Informazioni generali
Informazioni generali
Questa apparecchiatura è destinata ad uso professionale.
L'utilizzatore deve leggere attentamente il presente manuale di
istruzioni ed ogni altra informazione addizionale fornita dalla Agilent
prima dell'utilizzo dell'apparecchiatura. La Agilent si ritiene sollevata
da eventuali responsabilità dovute all'inosservanza totale o parziale
delle istruzioni, ad uso improprio da parte di personale non
addestrato, ad interventi non autorizzati o ad uso contrario alle
normative nazionali specifiche.
Le pompe DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402
3Ph, DS602 1Ph e DS602 3Ph sono delle pompe rotative bistadio a
palette, a tenuta in bagno d'olio, azionate da motore elettrico mono o
trifase.
Queste pompe da alto vuoto sono adatte al pompaggio di gas non
corrosivi.
Nei paragrafi seguenti sono riportate tutte le informazioni necessarie
a garantire la sicurezza dell'operatore durante l'utilizzo
dell'apparecchiatura. Informazioni dettagliate sono fornite
nell'appendice “Technical Information”.
10/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Istruzioni per l’uso
A
Immagazzinamento
Questo manuale utilizza le seguenti convenzioni:
1
VVERTENZA!
ATTENZIONE!
NOTA
I messaggi di avvertenza attirano l’attenzione dell’operatore su una
procedura o una pratica specifica che, se non eseguita in modo corretto,
potrebbe provocare gravi lesioni personali.
I messaggi di attenzione sono visualizzati prima di procedure che, se non
osservate, potrebbero causare danni all’apparecchiatura.
Le note contengono informazioni importanti estrapolate dal testo.
Immagazzinamento
Durante il trasporto e l'immagazzinamento delle pompe non devono
essere superate le seguenti condizioni ambientali:
temperatura: da -20 °C a +70 °C
umidità relativa: 0 – 95 % (non condensante)
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 11/140
Istruzioni per l’uso
1
Preparazione per l'installazione
Preparazione per l'installazione
La pompa viene fornita in un imballo protettivo speciale; se si
presentano segni di danni, che potrebbero essersi verificati durante il
trasporto, contattare l'ufficio vendite locale.
Il peso dell’imballo, comprensivo della pompa, è, al massimo, di circa
32 [Kg].
Durante l'operazione di disimballaggio, prestare particolare
attenzione a non lasciar cadere la pompa e a non sottoporla ad urti o
vibrazioni.
Non disperdere l'imballo nell'ambiente. Il materiale è completamente
riciclabile e risponde alla direttiva CEE 85/399 per la tutela
dell'ambiente.
NOTA
La pompa non può essere danneggiata rimanendo semplicemente esposta
all'atmosfera. Si consiglia comunque di mantenerla chiusa fino al momento
dell'installazione sul sistema onde evitare eventuale inquinamento da polvere.
Figura 1
12/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Installazione
Non installare e/o utilizzare la pompa in ambienti esposti ad agenti
atmosferici (pioggia, gelo, neve), polveri, gas aggressivi, in ambienti
esplosivi o con elevato rischio di incendio.
Durante il funzionamento è necessario che siano rispettate le
seguenti condizioni ambientali:
temperatura: da +12 °C a +40 °C
umidità relativa: 0 – 95 % (non condensante).
Istruzioni per l’uso
1
Installazione
AVVERTENZA!
Per proteggere contro corto-circuiti o sovraccarichi, si deve installare un
interruttore automatico sulla linea d’alimentazione principale verso i
dispositivi Agilent, di capacità adeguata (vedere la tabella seguente):
Tab. 1
P/N 110 Vac 220 Vac 380 Vac
949-9315 10 A 6 A
949-9320 10 A 6 A
949-9325 10 A 6 A
949-9330 16 A 7.5 A
949-9331 6 A 6 A
949-9335 16 A 7.5 A
949-9336 6 A 4 A
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 13/140
Istruzioni per l’uso
1
Installazione
ATTENZIONE!
AVVERTENZA!
AVVERTENZA!
Prima di avviare la pompa, occorre procedere al rifornimento di olio lubrificante,
poichè la pompa viene fornita scarica.
Togliere i tappi di protezione posti sulle flange di aspirazione e scarico prima
di ogni successiva operazione. L’aria contenuta all’interno della pompa, in
caso di accensione involontaria, può proiettarli contro l’operatore.
Durante l'installazione prestare la massima attenzione che la flangia di
aspirazione sia collegata alla camera da evacuare e che la flangia di scarico
non sia tappata (vedere la figura seguente). La pompa non deve essere usata
come compressore. La massima pressione interna al contenitore dell'olio
non deve superare 1,5 bar (abs). L'inosservanza di queste precauzioni può
causare danni alla macchina ed all'operatore.
Figura 2
14/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Istruzioni per l’uso
Uso
1
ATTENZIONE!
ATTENZIONE!
Uso
AVVERTENZA!
Controllare che la tensione di alimentazione corrisponda a quella indicata sul
cartellino del motore.
Collegare la pompa all’alimentazione.
Nel caso di motore trifase, una inversione di polarità provoca l'inversione del
verso di rotazione della pompa, con conseguenti possibili danni di natura
meccanica.
Prima di mettere la pompa in servizio effettivo è necessario, per il
raggiungimento del vuoto limite, far marciare per circa un’ora la
pompa con zavorra aperta allo scopo di eliminare l’umidità nell’olio.
L'accensione della pompa non richiede particolari manovre; è
sufficiente collegarla all’alimentazione elettrica agendo
sull’interruttore bipolare (versione con motore monofase) o
onnipolare (versione con motore trifase).
La pompa è progettata per operare con fluidi neutri o non corrosivi. È
assolutamente vietato l'impiego con sostanze potenzialmente esplosive o
infiammabili.
Lo spegnimento della pompa non richiede particolari manovre; è
sufficiente scollegarla dall’alimentazione elettrica agendo
sull’interruttore bipolare (versione con motore monofase) o
onnipolare (versione con motore trifase).
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 15/140
Istruzioni per l’uso
1
Manutenzione
Manutenzione
Il personale addetto alla condotta ed alla manutenzione della pompa
deve essere ben addestrato e deve avere un'approfondita conoscenza
delle norme antinfortunistiche.
AVVERTENZA!
AVVERTENZA!
AVVERTENZA!
Le alte tensioni possono causare morte al contatto. Operare sempre con la
massima cautela e secondo le norme antinfortunistiche in vigore.
Quando la macchina è alimentata prestare attenzione per la presenza di
parti in movimento e di alta tensione.
Nel caso si debba procedere ad operazioni di manutenzione della pompa al
termine di un periodo di esercizio, è necessario lasciarla raffreddare, poichè
la temperatura esterna può superare i 60 °C.
16/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Istruzioni per l’uso
Manutenzione
1
AVVERTENZA!
AVVERTENZA!
ATTENZIONE!
Escludere sempre l'alimentazione della pompa prima di compiere operazioni
di manutenzione. Apporre specifici cartelli di avvertenza:
APPARECCHIATURA IN MANUTENZIONE - NON INSERIRE
L'ALIMENTAZIONE, in corrispondenza dell'interruttore di alimentazione. Al
termine ripristinare i dispositivi di sicurezza.
Non effettuare la sostituzione dell’olio subito dopo l’arresto della macchina,
in quanto la temperatura dello stesso può essere elevata.
In fase di sostituzione di pezzi, operare con attenzione. In particolare nel caso di
adozione di motore trifase, una inversione di polarità provoca l'inversione del
verso di rotazione della pompa, con conseguenti possibili danni di natura
meccanica.
NOTA
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 17/140
Prima di rispedire al costruttore una pompa per riparazioni è indispensabile
compilare e far pervenire al locale ufficio vendite la scheda "Sicurezza e Salute"
allegata al presente manuale di istruzioni. Copia della stessa deve essere inserita
nell'imballo della pompa prima della spedizione.
Qualora una pompa dovesse essere rottamata, procedere alla sua
eliminazione nel rispetto delle normative nazionali specifiche.
Istruzioni per l’uso
1
Smaltimento
Smaltimento
Significato del logo "WEEE" presente sulle etichette
Il simbolo qui sotto riportato applicato in ottemperanza alla direttiva
CE denominata "WEEE".
Questo simbolo (valido solo per i paesi della Comunità Europea)
indica che il prodotto sul quale è applicato, NON deve essere smaltito
insieme ai comuni rifiuti domestici o industriali, ma deve essere
avviato ad un sistema di raccolta differenziata.
Si invita pertanto l'utente finale a contattare il fornitore del
dispositivo, sia esso la casa madre o un rivenditore, per avviare il
processo di raccolta e smaltimento, dopo opportuna verifica dei
termini e condizioni contrattuali di vendita.
18/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Dual Stage Rotary Vane Pumps User Manual
2
Gebrauchsanleitung
Allgemeine Hinweise 20
Lagerung 21
Vor der Installation 22
Installation 23
Gebrauch 25
Wartung 26
Entsorgung 28
etzung der Originalanleitungen
Übers
19/140
Gebrauchsanleitung
2
Allgemeine Hinweise
Allgemeine Hinweise
Dieses Gerät ist für den professionellen Gebrauch bestimmt. Vor dem
Gebrauch soll der Benutzer dieses Handbuch sowie alle weiteren von
Agilent mitgelieferten Zusatzinformationen genau lesen. Bei
vollständiger bzw. teilweiser Nichtbeachtung der enthaltenen
Hinweise, unsachgemäßem Gebrauch durch ungeschultes Personal,
nicht autorisierten Eingriffen und Benutzung unter Mißachtung der
nationalen Bestimmungen übernimmt Firma Agilent keinerlei
Haftung.
Die Pumpen DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402
3Ph, DS602 1Ph und DS602 3Ph sind dichte ölbadgeschmierte
zweistufige Flügelzellenpumpen, die von einem Ein- oder
Dreiphasenstrommotor betätigt werden.
Diese Hochvakuumpumpen eignen sich für das Pumpen von nicht
korrosiven Gasen.
In den folgenden Abschnitten sind alle erforderlichen Informationen
für die Sicherheit des Bedieners bei der Verwendung des Geräts
aufgeführt. Detaillierte technische Informationen sind im Anhang
"Technical Information" enthalten.
20/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Gebrauchsanleitung
Lagerung
In dieser Gebrauchsanleitung werden Sicherheitshinweise
folgendermaßen hervorgehoben:
2
WARNUNG!
VORSICHT!
HINWEIS
Lagerung
Die Warnhinweise richten die Aufmerksamkeit des Bedieners auf eine
spezielle Prozedur oder Praktik, die bei unkorrekter Ausführung schwere
Personenschäden zur Folge haben könnte.
Die Vorsichtshinweise vor bestimmten Prozeduren machen den Bediener darauf
aufmerksam, dass bei Nichteinhaltung Schäden an der Anlage entstehen
können.
Die Hinweise enthalten wichtige Informationen, die aus dem Text hervorgehoben
werden.
Während des Transports und der Lagerung der Pumpen sollen die
folgenden Umgebungsbedingungen gegeben sein:
Temperatur: -20 °C bis +70 °C
Relative Feuchtigkeit: 0 – 95 % (niederschlagsfrei)
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 21/140
Gebrauchsanleitung
2
Vor der Installation
Vor der Installation
Die Pumpe wird in einer speziellen Schutzverpackung geliefert.
Eventuelle Transportschäden sind der zuständigen örtlichen
Verkaufsstelle zu melden.
Das Verpackungsgewicht beträgt, einschließlich der Pumpe, maximal
32 Kg.
Beim Auspacken ist darauf zu achten, daß die Pumpe nicht
fallengelassen oder Stößen oder Vibrationen ausgesetzt wird.
Das Verpackungsmaterial ist ordnungsgemäß zu entsorgen. Es ist
vollständig recyclebar und entspricht der EG-Richtlinie 85/399 für
den Umweltschutz.
HINWEIS
Die Pumpe kann, wenn sie einfach der Atmosphäre ausgesetzt ist, nicht
beschädigt werden. Sie sollte jedoch bis zur Installation an der Anlage
geschlossen bleiben, um Verunreinigungen durch Staub zu vermeiden.
Abbildung 1
22/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Installation
Die Pumpe darf nicht in Umgebungen installiert und/oder benutzt
werden, die ungeschützt vor Witterungsbedingungen (Regen, Frost,
Schnee), Staub und aggressiven Gasen sind und in denen Explosionsoder erhöhte Brandgefahr besteht.
Während des Betriebs sollen die folgenden Umgebungsbedingungen
gegeben sein:
Temperatur: +12 °C bis +40 °C
Relative Feuchtigkeit: 0 – 95 % (niederschlagsfrei).
Gebrauchsanleitung
2
Installation
WARNUNG!
Zum Schutz vor Kurzschlüssen oder Überlastungen, muss ein automatischer
Schalter in die Hauptspeisungsleitung zu den Agilent-Vorrichtungen
installiert werden (siehe folgende Tabelle):
Tab. 1
P/N 110 Vac 220 Vac 380 Vac
949-9315 10 A 6 A
949-9320 10 A 6 A
949-9325 10 A 6 A
949-9330 16 A 7.5 A
949-9331 6 A 6 A
949-9335 16 A 7.5 A
949-9336 6 A 4 A
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 23/140
Gebrauchsanleitung
2
Installation
VORSICHT!
WARNUNG!
WARNUNG!
Die Pumpe ist vor ihrer Inbetriebnahme mit Schmieröl zu füllen, da sie leer
geliefert wird.
Vor Aufnahme jeglicher Arbeiten sind die Schutzkappen an den Saug- und
Druckflanschen zu entfernen. Die im Pumpeninnern enthaltene Luft könnte
diese bei unbeabsichtigter Einschaltung gegen den Bediener schleudern.
Bei der Installation ist unbedingt darauf zu achten, dass der Saugflansch an
die zu entleerende Kammer angeschlossen ist und der Ablassflansch nicht
verschlossen ist (siehe nachstehende Abbildung). Die Pumpe darf nicht als
Verdichter verwendet werden. Der Druck im Ölbehälter darf nicht größer als
1,5 bar (abs) sein. Bei Nichtbeachtung dieser Anweisungen besteht
Schadensgefahr für das Gerät und die Bedienperson.
Abbildung 2
24/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Gebrauchsanleitung
Gebrauch
2
VORSICHT!
VORSICHT!
Gebrauch
Kontrollieren, daß die Versorgungsspannung mit der Spannungsangabe auf dem
Typenschild des Motors übereinstimmt.
Die Pumpe an das Versorgungsnetz anschließen.
Bei Dreiphasenstrommotoren bewirkt eine Polumkehrung die Umkehrung des
Drehsinns der Pumpe, was Schäden an der Mechanik zur Folge haben kann.
Vor der eigentlichen Inbetriebnahme der Pumpe ist es zur Erreichung
des Grenzvakuums erforderlich, die Pumpe ungefähr eine Stunde mit
geöffnetem Ballast laufen zu lassen, um die Feuchtigkeit aus dem Öl
zu entfernen.
Die Einschaltung der Pumpe erfordert keine speziellen Schritte, sie
braucht nur durch Betätigung des zweipoligen (Version mit
Einphasenstrommotor) oder des allpoligen Trennschalters (Version
mit Dreiphasenstrommotor) an die elektrische
Energieversorgungsquelle angeschlossen werden.
WARNUNG!
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 25/140
Die Pumpe ist für den Betrieb mit neutralen und nicht korrosiven Fluiden
konzipiert. Der Einsatz mit potentiell explosions- oder feuergefährlichen
Substanzen ist streng verboten.
Die Ausschaltung der Pumpe erfordert keine speziellen Schritte, sie
braucht nur durch Betätigung des zweipoligen (Version mit
Einphasenstrommotor) oder des allpoligen Trennschalters (Version
mit Dreiphasenstrommotor) von der elektrischen
Energieversorgungsquelle getrennt zu werden.
Gebrauchsanleitung
2
Wartung
Wartung
Das für den Betrieb und die Wartung zuständige Personal soll
geschult sein und über eine solide Kenntnis der
Unfallschutzvorschriften verfügen.
WARNUNG!
WARNUNG!
WARNUNG!
WARNUNG!
Hochspannungen können bei Kontakt tödliche Folgen haben. Es ist stets mit
größter Vorsicht und gemäß der geltenden Unfallschutzvorschriften
vorzugehen.
Bei eingeschaltetem Gerät ist auf Bewegungs- und Hochspannungsteile zu
achten.
Falls die Pumpe im Anschluß an den Betrieb gewartet werden soll, ist
abzuwarten, bis sie abgekühlt ist, da ihre Oberfläche eine Temperatur von
60°C überschreiten kann.
Vor Wartungsarbeiten ist die Pumpe stets energiefrei zu schalten. Am
Netzschalter sind spezielle Warnschilder “INSTANDHALTUNG AM GERÄT –
NICHT EINSCHALTEN” anzubringen. Nach Abschluß der Arbeiten sind die
Sicherheitseinrichtungen wieder zu aktivieren.
26/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Gebrauchsanleitung
Wartung
2
WARNUNG!
VORSICHT!
HINWEIS
Keine Ölwechsel unmittelbar nach Stillsetzung des Gerätes vornehmen, da
die Öltemperatur sehr hoch sein kann.
Bei Ersatz von Teilen ist mit Vorsicht vorzugehen. Insbesondere bei der Version
mit Dreiphasenstrommotor bewirkt eine Polumkehrung die Umkehrung des
Drehsinns der Pumpe, was Schäden an der Mechanik zur Folge haben kann.
Bevor dem Hersteller eine Pumpe zur Reparatur zurückgesandt wird, ist das
Formular “Sicherheit und Gesundheit” in der Anlage zum vorliegenden Handbuch
auszufüllen und der lokalen Verkaufsstelle zuzustellen. Eine Kopie des Formulars
ist der Pumpenverpackung vor dem Versand beizulegen.
Bei eventueller Verschrottung einer Pumpe ist diese entsprechend
der einschlägigen nationalen Vorschriften zu entsorgen.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 27/140
Gebrauchsanleitung
2
Entsorgung
Entsorgung
Bedeutung des "WEEE" Logos auf den Etiketten
Das folgende Symbol ist in Übereinstimmung mit der EU-Richtlinie
WEEE (Waste Electrical and Electronic Equipment) angebracht.
Dieses Symbol (nur in den EU-Ländern gültig) zeigt an, dass das
betreffende Produkt nicht zusammen mit Haushaltsmüll entsorgt
werden darf sondern einem speziellen Sammelsystem zugeführt
werden muss.
Der Endabnehmer sollte daher den Lieferanten des Geräts - d.h. die
Muttergesellschaft oder den Wiederverkäufer - kontaktieren, um den
Entsorgungsprozess zu starten, nachdem er die Verkaufsbedingungen
geprüft hat.
28/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Dual Stage Rotary Vane Pumps User Manual
3
Mode d’emploi
Indications Generales 30
Emmagasinage 31
Préparation pour l'installation 32
Installation 33
Utilisation 35
Maintenance 36
Mise au rebut 38
Traduction de la
mode d’emploi originale
29/140
Mode d’emploi
3
Indications Generales
Indications Generales
Cet appareillage a été conçu en vue d'une utilisation professionnelle.
Il est conseillé à l'utilisateur de lire attentivement cette notice
d'instructions ainsi que toute autre indication fournie par Agilent
avant d'utiliser l'appareil. Agilent décline par conséquent toute
responsabilité en cas de non-respect total ou partiel des instructions
fournies, d'utilisation incorrecte de la part d'un personnel non formé,
d'opérations non autorisées ou d'un emploi contraire aux
réglementations nationales spécifiques.
Les pompes DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402
3Ph, DS602 1Ph e DS602 3Ph sont des pompes rotatives à deux
stades à palettes, étanches en bain d'huile, actionnées par un moteur
électrique mono ou triphasé.
Ces pompes à vide poussé sont adaptées au pompage de gaz non
corrosifs.
Les paragraphes suivants fournissent toutes les indications
nécessaires pour garantir la sécurité de l'opérateur pendant
l'utilisation de l'appareillage. Des renseignements plus détaillés se
trouvent dans l'appendice “Technical Information”.
30/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Mode d’emploi
A
Emmagasinage
Cette notice utilise les signes conventionnels suivants:
3
VERTISSEMENT!
ATTENTION!
NOTE
Les messages d'avertissement attirent l'attention de l’opérateur sur une
procédure ou une manœuvre spéciale qui, si elle n'est pas effectuée
correctement, risque de provoquer de graves lésions.
Les messages d'attention apparaissent avant certaines procédures qui, si elles
ne sont pas observées, pourraient endommager sérieusement l'appareillage.
Les notes contiennent des renseignements importants, isolés du texte.
Emmagasinage
Pendant le transport et l'emmagasinage des pompes, il faut veiller à
respecter les conditions environnementales suivantes :
température: de -20 °C à +70 °C
humidité relative: 0 – 95 % (non condensante)
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 31/140
Mode d’emploi
3
Préparation pour l'installation
Préparation pour l'installation
La pompe est fournie dans un emballage de protection spécial; si l'on
constate des marques de dommages pouvant s'être produits pendant
le transport, contacter aussitôt le bureau de vente local.
Le poids total de l'emballage et de la pompe est au maximum de
32 Kg.
Pendant l'opération d'ouverture de l'emballage, veiller tout
particulièrement à ne pas laisser tomber la pompe et à ne lui faire
subir aucun choc ni aucune vibration
Ne pas jeter l'emballage dans la nature. Le matériel est entièrement
recyclable et il est conforme à la directive CEE 85/399 en matière de
protection de l'environnement.
NOTE
La pompe ne peut être endommagée en restant simplement exposée à
l'atmosphère. Il est de toute façon conseillé de la garder dans son emballage
jusqu'au moment de sa mise en fonction afin d'éviter toute pollution due à la
poussière
Figure 1
32/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
A
Installation
Ne pas installer et/ou utiliser la pompe dans des milieux exposés aux
agents atmosphériques (pluie, gel, neige), à des poussières, à des gaz
agressifs ainsi que dans des milieux explosifs ou à risque élevé
d'incendie.
Pendant le fonctionnement, il est nécessaire de respecter les
conditions environnementales suivantes :
Température: de +12 °C à +40 °C
Humidité relative : 0 – 95 % (non condensante).
Mode d’emploi
3
Installation
VERTISSEMENT!
Pour protéger contre les court-circuits ou les surintensités, il faut installer
un disjoncteur automatique sur la ligne d’alimentation principale vers les
dispositifs Agilent, de bonne capacité (voir tableau ci-dessous):
Tab. 1
P/N 110 Vac 220 Vac 380 Vac
949-9315 10 A 6 A
949-9320 10 A 6 A
949-9325 10 A 6 A
949-9330 16 A 7.5 A
949-9331 6 A 6 A
949-9335 16 A 7.5 A
949-9336 6 A 4 A
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 33/140
Mode d’emploi
A
A
3
Installation
ATTENTION!
VERTISSEMENT!
VERTISSEMENT!
Avant toute utilisation de la pompe, il est impératif de procéder à son
remplissage en huile de lubrification car elle est livrée vide.
Avant toute autre opération, retirer les bouchons de protection placés sur les
brides d'aspiration et de vidange. En cas de mise en marche inopinée de
l'appareillage, l'air contenu à l'intérieur de la pompe peut les projeter contre
l'opérateur.
Pendant l'installation, faire très attention que la bride d'aspiration soit reliée
à la chambre à vider et que la bride d'évacuation ne soit pas bouchée (voir
la figure ci-après). La pompe ne doit pas être utilisée comme un
compresseur. La pression maximale à l'intérieur du réservoir d'huile ne doit
pas dépasser 1,5 bar (abs). Le non-respect de ces précautions peut
entraîner un danger pour l'opérateur et l'endommagement de la machine.
Figure 2
34/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Mode d’emploi
A
Utilisation
3
ATTENTION!
ATTENTION!
Utilisation
Contrôler que la tension d'alimentation correspond à la tension indiquée sur la
plaquette du moteur.
Brancher la pompe à la source d'alimentation.
En cas de moteur triphasé, une inversion de polarité provoque l'inversion du
sens de rotation de la pompe et peut entraîner des dommages de nature
mécanique
Avant la mise en service de la pompe, il est nécessaire, pour
atteindre le vide maximum, de faire fonctionner la pompe pendant
environ une heure avec le reniflard ouvert afin de supprimer
l'humidité de l'huile.
La mise en marche de la pompe ne requiert aucune manœuvre
particulière ; il suffit de la brancher à l'alimentation électrique et
d'agir sur l'interrupteur bipolaire (version avec moteur monophasé)
ou unipolaire (version avec moteur triphasé).
VERTISSEMENT!
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 35/140
La pompe a été conçue pour fonctionner avec des fluides neutres ou non
corrosifs. L'emploi de substances potentiellement explosives ou
inflammables est strictement interdit.
L'arrêt de la pompe ne requiert aucune manœuvre particulière ; il
suffit de la débrancher de l'alimentation électrique en agissant sur
l'interrupteur bipolaire (version avec moteur monophasé) ou
unipolaire (version avec moteur triphasé).
Mode d’emploi
A
A
A
3
Maintenance
Maintenance
Le personnel chargé de la conduite et de la maintenance de la pompe
doit avoir reçu la formation nécessaire et posséder une connaissance
approfondie des normes de prévention des accidents du travail.
VERTISSEMENT!
VERTISSEMENT!
VERTISSEMENT!
Les hautes tensions peuvent entraîner la mort par contact. Veiller à toujours
opérer avec le maximum de prudence et dans le respect des normes de
prévention des accidents du travail en vigueur.
Lorsque la machine est sous alimentation, faire attention à la présence
d'organes en mouvement et de haute tension.
En cas de nécessité de procéder à des opérations de maintenance de la
pompe au terme d'une période de fonctionnement, il est indispensable de la
laisser refroidir car sa température extérieure peut être supérieure à 60°C.
36/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Mode d’emploi
A
A
Maintenance
3
VERTISSEMENT!
VERTISSEMENT!
ATTENTION!
Avant toute opération de maintenance, il est impératif de toujours couper
l'alimentation de la pompe. Placer les pancartes spécifiques d'avertissement
: APPAREILLAGE EN COURS DE MAINTENANCE – NE PAS BRANCHER
L'ALIMENTATION, près de l'interrupteur d'alimentation. Au terme des
opérations de maintenance, restaurer les dispositifs de sécurité.
Ne pas effectuer la substitution d'huile immédiatement après l'arrêt de la
machine car la température de cette dernière peut être élevée.
En phase de substitution de pièces, opérer avec le maximum d'attention. En
particulier, en cas de moteur triphasé, une inversion de polarité provoque
l'inversion du sens de rotation de la pompe et peut entraîner des dommages de
nature mécanique.
NOTE
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 37/140
Avant de retourner une pompe au constructeur pour réparation, il est
indispensable de remplir et d'adresser au bureau local de vente la fiche
"Sécurité et Santé" jointe à la présente notice d'instructions. Une copie de celleci devra être mise dans l'emballage de la pompe avant expédition.
En cas de mise au rebut de la pompe, procéder à son élimination
conformément aux réglementations nationales en la matière.
Mode d’emploi
3
Mise au rebut
Mise au rebut
Signification du logo "WEEE" figurant sur les étiquettes
Le symbole ci-dessous est appliqué conformément à la directive CE
nommée "WEEE".
Ce symbole (uniquement valide pour les pays de la Communauté
européenne) indique que le produit sur lequel il est appliqué NE doit
PAS être mis au rebut avec les ordures ménagères ou les déchets
industriels ordinaires, mais passer par un système de collecte
sélective.
Après avoir vérifié les termes et conditions du contrat de vente,
l’utilisateur final est donc prié de contacter le fournisseur du
dispositif, maison mère ou revendeur, pour mettre en œuvre le
processus de collecte et mise au rebut.
38/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Dual Stage Rotary Vane Pumps User Manual
4
Instructions for Use
General Information 40
Storage 41
Preparation for Installation 42
Installation 43
Use 45
Maintenance 46
Disposal 48
al Instructions
Origin
39/140
Instructions for Use
4
General Information
General Information
This equipment is destined for use by professionals. The user should
read this instruction manual and any other additional information
supplied by Agilent before operating the equipment. Agilent will not
be held responsible for any events occurring due to non-compliance,
even partial, with these instructions, improper use by untrained
persons, non-authorized interference with the equipment or any
action contrary to that provided for by specific national standards.
The DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph,
DS602 1Ph and DS602 3Ph pumps are dual-stage, rotary vane pumps
oil sealed, driven by a single-phase or three-phase electric motor.
These high vacuum pumps are suitable for pumping non corrosive
gases.
The following paragraphs contain all the information necessary to
guarantee the safety of the operator when using the equipment.
Detailed information is supplied in the appendix "Technical
Information".
40/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Instructions for Use
Storage
This manual uses the following standard protocol:
4
WARNING!
CAUTION!
NOTE
Storage
Warning messages are for attracting the attention of the operator to a
particular procedure or practice which, if not followed correctly, could lead
to serious injury.
The caution messages are displayed before procedures which, if not followed,
could cause damage to the equipment
Notes contain important information taken from the text.
When transporting and storing the pumps, the following
environmental requirements should not be exceeded:
temperature: from -20° to +70 °C
relative humidity: 0 – 95 % (non-condensing)
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 41/140
Instructions for Use
4
Preparation for Installation
Preparation for Installation
The pump is supplied in a special protective packing. If this shows
signs of damage which may have occurred during transport, contact
your local sales office.
Total weight of the pack, including the pump, is approx. 32 Kg.
When unpacking the pump, be sure not to drop it and avoid any kind
of sudden impact or shock vibration to it.
Do not dispose of the packing materials in an unauthorized manner.
The material is 100 % recyclable and complies with EEC Directive
85/399.
NOTE
Normal exposure to the environment cannot damage the pump. Nevertheless, it
is advisable to keep it closed until it is installed in the system, thus preventing
any form of pollution by dust.
Figure 1
42/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Installation
Do not install or use the pump in an environment exposed to
atmospheric agents (rain, snow, ice), dust, aggressive gases, or in
explosive environments or those with a high fire risk. During
operation, the following environmental conditions must be respected:
temperature: from +12 °C to +40 °C
relative humidity: 0 – 95 % (non-condensing)
Instructions for Use
4
Installation
WARNING!
CAUTION!
Protect against short circuits and overload by installing on Agilent Device
electrical main line an automatic circuit breaker of proper capacity (see
table here below):
Tab. 1
P/N 110 Vac 220 Vac 380 Vac
949-9315 10 A 6 A
949-9320 10 A 6 A
949-9325 10 A 6 A
949-9330 16 A 7.5 A
949-9331 6 A 6 A
949-9335 16 A 7.5 A
949-9336 6 A 4 A
Before starting the pump, fill up with lubricating oil as the pump is delivered
empty.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 43/140
Instructions for Use
4
Installation
WARNING!
WARNING!
Take out the protective caps on the suction and exhaust flanges before doing
anything else. In the event of an accidental start-up, the air inside the pump
could violently expel the protective caps and harm the operator.
During installation, pay maximum attention that the suction flange is
connected to the vacuum chamber and the exhaust flange is not closed (see
the following figure). The pump must not be used as a compressor.
Maximum pressure inside the oil container must not exceed 1.5 bar (abs.)
Non-observance of these precautions may be dangerous for the machine and
the operator.
Figure 2
CAUTION!
44/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Check that your electrical mains voltage corresponds to that indicated on the
motor’s plate.
Connect the pump to the power supply.
Instructions for Use
Use
4
CAUTION!
Use
WARNING!
Pay special attention to the three-phase motor, where an inversion of polarity
causes inversion of the direction of rotation of the pump with consequent
possibilities of mechanical damage.
Before being put into service, in order to reach maximum vacuum,
the pump must be left running for about an hour with the gas ballast
valve open. This will eliminate any humidity from the oil.
There are no special procedures for switching the pump on; it needs
only to be connected to the electric power by means of the bipolar
switch (version with single-phase motor) or of the multipolar switch
(version with three-phase motor).
The pump is designed for operation with neutral or non-corrosive fluids. It is
absolutely forbidden to use potentially explosive or flammable substances.
There are no special procedures for switching the pump off; it needs
only to be disconnected from the electric power by means of the
bipolar switch (version with single-phase motor) or of the multipolar
switch (version with three-phase motor).
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 45/140
Instructions for Use
4
Maintenance
Maintenance
Personnel responsible for pump operation and maintenance must be
well-trained and must be aware of the accident prevention rules.
WARNING!
WARNING!
WARNING!
Death may result from contact with high voltages. Always take extreme care
and observe the accident prevention regulations in force.
When machine is powered take care on account of moving parts and high
voltages.
If you have to perform maintenance on the pump after a considerable time in
operation, leave it to cool as temperature of the outer surface may be in
excess of 60 °C.
46/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Instructions for Use
Maintenance
4
WARNING!
WARNING!
CAUTION!
Always disconnect the power supply to the pump before starting
maintenance work. Place a special warning signs over the power supply
breaker switch: MACHINE UNDERGOING MAINTENANCE - DO NOT POWER
ON. When finished, remove the safety warning.
Do not change the oil immediately after stopping the machine as the oil
temperature may still be high.
When replacing a part, take great care. Pay special attention to the three-phase
motor, where an inversion of polarity causes inversion of the direction of
rotation of the pump with consequent possibilities of mechanical damage.
NOTE
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 47/140
Before returning the pump to the constructor for repairs the "Health and Safety"
sheet attached to this instruction manual must be filled-in and sent to the local
sales office. A copy of the sheet must be inserted in the pump package before
shipping.
If a pump is to be scrapped, it must be disposed of in accordance
with the specific national standards.
Instructions for Use
4
Disposal
Disposal
Meaning of the "WEEE" logo found in labels
The following symbol is applied in accordance with the EC WEEE
(Waste Electrical and Electronic Equipment) Directive.
This symbol (valid only in countries of the European Community)
indicates that the product it applies to must NOT be disposed of
together with ordinary domestic or industrial waste but must be sent
to a differentiated waste collection system.
The end user is therefore invited to contact the supplier of the device,
whether the Parent Company or a retailer, to initiate the collection
and disposal process after checking the contractual terms and
conditions of sale.
48/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Dual Stage Rotary Vane Pumps User Manual
5
Technical Description
Section I Technical Description 51
Lubrication 53
Vacuum Seals 53
Gas Ballast Valve 53
Anti-Suckback Device 54
Technical Data 60
Dimensions 62
Safety Precautions 64
Transport and Installation 64
Preliminary Operations 66
SECTION II Electrical motors 67
Single Phase Universal Motors 67
Single-Phase Universal Motors Voltage
Three Phase Universal Motors 70
Electrical Connections of Thre
Motors 72
al Instructions
Origin
e-Phase World Wide
Setting 68
49/140
Technical Description
5
Connections to the Inlet and Exhaust Flanges 73
Starting and Running the Pump 74
Stopping the Pump 75
Safety Rules 76
Warning Notes 76
Caution notes 78
Maintenance Actions 79
Lubricants 80
Scheduled Maintenance Cards 85
Troubleshooting and Corrective Action 129
50/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
T
T
SECTION I
Technical Description
The DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph,
DS602 1Ph and DS602 3Ph pumps are dual-stage, rotary vane pumps
oil sealed, driven by a single-phase or three-phase electric motor.
INLET POR
OUTLET POR
Technical Description
SECTION I
5
Figure 3
These vacuum pumps are suitable for pumping non corrosive gases.
The main features are:
all parts in direct contact with the fluid pumped are free of
copper alloys;
all materials are carefully selected to provide extended life;
a high capacity gas ballast device allow to pump condensable
vapors;
all the parts composing the pump are fully replaceable due to the
close machining tolerances and to the centering obtained by
using reference pins;
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 51/140
Technical Description
5
Technical Description
due to its design features and low number of gaskets, the pump
requires little maintenance, disassembly and reassemble are easy
and require minimal time.
The pump works with force-feed lubrication, provided by an auxiliary
gear-pump driven by the rotor of the vacuum pump itself. This
ensures proper lubrication even when pressures are close to
atmospheric.
The entire pump functional block is immersed in the oil contained in
the casing. The oil guar3antees perfect sealing of the discharge
valves, enters the pump to ensure lubrication and sealing of the parts
inside, facilitates heat dissipation and reduces pump noise.
The pump is equipped with a special anti-suckback device which
automatically isolates the vacuum system when the pump stops. This
avoids rises in pressure or oil flow in the vacuum system while air is
allowed back into the stator chambers.
The air entering the pump after the anti-suckback device has closed
prevents the oil in the casing from filling the stator chambers.
The inner seals are achieved by the lubricating oil, thanks to the close
machining tolerances.
There is only one oil seal on the rotor shaft, the one preventing oil
from seeping out of the pump. This seal acts on a bushing fitted onto
the shaft. Simple replacement of this seal grants the rotor a
practically unlimited life (pumps DS402 1Ph, DS402 3Ph, DS602 1Ph,
DS602 3Ph). On the DS102 1Ph, DS202 1Ph and DS302 1Ph pumps,
this seal acts on a surface-hardened area of the shaft guaranteeing
long rotor life.
The vacuum pumps are connected directly to the electric motor
through a flexible coupling, so that motion is transmitted even in
case of poor alignment.
A fan fitted on the joint and housed in the pump support produces a
forced air flow over the finned surfaces of the casing to avoid oil
overheating.
52/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Lubrication
The pump’s lubricating system is force-feed type.
Oil circulation is obtained by means of a gear pump connected to the
rotor shaft.
The oil is drawn through a gauze filter to prevent any foreign bodies
from entering the pump.
Shunt-mounted on the delivery line is a hydraulic piston which,
besides actuating the anti-suckback device (see ANTI-SUCKBACK
DEVICE), also regulates pressure by discharging excess oil flow
directly into the tank.
The required flow of oil under pressure passes through ducts that are
drilled in the walls of the pump and lubricates the bushings and the
inside parts.
Vacuum Seals
A special feature of this pump is the low number of gaskets that are
employed.
Technical Description
Lubrication
5
The seals in the circuit are obtained by means of VITON gaskets.
The careful surface finish of the various parts of the pump means
that vacuum sealing of the functional block is ensured by the film of
oil separating metal surfaces. Sealing of the rotor shaft is guaranteed
by a rotating gasket with dust-guard lip.
The suction flange and duct are sealed by mean of OR gaskets.
Gas Ballast Valve
When the pump sucks in vapors, these condense during compression
and mix with the oil, forming an emulsion (an aqueous vapor, for
example) or a solution (organic solvent vapors, for example).
A number of problems arise from this, such as the impossibility of
obtaining high vacuums, the alteration of the properties of the oil,
could cause scaling on parts of the pump.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 53/140
Technical Description
5
Anti-Suckback Device
To avoid this, during compression at the second stage, atmospheric
air is let into the pump through an adjustable valve, or “gas ballast
valve”, located at the top of the pump.
In this way, the discharge valve of the second stage opens through
the effect of the atmospheric air before the partial pressure of the
vapor reaches saturation point, thus preventing condensation from
occurring. The vapors are expelled mixed with air.
Anti-Suckback Device
The pump is equipped with a special anti-suckback device to avoid
air pressure rises and/or oil backflow towards the evacuated vessel
when the pump is switched off. This device has a shutter which
automatically closes the suction duct.
In this way the pump and vacuum system are completely isolated
from each other and air can enter the pump without any risk for the
vacuum produced in the system.
The device includes some special features, namely:
drive obtained avoiding any form of contamination of the inlet
duct by fluids (oil and/or air) used to command the shutter.
Thanks to this, when the pump is started again, the pumpdown to
vacuum conditions is extremely fast as these contaminants are
not present and no degassing is therefore required;
suction flange maintained closed even when the pump is idle, so
that pollutants cannot enter from the environment and no oil can
overflow from the pump.
54/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Anti-Suckback Device
5
Figure 4 View of the pump
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 55/140
Technical Description
5
Anti-Suckback Device
Tab. 2
N° DESCRIPTION DS 102 DS202 DS302 DS402 DS602
1 Electric motor SR03700702 SR03700702 SR03700702 SR03700703 SR03700703
Electric motor
1A
370-450W
Three phase
1B
electric motor
2 Rubber foot
3 Screw
4 Screw
5 Screw
7 Spacer
8 Motor support
9 Handle
10 Screw
11 Right sideplate
12 Board
14 Screw
15 Support plate
16 Cylindrical pin (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
17 Screw
18 Rubber crown (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
Half-joint with
19
fan
Half-joint
20
(pump side)
21 Oil-seal ring (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
22 Special screw
23 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
Gas Ballast
24
Valve knob
25 Half-plate
SR03700865 SR03700865 SR03700865
SR03700922 SR03700922 SR03700922 SR03700704 SR03700704
SR03700219 SR03700219 SR03700219 SR03700219 SR03700219
56/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Anti-Suckback Device
N° DESCRIPTION DS 102 DS202 DS302 DS402 DS602
26 Inlet screen SR03700237 SR03700237 SR03700237 SR03700237 SR03700237
27 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
28 Suction flange
Anti-suckback
29
shutter
30 Piston
31 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
32 Casing gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
33 Inner plate SR03700260 SR03700260 SR03700260 SR03700362 SR03700362
34 Pump support
Anti-wear
35
bushing
36 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
37 Kei motor side
First stage
38
vane
First stage
39
rotor
40 Spring (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
41 Tongue
Second stage
42
vane
Second stage
43
rotor
44 Tie-rod SR03700209 SR03700308 SR03700308 SR03700335 SR03700335
45 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
46 Bracket
47 Screw
Valve cover
49
plate
50 Valve spring (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
(4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
SR03700370 SR03700370
SR8999980101 SR8999980101 SR8999980101 SR8999980301 SR899998030
1
(1) (2) (2) (3) (3)
SR03700273 SR03700319 SR03700319 SR03700371 SR03700371
SR8999980001 SR8999980001 SR8999980001 SR8999980401 SR899998040
1
(1) (2) (2) (3) (3)
SR03700269 SR03700269 SR03700269 SR03700367 SR03700367
5
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 57/140
Technical Description
5
Anti-Suckback Device
N° DESCRIPTION DS 102 DS202 DS302 DS402 DS602
51 Valve gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
First stage
52
stator
53 Middle plate SR03700262 SR03700262 SR03700262 SR03700421 SR03700421
GasBallast
56
Valve shutter
GasBallast
57
Valve spring
Second stage
58
stator
59 Oil pump joint SR03700280 SR03700280 SR03700280 SR03700390 SR03700390
60 Special screw
61 End plate SR03700285 SR03700285 SR03700285 SR03700391 SR03700391
62 Tongue
63 Washer
64 Nut
External oil
69A
pump gear
Internal oil
69B
pump gear
70 Oil pump cover
71 Screw
73 Plate
74 Filter
75 Casing
76 Exhaust flange
77 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
78 Oil fill plug 03.701218 03.701218 03.701218 03.701218 03.701218
79 Oil drain plug SR03700256 SR03700256 SR03700256 SR03700256 SR03700256
Oil drain plug
80
gasket
81 Left sideplate
SR03700261 SR03700316 SR03700495 SR03700363 SR03700419
(4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
(4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
SR03700321 SR03700321 SR03700321 SR03700364 SR03700364
SR03700281 SR03700281 SR03700281 SR03700281 SR03700281
SR03700277 SR03700277 SR03700277 SR03700277 SR03700277
SR03700256 SR03700256 SR03700256 SR03700256 SR03700256
58/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Anti-Suckback Device
N° DESCRIPTION DS 102 DS202 DS302 DS402 DS602
83 Spring
84 Filter
85 Flange
86 Sight glass 03.701326 03.701326 03.701326 03.701326 03.701326
87 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
99 Special screw
100 Piston
101 Arm
102 Spring (1) (2) (2) (3) (3)
103 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
104 OR gasket (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
105 Sleeve
106 Spring (1) (2) (2) (3) (3)
107 Ring (4) - (1) (4) - (2) (4) - (2) (5) - (3) (5) - (3)
108 Arm
109 Insert
Special
110
washer
111 Screw
5
NOTES
Tab. 3
1 Part of DS 102 Major Maintenance Kit (P/N 9499380)
2 Part of DS 202-302 Major Maintenance Kit (P/N9499381)
3 Part of DS 402-602 Major Maintenance Kit (P/N 9499382)
4 Part of DS 102-202-302 Minor Maintenance Kit (P/N 9499370)
5 Part of DS 402-602 Minor Maintenance Kit (P/N 9499371)
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 59/140
Technical Description
5
Technical Data
Technical Data
The following table lists the main technical data of the DS102 1Ph,
DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph, DS602 1Ph and
DS602 3Ph pumps.
Tab. 4
TECHNICAL DATA Hz UNITS DS102 DS202 DS302 DS402 DS602
FREE AIR
DISPLACEMENT
PUMPING SPEED* 60 cfm 3,5 5,8 8,2 12,3 18,3
ULTIMATE
PARTIAL
PRESSURE*
ULTIMATE TOTAL
PRESSURE*
ULTIMATE TOTAL
PRESSURE WITH
GAS BALLAST*
WATER VAPOR
TOLERANCE
WATER VAPOR
CAPACITY
OIL CAPACITY
min/max
MOTOR RATING
1ph
MOTOR RATING
3ph
NOMINAL
ROTATION SPEED
60 rpm 1800 1800 1800 1800 1800
60 l/min
114 (4) 192 (6,8) 285 (10) 410 (14,5) 605 (21,4)
(cfm)
50 l/min
3
/h)
(m
95 (5,7) 160 (9,6) 237 (14,2) 342 (20,5) 540 (30,2)
50 m3/h 5 8,3 11,6 17,4 26
mbar 10
mbar
mbar
2⋅10
2⋅10
-4
-3
-2
10
2⋅10
2⋅10
-4
-3
-2
10
2⋅10
2⋅10
-4
-3
-2
10
2⋅10
1⋅10
-4
-3
-2
10
2⋅10
1⋅10
-4
-3
-2
mbar 15 15 20 30 30
g/h 60 100 160 350 550
l 0,3/0,5 0,4/0,6 0,4/0,6 0,6/1 0,6/1
50/
kW 0,45/0,55 0,45/0,55 0,45/0,55 0,75/0,90 0,75/0,90
60
50/
kW 0,75/0,90 0,75/0,90
60
50 rpm 1500 1500 1500 1500 1500
60/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Technical Data
TECHNICAL DATA Hz UNITS DS102 DS202 DS302 DS402 DS602
OIL
TEMPERATURE
(pump
operating)**
Installation
category
Pollution degree 2
OPERATING
TEMPERATURE
RANGE
WEIGHT Kg 22 24 24 36 36
lb 48 53 53 79 79
INLET FLANGE DN 25KF 25KF 25KF 25KF 25KF
EXHAUST FLANGE DN 25KF 25KF 25KF 25KF 25KF
Dimensions (cf.
also next table):
- length, 1ph mm 454 491 491 530 530
- width mm 134 134 134 164 164
- height mm 212 212 212 242 242
Input single phase versions ***
°C 50 50 52 70 72
°F 122 122 126 158 162
II
°C 12 - 40 12 - 40 12 - 40 12 - 40 12 - 40
5
Nominal voltages: 50 V 100
200-240
60 V 100-120
200-230
Maximum
currents:
60 A 8,8
50 A 8,8
5,4
4,4
* According to PNEUROP 6602
** At ultimate total pressure, 20 °C (68 °F) room temperature
*** For more details about the electrical motors see pages from 17 to 20
100
200-240
100-120
200-230
8,8
5,4
8,8
4,4
100
200-240
100-120
200-230
8,8
5,4
8,8
4,4
100
200-240
100-120
200-230
11,8
6,2
12,8
6,4
100
200-240
100-120
200-230
11,8
6,2
1,8
6,4
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 61/140
Technical Description
5
Dimensions
Dimensions
Tab. 5
MODEL UNITS A B C D H L M N P R W
DS102
DS202
DS302
DS402
DS602
mm
inch
mm
inch
mm
inch
mm
inch
mm
inch
30
1,18
30
1,18
30
1,18
40
1,57
40
1,57
30
1,18
30
1,18
30
1,18
40
1,57
40
1,57
35
1,38 3 0,12
35
1,38 3 0,12
35
1,38 3 0,12
40
1,57 6 0,24
40
1,57 6 0,24
212
8,3
212
8,3
212
8,3
242
9,5
242
9,5
430
16,9
467
18,4
467
18,4
541
21,3
541
21,3
250
9,8
250
9,8
250
9,8
261
10,3
261
10,3
100
105
165
132
3,9
4,1
6,5
5,2
100
105
205
132
3,9
4,1
8,1
5,2
100
105
205
132
3,9
4,1
8,1
5,2
130
100
230
164
5,1
3,9
9,1
6,5
130
100
230
164
5,1
3,9
9,1
6,5
Figure 5 Pump dimensions
62/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Dimensions
5

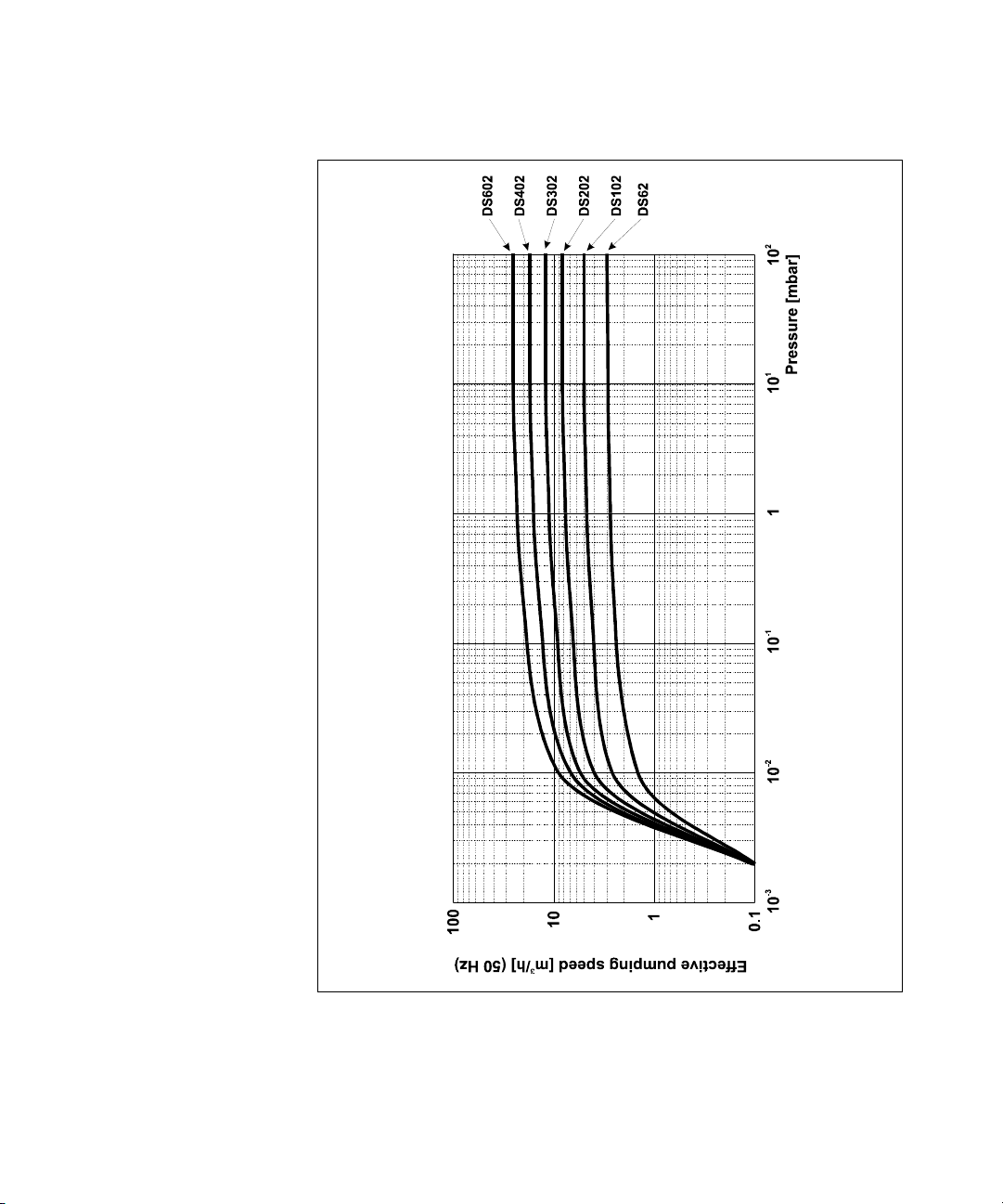

Figure 6 Typical Performance Curves
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 63/140
Technical Description
5
Safety Precautions
Safety Precautions
Always carry the pump by means of the handles provided.
The pump must be set in position taking the upmost care in order
to avoid accidental falls.
WARNING!
In case of a need to handle the pump after a period of operation, it must be
left to cool first as the external surface temperature may be in excess of
60 °C.
Transport and Installation
The pumps are shipped to the customer inside cardboard boxes.
Total weight of the pack, including the pump, is between 30 Kg. and
40 Kg. according to the different pump models.
The case must be handled with care, using appropriate lifting
equipment.
CAUTION!
When moving the case, ensure that it is securely bound to the lifting equipment
and that the equipment is strong enough to support the weight.
The pump’s working environment is a traditional industrial
environment. Naturally sites with corrosive vapors or excessive heat
are best avoided.
Room temperature should ideally be between 12 °C and 40 °C.
If the temperature is not inside this range, consult Agilent technical
service for the changes required.
64/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
5
Transport and Installation
Setting the pump in position should be performed as follows:
Pump laid on the ground. There are no special instructions for
this type of installation, except that the floor should be as flat as
possible and suited to bear the weight of the pump (it should
ideally be a concrete floor) and of any accessories mounted on it.
Note that the pump is stable on its base plate and it should not be
necessary to anchor it to the floor with bolts and screws; also
vibrations to and from the pump are greatly reduced by the use
of rubber feet.
Pump off the ground. In this case, the user must design a suitable
support structure, remembering the following points:
the plane supporting the pump must be perfectly horizontal;
the structure should be adequately rigid;
the relevant safety precautions should be applied.
Note also that the pump should be attached to the supporting
structure after replacing the rubber feet with special antivibration feet, which should be screwed to the pump base and to
the supporting plane.
After taking the pump out of its packing case, you are advised to
make the following checks:
a Ensure that the pump has not suffered any damage during
shipping.
b Check that the guards are mounted correctly (side plates, refs. 11
and 81 in fig. View of the pump) and that there are no uncovered
or loose parts.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 65/140
Technical Description
5
Preliminary Operations
Preliminary Operations
Before starting the pump, fill up with lubricating oil as the pumps are
delivered empty.
NOTE
CAUTION!
WARNING!
A tin of oil is included in the packing.
For details on how to fill up, see Scheduled Maintenance Card 01.
Oil must be poured into the casing through the special threaded plughole and
NOT through the suction line.
Take out the protective caps on the suction and exhaust flanges before doing
anything else. In the event of an accidental start-up, the air inside the pump
could violently expel the protective caps and harm the operator.
66/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
SECTION II
Electrical motors
Single Phase Universal Motors
They are world wide motors, dual voltages and dual frequencies, and
they are in accordance with major international standards
(UL, CSA, CE). On the table below are shown the technical
specifications of the different motors.
Technical Description
SECTION II
5
CAUTION!
Before connecting to the mains, check the position of the voltage selector
situated inside the electrical box (see next paragraph).
200 to 240 V, 50/60 Hz
100 to 120 V, 50/60 Hz
Figure 7 Voltage selector
The motor has a main on/off bipolar switch.
The motor includes a thermal protection against overloads. If the
motor is switched off by this relay, it can be started again after a few
minutes.
Consult the trouble shooting section in order to understand and
remove the overload cause.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 67/140
Technical Description
5
Electrical motors
NOTE
If fuses are installed on the power line, they must be in accordance with the
table below.
If you start a pump at low temperature, the current absorbed by the
motors will be for several seconds higher than the nominal one, for
this reason the fuse on the line must be of the slow-blow type.
Tab. 6
PUMP NOMINAL
VOLTAGE
[V]
100 50 1450 0.45 44 8.8 10
DS 102
DS 202
DS 302
DS 402
DS 602
100 to 120 60 1730 0.55 42 8.8 10
200 to 240 50 1450 0.45 27 5.4 8
200 to 230 60 1730 0.55 24 4.4 6
100 50 1450 0.75 75 11.8 16
100 to 120 60 1730 0.90 82 12.8 16
200 to 240 50 1450 0.75 43 6.2 8
HZ RPM KW START UP
CURRENT [A]
FULL LOAD
CURRENT
[A]
MAXIMUM FUSE
RATING [A]
200 to 230 60 1730 0.90 39 6.4 8
Single-Phase Universal Motors Voltage Setting
CAUTION!
68/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Before connecting to the mains, check that your electrical mains voltage
corresponds to the motor voltage setting.
Technical Description
Electrical motors
5
WARNING!
WARNING!
Disconnect the motor from the mains before opening the electrical box.
The motors are factory set to operate at 200-240 V (50/60 Hz)
nominal voltages.
To modify the voltage setting, change the position of the voltage
selector situated inside the motor electrical box.
To confirm the change of the voltage setting from High Voltage to Low
Voltage, glow the orange label above the yellow label positioned on
the electrical box cover.
Close the motor electrical box cover before connecting to the main.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 69/140
Technical Description
5
Three Phase Universal Motors
Figure 8 Motor Electrical box
On/off switch
Voltage Selector
Orange label
(100 to 120 V)
IEC 320 main socket
Three Phase Universal Motors
They are world wide motors in accordance with major international
standards (UL, CSA, CE). On the table below are shown the technical
specifications of the different motors.
CAUTION!
70/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Before starting the pump, give a short activation to the power switch, in order to
check that the motor turns in the direction indicated by the arrow on the motor
body. Should it rotate in the opposite direction, invert the connection of any two
phases on the motor terminals.
Technical Description
5
Three Phase Universal Motors
Figure 9 LOW VOLTAGE CONNECTION for power supply
of 220V to 230 V 50 - 60 Hz DELTA CONNECTION
Figure 10 HIGH VOLTAGE CONNECTION for power supply
380V to 460V 50 - 60 Hz STAR CONNECTION
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 71/140
Technical Description
5
Three Phase Universal Motors
Electrical Connections of Three-Phase World Wide
Motors
To connect the motor to the three-phase mains, follow the wiring
diagram on the motor plate or on the inside of the terminal strip.
Install a multipolar switch on the power line, with contact spacing of
at least 3 mm. A magneto-thermal switch must be installed
downstream of this switch, tripping at 130-140 % of the nominal
current.
Tab. 7
CONNECTION FREQ.
[HZ]
STAR 50 380 to 415 0.75 15 2.6 4
STAR 60 460 0.90 14 2.4 4
DELTA 50 200 to 240 0.75 26 4.4 6
DELTA 60 200 to 230 0.90 21 4.8 6
CAUTION!
It is recommended to connect the pump to the power supply through a dedicated
switch on the main electrical panel of the installation, or in proximity of the
power supply connection point.
Before starting the pump, give a short activation to the power switch,
in order to check that the motor turns in the direction indicated by
the arrow on the motor body. Should it rotate in the opposite
direction, invert the connection of any two phases on the motor
terminals.
One of the most effective method to verify the rotational way of the
motor, it is to start the pump with a sheet of paper on the pump inlet.
If the paper is sucked by the pump then the motor runs in the right
way.
NOMINAL
VOLTAGES [V]
POWER
[KW]
START UP
CURRENT [A]
CURRENT
[A]
MAX FUSE
RATING [A]
72/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Connections to the Inlet and Exhaust Flanges
Connections to the Inlet and Exhaust Flanges
Remove the protective caps from both flanges. Connect the system to
be evacuated to the inlet flange, using a centering ring with OR and a
locking collar.
5
NOTE
NOTE
NOTE
NOTE
For guaranteed reliable sealing, use an OR gasket in Perbunan or Viton.
The inlet duct is equipped with a sieve filter preventing solid
particles from entering and damaging the pump.
When the gases to be pumped out contain dust, it is advisable to insert a dust
filter before the inlet flange.
When the gases to be pumped out contain large quantities of vapor, it is
advisable to include a condense separator before the inlet flange.
To make best use of the pump’s capacity, use only short, straight
piping, with a diameter not smaller than that of the inlet flange.
If rigid piping is used, it is good practice to use a flexible joint in order to avoid
undue forcing of the connection on the pump.
The exhaust duct must be connected to a pipe that will take away the
pumped out gases.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 73/140
Technical Description
5
Starting and Running the Pump
NOTE
CAUTION!
Application of an oil trap filter is necessary to avoid pollution of the surrounding
atmosphere by the oil present in the exhaust duct during pump operation.
Never block the pump exhaust line. This would cause overpressure in the casing
with the risk of breaking the glass window of the level indicator and/or expelling
the oil seal gasket.
Starting and Running the Pump
Before being put into service, in order to reach maximum vacuum,
the pump must be left running for about an hour with the gas ballast
valve open. This will eliminate any humidity from the oil.
WARNING!
The pump is designed for operation with neutral or non-corrosive fluids. It is
absolutely forbidden to use potentially explosive or flammable substances.
NOTE
74/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
If the pump is started with cold oil, initially more than normal noise will be
heard; this will last for a few minutes only until the oil reaches its working
temperature.
There are no special instructions for normal operation of the pump,
which is delivered to you after completion of a running-in cycle in the
factory. The maintenance operations for a pump in working
condition may be found on the Scheduled Maintenance Cards.
Technical Description
Stopping the Pump
If the pump is sucking in environments with liquids or vapors, it is
important to leave it to run with the gas ballast open so as to avoid
condensation of the vapors and contamination of the lubricating oil
as a result. When there is no danger of the oil being contaminated,
the gas ballast valve should be closed to reduce the pump’s power
absorption.
The gas ballast valve will prove useful in the cold season when, due
to the lower room temperatures, it takes longer for the pump to reach
rated temperature when switched on. Compression of the air forced
in by the gas ballast valve develops heat, which in turn increases
temperature of the oil faster.
5
NOTE
NOTE
If gases without vapors are sucked in, you are advised to open the gas ballast
device from time to time in order to eliminate the traces of humidity they
contain.
For repetitive work cycles, with brief time intervals in between, it is better not to
stop the pump.
Stopping the Pump
There are no special procedures for switching the pump off; it needs
only to be disconnected from the electric power by means of the
bipolar switch (version with single-phase motor - see section
MODELS WITH SINGLE-PHASE UNIVERSAL MOTORS) or of the
multipolar switch (version with three-phase motor - see section
MODELS WITH THREE-PHASE UNIVERSAL MOTORS).
When the pump is stopped, the anti-suckback device makes it
possible to maintain vacuum in the vessel connected on the inlet
flange of the pump.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 75/140
Technical Description
5
Safety Rules
If the pump is expected to be stopped for a lengthy period, or in any
case if it has pumped in large amounts of vapors, it is good practice
to run it with the gas ballast open and the inlet line closed for a few
minutes before switching off in order to limit the risk of corrosion or
scaling due to pollution of the oil by condensed vapors.
Safety Rules
Personnel responsible for pump operation and maintenance must be
well-trained and must be aware of the accident prevention rules.
The accident prevention precautions contained in this section must
be respected at all times during operation and maintenance of the
pump to avoid damage to operators and to the pump.
These precautions are provided in the form of WARNING and
CAUTION notes.
WARNING!
CAUTION!
Operating procedures, technical information and precautions which, if not
respected and/or implemented correctly may cause body harm to operators.
Operating procedures, technical information and precautions which, if not
respected and/or implemented correctly may cause damage to the pump.
Warning Notes
c Death may result from contact with high voltages. Always take
extreme care and observe the accident prevention regulations in
force.
76/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
5
Warning Notes
d Always disconnect the power supply to the pump before
maintenance work. Place a special warning signs over the power
supply breaker switch: MACHINE UNDERGOING
MAINTENANCE - DO NOT POWER ON.
e If you are performing maintenance after the pump has been
operating for a considerable time, allow sufficient time for it to
cool as the external surface temperature may be in excess of 60
°C.
f Failure to provide the pump with an earth connection may cause
serious damage to operators. Always ensure that there is an earth
connection and that it complies with the standards.
g When cleaning the pump and its component parts, avoid the use
of flammable or toxic solvents, such as benzin, benzol, ether or
alcohol. The recommendation is to use a soap and water solution,
preferably in ultrasound washing machines, taking care to dry all
the cleaned parts at temperatures under 100 °C in order to
eliminate residual moisture.
h Prolonged overloads or breakdowns may cause the electric motor
to overheat, and to release noxious smoke; remove the power
immediately as a precaution and do not approach the pump at
least until you have provided ventilation to drive out the smoke.
Take care not to breathe in the fumes remaining inside the pump
in the course of repair work.
i In case of fire, do not throw water on the pump. Switch the
power off and use CO
extinguishers.
2
j Carefully inspect the flanges to ensure that there are no dust, oil,
dirt or defects of the mating surfaces, before making the required
connections.
k Ensure that all joints and couplings are locked correctly before
starting the pump again after repair work.
l Do not wear any objects that may become entangled in the
mechanisms and/or act as conductors (chains, bracelets, etc.).
m Ensure that the tools to be used are in perfect working condition
and have insulating grips, where necessary. Check that the
insulating material of the cables and that the conductors of the
test equipment do not show any signs of damage.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 77/140
Technical Description
5
Caution notes
n Do not replace the oil immediately after stopping the machine as
the oil may still be at high temperature.
o Perform repairs in clean and, where possible, dust-free areas.
Protect all the clearances of connection points with suitable
plastic caps and cover the machined surface areas of all parts
stripped down until they are put back on the pump again.
p Do not start the pump if the protective sideplates (refs. 11 and 81
of fig. View of the pump) are not properly in place.
Caution notes
q Before putting the pump back into operation after a breakdown,
inspect it and check carefully for any other signs of damage.
r Before putting the pump back into operation after a breakdown,
inspect it and check carefully for any other signs of damage.
s Use only tools that are in perfect working order and specially
designed for the job; use of inappropriate or ineffective tools may
cause serious damage.
t Perform repairs in clean and, where possible, dust-free areas.
Protect all the clearances of connection points with suitable
plastic caps and cover the machined surface areas of all parts
stripped down until they are put back on the pump again.
u Always check the lubricant and that it is properly distributed
through the pump; inadequate lubrication may damage the pump
seriously.
v Give the parts some form of marking as you strip them down to
ensure that you reassemble them again in the proper order.
w Check that there are no scratches or grooves on the machined
shafts, in their seats inside the pump or on machine-ground
surfaces. Slight scratches and abrasions may be eliminated with
very fine emery paper or by a little light grinding.
x Before putting a group together, always spread a little oil over
inner parts and mating surfaces. Replace all seals with original
spare parts before reassembling components.
78/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Maintenance Actions
Maintenance may be seen as the totality of all scheduled and
unscheduled maintenance work.
Maintenance includes:
1 SCHEDULED MAINTENANCE: Maintaining the nominal state
of operation.
2 UNSCHEDULED MAINTENANCE: Restoring the nominal state
of operation
Technical Description
Maintenance Actions
5
NOTE
CAUTION!
The frequency with which repairs are performed depends on the process and
presence of substances that shorten pump life (dust, abrasives, solvents, water,
chemically aggressive substances).
The pump must be cleaned at regular intervals of time.
Do not clean with Alcohol the plastic or rubber components of the pump.
Use only the strictly necessary amount of lubricant; an excess of
lubricating oil, like when there is none, may sometimes compromise
proper operation of the pump.
Only the recommended lubricants, or lubricating oils with similar
characteristics and known and experimented quality, should be used.
Oil changes must be made with the oil at a sufficiently high
temperature, after leaving the pump to cool for a few minutes
following operation.
The drain and filler plugs must not be left open any longer than is
strictly necessary.
When performing maintenance, look out for all signals that may
precede a breakdown, in particular:
traces of corrosion;
oil leaks;
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 79/140
Technical Description
5
Lubricants
slack joints or couplings.
Maintenance technicians must:
be aware of all applicable national directives concerning accident
prevention during work on motor-driven pumps and should
know how to apply them;
have read and understood all the sections on “Safety Rules";
be familiar with the essential design features and operation of the
pump;
know how to use and consult the pump documentation;
be concerned about proper operation of the pump;
make a note of any irregularities in operation of the pump and
take the necessary action, where appropriate.
Use original spare parts wherever possible and repair a broken part
as best as possible on site or send it back to the manufacturer for
repairs.
For all problems arising, or to order spare parts, refer to our service
department.
Agilent Technologies Italia S.p.A.
Vacuum Products Division
Via F.lli Varian 54 10040 Leini, (Torino) – Italy
Tel.: +39 011 997 9111
Fax: +39 011 997 9350
Toll-Free: 00 800 234 234 00
Lubricants
It will be readily understood how important adequate lubrication is
to high technology pumps like the Agilent vacuum pumps. Correct
use of appropriate lubricants makes a significant contribution to
achieving best performance and warding off defects.
When handling lubricants, the following sanitary protection
measures should be observed at all times:
80/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
5
Lubricants
Avoid prolonged, excessive or repeated contact of the skin with
products for lubrication, and also avoid directly inhaling the
fumes or vapors of such products.
Protect the skin by wearing appropriate clothes and equipment
(e.g. special suits, glasses or, where permitted by the safety
regulations, gloves) or by applying a special protective product.
Clean the skin carefully after contact with the lubricants by
washing freely with water and soap.
Apply a skin cream after washing.
Take off and change clothes or shoes on which oil has been
spilled.
Never put rags dripping with oil into the pockets of your clothes.
When disposing of waste lubricants, observe the following
environment protection regulations:
The lubricants risk contaminating the water and the ground!
Therefore never pour lubricating products on to the ground, into
water or in the sewage system. All violations of these rules are
liable to persecution as provided for by law. When using
lubricants always keep an oil can nearby.
Take care in draining off waste oils. In disposal of these products
respect all regulations in force concerning waste oil disposal.
The recommended lubricating oil is the Agilent Rotary Vane Fluid
DS19 Type. The Rotary Vane Fluid DS19 Type is a general purpose
mechanical pump fluid specifically engineered to provide superior
performance in high speed direct drive mechanical pumps.
These precisely distilled fluids (100 % solvent refined neutral
paraffinic oil) deliver lower base pressure capability, faster pumpdown cycles, and reduced maintenance requirements on both the
pump and the fluid.
It is absolutely necessary to continue using the lubricants initially
used to fill the tank. If this is not possible for organizational or
business reasons, use only products with the same characteristics as
the previous oils.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 81/140
Technical Description
5
Lubricants
Only use of lubricants of suitable quality will guarantee safe
operation of the pumps.
CAUTION!
CAUTION!
Mineral oils and the PFPE oil are incompatible. To change from one type to
another, the pump must be stripped down completely and all parts washed
carefully to eliminate all oil residues.
If you expect to have to use other lubricants, first find out if the two
products are compatible. In cases of doubt, the lubricant used up to
that time must be flushed out by way of a pump flushing procedure.
To avoid the risk of contaminating the oil, absolute cleanliness of the pump and
surrounding area must be ensured during the lubrication procedures.
Tab. 8
PROPERTY UNIT OF MEASURE ROTARY VANE FLUID DS19
Type
Vapor pressure @ 25 °C Torr 1·10-5
Boiling point @ 0,01 torr °C (°F) 112 (233)
Viscosity @ 40 °C cSt (SUS) 55 (258)
Viscosity @ 100 °C cSt (SUS) 8,1 (52,7)
Pour point °C (°F) -15 (5)
Flash point °C (°F) 213 (415)
Fire point °C (°F) 244 (472)
Density @ 25 °C g/ml
0,87
82/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Lubricants
5
Figure 11 Agilent Rotary Vane Fluid DS19 Type vapor pressure curve
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 83/140
Technical Description
5
Lubricants
Figure 12 Agilent Rotary Vane Fluid DS19 Type vapor pressure curve
84/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Scheduled Maintenance Cards
Tab. 9
No. FREQUENCY PUMP STATUS (*) OPERATION
01 MONTHLY R OIL LEVEL CHECKING
Technical Description
Scheduled Maintenance Cards
5
NOTE
NOTE
02 TWICE
YEARLY
(*) R=RUNNING S=STOPPED
When the pump is equipped with:
a filter for dust on the inlet side
a condensation separator on the inlet side
these items must also be maintained, by following the Manufacturer’s
instructions.
The numbers used in the drawings on the Scheduled Maintenance Cards are
those used in Figure View of the pump.
S CLEANING THE INLET FILTER
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 85/140
Technical Description
5
Scheduled Maintenance Cards
Scheduled Maintenance Card No.
01
Pump type: DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph, DS602 1Ph, DS602 3Ph
Frequency: Monthly Time: 5 min Machine status: S R
Type of action: LUBRICATION
Item: LUBRICATING OIL 949-9390
1
Figure 13
No. Description Time Equipment Materials
1 Check the oil level and top up if
necessary.
5 min Cleaning rags
Liquid detergent
Oil P/N 949-9390
86/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Scheduled Maintenance Cards
5
WARNING!
WARNING!
NOTE
Machine powered: take care on account of moving parts and high voltages.
If you have to perform maintenance on the pump after a considerable time in
operation, leave it to cool as temperature of the outer surface may be in
excess of 60 °C.
1. Check the oil level through the sight glass: there are two clearly
visible arrows indicating maximum and minimum levels for
proper pump operation.
The amount of oil consumed depends on the type of work, particularly on the
volume being evacuated and on the frequency of the vacuum cycles.
2. If necessary, open the pump filling plug on the top plane of the
pump and add oil.
NOTE
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 87/140
Before starting the procedure, check that the quality and type of oil used
corresponds to the indications of Table Agilent Rotary Vane Fluid DS19 Type
characteristics of this manual.
Technical Description
5
Scheduled Maintenance Cards
CAUTION!
CAUTION!
Take great care to avoid oily residues or dust from entering the pump and
jeopardizing proper operation.
3. Close the fill plug and, using cotton or other suitable material
rags, clean thoroughly the outer surface of the top plane of the
pump.
Never mix lubricants of different brands or quality. To change from one oil to
another, the pump must be stripped down and all parts washed carefully, taking
care to eliminate oil residues.
4. Open the gas ballast valve to purify the oil.
88/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
1
Scheduled Maintenance Cards
Scheduled Maintenance Card No.
02
Pump type: DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph, DS602 1Ph, DS602 3Ph
Frequency: Twice Yearly Time: 10 min Machine status: S R
Type of action: CLEANING
Item: INLET FILTER
5
Figure 14
No. Description Time Equipment Materials
1 Check the oil level and top up if
necessary.
10 min Cleaning rags
Liquid detergent
Oil P/N 949-9390
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 89/140
Technical Description
5
Scheduled Maintenance Cards
WARNING!
WARNING!
CAUTION!
Machine safety: disconnect all power lines. Hang the card “MACHINE
UNDERGOING MAINTENANCE - DO NOT POWER ON” from the main breaker
switch. When finished, remove the safety warning.
If you have to perform maintenance on the pump after a considerable time in
operation, leave it to cool as temperature of the outer surface may be in
excess of 60 °C.
1. Remove the filter (26) from the inlet flange (28).
2. Clean the filter using an aqueous solution and dry with hot air.
3. Put the filter back in place.
The filter element is designed to prevent solid particles in the air from entering
the inside of the pump and if it is not working properly, serious damage could be
caused the pump’s inner parts. In such cases, it may be worthwhile installing a
large surface area filter in the pump's suction line to improve effectiveness and
reduce maintenance frequency.
If the pump sucks in gases and vapors that contain large quantities of solid
particles, the filter must be checked and cleaned more often than indicated here.
90/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Scheduled
Maintenance Cards
Tab. 10 UNSCHEDULED MAINTENANCE CARDS
No. SUBJECT FREQUENCY
101 General Warnings
102 Changing the oil Whenever necessary
103 Disassembly of oil level indicator When damaged
104 Disassembly of anti-suckback device shutter When damaged
105 Disassembly of electric motor and joint When damaged
106 Disassembly of discharge valve When damaged
107 Disassembly of oil circulating pump When damaged
108 Disassembly of anti-suckback valve When damaged
109 Disassembly of pump body When damaged
110 Replacement of oil seal ring/wear bushing When damaged
111 Disassembly of functional block rotors When damaged
5
NOTE
The numbers used in the drawings on the Unscheduled Maintenance Cards are
those used in Figure View of the pump.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 91/140
Technical Description
5
Scheduled Maintenance Cards
Unscheduled Maintenance Card No.
101
Pump type: DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph, DS602 1Ph, DS602 3Ph
Frequency: Twice Yearly Time: 10 min Machine status:
Type of action: GENERAL WARNINGS
Item:
1
Figure 15
1. Pump disassembly and reassembly require some basic operations
and use of tools found in most workshops.
92/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Scheduled Maintenance Cards
5
NOTE
The pump’s component parts are modular and therefore fully interchangeable.
Whenever parts have to replaced, please specify in the order:
Pump type
Serial number (marked on pump identification plate).
Reference number on the detailed diagram, name and part number as
indicated on the spare parts and accessories list (section SPARE PARTS
LIST of this manual).
To simplify maintenance work, two kits have been devised.
The Gaskets
disassembly of the pump and the most commonly used removable parts.
You are advised to keep this kit in a dry room, away from heat and light (sun and
UV rays) in order to prevent hardening of the elastomer parts.
The Maintenance
stage vanes and other parts that it may be necessary to replace when
overhauling the pump completely. These parts have a life of approx. two years
under conditions of normal operation.
Kit, containing all the gaskets recommended for substitution after
Kit, including, as well as the Gaskets Kit, the 1st and 2nd
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 93/140
Technical Description
5
Scheduled Maintenance Cards
Tab. 11
KIT Pump Type ORDER
DS102 1Ph DS202 1Ph DS302 1Ph
GASKETS KIT X X X 949-9370
GASKETS KIT
X X 949-9371
DS402 1Ph
DS402 3Ph
DS602 1Ph
DS602 3Ph
CODE
MAINTENANCE KIT
MAINTENANCE KIT
MAINTENANCE KIT X X 949-9382
GASKETS KIT X X X 949-9370
X 949-9380
X X 949-9381
5. Before reassembling the pump, all parts must be cleaned
thoroughly with a soap and water solution and rinsed with
demineralized water.
CAUTION!
Particular care must be taken in cleaning the lubrication ducts and oil passage
nozzles, which must always be kept free of impurities.
CAUTION!
Take care that the soap and water solution does not remain in the various
cavities and recesses of the pump, in the blind holes in particular.
6. Then dry the parts, by heating where possible but without using
compressed air (it generally contains polluting substances),
taking care not to exceed a temperature of 80 °C.
7. The sequence of reassembly is the inverse of the disassembly
operation. Take the same precautions:
94/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
5
Scheduled Maintenance Cards
Spread some clean oil of the same type as used to lubricate the
pump over the different parts, in particular the inner lip of the
oil seal, the bushings and vanes.
If the oil seal has the dust-block lip, 2/3 fill the area between the
two lips with ISOFLEX TOPAS NB5051 grease.
CAUTION!
CAUTION!
NOTE
Do not allow the grease into the area of the circumferential spring.
Lock without forcing the nuts on the four tie-rods (44) connecting
the parts of the pump block. Before locking, check that all parts
are touching as required.
Before putting the springs and shutters of the discharge valves
back in, pour a little oil into the stators through the holes in the
valves.
Before hooking the recall spring to the anti-suckback command bar, make sure
you have put the bar all the way into the sleeve of the rotary feedthrough to
avoid bending the tapered part of the bar.
On DS102 1Ph, DS202 1Ph and DS302 1Ph pumps, fit the joint on the motor
shaft after careful removal of grease from the surfaces and application of
LOCTITE 242.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 95/140
Technical Description
5
Scheduled Maintenance Cards
Unscheduled Maintenance Card No.
102
Pump type: DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph, DS602 1Ph, DS602 3Ph
Frequency: AS REQUIRED Time: 30 min Machine status: S R
Type of action: CHANGING OIL
Item: LUBRICANT 949-9390
ACTION AREA
Figure 16
Materials required: Equipment required:
Agilent Rotary Vane Fluid DS19
Type (1 liter) P/N 949-9390
Fixed wrench for oil exhaust.
Tank to collect oil.
Cotton (or other suitable material) rags for cleaning.
Soap and water solution for cleaning.
96/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Technical Description
Scheduled Maintenance Cards
5
WARNING!
WARNING!
WARNING!
Do not change the oil immediately after stopping the machine as the oil
temperature may still be high.
Machine safety: disconnect all power lines. Hang the card “MACHINE
UNDERGOING MAINTENANCE - DO NOT POWER ON” from the main breaker
switch. When finished, remove the safety warning.
If you have to perform maintenance on the pump after a considerable time in
operation, leave it to cool as temperature of the outer surface may be in
excess of 60 °C.
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 97/140
Technical Description
5
Scheduled Maintenance Cards
Figure 17
NOTE
98/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
The oil has to be replaced:
1. when it has become particularly dirty due to the presence of contaminants in
the environments being evacuated;
2. when the degree of vacuum achieved by the pump is no longer satisfactory,
even after running for one hour with the gas ballast device open.
1. Place a tank for the waste oil under the oil drain plug (79).
Technical Description
Scheduled Maintenance Cards
5
NOTE
NOTE
You are advised to empty the pump before it cools down completely so that the
oil flows out more easily.
The pump contains up to 1 liter of oil - make sure the tank you use for the waste
oil can hold this amount.
8. Open the oil drain plug (79) slowly; let the oil flow out by opening
the fill plug (78) located at the top of the pump. In the meantime,
clean the inside of the drain plug (magnetic plug).
9. After closing the drainage hole with its plug, make the pump
perform a number of turns, giving it a brief current pulse, so as to
let residual oil in the pump chambers flow out. Then drain off the
residual oil again.
10. After all the oil has been drained, close the drain plug tight; take
the tank of waste oil away and clean thoroughly, using rags of
cotton or other suitable material to dry.
11. Clean thoroughly the pourer lip of the new oil tin; pour the oil
slowly into the pump through the filler plug (78).
NOTE
CAUTION!
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 99/140
Monitor through the sight glass at the front of the pump that you are not
exceeding the maximum oil level permitted.
For disposal of waste oil, it is strictly necessary to respect the currently
applicable legislation on this matter.
12. To achieve a good vacuum level again, run the pump for one hour
with the gas ballast open.
Technical Description
5
Scheduled Maintenance Cards
Unscheduled Maintenance Card No.
103
Pump type: DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph, DS602 1Ph, DS602 3Ph
Frequency: WHEN DAMAGED Time: 30 min Machine status: S R
Type of action: DISASSEMBLY
Item: SIGHT GLASS
ACTION AREA
Figure 18
Materials required: Equipment required:
OR gaskets
(for pumps DS102 1Ph, DS202 1Ph and DS302
1Ph Gaskets kit p/n 949-9370)
(for pumps DS402 1Ph, DS402 3Ph, DS602 1Ph
and DS602 3Ph Gaskets kit p/n 949-9371)
Sight glass
Mechanical tools
100/140 Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L)
Loading...
