Data Sheet and
Technical
Specifications
Keysight 2-Port and 4-Port
PNA Network Analyzer
N5221B 10 MHz to 13.5 GHz
N5222B 10 MHz to 26.5 GHz
2
Documentation Warranty
THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED "AS IS," AND IS SUBJECT TO BEING CHANGED,
WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, KEYSIGHT DISCLAIMS ALL WARRANTIES, EITHER EXPRESS OR IMPLIED WITH REGARD TO THIS
MANUAL AND ANY INFORMATION CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. KEYSIGHT SHALL NOT BE
LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH THE
FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR ANY INFORMATION CONTAINED HEREIN.
SHOULD KEYSIGHT AND THE USER HAVE A SEPARATE WRITTEN AGREEMENT WITH WARRANTY TERMS
COVERING THE MATERIAL IN THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE WARRANTY
TERMS IN THE SEPARATE AGREEMENT WILL CONTROL.
U.S. Government Rights
U.S. Government Rights. The Software is “commercial computer software,” as defined by Federal Acquisition
Regulation (“FAR”) 2.101. Pursuant to FAR 12.212 and 27.405-3 and Department of Defense FAR Supplement
(“DFARS”) 227.7202, the U.S. government acquires commercial computer software under the same terms by
which the software is customarily provided to the public. Accordingly, Keysight provides the Software to U.S.
government customers under its standard commercial license, which is embodied in its End User License
Agreement (EULA), a copy of which can be found at http://www.keysight.com/find/sweula. The license set forth in the
EULA represents the exclusive authority by which the U.S. government may use, modify, distribute, or disclose
the Software. The EULA and the license set forth therein, does not require or permit, among other things, that
Keysight: (1) Furnish technical information related to commercial computer software or commercial computer
software documentation that is not customarily provided to the public; or (2) Relinquish to, or otherwise provide,
the government rights in excess of these rights customarily provided to the public to use, modify, reproduce,
release, perform, display, or disclose commercial computer software or commercial computer software
documentation. No additional government requirements beyond those set forth in the EULA shall apply, except
to the extent that those terms, rights, or licenses are explicitly required from all providers of commercial
computer software pursuant to the FAR and the DFARS and are set forth specifically in writing elsewhere in the
EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software. With respect to
any technical data as defined by FAR 2.101, pursuant to FAR 12.211 and 27.404.2 and DFARS 227.7102, the
U.S. government acquires no greater than Limited Rights as defined in FAR 27.401 or DFAR 227.7103-5 (c), as
applicable in any technical data.
3
Dynamic Range ..................................................................................................................................................... 8
System Dynamic Range ...................................................................................................................................... 9
Table 1a. System Dynamic Range at Test Port (dB) ........................................................................................... 9
Table 1b. System Dynamic Range at Test Port (dB), N5222B, Option 205 (LFE Enabled) .............................. 10
Extended Dynamic Range ................................................................................................................................. 11
Table 2. Extended Dynamic Range at Direct Receiver Access Input (dB) - Specification ............................... 11
Receiver Dynamic Range .................................................................................................................................. 11
Table 3a. Receiver Dynamic Range (dB), All Options ....................................................................................... 11
Table 3b. Receiver Dynamic Range (dB), N5222B, All Ports, Option 205 (LFE Enabled) ................................ 12
Corrected System Performance, All Options ..................................................................................................... 13
Table 4a. N5221B and N5222B with 85052B Calibration Kit ........................................................................... 13
Table 4b. N5221B and N5222B with N4691B 2-Port Electronic Calibration Module ..................................... 15
Table 4c. N5221B and N5222B with N4433A 4-Port Electronic Calibration Module ..................................... 17
Table 4d. N5222B with 85052B Calibration Kit, Option 205 (LFE Enabled) .................................................... 19
Uncorrected System Performance ..................................................................................................................... 20
Table 5a. Error Terms (dB), All Ports, All Options - Specifications ................................................................... 20
Table 5b. Error Terms (dB), N5222B, All Ports, Option 205 (LFE Enabled) - Specifications ........................... 20
Table 5c. Error Terms (dB), All Ports, All Options - Typical .............................................................................. 21
Table 5d. Error Terms (dB), N5222B, All Ports, Option 205 (LFE Enabled) - Typical ....................................... 21
Test Port Output ................................................................................................................................................. 22
Table 6. Frequency Information, All Options .................................................................................................... 22
Table 7a. Maximum Leveled Power (dBm) - Specification ............................................................................... 22
Table 7b. Maximum Leveled Power (dBm) - Typical ........................................................................................ 23
Table 7c. Maximum Leveled Power (dBm), N5222B – Option 205 .................................................................. 23
Table 7d. Maximum Power (dBm), N5222B, All Ports – Option 205 (LFE Enabled) ........................................ 24
Table 8a. Power Level Accuracy (dB) at Nominal Power1, All Options ............................................................ 24
Table 8b. Power Level Accuracy (dB), N5222B, All Ports, Option 205 (LFE Enabled) ..................................... 25
Table 9a. Power Level Linearity1 (dB), All Options - Specification ................................................................... 25
Table 9b. Power Level Linearity1 (dB), All Options - Specification ................................................................... 25
Table 9c. Power Level Linearity1 (dB), N5222B, All Ports, Option 205 (LFE Enabled) ..................................... 26
Table 10a. Power Sweep Range (dB) - Specification ....................................................................................... 26
Table 10b. Power Sweep Range (dB), All Options - Typical............................................................................. 26
Table 10c. Power Sweep Range (dB), N5222B – Option 205 .......................................................................... 27
Table 10d. Power Sweep Range (dB), N5222B – Option 205 (LFE Enabled) .................................................. 27
Table 11. Nominal (Preset) Power (dBm) .......................................................................................................... 27
4
Table 12. Power Resolution and Maximum/Minimum Settable Power, All Options ........................................ 28
Table 13a. 2nd and 3rd Harmonics at Max Specified Power (dBc) All Options - Typical ................................... 28
Table 13b. 2nd and 3rd Harmonics at Max Specified Power (dBc), N5222B, All Ports, Option 205 (LFE
Enabled) - Typical.............................................................................................................................................. 28
Table 14. Non-Harmonic Spurs at Nominal Power (dBc), All Options - Typical ............................................. 29
Table 15a. Phase Noise (dBc/Hz), All Options - Typical .................................................................................. 29
Table 15b. Phase Noise (dBc/Hz), N5222B, All Ports, Option 205 (LFE Enabled) - Typical ........................... 29
Test Port Input .................................................................................................................................................... 30
Table 16a. Test Port Noise Floor (dBm) @ 10 Hz IFBW, All Options ............................................................... 30
Table 16b. Test Port Noise Floor (dBm) @ 10 Hz IFBW, N5222B, Option 205 (LFE Enabled) ........................ 30
Table 17. Direct Receiver Access Input Noise Floor (dBm), Options 201, 205, 217, 219, 401, 417, 419 ....... 31
Table 18a. 0.1 dB Compression, Option 201, 205, 217, 219, 401, 417, 419 - Typical .................................... 31
Table 18b. 0.1 dB Compression, N5222B, All Ports, Option 205 (LFE Enabled) - Typical .............................. 32
Table 18c. Compression - Specification ........................................................................................................... 32
Table 18d. Compression - Specification ........................................................................................................... 33
Table 18e. Compression, N5222B, All Ports, Option 205 (LFE Enabled) - Specification ................................ 33
Table 19a. Trace Noise Magnitude (dB rms), All Options ................................................................................. 34
Table 19b. Trace Noise Magnitude (dB rms), N5222B, All Ports, Option 205 (LFE Enabled) ......................... 34
Table 20a. Trace Noise Phase (deg rms), All Options ....................................................................................... 35
Table 20b. Trace Noise Phase (deg rms), N5222B, All Ports, Option 205 (LFE Enabled)................................ 35
Table 21. Reference Level Magnitude, All Options - Specification .................................................................. 35
Table 22a. Stability, All Options - Typical ......................................................................................................... 36
Table 22b. Stability, N5222B, Option 205 (LFE Enabled)- Typical................................................................... 36
Table 23. Damage Input Level .......................................................................................................................... 36
Dynamic Accuracy .............................................................................................................................................. 37
Table 24. N5221B and N5222B Dynamic Accuracy ......................................................................................... 37
Table 25. Group Delay - Typical ........................................................................................................................ 41
General Information ............................................................................................................................................ 42
Table 26. Miscellaneous Information ................................................................................................................ 42
Table 27. Front Panel Information, All Options ................................................................................................. 42
Table 27. (Continued) Front Panel Information, All Options ............................................................................ 43
Table 28. Rear Panel Information, All Options .................................................................................................. 43
Table 28. (Continued) Rear Panel Information, All Options ............................................................................. 44
Table 28. (Continued) Rear Panel Information, All Options ............................................................................. 45
Table 28. (Continued) Rear Panel Information, All Options ............................................................................. 46
5
Table 29. Analyzer Dimensions and Weight ..................................................................................................... 47
Regulatory and Environmental Information ...................................................................................................... 47
Measurement Throughput Summary ................................................................................................................. 48
Table 30a. Typical Cycle Time (ms) for Measurement Completion, All Models / Options ............................... 48
Table 30b. N5221B Typical Cycle Time (ms) for Full-Span Measurement Completion ................................. 49
Table 30c. N5222B Typical Cycle Time (ms) for Full-Span Measurement Completion .................................. 49
Table 31. Cycle Time vs. IF Bandwidth - Typical .............................................................................................. 50
Table 32. Cycle Time vs. Number of Points - Typical ....................................................................................... 51
Table 33. Data Transfer Time (ms) - Typical ..................................................................................................... 52
Specifications: Front-Panel Jumpers ................................................................................................................. 53
Table 34. Measurement Receiver Inputs (dBm) – Typical ................................................................................ 53
Table 35. Reference Receiver Inputs and Reference Source Outputs (dBm) - Typical ................................... 54
Table 36. Reference Receiver Inputs and Reference Source Outputs (dBm) - Typical ................................... 54
Table 37. Source Outputs (dBm) - Typical ....................................................................................................... 55
Table 38. Coupler Inputs (dB) - Typical ............................................................................................................ 55
Table 39. Damage Level - Typical ..................................................................................................................... 56
Test Set Block Diagrams .................................................................................................................................... 57
N5221B and N5222B Option 200 (2-port base model) ................................................................................... 57
N5221B and N5222B Option 201 ..................................................................................................................... 58
N5222B Option 205 ........................................................................................................................................... 58
N5221B and N5222B Option 217 ..................................................................................................................... 59
N5221B and N5222B Option 219 ..................................................................................................................... 59
N5221B and N5222B Option 400 (4-port base model) ................................................................................... 60
N5221B and N5222B Option 401 ..................................................................................................................... 60
N5221B and N5222B Option 417 ..................................................................................................................... 61
N5221B and N5222B Option 419 ..................................................................................................................... 61
Receiver Block Diagram .................................................................................................................................... 62
6
This is a complete list of the technical specifications for the N5221B and N5222B PNA Series network analyzers
with the following options. See block diagrams for all models and options beginning on page 57.
2-Port Models
Option 200 - 2-port base model with standard test set.
Option 201 - To base model, adds front-panel jumpers and R1 receiver switch.
Option 205 - To base model (N5222B only), adds front-panel jumpers, R1 receiver switch, and low frequency
extension (LFE) hardware.
Option 217 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver
attenuators (extended power range).
Option 219 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators
(extended power range), and bias-tees.
4-Port Models
Option 400 - 4-port base model with standard test set.
Option 401 - To base model, adds front-panel jumpers and R1 receiver switch.
Option 417 - To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver
attenuators (extended power range).
Option 419 - To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators
(extended power range), and bias-tees.
Notes
This document provides technical specifications for the 85052B calibration kit, N4691B ECal module, and
N4433A ECal module.
Please download our free Uncertainty Calculator from http://www.keysight.com/find/na_calculator to generate
the curves for your calibration kit and PNA setup.
For all tables in this data sheet, the specified performance at the exact frequency of a break is the degraded
value of the two specifications at that frequency.
7
Definitions
All specifications and characteristics apply over a 25 °C ±5 °C range (unless otherwise stated) and 90 minutes after the instrument
has been turned on.
Specification (spec.): Warranted performance. Specifications include guardbands to account for the expected
statistical performance distribution, measurement uncertainties, and changes in performance due to
environmental conditions.
Characteristic (char.): A performance parameter that the product is expected to meet before it leaves the factory,
but that is not verified in the field and is not covered by the product warranty. A characteristic includes the same
guardbands as a specification.
Typical (typ.): Expected performance of an average unit which does not include guardbands. It is not covered by
the product warranty.
Nominal (nom.): A general, descriptive term that does not imply a level of performance. It is not covered by the
product warranty.
Calibration: The process of measuring known standards to characterize a network analyzer's systematic
(repeatable) errors.
Corrected (residual): Indicates performance after error correction (calibration). It is determined by the quality of
calibration standards and how well "known" they are, plus system repeatability, stability, and noise.
Uncorrected (raw): Indicates instrument performance without error correction. The uncorrected performance
affects the stability of a calibration.
Standard: When referring to the analyzer, this includes no options unless noted otherwise.
Standard and LFE measurements: With option 205, which adds low frequency extension (LFE) hardware, the LFE
measurement range overlaps with the standard measurement range from 10 MHz to 100 MHz. With LFE
Enabled, measurements from 500 Hz to 100 MHz use LFE hardware. With LFE Disabled, measurements from
10 MHz to 100 MHz use standard hardware. To measure below 10 MHz, LFE must be enabled. All
measurements above 100 MHz use standard hardware, regardless of the LFE Enabled/Disabled setting.
8
Dynamic Range
The specifications in this section apply for measurements made with the N5221B and N5222B PNA network
analyzers with the following conditions:
▪ 10 Hz IF bandwidth
▪ No averaging applied to data
▪ Isolation calibration with an averaging factor of 8
▪ System Dynamic Range is defined as the specified source maximum output power (A) minus the specified
noise floor (B).
▪ Extended Dynamic Range at Direct Access Input is defined as the specified source maximum output power
(A) minus the specified direct receiver access input noise floor (not shown).
▪ Receiver Dynamic Range is defined as the typical test port 0.1 dB compression (C) minus the typical noise
floor (D).
9
System Dynamic Range
Table 1a. System Dynamic Range at Test Port (dB)
Description
Specification
Typical
Option 200,
201, 400, 401
Option 217,
219, 417, 419
Option 205
Option 200,
201, 400, 401
Option 217,
219, 417, 419
Option 205
10 MHz to 50 MHz1
94
94
87
108
108
101
50 MHz to 100 MHz1
108
108
103
123
123
118
100 MHz to 500 MHz
118
118
113
130
130
125
500 MHz to 2 GHz
127
127
123
138
138
133
2 GHz to 3.2 GHz
127
127
123
139
139
134
3.2 GHz to 10 GHz
127
127
125
141
141
139
10 GHz to 13.5 GHz
127
127
125
141
140
139
13.5 GHz to 16 GHz
127
127
124
140
139
137
16 GHz to 20 GHz
127
124
123
140
138
137
20 GHz to 24 GHz
124
121
118
136
134
133
24 GHz to 26.5 GHz
114
111
109
130
128
128
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled.
10
Table 1b. System Dynamic Range at Test Port (dB), N5222B, Option 205 (LFE Enabled)
Description
Specification
Typical
Effective Dynamic Range
1
(Typical)
500 Hz to 900 Hz
--
105
103
900 Hz to 1 kHz
93
109
105
1 kHz to 100 kHz
103
109
99
100 kHz to 1 MHz
119
124
124
1 MHz to 5 MHz
118
125
119
5 MHz to 10 MHz
111
117
117
10 MHz to 50 MHz
110
116
116
50 MHz to 100 MHz
110
116
116
1
Effective dynamic range is when the crosstalk is greater than the noise floor, and thus crosstalk limits the dynamic range.
Crosstalk only limits the dynamic range for IF bandwidths < 1 kHz.
11
Extended Dynamic Range
Table 2. Extended Dynamic Range at Direct Receiver Access Input (dB) - Specification
Description
Option 201, 205, 401
Option 217, 219, 417. 419
10 MHz to 50 MHz
130
130
50 MHz to 100 MHz
120
120
100 MHz to 500 MHz
130
130
500 MHz to 19 GHz
139
139
19 GHz to 20 GHz
139
136
20 GHz to 24 GHz
136
133
24 GHz to 26.5 GHz
126
123
Receiver Dynamic Range
Table 3a. Receiver Dynamic Range (dB), All Options
Description
Typical
10 MHz to 50 MHz1
103
50 MHz to 100 MHz1
118
100 MHz to 500 MHz
122
500 MHz to 2 GHz
130
2 GHz to 13.5 GHz
131
13.5 GHz to 20 GHz
132
20 GHz to 24 GHz
128
24 GHz to 26.5 GHz
126
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled.
12
Table 3b. Receiver Dynamic Range (dB), N5222B, All Ports, Option 205 (LFE Enabled)
Description
Typical
500 Hz to 900 Hz
106
900 Hz to 1 kHz
109
1 kHz to 100 kHz
109
100 kHz to 1 MHz
123
1 MHz to 5 MHz
123
5 MHz to 10 MHz
119
10 MHz to 50 MHz
120
50 MHz to 100 MHz
120
13
Corrected System Performance, All Options
For any Sii reflection measurement:
• Sjj = 0.
For any Sij transmission measurement:
• Sji = Sij when Sij ≤ 1
• Sji = 1/Sij when Sij >1
• Skk = 0 for all k
Applies to the N5221B/2B Option 200, 201, 217, 219, 400, 401, 417 or 419 analyzers, 85131F flexible test port
cable set, and a full 2-port calibration. Also applies to the following condition:
Environmental temperature 23° ±3 °C, with < 1 °C deviation from calibration temperature
Table 4a. N5221B and N5222B with 85052B Calibration Kit
Description
Specification (dB)
10 MHz to
50 MHz1
50 MHz to
500 MHz1
500 MHz
to 2 GHz
2 GHz to
13.5 GHz
13.5 GHz to
20 GHz
20 GHz to
26.5 GHz
Directivity
48
48
48
44
44
44
Source Match
40
40
40
31
31
31
Load Match
48
48
48
44
44
44
Reflection Tracking
Mag
±0.003
±0.003
±0.003
±0.006
±0.006
±0.006
Phase (°)
±0.020
±0.020
±0.020
±0.040
±0.040
±0.040
Transmission Tracking
Mag
±0.034
±0.017
±0.017
±0.091
±0.104
±0.119
Phase (°)
±0.225
±0.110
±0.110
±0.602
±0.688
±0.788
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled.
14
Transmission Uncertainty, All Options
Reflection Uncertainty, All Options
15
Table 4b. N5221B and N5222B with N4691B 2-Port Electronic Calibration Module
Description
Specification (dB)
10 MHz to
50 MHz1
50 MHz to
500 MHz1
500 MHz
to 2 GHz
2 GHz to
13.5 GHz
13.5 GHz to
20 GHz
20 GHz to
26.5 GHz
Directivity
46
46
52
46
46
44
Source Match
41
41
47
42
42
40
Load Match
40
40
46
41
40
38
Reflection Tracking
Mag
±0.050
±0.050
±0.020
±0.040
±0.040
±0.050
Phase (°)
±0.330
±0.330
±0.132
±0.264
±0.264
±0.330
Transmission Tracking
Mag
±0.062
±0.056
±0.023
±0.054
±0.055
±0.072
Phase (°)
±0.410
±0.370
±0.152
±0.354
±0.365
±0.473
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled.
16

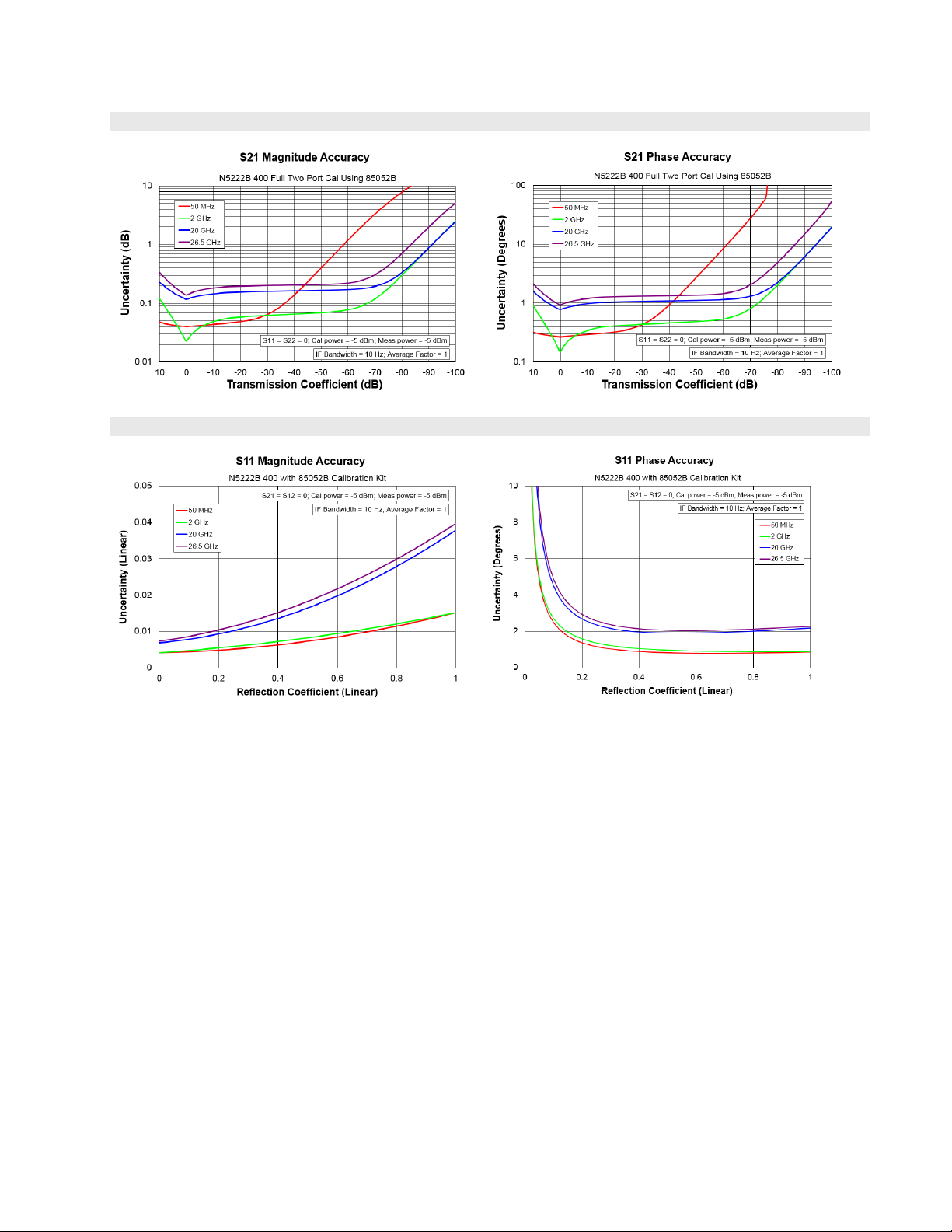

Transmission Uncertainty, All Options
Reflection Uncertainty, All Options
17
Table 4c. N5221B and N5222B with N4433A 4-Port Electronic Calibration Module
Uncertainty curves for the N4433A are created using a 2-port calibration. Multiport
uncertainties are not supported at this time.
Description
Specification (dB)
10 MHz to
50 MHz1
50 MHz to
500 MHz1
500 MHz
to 2 GHz
2 GHz to
13.5 GHz
13.5 GHz to
20 GHz
Directivity
50
50
50
45
40
Source Match
42
42
42
37
31
Load Match
40
41
41
35
29
Reflection Tracking
Mag
±0.060
±0.060
±0.060
±0.100
±0.180
Phase (°)
±0.396
±0.396
±0.396
±0.660
±1.188
Transmission Tracking
Mag
±0.068
±0.064
±0.064
±0.115
±0.210
Phase (°)
±0.447
±0.421
±0.421
±0.761
±1.387
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 4d.
18
Transmission Uncertainty, All Options
Reflection Uncertainty, All Options
19
Table 4d. N5222B with 85052B Calibration Kit, Option 205 (LFE Enabled)
Description
Specification (dB)
1 kHz to
10 kHz
10 kHz to
1 MHz
1 MHz to
5 MHz
5 MHz to
50 MHz
50 MHz to
100 MHz
Directivity
48
48
48
48
48
Source Match
40
40
40
40
40
Load Match
48
48
48
48
48
Reflection Tracking
Mag
±0.003
±0.003
±0.003
±0.003
±0.003
Phase (°)
±0.020
±0.020
±0.020
±0.020
±0.020
Transmission Tracking
Mag
±0.055
±0.016
±0.050
±0.045
±0.045
Phase (°)
±0.361
±0.105
±0.333
±0.296
±0.296
Transmission Uncertainty, Option 205
Reflection Uncertainty, Option 205
20
Uncorrected System Performance
Specifications apply to following conditions:
• Over environmental temperature of 25 °C ±5 °C, with less than 1°C variation from the calibration
temperature.
• Cable loss not included in Transmission Tracking.
• Crosstalk measurement conditions: normalized to a thru, measured with shorts on all ports, 10 Hz IF
bandwidth, averaging factor of 8, alternate mode, source power set to the specified maximum power.
Table 5a. Error Terms (dB), All Ports, All Options - Specifications
Description
Directivity
Source
Match
Load Match
Transmission
Tracking
Reflection
Tracking
Crosstalk
10 MHz to 50 MHz1
16 (16)
11 (9)
11 (9)
--
--
--
50 MHz to 3.2 GHz1
24 (24)
18 (7)
17 (7)
--
--
--
3.2 GHz to 10 GHz
23 (22)
14 (9)
13 (9)
--
--
--
10 GHz to 16 GHz
16 (16)
12 (9)
10 (9)
--
--
--
16 GHz to 24 GHz
16 (16)
10 (6)
9 (7)
--
--
--
24 GHz to 26.5 GHz
16 (16)
8 (6)
8 (6)
--
--
--
( ) With Option 205 installed.
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 5b.
Table 5b. Error Terms (dB), N5222B, All Ports, Option 205 (LFE Enabled) - Specifications
Description
Directivity
Source
Match
Load Match
Transmission
Tracking
Reflection
Tracking
Crosstalk
1 kHz to 10 kHz
1 7 7
--
--
--
10 kHz to 1 MHz
16
15
19
--
--
--
1 MHz to 5 MHz
16 9 11
--
--
--
5 MHz to 50 MHz
5 7 8
--
--
--
50 MHz to 100 MHz
5 8 9
--
--
--
21
Table 5c. Error Terms (dB), All Ports, All Options - Typical
Description
Directivity
Source
Match
Load Match
Transmission
Tracking
Reflection
Tracking
Crosstalk
10 MHz to 50 MHz1
23 (23)
17 (10)
16 (10)
+/- 1.5
+/- 1.5
-84
50 MHz to 100 MHz1
29 (29)
29 (11)
28 (11)
+/- 1.5
+/- 1.5
-90
100 MHz to 500 MHz
29 (29)
29 (8)
28 (8)
+/- 1.5
+/- 1.5
-110
500 MHz to 3.2 GHz
31 (31)
24 (8)
22 (8)
+/- 1.5
+/- 1.5
-120
3.2 GHz to 10 GHz
25 (25)
19 (14)
17 (14)
+/- 1.5
+/- 1.5
-122
10 GHz to 13.5 GHz
21 (21)
17 (13)
15 (13)
+/- 1.5
+/- 1.5
-122
13.5 GHz to 16 GHz
20 (20)
16 (16)
15 (14)
+/- 1.5
+/- 1.5
-122
16 GHz to 20 GHz
20 (20)
15 (12)
15 (12)
+/- 1.5
+/- 1.5
-122
20 GHz to 24 GHz
19 (19)
13 (11)
13 (11)
+/- 1.5
+/- 1.5
-117
24 GHz to 26.5 GHz
20 (20)
13 (10)
13 (11)
+/- 1.5
+/- 1.5
-114
( ) With Option 205 installed.
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 5d.
Table 5d. Error Terms (dB), N5222B, All Ports, Option 205 (LFE Enabled) - Typical
Description
Directivity
Source
Match
Load Match
Transmission
Tracking
Reflection
Tracking
Crosstalk
500 Hz to 900 Hz
--
--
--
--
--
-103
900 Hz to 1 kHz
4 8 9
+/- 1.5
+/- 1.5
-105
1 kHz to 10 kHz
5 9 8
+/- 1.5
+/- 1.5
-99
10 kHz to 100 kHz
23
19
23
+/- 1.5
+/- 1.5
-105
100 kHz to 1 MHz
23
19
23
+/- 1.5
+/- 1.5
-125
1 MHz to 5 MHz
26
13
14
+/- 1.5
+/- 1.5
-119
5 MHz to 10 MHz
11 9 10
+/- 1.5
+/- 1.5
-120
10 MHz to 50 MHz
11 9 10
+/- 1.5
+/- 1.5
-117
50 MHz to 100 MHz
11
11
11
+/- 1.5
+/- 1.5
-118
22
Test Port Output

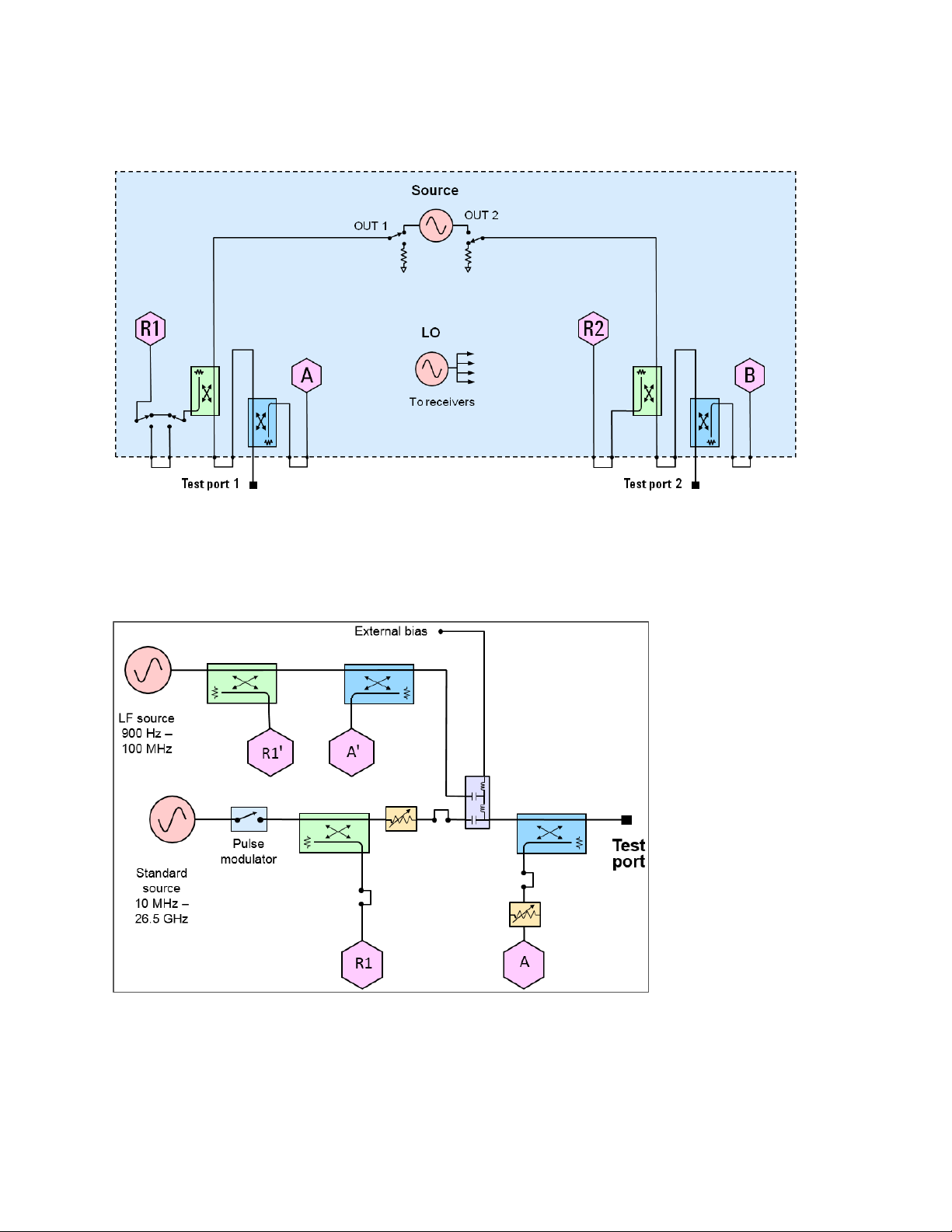

See Block diagrams for all models and option beginning on page 41.
Table 6. Frequency Information, All Options
Description
Specification
Typical
N5221B Frequency Range
10 MHz to 13.5 GHz
--
N5222B Frequency Range
10 MHz to 26.5 GHz
--
N5222B Frequency Range (Option 205)1
900 Hz to 26.5 GHz
500 Hz to 900 Hz
Frequency Resolution
1 Hz
--
Frequency Accuracy
+/- 1 ppm
--
Frequency Stability
--
+/-0.05 ppm, -10° to 70° C2
+/-0.1 ppm/yr maximum3
1
Extended frequency down to 500 Hz.
2
Assumes no variation in time.
3
Assumes no variation in temperature.
Extended (typical)
Table 7a. Maximum Leveled Power (dBm) - Specification
Description
Option 200, 400, 201, 401
Option 217, 417, 219, 419
Port 1, Port 3
Port 2, Port 4
Port 1, Port 3
Port 2, Port 4
10 MHz to 50 MHz
12
12
12
12
50 MHz to 16 GHz
13
13
13
13
16 GHz to 20 GHz
13
12
10
10
20 GHz to 24 GHz
13
10
10
7
24 GHz to 26.5 GHz
7 5 4
2
23
Table 7b. Maximum Leveled Power (dBm) - Typical
Description
Option 200, 400, 201, 401
Option 217, 417, 219, 419
Port 1, Port 3
Port 2, Port 4
Port 1, Port 3
Port 2, Port 4
10 MHz to 50 MHz
20
17
20
17
50 MHz to 500 MHz
20
18
20
18
500 MHz to 1 GHz
20
20
19
20
1 GHz to 3.2 GHz
19
20
19
20
3.2 GHz to 10 GHz
22
21
22
21
10 GHz to 13.5 GHz
22
19
21
18
13.5 GHz to 16 GHz
20
18
19
17
16 GHz to 20 GHz
20
16
18
14
20 GHz to 24 GHz
18
14
16
12
24 GHz to 26.5 GHz
14
11
12
9
Table 7c. Maximum Leveled Power (dBm), N5222B – Option 205
Description
Specification
Typical
Port 1
Port 2
Port 1
Port 2
10 MHz to 50 MHz1
5 5 13
10
50 MHz to 500 MHz1
8 8 15
13
500 MHz to 3.2 GHz
9 9 15
16
3.2 GHz to 10 GHz
11
11
20
19
10 GHz to 13.5 GHz
11
11
20
17
13.5 GHz to 16 GHz
10
10
17
15
16 GHz to 20 GHz
10 9 17
13
20 GHz to 24 GHz
10 7 15
11
24 GHz to 26.5 GHz
5 2 12
8
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 7d.
24
Table 7d. Maximum Power (dBm), N5222B, All Ports – Option 205 (LFE Enabled)
Description
Specification
Typical
500 Hz to 900 Hz
--
12
900 Hz to 1 kHz
10
13
1 kHz to 100 kHz
12
13
100 kHz to 1 MHz
12
14
1 MHz to 5 MHz
10
13
5 MHz to 10 MHz
9
11
10 MHz to 50 MHz
8
10
50 MHz to 100 MHz
8
10
Table 8a. Power Level Accuracy (dB) at Nominal Power1, All Options
Description
Specification
Typical
10 MHz to 50 MHz2
+/- 1.5
+/- 0.5
50 MHz to 500 MHz2
+/- 1.0
+/- 0.2
500 MHz to 3.2 GHz
+/- 1.0
+/- 0.1
3.2 GHz to 10 GHz
+/- 1.0
+/- 0.2
10 GHz to 13.5 GHz
+/- 1.2
+/- 0.2
13.5 GHz to 18 GHz
+/- 2.0
+/- 0.3
18 GHz to 26.5 GHz
+/- 2.5
+/- 0.4
1
Level accuracy at power other than nominal power, Power Level Accuracy (dB) at Nominal Power + Power Level
Linearity (dB).
2
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 8b.
25
Table 8b. Power Level Accuracy (dB), N5222B, All Ports, Option 205 (LFE Enabled)
Description
Specification
Typical
500 Hz to 900 Hz
--
+/- 0.1
900 Hz to 1 kHz
+/- 1.0
+/- 0.1
1 kHz to 100 kHz
+/- 1.0
+/- 0.1
100 kHz to 1 MHz
+/- 1.0
+/- 0.15
1 MHz to 5 MHz
+/- 1.0
+/- 0.15
5 MHz to 10 MHz
+/- 1.0
+/- 0.2
10 MHz to 50 MHz
+/- 1.0
+/- 0.2
50 MHz to 100 MHz
+/- 1.0
+/- 0.2
Table 9a. Power Level Linearity1 (dB), All Options - Specification
Description
Port 1 or 32
-25dBm ≤ P<-20dBm
Port 1 or 32
-20dBm ≤ P<-15dBm
Port 1 or 32
P ≥-15dBm
10 MHz to 50 MHz3
+/-2.0
+/-1.5
+/-1.5
50 MHz to 26.5 GHz3
+/-1.5
+/-1.5
+/-1.5
1
Referenced to nominal power.
2
Either port can be used as the source port.
3
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 9c.
Table 9b. Power Level Linearity1 (dB), All Options - Specification
Description
Port 2 or 42
-25dBm ≤ P<-20dBm
Port 2 or 42
-20dBm ≤ P<-15dBm
Port 2 or 42
P ≥-15dBm
10 MHz to 50 MHz3
+/-2.5
+/-1.5
+/-1.5
50 MHz to 500 MHz3
+/-2.0
+/-1.5
+/-1.5
500 MHz to 26.5 GHz
+/-1.5
+/-1.5
+/-1.5
1
Referenced to nominal power.
2
Either port can be used as the source port.
3
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 9c.
26
Table 9c. Power Level Linearity1 (dB), N5222B, All Ports, Option 205 (LFE Enabled)
Description
Specification
500 Hz to 900 Hz
--
900 Hz to 100 MHz
+/-1.0
1
Referenced to nominal power, from -25 dBm to max power.
Table 10a. Power Sweep Range (dB) - Specification
Description
Option 200, 400, 201, 401
Option 217, 417, 219, 419
Port 1, Port 3
Port 2, Port 4
Port 1, Port 3
Port 2, Port 4
10 MHz to 50 MHz
37
37
37
37
50 MHz to 16 GHz
38
38
38
38
16 GHz to 20 GHz
38
37
35
35
20 GHz to 24 GHz
38
35
35
32
24 GHz to 26.5 GHz
32
30
29
27
Table 10b. Power Sweep Range (dB), All Options - Typical
Description
Option 200, 400, 201, 401
Option 217, 417, 219, 419
Port 1, Port 3
Port 2, Port 4
Port 1, Port 3
Port 2, Port 4
10 MHz to 50 MHz
47
44
47
44
50 MHz to 500 MHz
47
45
47
45
500 MHz to 1 GHz
47
47
46
47
1 GHz to 3.2 GHz
46
47
46
47
3.2 GHz to 10 GHz
49
48
49
48
10 GHz to 13.5 GHz
49
46
48
45
13.5 GHz to 16 GHz
47
45
46
44
16 GHz to 20 GHz
47
43
45
41
20 GHz to 24 GHz
45
41
43
39
24 GHz to 26.5 GHz
41
38
39
36
27
Table 10c. Power Sweep Range (dB), N5222B – Option 205
Description
Specification
Typical
Port 1
Port 2
Port 1
Port 2
10 MHz to 50 MHz1
30
30
40
37
50 MHz to 500 MHz1
33
33
42
40
500 MHz to 3.2 GHz
34
34
42
43
3.2 GHz to 10 GHz
36
36
47
46
10 GHz to 13.5 GHz
36
36
47
44
13.5 GHz to 16 GHz
35
35
44
42
16 GHz to 20 GHz
35
34
44
40
20 GHz to 24 GHz
35
32
42
38
24 GHz to 26.5 GHz
30
27
39
35
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 10d.
Table 10d. Power Sweep Range (dB), N5222B – Option 205 (LFE Enabled)
Description
Specification
Typical
500 Hz to 900 Hz
--
39
900 Hz to 1 kHz
35
40
1 kHz to 100 kHz
37
40
100 kHz to 1 MHz
37
41
1 MHz to 5 MHz
35
40
5 MHz to 10 MHz
34
38
10 MHz to 50 MHz
33
37
50 MHz to 100 MHz
33
37
Table 11. Nominal (Preset) Power (dBm)
Description
Option 200, 201, 205, 400, 401
Option 217, 219, 417, 419
Preset Power
0
-5
28
Table 12. Power Resolution and Maximum/Minimum Settable Power, All Options
Description
Specification (dB)
Typical (dBm)
Power Resolution
0.01
--
Maximum Settable Power
--
30
Minimum Settable Power
Option 200, 201, 205, 400, 401
Option 217, 219, 417, 419
--
--
-30
-95
Table 13a. 2nd and 3rd Harmonics at Max Specified Power (dBc) All Options - Typical
Listed frequency is harmonic frequency; test at max specified power
Description
N5221B
N5222B
20 MHz to 4 GHz1
-15
-15
4 GHz to 13.5 GHz
-19
-19
13.5 GHz to 24 GHz
--
-19
24 GHz to 26.5 GHz
--
-21
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 13b.
Table 13b. 2nd and 3rd Harmonics at Max Specified Power (dBc), N5222B, All Ports, Option 205 (LFE Enabled) Typical
Listed frequency is fundamental frequency; test at max specified power
Description
N5222B
(2
nd
Harmonic)
N5222B
(3rd Harmonic)
500 Hz to 900 Hz
-32
-31
900 Hz to 1 kHz
-22
-23
1 kHz to 100 kHz
-22
-23
100 kHz to 1 MHz
-25
-22
1 MHz to 5 MHz
-28
-24
5 MHz to 10 MHz
-27
-22
10 MHz to 33 MHz
-28
-21
33 MHz to 50 MHz
-28
--
29
Table 14. Non-Harmonic Spurs at Nominal Power (dBc), All Options - Typical
Offset frequency = 30 kHz to 5 MHz
Description
Based on 100kHz offset Frac-N
10 MHz to 500 MHz1
-50
500 MHz to 2 GHz
-42
2 GHz to 4 GHz
-45
4 GHz to 8 GHz
-39
8 GHz to 16 GHz
-33
16 GHz to 26.5 GHz
-27
1
Non-harmonic spurs are negligible with Option 205 installed and LFE enabled.
Table 15a. Phase Noise (dBc/Hz), All Options - Typical
Description
1 kHz Offset
10 kHz Offset
100 kHz Offset
1 MHz Offset
10 MHz to 500 MHz1
-100
-95
-95
-120
500 MHz to 1 GHz
-107
-117
-112
-127
1 GHz to 2 GHz
-101
-111
-106
-121
2 GHz to 4 GHz
-95
-105
-100
-115
4 GHz to 8 GHz
-89
-99
-94
-109
8 GHz to 16 GHz
-83
-93
-88
-103
16 GHz to 26.5 GHz
-77
-87
-82
-97
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 15b.
Table 15b. Phase Noise (dBc/Hz), N5222B, All Ports, Option 205 (LFE Enabled) - Typical
Description
1 kHz Offset
10 kHz Offset
100 kHz Offset
1 MHz Offset
500 Hz to 100 MHz
-120
-130
-125
-135
30
Test Port Input
Table 16a. Test Port Noise Floor (dBm) @ 10 Hz IFBW, All Options
Total average (rms) noise power calculated as the mean value of a linear magnitude trace expressed in dBm.
May typically be degraded at particular frequencies below 500 MHz due to spurious receiver residuals.
Description
Specification
Typical
N5221B
N5222B
N5221B
N5222B
10 MHz to 50 MHz1
-82
-82
-88
-88
50 MHz to 100 MHz1
-95
-95
-103
-103
100 MHz to 500 MHz
-105
-105
-110
-110
500 MHz to 2 GHz
-114
-114
-118
-118
2 GHz to 13.5 GHz
-114
-114
-119
-119
13.5 GHz to 20 GHz
--
-114
--
-120
20 GHz to 24 GHz
--
-111
--
-118
24 GHz to 26.5 GHz
--
-107
--
-116
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 16b.
Table 16b. Test Port Noise Floor (dBm) @ 10 Hz IFBW, N5222B, Option 205 (LFE Enabled)
Description
Specification
Typical
500 Hz to 900 Hz
--
-93
900 Hz to 1 kHz
-83
-96
1 kHz to 100 kHz
-91
-96
100 kHz to 1 MHz
-107
-110
1 MHz to 5 MHz
-108
-112
5 MHz to 10 MHz
-102
-106
10 MHz to 50 MHz
-102
-106
50 MHz to 100 MHz
-102
-106
31
Table 17. Direct Receiver Access Input Noise Floor (dBm), Options 201, 205, 217, 219, 401, 417, 419
Total average (rms) noise power calculated as the mean value of a linear magnitude trace expressed in dBm.
May typically be degraded at particular frequencies below 500 MHz due to spurious receiver residuals.
Description
Specification
Typical
N5221B
N5222B
N5221B
N5222B
10 MHz to 50 MHz
-118
-118
-133
-133
50 MHz to 100 MHz
-107
-107
-129
-129
100 MHz to 250 MHz
-117
-117
-136
-136
250 MHz to 500 MHz
-117
-117
-130
-130
500 MHz to 2 GHz
-126
-126
-133
-133
2 GHz to 13.5 GHz
-126
-126
-134
-134
13.5 GHz to 20 GHz
--
-126
--
-135
20 GHz to 24 GHz
--
-123
--
-133
24 GHz to 26.5 GHz
--
-119
--
-131
Table 18a. 0.1 dB Compression, Option 201, 205, 217, 219, 401, 417, 419 - Typical
Description
N5221B
Test Port Power (dBm)
N5222B
Test Port Power (dBm)
10 MHz to 100 MHz1
15
15
100 MHz to 13.5 GHz
12
12
13.5 GHz to 20 GHz
--
12
20 GHz to 26.5 GHz
--
10
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 18b.
32
Table 18b. 0.1 dB Compression, N5222B, All Ports, Option 205 (LFE Enabled) - Typical
Description
Test Port Power
(dBm)
500 Hz to 900 Hz
13
900 Hz to 1 kHz
13
1 kHz to 100 kHz
13
100 kHz to 1 MHz
13
1 MHz to 5 MHz
11
5 MHz to 10 MHz
13
10 MHz to 50 MHz
14
50 MHz to 100 MHz
14
Table 18c. Compression - Specification
Description
Test Port Power (dBm)
Receiver Compression
Option 200, 400
Magnitude (dB)
Phase (degrees)
10 MHz to 500 MHz1
--
--
--
500 MHz to 16 GHz
8
0.21
1.60
16 GHz to 24 GHz
8
0.24
1.73
24 GHz to 26.5 GHz
8
0.42
2.51
1
Test port receiver compression at specified input levels below 500 MHz due to coupler roll off in this frequency
range.
33
Table 18d. Compression - Specification
Description
Test Port Power (dBm)
Receiver Compression
Option 201,
205, 401
Option 217,
417
Option 219,
419
Magnitude (dB)
Phase (degrees)
10 MHz to 500 MHz1
--
--
--
--
--
500 MHz to 16 GHz
8 8 8
0.17
0.97
16 GHz to 24 GHz
8 8 8
0.23
1.20
24 GHz to 26.5 GHz
8 8 8
0.29
1.74
1
Test port receiver compression at specified input levels below 500 MHz due to coupler roll off in this frequency
range.
Table 18e. Compression, N5222B, All Ports, Option 205 (LFE Enabled) - Specification
Description
Test Port Power (dBm)
Receiver Compression
All Options
Magnitude (dB)
Phase (degrees)
500 Hz to 900 Hz
--
--
--
900 Hz to 1 kHz
10
0.2
1
1 kHz to 100 kHz
12
0.2
1
100 kHz to 1 MHz
12
0.2
1
1 MHz to 5 MHz
10
0.2
1
5 MHz to 10 MHz
9
0.2
1
10 MHz to 50 MHz
8
0.2
1
50 MHz to 100 MHz
8
0.2
1
34
Table 19a. Trace Noise Magnitude (dB rms), All Options
Ratioed measurement, nominal power at test port.
Description
Specification
Typical
1 kHz IFBW
1 kHz IFBW
100 kHz IFBW
600 kHz IFBW
10 MHz to 100 MHz1
0.007
0.0036
0.053
0.103
100 MHz to 13.5 GHz1
0.002
0.0005
0.004
0.010
13.5 GHz to 16 GHz
0.002
0.0003
0.003
0.007
16 GHz to 22.5 GHz
0.002
0.0005
0.003
0.007
22.5 GHz to 24 GHz
0.003
0.0008
0.004
0.011
24 GHz to 26.5 GHz
0.005
0.0012
0.007
0.017
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled.
Table 19b. Trace Noise Magnitude (dB rms), N5222B, All Ports, Option 205 (LFE Enabled)
Ratioed measurement, nominal power at test port.
Description
Specification
Typical
100 Hz IFBW
1 kHz IFBW
100 Hz IFBW
1 kHz IFBW
100 kHz IFBW
600 kHz IFBW
500 Hz to 900 Hz
--
--
0.002
--
--
--
900 Hz to 4 kHz
0.004
--
0.001
--
--
--
4 kHz to 300 kHz
--
0.004
--
0.002
--
--
300 kHz to 2 MHz
--
0.004
--
0.001
0.01
--
2 MHz to 100 MHz
--
0.004
--
0.001
0.01
0.025
35
Table 20a. Trace Noise Phase (deg rms), All Options
Ratioed measurement, nominal power at test port.
Description
Specification
Typical
1 kHz IFBW
1 kHz IFBW
100 kHz IFBW
600 kHz IFBW
10 MHz to 100 MHz1
0.051
0.0237
0.341
0.663
100 MHz to 13.5 GHz1
0.015
0.0045
0.027
0.067
13.5 GHz to 16 GHz
0.042
0.0045
0.019
0.042
16 GHz to 22.5 GHz
0.042
0.0075
0.024
0.050
22.5 GHz to 24 GHz
0.054
0.0080
0.031
0.073
24 GHz to 26.5 GHz
0.054
0.0128
0.049
0.118
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 20b.
Table 20b. Trace Noise Phase (deg rms), N5222B, All Ports, Option 205 (LFE Enabled)
Ratioed measurement, nominal power at test port.
Description
Specification
Typical
100 Hz IFBW
1 kHz IFBW
100 Hz IFBW
1 kHz IFBW
100 kHz IFBW
600 kHz IFBW
500 Hz to 900 Hz
--
--
0.012
--
--
--
900 Hz to 4 kHz
0.03
--
0.008
--
--
--
4 kHz to 300 kHz
--
0.03
--
0.014
--
--
300 kHz to 2 MHz
--
0.03
--
0.007
0.064
--
2 MHz to 100 MHz
--
0.03
--
0.007
0.068
0.166
Table 21. Reference Level Magnitude, All Options - Specification
Description
Magnitude (dB)
Phase (degrees)
Range
+/- 500
+/- 500
Resolution
0.001
0.01
36
Table 22a. Stability, All Options - Typical
Description
Magnitude (dB/°C)
Phase (°/°C)
10 MHz to 50 MHz1
0.010
0.180
50 MHz to 500 MHz1
0.010
0.060
500 MHz to 3.2 GHz
0.010
0.080
3.2 GHz to 10 GHz
0.020
0.130
10 GHz to 13.5 GHz
0.020
0.160
13.5 GHz to 16 GHz
0.020
0.300
16 GHz to 20 GHz
0.020
0.400
20 GHz to 24 GHz
0.030
0.500
24 GHz to 26.5 GHz
0.030
0.560
1
With Option 205 installed and LFE disabled, applied to frequencies <= 100 MHz. Above 100 MHz, performance is the same
for both LFE enabled or disabled. For LFE enabled performance <= 100 MHz, see Table 22b.
Table 22b. Stability1, N5222B, Option 205 (LFE Enabled)- Typical
Description
Magnitude (dB/°C)
Phase (°/°C)
500 Hz to 900 Hz
0.010
0.2
900 Hz to 1 kHz
0.010
0.2
1 kHz to 100 kHz
0.010
0.2
100 kHz to 1 MHz
0.010
0.1
1 MHz to 5 MHz
0.010
0.1
5 MHz to 10 MHz
0.010
0.1
10 MHz to 50 MHz
0.010
0.1
50 MHz to 100 MHz
0.020
0.1
1
Stability is defined as a ratio measurement made at the test port.
Table 23. Damage Input Level
Description
Option 200, 201, 219, 400, 401, 419
Option 217, 417
Option 205
RF, DC
30 dBm, 40 V
30 dBm, 7 V
20 dBm, 50 V
37
Dynamic Accuracy
Dynamic accuracy is verified with the following measurements:
Compression over frequency
IF linearity at a single frequency of 1.998765GHz using a reference level of -20 dBm for an input power range of
0 to -60 dBm. For values below -60 dBm, refer to VNA Receiver Dynamic Accuracy Specifications and
Uncertainties
Table 24. N5221B and N5222B Dynamic Accuracy
N5222B Dynamic Accuracy, 900 Hz (LFE Enabled) - Specification
N5222B Dynamic Accuracy, 10 MHz (LFE Enabled) - Specification
38
N5222B Dynamic Accuracy, 100 MHz (LFE Enabled) - Specification
N5221B/22B Dynamic Accuracy, 10 MHz to 50 MHz - Specification
N5221B/22B Dynamic Accuracy, 50 MHz to 500 MHz - Specification
39
N5221B/22B Dynamic Accuracy, 500 MHz to 1 GHz - Specification
N5221B/22B Dynamic Accuracy, 1 GHz to 2 GHz - Specification
N5221B/22B Dynamic Accuracy, 2 GHz to 20 GHz - Specification
40
N5221B/22B Dynamic Accuracy, 20 GHz to 26.5 GHz - Specification
41
Table 25. Group Delay - Typical
Group delay is computed by measuring the phase change within a specified frequency step (determined by the
frequency span and the number of points per sweep). In general, the following formula can be used to determine
the accuracy, in seconds, of specific group delay measurement:
±Phase Accuracy (deg)/[360 × Aperture (Hz)]
Depending on the aperture and device length, the phase accuracy used is either incremental phase accuracy or
worst-case phase accuracy
Description
Typical Performance
Aperture (selectable)
(frequency span)/(number of points -1)
Maximum Aperture
20% of frequency span
Range
0.5 x (1/minimum aperture)
Maximum Delay
Limited to measuring no more than 180° of phase change within the minimum
aperture.)

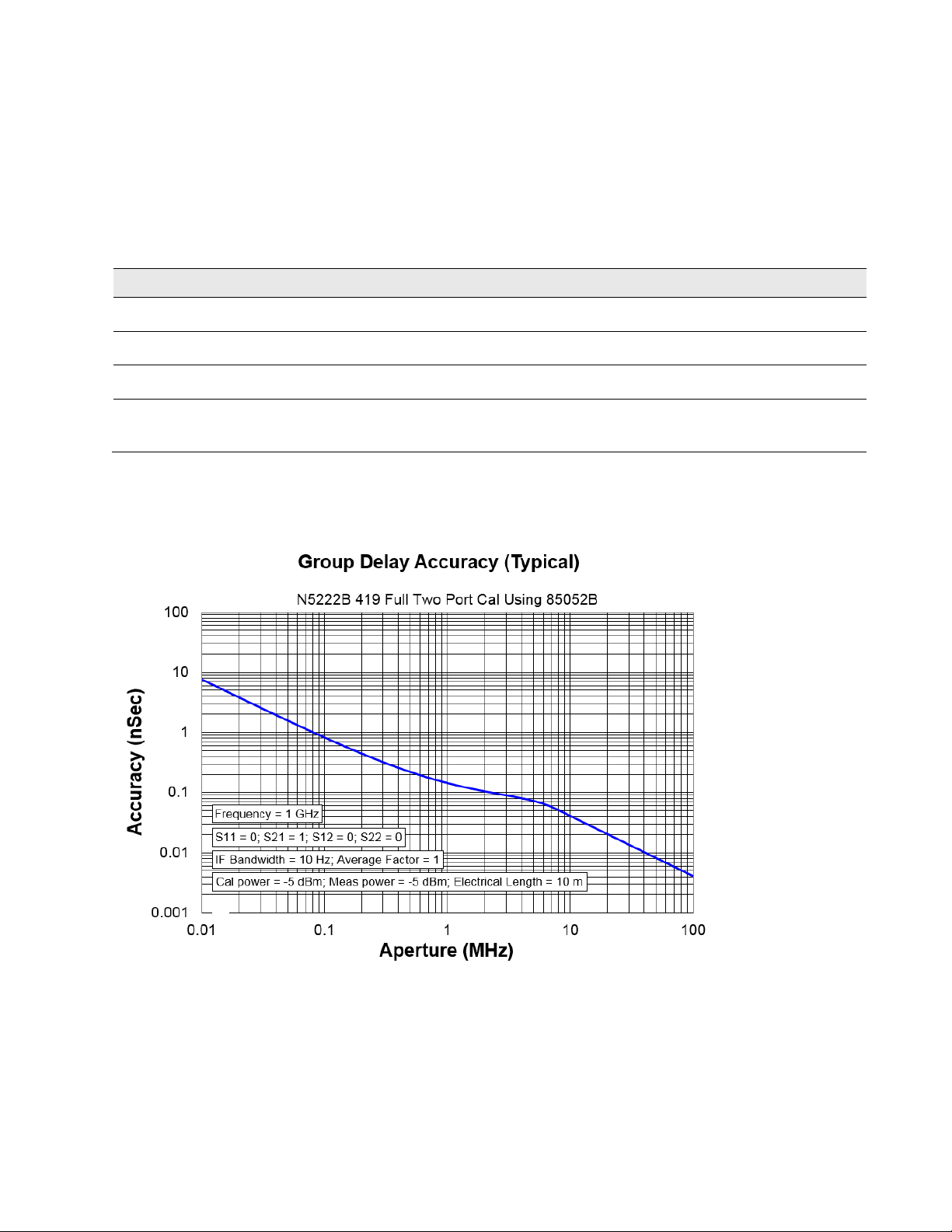

The following graphs show characteristic group delay accuracy with full 2-port calibration and a 10 Hz IF
bandwidth. Insertion loss is assumed to be < 2 dB and electrical length to be ten meters.
For any Sij Group Delay measurement, Sii = 0, Sij = 1, Sji = 0, Skl = 0 for all kl ≠lij
42
General Information
• Miscellaneous Information
• Front Panel
• Rear Panel
• Environment and Dimensions
Table 26. Miscellaneous Information
Description
Supplemental Information
System IF Bandwidth
Range
1 Hz to 15 MHz, nominal
CPU
For the latest information on CPUs and associated hard drives, visit:
http://na.support.keysight.com/pna/hdnumbers.html
LXI
Class C
Table 27. Front Panel Information, All Options
Description
Typical Performance
RF Connectors
Type
3.5 mm (male), 50 ohm, (nominal)
Center Pin Recession
0.002 in. (characteristic)
USB 2.0 Ports - Master (4 ports)
Standard
Compatible with USB 2.0
Connector
USB Type-A female
Display
Size
31 cm (12.1 in) diagonal color active matrix LCD; 1280 (horizontal) X 800 (vertical) resolution
Refresh Rate
Vertical 60 Hz; Horizontal 49.31 kHz
Pixels
Any of the following would cause a display to be considered faulty:
• A complete row or column consists of “stuck” or “dark” pixels.
• More than six “stuck on” pixels (but not more than three green) or more than 0.002% of
the total pixels are within the LCD specifications.
• More than twelve “dark” pixels (but no more than seven of the same color) or more than
0.004% of the total pixels are within the LCD specifications.
• Two or more consecutive "stuck on" pixels or three or more consecutive "dark" pixel (but
no more than one set of two consecutive dark pixels).
• “Stuck on” pixels or more than two “dark” pixels less than 6.5 mm apart (excluding
consecutive pixels).
43
Table 27. (Continued) Front Panel Information, All Options
Description
Typical Performance
Display Range
Magnitude
+/-2500 dB (at 500 dB/div), max
Phase
+/-2500° (at 500 degrees/div), max
Polar
10 pUnits, min
10,000 Units, max
Display Resolution
Magnitude
0.001 dB/div, min
Phase
0.01°/div, min
Marker Resolution
Magnitude
0.001 dB, min
Phase
0.01°, min
Polar
10 pUnit, min
Table 28. Rear Panel Information, All Options
Description
Typical Performance
10 MHz Reference In
Connector
BNC, female
Input Frequency
10 MHz ± 10 ppm
Input Level
-15 dBm to +20 dBm
Input Impedance
200 , nom.
10 MHz Reference Out
Connector
BNC, female
Output Frequency
10 MHz ± 1 ppm
Signal Type
Sine Wave
Output Level
+10 dBm ± 4 dB into 50
Output Impedance
50 , nominal
Harmonics
<-40 dBc, typical
44
Table 28. (Continued) Rear Panel Information, All Options
Description
Typical Performance
External IF Inputs
Function
Allows use of external IF signals from remote mixers, bypassing the PNA's first
converters
Connectors
SMA (female); A, B, C, D, R (4-port); A, B, R1, R2 (2-port)
Input Frequency
Normal IF path
Narrowband IF path
RF < 53 MHz: IF = 826.446 KHz
RF >= 53 MHz: IF = 7.438 MHz
IF = 10.70 MHz
Input Impedance
50
RF Damage Level
+23 dBm
DC Damage Level
5.5 VDC
0.1 dB Compression Point
Normal IF path
Narrowband IF path
-9.0 dBm at 7.438 MHz
-17 dBm at 10.70 MHz
Pulse Inputs (IF Gates)
Function
Internal receiver gates used for point-in-pulse and pulse-profile measurements
Connectors
15-pin mini D-sub
Input Impedance
1 K Ohm
Minimum Pulse Width,
Source Modulators
33 ns
Minimum Pulse Width,
Receiver Gates
20 ns
DC Damage Level
5.5 VDC
Drive Voltage
0 V (off), +3.3 V (on), nominal
RF Pulse Modulator Input (Source Modulator)
On/Off Ratio
10 MHz to 3.2 GHz
-64
3.2 GHz to 26.5 GHz
-80
Pulse Period
Minimum
33 ns
Maximum
70 s
45
Table 28. (Continued) Rear Panel Information, All Options
Description
Typical Performance
Pulse Outputs
Voltage (TTL)
High: 3.3V to 3.5V
Low: <1V
Impedance
50 Ohm
External Test Set Driver
Function
Used for driving remote mixers
Connections
3.5 mm (female)
RF Output Frequency
Range
3.2 GHz to 19 GHz
LO Output Frequency
Range
1.76 GHz to 26.5 GHz
Rear Panel LO Power1
Upper Limit, Typical (dBm)
Lower Limit, Typical (dBm)
1.7 GHz to 16 GHz
0
-10
16 GHz to 21 GHz
4
-6
21 GHz to 26.5 GHz
6
-4
Rear Panel RF Power
Upper Limit, Typical (dBm)
Lower Limit, Typical (dBm)
3.2 GHz to 19 GHz
-3
-8
Devices Supported
Resolutions
Flat Panel (TFT)
1024 X 768, 800 X 600, 640 X 480
Flat Panel (DSTN)
800 X 600, 640 X 480
CRT Monitor
1280 X 1024, 1024 X 768, 800 X 600, 640 X 480
Simultaneous operation of the internal and external displays is allowed, but with 640 X 480 resolution only. If you change
resolution, you can only view the external display (internal display will "white out").
1
LO output available in full analyzer’s frequency range. The power is tested only from 3.2 GHz to 26.5 GHz.
46
Table 28. (Continued) Rear Panel Information, All Options
Description
Typical Performance
Bias Tee Inputs
Connectors
BNC(f) for ports 1, 2, 3 and 4
Fuse
500 mA, bi-pin style
Maximum Bias Current
+/-200 mA with no degradation of RF specifications
Maximum Bias Voltage
+/-40 VDC
Trigger Inputs/Outputs
BNC(f), TTL/CMOS compatible
Test Set IO
25-pin D-Sub connector, available for external test set control
Power IO
9-pin D-Sub, female; analog and digital IO
Handler IO
36-pin parallel I/O port; all input/output signals are default set to negative logic; can
be reset to positive logic via GPIB command
Pulse I/O
15-pin D connector provides access to Pulse Modulators and Generators
GPIB
Two ports - dedicated controller and dedicated talker/listener. 24-pin D-sub (Type D-
24), female; compatible with IEEE-488
PCIe
Cabled PCIe x4 connector is a 4-lane slot (not currently used)
USB Ports
Two SuperSpeed USB ports (900 mA each), one USB port below LAN connector, and
one USB device port. There are also four USB ports (500 mA each) on the front panel.
The total current limit for all rear panel USB ports is 2.3 amps. The total current limit
for all front panel USB ports is 2 amps.
LAN
10/100/1000 BaseT Ethernet, 8-pin configuration; auto selects between the data
rates
VGA Video Output
15-pin mini D-Sub; Drives VGA compatible monitors
Mini DisplayPort
Miniature DisplayPort connector for connection to external displays
Line Power
Frequency, Voltage
50/60/400 Hz for 100 to 120 VAC
50/60 Hz for 220 to 240 VAC
Power supply is auto switching
Max
450 watts
47
Table 29. Analyzer Dimensions and Weight
All models are shipped with handles.
Cabinet Dimensions
Metric (mm)
Imperial (inches)
Height
Without bottom feet:
1
EIA RU = 6
266.1
10.5
With bottom feet
279.1
11.0
Width
Without handles or rack-mount flanges
425.6
16.8
With handles, without rack-mount flanges
458.7
18.1
With handles and rack-mount flanges
482.9
19.0
Depth
Without front and rear panel hardware
533.0
21.0
With front and rear panel hardware, handles
578.0
22.7
1
Electronics Industry Association rack units. 1 RU = 1.75 in.
See detailed PNA dimension drawings at: http://na.support.keysight.com/pna/PNADimensions.pdf
Weight (nominal)
Net
Shipping
2-port models (Option 200, 201, 217 or 219)
27 kg (60 lb)
43 kg (95 lb)
4-port models (Option 400, 401, 417 or 419)
36.7 kg (81 lb)
51 kg (112 lb)
Regulatory and Environmental Information
For Regulatory and Environmental information, refer to the PNA Series Installation and Quick Start Guide,
located online at http://literature.cdn.keysight.com/litweb/pdf/E8356-90001.pdf.
48
Measurement Throughput Summary
• Typical Cycle Time for Measurement Completion
• Cycle Time vs. IF Bandwidth
• Cycle Time vs. Number of Points
• Data Transfer Time
Cycle time Includes sweep time, retrace time, and band-crossing time. Analyzer display turned off with
DISPLAY:ENABLE OFF. Add 21 ms for display on. Data for one trace (S11) measurement.
Table 30a. Typical Cycle Time (ms) for Measurement Completion, All Models / Options
Sweep
Range
IF
Bandwidth
Number of Points
201
401
1601
16001
32001
50 kHz to
100 MHz
10kHz
Uncorrected
75
141
515
4726
9243
2-Port cal
155
285
1050
9505
18440
1kHz
Uncorrected
306
599
2339
23000
46003
2-Port cal
611
1200
4715
46185
91960
100Hz
Uncorrected
2543
5085
20293
202691
405085
2-Port cal
5120
10200
40640
405200
809800
9 GHz to
10 GHz
600 kHz
Uncorrected
6.3
6.3
10.9
68
132
2-Port cal
18.8
20.3
30
145
275
10 kHz
Uncorrected
29.7
54.7
205
2000
4000
2-Port cal
67
117
417
4031
8047
1 kHz
Uncorrected
227
445
1742
17031
33844
2-Port cal
462
900
3500
34102
67734
10 GHz to
20 GHz
600 kHz
Uncorrected
18.8
18.8
23
70
133
2-Port cal
45.3
46.9
55
180
313
10 kHz
Uncorrected
69
127
270
2009
4009
2-Port cal
145
263
548
4030
8055
1 kHz
Uncorrected
234
458
1781
17383
34531
2-Port cal
477
922
3578
34789
69109
49
Table 30b. N5221B Typical Cycle Time (ms) for Full-Span Measurement Completion
10 MHz to 13.5 GHz
Number of Points
IF Bandwidth
201
401
1601
16001
32001
600 kHz
Uncorrected
6.9
7.2
11.9
69
132
2-Port cal
22.2
23.1
32.2
148
275
10 kHz
Uncorrected
59
61
205
2004
4003
2-Port cal
126
130
418
4019
8020
1 kHz
Uncorrected
204
402
1593
15877
31751
2-Port cal
416
813
3194
31766
63539
Table 30c. N5222B Typical Cycle Time (ms) for Full-Span Measurement Completion
10 MHz to 26.5 GHz
Number of Points
IF Bandwidth
201
401
1601
16001
32001
600 kHz
Uncorrected
43
50
68
141
198
2-Port cal
93
107
141
284
405
10 kHz
Uncorrected
80
142
480
2184
4125
2-Port cal
168
291
964
4378
8297
1 kHz
Uncorrected
245
472
1809
17508
34773
2-Port cal
498
950
3622
35047
69609
50
Table 31. Cycle Time vs. IF Bandwidth - Typical
Applies to the Preset condition (201 points, correction off) except for the following changes:
• CF = 10 GHz
• Span = 100 MHz
• Display off (add 21 ms for display on)
Cycle time includes sweep and retrace time.
Description
N5221B/22B
IF Bandwidth (Hz)
Cycle Time (ms)
Trace Noise Magnitude (dB rms)
600,000
5.6
0.0045
100,000
6.9
0.0018
30,000
10
0.0011
10,000
26.7
0.0006
3,000
72
0.0004
1,000
223
0.0003
300
641
0.0002
100
1825
0.0002
30
5984
0.0002
10
17836
0.0002
3
59281
0.0002
51
Table 32. Cycle Time vs. Number of Points - Typical
Applies to the Preset condition (correction off) except for the following changes:
• CF = 10 GHz
• Span = 100 MHz
• Display off (add 21 ms for display on)
Cycle time includes sweep and retrace time.
Description
IF Bandwidth (Hz)
Number of Points
1,000
10,000
30,000
600,000
3
7.5
5.9
5.9
5.9
11
15.6
6.6
5.9
5.9
51
60
10.6
5.9
5.9
101
114
16.9
7.2
6.3
201
223
29.4
9.7
6.3
401
437
54.7
15
6.9
801
862
105
25.3
7.8
1,601
1706
203
45.9
11
6,401
6728
803
169
30
16,001
16669
2003
416
68
32,001
33106
4003
828
130
52
Table 33. Data Transfer Time (ms) - Typical
Measured with the analyzer display off.
Values will increase slightly if the analyzer display is on.
Description
Number of Points
201
401
1601
16,001
32,001
SCPI over GPIB (Program executed on external PC2)
32-bit floating point
4.6
9.3
38
352
720
64-bit floating point
9.4
18.8
73.4
730
1455
ASCII
36.7
72.5
288
2882
5762
SCPI over SICL/LAN or TCP/IP Socket1 (Program executed in the analyzer)
32-bit floating point
<1
<1
<1
1.2
2.4
64-bit floating point
<1
<1
<1
2.3
4.6
ASCII
2.1 4 15
148
295
COM1 (Program executed in the analyzer)
32-bit floating point
<1
<1
<1
<1
<1
Variant type
<1
<1
1.4
12.4
25.5
DCOM over LAN1 (Program executed on external PC)
32-bit floating point
<1
<1
<1
2.3
4.4
Variant type
<1
1.6
5.3
52
105.5
1
Values are for real and imaginary pairs, with the analyzer display off, using Gigabit Ethernet.
Specifications for Recall & Sweep Speed are not provided for the N522xB analyzers.
53
Specifications: Front-Panel Jumpers
The following options have front-panel jumpers for each port:
201, 217, 219, 401, 417, 419
• Measurement Receiver Inputs
• Reference Receiver Inputs and Reference Source Outputs
• Source Outputs
• Coupler Inputs
• Damage Level
Table 34. Measurement Receiver Inputs (dBm) – Typical
(RCVR A, B, C, D IN) @ 0.1dB Typical Compression
Description
All Options
10 MHz to 500 MHz
-4
500 MHz to 3.2 GHz
-2
3.2 GHz to 10 GHz
-3
10 GHz to 13.5 GHz
-4
13.5 GHz to 26.5 GHz
-5
54
Table 35. Reference Receiver Inputs and Reference Source Outputs (dBm) - Typical
(RCVR R1 IN, REF 1 SOURCE OUT) @ Max Specified Output Power
Description
Option 201, 401
Option 217, 219, 417, 419
10 MHz to 50 MHz
-4
-4
50 MHz to 10 GHz
-3
-2
10 GHz to 16 GHz
-4
-2
16 GHz to 20 GHz
-5
-6
20 GHz to 24 GHz
-6
-7
24 GHz to 26.5 GHz
-14
-14
Table 36. Reference Receiver Inputs and Reference Source Outputs (dBm) - Typical
(RCVR R2 IN, RCVR R3 IN, RCVR R4 IN, REF 2 SOURCE OUT, REF 3 SOURCE OUT, REF 4 SOURCE OUT) @ Max
Specified Output Power
Description
Option 201, 401
Option 401
Option 217, 219, 417, 419
RCVR R2 IN,
RCVR R4 IN,
REF 2 SOURCE OUT,
REF 4 SOURCE OUT
RCVR R3 IN,
REF 3 SOURCE OUT
RCVR R2 IN,
RCVR R4 IN,
REF 2 SOURCE OUT,
REF 4 SOURCE OUT
RCVR R3 IN,
REF 3 SOURCE OUT
10 MHz to 50 MHz
-2
-2
-2
-2
50 MHz to 500 MHz
-1
-1
-1
-1
500 MHz to 3.2 GHz
-1
-1 0 0
3.2 GHz to 10 GHz
0 0 +1
+1
10 GHz to 16 GHz
0 0 +2
+2
16 GHz to 20 GHz
0
+1
-1
-1
20 GHz to 24 GHz
-2
+1
-3
0
24 GHz to 26.5 GHz
-8
-6
-9
-7
55
Table 37. Source Outputs (dBm) - Typical
(PORT 1 SOURCE OUT, PORT 2 SOURCE OUT, PORT 3 SOURCE OUT, PORT 4 SOURCE OUT) @ Max Specified
Output Power
Description
Option 201, 401
Option 201, 401
Option 217, 219, 417, 419
PORT 1 SOURCE OUT,
PORT 3 SOURCE OUT
PORT 2 SOURCE OUT,
PORT 4 SOURCE OUT
PORT 1 SOURCE OUT,
PORT 3 SOURCE OUT
PORT 2 SOURCE
OUT, PORT 4
SOURCE OUT
10 MHz to 50 MHz
+12
+12
+12
+12
50 MHz to 500 MHz
+13
+13
+13
+13
500 MHz to 3.2 GHz
+13
+13
+14
+14
3.2 GHz to 10 GHz
+14
+14
+14
+14
10 GHz to 16 GHz
+14
+14
+15
+15
16 GHz to 20 GHz
+14
+13
+12
+12
20 GHz to 24 GHz
+14
+11
+12
+9
24 GHz to 26.5 GHz
+8
+6
+6
+4
Table 38. Coupler Inputs (dB) - Typical
(PORT 1 CPLR THRU, PORT 2 CPLR THRU, PORT 3 CPLR THRU, PORT 4 CPLR THRU) Insertion Loss of Coupler
Thru
Description
Option 201, 401
Option 217, 219, 417, 419
10 MHz to 50 MHz
0
-0.50
50 MHz to 100 MHz
-0.25
-0.50
100 MHz to 500 MHz
-0.25
-1.00
500 MHz to 3.2 GHz
-0.50
-1.00
3.2 GHz to 10 GHz
-0.75
-1.25
10 GHz to 13.5 GHz
-1.00
-1.75
13.5 GHz to 16 GHz
-1.00
-2.00
16 GHz to 20 GHz
-1.20
-2.00
20 GHz to 24 GHz
-1.30
-2.50
24 GHz to 26.5 GHz
-1.50
-2.50
56
Table 39. Damage Level - Typical
Description
RF (dBm)
DC (V)
RCVR A, B, C, D IN
15
7
RCVR R1, R2, R3, R4 IN
15
7
REF 1 SOURCE OUT
15
7
REF 2, 3, 4 SOURCE OUT
30
7
PORT 1, 2, 3, 4 SOURCE OUT
30
7
PORT 1, 2, 3, 4 CPLR THRU
30
40 (71)
PORT 1, 2, 3, 4 CPLR ARM
30
7
1
With a thru connection between test ports of option 217 or 417 configuration, 7 VDC input to CPLR THRU
ports damages the source attenuator on the connected port.
57
Test Set Block Diagrams
For best readability, use a color printer for printing the following graphics.
Legend
N5221B and N5222B Option 200 (2-port base model)
58
N5221B and N5222B Option 201
To base model, adds front-panel jumpers and R1 receiver switch
N5222B Option 205
To Opt 200, adds front-panel jumpers, R1 receiver switch, and low frequency extension (LFE).
The following LFE block diagram shows how the low-frequency hardware is configured for a single test port. The
other ports are configured similarly.
59
N5221B and N5222B Option 217
To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended
power range).
N5221B and N5222B Option 219
To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power
range), and bias-tees.
60
N5221B and N5222B Option 400 (4-port base model)
N5221B and N5222B Option 401
To base model, adds front-panel jumpers and R1 receiver switch
61
N5221B and N5222B Option 417
To base model, adds front-panel jumpers, R1 receiver switch, and source and receiver attenuators (extended
power range).
N5221B and N5222B Option 419
To base model, adds front-panel jumpers, R1 receiver switch, source and receiver attenuators (extended power
range), and bias-tees.
62

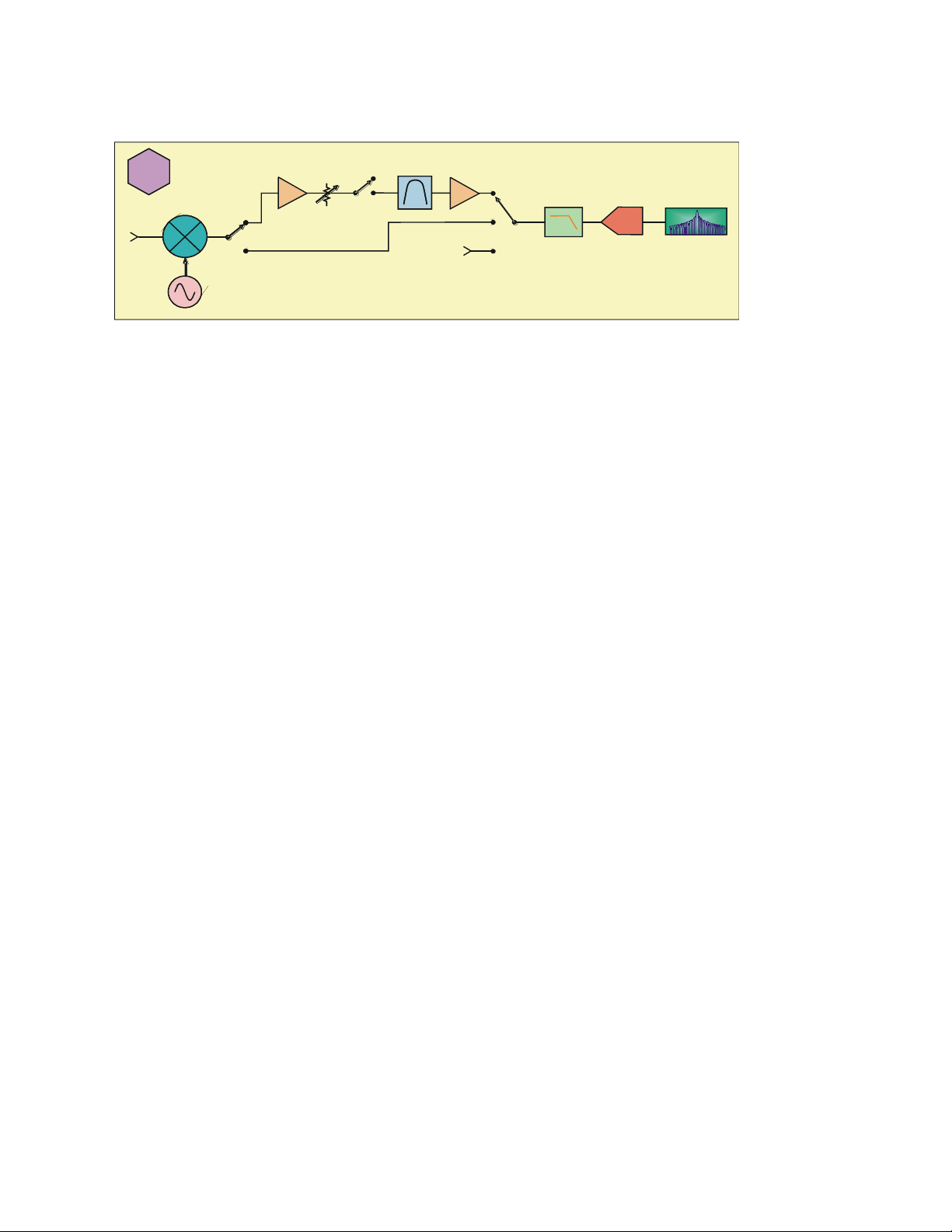

Receiver Block Diagram
IF gate
Anti-alias
filter
ADC
Digital FIR
IF filter
Narrowband filter
External
IF input
A
IF gate
Anti-alias
filter
ADC
Digital FIR
IF filter
Narrowband filter
External
IF input
AA
This information is subject to change without notice.
© Keysight Technologies 2017
Print Date: July 20, 2017
www.keysight.com
Loading...
