Infi niiVision 7000 Series Oscilloscopes

Data Sheet

Engineered for the best signal visibility

If you haven’t purchased an Agilent scope lately,
why should you consider one now?

Agilent has been the fastest growing oscilloscope supplier since 1997 (source: Prima Data, 2007).

Wonder why? Agilent engineers developed the Infi niiVision 7000 Series with advanced technology

that will allow you to see more subtle signal detail and more infrequent events than any other scope

on the market. See the Infi niiVision 7000 Series oscilloscope—the industry’s best for signal viewing.

There is no better way to experience

the superiority of the Infi niiVision 7000

Series scopes than to see it.

Contact Agilent today to request an

evaluation.

Or visit:

www.agilent.com/fi nd/7000

The Infi niiVision 7000 Series offers bandwidths up to 1 GHz. Each model, equipped with a large 12.1” XGA LCD display, comes in

an whisper-quiet package that is just 6.5” deep and weighs only 13 pounds.

Scope Digital
Model Bandwidth Sample rate Memory channels channels Update rate

DSO7032A

DSO7034A

MSO7032A

MSO7034A

DSO7052A

DSO7054A

MSO7052A

MSO7054A

DSO7104A

MSO7104A

350 MHz

500 MHz

1 GHz

2 GSa/s

4 GSa/s

4 GSa/s

8 Mpts

8 Mpts

8 Mpts

2

4

2

4

2

4

2

4

4

16

16

16

Up to 100,000 deep-memory

waveforms per second, even with

deep memory, digital channels

and serial decode turned on.

Choose from ten Infi niiVision 7000 Series models. Agilent provides an easy 5-minute DSO-to-MSO upgrade kit for previously purchased

7000 Series DSOs.

2

What gives the Infi niiVision 7000 Series the best signal visibility?

1. Biggest display

Oscilloscopes are visual tools and large, high-resolution screens make the product

Bigger displays have become increasingly important as general purpose scopes

better.

need more space to display digital and serial signals in addition to traditional scope

channels.

The increased display size helps you easily view up to 20 channels simultaneously with

serial protocol. At 12.1 inches the display is nearly 40% bigger than any competitive

model.

2. Fastest architecture

See a display more representative of the actual signals under test than with any other

scope. The Infi niiVision 7000 Series shows jitter, infrequent events, and subtle signal detail

that other scopes miss. Turn knobs and the instrument responds instantly and effortlessly.

Need to also view digital channels? The instrument stays responsive. Decoding serial

packets? Offering the industry’s only hardware-accelerated serial bus decode, Agilent’s

Infi niiVision series delivers serial debug without compromising analog measurements.

Infi niiVision scopes incorporate acquisition memory, waveform processing, and display memory in an advanced .13m ASIC.

This patented 3rd generation technology, known as MegaZoom III, delivers up to 100,000 waveforms (acquisitions) per second

with responsive deep memory always available.

3. Insightful applications

Customize your general purpose scope. A wide range of application packages provide meaningful insight into your application-specifi c problems.

(See pages 8-9 and 13-14 for more detail.)

Serial with hardware-accelerated decode

X I2C, SPI X RS-232/UART

X

CAN/LIN X FlexRay

O

Segmented memory

O

DSO/MSO offl ine analysis O Core-assisted FPGA debug

O

Power measurement

O

Secure environment

O

Vector signal analysis

3

Your design has analog, digital and serial signals ... shouldn’t your scope?

Analog: Up to 1 GHz bandwidth and up to

4 GSa/s sample rate

Digital: 16 digital timing channels with

mixed signal triggering

The Infi niiVision 7000 Series scope

channels provide faster identifi cation of

your most elusive problems –

Revolutionary high-resolution display.

Engineered with an XGA display and 256 levels of

intensity grading, see a precise representation of

the analog characteristics of the signals you’re

testing. Equipped with the industry’s fastest un-

comprimised update rate at 100,000 waveforms/sec

update rate, you’ll capture critical signal detail and

see infrequent events that traditional scopes miss.

Capture a mix of analog or digital signals.

Compare multiple cycles of digital signals

with slower analog signals –

16 high-speed timing channels with up to

2 GSa/s deep memory. Use the timing

channels to evaluate control signal relationship.

Or capture and view data buses up to 16 bits wide.

Trigger on and display individual signals or bus

waveforms in hex or binary.

MegaZoom III technology. MegaZoom III

responsive deep memory captures long, non-

repeating signals and maintains high sample

rates, allowing you to quickly zoom in on areas of

interest. Sample rate and memory depth go hand-

in-hand. Deep memory in oscilloscopes sustains a

high sample rate over longer time spans.

Mixed signal trigger. Trigger across any

combination of analog and digital signals simulta-

neously. See precise analog measurements timed

with exact digital content, all in one box.

Applications for digital channels. Design-

ing with Altera or Xilinx FPGAs? Use the FPGA

dynamic

probe for rapid internal FPGA measurements.

2

C, SPI, or RS-232? Use the analog or digital

Using I

signals from a 4-channel model to acquire and

decode these serial buses.

Serial: Hardware-accelerated decode and

trigger for 12C, SPI, RS-232, CAN, LIN and FlexRay

4

Capture long streams of serial data and gain

fast insight into your problems. Agilent

7000 Series oscilloscopes provide the best

serial protocol capabilities in their class –

Serial bus triggering and decoding. Display

responsive, on-screen decode of serial bus traffi c.

Isolate specifi c events with pinpoint accuracy.

Show decode to validate serial bus activity in

real time.

Quickly fi nd infrequent errors. Hardware-ac-

celerated decoding increases your probability of

capturing elusive events. Agilent oscilloscopes can

help you catch that intermittent problem before it

becomes an intermittent customer complaint or

quality concern.

Other useful features

High resolution mode. Offers up to 12 bits of

vertical resolution in real-time, single-shot mode.

This is accomplished by serially fi ltering sequential

data points and mapping the fi ltered results to

the display when operating at time base settings

greater than 10-µs/div.

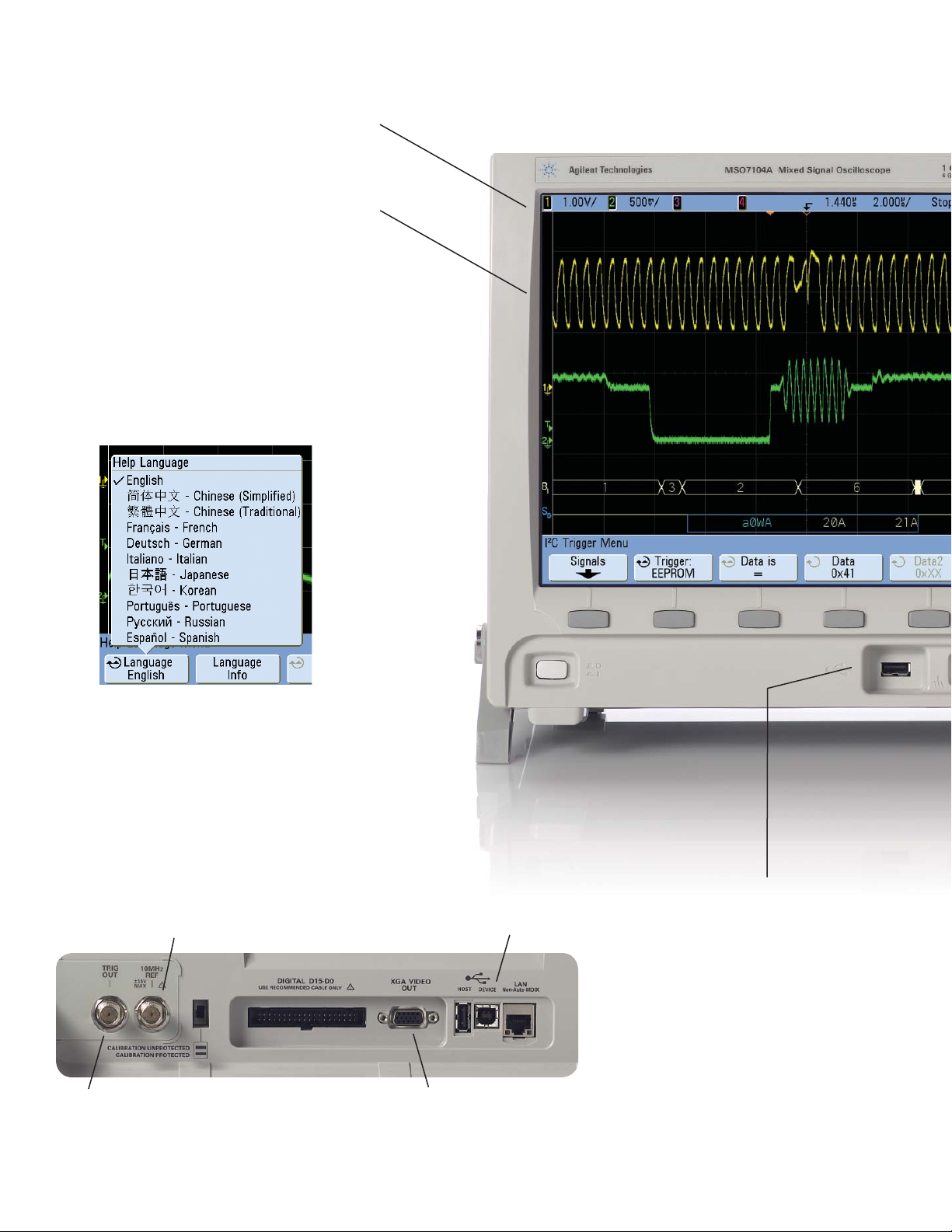

Help is at your fi ngertips. An embedded help

system – available in 11 languages – gives you

quick answers if you don’t understand a feature.

Simply press and hold the corresponding front-

panel key, and a screen pops up to explain its

function.

Waveform math with FFT. Analysis functions

include subtract, multiply, integrate, square root,

and differentiate, as well as fast Fourier

transforms (FFT).

Peak detect. 250 ps on 500-MHz and 1-GHz

models, 500 ps on 350-MHz models. Helps you

fi nd narrow glitches.

AutoProbe interface. Automatically sets

probe attenuation factors and provides power for

selected active probes, including the award-

winning 1130A 1.5-GHz Infi niiMax differential

active probe and 1156A 1.5-GHz single-ended

active probe systems.

Trig Out and Reference Clock In/Out. Pro-

vides an easy way to synchronize your scope to

other instruments. Use the Trig Out port to connect

your scope to a frequency counter for more ac-

curate frequency measurements or to cross trigger

other instruments.

Autoscale. Displays all analog and digital active

signals, and automatically sets the vertical, hori-

zontal and trigger controls.

23 automatic measurements with QuickMeas.

Pressing [QuickMeas] brings up the last four

automated measurements selected. Cursors

automatically track the most recently selected

measurement.

Analog HDTV/EDTV trigger. The 7000 Series

comes standard with analog HDTV/EDTV trigger-

ing for standards like 1080i, 1080p, 720p and 480p

as well as standard video triggering on any line

within a fi eld, all lines, all fi elds and odd or even

fi elds for NTSC, SECAM, PAL and PAL-M video

signals.

Bus mode display (on MSO models). Quick

and easy read-out of hexadecimal or binary

representation of logic signals.

Press and hold a key for instant help.

FFT allows you to view the spectral

content of this clock signal.

5-digit hardware counter. Measures frequency

up to the bandwidth of the scope and provides

accurate and repeatable results. Can be increased

to 8 digits with an external 10 MHz reference.

Easy software upgrades. System software is

stored in fl ash ROM that can be upgraded from the

scope’s built-in USB port or LAN. You can fi nd the

latest system and IntuiLink software at:

www.agilent.com/fi nd/7000sw

Digital signals can be displayed

individually or as overlayed bus values.

5

Why does a fast update rate matter?

While bandwidth, sample rate and memory depth are key criteria for deciding

which scope to purchase, an equally important characteristic is update rate.

What is update rate?

Update rate is how many waveforms acquisitions per seconds you scope can

acquire, process, and display.

a scope to process and then display an acquired waveform before re-arming

it’s triggering for the next acquisition. For traditional scopes, this time is often

orders of magnitude greater than acquisition time on fast time-per-division

settings.

If a glitch occurs during the scope’s dead-time, it won’t be captured. The key

to improving the probability of capturing a signal anomaly during the scope

acquisition time is to minimize dead-time.

Oscilloscope vendors usually specify what their scope’s “best-case” wave-

form update rates are. Some scope architectures suffer from factors that can

seriously degrade the “best-case” update rates spec.

architecture delivers the world’s fastest update rate when using:

Oscilloscope “dead-time” is the time it takes for

Agilent’s 7000 Series

Improves instrument responsiveness

O

Analog channels

O

Deep memory

O

Analog and digital

O

Serial decode

Why is update rate important?

Responsiveness. If you rotate the timebase control, you expect the

1.

oscilloscope to respond immediately – not seconds later after the scope

fi nishes processing data.

2.

Signal detail. Fast waveform update rates improve the display

quality of the waveform that you see on screen.

3.

Certainty. Fast waveform update rates improve the scope’s probability

of capturing random and infrequent events.

Update rates directly affect a scope probability of capturing and displaying

infrequent and random events. Slow update rates will cause a scope to miss

subtle or infrequent signal details.

Improves scope display quality

Improves probability of capturing

infrequent events

6

How update rate affects signal visibility

Capturing random and infrequent events on an oscilloscope is all about statistical probabilities. The key to improving the probability of

capturing a signal anomaly is to minimize dead-time and take more pictures of the signal in a given timeframe. Here is an example with Tek

and Agilent scopes both connected to a target with a glitch that occurs 25 times per second.

?

?

?

Tek MSO4104

O

Product data sheet: 35,000 waveforms per second,

O

Update rate = 18 waveforms per second with 10 Mpts and

digital channels turned on. Resulting measurement shown.

O

Probability of capturing the infrequent glitch = 0.09% after running

for 10 seconds.

O

Average time to capture just one glitch = 128 minutes.

Infrequent

signal activity

Critical

signal jitter

Agilent MSO7104A

O

Product data sheet: 100,000 waveforms per second.

O

Update rate = 95,000 waveforms per second with auto memory

and digital channels turned on. Resulting measurement shown.

O

Probability of capturing the infrequent glitch = 99% after running

for 10 seconds.

O

Average time to capture just one glitch = 1.5 seconds.

Memory*

Te k

Initial setup

Change timebase

Add digital channels

Increase memory setting

Turn on serial decode

*Agilent and LeCroy memory depth selection is automatic. Memory depth = display window times sample rate with up to 8 Mpts for Agilent and up to 10 Mpts for LeCroy.

10 Kpts

10 Kpts

10 Kpts

10 Mpts

10 Mpts

Timebase setting

20 ns/div

10 ns/div

20 ns/div

20 ns/div

20 ns/div

Scope settings

Digital Channels

-

-

On

On

On

Serial Decode

-

-

-

-

On

TEK MSO4104A

41,000

2,700

125

35

0.2

Measured update rates

LeCroy WR 104Xi

27

27

27

27

25

Agilent MSO7104A

95,000

95,000

95,000

95,000

95,000

Seeing subtle signal detail and infrequent events requires a scope with fast waveform update rates. Don’t take a scope vendor’s banner waveform

update rate specifi cation at face value. Test it yourself. It’s actually pretty easy to characterize a scope’s update rate. Run a moderately fast signal

(e.g. 50 Mhz) into a scope channel. Measure the scope’s average trigger output signal frequency. This is your scope’s update rate for the speci-

fi ed timebase setting. Test the update rate of the scope under various setup conditions. Setup conditions that Agilent suggests varying include

timebase range, memory depth, and number of channels, including analog, digital, as well as channels assigned for serial decoding.

7

Software applications

View on-screen serial decode of an I2C packet.

Trigger on and decode RS-232/UART

transmission.

I2C/SPI serial trigger and decode (N5423A

or Option LSS on new scope purchases)

This application displays real-time time-aligned

2

decode of I

celerated decode means the scope stays

responsive and fast.

C and SPI serial buses. Hardware-ac-

RS-232/UART serial decode and trigger (N5457A

or Option 232 on new scope purchases)

Does your design include RS-232 or another type

of UART? This application eliminates the need to

manually decode bus traffi c. Using data captured

on the scope or logic channels, the application lets

you easily view the information sent over a RS-232

or other UART serial bus.

This application requires a 4-channel DSO or 4-

channel MSO and can use any combination of the

scope or logic acquisition channels.

For more information:

www.agilent.com/fi nd/I

Display real-time time-aligned decode of transmit

and receive lines. The application also enables

triggering on RS-232/UART conditions.

This application requires a 4-channel DSO or 4-

channel MSO and can use any combination of the

scope or logic acquisition channels.

For more information:

www.agilent.com/fi nd/RS-232

2

C-SPI

Trigger on and decode CAN serial packets.

See mixed signal measurements in a

FlexRay system using an MSO.

CAN/LIN triggering and decode (N5424A or

Option AMS on new scope purchases)

Trigger on and decode serially transmitted data

based on CAN and LIN protocols. This application

not only provides triggering on complex serial

signals, but it also provides unique hardware-

accelerated capabilities. Hardware-accelerated

triggering and decode means the scope stays

responsive and fast.

FlexRay triggering and decode (N5432A or

Option FRS on new scope purchases)

FlexRay protocol is based on time-triggered and

deterministic architecture. Agilent’s FlexRay solu-

tion for the 7000 Series mixed signal oscilloscopes

offers a robust set of FlexRay frame, slot, and

error triggering, including the ability to trigger

on specifi c FlexRay communications qualifi ed on

base-cycle and cycle-repetition. This

This application requires a 4-channel DSO or

4-channel MSO and can use any combination of

scope or logic acquisition channels.

For more information:

www.agilent.com/fi nd/CAN-LIN

solution combines an Agilent 7000 Series mixed

signal oscilloscope (MSO) with an Agilent VPT

1000 vehicle protocol tester for FlexRay protocol

analyzer.

This application requires a 4-channel MSO.

For more information:

www.agilent.com/fi nd/fl exray

8

Software applications

Debug and validate your FPGA designs

faster and more effectively with the FPGA

dynamic probe and an Agilent MSO.

Expand the capability of your scope with

89601A vector analysis software.

FPGA dynamic probe application (N5406A

for Xilinx, N5434A for Altera)

Give your MSO internal FPGA visibility. Agilent’s

MSO FPGA dynamic probe provides internal FPGA

visibility and quick instrument setup using an

innovative core-assisted debug approach.

Measurement tasks that previously took hours can

be done in a few mouse clicks. In a few seconds,

Vector signal analysis software (89601A)

Expand the measurement capability of your scope

with the 89601A vector signal analysis software.

This advanced DSP based software takes the

digitized signal data provided by the scope and

provides FFT based spectrum analysis and wide

bandwidth digital modulation analysis for wire-

less communication signals like WCDMA and

cdma2000, and wireless networking signals like

TM

802.11 WiFi and 802.16 WiMax

.

easily measure a different set of internal signals

without changing your FPGA design.

For more information:

www.agilent.com/fi nd/7000-altera

www.agilent.com/fi nd/7000-xilinx

Take advantage of the super wide bandwidth of

your scope to capture and evaluate radar signals.

For more information:

www.agilent.com/fi nd/7000-vsa

Use segmented memory to optimize

available memory.

Use your scope to quickly make and

analyze power measurements.

Segmented memory (N5454A or Option SGM

on new scope purchases)

Segmented memory optimizes available memory

for data streams that have long dead times be-

tween activity. The application excels at analyzing

signal activity associated with laser pulses, serial

buses, and bursty signals such as radar. View

an overlay of all signal segments, including MSO

Power application (U1881A)

Need to make power measurements with your

scope? Agilent’s power application provides a

full suite of power measurements that run on

a PC connected to an Infi niiVision 7000 Series

oscilloscope. Make more accurate power supply

effi ciency measurements by using an U1880A

deskew fi xture to deskew your voltage and current

probes.

channels and serial decode, while highlighting the

current segment. Quickly move between segments

to view signal detail associated with a specifi c

segment.

For more information:

www.agilent.com/fi nd/segmented

For more information:

www.agilent.com/fi nd/power-app

9

Agilent Infi niiVision 7000 Series oscilloscopes:

12.1” large display makes it easier to view analog,

digital and serial signals.

High-resolution color display with XGA resolution

and 256 levels of intensity reveals subtle details

that most scopes won’t show you.

Free IntuiLink data capture PC software makes

transferring waveform data or a screen image to a

PC fast and easy. Built-in Web viewer via LAN allows

for remote measurements and viewing.

Engineered for the best signal visibility

Built-in help in eleven languages – Simply press and

hold the front-panel key of interest for a few seconds,

and a help screen pops up to explain its function.

Built-in 10-MHz reference in/out port synchronizes

multiple measurement instruments in a system.

Trig Out port provides an easy way to

synchronize your scope to other instruments.

10

Standard USB and LAN ports provide

PC and printer connectivity.

An XGA video output port allows you

to connect to a large external monitor.

Built-in USB port makes it easy

to save your work and update your

system software quickly.

Quickly pan and zoom for analysis with MegaZoom III’s

instant response and optimum resolution.

Save screen images to a connected USB storage device.

Standard serial triggering includes I

2

C, SPI, and USB (optional

CAN/LIN, RS-232/UART, and FlexRay advanced triggering and

decode).

Standard analog HDTV/EDTV triggering supports triggering on

1080i, 1080p, 720p, and 480p HDTV/EDTV standards.

Digital channel buttons provide quick set-up access.

Intensity knob allows you to see the right level of waveform

detail, just like an analog scope.

QuickMeas shows up to four automated measurements with

the push of a button.

AutoProbe interface automatically confi gures the attenuation

ratio of the probe and provides probe power for Agilent’s active

probes.

Autoscale lets you quickly display any analog or digital active

signals, automatically setting the vertical, horizontal and

trigger controls for the best display, while optimizing memory.

Dedicated front panel controls make it easy to access the

most common scope controls, including vertical and horizontal

scaling.

Infi niiVision 7000 Series 2-channel model

11

Probes and accessories

Agilent offers a complete family of innovative passive and active probes for the InfiniiVision 7000

Series scopes helps you get your job done easily and accurately. Choosing the correct probe for your

application will help to ensure you accurately acquire signals. Below is a general guide on how to

choose the type of probe. For the most up-to-date information about Agilent’s accessories, please

visit our Web site at www.agilent.com/find/scope_probes.

Probe type Key characteristics

Passive probes: most common type of probe, rugged and economical with bandwidth generally lower than 600 MHz

10070C
10073C
1165A

High voltage passive probe: view up to 30 kVDC + peak AC voltage referenced to earth ground

10076A
N2771A

Single-ended active probes: contains small, active amplifier and enables the probe input capacitance to be very low resulting in high
input impedance on high frequencies. Least intrusive of all probes.

1156A
1144A
1145A

Active differential probes: use to look at signals that are referenced to each others instead of earth ground and to look at small signals in
the presence of large DC offsets or other common mode signals such as power line noise.

1130A

N2772A
1141A

Current probes: sense the AC or DC current flowing through a conductor and convert it to a voltage that can be viewed and measured on
an oscilloscope. Compatible with 1 MΩ scope input.

1146A
1147A
N2780A
N2781A
N2782A
N2783A

MSO probes: offer the best performance and access to the industry’s broad range of logic analyzer probing accessories

01650-61607

54620-68701

1:1 20 MHz with probe ID
10:1 500 MHz with probe ID (standard with all 7000 Series scopes)
10:1 600 MHz with probe ID

100:1, 4 kV, 250 MHz probe with ID
1000:1, 30 kV, 50 MHz probe

1.5 GHz AutoProbe interface
800 MHz (requires 1142A – power supply)
750 MHz 2-ch (requires 1142A – power supply)

1.5 GHz InfiniiMax amplifier with AutoProbe interface (requires one
or more InfiniiMax probe head – E2675A, E2668A, E2669A)
20 MHz, 1.2 kVDC + peak AC max (requires N2773A power supply)
200 MHz, 200 VDC + peak AC max (requires 1142A power supply)

100 kHz, 100 A, AC/DC
50 MHz, 30 A, AC/DC with AutoProbe interface
2 MHz, 500 A, AC/DC (use with N2779A power supply)
10 MHz, 150 A, AC/DC (use with N2779A power supply)
50 MHz, 30 A, AC/DC (use with N2779A power supply)
100 MHz, 30 A, AC/DC (use with N2779A power supply)

With this 40-pin logic cable, Agilent MSOs accept numerous logic

analyzer accessories such as Mictor, Samtec, flying leads or soft
touch connectorless probes.

Included with all MSO models is a logic probe with 2x8 flying
leads (includes 20 IC clips and five ground leads)

For more comprehensive information, refer to the Agilent 5000, 6000 and 7000 Series Oscilloscopes Probes and Accessories Data Sheet

and Selection Guide (Agilent publication numbers 5968-8153EN/ENUS and 5989-6162EN).

12

Software applications and other accessories

View and analyze previously acquired

scope data on a PC-based offl ine tool.

Secure environment mode ensures voltile

memory is cleared on power off.

Offl ine viewing and analysis (B4610A)

Need to view and analyze scope data away from

your scope? Need to share measurement data

with geographically dispersed team members?

Save your scope data to a USB or network drive

and import the data into a PC-based offl ine viewer.

Pan and zoom. Use searching and fi ltering to gain

Secure environment mode (Option SEC)

Option SEC – secure environment mode provides

the highest level of security by ensuring internal

nonvolatile memory is clear of all setup and trace

settings in compliance with National Industrial

Security Program Operation Manual (NISPOM)

Chapter 8 requirements. When this option is

installed, it will store setup and trace settings to

internal volatile memory only.

insight on analog and digital buses. Email the data

to team members who can use the same tool at

their PCs.

For more information:

www.agilent.com/fi nd/Infi niiVisionOffl ine

Volatile memory will be cleared during the power

off cycle of the instrument. So you can move the

instrument out of a secure area with confi dence.

For more information: Option SEC Secure

Environment Mode Option for Agilent 7000 Series

Oscilloscopes Data Sheet

Evaluation kit (N2918A)

The evaluation kit includes a variety of signals that

demonstrate MegaZoom III technology with its fast

deep memory, superior waveform update rate, high

defi nition display and mixed analog, digital and

serial abilities.

The evaluation kit helps you discover the power

of Infi niiVision 7000 Series oscilloscopes.

Soft carrying case (N2733A)

Need to travel with your oscilloscope? Agilent’s

soft carrying case provides a convenient method

that includes cushioning as well as a storage

pouch. The soft carrying works equally well for

storing the oscilloscope with its probes and

accessories.

Using this scope evaluation kit along with the

easy-to-follow user’s guide, you can quickly

become familiar with how to effectively operate an

Infi niiVision 7000 Series scopes.

Soft carrying case holds probes and other

accessories.

13

Connectivity

The 7000 Series scopes come with the most comprehensive connectivity tools in

their class.

LXI class C

LAN eXtensions for Instrumentation (LXI) is a standards-based architecture for test systems. By specifying

the interaction of system components, LXI enables fast and effi cient test system creation and reconfi gura-

tion. The 7000 Series oscilloscopes follow specifi ed LAN protocols and adhere to LXI requirements such as

a built-in Web control server, IVI-COM driver, and easy-to-use SCPI commands. The standard Agilent I/O

Library Suite makes it easy to confi gure and integrate instruments in your system.

IntuiLink toolbars and IntuiLink Data Capture

IntuiLink gives you a quick way to move oscilloscope screen shots and data into Microsoft® Word and

Excel. These toolbars can be installed from www.agilent.com/fi nd/intuilink.

ViewScope logic analyzer and oscilloscope correlation

ViewScope enables simple and free time-correlated measurements between a 7000 Series oscilloscope and

an Agilent 16900, 16800, 1690, or 1680 Series logic analyzer. Scope and logic waveforms are integrated into

a single logic analyzer waveform display for easy viewing analysis – all with a simple point-to-point LAN

connection. You can also cross-trigger the instruments, automatically de-skew the waveforms, and maintain

marker tracking between the instruments.

National Instrument drivers

Infi niiVision 7000 Series oscilloscopes are supported by LabVIEW plug-and-play and IVI-C drivers.

Agilent Remote Front Panel running in a

Web browser

Use IntuiLink to import scope screen shots

and data into Microsoft Word and Excel.

14

Use ViewScope to time-correlate

oscilloscope and logic analyzer

measurements.

Agilent Infi niiVision Portfolio

Agilent’s Infi niiVision lineup includes 5000, 6000 and 7000 Series oscilloscopes. These share a number of advanced hardware and

software technology blocks. Use the following selection guide to determine which best matches your specifi c needs.

Largest display,
shallow depth

Bandwidth 7000 Series 6000A Series 6000L Series 5000 Series

100 MHz Bandwidth

300/350 MHz Bandwidth • • • •

500 MHz Bandwidth • • • •

1 GHz Bandwidth •

MSO Models •

GPIB Connectivity

Rackmount height 7U 5U 1U 5U

Battery option

Display size 12.1” 6.3” 6.3”

Footprint (WxHxD) 17.9”x 10.9”x 6.8” 15.7”x 7.4”x 11.1” 17.1”x 1.7”x 10.6” 15.2”x 7.4”x 6.9”

Optional battery,
100 MHz MSO

• •

•

•

•

•

•

• •

•

•

Ideal for ATE rackmount
applications

Smallest form factor,
lowest price

Agilent’s Infi niiVision oscilloscope portfolio offers:

O

A variety of form factors to fi t your environment

O

Insightful application software

O

Responsive controls and best signal visibility

O

Responsive deep memory with MegaZoom III

15

Performance characteristics

Acquisition: scope channels

Sample rate MSO/DSO703xA: 2 GSa/sec each channel
MSO/DSO705xA/710xA: 4 GSa/sec half channel*, 2 GSa/sec each channel
Equivalent-time sample rate: 400 GSa/s (when real-time mode is turned off)

Memory depth 2 channels/4 channels
Standard 8 Mpts/4 Mpts

Vertical resolution 8 bits

Peak detection MSO/DSO703xA: 500-ps peak detect
MSO/DSO705xA/710xA: 250-ps peak detect

Averaging Selectable from 2, 4, 8, 16, 32, 64 … to 65536

High resolution mode Average mode with avg = 1
12 bits of resolution when ≥10 s/div at 4 GSa/s or ≥20-s/div at 2 GSa/s

Filter Sinx/x interpolation (single shot BW = sample rate/4 or bandwidth of scope,
whichever is less) with vectors on and in real-time mode

Acquisition: digital channels (7000 Series MSO or MSO-upgraded 7000 Series DSO)

Sample rate 2 GSa/sec one pod**, 1 GSa/sec each pod

Maximum input frequency 250 MHz

Memory depth One pod/both pods (with scope channels turned off)
Standard 8 Mpts/4 Mpts
One pod/both pods (with scope channels turned on)
Standard 2.5 Mpts/ 1.25 Mpts

Vertical resolution 1 bit

Glitch detection 2 ns (min pulse width)

* Half channel is when one of channel 1 or 2 is turned on, and/or one of channel 3 or 4 is turned on.
** A pod is a group of eight digital channels, either 0-7 or 8-15.

16

Performance characteristics (continued)

Vertical system: scope channels

Scope channels MSO/DSO7xx2A: Ch 1 and 2 simultaneous acquisition
MSO/DSO7xx4A: Ch 1, 2, 3 and 4 simultaneous acquisition

Bandwidth (–3 dB)* MSO/DSO703xA: DC to 350 MHz
MSO/DSO705xA: DC to 500 MHz
MSO/DSO710xA: DC to 1 GHz

AC coupled MSO/DSO703xA: 3.5 Hz to 350 MHz
MSO/DSO705xA: 3.5 Hz to 500 MHz
MSO/DSO710xA: 3.5 Hz to 1 GHz

Calculated rise time (=0.35/bandwidth) MSO/DSO703xA: 1 nsec
MSO/DSO705xA: 700 psec
MSO/DSO710xA: 350 psec

Single-shot bandwidth MSO/DSO703xA: 350 MHz
MSO/DSO705xA: 500 MHz
MSO/DSO710xA: 1 GHz (in half-channel mode)

1

Range

MSO/DSO703xA and MSO/DSO705xA: 2 mV/div to 5 V/div (1 MΩ or 50 Ω)

MSO/DSO710xA: 2 mV/div to 5 V/div (1 MΩ), 2 mV/div to 1 V/div (50 Ω)

Maximum input CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6 kVpk
CAT II 100 Vrms, 400 Vpk
With 10073C 10:1 probe: CAT I 500 Vpk, CAT II 400 Vpk

Offset range ±5 V on ranges <10 mV/div; ±20 V on ranges 10 mV/div to 200 mV/div;
±75 V on ranges >200 mV/div

Dynamic range ±8 div

Input impedance 1 MΩ ± 1% || 14 pF or 50 Ω ± 1.5%, selectable

Coupling AC, DC

BW limit 25 MHz selectable

Channel-to-channel isolation DC to max bandwidth >40 dB

Standard probes 10073C shipped standard for each scope channel (1165A probes optional)

Probe ID Auto probe sense and AutoProbe interface
Agilent- and Tektronix-compatible passive probe sense

* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10 °C from firmware calibration temperature.
1 2 mV/div setting for 100 MHz models and 2 mV/div is a magnification of 4 mV/div setting for 350 MHz to 1 GHz models. For vertical accuracy calculations, use full scale of 16

mV for 1 mV/div sensitivity setting and 32 mV for 2 mV/div sensitivity setting.

17

Performance characteristics (continued)

Vertical system: scope channels (continued)

ESD tolerance ±2 kV

Noise peak-to-peak MSO/DSO703xA: 3% full scale or 3 mV, whichever is greater
MSO/DSO705xA: 3% full scale or 3.6 mV, whichever is greater
MSO/DSO710xA: 3% full scale or 4 mV, whichever is greater

1

DC vertical gain accuracy*

DC vertical offset accuracy ≤200 mV/div: ±0.1 div ±2.0 mV ±0.5% offset value;
>200 mV/div: ±0.1 div ±2.0 mV ±1.5% offset value

±2.0% full scale

Single cursor accuracy

1

±{DC vertical gain accuracy + DC vertical offset accuracy + 0.2% full scale (~1/2 LSB)}
Example: for 50 mV signal, scope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.1 (10 mV) + 2.0 mV + 0.5% (5 mV) + 0.2% (80 mV)} =
± 4.785 mV

Dual cursor accuracy*

1

±{DC vertical gain accuracy + 0.4% full scale (~1 LSB)}
Example: for 50 mV signal, scope set to 10 mV/div (80 mV full scale), 5 mV offset,
accuracy = ±{2.0% (80 mV) + 0.4% (80 mV)} = ±1.92 mV

* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10 °C from firmware calibration temperature.
1 2 mV/div is a magnification of 4 mV/div setting for 350 MHz to 1 GHz models. For vertical accuracy calculations, use full scale of 16 mV for 1 mV/div sensitivity setting and 32

mV for 2 mV/div sensitivity setting.

Vertical system: digital channels (MSO or MSO-upgraded DSO)

Number of channels 16 logic timing channels – labeled D15 - D0

Threshold groupings Pod 1: D7 - D0
Pod 2: D15 - D8

Threshold selections TTL, CMOS, ECL and user-definable (selectable by pod)

User-defined threshold range ±8.0 V in 10 mV increments

Maximum input voltage ±40 V peak CAT I; transient overvoltage 800 Vpk

Threshold accuracy* ±(100 mV + 3% of threshold setting)

Input dynamic range ±10 V about threshold

Minimum input voltage swing 500 mV peak-to-peak

Input capacitance ~8 pF with flying leads

Input resistance 100 kΩ ±2% at probe tip

Channel-to-channel skew 2 ns typical, 3 ns maximum

* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10 °C from firmware calibration temperature.

18

Performance characteristics (continued)

Horizontal

Range MSO/DSO703xA: 2 nsec/div to 50 sec/div
MSO/DSO705xA: 1 nsec/div to 50 sec/div
MSO/DSO710xA: 500 psec/div to 50 sec/div

Resolution 2.5 ps

Time base accuracy 15 ppm (±0.0015%)

Vernier 1-2-5 increments when off, ~25 minor increments between major settings when on

Delay range Pre-trigger (negative delay): Greater of 1 screen width or 1 ms
Post-trigger (positive delay): 1 s to 500 seconds

Analog delta-t accuracy Same channel: ±0.0015% reading ±0.1% screen width ±20 ps
Channel-to-channel: ±0.0015% reading ±0.1% screen width ±40 ps
Same channel example (MSO/DSO705xA):
For signal with pulse width of 10 s, scope set to 5 s/div (50 s screen width),
delta-t accuracy = ±{0.0015% (10 s) + 0.1% (50 s) + 20 ps} = 50.17 ns

Logic delta-t accuracy Same channel: ±0.005% reading ±0.1% screen width ±(1 logic sample period, 1 ns)
Channel-to-channel:
±0.005% reading ±0.1% screen width ±(1 logic sample period) ±chan-to-chan skew
Same channel example:
For signal with pulse width of 10 s, scope set to 5 s/div (50 s screen width),
delta-t accuracy = ±{0.005% (10 s) + 0.1% (50 s) + 1 ns} = 51.5 ns

Modes Main, zoom, roll, XY, segmented (optional)

XY Bandwidth: Max bandwidth
Phase error @ 1 MHz: <0.5 degrees
Z Blanking: 1.4 V blanks trace (use external trigger on MSO/DSO7xx2A,
channel 4 on MSO/DSO7xx4A)

Reference positions Left, center, right

Segmented memory re-arm time 10 µs maximum, 7.5 µs typical

Trigger system

Sources MSO7xx2A: Ch 1, 2, line, ext, D15 - D0
DSO7xx2A: Ch 1, 2, line, ext
MSO7xx4A: Ch 1, 2, 3, 4, line, ext, D15 - D0
DSO7xx4A: Ch 1, 2, 3, 4, line, ext

Modes Auto, normal (triggered), single

Holdoff time ~60 ns to 10 seconds

Trigger jitter 15 ps rms

19

Performance characteristics (continued)

Trigger system (continued)

Selections Edge, pulse width, pattern, TV, duration, sequence, CAN, LIN, FlexRay, USB, I
Nth edge burst

Edge Trigger on a rising, falling, alternating or either edge of any source

Pattern Trigger at the beginning of a pattern of high, low, and don’t care levels and/or a rising or
falling edge established across any of the analog and digital channels, but only after a
pattern has stabilized for a minimum of 2 nsec.
The scope channel’s high or low level is defined by that channel’s trigger level. The logic
channel’s trigger level is defined by the threshold for the pod, 0 - 7 or 8 - 15.

Pulse width Trigger when a positive- or negative-going pulse is less than, greater than, or within a
specified range on any of the source channels.
Minimum pulse width setting: 5 ns (MSO/DSO703xA scope channels)
2 ns (MSO/DSO705xA/710xA scope channels)
2 ns (logic channels on 7000 Series MSO or
MSO-upgraded 7000 Series DSO)
Maximum pulse width setting: 10 s

TV Trigger using any scope channel on most analog progressive and interlaced video standards
including HDTV/EDTV, NTSC, PAL, PAL-M or SECAM broadcast standards. Select either
positive or negative sync pulse polarity. Modes supported include Field 1, Field 2, all fields,
all lines, or any line within a field. TV trigger sensitivity: 0.5 division of sync signal. Trigger
holdoff time can be adjusted in half field increments.

Sequence

CAN Trigger on CAN (controller area network) version 2.0A and 2.0B signals. Trigger on the start
of frame (SOF) bit (standard). N5424A option supports triggering on remote frame ID (RTR),
data frame ID (~RTR), remote or data frame ID, data frame ID and data, error frame, all errors,
acknowledge error and overload frame.

Arm on event A, trigger on event B (edge or pattern), with option to reset on event C or time delay.

2

C, SPI,

LIN Trigger on LIN (local interconnect network) sync break at beginning of message frame
(standard). N5424A option supports triggering on frame ID.

FlexRay N5432A option supports trigger on FlexRay frame ID or time slot or specific error condition,
along with cycle-base and repetition-cycle filtering.

USB Trigger on USB (universal serial bus) start of packet, end of packet, reset complete, enter
suspend, or exit suspend on the differential USB data lines. USB low speed and full speed
are supported.

I
with address and/or data values. Also trigger on missing acknowledge, address with no acq,
restart, EEPROM read, and 10-bit write.

SPI Trigger on SPI (serial protocol interface) data pattern during a specific framing period.
Supports positive and negative Chip Select framing as well as clock idle framing and
user-specified number of bits per frame.

RS-232/UART This application eliminates the need to manually decode bus traffic. Using data captured on
the scope or digital channels, the application provides the ability to easily view the information
sent over a RS-232 serial bus. Display real-time time-aligned decode of transmit and receive
lines. The application also enables triggering on RS-232/UART conditions.

Duration Trigger on a multi-channel pattern whose time duration is less than a value, greater than a
value, greater than a time value with a timeout, or inside or outside of a set of time values.
Minimum duration setting: 2 ns
Maximum duration setting: 10 s

Nth edge burst Trigger on the Nth edge of a burst that occurs after an idle time that you specify. Max edge
count: 65,536.

2

C Trigger on I2C (inter-IC bus) serial protocol at a start/stop condition or user defined frame

20

Performance characteristics (continued)

Trigger system (continued)

Autoscale Finds and displays all active scope and logic (for 7000 Series MSO) channels, sets edge
trigger mode on highest-numbered channel, sets vertical sensitivity on scope channels and
thresholds on logic channels, time base to display ~1.8 periods. Requires minimum voltage
>10 mVpp, 0.5% duty cycle and minimum frequency >50 Hz.

Scope channel triggering

Range (internal) ±6 div from center screen

Sensitivity* <10 mV/div: greater of 1 div or 5 mV; ≥10 mV/div: 0.6 div

Coupling AC, ~10 Hz on MSO/DSO703xA/705xA/710xA),
DC, noise reject, HF reject and LF reject (~50 kHz)

Digital (D15 - D0) channel triggering (7000 Series MSO or MSO-upgraded 7000 Series DSO)

Threshold range (user defined) ±8.0 V in 10 mV increments

Threshold accuracy* ±(100 mV + 3% of threshold setting)

Predefined thresholds TTL = 1.4 V, CMOS = 2.5 V, ECL = –1.3 V

External (EXT) triggering MSO/DSO7xx2A (2-/2+16-ch models) MSO/DSO7xx4A (4-/4+16-ch models)

Input impedance 1 MΩ ± 3% || 14 pF or 50 Ω 2.14 kΩ ±5%

Maximum input CAT I 300 Vrms, 400 Vpk, CAT II 100 Vrms, 400 Vpk ±15 V
With 10073C 10:1 probe: CAT I 500 Vpk, CAT II 400 Vpk
5 Vrms with 50-Ω input

Range DC coupling: trigger level ±1 V and ±8 V ±5 V

Sensitivity For ±1 V range setting: DC to 500 MHz: 500 mV
DC to 100 MHz, 100 mV;
For ±8 V range setting:
DC to 100 MHz, 250 mV;
>100 MHz to bandwidth of oscilloscope: 500 mV

Coupling AC (~3.5 Hz), DC, noise reject, HF reject and LF reject (~50 kHz)

Probe ID Auto probe sense and AutoProbe interface
Agilent- and Tektronix-compatible passive probe sense

* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10 °C from firmware calibration temperature.

21

Performance characteristics (continued)

Display system

Display 12.1-inch (255 mm x 184 mm) diagonal color TFT LCD

Throughput of scope channels Up to 100,000 waveforms/sec in real-time mode

Resolution XGA – 768 vertical by 1024 horizontal points (screen area);
640 vertical by 1000 horizontal points (waveform area)
256 levels of intensity scale

Controls Waveform intensity on front panel. Vectors on/off; infinite persistence on/off,
8 x 10 grid with intensity control

Built-in help system Key-specific help displayed by pressing and holding key or softkey of interest.
Language support for 11 languages including English, German, French, Russian, Japanese,
Traditional Chinese, Simplified Chinese, Korean, Spanish, Portuguese and Italian.

Real-time clock Time and date (user adjustable)

Measurement features

Automatic measurements Measurements are continuously updated. Cursors track last selected measurement.
Up to four measurements can be displayed on screen at any one time.

Voltage (scope channels only) Peak-to-peak, maximum, minimum, average, amplitude, top, base, overshoot, preshoot, RMS,
standard deviation (AC RMS)

Time Frequency, period, + width, – width and duty cycle on any channel.
Rise time, fall time, X at max Y (time at max volts), X at min Y (time at min volts), delay, and
phase on scope channels only.

Counter Built-in 5-digit frequency counter on any channel. Counts up to the scope’s bandwidth (1 GHz
max). The counter resolution can be increased to 8 digits with an external 10-MHz reference.

Threshold definition Variable by percent and absolute value; 10%, 50%, 90% default for time measurements

Cursors Manually or automatically placed readout of horizontal (X, X, 1/X) and vertical (Y, Y).
Additionally logic or scope channels can be displayed as binary or hex values.

Waveform math One function of 1-2, 1x2, FFT, differentiate, integrate, square root.
Source of FFT, differentiate, integrate: scope channels 1 or 2, 1-2, 1+2, 1x2.

FFT

Points Fixed at 1000 points

Source of FFT Scope channels 1 or 2 (or 3 or 4 on MSO/DSO7xx4A only), 1+2, 1-2, 1*2

Window Rectangular, flattop, Hanning

Noise floor –50 to –90 dB depending on averaging

Amplitude Display in dBV, dBm at 50 Ω

Frequency resolution 0.05/time per div

Maximum frequency 50/time per div

22

Performance characteristics (continued)

Storage

Save/recall (non-volatile) 10 setups and traces can be saved and recalled internally.
Optional secure environment mode ensures setups and traces are stored to internal volatile
memory so data is erased when power is removed. Compliant to NISPOM Chapter 8
requirements.

Storage type and format USB 1.1 host ports on front and rear panels
Image formats: BMP (8-bit), BMP (24-bit), PNG (24-bit)
Data formats: X and Y (time/voltage) values in CSV format, ASCII XY and binary format and
.alb for offline viewing on a PC
Trace/setup formats: Recalled

I/O

Standard ports USB 2.0 high-speed device, two USB 1.1 host ports, 10/100BaseT LAN, XGA video output

Max transfer rate USB (USBTMC-USB488): 3.5 Mbytes/sec
100 Mbps LAN (TCP/IP): 1 Mbytes/sec

Supported printers via USB

General characteristics

Physical size (WxHxD) 17.9” x 11.7” x 8.6” (45.4 cm x 29.8 cm x 22 cm) with legs extended, with screen cover on

17.9” x 10.9” x 6.8” (45.4 cm x 27.7 cm x 17.3 cm) with legs contracted, with screen cover on

Weight Net: 5.9 kg (13 lbs) Shipping: 9.3 kg (20.5 lbs)

Probe comp output Frequency ~2 kHz; Amplitude ~5 V

For a list of currently supported printers visit www.agilent.com/fi nd/Infi niiVision-printers

23

Performance characteristics (continued)

General characteristics (continued)

Trigger out When Triggers is selected (delay ~17 ns)
0 to 5 V into high impedance
0 to 2.5 V into 50 Ω
When Source Frequency or Source Frequency/8 is selected
0 to 580 mV into high impedance
0 to 290 mV into 50 Ω
Max frequency output: 350 MHz (in source frequency mode when terminated in 50 Ω)
125 MHz (in source frequency/8 mode when terminated in 50 Ω)

10 MHz ref in/out TTL out, 180 mV to 1 V amplitude with 0 to 2 V offset

Kensington lock Connection on rear panel for security

Power requirements

Line voltage range ~Line 120 W max, 96-144 V/48-440 Hz, 192-288 V/48-66 Hz, automatic selection

Line frequency 50/60 Hz, 100-240 VAC; 440 Hz, 100-132 VAC

Power usage 110 W max

Environmental characteristics

Ambient temperature Operating –10 °C to +55 °C; non-operating –65 °C to +71 °C

Humidity Operating 95% RH at 40 °C for 24 hr; non-operating 90% RH at 65 °C for 24 hr

Altitude Operating to 4,570 m (15,000 ft); non-operating to 15,244 m (50,000 ft)

Vibration Agilent class B1 and MIL-PRF-28800F; class 3 random

Shock Agilent class B1 and MIL-PRF-28800F; class 3 random; (operating 30g, 1/2 sine,
11 ms duration, 3 shocks/axis along major axis, total of 18 shocks)

Pollution degree2 Normally only dry non-conductive pollution occurs.
Occasionally a temporary conductivity caused by condensation must be expected.

Typical operator noise 30 dBa at front of instrument, 35 dBa at rear of instrument.

Indoor use Rated for indoor use only

Other

Measurement categories CAT I: Mains isolated
CAT II: Line voltage in appliance and to wall outlet

Regulatory information Safety IEC 61010-1:2001 / EN 61010-1:2001
Canada: CSA C22.2 No. 1010.1:1992
UL 61010B-1:2003

Supplementary information The product herewith complies with the requirements of the Low Voltage Directive
73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.
The product was tested in a typical configuration with HP/Agilent test systems.

24

Ordering information

Model Bandwidth Sample rate Memory depth Scope channels Digital channels

DSO7032A 350 MHz 2 GSa/s 8 Mpts 2

DSO7034A 350 MHz 2 GSa/s 8 Mpts 4

MSO7032A 350 MHz 2 GSa/s 8 Mpts 2 16

MSO7034A 350 MHz 2 GSa/s 8 Mpts 4 16

DSO7052A 500 MHz 4 GSa/s 8 Mpts 2

DSO7054A 500 MHz 4 GSa/s 8 Mpts 4

MSO7052A 500 MHz 4 GSa/s 8 Mpts 2 16

MSO7054A 500 MHz 4 GSa/s 8 Mpts 4 16

DSO7104A 1 GHz 4 GSa/s 8 Mpts 4

MSO7104A 1 GHz 4 GSa/s 8 Mpts 4 16

Accessories included:

Model number DSO70xxA MSO70xxA

Standard 3-year warranty • •

10073C or 1165A 10:1 divider passive probe per scope channel • •

16 channel flying lead set logic probe (two pods with eight channels each) •

Built-in help language support for English, French, German, Russian, • •
simplified Chinese, traditional Chinese, Korean, Spanish, Portuguese,
Japanese and Italian

Printed user’s guide (option ABA for English, option AB2 for simplified Chinese, • •
option ABJ for Japanese)

Documentation CD (PDFs of Programmer’s Quick Start Guide, • •
Programmer’s Reference Guide, User Guide, and Service Guide)

Agilent I/O libraries suite 15.0 • •

Localized power cord • •

Front panel cover • •

Note: IntuiLink Data Capture software available free on Web at www.agilent.com/find/intuilink

25

Ordering information (continued)

Options

Product Description
U.S. Price

DSO to MSO upgrade* N2735A for DSO703xA,
N2736A for DSO705xA,
N2737A for DSO710xA,

SEC Secure Environment Mode - Provides compliance with National Industrial Security
Program Operating Manual (NISPOM) Chapter 8 requirements
(factory-installed option only for new purchase)

A6J ANSI Z540 compliant calibration

*Includes a 54620-68701 logic cable kit, a label and an upgrade license to activate the MSO features. Installs in less than 5 minutes.

Serial data analysis applications

Option number – user installed Option number – factory installed Description

N5424A AMS CAN/LIN automotive triggering and decode
(4 and 4+16 channel models only)

N5423A LSS I
models only)

2

C/SPI serial decode option (for 4/4+16 channel

N5432A FRS FlexRay automotive triggering and decode
(4+16 channel models only and required VPT1000)

N5457A 232 RS-232/UART triggering and decode
(4 and 4+16 channel models only)

User installed
PC-assisted applications Description

N5406A FPGA dynamic probe for Xilinx (MSO models only)

N5434A FPGA dynamic probe for Altera (MSO models only)

B4610A Offline viewing and analysis of MSO/DSO data on a PC

U1881A Power measurement and analysis application

Other

Option number – user installed Option number – factory installed Description

N5454A SGM Segmented memory

Accessories

Product number Description

N2733A Soft carrying case for 7000 Series oscilloscope

N2732A Rackmount kit for 7000 Series oscilloscope

GemStar 5000

Transit case with foam molding customized for InfiniiVision 7000 Series available from GemStar Mfg. www.gemstarmfg.com

26

Related Literature

Publication Title Publication Type Publication Number

Agilent Technologies Oscilloscope Family Brochure Brochure 5989-7650EN

Agilent Technologies Probes and Accessories Selection guide 5989-6162EN

Agilent Technologies InfiniiVision 5000, 6000 and 7000 Series Oscilloscope
Probes and Accessories Data sheet 5968-8153EN/EUS

2

N5423A I

C and SPI triggering and hardware-accelerated decode options for

InfiniiVision 5000, 6000 and 7000 Series oscilloscopes Data sheet 5989-5126EN

CAN/LIN (N5424A) and FleyRay (N5432A) options for automotive applications Data sheet 5989-6220EN
using InfiniiVision 5000, 6000 and 7000 Series oscilloscopes

RS-232/UART triggering and hardware-accelerated decode options for Data sheet 5989-7832EN
InfiniiVision 5000, 6000 and 7000 Series oscilloscopes

N5434A FPGA Dynamic Probe for Altera with InfiniiVision 6000 and 7000 Series MSOs Data sheet 5989-5965EN

N5406A FPGA Dynamic Probe for Xilinx with InfiniiVision 6000 and 7000 Series MSOs Data sheet 5989-1848EN

Segmented memory option for InfiniiVision 5000, 6000 and 7000 Series oscilloscopes Data sheet 5989-7833EN

Offline viewing and analysis for InfiniiVision 5000, 6000 and 7000 Series oscilloscopes Data sheet 5989-7834EN

Power application for InfiniiVision 6000 and 7000 Series oscilloscopes Data sheet 5989-7835EN

Agilent 81150A pulse function arbitrary noise generator Data sheet 5989-6433EN

Agilent 33220A 20 MHz function/arbitrary waveform generator Data sheet 5988-8544EN

Agilent 6900 Series logic analysis mainframes Data sheet 5989-0421EN

Agilent 16800 Series portable logic analyzers Data sheet 5989-5063EN

VSA for InfiniiVision 5000, 6000 and 7000 Series oscilloscopes Application note 5989-1679EN

27

Agilent Email Updates

t

www.agilent.com/fi nd/emailupdates

Get the latest information on the products

and applications you select.

Agilent Direc

www.agilent.com/fi nd/agilentdirect

Quickly choose and use your test equiptment

solutions with confi dence.

Remove all doubt

Our repair and calibration services will get your equipment back to you, performing like new,

when promised. You will get full value out of your Agilent equipment throughout its lifetime.

Your equipment will be serviced by Agilent-trained technicians using the latest factory cali-

bration procedures,automated repair diagnostics and genuine parts. You will always have the

utmost confi dence in your measurements. Agilent offers a wide range of additional expert

test and measurement services for your equipment, including initial start-up assistance on-

site education and training, as well as design, system integration, and project management.

For more information on repair and calibration services, go to

www.agilent.com/fi nd/removealldoubt

Agilent

Open

www.agilent.com/fi nd/open

Agilent Open simplifi es the process of

connecting and programming test systems

to help engineers design, validate and

manufacture electronic products. Agilent

offers open connectivity for a broad range

of system-ready instruments, open industry

software, PC-standard I/O and global

support, which are combined to more

easily integrate test system development.

www.lxistandard.org

LXI is the LAN-based successor to GPIB,

providing faster, more effi cient connectiv-

ity. Agilent is a founding member of the LXI

consortium.

www.agilent.com

For more information on Agilent Technologies’ products, applications or services, please contact
your local Agilent office. The complete list is available at:

www.agilent.com/find/contactus

Phone

Americas

Canada [phone]
Latin America 305 269 7500
United States [phone]

Asia Pacific

Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 81 426 56 7832
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Thailand 1 800 226 008

Europe

Austria 0820 87 44 11
Belgium 32 (0) 2 404 93 40
Denmark 45 70 13 15 15
Finland 358 (0) 10 855 2100
France 0825 010 700
Germany 01805 24 6333*
*0.14 /minute
Ireland 1890 924 204
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
Switzerland 0800 80 53 53
(German Opt 1)
(French Opt 2)
United Kingdom 44 (0) 7004 666666
Other European countries:
www.agilent.com/find/contactus

Product specifications and descriptions
in this document subject to change
without notice.

© Agilent Technologies, Inc. 2008
Printed in USA, February 15, 2008
5989-7736EN
