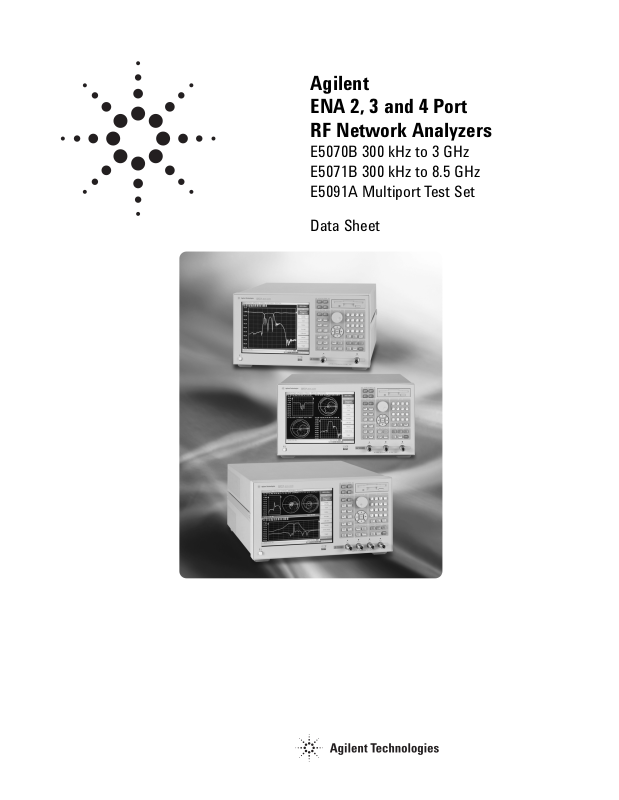

Agilent E5070B Data Sheet

Agilent
ENA 2, 3 and 4 Port
RF Network Analyzers

E5070B 300 kHz to 3 GHz
E5071B 300 kHz to 8.5 GHz
E5091A Multiport Test Set

Data Sheet

2

All specifications apply over a 5°C to 40°C range (unless otherwise stated)
and 90 minutes after the instrument has been turned on.

Specification (spec.):

Warranted performance. Specifications include guardbands to account for
the expected statistical performance distribution, measurement uncertainties,
and changes in performance due to environmental conditions.

Supplemental information is intended to provide information that is helpful
for using the instrument but that is not guaranteed by the product warranty.
This information is denoted as either typical or nominal.

Typical (typ.):

Expected performance of an average unit that does not include guardbands.
It is not guaranteed by the product warranty.

Nominal (nom.):

A general, descriptive term that does not imply a level of performance.
It is not guaranteed by the product warranty.

Definitions

3

Corrected system performance

The specifications in this section apply for measurements made with the
Agilent E5070B/E5071B network analyzer with the following conditions:

• No averaging applied to data

• Environmental temperature of 23°C ± 5°C, with less than 1°C deviation
from the calibration temperature

• Response and isolation calibration not omitted

Table 1-1 System dynamic range

1,2

Description Specification Supplemental information

System dynamic range

300 kHz to 3 MHz, IF bandwidth = 3 kHz 85 dB

3 MHz to 1.5 GHz, IF bandwidth = 3 kHz 95 dB 98 dB

1.5 GHz to 3 GHz, IF bandwidth = 3 kHz 97 dB 100 dB

3 GHz to 4 GHz, IF bandwidth = 3 kHz 96 dB 99 dB

4 GHz to 6 GHz, IF bandwidth = 3 kHz 92 dB 94 dB

6 GHz to 7.5 GHz, IF bandwidth = 3 kHz 87 dB 90 dB

7.5 GHz to 8.5 GHz, IF bandwidth = 3 kHz 80 dB 83 dB

300 kHz to 3 MHz, IF bandwidth = 10 Hz 110 dB

3 MHz to 1.5 GHz, IF bandwidth = 10 Hz 120 dB 123 dB

1.5 GHz to 3 GHz, IF bandwidth = 10 Hz 122 dB 125 dB

3 GHz to 4 GHz, IF bandwidth = 10 kHz 121 dB 124 dB

4 GHz to 6 GHz, IF bandwidth = 10 Hz 117 dB 119 dB

6 GHz to 7.5 GHz, IF bandwidth = 10 Hz 112 dB 115 dB

7.5 GHz to 8.5 GHz, IF bandwidth = 10 Hz 105 dB 108 dB

1

The test port dynamic range is calculated as the difference between the test port rms noise floor
and the source maximum output power. The effective dynamic range must take measurement
uncertainty and interfering signals into account.

2

May be limited to 90 dB at particular frequencies below 350 MHz or above 4.25 GHz due to
spurious receiver residuals.

4

Table 1-2 Corrected system performance with type-N device connectors, 85032F calibration kit

Network analyzer: E5070B/E5071B, calibration kit: 85032F (type-N, 50 Ω), calibration: full 2-port

IF bandwidth = 10 Hz, No averaging applied to data, environmental temperature = 23°C ±5°C with < 1°C deviation from calibration
temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 49 40 38

Source match 41 36 35

Load match 49 40 37

Reflection tracking ±0.011 ±0.032 ±0.054

Transmission tracking ±0.016 ±0.062 ±0.088

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

5

Table 1-3 Corrected system performance with type-N device connectors, 85092C electronic calibration module

Network analyzer: E5070B/E5071B, calibration module: 85092C (type-N, 50 Ω) electronic calibration (ECal) module, calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with < 1°C deviation
from calibration temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 52 52 47

Source match 45 41 36

Load match 47 44 39

Reflection tracking ±0.040 ±0.060 ±0.070

Transmission tracking ±0.039 ±0.069 ±0.136

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

6

Table 1-4 Corrected system performance with 3.5 mm device connector type, 85033E calibration kit

Network analyzer: E5070B/E5071B, calibration kit: 85033E (3.5 mm, 50 Ω), calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with < 1°C deviation from
calibration temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 46 38 38

Source match 43 37 36

Load match 46 38 38

Reflection tracking ±0.006 ±0.009 ±0.010

Transmission tracking ±0.016 ±0.065 ±0.079

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

7

Table 1-5 Corrected system performance with 3.5 mm device connector type, 85093C electronic calibration module

Network analyzer: E5070B/E5071B, calibration module: 85093C (3.5 mm, 50 Ω) electronic calibration (ECal) module, calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with < 1°C deviation from
calibration temperature, isolation calibration not omitted

Description Specification (dB)

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 52 51 47

Source match 44 39 34

Load match 47 44 40

Reflection tracking ±0.030 ±0.050 ±0.070

Transmission tracking ±0.039 ±0.069 ±0.117

Transmission uncertainty (specification)

Magnitude Phase

Reflection uncertainty (specification)

Magnitude Phase

8

Table 1-6 Uncorrected system performance (correction: off, system correction: on)

Description Specification

3 MHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Directivity 25 dB 20 dB 15 dB

Source match 25 dB 20 dB 15 dB

Load match 17 dB 12 dB 10 dB

Transmission tracking ±1.0 dB ±1.0 dB ±1.0 dB

Reflection tracking ±1.0 dB ±1.0 dB ±1.0 dB

Table 1-7 Test port output frequency

Description Specification Supplemental information

Range

E5070B 300 kHz to 3 GHz

E5071B 300 kHz to 8.5 GHz

Resolution 1 Hz

Source stability

Option E5070B/E5071B-UNQ ±5 ppm (5°C to 40°C, typical)

Option E5070B/E5071B-1E5 ±0.05 ppm (23°C ± 5°C, typical)

±0.5 ppm/year (typical)

CW accuracy

Option E5070B/E5071B-UNQ ±5 ppm, 23°C ± 5°C

Option E5070B/E5071B-1E5 ±1 ppm, 23°C ± 5°C

Uncorrected system performance

Test port output (source)

9

Table 1-8 Test port output power

1

Description Specification Supplemental information

Level accuracy (at 23°C ±5°C)

300 kHz to 10 MHz ±1.0 dB (at 0 dBm, relative to 50 MHz reference)

10 MHz to 8.5 GHz ±0.650 dB (at 0 dBm, 50 MHz absolute,

source attenuator 0 dB)

±1.0 dB (at 0 dBm, relative to 50 MHz

reference, source attenuator 0 dB)

Level accuracy (high temperature mode: on)

300 kHz to 8.5 GHz ±0.8 dB (at 0 dBm, 50 MHz absolute, source attenuator 0 dB)

±1.5 dB (at 0 dBm, relative to 50 MHz reference,

source attenuator 0 dB)

Level accuracy (swept mode: on)

300 kHz to 4.25 GHz ±2.5 dB (at 0 dBm, relative to 50 MHz reference,

source attenuator 0 dB)

4.25 GHz to 8.5 GHz ±3.5 dB (at 0 dBm, relative to 50 MHz reference,

source attenuator 0 dB)

Level linearity (at 23°C ±5°C)

10 MHz to 3 GHz ±0.75 dB (at -15 dBm to 10 dBm)

3 GHz to 4.25 GHz ±0.75 dB (at -15 dBm to 9 dBm)

4.25 GHz to 6 GHz ±0.75 dB (at -10 dBm to 7 dBm)

6 GHz to 8.5 GHz ±0.75 dB (at -15 dBm to 5 dBm)

Level linearity (high temperature mode: on)

300 kHz to 3 GHz ±1.5 dB (at -15 dBm to 10 dBm)

3 GHz to 4.25 GHz ±1.5 dB (at -15 dBm to 9 dBm)

4.25 GHz to 6 GHz ±2.0 dB (at -15 dBm to 7 dBm)

6 GHz to 8.5 GHz ±2.0 dB (at -15 dBm to 5 dBm)

Level linearity (swept mode: on)

300 kHz to 3 GHz ±1.5 dB (at -15 dBm to 10 dBm)

3 GHz to 4.25 GHz ±1.5 dB (at -15 dBm to 9 dBm)

4.25 GHz to 6 GHz ±3 dB (at -15 dBm to 7 dBm)

6 GHz to 8.5 GHz ±3 dB (at -15 dBm to 5 dBm)

Range (source attenuator 0 dB)

300 kHz to 3 GHz -15 dBm to 10 dBm

3 GHz to 4.25 GHz -15 dBm to 9 dBm

4.25 GHz to 6 GHz -15 dBm to 7 dBm

6 GHz to 8.5 GHz -15 dBm to 5 dBm

Range (with source attenuators)

300 kHz to 3 GHz -50 dBm to 10 dBm (non-harmonics spurious may limit power range)

3 GHz to 4.25 GHz -50 dBm to 9 dBm (non-harmonics spurious may limit power range)

4.25 GHz to 6 GHz -50 dBm to 7 dBm (non-harmonics spurious may limit power range)

6 GHz to 8.5 GHz -50 dBm to 5 dBm (non-harmonics spurious may limit power range)

Sweep range (source attenuator 0 dB)

300 kHz to 3 GHz -15 dBm to 10 dBm -20 dBm to 10 dBm

3 GHz to 4.25 GHz -15 dBm to 9 dBm -20 dBm to 9 dBm

4.25 GHz to 6 GHz -15 dBm to 7 dBm -20 dBm to 7 dBm

6 GHz to 8.5 GHz -15 dBm to 5 dBm -20 dBm to 5 dBm

Level resolution 0.05 dB

Test port output (source)

1

Source output performance on port 1 only. Other port output performance is typical.

10

Table 1-9 Test port output signal purity

Description Specification Supplemental information

Harmonics (2nd or 3rd)

10 MHz to 2 GHz < -25 dBc (at 5 dBm, typical)

2 GHz to 3 GHz < -15 dBc (at 5 dBm, typical)

3 GHz to 8.5 GHz < -10 dBc (at 5 dBm, typical)

Non-harmonic spurious

10 MHz to 3 GHz < -25 dBc (at 5 dBm, typical)

3 GHz to 8.5 GHz < -10 dBc (at 5 dBm, typical)

Test port output (source)

11

Table 1-10 Test port input levels

Description Specification Supplemental information

Maximum test port input level

300 kHz to 3 GHz +10 dBm

3 GHz to 4.25 GHz +9 dBm

3 GHz to 6 GHz +7 dBm

6 GHz to 8.5 GHz +5 dBm

Damage level

300 kHz to 8.5 GHz RF +20 dBm

±14 VDC (source attenuator = 0 dB)
±25 VDC (source attenuator = 5 dB or more, typical)

Crosstalk

1

3 MHz to 3 GHz -120 dB

3 GHz to 6 GHz -109 dB

6 GHz to 7.5 GHz -99 dB

7.5 GHz to 8.5 GHz -89 dB

Table 1-11 Test port input (trace noise2)

Description Specification Supplemental information

Trace noise magnitude

300 kHz to 3 MHz 5 mdB rms (typical)
(source power level = +10 dBm) 8 mdB rms (high temperature mode: ON, typical)

3 MHz to 3 GHz 1 mdB rms (23°C ±5°C) 4 mdB rms
(source power level = +10 dBm) (high temperature mode: ON, typical)

3 GHz to 4.25 GHz 1.2 mdB rms (23°C ±5°C) 4.8 mdB rms
(source power level = +9 dBm) (high temperature mode: ON, typical)

4.25 GHz to 6 GHz 3.6 mdB rms (23°C ±5°C) 7.2 mdB rms
(source power level = +7 dBm) (high temperature mode: ON, typical)

6 GHz to 7.5 GHz 3.6 mdB rms (23°C ±5°C) 7.2 mdB rms
(source power level = +5 dBm) (high temperature mode: ON, typical)

7.5 GHz to 8.5 GHz 6 mdB rms (23°C ±5°C) 9.6 mdB rms
(source power level = +5 dBm) (high temperature mode: ON, typical)

Trace noise phase

300 kHz to 3 MHz 0.035° rms (23°C ±5°C, typical)
(source power level = +10 dBm) 0.05° rms (high temperature mode: ON, typical)

3 MHz to 3 GHz 0.007° rms (23°C ±5°C, typical)
(source power level = +10 dBm) 0.02° rms (high temperature mode: ON, typical)

3 GHz to 4.25 GHz 0.008° rms (23°C ±5°C, typical)

(source power level = +9 dBm) 0.024° rms (high temperature mode: ON, typical)

4.25 GHz to 6 GHz 0.025° rms (23°C ±5°C, typical)
(source power level = +7 dBm) 0.042° rms (high temperature mode: ON, typical)

6 GHz to 7.5 GHz 0.025° rms (23°C ±5°C, typical)
(source power level = +5 dBm) 0.042° rms (high temperature mode: ON, typical)

7.5 GHz to 8.5 GHz 0.042° rms (23°C ±5°C, typical)
(source power level = +5 dBm) 0.06° rms (high temperature mode: ON, typical)

Test port input

1

Response calibration not omitted.

2

Trace noise is defined as a ratio measurement of a through, at IF bandwidth = 3 kHz.

12

Table 1-12 Test port input (stability1)

Description Specification Supplemental information

Stability magnitude

3 MHz to 3 GHz 0.005 dB/°C

(at 23°C ±5°C, typical)

3 GHz to 6 GHz 0.01 dB/°C

(at 23°C ±5°C, typical)

6 GHz to 8.5 GHz 0.04 dB/°C

(at 23°C ±5°C, typical)

Stability phase

3 MHz to 3 GHz 0.1°/°C

(at 23°C ±5°C, typical)

3 GHz to 6 GHz 0.2°/°C

(at 23°C ±5°C, typical)

6 GHz to 8.5 GHz 0.8°/°C

(at 23°C ±5°C, typical)

Table 1-13 Test port input (dynamic accuracy)

Accuracy of the test port input power reading is relative to -10 dBm reference input power level.

Specification Supplemental information

Magnitude Phase

1

Stability is defined as a ratio measurement at the test port.

13

Table 1-14 Test port input (group delay1)

Description Specification Supplemental information

Aperture (selectable) (frequency span)/(number of points -1)

Maximum aperture 25% of frequency span

Maximum delay Limited to measuring no more than

180° of phase change within the minimum aperture.

Accuracy See graph below, typical

The following graph shows group delay accuracy with type-N full 2-port calibration and a 10 Hz IF bandwidth. Insertion loss is assumed to be < 2 dB.

Group delay (typical)

In general, the following formula can be used to determine the accuracy, in seconds, of specific group delay measurement:
± phase accuracy (deg)/[360 x aperture (Hz)]

1

Group delay is computed by measuring the phase change within a specified step (determined by the frequency span and the number of points per sweep).

14

Table 1-15 System bandwidths

Description Supplemental information

IF bandwidth settings

Range 10 Hz to 100 kHz

Nominal settings are:
10, 15, 20, 30, 40, 50, 70, 100, 150, 200, 300, 400, 500, 700,
1 k, 1.5 k, 2 k, 3 k, 4 k, 5 k, 7 k, 10 k, 15 k, 20 k, 30 k, 40 k, 50 k, 70 k, 100 kHz

Table 1-16 Front panel information

Description Supplemental information

RF connectors

Type Type-N, female; 50 Ω , nominal

Display

Size 10.4 in TFT color LCD

Resolution VGA (640x480)

General information

15

Table 1-17 Rear panel information

Description Supplemental information

External trigger connector

Type BNC, female

Input level LOW threshold voltage: 0.5 V

HIGH threshold voltage: 2.1 V
Input level range: 0 to +5 V

Pulse width ≥ 2 µsec, typical

Polarity Negative (downward) only

External reference signal input connector

Type BNC, female

Input frequency 10 MHz ±10 ppm, typical

Input level 0 dBm ±3 dB, typical

Internal reference signal output connector

Type BNC, female

Output frequency 10 MHz ±10 ppm, typical

Signal type Sine wave, typical

Output level 0 dBm ±3 dB into 50 Ω, typical

Output impedance 50 Ω, nominal

VGA video output 15-pin mini D-Sub; female; drives VGA compatible monitors

GPIB 24-pin D-Sub (type D-24), female; compatible with IEEE-488

Parallel port 36-pin D-Sub (type 1284-C), female; provides connection to printers

USB port Universal serial bus jack, type A configuration (4 contacts inline, contact 1 on left);

female; provides connection to printer, ECal module, USB/GPIB interface or multiport
test set

Contact 1 Vcc: 4.75 to 5.25 VDC, 500 mA, maximum

Contact 2 -Data

Contact 3 +Data

Contact 4 Ground

LAN 10/100 BaseT Ethernet, 8-pin configuration; auto selects between the two data rates

Handler I/O port 36-pin D-sub, female; provides connection to handler system

Line power

1

Frequency 47 Hz to 63 Hz

Voltage 90 to 132 VAC, or 198 to 264 VAC (automatically switched)

VA max 350 VA max.

1

A third-wire ground is required.

16

Table 1-18 EMC and safety

Description Supplemental information

EMC

European Council Directive 89/336/EEC
EN / IEC 61326-1:1997+A1:1998
CISPR 11:1997+A1:1999 / EN 55011:1998+A1:1999 Group 1,
Class A
IEC 61000-4-2:1995 / EN 61000-4-2:1995+A1:1998
4 kV CD / 4 kV AD
IEC 61000-4-3:1995 / EN 61000-4-3:1996+A1:1998
3 V/m, 80-1000 MHz, 80% AM
IEC 61000-4-4:1995 / EN 61000-4-4:1995
1 kV power / 0.5 kV Signal
IEC 61000-4-5:1995 / EN 61000-4-5:1995

0.5 kV Normal / 1 kV Common
IEC 61000-4-6:1996 / EN 61000-4-6:1996
3 V, 0.15-80 MHz, 80% AM
IEC 61000-4-11:1994 / EN 61000-4-11:1994
100% 1cycle
Canada ICES001:1998
Note: The performance of EUT will be within the specification over the RF immunity tests
according to EN 61000-4-3 or EN 61000-4-6 except under the coincidence of measurement
frequency and interference frequency.

AS/NZS 2064.1/2 Group 1, Class A

Safety

European Council Directive 73/23/EEC
IEC 61010-1:1990+A1+A2 / EN 61010-1:1993+A2
INSTALLATION CATEGORY II, POLLUTION
DEGREE 2
INDOOR USE
IEC60825-1:1994 CLASS 1 LED PRODUCT

CAN/CSA C22.2 No. 1010.1-92

ISM 1-A

ISM 1-AISM 1-A

N10149

®

LR95111C

ICES/NMB-001

17

Table 1-19 Analyzer environment and dimensions

Description Supplemental information

Operating environment

Temperature +5°C to +40°C

Error-corrected temperature range 23°C ± 5°C with < 1°C deviation from calibration temperature

Humidity 20% to 80% at wet bulb temperature < +29°C (non-condensing)

Altitude 0 to 2,000 m (0 to 6,561 feet)

Vibration 0.5 G maximum, 5 Hz to 500 Hz

Non-operating storage environment

Temperature -10°C to +60°C

Humidity 20% to 90% at wet bulb temperature < 40°C (non-condensing)

Altitude 0 to 4,572 m (0 to 15,000 feet)

Vibration 0.5 G maximum, 5 Hz to 500 Hz

Dimensions See figure 1-1 through figure 1-3.

Weight

Net 17.5 kg (option E5070B/E5071B-214, nominal)

19.5 kg (option E5070B/E5071B-414, nominal)

Figure 1-1. Dimensions (front view, E5071B with option E5071B-414, in millimeters, nominal)

18

Figure 1-2. Dimensions (rear view, with option E5070B/E5071B-1E5, in millimeters, nominal)

Figure 1-3. Dimensions (side view, in millimeters, nominal)

19

Table 1-20 Typical cycle time for measurement completion

1, 2

(ms)

Number of points

51 201 401 1601

Start 1 GHz, stop 1.2 GHz, 100 kHz IF bandwidth

Uncorrected 4 5 7 18

2-port cal 5 8 13 42

Start 300 kHz, stop 3 GHz, 100 kHz IF bandwidth

Uncorrected 11 12 13 23

2-port cal 20 23 25 46

Start 300 kHz, stop 8.5 GHz, 100 kHz IF bandwidth

Uncorrected 19 24 24 24

2-port cal 37 46 48 50

Table 1-21 Typical cycle time for measurement completion

1, 3

(ms)

Number of points

51 201 401 1601

Start 1 GHz, Stop 1.2 GHz, 100 kHz IF bandwidth

Uncorrected 4 6 8 22

2-port cal 5 10 16 56

Start 300 kHz, Stop 3 GHz, 100 kHz IF bandwidth

Uncorrected 11 12 13 23

2-port cal 20 24 25 55

Start 300 kHz, Stop 8.5 GHz, 100 kHz IF bandwidth

Uncorrected 20 24 24 26

2-port cal 37 46 47 57

Table 1-22 Typical cycle time for measurement completion

1, 4

(ms)

Number of points

51 201 401 1601

Start 1 GHz, Stop 1.2 GHz, 100 kHz IF bandwidth

Uncorrected 7 17 29 90

2-port cal 12 32 55 178

Start 300 kHz, Stop 3 GHz, 100 kHz IF bandwidth

Uncorrected 14 27 43 130

2-port cal 26 50 84 258

Start 300 kHz, Stop 8.5 GHz, 100 kHz IF bandwidth

Uncorrected 16 30 49 146

2-port cal 30 57 96 291

Measurement throughput summary

1

Typical performance.

2

Fast swept mode. System error correction OFF. Analyzer display turned off with :DISP:ENAB OFF. Number of traces = 1.

3

Fast swept mode. System error correction ON. Analyzer display turned off with :DISP:ENAB OFF. Number of traces = 1.

4

Standard stepped mode. System error correction ON. Analyzer display turned off with :DISP:ENAB OFF. Number of traces = 1.

20

Table 1-23 Cycle time

1,2

(ms) vs. number of points

1

Number of points Fast swept mode Fast swept mode Standard stepped mode

system error correction OFF system error correction ON system error correction ON

3444

11444

51447

101 4 5 11

201 5 6 17

401 8 8 29

801 11 13 52

1601 18 23 90

Table 1-24 Data transfer time1(ms)

Number of points

51 201 401 1601

SCPI over GPIB

3

64-bit floating point 5 16 29 109

ASCII 21 79 156 617

SCPI over 100 Mbps LAN (telnet)

3

REAL 64 2 2 3 5

ASCII 34 128 254 995

SCPI over 100 Mbps LAN (SICL-LAN)

3

REAL 64 4 4 5 8

ASCII 6 14 26 95

COM (program executed in the analyzer)

4

Variant type 1 1 1 1

1

Typical performance.

2

Start 1 GHz, stop 1.2 GHz, 100 kHz IF bandwidth, Error correction OFF, display update: OFF, number of traces = 1.

3

Measured using a VEE 6.0 program running on a 733 MHz Pentium III HP Kayak, Transferred complex S11data, using :CALC:DATA?SDATA.

4

Measured using an E5070B/E5071B VBA macro running inside the analyzer. Transferred complex S11data.

21

Measurement capabilities

Number of measurement channels Up to 16 independent measurement channels. A measurement channel is coupled

to stimulus response settings including frequency, IF bandwidth, power level,
and number of points.

Number of display windows Each measurement channel has a display window. Up to 16 display windows (channels)

can be displayed.

Number of traces Four display modes (selectable):

16 data traces and 16 memory traces per channel at 4-channel mode
9 data traces and 9 memory traces per channel at 9-channel mode
6 data traces and 6 memory traces per channel at 12-channel mode
4 data traces and 4 memory traces per channel at 16-channel mode

Measurement choices Option E5070B/E5071B-214: S11, S21, S12, S

22

Option E5070B/E5071B-314: S11, S21, S31, S12, S22, S32, S13, S23, S33,
Mixed-mode S-parameters, balanced parameters, CMRR
Option E5070B/E5071B-414: S11, S21, S31, S41, S12, S22, S32, S42, S13,
S23, S33, S43, S14, S24, S34, S44, mixed mode S-parameters, balanced parameters, CMRR
Option E5070B/E5071B-214 and 008: S11, S21, S12, S22, absolute parameters.
Option E5070B/E5071B-314 and 008: S11, S21, S31, S12, S22, S32, S13, S23, S33,
Mixed-mode S-parameters, balanced parameters, CMRRA, absolute parameters.
Option E5070B/E5071B-414 and 008: S11, S21, S31, S41, S12, S22, S32, S42, S13, S23,
S33, S43, S14, S24, S34, S44, mixed mode S-parameters, balanced parameters, CMRR,
absolute parameters.

Measurement parameter conversion Available to convert S-parameters into reflection impedance, transmission impedance

(series), transmission impedance (shunt), reflection admittance, transmission
admittance (series), transmission admittance (shunt), and 1/S.

Data formats Log magnitude, linear magnitude, phase, extended phase, positive phase,

group delay, SWR, real, imaginary, Smith chart, polar.

Data markers 10 independent markers per trace. Reference marker available

for delta marker operation. Smith chart format includes 5 marker formats:
linear magnitude/phase, log magnitude/phase, real/imaginary,
R + jX, and G + jB. Polar chart format includes 3 marker formats:
linear magnitude/phase, log magnitude/phase, and real/imaginary.

Marker functions

Marker search Max value, min value, peak, peak left, peak right, target, target left, target right,

bandwidth parameters with user-defined bandwidth values.

Marker-to functions Set start, stop, center to active marker stimulus value; set reference to active

marker response value; set electrical delay to group delay at active marker.

Search range User definable.

Tracking Performs marker search continuously or on demand.

Time domain functions

1

Transformation Selectable transformation type from bandpass, lowpass impulse, lowpass step.

Selectable window from maximum, normal and minimum.

Gated functions Selectable gated filter type from bandpass, notch.

Selectable gate shape from maximum, normal and wide.

1

Option E5070B-010 or E5071B-010 is required.

22

Trace functions

Display data Display current measurement data, memory data,

or current measurement and memory data simultaneously.

Trace math Vector addition, subtraction, multiplication or division of

measured complex values and memory data.

Title Add custom title to each channel window. Titles are

printed on hardcopies of displayed measurements.

Autoscale Automatically selects scale resolution and reference value to

vertically center the trace.

Electrical delay Offset measured phase or group delay by a defined amount of

electrical delay, in seconds.

Phase offset Offset measured phase or group delay by a defined amount in degrees.

Statistics Calculates and displays mean, standard deviation and peak-to-peak

deviation of the data trace.

1

Option E5070B-008 or E5071B-008 is required.

Source control

Measured number of points per sweep User definable from 2 to 1601.

Sweep mode Standard stepped, standard swept, fast stepped and fast swept.

Sweep type Linear sweep, segment sweep, log sweep and power sweep.

Segment sweep Define independent sweep segments. Set number of points, test port power levels,

IF bandwidth, delay time, sweep time and sweep mode independently for each segment.

Sweep trigger Set to continuous, hold, or single, sweep with internal, external, manual,

or bus trigger.

Trigger event Set trigger event dependent on sweep or data point.

Power Set source power from -50 dBm to10 dBm. The power slope function and the power

calibration function compensate source power level error.

Frequency-offset

1

Set source frequency independently from where the receivers are tuned.

23

Storage

Internal hard disk drive Store and recall instrument states, calibration data, and trace data

on 3 GB, minimum, internal hard drive. Trace data can be saved in CSV
(comma separated value) format. All files are MS-DOS ®-compatible.
Instrument states include all control settings, limit lines, segment sweep
tables, and memory trace data.

File sharing Internal hard disk drive (D:) can be accessed from an external

Windows®PC through LAN.

Disk drive Instrument states, calibration data, and trace data can be stored on

an internal 3.5 inch 1.4 MB floppy disk in MS-DOS ®-compatible format.

Screen hardcopy Printouts of instrument data are directly produced on a printer. The analyzer

provides USB and parallel interfaces.

Data accuracy enhancement

Measurement calibration Measurement calibration significantly reduces measurement

uncertainty due to errors caused by system directivity, source and
load match, tracking and crosstalk. Full 2-port, 3-port, or 4-port calibration
removes all the systematic errors for the related test ports to obtain
the most accurate measurements.

Calibration types available

Response Simultaneous magnitude and phase correction of frequency response

errors for either reflection or transmission measurements.

Response and isolation Compensates for frequency response and crosstalk errors of

transmission measurements.

One-port calibration Available on test set port 1, port 2, port 3, or port 4 to correct for directivity,

frequency response and source match errors.

Full 2-port/3-port/4-port calibration Compensates for directivity, source match, reflection tracking, load match,
TRL/LRM calibration transmission tracking and crosstalk. Crosstalk calibration can be omitted.

Interpolated error correction With any type of accuracy enhancement applied, interpolated mode

recalculates the error coefficients when the test frequencies are changed.
The number of points can be increased or decreased and the start/stop
frequencies can be changed.

Velocity factor Enter the velocity factor to calculate the equivalent physical length.

Reference port extension Redefine the measurement plane from the plane where the calibration

was done.

Mixer calibration

Scalar-mixer calibration Scalar-mixer calibration corrects the conversion loss for input port source match

and output port load match. Scalar-mixer calibration also corrects the input match
measurements for input port directivity, frequency response, and source match at
the input frequencies and corrects the output match measurements for output
port directivity, frequency response, and source match at output frequencies.
This calibration offers the conversion loss/gain measurements with correcting
the mismatches of both input and output test ports.

Vector-mixer calibration Vector-mixer calibration corrects for directivity, source match, load match,

and reflection frequency response at each test port by using a characterized
calibration mixer with de-embedding function. This calibration provides the
measurements of phase and absolute group delay. The characterization of the
calibration mixer is part of the calibration process.

24

Automation

GPIB Internal

SCPI X X

COM X

Methods

Internal analyzer execution Applications can be developed in a built-in VBA® (Visual Basic for Applications)

language. Applications can be executed from within the analyzer via COM
(component object model) or using SCPI.

Controlling via GPIB The GPIB interface operates to IEEE 488.2 and SCPI protocols.

The analyzer can be controlled by a GPIB external controller. The analyzer can
control external devices using a USB/GPIB interface.

LAN

Standard conformity 10 BaseT or 100 BaseTX (automatically switched), Ethertwist,

RJ45 connector

Protocol TCP/IP

Function Telnet, SICL-LAN

System capabilities

Familiar graphical user interface The ENA Series analyzer employs a graphical user interface based on

Windows®operating system. There are three ways to operate the instrument
manually: you can use a hardkey interface, touch screen interface (option
E5070B/E5071B-016) or a mouse interface.

Limit lines Define the test limit lines that appear on the display for pass/fail testing.

Defined limits may be any combination of horizontal/sloping lines and discrete
data points.

Fixture simulator

Balance-unbalance conversion Convert data from single-ended measurement to balanced measurement

parameters (mixed-mode S-parameters), balanced parameters or CMRR by
using internal software.

Network de-embedding De-embed an arbitrary circuit defined by a two-port Touchstone data file

(50 Ω system) for each test port. This function eliminates error factors
between calibration plane and DUT and expands the calibration plane for each
test port. This function can be used with the port extension function.

Port reference impedance conversion Convert S-parameters measured in 50 Ω reference impedance to data

in other reference impedance levels by using internal software. This conversion
can be performed for both single-ended (unbalance) measurement ports and
converted balanced measurement ports.

Matching circuit Add one of predefined matching circuits or a circuit defined by a two-port

Touchstone data file to each single-ended test port or converted balanced
(differential) test port by using internal software.

25

E5091A multiport test set

The section provides test set input/output performance without calibration by
the E5070B/E5071B.

Table 2-1 Test set input/output performance

Description Specification Supplemental information

Range 50 MHz to 8.5 GHz

Damage level 20 dBm, ±25 VDC (typical)

Table 2-2 Option E5091A-007 port performance

Description Specification

50 MHz to 300 MHz 300 MHz to 1.3 GHz 1.3 GHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Load match

Test port selected

A, T2, R1+, R1–, R2+, R2– 19 dB 20 dB 18 dB 12 dB 10 dB
T1 15 dB 17 dB 15 dB 11 dB 8 dB

Test port unselected

A, T2, R1+, R1–, R2+, R2– 23 dB 25 dB 19 dB 12 dB 11 dB
T1 18 dB 20 dB 16 dB 12 dB 9 dB

Interconnect port, typical

P1, P2, P3, P4 19 dB 19 dB 17 dB 13 dB 9 dB

Insertion loss

Test port

A, T2, R1+, R1–, R2+, R2– 3 dB 3 dB 4 dB 5 dB 6 dB
T1 5 dB 5 dB 7 dB 8 dB 9.5 dB

Stability, typical 0.005 dB/°C 0.005 dB/°C 0.005 dB/°C 0.01 dB/°C 0.015 dB/°C

Isolation

Over arbitrarily test ports -100 dB -100 dB -100 dB -100 dB -90 dB

26

Table 2-3 Option E5091A-009 port performance

Description Specification

50 MHz to 300 MHz 300 MHz to 1.3 GHz 1.3 GHz to 3 GHz 3 GHz to 6 GHz 6 GHz to 8.5 GHz

Load match

Test port selected

A, T2, R1+, R1– 19 dB 20 dB 18 dB 12 dB 10 dB
T1, R2+, R2–, R3+, R3– 15 dB 17 dB 15 dB 11 dB 8 dB

Test port unselected

A, T2, R1+, R1–, R3+, R3– 23 dB 25 dB 19 dB 12 dB 11 dB
T1, R2+, R2– 18 dB 20 dB 16 dB 12 dB 9 dB

Interconnect port, typical

P1, P2, P3, P4 19 dB 19 dB 17 dB 13 dB 9 dB

Insertion loss

Test port

A, T2, R1+, R1– 3 dB 3 dB 4 dB 5 dB 6 dB
T1, R2+, R2–, R3+, R3– 5 dB 5 dB 7 dB 8 dB 9.5 dB

Stability, typical 0.005 dB/°C 0.005 dB/°C 0.005 dB/°C 0.01 dB/°C 0.015 dB/°C

Isolation

Over arbitrarily test ports -100 dB -100 dB -100 dB -100 dB -90 dB

Table 2-4 Front panel information

Description Supplemental information

RF connectors

Type Type-N, female, 50 Ω, nominal

Number of ports Option E5091A-007: 11 (4 interconnect ports, 7 test ports)

Option E5091A-009: 13 (4 interconnect ports, 9 test ports)

Control line 15 pin D-sub, female

Table 2-5 Rear panel information

Description Supplemental information

USB port Type B-receptacles, provide connection to the E5070B/E5071B

Line power

1

Frequency 47 Hz to 63 Hz

Voltage 90 to 132 VAC, or 198 to 264 VAC (automatically switched)

VA max 70 VA max.

1

A third-wire ground is required.

For EMC, safety and environment information, refer to E5070B/E5071B section.

27

Table 2-6 Test set dimensions and block diagram

Description Supplemental information

Dimensions See figure 2-1 through figure 2-3.

Weight

Net 6 kg (option E5091A-007/009, nominal)

Block diagram See figure 2-4

Figure 2-1. Dimensions (front view, with option E5091A-009, in millimeters, nominal)

28

Figure 2-2. Dimensions (rear view, in millimeters, nominal)

Figure 2-3. Dimensions (side view, in millimeters, nominal)

29

Figure 2-4. Block diagram

30

Table 3-1 Corrected system performance with type-N 75 Ω device connectors, 85036E calibration kit

Network analyzer: E5070B/E5071B, calibration kit: 85036E (type-N 75 Ω), 50 Ω to 75 Ω adapters: 11852B, calibration: full 2-port

IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with < 1°C deviation from
calibration temperature, Isolation calibration not omitted

Description Supplemental information (dB, typical)

3 MHz to 3 GHz

Directivity 37

Source match 33

Load match 37

Reflection tracking ±0.017

Transmission tracking ±0.021

Transmission uncertainty 3 MHz to 3 GHz (supplemental information, typical)

Magnitude Phase

Reflection uncertainty 3 MHz to 3 GHz (supplemental information, typical)

Magnitude Phase

Corrected system performance for 75 Ω measurements with 11852B
50 Ω to 75 Ω minimum-loss pads (supplemental information)

31

Agilent Technologies’ Test and Measurement
Support, Services, and Assistance

Agilent Technologies aims to maximize the value
you receive, while minimizing your risk and prob­lems. We strive to ensure that you get the test
and measurement capabilities you paid for and
obtain the support you need. Our extensive sup­port resources and services can help you choose
the right Agilent products for your applications
and apply them successfully. Every instrument
and system we sell has a global warranty.
Support is available for at least five years beyond
the production life of the product. Two concepts
underlie Agilent’s overall support policy: “Our
Promise” and “Your Advantage.”

Our Promise

Our Promise means your Agilent test and meas­urement equipment will meet its advertised per­formance and functionality. When you are
choosing new equipment, we will help you with
product information, including realistic perform­ance specifications and practical recommenda­tions from experienced test engineers. When
you use Agilent equipment, we can verify
that it works properly, help with product opera­tion, and provide basic measurement assistance
for the use of specified capabilities, at no extra
cost upon request. Many self-help tools are available.

Your Advantage

Your Advantage means that Agilent offers
a wide range of additional expert test and
measurement services, which you can purchase
according to your unique technical and business
needs. Solve problems efficiently and gain a
competitive edge by contracting with us for
calibration, extra-cost upgrades, out-of-warranty
repairs, and onsite education and training, as well
as design, system integration, project management,
and other professional engineering services.
Experienced Agilent engineers and technicians
worldwide can help you maximize your productivity,
optimize the return on investment of your Agilent
instruments and systems, and obtain dependable
measurement accuracy for the life of those products.

www.agilent.com/find/emailupdates

Get the latest information on the products and
applications you select.

Agilent T&M Software and Connectivity

Agilent’s Test and Measurement software and
connectivity products, solutions and developer
network allows you to take time out of connect­ing your instruments to your computer with tools
based on PC standards, so you can focus on your
tasks, not on your connections. Visit

www.agilent.com/find/connectivity

for more information.

By internet, phone, or fax, get assistance with
all your test & measurement needs

Phone or Fax

United States:

(tel) 800 829 4444

Canada:

(tel) 877 894 4414
(fax) 905 282 6495

China:

(tel) 800 810 0189
(fax) 800 820 2816

Europe:

(tel) (31 20) 547 2323
(fax) (31 20) 547 2390

Japan:

(tel) (81) 426 56 7832
(fax) (81) 426 56 7840

Korea:

(tel) (82 2) 2004 5004
(fax) (82 2) 2004 5115

Latin America:

(tel) [phone]
(fax) [phone]

Taiwan:
(tel) 0800 047 866
(fax) 0800 286 331

Other Asia Pacific Countries:

(tel) (65) 6375 8100
(fax) (65) 6836 0252
Email: [e-mail]

Online Assistance:

ww.agilent.com/find/assist

Product specifications and descriptions in this
document subject to change without notice.

© Agilent Technologies, Inc. 2002, 2004
Printed in USA April 29, 2004

5988-3780EN

Microsoft, Windows and Visual Basic are U.S.
registered trademarks of Microsoft Corporation.

Agilent Email Updates
