Agilent
ENA-L RF Network Analyzers
E5061A, 300 kHz to 1.5 GHz
E5062A, 300 kHz to 3 GHz
Data Sheet
2
All specifications apply over a 5°C to 40°C range (unless otherwise stated)
and 90 minutes after the instrument has been turned on.
Specification (spec.):
Warranted performance. Specifications include guardbands to account for
the expected statistical performance distribution, measurement uncertainties,
and changes in performance due to environmental conditions.
Supplemental information is intended to provide information that is helpful
for using the instrument but that is not guaranteed by the product warranty.
This information is denoted as either typical or nominal.
Typical (typ.):
Expected performance of an average unit that does not include guardbands.
It is not guaranteed by the product warranty.
Nominal (nom.):
A general, descriptive term that does not imply a level of performance.
It is not guaranteed by the product warranty.
Definitions
3
Corrected system performance
The specifications in this section apply for measurements made with the
Agilent E5061A/E5062A network analyzer with the following conditions:
• No averaging applied to data
• Environmental temperature of 23°C ± 5°C, with less than 1°C deviation
from the calibration temperature
• Response and isolation calibration not omitted
Table 1-1 System dynamic range
1
Description Specification Supplemental information
System dynamic range
300 kHz to 3 GHz, IF bandwidth = 3 kHz 90 dB 95 dB
300 kHz to 3 GHz, IF bandwidth = 10 Hz 115 dB 120 dB
1. The test port dynamic range is calculated as the difference between the test port rms noise floor
and the source maximum output power. The effective dynamic range must take measurement
uncertainty and interfering signals into account.
4
Table 1-2 Corrected system performance with Type-N device connectors,
85032F calibration kit
Network analyzer: E5061A/E5062A, calibration kit: 85032F (Type-N, 50 Ω), calibration: full 2-port
IF bandwidth = 10 Hz, No averaging applied to data, environmental temperature = 23°C ±5°C
with < 1°C deviation from calibration temperature, isolation calibration not omitted
Description Specification (dB)
300 kHz to 1.5 GHz 1.5 GHz to 3 GHz
Directivity 49 46
Source match 41 40
Load match 49 46
Reflection tracking ±0.011 ±0.021
Transmission tracking ±0.015 ±0.018
Transmission uncertainty (specification)
Magnitude Phase
Reflection uncertainty (specification)
Magnitude Phase
5
Table 1-3 Corrected system performance with Type-N device connectors,
85032F calibration kit, enhanced response calibration
Network analyzer: E5061A/E5062A, calibration kit: 85032F (Type-N, 50 Ω) calibration: enhanced
response
IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with
< 1°C deviation from calibration temperature, isolation calibration not omitted
Description Specification (dB)
300 kHz to 1.5 GHz 1.5 GHz to 3 GHz
Directivity 49 46
Source match 41 40
Load match 15 15
Reflection tracking ±0.011 ±0.021
Transmission tracking ±0.015 ±0.018
Transmission uncertainty (specification)
Magnitude Phase
Reflection uncertainty (specification)
Magnitude Phase
6
Table 1-4 Corrected system performance with Type-N 75 Ω device
connectors 85036E calibration kit, full 2-port calibration
Network analyzer: E5061A/E5062A, calibration kit: 85036E (Type-N, 75 Ω), calibration: full 2-port
IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with
< 1°C deviation from calibration temperature, isolation calibration not omitted
Description Specification (dB)
300 kHz to 1.5 GHz 1.5 GHz to 3 GHz
Directivity 48 44
Source match 41 35
Load match 48 44
Reflection tracking ±0.010 ±0.019
Transmission tracking ±0.015 ±0.029
Transmission uncertainty (specification)
Magnitude Phase
Reflection uncertainty (specification)
Magnitude Phase
7
Table 1-5 Corrected system performance with Type-N 75 Ω device
connectors 85036E calibration kit, enhanced response calibration
Network analyzer: E5061A/E5062A, calibration kit 85036E (Type-N, 75 Ω), calibration: enhanced response
IF bandwidth = 10 Hz, no averaging applied to data, environmental temperature = 23°C ± 5°C with
< 1°C deviation from calibration temperature, isolation calibration not omitted
Description Specification (dB)
300 kHz to 1.5 GHz 1.5 GHz to 3 GHz
Directivity 48 44
Source match 41 35
Load match 15 15
Reflection tracking ±0.010 ±0.019
Transmission tracking ±0.015 ±0.029
Transmission uncertainty (specification)
Magnitude Phase
Reflection uncertainty (specification)
Magnitude Phase
8
Table 1-6 Uncorrected system performance
(correction: off, 23°C ± 5°C)
Description Specification
300 kHz to 3 GHz
Directivity 25 dB
Source match 25 dB
Load match 15 dB
Transmission tracking ±1.0 dB
Reflection tracking ±1.0 dB
Table 1-7 Test port output frequency
Description Specification Supplemental information
Range
E5061A 300 kHz to 1.5 GHz
E5062A 300 kHz to 3 GHz
Resolution 1 Hz
Source stability
E5061A/E5062A ±5 ppm (5°C to 40°C, typical)
CW accuracy
E5061A/E5062A ±5 ppm, 23°C ± 5°C
Uncorrected system performance
Test port output (source)
9
Table 1-9 Test port output signal purity
Description Specification Supplemental information
Harmonics (2nd or 3rd)
10 MHz to 2 GHz < -25 dBc (at 5 dBm, typical)
Non-harmonic spurious
10 MHz to 3 GHz < -30 dBc (at 5 dBm, typical)
Test port output (source)
Table 1-8 Test port output power
Description Specification Supplemental information
Level accuracy (at 23°C ±5°C)
1
300 kHz to 3 GHz ±0.8 dB (at 0 dBm, 50 MHz absolute)
±1.0 dB (at 0 dBm, relative
to 50 MHz reference)
Level linearity (at 23°C ±5°C)
300 kHz to 3 GHz ±0.75 dB (at -5 dBm to 10 dBm)
Range (standard)
300 kHz to 3 GHz -5 dBm to 10 dBm
Range (extended power)
300 kHz to 3 GHz -45 dBm to 10 dBm (non-harmonics spurious may limit power range)
Sweep range (without extended power range)
300 kHz to 3 GHz -5 dBm to 10 dBm
Level resolution 0.05 dB
Test port output (source)
1. Level accuracy for 75Ω analyzers is not a specification for frequencies >2 GHz; it is a characteristic.
10
Table 1-10 Test port input levels
Description Specification Supplemental information
Maximum test port input level
300 kHz to 3 GHz +10 dBm
Damage level
300 kHz to 3 GHz +20 dBm, ±30 VDC, typical
Crosstalk
1
300 kHz to 3 GHz -110 dB
Table 1-11 Test port input (trace noise2)
Description Specification Supplemental information
Trace noise magnitude
300 kHz to 1 MHz 8 mdB rms (23°C ±5°C)
(source power level = +10 dBm)
1 MHz to 3 GHz 5 mdB rms (23°C ±5°C)
(source power level = +10 dBm)
Trace noise phase
300 kHz to 1 MHz 0.05° rms (23°C ±5°C)
(source power level = +10 dBm)
1 MHz to 3 GHz 0.03° rms (23°C ±5°C)
(source power level = +10 dBm)
Test port input
1. Response calibration not omitted.
2. Trace noise is defined as a ratio measurement of a through, at IF bandwidth = 3 kHz.
3. Stability is defined as a ratio measurement at the test port.
Table 1-12 Test port input (stability3)
Description Specification Supplemental information
Stability magnitude
3 MHz to 3 GHz 0.01 dB/°C
(at 23°C ±5°C, typical)
Stability phase
3 MHz to 3 GHz 0.1°/°C
(at 23°C ±5°C, typical)
11
Table 1-13 Test port input (dynamic accuracy)
Accuracy of the test port input power reading is relative to -10 dBm reference input power level.
Specification Supplemental information
Magnitude Phase
12
Table 1-14 Test port input (group delay1)
Description Specification Supplemental information
Aperture (selectable) (frequency span)/(number of points -1)
Maximum aperture 25% of frequency span
Minimum delay Limited to measuring no more than
180° of phase change within the minimum aperture.
Accuracy See graph below, typical
The following graph shows group delay accuracy with Type-N full 2-port calibration and a 10 Hz IF bandwidth. Insertion loss is assumed to be < 2 dB.
Group delay (typical)
In general, the following formula can be used to determine the accuracy, in seconds, of specific group delay measurement:
± phase accuracy (deg)/[360 x aperture (Hz)]
1. Group delay is computed by measuring the phase change within a specified step (determined by the
frequency span and the number of points per sweep).
13
Table 1-15 System bandwidths
Description Supplemental information
IF bandwidth settings
Range 10 Hz to 30 kHz
Nominal settings are:
10, 30, 100, 300, 1 k, 3 k, 10 k, 30 k
Table 1-16 Front panel information
Description Supplemental information
RF connectors
Type Type-N, female; 50 Ω or 75 Ω , nominal
Display
Size 10.4 in TFT color LCD
Resolution VGA (640 x 480)
General information
14
Table 1-17 Rear panel information
Description Supplemental information
External trigger connector
Type BNC, female
Input level LOW threshold voltage: 0.5 V
HIGH threshold voltage: 2.1 V
Input level range: 0 to +5 V
Pulse width ≥ 2 µsec, typical
Polarity Negative (downward) only
External reference signal input connector
Type BNC, female
Input frequency 10 MHz ±10 ppm, typical
Input level 0 dBm ±3 dB, typical
Internal reference signal output connector
Type BNC, female
Output frequency 10 MHz ±10 ppm, typical
Signal type Sine wave, typical
Output level 0 dBm ±3 dB into 50 Ω, typical
Output impedance 50 Ω, nominal
VGA video output 15-pin mini D-Sub; female; drives VGA compatible monitors
GPIB 24-pin D-Sub (type D-24), female; compatible with IEEE-488
Parallel port 36-pin D-Sub (type 1284-C), female; provides connection to printers, or multiport
test set
USB port Universal serial bus jack, type A configuration (4 contacts inline, contact 1 on left);
female; provides connection to printer, ECal module, USB/GPIB interface
Contact 1 Vcc: 4.75 to 5.25 VDC, 500 mA, maximum
Contact 2 -Data
Contact 3 +Data
Contact 4 Ground
LAN 10/100 BaseT Ethernet, 8-pin configuration; auto selects between the two data rates
Handler I/O port 36-pin D-sub, female; provides connection to handler system
Line power
1
Frequency 47 Hz to 63 Hz
Voltage 90 to 132 VAC, or 198 to 264 VAC (automatically switched)
VA max 350 VA max.
1. A third-wire ground is required.
15
Table 1-18 EMC and safety
Description Supplemental information
EMC
European Council Directive 89/336/EEC
EN / IEC 61326-1:1997+A1:1998
CISPR 11:1997+A1:1999 / EN 55011:1998+A1:1999 Group 1,
Class A
IEC 61000-4-2:1995 / EN 61000-4-2:1995+A1:1998
4 kV CD / 4 kV AD
IEC 61000-4-3:1995 / EN 61000-4-3:1996+A1:1998
3 V/m, 80-1000 MHz, 80% AM
IEC 61000-4-4:1995 / EN 61000-4-4:1995
1 kV power / 0.5 kV Signal
IEC 61000-4-5:1995 / EN 61000-4-5:1995
0.5 kV Normal / 1 kV Common
IEC 61000-4-6:1996 / EN 61000-4-6:1996
3 V, 0.15-80 MHz, 80% AM
IEC 61000-4-11:1994 / EN 61000-4-11:1994
100% 1cycle
Canada ICES001:1998
Note: The performance of EUT will be within the specification over the RF immunity tests
according to EN 61000-4-3 or EN 61000-4-6 except under the coincidence of measurement
frequency and interference frequency.
AS/NZS 2064.1/2 Group 1, Class A
Safety
European Council Directive 73/23/EEC
IEC 61010-1:1990+A1+A2 / EN 61010-1:1993+A2
INSTALLATION CATEGORY II, POLLUTION
DEGREE 2
INDOOR USE
IEC60825-1:1994 CLASS 1 LED PRODUCT
CAN/CSA C22.2 No. 1010.1-92
ISM 1-A
ISM 1-A
N10149
®
LR95111C
ICES/NMB-001
16

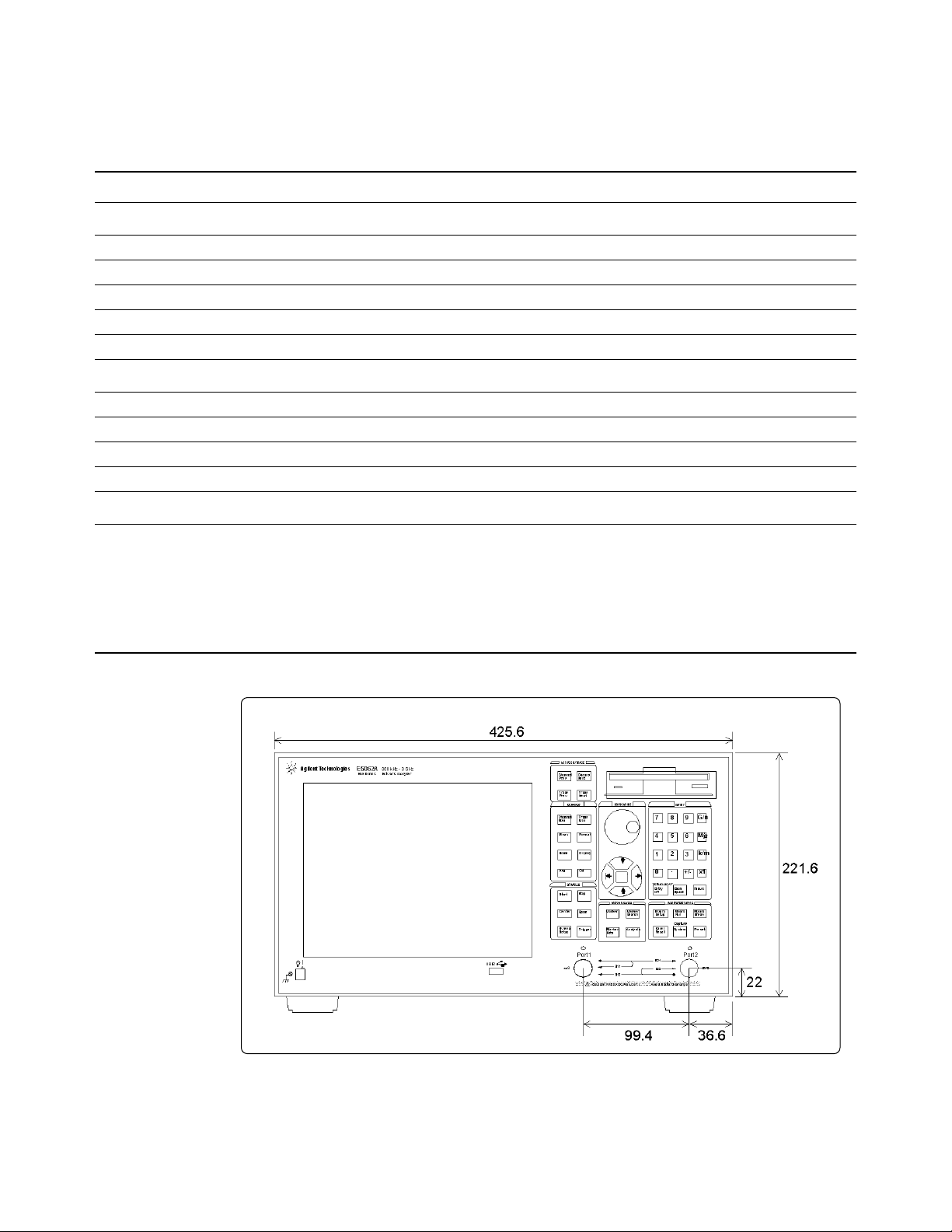

Table 1-19 Analyzer environment and dimensions
Description Supplemental information
Operating environment
Temperature +5°C to +40°C
Error-corrected temperature range 23°C ± 5°C with < 1°C deviation from calibration temperature
Humidity 20% to 80% at wet bulb temperature < +29°C (non-condensing)
Altitude 0 to 2,000 m (0 to 6,561 feet)
Vibration 0.5 G maximum, 5 Hz to 500 Hz
Non-operating storage environment
Temperature -10°C to +60°C
Humidity 20% to 90% at wet bulb temperature < 40°C (non-condensing)
Altitude 0 to 4,572 m (0 to 15,000 feet)
Vibration 0.5 G maximum, 5 Hz to 500 Hz
Dimensions See figure 1-1 through figure 1-3.
Weight 13.5 kg
Figure 1-1. Dimensions (front view, in millimeters, nominal)
17
Figure 1-2. Dimensions (rear view, in millimeters, nominal)
Figure 1-3. Dimensions (side view, in millimeters, nominal)
18
Table 1-20 Typical cycle time for measurement completion1(ms) (Display update: off)
Number of points
51 201 401 1601
Start 1 GHz, stop 1.2 GHz, 30 kHz IF bandwidth
Uncorrected 8 19 33 117
2-port cal 14 35 63 230
Start 300 kHz, stop 1.5 GHz, 30 kHz IF bandwidth
Uncorrected 15 25 39 123
2-port cal 27 48 75 243
Start 300 kHz, stop 3 GHz, 30 kHz IF bandwidth
Uncorrected 17 28 41 125
2-port cal 31 53 80 247
Measurement throughput summary
1. Typical performance.
Table 1-21 Typical cycle time for measurement completion1(ms) (Display update: on)
Number of points
51 201 401 1601
Start 1 GHz, stop 1.2 GHz, 30 kHz IF bandwidth
Uncorrected 59 68 83 172
2-port cal 85 103 131 304
Start 300 kHz, stop 1.5 GHz, 30 kHz IF bandwidth
Uncorrected 64 74 89 178
2-port cal 95 116 144 317
Start 300 kHz, stop 3 GHz, 30 kHz IF bandwidth
Uncorrected 66 78 91 180
2-port cal 98 121 148 322
19
Table 1-22 Data transfer time1(ms)
Number of points
51 201 401 1601
SCPI over GPIB
2
REAL 64 6 14 25 89
ASCII 51 193 383 1522
SCPI over 100 Mbps LAN (telnet)
2
REAL 64 3 3 4 6
ASCII 92 354 510 2040
SCPI over 100 Mbps LAN (SICL-LAN)
2
REAL 64 7 7 8 12
ASCII 9 21 34 127
COM (program executed in the analyzer)
2
Variant type 2 2 2 2
1. Typical performance.
2. Measured using a VEE 6.01 program running on a 500 MHz Pentium®III Dell Optiplex, Transferred
complex S
11
data, using :CALC:DATA?SDATA.
20
Measurement capabilities
Source control
Number of measurement channels Up to 4 independent measurement channels. A measurement channel is coupled
to stimulus response settings including frequency, IF bandwidth, power level,
and number of points.
Number of display windows Each measurement channel has a display window. Up to 4 display windows (channels)
can be displayed.
Number of traces 4 data traces and 4 memory traces per channel
Measurement choices Option E5061A/E5062A-150/175: S11, S
21
Option E5061A/E5062A-250/275: S11, S21, S12, S
22
Measurement parameter conversion Available to convert S-parameters into reflection impedance, transmission impedance,
reflection admittance, transmission admittance, and 1/S.
Data formats Log magnitude, linear magnitude, phase, expanded phase, positive phase,
group delay, SWR, real, imaginary, Smith chart, polar.
Data markers 10 independent markers per trace. Reference marker available
for delta marker operation. Smith chart format includes 5 marker formats:
linear magnitude/phase, log magnitude/phase, real/imaginary,
R + jX, and G + jB. Polar chart format includes 3 marker formats:
linear magnitude/phase, log magnitude/phase, and real/imaginary.
Marker functions
Marker search Max value, min value, multi-peak, multi-target, peak, peak left, peak right, target,
target left, target right, and width parameters with user-defined bandwidth values.
Marker-to functions Set start, stop, center to active marker stimulus value; set reference to active
marker response value; set electrical delay to group delay at active marker.
Search range User definable.
Tracking Performs marker search continuously or on demand.
Fault location functions (Option E5061A/E5062A-100)
Transformation to distance and time domain Selectable transformation type from bandpass, lowpass impulse, lowpass step.
Selectable window from maximum, normal and minimum.
Measured number of points per sweep User definable from 2 to 1601.
Sweep type Linear sweep, segment sweep, log sweep and power sweep.
Segment sweep Define independent sweep segments. Set number of points, test port power levels,
IF bandwidth, delay time, sweep time and sweep mode independently for each segment.
Sweep trigger Set to continuous, hold, or single, sweep with internal, external, manual,
or bus trigger.
Power Set source power from -5 dBm (-45 dBm for option E5061A/E5062A-1E1/250/275)
to 10 dBm. The power slope function compensates source power level error.
21
Trace functions
Data accuracy enhancement
Display data Display current measurement data, memory data,
or current measurement and memory data simultaneously.
Trace math Vector addition, subtraction, multiplication or division of
measured complex values and memory data.
Title Add custom title to each channel window. Titles are
printed on hardcopies of displayed measurements.
Autoscale Automatically selects scale resolution and reference value to
vertically center the trace.
Electrical delay Offset measured phase or group delay by a defined amount of
electrical delay, in seconds.
Phase offset Offset measured phase or group delay by a defined amount in degrees.
Statistics Calculates and displays mean, standard deviation and peak-to-peak
deviation of the data trace.
Measurement calibration Measurement calibration significantly reduces measurement
uncertainty due to errors caused by system directivity, source and
load match, tracking and crosstalk. Full 2-port calibration
removes all the systematic errors for the related test ports to obtain
the most accurate measurements.
Calibration types available
Response Simultaneous magnitude and phase correction of frequency response
errors for either reflection or transmission measurements.
Response and isolation Compensates for frequency response and crosstalk errors of
transmission measurements.
Enhanced response Compensates for frequency response and source match errors
One-port calibration Compensates for directivity, frequency response and source match errors.
Full 2-port calibration (Option E5061A/E5062A-250/275) Compensates for directivity, source match, reflection tracking, load match,
transmission tracking and crosstalk. Crosstalk calibration can be omitted.
Interpolated error correction With any type of accuracy enhancement applied, interpolated mode
recalculates the error coefficients when the test frequencies are changed.
The number of points can be increased or decreased and the start/stop
frequencies can be changed.
Velocity factor Enter the velocity factor to calculate the equivalent physical length.
Reference port extension Redefine the measurement plane from the plane where the calibration was done.
22
Storage
System capabilities
Internal hard disk drive Store and recall instrument states, calibration data, and trace data
on 10 GB, minimum, internal hard drive. Trace data can be saved in CSV
(comma separated value) format. All files are MS-DOS ®-compatible.
Instrument states include all control settings, limit lines, segment sweep
tables, and memory trace data.
File sharing Internal hard disk drive (D:) can be accessed from an external
Windows®PC through LAN.
Disk drive Instrument states, calibration data, and trace data can be stored on
an internal 3.5 inch 1.4 MB floppy disk in MS-DOS ®-compatible format.
Screen hardcopy Printouts of instrument data are directly produced on a printer. The analyzer
provides USB and parallel interfaces.
Familiar graphical user interface The ENA-L analyzer employs a graphical user interface based on
Windows®operating system. There are three ways to operate the instrument
manually: you can use a hardkey interface, touch screen interface (option
E5061A/E5062A-016) or a mouse interface.
Limit lines Define the test limit lines that appear on the display for pass/fail testing.
Defined limits may be any combination of horizontal/sloping lines and discrete
data points.
23
Automation
GPIB Internal
SCPI X X
COM X
Methods
Internal analyzer execution Applications can be developed in a built-in VBA® (Visual Basic for Applications)
language. Applications can be executed from within the analyzer via COM
(component object model) or using SCPI.
Controlling via GPIB The GPIB interface operates to IEEE 488.2 and SCPI protocols.
The analyzer can be controlled by a GPIB external controller. The analyzer can
control external devices using a USB/GPIB interface.
LAN
Standard conformity 10 BaseT or 100 BaseTX (automatically switched), Ethertwist,
RJ45 connector
Protocol TCP/IP
Function Telnet, SICL-LAN
Microsoft®, Windows®and Visual Basic®are U.S. registered trademarks
of Microsoft Corporation.
Pentium
®
is a US registered trademarks of Intel Corporation.
Agilent Technologies’ Test and Measurement Support,
Services, and Assistance
Agilent Technologies aims to maximize the value you
receive, while minimizing your risk and problems. We
strive to ensure that you get the test and measurement
capabilities you paid for and obtain the support you need.
Our extensive support resources and services can help
you choose the right Agilent products for your applications
and apply them successfully. Every instrument and system
we sell has a global warranty. Support is available for at
least five years beyond the production life of the product.
Two concepts underlie Agilent’s overall support policy:
“Our Promise” and “Your Advantage.”
Our Promise
Our Promise means your Agilent test and measurement
equipment will meet its advertised performance and
functionality. When you are choosing new equipment, we
will help you with product information, including realistic
performance specifications and practical recommendations
from experienced test engineers. When you use Agilent
equipment, we can verify that it works properly, help
with product operation, and provide basic measurement
assistance for the use of specified capabilities, at no extra
cost upon request. Many self-help tools are available.
Your Advantage
Your Advantage means that Agilent offers a wide range
of additional expert test and measurement services,
which you can purchase according to your unique technical
and business needs. Solve problems efficiently and gain a
competitive edge by contracting with us for calibration,
extra-cost upgrades, out-of-warranty repairs, and onsite
education and training, as well as design, system integration,
project management, and other professional engineering
services. Experienced Agilent engineers and technicians
worldwide can help you maximize your productivity, optimize
the return on investment of your Agilent instruments and
systems, and obtain dependable measurement accuracy
for the life of those products.
Agilent T&M Software and Connectivity
Agilent’s Test and Measurement software and connectivity
products, solutions and developer network allows you to
take time out of connecting your instruments to your
computer with tools based on PC standards, so you can
focus on your tasks, not on your connections. Visit
www.agilent.com/find/connectivity
for more information.
By internet, phone, or fax, get assistance with all your
test & measurement needs
Online Assistance:
www.agilent.com/find/assist
Product specifications and descriptions in this document
subject to change without notice.
© Agilent Technologies, Inc. 2003, 2004
Printed in USA, May 20, 2004
5989-0018EN
www.agilent.com/find/emailupdates
Get the latest information on the products
and applications you select.
Web Resources
For additional literature and product information
about the Agilent ENA-L visit:
www.agilent.com/find/ena
Phone or Fax
United States:
(tel) 800 829 4444
Canada:
(tel) 877 894 4414
(fax) 905 282 6495
China:
(tel) 800 810 0189
(fax) 800 820 2816
Europe:
(tel) (31 20) 547 2323
(fax) (31 20) 547 2390
Japan:
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Korea:
(tel) (82 2) 2004 5004
(fax) (82 2) 2004 5115
Latin America:
(tel) (305) 269 7500
(fax) (305) 269 7599
Taiwan:
(tel) 0800 047 866
(fax) 0800 286 331
Other Asia Pacific
Countries:
(tel) (65) 6375 8100
(fax) (65) 6836 0252
Email:
tm_asia@agilent.com
Agilent Email Updates
Loading...
