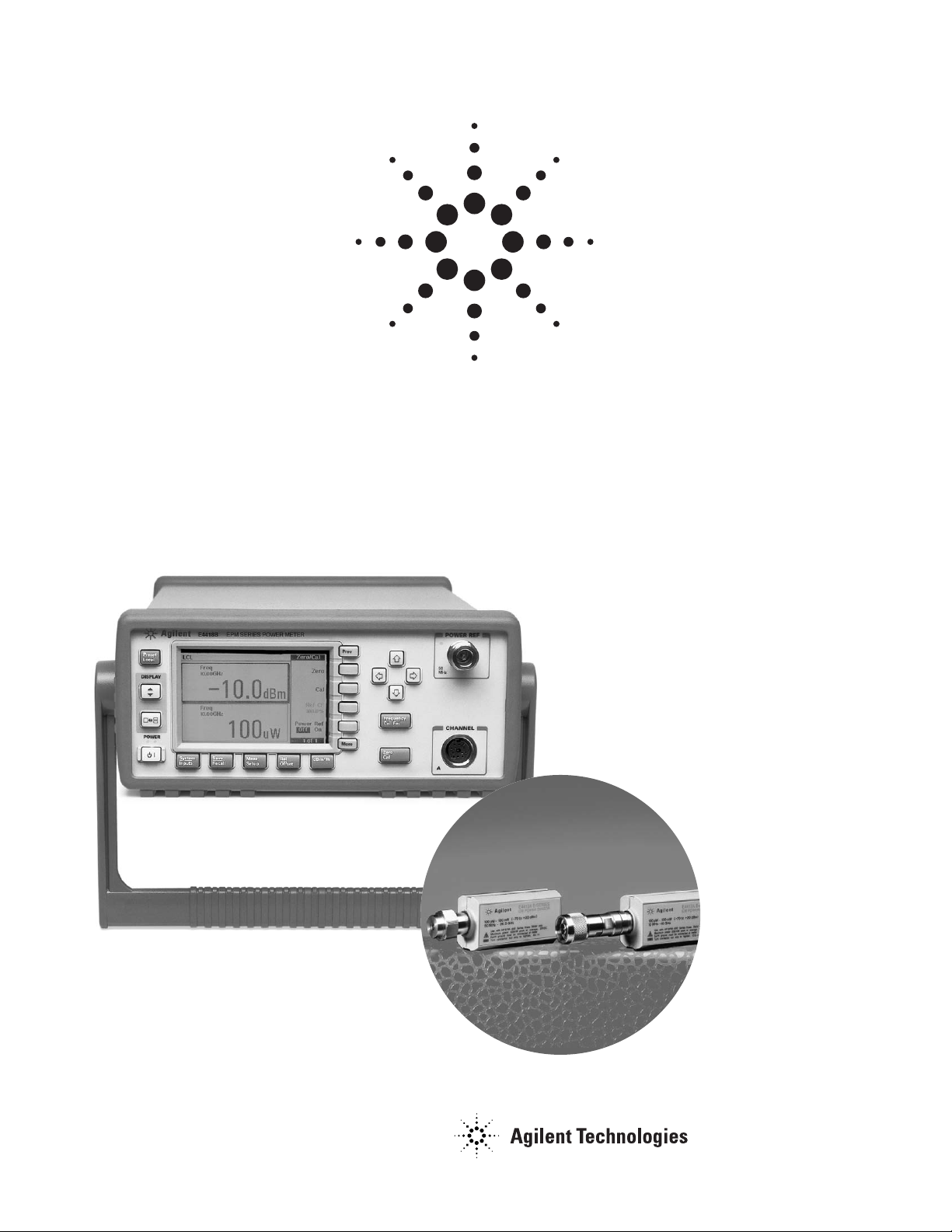

Agilent E4418B Data Sheet

Product specifications and
characteristics

Agilent
EPM Series Power Meters

E-Series and 8480 Series Power Sensors

Data Sheet

2

EPM series E4418B and E4419B power meters

Specifications

Specifications describe the instru­ment’s warranted performance and
apply after a 30 minute warm-up.
These specifications are valid over
its operating/environmental range
unless otherwise stated and after
performing a zero and calibration
procedure.

Supplemental
characteristics

Supplemental characteristics (shown
in italics) are intended to provide
additional information, useful in
applying the instrument by giving
typical (expected), but not warrant­ed performance parameters. These
characteristics are shown in italics
or labeled as “typical”, “nominal” or
“approximate”.

For information on measurement
uncertainty calculations, refer to
Application Note 64-1C, “Funda-

mentals of RF and Microwave
Power Measurements”, literature

number 5965-6380E.

Frequency range: 9 kHz to 110
GHz, sensor dependent

Power range: –70 dBm to +44 dBm
(100 pW to 25 W), sensor dependent.

Power sensors: Compatible with all
8480 series and E-series sensors

Single sensor dynamic range:

90 dB maximum (E-series sensors),
50 dB maximum ( 8480 series
sensors).

Display units:

Absolute: Watts or dBm.
Relative: Percent or dB.

Display resolution: Selectable
resolution of 1.0, 0.1, 0.01, and 0.001
dB in Log mode, or 1 to 4 digits in
linear mode.

Default resolution: 0.01 dB in log
mode, 3 digits in linear mode.

Accuracy

Instrumentation

Absolute: ±0.02 dB (log) or ±0.5%

(linear). Please add the correspond­ing power sensor linearity percent­age from tables 7 and 10 (for the
E-series sensors) and table 15 (for
the 8480 series sensors).

Relative: ±0.04 dB (Log) or ±1.0%
(linear). Please add the correspond­ing power sensor linearity percent­age from table 16 (for the 8480
series sensors).

Zero set (digital settability of zero):

sensor dependent (refer to
table 1). For E-series sensors, this
specification applies to a ZERO
performed when the sensor input is
not connected to the POWER REF.

Power reference

Power output: 1.00 mW (0.0 dBm).

Factory set to ±0.4% traceable to the
National Physical Laboratory (NPL),
UK

1

.

Accuracy: For two years:
±0.5% (23 ± 3°C)
±0.6% (25 ± 10°C)
±0.9% (0 to 55°C)

Frequency: 50 MHz nominal

SWR: 1.06 maximum

(1.08 maximum for Option 003)

Connector type: Type N (f), 50 Ω

Table 1
Model ZERO SET

8481A, 8482A, 8483A, 8485A, ±50 nW
8487A, R8486A, Q8486A,

8481B, 8482B ±50 µW

8481D, 8485D, 8487D ±20 pW

8481H, 8482H ±5 µW

R8486D, Q8486D ±30 pW

V8486A, W8486A ±200 nW

E4412A, E4413A ±50 pW

E9300A, E9301A,E9304A

2

±500 pW

E9300B, E9301B

2

±500 nW

E9300H, E9301H

2

±5 nW

1. National metrology institutes of member states
of the Metre Convention, such as the National
Institute of Standards and Technology in the
USA, are signatories to the ComitÈ International
des Poids et Mesures Mutual Recognition
Arrangement. Further information is available
from the Bureau International des Poids et
Mesures, at http://www.bipm.fr/

2. Specification applies to the low power path
15% to 75% relative humidity.

3

Supplemental characteristics

Power reference

Frequency: 50 MHz nominal.
SWR: 1.05 maximum.
Connector: Type N (f), 50 Ω.

Measurement speed

Three measurement speed modes,
over the GPIB, are available as
shown, along with the typical maxi­mum measurement speed for each
mode.

With the E4418B power meter

Normal: 20 readings/second
x2: 40 readings/second
Fast: 200 readings/second

With the E4419B, the measurement
speed is reduced, for example, with
both channels in FAST mode, the
typical maximum measurement
speed is 100 readings/second.

Fast mode is for E-series sensors
only.

Maximum measurement speed is
obtained using binary output
and in free run trigger mode.

Zero drift of sensors: Sensor depen­dent, refer to table 2. For E9300
sensors, refer to table 12 for
complete data.

Measurement noise: Sensor depen­dent, refer to table 2 and table 3. For
E9300 sensors, refer to table 12.

Effects of averaging on noise: Averaging
over 1 to 1024 readings is available
for reducing noise. Table 2 provides
the measurement noise for a particu­lar sensor with the number of
averages set at 16 (for normal mode)
and 32 (for x2 mode). Use the noise
multiplier, for the appropriate mode
(normal or x2) and number of
averages, to determine the total mea­surement noise value.

Example:

8481D power sensor, normal mode,
number of averages = 4.

Measurement noise calculation:

(< 45 pW x 2.75) = < 121 pW.

Table 2
Model Zero drift

1

Measurement noise

2

8481A, 8482A, 8483A, 8485A, < ±10 nW < 110 nW
8487A, R8486A, Q8486A

8481B, 8482B < ±10 µW < 110 µW

8481D, 8485D, 8487D < ±4 pW < 45 pW

8481H, 8482H < ±1µW < 10 µW

R8486D, Q8486D < ±6 pW < 65 pW

V8486A, W8486A < ±40 nW < 450 nW

E4412A, E4413A < ±15 pW < 70 pW

E9300A, E9301A, E9304A

3

< ±150 pW < 700 pW

E9300B, E9301B

3

< ±150 nW < 700 nW

E9300H, E9301H

3

< ±1.5 nW < 7 nW

1. Within 1 hour after zero set, at a constant temperature, after a 24-hour warm-up of the power
meter.

2. The number of averages at 16 for normal mode and 32 for x2 mode, at a constant temperature,
measured over a one minute interval and two standard deviations. For E-series sensors, the
measurement noise is measured within the low range. Refer to the relevant sensor manual for
further information.

3. Specification applies to the low power path, 15% to 75% relative humidity.

Table 3
Number of averages 1 2 4 8 16 32 64 128 256 512 1024

Noise multiplier 5.5 3.89 2.75 1.94 1 0.85 0.61 0.49 0.34 0.24 0.17
(normal mode)
Noise multiplier 6.5 4.6 3.25 2.3 1.63 1 0.72 0.57 0.41 0.29 0.2
(x2 mode)

4

For E-series sensors:

In FAST mode (using free run
trigger), within the range –50 dBm
to +17 dBm, for a 10 dB decreasing
power step, the settling time is:

E4418B: 10 ms

2

E4419B: 20 ms

2

EPM series E4418B and E4419B power meters

Settling time

1

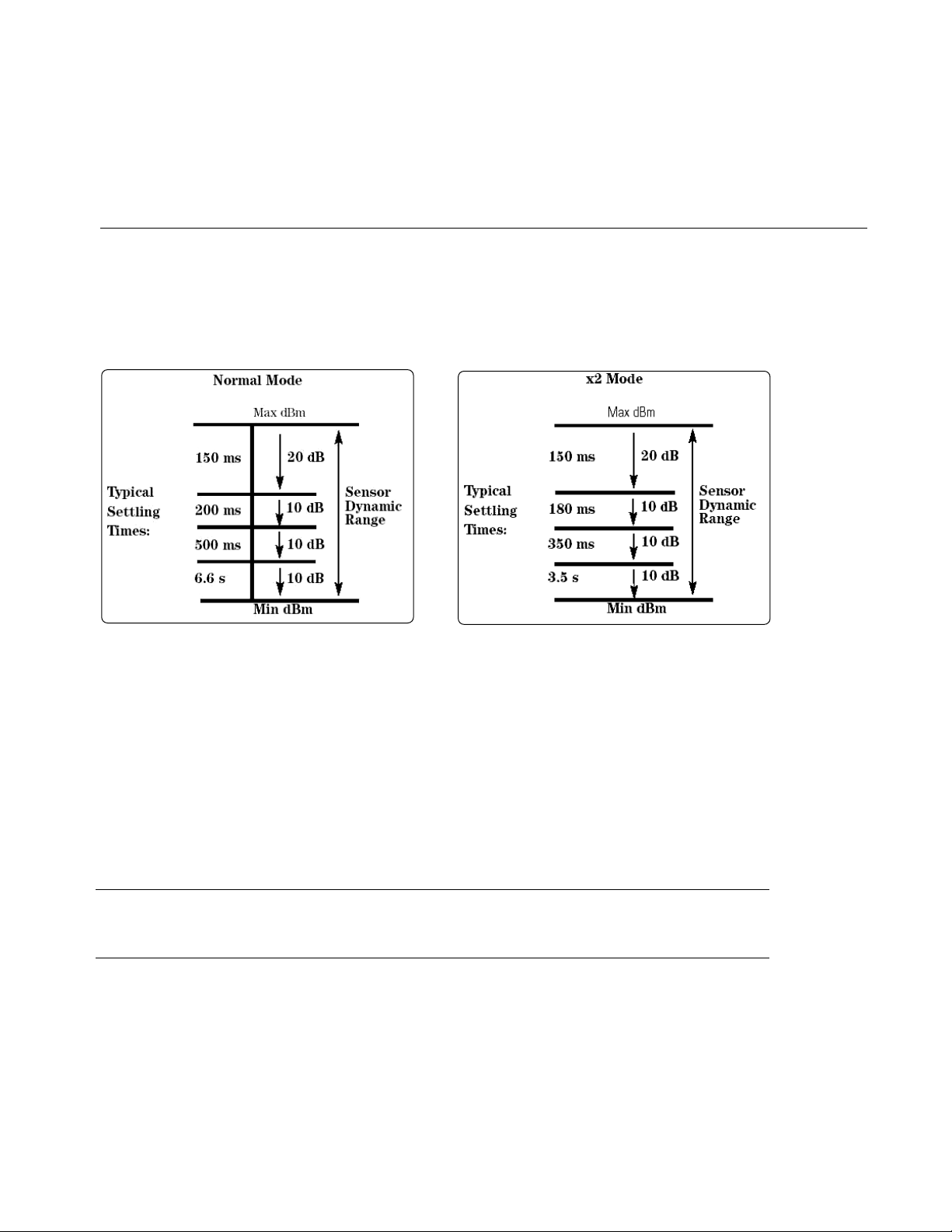

For 8480 series sensors:

Manual filter, 10 dB decreasing power step.

Table 4
Number of 1 2 4 8 16 32 64 128 256 512 1024
averages

Settling time(s) 0.15 0.2 0.3 0.5 1.1 1.9 3.4 6.6 13 27 57
(normal mode)
Settling time(s) 0.15 0.18 0.22 0.35 0.55 1.1 1.9 3.5 6.9 14.5 33
x2 modes):

Auto filter, default resolution, 10 dB decreasing power step (normal and x2 modes):

Table 5. Manual filter, 10 dB decreasing power step (not across the range switch point)

Number of 1 2 4 8 16 32 64 128 256 512 1024
averages

Settling time(s) 0.07 0.12 0.21 0.4 1 1.8 3.3 6.5 13 27 57
(Normal mode)
Settling time(s) 0.04 0.07 0.12 0.21 0.4 1 1.8 3.4 6.8 14.2 32

1. Settling time: 0 to 99% settled readings over the GPIB

2. When a power step crosses through the sensor’s auto-range switch point, add 25 mS. Refer to the relevant sensor manual for switch
point information.

5

For E4412A and E4413A sensors

Auto filter, default resolution, 10 dB
decreasing power step (not across the
range switch point)

For E-series E9300A sensors

For E-series E9300B and
H sensors

6

Power meter functions

Accessed by key entry: either hardkeys,

or softkey menu, and programmable.

Zero: Zeros the meter. (Power refer­ence calibrator is switched off
during zeroing.)

Cal: Calibrates the meter using
internal (power reference calibrator)
or external source. Reference cal
factor settable from 1% to 150%, in

0.1% increments.

Frequency: Entered frequency range
is used to interpolate the calibration
factors table.

Range: 1 kHz to 999.9 GHz, settable
in 1 kHz steps.

Cal factor: Sets the calibration
Factor for the meter. Range: 1% to
150%, in 0.1% increments.

Relative: Displays all successive
measurements relative to the last
displayed value.

Offset: Allows power measurements
to be offset by –100 dB to +100 dB,
settable in 0.001dB increments, to
compensate for external loss or gain.

Save/recall: Store up to 10 instru­ment states via the save/recall
menu.

dBm/W: Selectable units of either
Watts or dBm in absolute power;
or percent or dB for relative
measurements.

Filter (averaging): Selectable from
1 to 1024. Auto-averaging provides
automatic noise compensation.

Duty cycle: Duty cycle valuesbetween

0.001% to 99.999%, in 0.001% incre­ments, can be entered to display
a peak power representation of
measured power. The following
equation is used to calculate the
displayed peak power value: peak
power = measured power/dutycycle.

Sensor cal tables: Selects cal factor
versus frequency tables correspond­ing to specified sensors ( 8480 series
only).

Limits: High and low limits can be set
in the range –150.000 dBm to
+230.000 dBm, in 0.001 dBm
increments.

Preset default values: dBm mode,
rel off, power reference off, duty
cycle off, offset off, frequency
50 MHz, AUTO average, free run,
AUTO range (for E-series sensors).

Display: Selectable single and split
screen formats are available. A
quasi-analog display is available for
peaking measurements. The dual
channel power meter can simultane­ously display any two configurations
of A, B, A/B, B/A, A-B, B-A and
relative.

General characteristics

Rear panel connectors

Recorder outputs: Analog 0 to

1 Volt, 1 kΩ output impedance, BNC
connector. E4419B recorder outputs
are dedicated to channel A and
channel B.

Remote input/output: A TTL logic
level is output when the measure­ment exceeds a predetermined limit.
TTL inputs are provided to initiate
zero and calibration cycles. RJ-45
series shielded modular jack assem­bly connector. TTL Output: high
=4.8V max; low = 0.2V max TTL

Input: high = 3.5V min, 5V max;
low = 1V max, -0.3V min.

GPIB: Allows communication with an
external controller.

RS-232/442: Allows communication
with an external RS-232 or RS-422
controller. Male/plug 9 position
D-subminiature connector

Ground: Binding post, accepts 4 mm
plug or bare-wire connection.

Line power

Input voltage range: 85 to 264 VAC,

automatic selection.

Input frequency range: 50 to 440 Hz.

Power requirement: approximately 50

VA (14 Watts) for E4418B and
E4419B.

7

Battery Option 001 operational
characteristics

1

The following information describes
characteristic performance based at
a temperature of 25°C unless other­wise noted.

Typical operating time: up to 3.5
hours with LED backlight on; up to

5.5 hours with LED backlight off
(E4418B power meter).

Charge time: 2 hours to charge fully
from an empty state; 50 minutes
charging enables 1 hour of operation
with LED backlight on; 35 minutes
charging enables 1hr operation with
LED backlight off. Power meter is
operational whilst charging.

Service life: (to 70% of initial
capacity at 25°C): 450 charge/
discharge cycles

Chemistry: nickel metal hydride

Weight: 1kg

Environmental characteristics

General conditions: Complies with

the requirements of the EMC
Directive 89/336/EEC. This includes
Generic Immunity Standard EN
50082-1: 1992 and Radiated
Interference Standard EN 55011:
1991/CISPR11:1990, Group 1 ­Class A.

Operating environment

Temperature: 0°C to 55°C.
Maximum humidity: 95% at 40°C

(non-condensing).
Minimum humidity: 15% at 40°C
(non-condensing).
Maximum altitude: 3000 meters
(9840 feet).

Storage conditions

Storage temperature:

–20°C to +70°C.

Non-operating maximum humidity:

90% at 65°C (non-condensing).

Non-operating maximum altitude:

15240 meters (50,000 feet).

General

Dimensions: The following dimensions

exclude front and rear protrusions.

212.6 mm W x 88.5 mm H x 348.3 mm D
(8.5 in x 3.5 in x 13.7 in)

Weight

Net: E4418B: 4.0 kg (8.8 lb).

E4419B: 4.1 kg (9.0 lb).

Shipping:

E4418B: 7.9 kg (17.4 lb).
E4419B: 8.0 kg (17.6 lb).

Remote programming

Interface: GBIB interface operates

to IEEE 488.2. RS-232 and RS-422
serial interface supplied as standard.

Command language: SCPI standard
interface commands. 436A and 437B
code compatible (E4418B only);
438A code compatible (E4419B
only).

GPIB compatibility: SH1, AH1, T6,
TE0, L4, LE0, SR1, RL1, PP1, DC1,
DT1, C0.

Non-volatile memory

Battery: Lithium polycarbon

Monoflouride, approximate lifetime
5 years at 25°C.

Safety

Conforms to the following product
specifications:
EN61010-1: 1993/IEC 1010-1: 1990
+A1/CSA C22.2 No. 1010-1: 1993
EN60825-1: 1994/IEC 825-1: 1993
Class 1 Low Voltage Directive
72/23/EEC

Accessories supplied

Power sensor cable

11730A: E4418B has one

1.5 meter (5 ft) sensor cable.
E4419B has two 1.5 meter (5 ft)
sensor cables.
Power cord: One 2.4 meter
(7.5 ft) cable. Power plug matches
destination requirements.

1. Characteristics describe product performance
that is useful in the application of the product,
but is not covered by the product warranty.

8

EPM series power meters

E4418B: Single channel EPM series

power meter

E4419B: Dual channel EPM series
power meter

Options available

Power

Option E441xB-001: Mains power and

internal rechargeable battery

Connectors

Option E441xB-002: Parallel rear panel

sensor input connector(s) and front
panel reference calibrator connector
Option E441xB-003: Parallel rear
panel sensor input connectors and
rear panel reference calibrator con­nector

Calibration documentation

Option E441xB-A6J: ANSI Z540 compli-

ant calibration test data including
measurement uncertainties
Option E441xB-1A7: ISO17025 compli­ant calibration test data including
measurement uncertainties

Documentation

A hard copy and CD version of the
English language User’s Guide and
Programming Guide is provided with
the EPM power meter as standard. A
selection can be made to delete the
hard copy

Option E441xB-OBO: Delete manual set

Additional documentation

Selections can be made for the local­ization of the User’s Guide, and an
English language Service Manual

Option E441xB-915: English language
Service Manual
Option E441xB-916: English language
manual set (hard copy Users Guide
and Programming Guide)
Option E441xB-ABD: German localiza­tion (hard copy Users Guide and
English Programming Guide)
Option E441xB-ABE: Spanish localiza­tion (hard copy Users Guide and
English Programming Guide)
Option E441xB-ABF: French localiza­tion (hard copy Users Guide and
English Programming Guide)
Option E441xB-ABJ: Japanese localiza­tion (hard copy Users Guide and
English Programming Guide)

Cables

Option E441xB-004: Delete power

sensor cable

Additional cables

11730A: Power sensor and SNS noise

source cable, length 1.5 meters (5 ft)
11730B: Power sensor and SNS noise
source cable, length 3 meters (10 ft)
11730C: Power sensor and SNS noise
source cable, length 6.1 meters (20 ft)
11730D: Power sensor cable, length

15.2 meters (50 ft)
11730E: Power sensor cable, length

30.5 meters (100 ft)
11730F: Power sensor cable, length 61
meters (200 ft)

Accessories

Option E441xB-908: Rackmount kit

(one instrument)
Option E441xB-909: Rackmount kit
(two instruments)
34131A: Transit case for half-rack 2U
high instruments
34141A: Yellow soft carry/
operating case

34161A: Accessory pouch
E9287A

1

: Spare battery pack for the

EPM power meter

Complementary equipment

11683A: Range calibrator

Verifies the accuracy and linearity of
the EPM series power meters.
Outputs corresponding to meter
readings of 3, 10, 30, 100 and 300
µW and 1, 3, 10, 30 and 100 mW are
provided. Calibration uncertainty is
±0.25% on all ranges.

Service options

Warranty

Included with each EPM series
power meter

2

is a standard 12
month return to Agilent warranty
and service plan. For warranty and
service of 5 years, please order 60
months of R-51B.

R-51B: Return-to-Agilent warranty
and service plan

Calibration

3

For 3 years, order 36 months of the
appropriate calibration plan shown
below. For 5 years, specify 60 months.

R-50C-001: Standard calibration plan
R-50C-002: Standard compliant

calibration plan

The E-series and 8480 series power
sensors have a 12 months return to
Agilent warranty and service plan.
For more information, contact your
local sales and service office.

1. Only for EPM series power meter with Option
E441XB-001 installed.

2. For Option E441XB-001, the 36 month warranty
does not apply to the E9287A battery pack.

3. Options not available in all countries.

9

E-series power sensor
specifications

The E-series of power sensors have
their calibration factors stored in
EEPROM and operate over a wide
dynamic range. They are designed
for use with the EPM series of power
meters and two classes of sensors
are available:

• CW power sensors (E4412A and
E4413A).

• Average power sensors (E9300
sensors).

Power linearity

Table 7
Power Temperature (25ºC ±5ºC) Temperature (0º to 55ºC)

100 pW to 10 mW ±3 % ±7 %
(-70 dBm to +10 dBm)
10 mW to 100 mW ±4.5% ±10%
(+10 dBm to +20 dBm)

E-series CW power sensor specifications

Wide dynamic range CW sensors: 100 pW to 100 mW (-70 dBm to +20 dBm)

Table 6
Model Frequency range Maximum SWR Maximum power Connector type

E4412A 10 MHz – 18 GHz *10 MHz to 30 MHz: 1.12 200 mW (+23 dBm) Type-N (m)

30 MHz to 2 Ghz:1.15
2 GHz to 6 Ghz:1.17
6 GHz to 11 Ghz:1.2
11 GHz to 18 Ghz:1.27

E4413A 50 MHz – 26.5 GHz 50 MHz to 100 MHz: 1.21 200 mW (+23 dBm) APC-3.5mm (m)

100 MHz to 8 Ghz:1.19
8 GHz to 18 Ghz:1.21
18 GHz to 26.5 Ghz:1.26

* Applies to sensors with serial prefix US 3848 or greater

Figure 1 : Relative mode power measurement
linearity with EPM series power meter/E-series
CW power sensor at 25°C ± 5°C (typical)

10

The chart in figure 1 shows the typi­cal uncertainty in making a relative
power measurement, using the same
power meter channel and the same
power sensor to obtain the reference
and the measured values. Example A
illustrates a relative gain (amplifier
measurement). Example B illustrates
a relative loss (insertion loss mea­surement). This chart assumes negli­gible change in frequency and mis­match occur when transitioning
from the power level used as the
reference to the power level being
measured.

Example A:

P = 10(P)/10 x 1 mW
P = 10 6/10 x 1 mW
P = 3.98 mW
3% x 3.98 mW = 119.4 µW
(where P = power in Watts,
and (P) = power in dBm)

Example B:

P = 10 (P)/10 x1 mW
P = 10 -35/10 x 1 mW
P = 316 nW
3% x 316 nW = 9.48 nW

General

Dimensions:

E4412A:

130 mm L x 38 mm W x 30 mm H
(5.1 in x 1.5 in x 1.2 in)

E4413A:

102 mm L x 38 mm W x 30 mm H
(4 in x 1.5 in x 1.2 in)

Weight:

E4412A: 0.18 kg (0.4 lb).
E4413A: 0.18 kg (0.4 lb).

Calibration factor (CF) and
reflection coefficient (Rho)

Calibration factor and reflection
coefficient data are provided at
1 GHz increments on a data sheet
included with the power sensor. This
data is unique to each sensor. If you
have more than one sensor,match
the serial number on the data sheet
with the serial number on the power
sensor you are using. The CF cor­rects for the frequency response of
the sensor. The EPM power meter
automatically reads the CF data
stored in the sensor and uses it to
make the corrections. For power lev­els greater than 0 dBm, add 0.5%/dB
to the calibration factor uncertainty
specification.

Reflection coefficient (Rho) relates
to the SWR according to the follow­ing formula: SWR = 1 + Rho/1 - Rho

Maximum uncertainties of the CF
data are listed in table 8a, for the
E4412A power sensor, and table 8b
for the E4413A power sensor. The
uncertainty analysis for the calibra­tion of the sensors was done in
accordance with the ISO/TAG4
Guide. The uncertainty data report­ed on the calibration certificate is
the expanded uncertainty with a
95% confidence level and a coverage
factor of 2.

Table 8a. E4412A calibration factor uncertainty
at 1 mW (0 dBm)

Frequency Uncertainty (%)

10 MHz 1.8
30 MHz 1.8
50 MHz Reference
100 MHz 1.8

1.0 GHz 1.8

2.0 GHz 2.4

4.0 GHz 2.4

6.0 GHz 2.4

8.0 GHz 2.4

10.0 GHz 2.4

11.0 GHz 2.4

12.0 GHz 2.4

14.0 GHz 2.4

16.0 GHz 2.6

18.0 GHz 2.6

Table 8b. E4413A calibration factor uncertainty
at 1 mW (0 dBm)

Frequency Uncertainty (%)

50 MHz Reference
100 MHz 1.8

1.0 GHz 1.8

2.0 GHz 2.4

4.0 GHz 2.4

6.0 GHz 2.4

8.0 GHz 2.4

10.0 GHz 2.6

11.0 GHz 2.6

12.0 GHz 2.8

14.0 GHz 2.8

16.0 GHz 2.8

17.0 GHz 2.8

18.0 GHz 2.8

20.0 GHz 3

22.0 GHz 3

24.0 GHz 3

26.0 GHz 3

28.0 GHz 3

11

E-series E9300
average power sensor
specifications

The E-series E9300 wide dynamic
range, average power sensors are
designed for use with the EPM fami­ly of power meters. These specifica­tions are valid ONLY after proper
calibration of the power meter and
apply for CW signals unless other­wise stated.

Specifications apply over the tem­perature range 0°C to 55°C unless
otherwise stated, and specifications
quoted over the temperature range
25°C ±10°C, conform to the stan­dard environmental test conditions
as defined in TIA/EIA/ IS-97-A and
TIA/EIA/IS-98-A [1].

The E-series E9300 power sensors
have two independent measurement
paths (high and low power paths):

High power path: -10 to +20 dBm (“A” suffix sensors), +20 to +44 dBm (“B” suffix sensors) and 0 to +30 dBm
(“H” suffix sensors).

Low power path: -60 to -10 dBm (“A” suffix sensors), -30 to +20 dBm (“B” suffix sensors) and -50 to 0 dBm
(“H” suffix sensors).

Some specifications are detailed for an individual measurement path.

Table 9
Wide dynamic range (-60 to +20 dBm) sensors

Model Frequency range Maximum SWR Maximum SWR Maximum power Connector

(25°C ± 10°C) (0 – 55°C) type

E9300B 10 MHz – 18.0 GHz 10 MHz to 30 GHz: 1.15 10 MHz to 30 MHz: 1.21 +25 dBm average; Type-N (m)

30 MHz to 2 GHz: 1.13 30 MHz to 2 GHz: 1.15 +33 dBm peak
2 GHz to 14 GHz: 1.19 2 GHz to 14 GHz: 1.20 (< 10 µsec)
14 GHz to 16 GHz: 1.22 14 GHz to 16 GHz: 1.23
16 GHz to 18 GHz: 1.26 16 GHz to 18 GHz: 1.27

E9301A 10 MHz – 6.0 GHz 10 MHz to 30 GHz: 1.15 10 MHz to 30 MHz: 1.21 +25 dBm average; Type-N (m)

30 MHz to 2 GHz: 1.13 30 MHz to 2 GHz: 1.15 +33 dBm peak
2 GHz to 14 GHz: 1.19 2 GHz to 14 GHz: 1.20 (< 10 µsec)

E9304A 9 MHz – 6.0 GHz 9 kHz to 2 GHz: 1.13 9 kHz to 2 GHz: 1.15 +25 dBm average; Type-N (m)

2 GHz to 6 GHz: 1.19 2 GHz to 6 GHz: 1.20 +33 dBm peak

(< 10 µsec)

Wide dynamic range (-30 to +44 dBm) sensors
Model Frequency range Maximum SWR Maximum SWR Maximum power Connector

(25°C ± 10°C) (0 – 55°C) type

E9300B 10 MHz – 18.0 GHz 10 MHz to 8 GHz: 1.12 10 MHz to 8 GHz: 1.14 0 – 35°C: 30 W avg Type-N (m)

8 to 12.4 GHz: 1.17 8 to 12.4 GHz: 1.18 35 – 55°C: 25 W avg

12.4 to 18 GHz: 1.24 12.4 to 18 GHz: 1.25 < 6 GHz: 500 W pk
> 6 GHz: 125 W pk
500 W-mS per pulse

E9301B 10 MHz – 6.0 GHz 10 MHz to 6 GHz: 1.12 10 MHz to 6 GHz: 1.14 0 – 35°C: 30 W avg Type-N (m)

35 – 55°C: 25 W avg
< 6 GHz: 500 W pk
500 W-mS per pulse

Wide dynamic range (-50 to +30 dBm) sensors
Model Frequency range Maximum SWR Maximum SWR Maximum power Connector

(25°C ± 10°C) (0 – 55°C) type

E9300H 10 MHz – 18.0 GHz 10 MHz to 8 GHz: 1.15 10 MHz to 8 GHz: 1.17 3.16 W avg Type-N (m)

8 to 12.4 GHz: 1.25 8 to 12.4 GHz: 1.26 100 W pk

12.4 to 18 GHz: 1.28 12.4 to 18 GHz: 1.29 100 W-µS per pulse

E9301H 10 MHz – 6.0 GHz 10 MHz to 6 GHz: 1.15 10 MHz to 6 GHz: 1.17 3.16 W avg Type-N (m)

100 W pk
100 W-µS per pulse

12

Typical SWR, 10 MHz to 18 GHz, (25°C ± 10°C) for E9300A and E9301A sensors

Typical SWR, 9kHz to 6 GHz, (25°C ± 10°C) for E9304A sensors

13

Typical SWR, 10 MHz to 18 GHz, (25°C ± 10°C) for E9300B and E9301B sensors

Typical SWR, 10 MHz to 18 GHz, (25°C ± 10°C) for E9300H and E9301H sensors

14

E-series E9300 average power sensors

Table 10. Power linearity (after zero and cal at ambient environmental conditions)
Sensor Power Linearity Linearity

(25°C ± 10°C) (0 – 55°C)

E9300A, E9301A, E9304A -60 to –10 dBm ±3.0% ±3.5%

-10 to 0 dBm ±2.5% ±3.0%
0 to +20 dBm ±2.0% ±2.5%

E9300B, E9301B -30 to +20 dBm ±3.5% ±4.0%

+20 to +30 dBm ±3.0% ±3.5%
+30 to +44 dBm ±2.5% ±3.0%

E9300H, E9301H -50 to 0 dBm ±4.0% ±5.0%

0 to +10 dBm ±3.5% ±4.0%
+10 to +30 dBm ±3.0% ±3.5%

Typical E9300A/01A/04A Power Linearity at 25°C, after zero and calibration, with associated
measurement uncertainty

Power range -30 to -20 dBm -20 to -10 dBm -10 to 0 dBm 0 to +10 dBm +10 to +20 dBm
Measurement uncertainty ±0.9% ±0.8% ±0.65% ±0.55% ±0.45%

15

E-series E9300 average power sensors

Typical E9300B/01B power linearity at 25°C, after zero and calibration, with associated
measurement uncertainty

Power range -6 to 0 dBm 0 to +10 dBm +10 to +20 dBm +20 to +26 dBm
Measurement uncertainty ± 0.65% ± 0.55% ± 0.45% ± 0.31%

Typical E9300H/01H power linearity at 25°C, after zero and calibration, with associated
measurement uncertainty

Power range -26 to -20 dBm -20 to –10 dBm -10 to 0 dBm 0 to +10 dBm +10 to +20 dBm +20 to +26 dBm
Measurement uncertainty ± 0.9% ± 0.8% ± 0.65% ± 0.55% ± 0.45% ± 0.31%

16

Note: If the temperature changes after calibration and you choose not to re-calibrate the sensor, the following additional power linearity error should be
added to the linearity specs in table 10: the typical maximum additional power linearity error due to temperature change after calibration, for small
changes in temperature, is ±0.15%/°C (valid after zeroing the sensor).

For large changes in temperature, refer to Table 11.

Typical maximum additional power linearity error due to temperature change after calibration
at 25ºC for any change in temperature (valid after zeroing the sensor)

Table 11
Sensor Power Additional power Additional power

linearity error linearity error
(25°C ± 10°C) (0 – 55°C)

E9300A, E9301A, E9304A -60 to –10 dBm ±1.5% ±2.0%

-10 to 0 dBm ±1.5% ±2.5%
0 to +20 dBm ±1.5% ±2.0%

E9300B, E9301B -30 to +20 dBm ±1.5% ±2.0%

+20 to +30 dBm ±1.5% ±2.5%
+30 to +44 dBm ±1.5% ±2.0%

E9300H, E9301H -50 to 0 dBm ±1.5% ±2.0%

0 to +10 dBm ±1.5% ±2.5%
+10 to 30 dBm ±1.5% ±2.0%

Figure 2. Relative mode power measurement linearity with an EPM series power meter, at 25°C ±10°C (typical)

Figure 2 shows the typical uncertainty in making a relative power measurement, using the same power meter channel and same power sensor to obtain
the reference and the measured values, and assumes that negligible change in frequency and mismatch error occur when transitioning from the power
level used as the reference to the power level being measured.

17

E-series E9300 average
power sensors

Switch point data

The E9300 power sensors have two
paths, a low power path covers:

-60 to -10 dBm (“A” suffix sensors),

-30 to +20 dBm (“B” suffix sensors),
and -50 to 0 dBm (“H” suffix sen­sors). The high power path covers: ­10 to +20 dBm (“A” suffix sensors),
+20 to +44 dBm (“B” suffix sensors),
and 0 to +30 dBm (“H” suffix sen­sors). The power meter automatical­ly selects the proper power level
path. To avoid unnecessary switch­ing when the power level is near the
switch point, switching point
hysteresis has been added.

E9300 “A” suffix sensors example:
hysteresis causes the low power path
to remain selected until approxi­mately -9.5 dBm as the power level
is increased, above this power the
high power path will be selected.
The high power path will remain
selected until approximately

-10.5 dBm is reached as the signal
level decreases, below this power the
low power path will be selected.

Switching point linearity: Typically

≤ ±0.5% (≤ ±0.02 dB)

Switching point hysteresis: 0.5 dB
typical

Table 12. E9300A, E9301A, and E9304A sensors zero and measurement noise
Conditions

1

Zero set Zero drift

2

Measurement noise

3

Low power path 500 pW 150 pW 700 pW
(15% to 75% RH)
Low power path 500 pW 4,000 pW 700 pW
(75% to 95% RH)
High power path 500 nW 150 nW 500 nW
(15% to 75% RH)
High power path 500 nW 3 nW 500 nW
(75% to 95% RH)

E9300B and E9301B sensors
Conditions

1

Zero set Zero drift

2

Measurement noise

3

Low power path 500 nW 150 nW 700 nW
(15% to 75% RH)
Low power path 500 nW 4 µW 700 nW
(75% to 95% RH)
High power path 500 µW 150 µW 500 µW
(15% to 75% RH)
High power path 500 µW 3 mW 500 µW
(75% to 95% RH)

E9300H and E9301H sensors
Conditions

1

Zero set Zero drift

2

Measurement noise

3

Low power path 5 nW 1.5 nW 7 nW
(15% to 75% RH)
Low power path 5 nW 40 nW 7 nW
(75% to 95% RH)
High power path 5 µW 1.5 µW 5 µW
(15% to 75% RH)
High power path 5 µW 30 µW 5 µW
(75% to 95% RH)

1. RH is the abbreviation for relative humidity.

2. Within 1 hour after zero set, at a constant temperature, after a 24-hour warm-up of the power meter with
power sensor connected.

3. The number of averages at 16 for normal mode and 32 for x2 mode, at a constant temperature, measured
over a one minute interval and two standard deviations.

18

Calibration factor (CF) and
reflection coefficient (Rho)

Calibration factor and reflection
coefficient data are provided at
frequency intervals on a data sheet
included with the power sensor. This
data is unique to each sensor. If you
have more than one sensor, match
the serial number on the data sheet
with the serial number on the power
sensor you are using. The CF cor­rects for the frequency response of
the sensor. The EPM series power
meter automatically reads the CF
data stored in the sensor and uses it
to make the corrections.

Reflection coefficient (Rho) relates
to the SWR according to the follow­ing formula:
SWR = (1 + Rho)/(1 - Rho)

Maximum uncertainties of the CF
data are listed in tables 13A and
13B. As the E-series E9300 power
sensors have two independent
measurement paths (high and low
power paths), there are two calibra­tion factor uncertainty tables. The
uncertainty analysis for the calibra­tion of the sensors was done in
accordance with the ISO Guide. The
uncertainty data reported on the
calibration certificate is the expanded
uncertainty with a 95% confidence
level and a coverage factor of 2.

General

Dimensions: Length 130 mm, width 38

mm, height 30 mm

Weight: 0.18 kg (0.4 lbs)

References:

[1] TIA is the Telecommunications
Industry Association; EIA is the
Electronic Industries Association.
TIA/EIA/IS-97-A is the recommend­ed minimum performance standards
for base stations supporting dual­mode wideband spread spectrum
cellular mobile stations. TIA/EIA/
IS-98-A is the recommended mini­mum performance standards for
dual-mode wideband spread
spectrum cellular mobile stations.

Table 13A. Calibration factor uncertainties (low power path)
Frequency Uncertainty (%) Uncertainty (%)

(25°C +10°C) (0° to 55°C)

10 MHz to 30 MHz ± 1.8% ±2.2%
30 MHz to 500 MHz ±1.6% ±2.0%
(E9304A: 9kHz to 500MHz)
500 MHz to 1.2 GHz ±1.8% ±2.5%

1.2 GHz to 6 GHz ±1.7% ±2.0%
6 GHz to 14 GHz ±1.8%
14 GHz to 18 GHz ± 2.0 % ±2.0% ±2.2%

Table 13B Calibration factor uncertainties (high power path)
Frequency Uncertainty (%) Uncertainty (%)

(25°C +10°C) (0° to 55°C)

10 MHz to 30 MHz ±2.1% ±4.0%
30 MHz to 500 MHz ±1.8% ±3.0%
(E9304A: 9kHz to 500MHz)
500 MHz to 1.2 GHz ±2.3% ±4.0%

1.2 GHz to 6 GHz ±1.8% ±2.1%
6 GHz to 14 GHz ±1.9% ±2.3%
14 GHz to 18 GHz ±2.2% ±3.3%

19

8480 series power sensors
(with EPM series power
meters)

The 8480 series power sensors are
designed for use with the 435B,
436A, 437B, 438A, 70100A, E1416A
and now the E4418B and E4419B
power meters. These thermocouple
and diode power sensors provide
extraordinary accuracy, stability,
and SWR over a wide range of
frequencies (100 kHz to 110 GHz)
and power levels -70 dBm to
+44 dBm).

Table 14. Root sum of squares (rss) uncertain­ty on the calibration factor data printed on the
power sensor

Freq 8482A 8482B 8482H 8483A
(MHz)

0.1 1.3 2.8 1.6 1.5

0.3 1.2 2.8 1.6 1.4
1 1.2 2.8 1.6 1.4
3 1.2 2.8 1.6 1.4
10 1.3 2.8 1.6 1.6
30 1.4 2.8 1.7 1.6
50 0 (ref) 2.7 0 (ref) 0 (ref)
100 1.6 3.3 1.9 2
300 1.6 3.3 1.9 2
1000 1.4 3.3 1.7 2
2000 1.4 3.3 1.7 2.1
4000 1.5 3.1 1.8 -

Freq (GHz) 8481A 8481B 8481H 8481D 8485A 8385D 8487A 8487D

1 1.6 3 1.9 1.9 1.6 1.8 1.6 2
2 1.4 3.1 1.7 1.8 1.6 1.8 1.6 2
4 1.5 3.1 1.8 1.8 1.7 1.8 1.6 2
6 1.5 3.1 1.8 1.8 1.8 2.1 1.7 2.3
8 1.7 3.2 2 2 1.9 2.2 1.8 2.3
10 1.9 3.3 2.2 2.2 2 2.1 1.8 2.3
12 2.1 4.1 2.4 2.8 2 2.2 1.9 2.3
14 2.6 4.1 2.8 3.2 2.2 2.2 2.1 2.8
16 2.9 4.2 3 3.4 2.3 2.5 2.2 2.8
18 3.2 4.3 3.1 3.7 2 2.6 2.3 2.8
22 - - - - 2.1 2 1.8 2.8

26.5 - - - - 2.1 2.3 2.1 2.8

Freq (GHz) R8486A Q8486A R8486D Q8486D 8487A 8487D

26.5 2.2 - 3 - 2.1 2.8

28 2.4 - 3.2 - 2.3 3
30 2.5 - 3 - 2.1 3
33 2.1 2.8 3 4.2 2.3 3

34.5 2.1 2.8 3 4.2 2.1 3

37 2.2 2.8 3 4.2 2.3 3
40 2.2 2.9 3 4.2 2.6 3
42 - 3.9 - 4.9 3.2 2.9
44 - 3.9 - 5.1 3.6 2.9
46 - 3.9 - 5.5 4.1 3.1
48 - 4.9 - 5.8 4.5 4.5
50 - 5.3 - 6.2 5 4.5

20

8480 series sensors (with EPM series power meters)

Table 15
25 Watt sensors, 1 mW to 25 W (0 dBm to +44 dBm)

Model Frequency range Maximum SWR Power linearity

1

Maximum power Connector type Weight

8481B 10 MHz to 18 GHz 10 MHz to 2 GHz: 1.10 +35 dBm to + 44 dBm: (±4%) 0°C to 350°C: 30W avg

2

Type - N(m) Net: 0.8 kg (1.75 lb)

2 GHz to 12.4 GHz: 1.18 35°C to 550°C: 25W avg Shipping: 1.5 kg

(3.25 lb)

12.4 GHz to 18 GHz: 1.28 0.01 to 5.8 GHz: 500W pk

5.8 to 18 GHz: 125 W pk
500 W.µs per pulse

8482B 100 kHz to 4.2 GHz 100 kHz to 2 GHz: 1.10 +35 dBm to + 44 dBm: (±4%) 0°C to 350°C: 30W avg

2

Type - N(m) Net: 0.8 kg (1.75 lb)

2 GHz to 4.2 GHz: 1.18 35°C to 550°C: 25W avg Shipping: 1.5 kg (3.25 lb)

0.01 to 5.8 GHz: 500W pk

5.8 to 18 GHz: 125 W pk
500 W - µs per pulse

3 Watt sensors, 100 µW to 3 W (–10 dBm to +35 dBm)
Model Frequency range Maximum SWR Power linearity (1) Maximum power Connector type Weight

8481H 10 MHz to 18 GHz 10 MHz to 8 GHz: 1.20 +25 dBm to + 35 dBm: (±5%) 3.5 W avg, 100 W pk Type - N (m) Net: 0.2 kg (0.38 lb)

8 GHz to12.4 GHz: 1.25 100 W.µs per pulse Shipping: 0.5 kg (1.0 lb)

12.4 GHz to 18 GHz: 1.30

8482H 100 kHz to 4.2 GHz 100 kHz to 4.2 GHz: 1.20 +25 dBm to + 35 dBm: (±5%) 3.5 W avg, 100 W pk Type - N (m) Net: 0.2 kg (0.38 lb)

100 W.µs per pulse Shipping: 0.5 kg (1.0 lb)

100 mW sensors, 1 µW to 100 mW (–30 dBm to +20 dBm)
Model Frequency range Maximum SWR Power linearity (1) Maximum power Connector type Weight

8485A 50 MHz to 26.5 GHz 50 MHz to 100 MHz: 1.15 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk APC - 3.5mm(m) Net: 0.2 kg (.38 lb)

100 MHz to 2 GHz: 1.10 30 W.µs per pulse Shipping: 0.5 kg (1.0 lb)
2 GHz to 12.4 GHz: 1.15

12.4 GHz to 18 GHz: 1.20

18 GHz to 26.5 GHz: 1.25
Option 50 MHz to 33 GHz 26.5 GHz to 33 GHz: 1.40 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk APC - 3.5mm(m) Net: 0.2 kg (.38 lb)
8485A-033 30 W.µs per pulse Shipping: 0.5 kg (1.0 lb)
8481A 10 MHz to 18 GHz 10 MHz to 30 MHz: 1.40 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk Type - N (m) Net: 0.2 kg (0.38 lb)

30 MHz to 50 MHz: 1.18 30 W.µs per pulse Shipping: 0.5 kg (1.0 lb)

50 MHz to 2 GHz: 1.10

2 GHz to 12.4 GHz: 1.18

12.4 GHz to 18 GHz: 1.28

8482A 100 kHz to 4.2 GHz 100 kHz to 300 kHz: 1.60 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk Type - N (m) Net: 0.2 kg (0.38 lb)

300 kHz to 1 MHz: 1.20 30 W.µs per pulse Shipping: 0.5 kg (1.0 lb)

1 MHz to 2 GHz: 1.10

2 GHz to 4.2 GHz: 1.30
8483A 100 kHz to 2 GHz 100 kHz to 600 kHz: 1.80 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 10 W pk Type - N (m) Net: 0.2 kg (0.38 lb)
(75 ohm) 600 kHz to 2 GHz: 1.18 (75 ohm) Shipping: 0.5 kg (1.0 lb)
R8486A 26.5 GHz to 40 GHz 26.5 GHz to 40 GHz: 1.40 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk Waveguide flange Net: 0.26 kg (0.53 lb)

30 W.µs per pulse UG-599/U Shipping: .66 kg (1.3 lb)

Q8486A 33 GHz to 50 GHz 33 GHz to 50 GHz: 1.50 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk Waveguide flange Net: 0.26 kg (0.53 lb)

30 W.µs per pulse UG-383/U Shipping: .66 kg (1.3 lb)

V8486A 50 GHz to 75 GHz 50 GHz to 75 GHz: 1.06 +10 dBm to + 20 dBm: (±2%) 200 mW avg, 40 W pk Waveguide flange Net: 0.4 kg (0.9 lb)

-30 dBm to + 10 dBm: (±1%) (10.µs per pulse, 0.5% UG-385/U Shipping: 1 kg (2.1 lb)
duty cycle)

W8486A 75 GHz to 110 GHz 75 GHz to 110 GHz: 1.08 (±2%) 200 mW avg, 40 W pk Waveguide flange Net: 0.4 kg (0.9 lb)

(10.µs per pulse, 0.5% UG-387/U Shipping: 1 kg (2.1 lb)
duty cycle)

8487A 50 MHz to 50 GHz 50 MHz to 100 MHz: 1.15 +10 dBm to + 20 dBm: (±3%) 300 mW avg, 15 W pk 2.4 mm (m) Net: 0.14 kg (.28 lb)

100 MHz to 2 GHz: 1.10 30 W.µs per pulse Shipping: 0.5 kg (1.0 lb)
2 GHz to 12.4 GHz: 1.15

12.4 GHz to 18 GHz: 1.20
18 GHz to 26.5 GHz: 1.25

26.5 GHz to 40 GHz: 1.30
40 GHz to 50 GHz: 1.50

1. Negligible deviation except for those power ranges noted.

2. For pulses greater than 30 W, the maximum average power (Pa) is limited by the energy per pulse (E) in W.µs according to Pa= 30-0.02 E.

21

8480 series sensors (with EPM series power meters)

High sensitivity sensors, 100 pW to 10 µW (–70 dBm to –20 dBm)

Model Frequency range Maximum SWR Power linearity

1

Maximum power Connector type Weight

8481D

3

10 MHz to 18 GHz 10 MHz to 30 MHz: 1.40 - 30 dBm to - 20 dBm: (±1%) 100 mW avg, 100 m W pk Type - N (m) Net: 0.16 kg (0.37 lb)

30 MHz to 3 GHz: 1.15 Shipping: 0.9 kg (2.0 lb)
4 GHz to 10 GHz: 1.20
10 GHz to 15 GHz: 1.30
15 GHz to 18 GHz: 1.50

8485D

3

50 MHz to 26.5 GHz 0.05 GHz to 0.1 GHz: 1.19 -30 dBm to -20 dBm: (±2%) 100 mW avg, 100 m W pk APC - 3.5mm (m) Net: 0.2 kg (.38 lb)

0.1 GHz to 4 GHz: 1.15 Shipping: 0.5 kg (1.0 lb)
4 GHz to 12 GHz: 1.19
12 GHz to 18 GHz: 1.25

18 GHz to 26.5 GHz: 1.29
Option 50 MHz to 33 GHz 26.5 GHz to 33 GHz: 1.35 -30 dBm to -20 dBm: (±2%) 100 mW avg, 100 m W pk APC - 3.5mm (m) Net: 0.2 kg (.38 lb)
8485D-033 Shipping: 0.5 kg (1.0 lb)
8487D

3

50 kHz to 50 GHz 0.05 GHz to 0.1 GHz: 1.19 -30 dBm to -20 dBm: (±2%) 100 mW avg, 100 m W pk 2.4 mm (m) Net: 0.2 kg (0.38 lb)

0.1 GHz to 4 GHz: 1.15 30 W.µs per pulse Shipping: 0.5 kg (1.0 lb)

2 GHz to 12.4 GHz: 1.20

12.4 GHz to 18 GHz: 1.29

18 GHz to 34 GHz: 1.37

34 GHz to 40 GHz: 1.61

40 GHz to 50 GHz: 1.89
R8486D326.5 GHz to 40 GHz 26.5 GHz to 40 GHz: 1.40 -30 dBm to -25 dBm: (±3%) 100 mW avg, or pk Waveguide flange Net: 0.26 kg (0.53 lb)

-25 dBm to -20 dBm: (±5%) 40 V dc max UG-599/U Shipping: .66 kg (1.3 lb)

Q8486D3 33 GHz to 50 GHz 33 GHz to 50 GHz: 1.40 -30 dBm to 25 dBm: (±3%) 100 mW avg, or pk Waveguide flange Net: 0.26 kg (0.53 lb)

-25 dBm to -20 dBm: (±5%) 40 V dc max UG-383/U Shipping: 0.66 kg (1.3 lb)

1. Negligible deviation except for those power ranges noted.

2. For pulses greater than 30 W, the maximum average power (Pa) is limited by the energy per pulse (E) in W.µs according to Pa= 30-0.02 E.

3. Includes 11708A 30 dB attenuator for calibrating against 0 dBm, 50 MHz power reference. The 11708A is factory set to 30 dB ±0.05 dB at 50 MHz,

traceable to NIST. SWR < 1.05 at 50 MHz.

www.agilent.com

Agilent Technologies’ Test and Measurement Support, Services, and Assistance

Agilent Technologies aims to maximize the value you receive, while minimizing your
risk and problems. We strive to ensure that you get the test and measurement
capabilities you paid for and obtain the support you need. Our extensive support
resources and services can help you choose the right Agilent products for your
applications and apply them successfully. Every instrument and system we sell
has a global warranty. Two concepts underlie Agilent’s overall support policy: “Our
Promise” and “Your Advantage.”

Our Promise

Our Promise means your Agilent test and measurement equipment will meet
its advertised performance and functionality. When you are choosing new
equipment, we will help you with product information, including realistic perfor­mance specifications and practical recommendations from experienced test engi­neers. When you receive your new Agilent equipment, we can help verify that it
works properly and help with initial product operation.

Your Advantage

Your Advantage means that Agilent offers a wide range of additional expert test
and measurement services, which you can purchase according to your unique tech­nical and business needs. Solve problems efficiently and gain a competitive edge
by contracting with us for calibration, extra-cost upgrades, out-of-warranty repairs,
and onsite education and training, as well as design, system integration, project
management, and other professional engineering services. Experienced Agilent
engineers and technicians worldwide can help you maximize your productivity, opti­mize the return on investment of your Agilent instruments and systems, and obtain
dependable measurement accuracy for the life of those products.

www.agilent.com/find/open

Agilent Open simplifies the process of connecting and programming test systems
to help engineers design, validate and manufacture electronic products. Agilent
offers open connectivity for a broad range of system-ready instruments, open
industry software, PC-standard I/O and global support, which are combined to
more easily integrate test system development.

United States: Korea:

(tel) 800 829 4444 (tel) [phone]
(fax) 800 829 4433 (fax) [phone]

Canada: Latin America:

(tel) 877 894 4414 (tel) [phone]
(fax) 800 746 4866 Taiwan:
China: (tel) 0800 047 866
(tel) 800 810 0189 (fax) 0800 286 331
(fax) 800 820 2816 Other Asia Pacific

Europe: Countries:

(tel) 31 20 547 2111 (tel) (65) 6375 8100
Japan: (fax) (65) 6755 0042
(tel) (81) 426 56 7832 Email: [e-mail]
(fax) (81) 426 56 7840

Contacts revised: 05/27/05

For more information on Agilent Technologies’ products, applications or services,
please contact your local Agilent office. The complete list is available at:

www.agilent.com/find/contactus

Product specifications and descriptions in this document subject to change
without notice.

© Agilent Technologies, Inc. 2002 – 2005
Printed in USA, September 14, 2005
5965-6382E

www.agilent.com/find/emailupdates

Get the latest information on the products and applications you select.

Agilent Email Updates

www.agilent.com/find/agilentdirect

Quickly choose and use your test equipment solutions with confidence.

Agilent Direct

Agilent Open
