Agilent E3649A Data Sheet

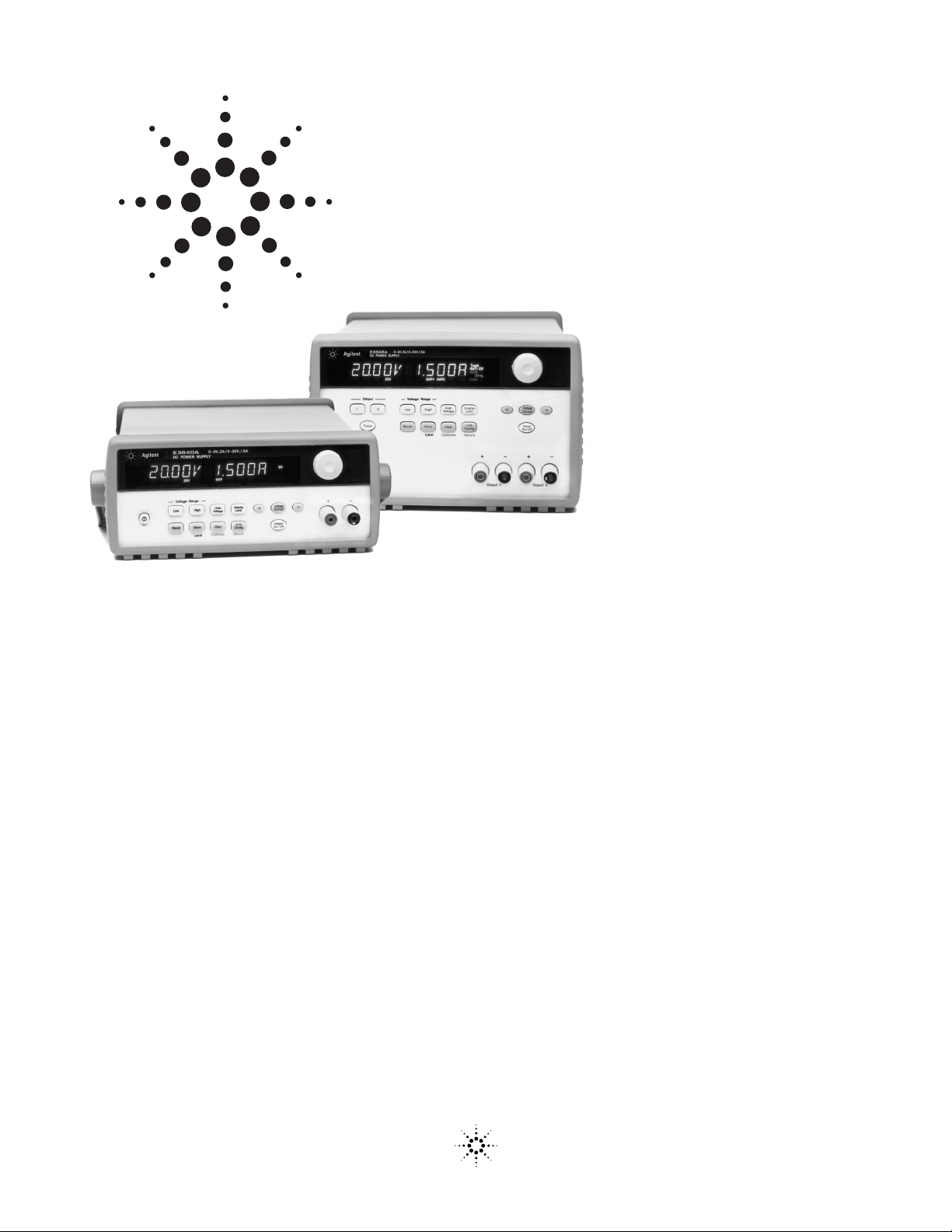

Agilent E3640A – E3649A
Programmable dc Power Supplies

Data Sheet

Great Performance, Outstanding Price

With 30 to 100W of output power,
the Agilent E364xA-series of
programmable dc power supplies
provide great performance at a great
price. All ten models deliver clean
power, dependable regulation, fast
transient response and built-in GPIB
and RS-232 interfaces. They’re
designed to meet the needs of R&D
design verification, production
testing, QA verifications and other
demanding applications with Agilent
Technologies’ quality and reliability.

Steady Output

With 0.01 percent load and line
regulation, Agilent E364xA power
supplies keep output steady when
power line and load changes occur.
They also specify low normal mode
voltage noise and low common mode
current noise. The low normal mode
noise specification assures clean
power for precision circuitry
applications, and the low common
mode current provides isolation from

power line current injection. Agilent
E364xA power supplies specify less
than 90 msec of voltage settling time
at any output load condition.

Remote Interface

Agilent E364xA power supplies
support any PC with a GPIB
(IEEE-488) card or RS-232 interface.
Every model ships standard with
both GPIB and RS-232. Easy-to-use
SCPI (Standard Commands for
Programmable Instruments) keeps
programming fast and simple. The
user manual provides information for
beginning programmers, yet includes
enough detail to help veteran
programmers as well.

Broad Support

VXIplug&play software drivers
are available for Agilent VEE and
National Instruments LabView™
and LabWindows™, simplifying
integration of the E364xA into
your test system. The drivers are
supported under Microsoft

®

Windows 98®and NT.

®

Front Panel Operation

An easy-to-use rotary knob and self­guiding keypads allow you to quickly
and easily set output at the resolution
you need. Voltage and current levels
can be set to a maximum resolution of
10 mV/1 mA from the front panel. Up
to five complete power supply setups
can be stored and recalled from the
internal non-volatile memory. The
output on/off button sets the output
to zero. Dual output models allow
two voltages or currents to be
displayed simultaneously.

Versatile Power

Agilent E364xA power supplies give
you the flexibility to select from dual
output ranges. Output load is
protected against overvoltage, which
is easily monitored and adjusted from
the front panel and remote interface.
Remote sensing is available in the rear
terminal to eliminate errors due to
voltage drops on the load leads. These
power supplies offer new versatile
binding posts on the front panel and

Clean Programmable Power Supplies

• Single and Dual Output

• Dual Output Ranges

• 30W to 100W Output Power

• Front and Rear Output Terminals

• Over-voltage Protection

• Remote Sense

• GPIB and RS-232 Standard

Agilent Technologies

2

screw-type terminals on the rear
panel. New front panel binding posts
allow you to use safety test leads as
well as conventional banana clips
and stripped wires. An optional
rackmount kit is available. The
Agilent E364xA series employs a
cooling fan with automatic speed
control for reduced acoustic noise.

LabView and LabWindows are registered trademarks of
National Instruments.

Microsoft, Windows 98 and Windows NT are US
registered trademarks of Microsoft Corp.

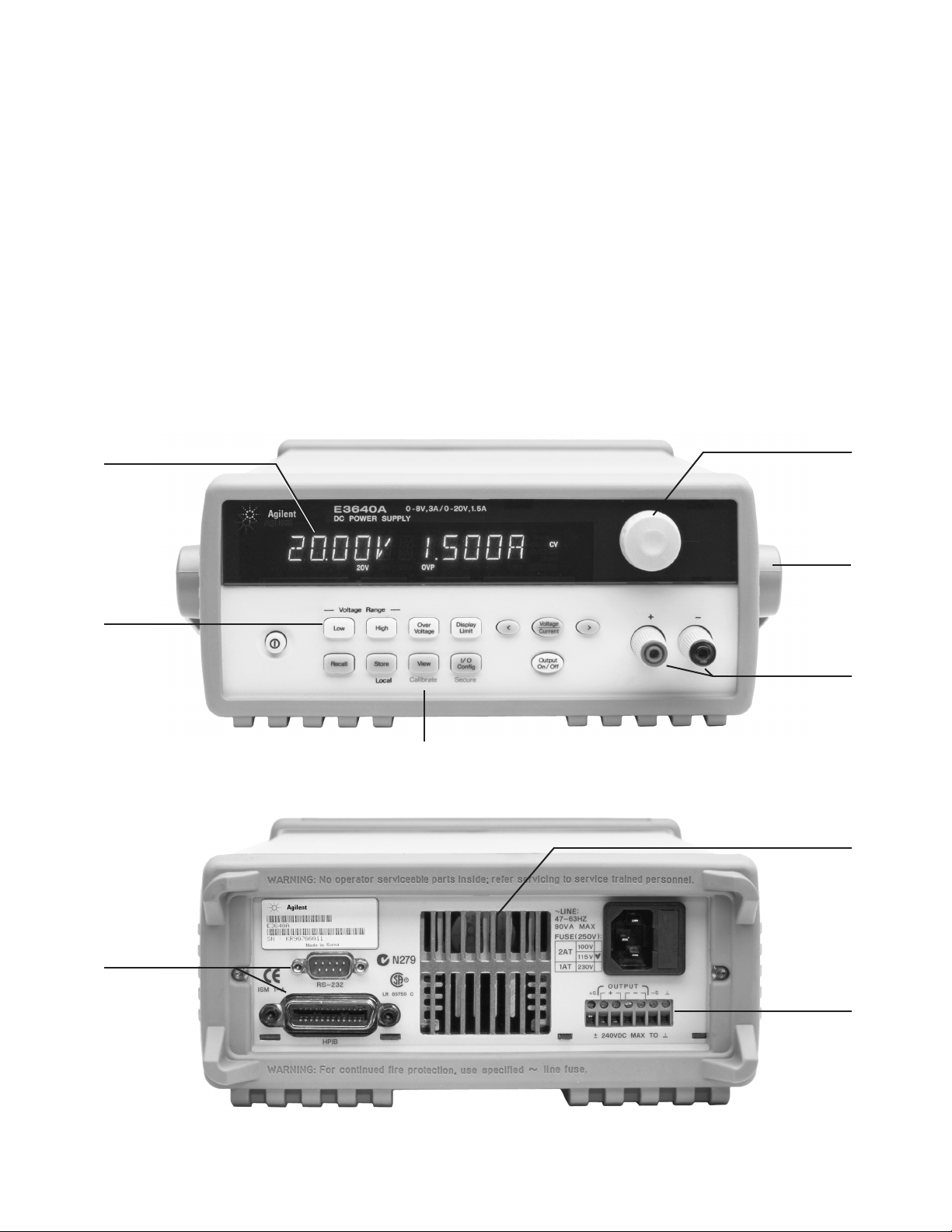

Highly visible vacuum
flourescent display

Selectable dual
range provides
flexibility and
convenience

3-year warranty
protects your
investment

Built-in GPIB and
RS-232 interfaces

Electronic calibration from the front panel

Rotary knob for
quick and analog­like control of
voltage and
current

Versatile binding
posts offer
flexibility to use
safety test leads,
banana plugs or
stripped wires

Rear output
and sensing
terminals

Cooling fan with
automatic speed
control for low
acoustic noise

Tough handle
for easy carriage
and unit prop-up

3

Agilent E3640A – E3649A Programmable dc Power Supply Specifications

Model Number E3640A E3641A E3642A E3643A E3644A E3645A
Maximum Power 30 W 50 W 80W
# of Output 111 1 11

dc Output Rating

0 to 8 V / 3 A or 0 to 35 V / 0.8 A or 0 to 8 V / 5 A or 0 to 35 V /1.4 A or 0 to 8 V / 8 A or 0 to 35 V / 2.2 A or

(@ 0°C to 40°C) 0 to 20 V / 1.5 A 0 to 60 V / 0.5 A 0 to 20 V / 2.5 A 0 to 60 V / 0.8 A 0 to 20 V / 4 A 0 to 60 V / 1.3 A

Net Weight 5.3 kg (11.7 lbs) 6.2kg (13.7 lbs) 6.7 kg (14.7 lbs)
Dimension 254.4 mm W x 103.6 mm H x 374 mm D (10 x 4.1 x 14.7 in)

Model Number E3646A E3647A E3648A E3649A
Maximum Power 60 W 100 W
# of Output 22 2 2
dc Output Rating Two Two Two Two

(@ 0°C to 40°C) 0 to 8 V / 3 A or 0 to 35 V / 0.8 A or 0 to 8 V / 5 A or 0 to 35 V / 1.4 A or

0 to 20 V / 1.5 A 0 to 60 V / 0.5 A 0 to 20 V / 2.5 A 60 V/0.8 A

Net Weight 7.3kg (16.1 lbs) 9.2kg (20.3 lbs)
Dimension 228 mm W x 133 mm H x 374 mm D (8.9 x 5.2 x 14.7 in)

Load1and Line Regulation ±(% of output + offset)

Voltage <0.01% + 3 mV

Current <0.01% + 250 uA
Ripple and Noise (20 Hz to 20 MHz)
Normal Mode Voltage <5 mVpp / 0.5 mVrms for 8 V / 20 V models

<8 mVpp / 1 mVrms for 35 V / 60 V models
Normal Mode Current <4 mArms
Common Mode Current <1.5 uArms
Accuracy 12 Months (@ 25°C ±5°C), ±(% output + offset)

Programming

Voltage <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
Current <0.2% + 10 mA

Readback

Voltage <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
Current <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)

Resolution

Program <5 mV / 1 mA
Readback <2 mV / 1 mA
Meter 10 mV / 1 mA

Transient Response Less than 50 µsec for output to recover to within 15 mV following a change in output

current from full load to half load or vice versa.

Settling Time

2

<90 msec

OVP

Accuracy, <0.5% + 0.5 V
±(% output + offset)
Activation time

3

<1.5 msec, OVP ≥3 V / <10 msec, OVP <3 V

Temperature Coefficient per °C ± (% output + offset)

Voltage <0.01% + 3 mV (<0.02% + 5 mV for output 2 of E3646/47/48/49A)
Current <0.02% + 3 mA

Stability, constant output & temperature ±(% of output + offset), 8 hrs

Voltage <0.02% + 2 mV
Current <0.1% + 1 mA

Remote Sense 1 V

Max voltage drop in each load lead
AC Input 100 Vac ±10% (Opt 0E9) / 115 Vac ±10% (Std) / 230 Vac ±10% (Opt 0E3)

(47 Hz – 63 Hz)

Warranty 3 years
Product Regulation Designed to comply with UL3111-1; certified to CSA 22.2 No. 1010.1; conforms to

IEC 1010-1; complies with EMC directive 89/336/EEC (Group1, Class A)

1

With sense terminal connected.

2

Maximum time required for the output voltage to change from 1% to 99% or vice versa following the receipt of VOLTage or
APPLy command via direct GPIB or RS-232 interface.

3

Average time for output to start to drop after OVP condition occurs.

Agilent E364xA-Series Power Supplies
E3640A 30-Watt Single Power Supply
E3641A 30-Watt Single Power Supply
E3642A 50-Watt Single Power Supply
E3643A 50-Watt Single Power Supply
E3644A 80-Watt Single Power Supply
E3645A 80-Watt Single Power Supply
E3646A 60-Watt Dual Power Supply
E3647A 60-Watt Dual Power Supply
E3648A 100-Watt Dual Power Supply
E3649A 100-Watt Dual Power Supply

Accessories included

Users Guide, Quick Reference Guide and AC power cord

Power Options

Opt. 0E3 230 Vac ±10%
Opt. 0EM 115 Vac ±10%
Opt. 0E9 100 Vac ±10%

Other Options

Opt. 1CM Rackmount kit* . . . . . . . .(Single output).

. . . . . . . . . . . . . . . . . . . . . . . . . . . .(Dual output).

Opt. 0L2 Extra manual
Agilent E364xA Single Output Manual
Agilent E364xA Dual Output Manual

Rackmount Kits*

Agilent E3640A/41A/42A/43A/44A/45A
To rackmount two instruments side-by-side

Lock-link Kit (P/N 5061-9694)
Flange Kit (P/N 5063-9212)

To rackmount one or two instruments

in a sliding support shelf
Support Shelf (P/N 5063-9255)
Slide Kit (P/N 1494-0015)

, required for

support shelf
For a single instrument, also order

filler panel (P/N 5002- 3999)

Agilent E3646A/47A/48A/49A
To rackmount two instruments side by side

Lock-link Kit (P/N 5061-9694)
Flange Kit (P/N 5063-9214)

To rackmount two instruments in a

sliding support shelf
Support Shelf (P/N 5063-9256)
Slide Kit (P/N 1494-0015)

*Rackmounting with 1CM or lock-link/flange kit requires

Agilent or customer supplied support rails

Agilent Support Rails - E3663AC
