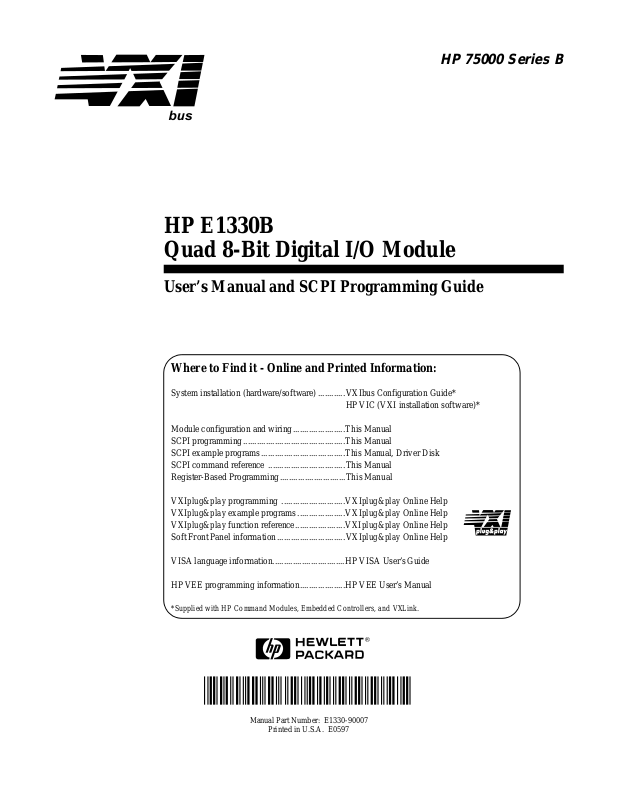

Agilent E1330B User Manual

HP 75000 Series B

HP E1330B
Quad 8-Bit Digital I/O Module

User’s Manual and SCPI Programming Guide

Where to Find it - Online and Printed Information:

System installation (hardware/software)............VXIbus Configuration Guide*

HP VIC (VXI installation software)*

Module configuration and wiring.......................This Manual

SCPI programming.............................................This Manual

SCPI example programs.....................................This Manual, Driver Disk

SCPI command reference ..................................This Manual

Register-Based Programming.............................This Manual

VXIplug&play programming ............................VXIplug&play Online Help

VXIplug&play example programs .....................VXIplug&play Online Help

VXIplug&play function reference......................VXIplug&play Online Help

Soft Front Panel information..............................VXIplug&play Online Help

VISA language information................................HP VISA User’s Guide

HP VEE programming information....................HP VEE User’s Manual

*Supplied with HP Command Modules, Embedded Controllers, and VXLink.



Manual Part Number: E1330-90007

Printed in U.S.A. E0597

Contents

HP E1330B User’s Manual

Warranty .......................................................................................................................5

Safety Symbols.............................................................................................................6

WARNINGS.................................................................................................................6

Declaration of Conformity............................................................................................7

Reader Comment Sheet ................................................................................................9

Chapter 1

Getting Started ............................................................................................................. 11

Using This Chapter.....................................................................................................11

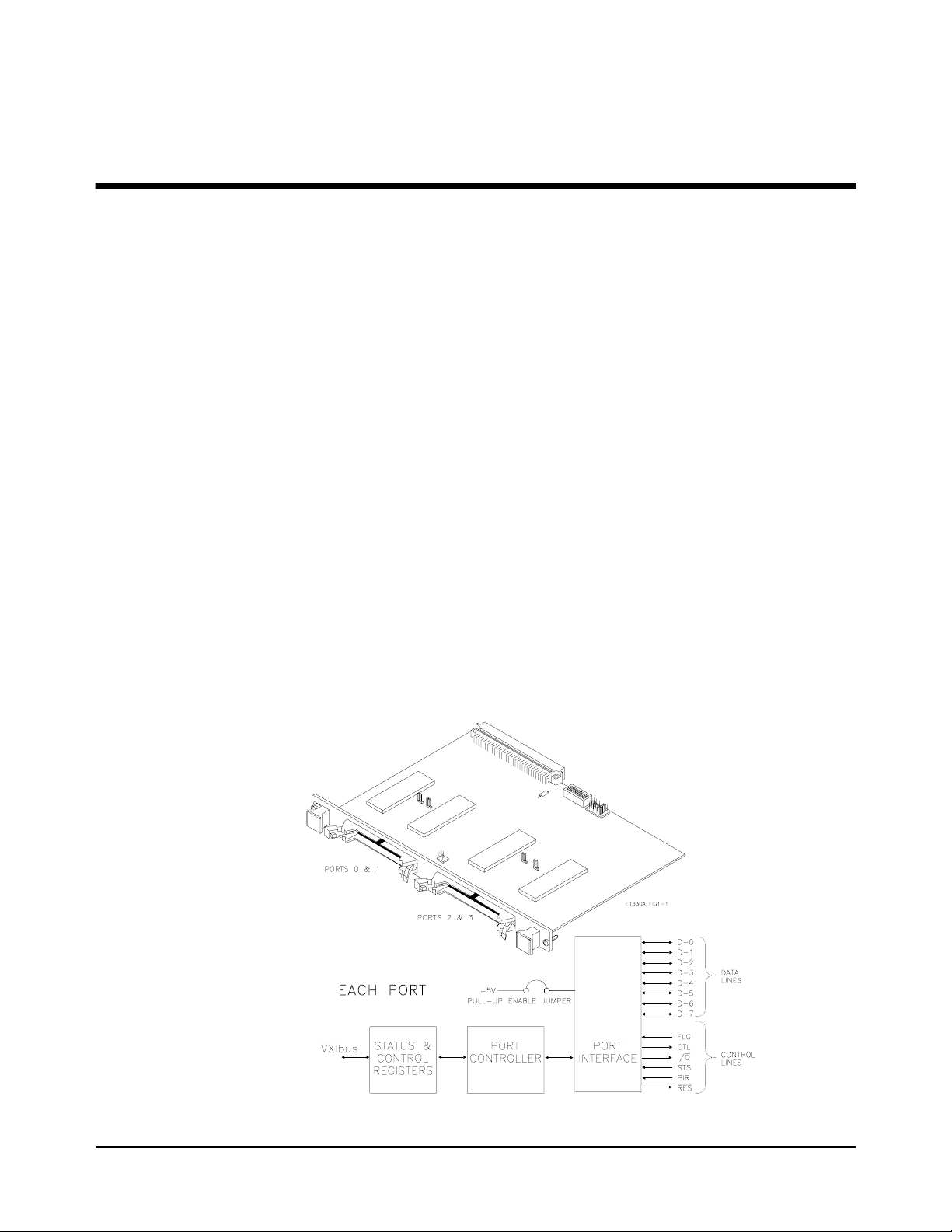

Technical Description.................................................................................................11

Instrument Definition..................................................................................................13

Downloading SCPI Drivers........................................................................................13

Programming the Digital I/O Module.........................................................................13

SCPI Command Format Used in This Manual ....................................................14

Specifying SCPI Commands ...............................................................................14

Initial Operation..........................................................................................................16

Chapter 2

Configuring the HP E1330B Digital I/O Module ......................................................17

Using This Chapter.....................................................................................................17

Setting the Address Switch......................................................................................... 18

Enabling Pull-ups........................................................................................................19

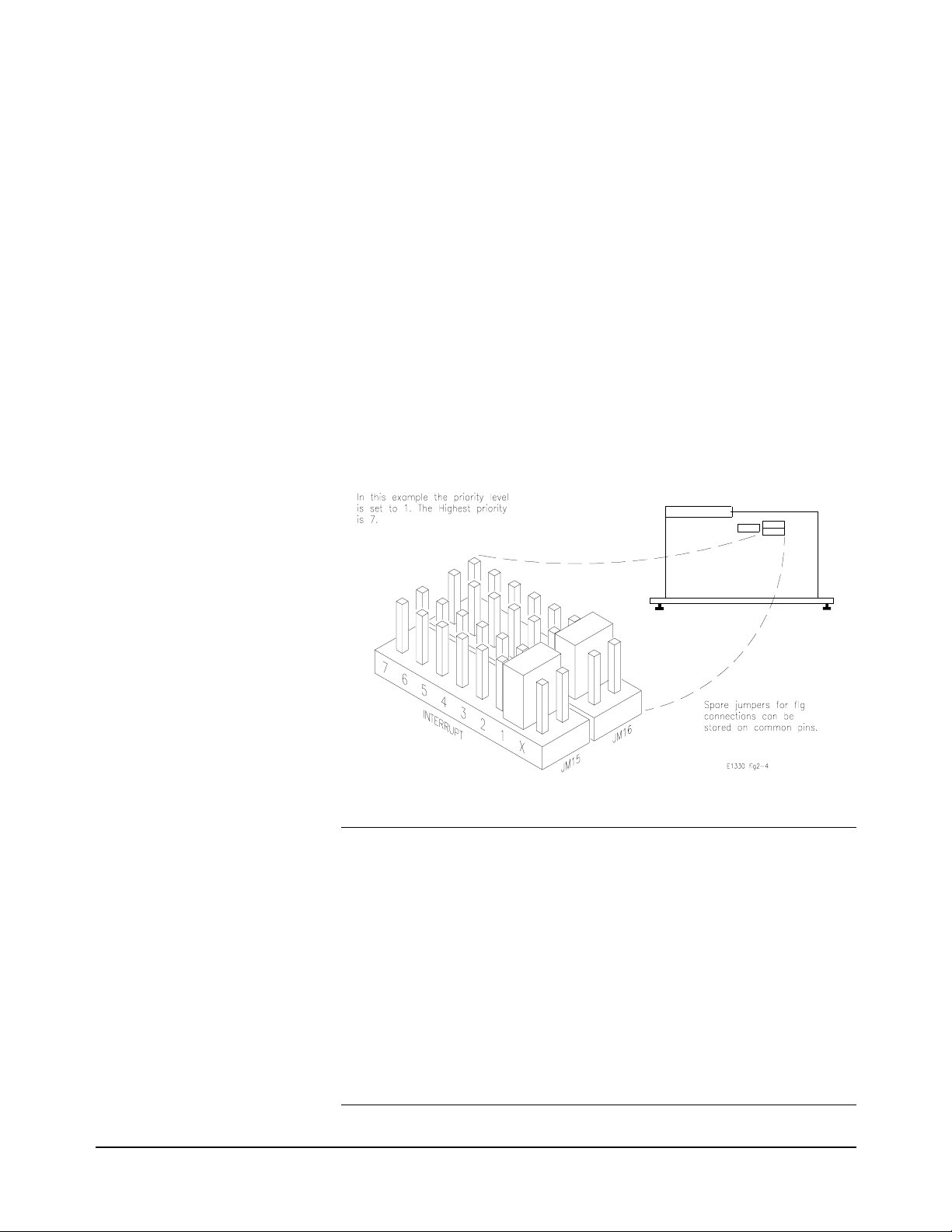

Selecting the Interrupt Line ........................................................................................20

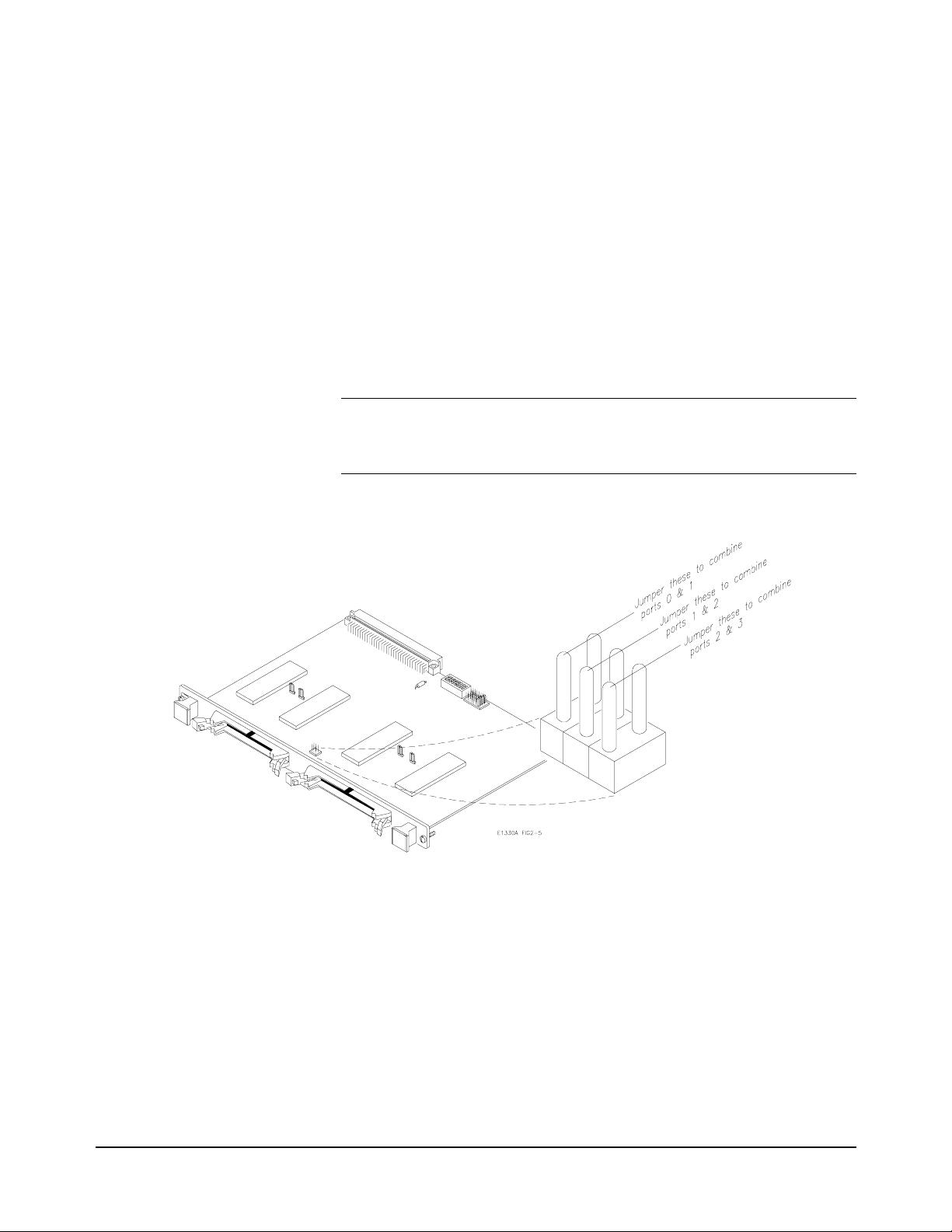

Combining the Flag Lines...........................................................................................21

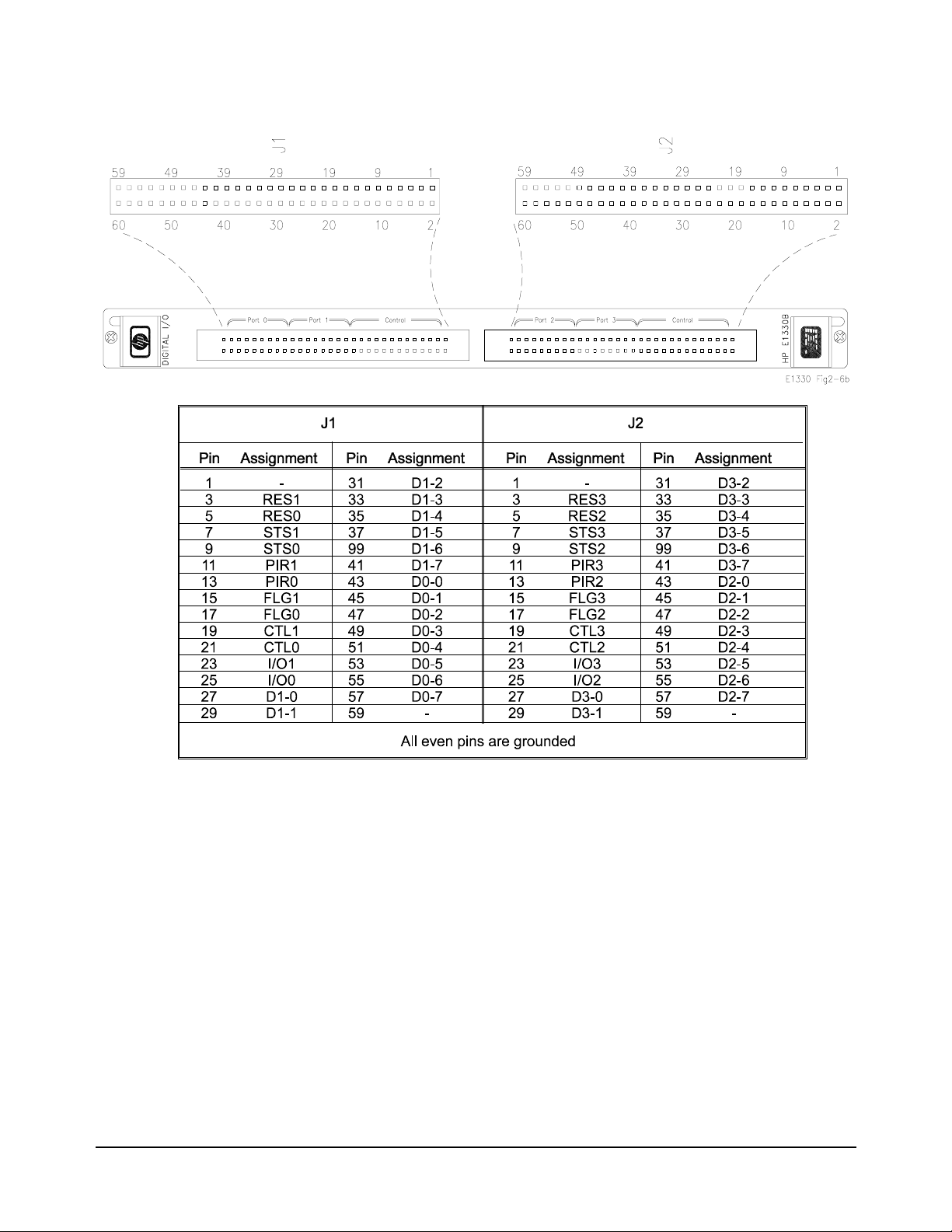

Digital I/O Module Peripheral Pinout.........................................................................22

Configuring for Isolated Digital I/O...........................................................................25

Connecting to a GPIO Peripheral ............................................................................... 26

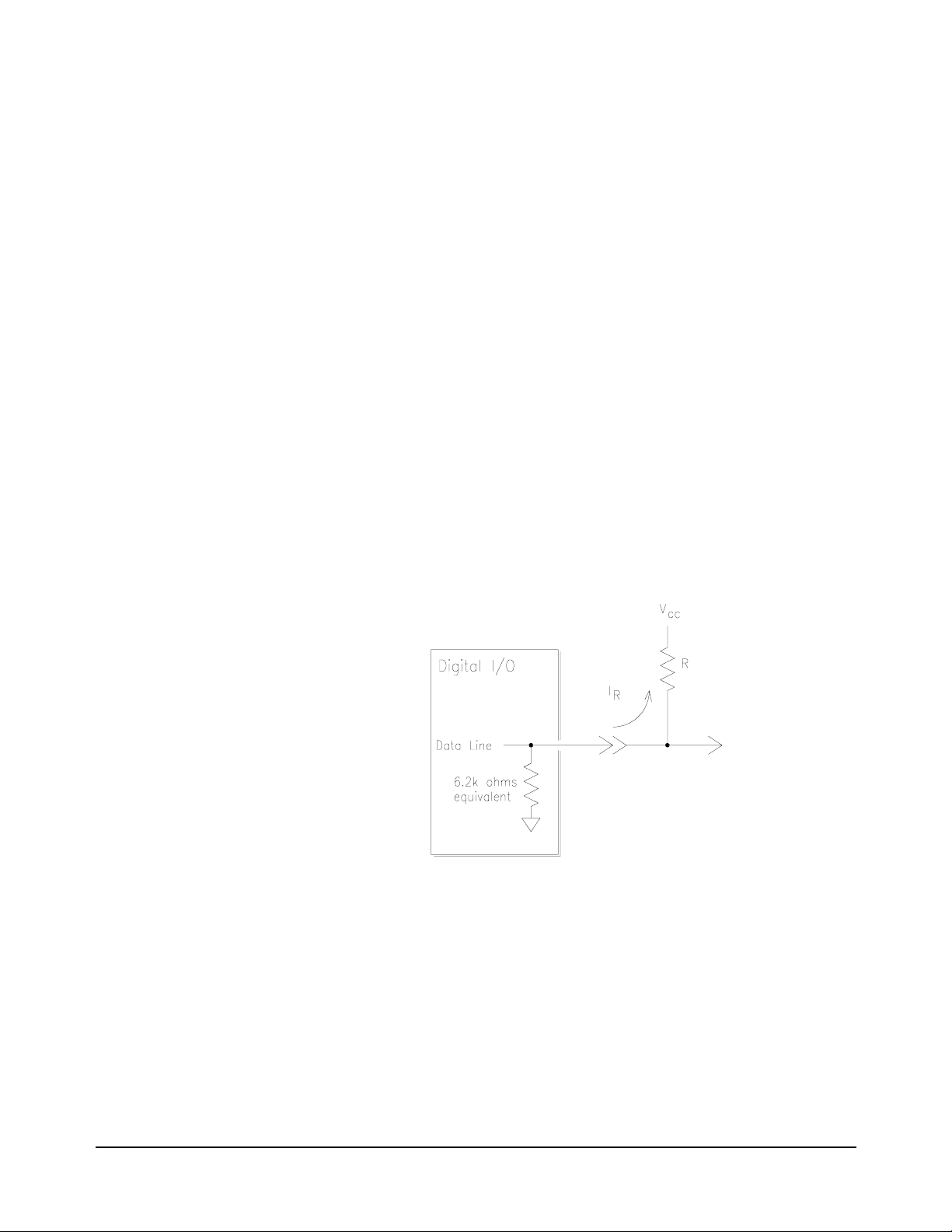

Using with External Pull-ups......................................................................................28

Typical Connection..................................................................................................... 29

Chapter 3

Using the HP E1330B Digital I/O Module .................................................................31

Using This Chapter.....................................................................................................31

Addressing the Module...............................................................................................31

Operation Overview....................................................................................................32

Default and Reset States.............................................................................................33

Setting the Polarity......................................................................................................33

Setting the Handshake Mode......................................................................................34

Handshake Timing ..............................................................................................34

Inputting Data Bytes and Bits..................................................................................... 35

Input .................................................................................................................... 35

Outputting Data Bytes and Bits..................................................................................36

Output .................................................................................................................. 36

Multiple Port Operations ............................................................................................ 37

Using Trace Memory.................................................................................................. 38

Contents 1

Chapter 4

Understanding the HP E1330B Digital I/O Module .................................................41

Using This Chapter.....................................................................................................41

Port Description..........................................................................................................41

Data Lines .......................................................................... ......... ........................ 41

The FLG Line (Input) ..........................................................................................42

The CTL Line (Output) .......................................................................................42

The I/O

Line (Output) .........................................................................................42

The STS Line ...................................................................................................... 43

The PIR Line .......................................................................................................43

The RES

Line ...................................................................................................... 43

Default and Reset States.............................................................................................43

Setting the Polarity......................................................................................................43

Using the Handshake Modes......................................................................................44

Handshake Modes ............................................................................................... 45

Inputting Data Bytes and Bits..................................................................................... 50

Bit Input ...............................................................................................................50

Byte Input ............................................................................................................50

Outputting Data Bytes and Bits..................................................................................51

Bit Output ............................................................................................................51

Byte Output .........................................................................................................52

Multiple Port Operations ............................................................................................ 53

Multiple Port Handshaking .................................................................................53

Multiple Port Input/Output .................................................................................. 54

Chapter 5

HP E1330B Digital I/O Module Command Reference .............................................57

Using This Chapter.....................................................................................................57

Command Types.........................................................................................................57

Common Command Format ................................................................. ......... ......57

SCPI Command Format ...................................................................................... 57

Linking Commands .............................................................................................59

SCPI Command Reference.........................................................................................60

DISPlay Subsystem.....................................................................................................61

:MONitor:PORT ..................................................................................................61

:MONitor:PORT? ................................................................................................62

:MONitor[:STATe] ............................................................................................. 62

:MONitor[:STATe]? ............................................................................................63

MEASure Subsystem.................................................................................................. 64

:DIGital:DATAn[:type]:BITm? ..........................................................................64

:DIGital:DATAn[:type]:TRACe ......................................................................... 65

:DIGital:DATAn[:type][:VALue]? ..................................................................... 66

:DIGital:FLAGn? ................................................................................................ 67

MEMory Subsystem................................................................................................... 68

:DELete:MACRo ................................................................................................ 68

:VME:ADDRess ..................................................................................................69

:VME:ADDRess? ................................................................................................ 69

:VME:SIZE ......................................................................................................... 70

2 Contents

Chapter 5

HP E1330B Digital I/O Module Command Reference (continued)

MEMory Subsystem (continued)

:VME:SIZE? ........................................................................................................70

:VME:STATe ...................................................................................................... 71

:VME:STATe? .................................................................................................... 71

[SOURce:] Subsystem................................................................................................ 72

DIGital:CONTroln:POLarity .............................................................................. 74

DIGital:CONTroln:POLarity? ............................................................................ 74

DIGital:CONTroln[:VALue] ..............................................................................75

DIGital:CONTroln[:VALue]? .............................................................................75

DIGital:DATAn[:type]:BITm .............................................................................76

DIGital:DATAn[:type]:BITm? ............................................................................77

DIGital:DATAn[:type]:HANDshake:DELay .....................................................78

DIGital:DATAn[:type]:HANDshake:DELay? ....................................................79

DIGital:DATAn[:type]:HANDshake[:MODE] ..................................................80

DIGital:DATAn[:type]:HANDshake[:MODE]? ................................................. 81

DIGital:DATAn[:type]:POLarity ........................................................................82

DIGital:DATAn[:type]:POLarity? ...................................................................... 82

DIGital:DATAn[:type]:TRACe ..........................................................................83

DIGital:DATAn[:type][:VALue] ........................................................................ 84

DIGital:DATAn[:type][:VALue]? ...................................................................... 85

DIGital:FLAGn:POLarity ................................................................................... 86

DIGital:FLAGn:POLarity? ................................................................................. 86

DIGital:HANDshaken:DELay ............................................................................87

DIGital:HANDshaken:DELay? ..........................................................................88

DIGital:HANDshaken[:MODE] .........................................................................88

DIGital:HANDshaken[:MODE]? ........................................................................89

DIGital:IOn? ........................................................................................................89

DIGital:TRACe:CATalog? .................................................................................90

DIGital:TRACe[:DATA] .................................................................................... 90

DIGital:TRACe[:DATA]? ..................................................................................91

DIGital:TRACe:DEFine ......................................................................................91

DIGital:TRACe:DEFine? .................................................................................... 92

DIGital:TRACe:DELete:ALL .............................................................................92

DIGital:TRACe:DELete[:NAME] ...................................................................... 92

STATus Subsystem.....................................................................................................93

:OPERation:CONDition? .................................................................................... 94

:OPERation:ENABle ...........................................................................................94

:OPERation:ENABle? .........................................................................................94

:OPERation[:EVENt]? ........................................................................................ 94

:PRESet ............................................................................................................... 94

:QUEStionable:CONDition? ............................................................................... 95

:QUEStionable:ENABle ......................................................................................95

:QUEStionable:ENABle? ....................................................................................95

:QUEStionable[:EVENt]? ................................................................................... 95

Contents 3

Chapter 5 (continued)

SYSTem Subsystem ................................................................................................... 96

:CDEScription? ................................................................................................... 96

:CTYPe? .............................................................................................................. 96

:ERRor? ............................................................................................................... 97

:VERSion? ........................................................................................................... 97

IEEE 488.2 Common Commands............................................................................... 98

Command Quick Reference........................................................................................99

Appendix A

HP E1330B Digital I/O Specifications ......................................................................103

Appendix B

HP E1330B Digital I/O Module Register Information ...........................................105

Using This Appendix................................................................................................ 105

Addressing the Registers.......................................................................................... 105

The Base Address ..............................................................................................106

Register Offset ...................................................................................................108

Reset and Registers ...................................................................................................109

Register Definitions..................................................................................................109

Register Descriptions................................................................................................111

Manufacturer Identification Register ................................................................111

Device Identification Register ...........................................................................111

Card Status/ Control Register ............................................................................111

Port Interrupt Control Register ..........................................................................112

Port Transfer Control Register ..........................................................................113

Port Control/ Status Register .............................................................................114

Port Data Register .............................................................................................115

Port Handshake Register ...................................................................................116

Port Delay Register ...........................................................................................117

Port Normalization Register .............................................................................. 118

A Register-Based Output Algorithm ........................................................................119

A Register-Based Input Algorithm ...........................................................................120

Programming Examples............................................................................................121

System Configuration ........................................................................................121

Resetting the Module ......................................................... ......... ...................... 122

Reading the ID, Device Type, and Status Registers .........................................123

Writing an 8-Bit Byte ........................................................................................125

Writing a 16-Bit Word ......................................................................................127

Reading an 8-Bit Byte .......................................................................................128

Reading a 16-Bit Word ..................................................................................... 130

Debugging Basic Register-Based Programs ..................................................... 130

PIR Interrupts on the HP E1330 ........................................................................ 131

HP E1330B Non-data Line I/O .........................................................................136

Embedded Computer Example ..........................................................................140

4 Contents

Appendix C

Error Messages ..........................................................................................................143

Certification

Hewlett-Packard Company certifies that this product met its published specifications at the time of shipment from the factory. Hewlett­Packard further certifies that its calibration measurements are traceable to the United States National Institute of Standards and
Technology (formerly National Bureau of Standards), to the extent allowed by that organization’s calibration facility, and to the
calibration facilities of other International Standards Organization members.

Warranty

This Hewlett-Packard product is warranted against defects in materials and workmanship for a period of three years from date of shipment.
Duration and conditio ns of wa rrant y for this p roduc t may be su perseded when th e pro duct is in tegrate d in to (bec omes a part of) other HP
products. During the warranty period, Hewlett-Packard Company will, at its option, either repair or replace products which prove to be
defective.

For warranty service or repai r, this produc t must be return ed to a service facility design ated by Hewlett-Pa ckard (HP). Bu yer sha ll prep ay
shipping charges to HP and HP shall pay shipping charges to return the product to Buyer. However, Buyer shall pay all shipping charges,
duties, and taxes for products returned to HP from another country

HP warrants that its software and firmware designated by HP for use with a product will execute its programming instructions when
properly installed on that product. HP does not warrant that the operation of the product, or software, or firmware will be uninterrupted
or error free.

Limitation Of Warranty

The foregoing warranty sh all not apply to defects resu lting from im proper or ina dequate ma intenance by Buyer, Bu yer-supplie d products
or interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper
site preparation or ma intenance.

The design and implementation of any circuit on this product is the sole responsibility of the Buyer. HP does not warrant the Buyer’s
circuitry or malfunctions of HP products that result from the Bu yer’s circuitry. In addition, HP does not war rant any damage that occurs
as a result of the Buyer’s circuit or any defects that result from Buyer-supplied products.

NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. HP SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Exclusive Remedies

THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE REMEDIES. HP SHALL NOT BE LIABLE FOR
ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT,
TORT, OR ANY OTHER LEGAL THEORY.

Notice

The information contained in this document is subject to change without notice. HEWLETT-PACKARD (HP) MAKES NO
WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. HP shall not be liable for errors
contained herein or for incidental or consequential damag e s in connection with the furnishing, performance or use of this material. This
document contains proprietary infor mation which is pr otected by copyright. All rights are reserved. No part of this document may be
photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company. HP assumes
no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

U.S. Government Restricted Rights

The Software and Documentation have been developed entirely at private expense. They are delivered and licensed as "commercial
computer software" as defined in DFARS 252.227- 7013 (Oct 1988), DFARS 252.211-7015 (May 1991) or DFARS 252.227-7014 (Jun

1995), as a "commercial item" as defined in FAR 2.101(a), or as "Restricted computer software" as defined in FAR 52.227-19 (Jun

1987)(or any equivalent agency regulation or contract clause), whichever is applicable. You have only those rights provided for such
Software and Documentation by the applicable FAR or DFARS clause or th e HP standard software agreement for the produ ct involved

HP E1330B Quad 8-Bit Digital I/O User’s Manual

Edition 7

Copyright © 1997 Hewlett-Packard Company. All Rights Reserved.

5

Documentation History

All Editions and Updates o f this manu al and t heir cre ation da te are li sted belo w. The first Edi tion o f the m anual i s Edition 1. The Edition
number increments by 1 whenever the manual is revised. Updates, which are issued between Editions, contain replacement pages to
correct or add additional information to the current Edition of the manual. Whenever a new Edition is created, it will contain all of the
Update information for the previous Edi tion. Each ne w Edition or Upd ate also incl udes a revised copy of this d ocumentation h istory page.

Edition 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Edition 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .September 1990

Edition 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . April 1992

Edition 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .September 1992

Edition 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .November 1993

Edition 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .June 1995

Edition 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .May 1997

Safety Symbols

Instruction manual symbol affixed to

Instruction manual symbol affixed to
product. Indicates that the user must refer to

product. Indicates that the user must refer to
the manual for specific WARNING or

the manual for specific WARNING or
CAUTION information to avoid personal

CAUTION information to avoid personal
injury or damage to the product.

injury or damage to the product.

Indicates the field wiring terminal that must
be connected to earth ground before

operating the equipme nt—protects against
electrical shock in case of fault.

WARNING

Alternating current (AC)

Direct current (DC).

Indicates hazardous voltages.

Calls attention to a procedure, practice , or
condition that could cause bodily injury or
death.

or

Frame or chassis ground terminal—typically
connects to the equipment' s metal frame.

CAUTION

Calls attention to a procedure, practice , or
condition that could p ossibly cause damage to
equipment or permane nt loss of data.

WARNINGS

The following genera l safety precautions must be observed during all phases of operation, service, and r epair of this produ ct. Failure to
comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and
intended use of the product. Hewlett-Packar d Company assumes no liabilit y for the customer's failu re to comply with these requirements.

Ground the equipment: For Safety Class 1 equipment (equipment having a protective earth terminal), an uninterruptible safety earth
ground must be provided from the mains power source to the product input wiring terminals or supplied power cable.

DO NOT operate the product in an explosive atmosphere or in the presence of flammable gases or fumes.
For continued protection against fire, replace the line fuse(s) only with fuse(s) of the same voltage and current rating and type. DO NOT

use repaired fuses or short-circuited fuse holders.
Keep away from live circuits: Operating personnel must not remove equipment covers or shields. Procedures involving the removal of

covers or shields are for use by service-tr ained personnel on ly. Under certain conditions, dangerous voltages may exist even with the
equipment swi tched off . To avoid da ngerous el ectrica l shock, DO N OT perform procedure s involvin g cover or sh ield remova l unless you
are qualified to do so.

DO NOT operate damaged equipmen t: Whenever it is possible that the safety protection features built in to this product have been
impaired, either through physical damage, excessive moisture, or any other reason, REMOVE POWER and do not use the product until
safe operation can be verified by service-trained personnel. If necessary, return the product to a Hewlett-Packard Sales and Service Office
for service and repair to ensure that safety features are maintained.

DO NOT service or adjust alone: Do not attempt internal service or adjustment unless another person, capable of rendering first aid and
resuscitation, is present.

DO NOT substitute parts or modify equipment: Because of the dange r of introd ucing addi tional h azards, do not install substitute parts
or perform any unauthorized mod ification to the product. Return the product to a Hewlett-Packard Sales and Service Office for servi ce
and repair to ensure that safety features are maintained.

6

Declaration of Conformity

according to ISO/IEC Guide 22 and EN 45014

Manufacturer’s Name: Hewlett-Packard Company

Loveland Manufacturing Center

Manufacturer’s Address: 815 14th Street S.W.

Loveland, Colorado 80537

declares, that the product:

Product Name: Quad 8-Bit Digital I/O Module
Model Number: HP E1330B
Product Options: All

conforms to the following Product Specifications:
Safety: IEC 1010-1 (1990) Incl. Amend 1 (1992)/EN61010-1 (1993)

CSA C22.2 #1010.1 (1992)
UL 1244

EMC: CISPR 11:1990/EN55011 (1991): Group 1 Class A

EN50082-1:1992
IEC 801-2:1991: 4kVCD, 8kVAD
IEC 801-3:1984: 3 V/m
IEC 801-4:1988: 1kV Power Line, .5kV Signal Lines

Supplementary Information: The product herewith complies with the requirements of the Low Voltage Directive
73/23/EEC and the EMC Directive 89/336/EEC (inclusive 93/68/EEC) and carries the "CE" marking acco rdingly.

Tested in a typical configuration in an HP B-Size VXI mainframe.

June 15, 1995

European contact: Your local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Depart-

ment HQ-TRE, Herrenberger Straße 130, D-71034 Böblingen, Germany (FAX [phone])

Jim White, QA Manager

7

Notes:

8

Pl

ease fold and tape for ma

ili

ng

Reader Comment Sheet

HP E1330B Quad 8-Bit Digital I/O User’s Manual

Edition 7

You can help us improve our manuals by sharing you r comments and sug gestions. In appreciation of your time, we will
enter you in a quarterly drawing for a Hewlett-Packard Palmtop Personal Computer (U.S. government employees

are not eligible for the drawing).

Your Nam e

Company Name

Job Title

Address

City, State/Province

Country

Zip/Postal Code

Telephone Number with Area Code

Please list the system controller, operating system, programming language, and plug-in modules you are using.

fold here

BUSINESS REPLY MAIL

FIRST CLASS PERMIT NO. 37 LOVELAND, CO

POSTAGE WILL BE PAID BY ADDRESSEE

cut along this li ne

HEWLETT-PACKARD COMPANY

Measurement Systems Division
Learning Products Department
P.O. Box 301
Loveland, CO 80539-9984

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

fold here

Please pencil-in one circle for each statement below: Disagree Agree

• The documentation is well organized. OOOOO

Instructions are easy to understand. OOOOO

•

The documentation is clearly written. OOOOO

•

•Examples are clear and useful. OOOOO

Illustrations are clear and helpful. OOOOO

•

The documentation meets my overall expectations. OOOOO

•

Please write any comments or suggestions below–be specific.

Using This Chapter

This chapter describes the Quad 8-bit Digital I/O Module and how to
program the Module using SCPI (Standard Commands for Programmable
Instruments) commands. This chapter contains the following sections:

• Technical Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11

• Instrument Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13

• Downloading SCPI Drivers . . . . . . . . . . . . . . . . . . . . . . . . . Page 13

• Programming the Digital I/O Module. . . . . . . . . . . . . . . . . . Page 13

• Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16

Technical Description

The HP E1330B Quad 8-Bit Digital I/O Module (referred to as the Digital
I/O module) is a four port digital input/output module intended for data
communication and digital control in electronic environments. The Digital
I/O module is compatible with TTL levels (0-5V) or CMOS levels (using
external pull-ups). The Digital I/O module complies wi th VXIbus (VMEbus
Extensions for Instrumentation) definitions for the P1 bus connector on
B-sized modules. A jumper on the module sets the VXIbus interrupt level.

Chapter 1

Getting Started

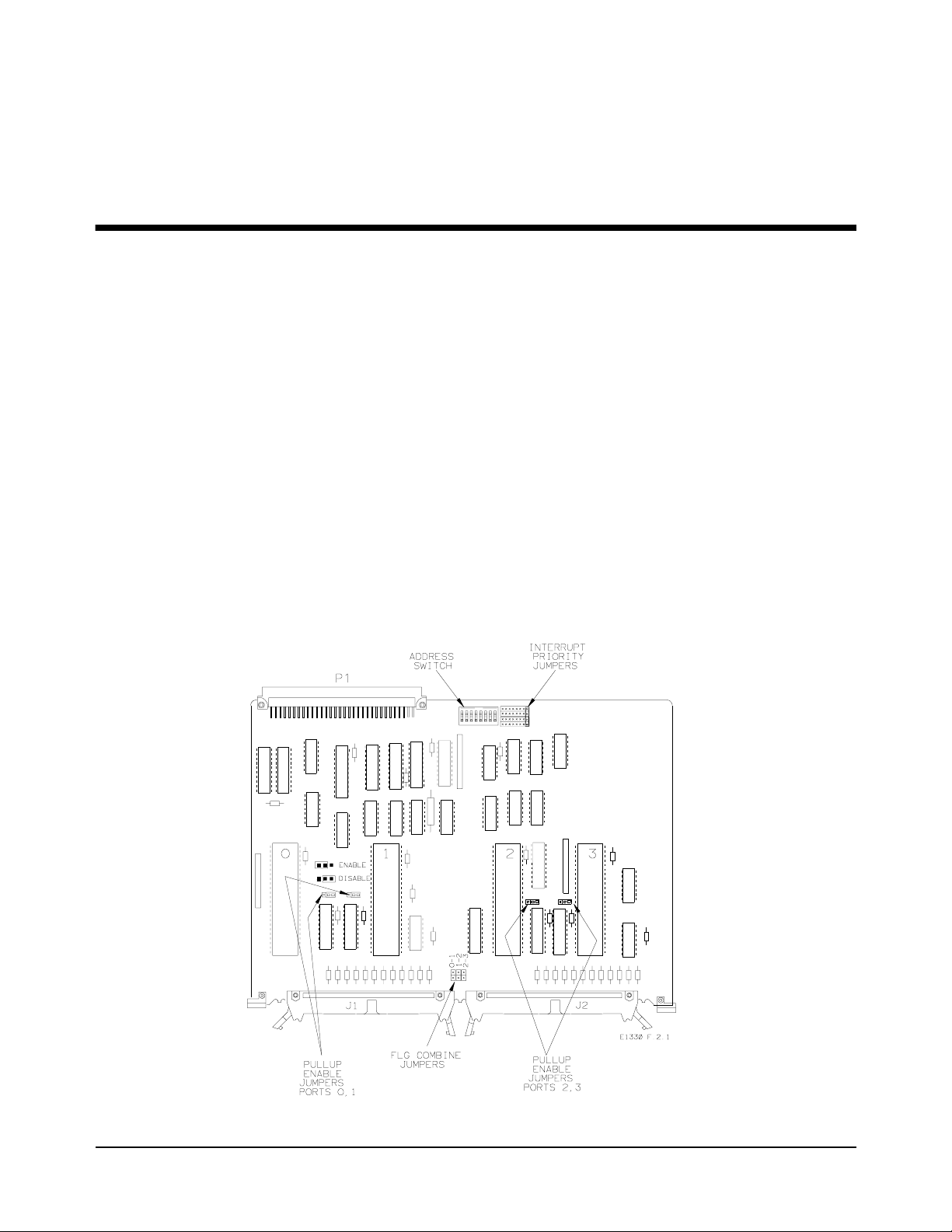

Figure 1-1. HP E1330B Digital I/O Module

Getting Started 11Chapter 1

Each port is identical and con si st s of 6 cont ro l lines and 8 data lines. There
are 7 registers for control and status on each port. In addition, the module
also has Manufacturer ID, Device Type, and Module Status/Control
Registers. Figure 1-1 shows the locations of the ports and a simplified
diagram of a single port. Of the seven control lines, three (I/O
FLG) are used with SCPI commands and three (RES

, STS, and PIR) are

, CTL, and

controlled through register access. Chapte r 4 — “Understanding the
HP E1330B Digital I/O Module” contains detailed descriptions of these
lines.

Each port has two sets of hardware configuration jumpers. One set of
jumpers allows you to connect the FLG lines together for multi-port dat a

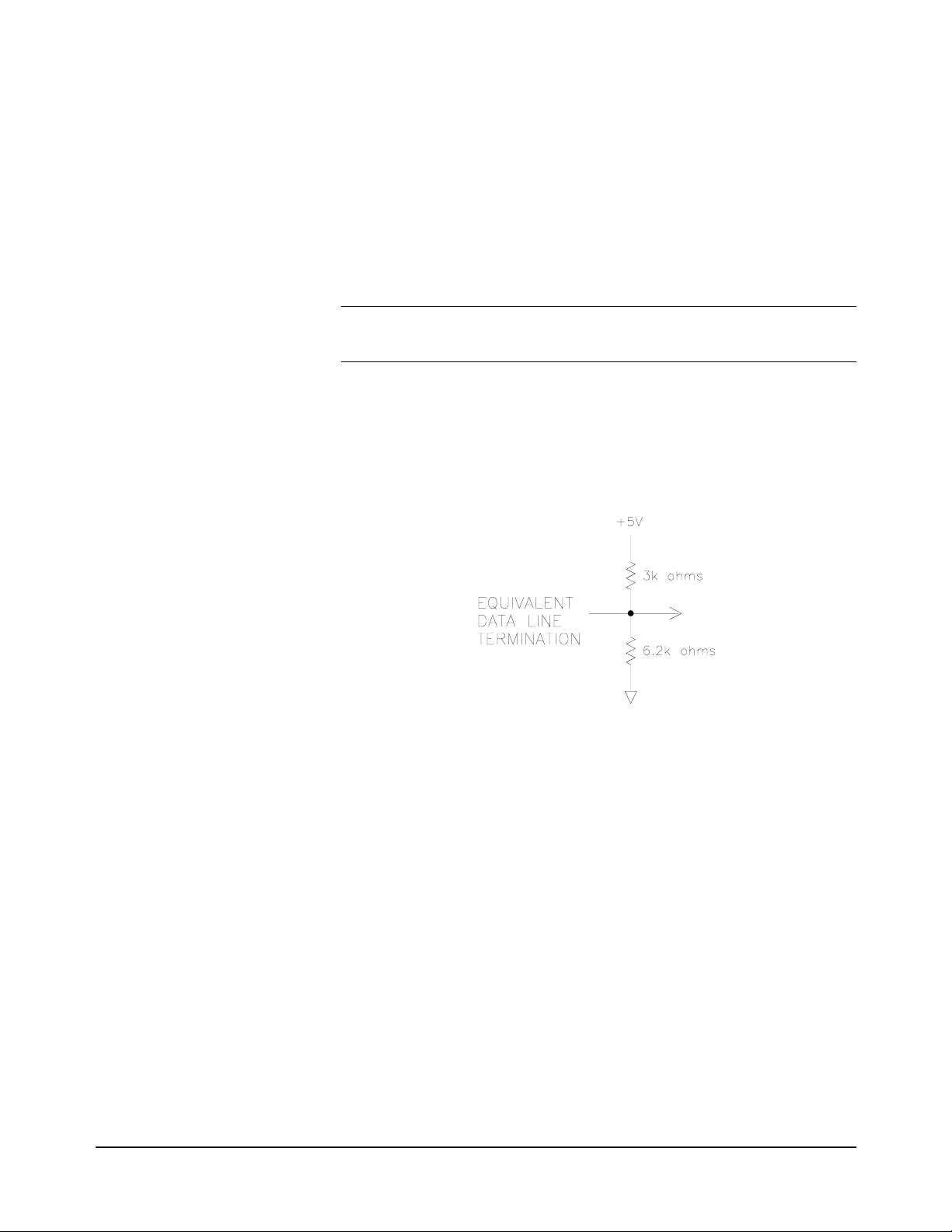

transmission. Another jumper selects either open collector operation or
internal pull-up to TTL compatible levels on the data lines. Chapter 2 —
“Configuring the HP E1330B Digital I/O Module” describes how to set
these jumpers.

SCPI commands provided for the Digital I/O allow opera tion on a singl e bit,
8-bit "BYTE" format, 16-bit "WORD" format (using 2 ports), or 32-bit
"LWORd" format (using 4 ports).

Table 1-1 shows the mapping of bit numbers from the 8-bit ports to the
16- or 32-bit ports. Chapter 5 — “HP E1330B Digital I/O Command
Reference” describes each command in detail and Chapter 3 — “Using the
HP E1330B Digital I/O Module” gives examples of the use of SCPI
commands.

Table 1-1. Data Lines

8-bit (BYTE) Operations

Port # 0 1 2 3
Bit designations 7------0 7------0 7------0 7------0

16-bit (WORD) Operations

Port # 0 2
Bit designations 15------8 7------0 15------8 7------0

32-bit (LWORd) Operations

Port # 0
Bit designations 31------24 23------16 15------8 7------0

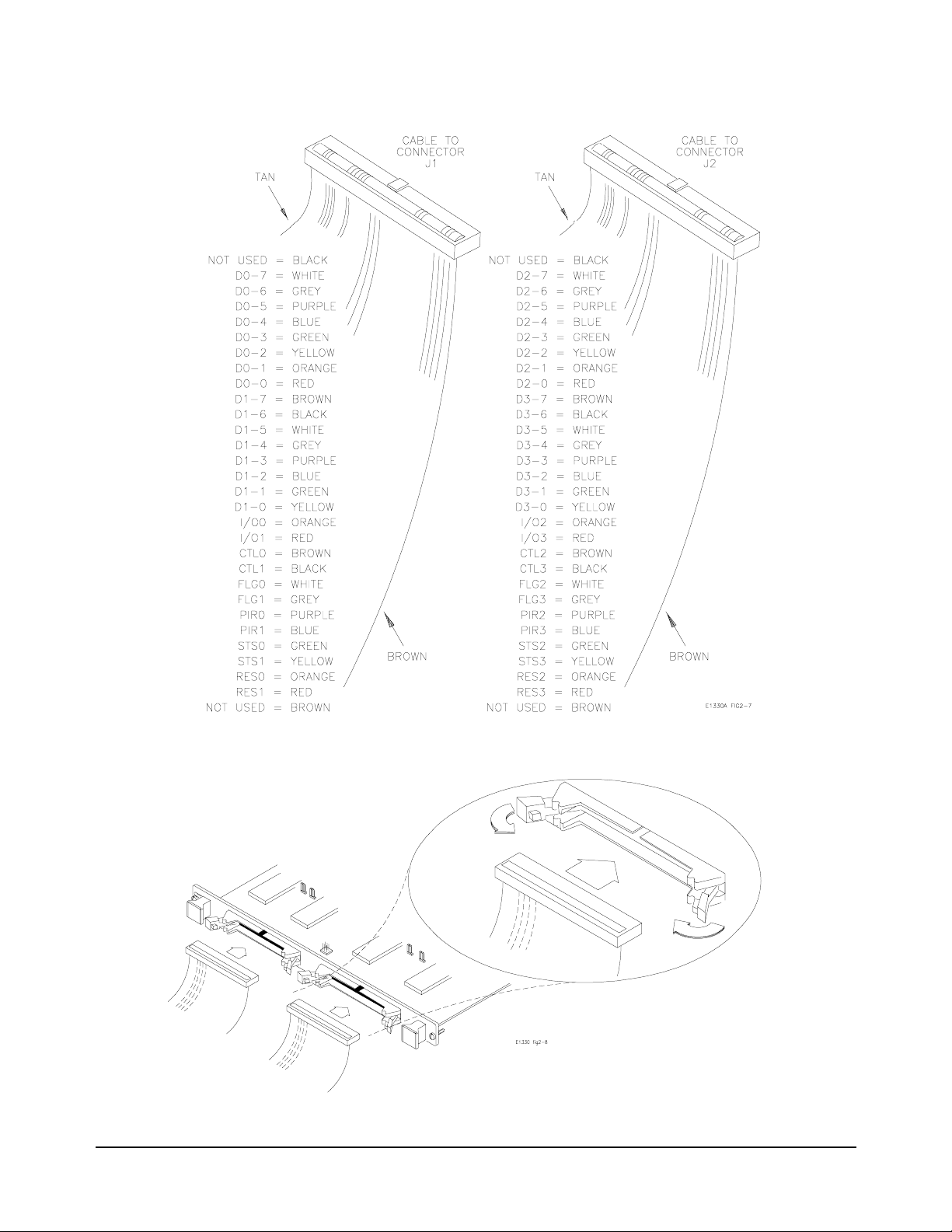

Two 3-meter, 60-wire ribbon cabl es with an insulation displacement hea der
connector (ribbon cable c onnector) on o ne end a re incl uded with the Dig ital
I/O module. Additional cable sets can be ordered (HP part number
E1330-61601) from your nearest Hewlett-Packard Sales Office.

12 Getting Started Chapter 1

Instrument Definition

Each Digital I/O module installed in an HP mainframe is treated as an
independent instrument; having a unique secondary HP-IB address. Each
instrument is also assig ned a dedicated error queue, inpu t and output buffers,
status registers and, if applicable, dedicat ed mainframe memory space for
readings or data. Multiple Digital I/O modules cannot be combined into a
single instrument.

Downloading SCPI Drivers

The HP Digital I/O Driver allows the HP E1330B module to operate with
either B-size mainframes or HP E1405/06 Command Modules in a C-size
mainframe. The driver implements the Standard Commands for
Programmable Instrumentation (SCPI) command language. The B-size
HP E1300/E1301 Mainframe has a bui lt in driver, or can use a downloa dable
driver. The two driver s are slightl y differ ent and the diff erences are de tailed

in Chapter 5 — “HP E1330B Digital I/O Command Reference”.
To use the HP E1330B with a C- size mainframe and command module, you

must use a downloadable dr iver. The downloadable driver name for the
Digital I/O module is “DIG_IO”. The procedure for downloading the drivers
is contained in the HP E1405B and HP E1406A Command Module User
Guides.

Programming the Digital I/O Module

To program the Digital I/O module us ing SCPI commands, you will nee d to
know the controller language and int erface a ddresses you will be using. See
the HP 75000 Series B or Series C Installation and Getting Started Guide
for detailed interface addressing and controller language information.

Note This discussion applies only to SCPI (Standard Commands for

Programmable Instruments ) programming. See Append ix B — “Digital I/O
Register Information” for details on register addr essing. Do not mix SCPI
programming and direct register access.

Getting Started 13Chapter 1

SCPI Command

Format Used in This

Manual

SCPI commands can be used in either long or short form. A long form
example is:

DISPlay:MONitor ON

The same command, without the lower case letters, is the short form.
For example:

DISP:MON ON

Either the long form or th e short for m commands ca n be used to perform the
same result. The long and short forms can also be mixed within the same
program code. The commands are case insensitive, either upper or lower
case letters are accepted.

<> is a

Specifying SCPI

Commands

In the command examples shown above, the item enclosed in
parameter required to use the command, however, do not include the
brackets when sending the command. In this example, the parameter input
can be replaced with any one of the following:

allowable values of the parameters are given in Chapter 5 — “HP E1330B
Digital I/O Module Command Reference”. You must include at least one
space between the keywords and the parameter.

Some commands are shown with items enclosed in square brackets (
These are implied or optional items that do not have to be included. For
example, the complete command syntax listing for the first example is:

DISPlay:MONitor[:STATe] <0|1 or OFF|ON>

The item enclosed in brackets, [:STATe], does not have to be i ncluded for the
command to work. Complete descr ip ti ons of the SCPI command language,
syntax, parameter types, and usage are in Chapter 5 of this manual.

SCPI command s related to the Digital I/O module use three types of
parameters to specify a port number, a bit number, or a multiple port
combining operation. Each type is briefly described here. Descriptions and
examples of usage can be found in Chapter 3 of this manual.

0, 1, OFF, or ON. The

Specifying a Port The Digi tal I/O module has four identical por ts numbered from 0 to 3. SCPI

commands that relate to a specific port use a special parameter to indicate
the port number. For example:

[]).

[SOURce:]DIGital:DATAn <value>

This command writes the parameter
portion of the
the number the last character of the
example, to set all port 2 data lines to logical zero, use the command:

[SOURce:]DIGital:DATA2 0

The value of n may vary for multiple port commands and operations. A
description of multiple port commands is on page 15.

14 Getting Started Chapter 1

DATA keyword. Replace the n with the port number, making

<value> to the port specified by the n

DATA keyword without spaces. For

Specifying a Bit Each of the four ports on the module has eight bi-directional data lines,

corresponding to eight programmable data bits. Some SCPI commands
allow you manipulate or read these bits individually. For example:

MEASure:DIGital:DATAn:BITm?

This command reads the state of a bit, specified by m, on port n. The result
will be either 0 or 1, indica ting the current l ogical state of the bit. Replac e m
with the desired bit number, and n with the desired port number, making
each number the last characters of the
spaces. For example, to read bit 7 on port 0, use the following command:

MEASure:DIGital:DATA0:BIT7?

For single ports, the value of m can range from 0 to 7. Some multiple port
operations and commands may allow bit numbers to range from 0 to 31.

DATA and BIT keywords without

Specifying Multiple Port

Operations

The Digital I/O modul e all o ws you to set or read multiple ports or b its with
a single command. For example:

MEASure:DIGital:DATAn[:type]?

This command uses an opti onal keyword, [:type], to specify how many ports
are combined in a single re tur n ed val ue. T he l o wer cas e ke yword

[:type] is

replaced with one of a fixed set o f keywords. For exam ple, to read al l 4 ports
(all 32-bits) as a single returned value, use the command:

MEASure:DIGital:DATA0:LWORd?

Keywords are provided to allow port combin ation s of 16- or 32-bits. Us ing
multiple ports is described in more detail in Chapt er 4 of this manual.

Getting Started 15Chapter 1

Initial Operation

Use the following example t o verify init ial operati on. The example first sets
and then queries the polarity of a logical true condition on the port 0 FLG
line. The example uses an HP Ser ies 200/30 0 Computer with HP BASIC as
the programming language. The computer is connected to an HP E1301
Mainframe using the Hewlet t-Packard Interface Bus (H P-IB)*. The HP -IB
interface select code is 7, the HP-IB primary address is 09, and the HP-IB
secondary address (used to specify the Digital I/O module) is 18. Refer to
the B-Size Installation and Getting Started Guide for more details.

10 ASSIGN @Dio TO 70918
20 DIM Polarity$[3]
30 OUTPUT @Dio;"*RST"
40 OUTPUT @Dio;"*OPC?"
50 ENTER @Dio;Ready

60 OUTPUT @Dio;"SOUR:DIG:FLAG0:POL POS;*OPC?"
70 ENTER @Dio;Ready

80 OUTPUT @Dio;"SOUR:DIG:FLAG0:POL?"

90 ENTER @Dio;Polarity$
100 IF Polarity$ <> "POS" THEN
110 DISP "Polarity Check ERROR"
120 PAUSE
130 ELSE
140 DISP"Polarity set to "&Polarity$
150 END IF
160 OUTPUT @Dio;"SOUR:DIG:F LAG 0 :PO L NEG;*OPC?"

170 ENTER @Dio;Ready
180 OUTPUT @Dio;"SOUR:DIG:F LAG 0 :POL? "

190 ENTER @Dio;Polarity$
200 IF Polarity$ <> "NEG" THEN
210 DISP "Polarity Check ERROR"
220 PAUSE
230 ELSE
240 DISP"Polarity set to "&Polarity$
250 END IF
260 OUTPUT @Dio;"*RST"
270 OUTPUT @Dio;"*OPC?"
280 ENTER @Dio;Ready
290 END

!Sets an I/O path to the module.

!Reset the module.
!Wait for the module to finish.
!Hold here until command is
finished.

!Set POSitive polarity.
!Wait for finish.

!Query the polarity state.
!Get the result.
!Check the result.
!Error discovered.
!Pause on error.

!Set NEGative polarity.
!Wait for finish.

!Query the polarity state.
!Get the result.
!Check the result.
!Error discovered.
!Pause on error.

!Restore the module.
!Wait for the module to finish.

* HP-IB is Hewlett-Packard’s implementation of IEEE Std 488.1-1984.

16 Getting Started Chapter 1

Configuring the HP E1330B Digit a l I/O

Using This Chapter

Chapter 2

Module

This chapter shows how to configure the Digital I/O module for use in a
VXIbus mainframe, connect peripheral devices, and configure the module
for operation. Refer to Figure 2-1 for locations of jumpers and switches. This
chapter contains the following sections:

• Setting the Address Switch. . . . . . . . . . . . . . . . . . . . . . . . . . Page 18

• Enabling Pull-ups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19

• Selecting the Interrupt Line. . . . . . . . . . . . . . . . . . . . . . . . . . Page 20

• Combining the Flag Lines. . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21

• Digital I/O Module Peripheral Pinout. . . . . . . . . . . . . . . . . . Page 22

• Configuring for Isolated Digital I/O . . . . . . . . . . . . . . . . . . . Page 25

• Connecting to a GPIO Peripheral . . . . . . . . . . . . . . . . . . . . . Page 26

• Using with External Pull-ups . . . . . . . . . . . . . . . . . . . . . . . . Page 28

• Typical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29

Figure 2-1. HP E1330B Digital I/O Module

Configuring the HP E1330B Digital I/O Module 17Chapter 2

Setting the Address Switch

Refer to Figure 2-1. In the center rear of the module, next to the P1
connector, you will fi nd the logical address switch. It s factory sett ing is 144;
rockers 4 and 7 a re closed, all othe rs are open. You can select the addr ess of

the Digital I/O module to any number 0–255 (d eci mal ). The defaul t se tt ing
of the address switch is shown in Figure 2-2.

Note To be recognized as an instrument when you are using the Digital I/O

module in an HP E1300/1301 Mainframe or with an HP E1405 or E1406
Command Module, the logical address must be set to a multiple of 8.

Figure 2-2. Logical Address Switch Set at 144

18 Configuring the HP E1330B Digital I/O Module Chapter 2

Enabling Pull-ups

Note The jumper in the enabled posit ion does not add an i nput pull -up res isto r to

Referring to Figure 2- 1, no te the pull-up enable jumpers near the middle of
each of the large ICs. The data lines of each port can be independently
configured for either passive or active pull-up to TTL high levels. The
factory-shipped condition is pull-up disa bled for all ports. The data lines
may be either inputs or outputs. When the data lines are outputs, and the
jumper is in the enabl ed position, the outputs are acti vely forced high. When
the data lines are inputs, the jumper position makes no difference.

each data line, it enables a chip-internal pull-up network.

Each data line has an active resistive terminating network. The active
circuitry ensures that when power is removed from the module, the data
lines are not loaded. With power applied, the resistive terminating network
is equivalent to that shown in Figure 2-3.

Figure 2-3. Equivalent Data Line Termination

Configuring the HP E1330B Digital I/O Module 19Chapter 2

Selecting the Interrupt Line

The VXI peripheral i nterrupt bus consists o f seven lines which can car ry the
interrupt signal to th e commander. The most common li ne to be used is line
one, as this is the usual default interrupt line. Many VXIbus commanders
have a way to change the interrupt line they manage (for example, the
E1405/06 has an interrupt line allocation table). When doing direct
register-based programming, instead of using the SCPI driver, set the
interrupt line to a line that is not used by the SCPI driver. Module interrupt
priority can be established with these lines. In general, the higher the line
number, the higher the priority.

Referring to Figure 2-1, near the P1 connector you will find two sets of
jumper pins labeled X and 1 through 7 (JM15 and JM16). The Digital I/O
module is factory-shipped with the interrupt set to 1. If you need to change
the interrupt level you must move both jumpers on the blocks. Spare
jumpers, used for combining the flag (FLG) lines, are stored on the unused
ground pins of this connector when it ships from the factory.

Figure 2-4. Priority Interrupt Connector (Factory Setting)

Note The interrupt circuitry for the HP E1330B is implemented as release on

interrupt acknowledge (ROAK). The HP E1330B Digital I/O module will
de-assert (or release) the interrupt request line during an interrupt
acknowledge cycle.

The interrupt circuitry on the HP E1330A is implemented as release on
register access (RORA). The HP E13 30A Di gital I/O module will cont inu e
to assert the interrupt request line until the Port Control/Status Register on
the Digital I/O module is accessed.

Both the HP E1330A and HP E1330B may be used with the HP E1300A/
E1301A and with the HP E1405A/B and HP E1406A. If you are using
HP Compiled SCPI (i.e., HP E1570A), you must use the HP E1330B.

20 Configuring the HP E1330B Digital I/O Module Chapter 2

Combining the Flag Lines

Each port contains a Flag Line, labeled FLG, that can be use d to implement
a handshake scheme with a peripheral. For single port operations, the FLG
lines can be used in the factory default setting (no flag lines combined) to
handshake with a peripheral. For multi-port operations with a single
handshake line, you can combine the flag line from multiple ports. The
combined flag lines are physically tied together. An ac tion on any of the
combined flag lines performs that action for all combined flag lines.

Figure 2-5 shows the locations of the flag combining switches and how to
set them. Before setting any flag combine switches, you may wish to read
the discussion regarding allowable port combinations and handshaking in
Chapter 4 of this manual.

Note When using FLG and CTL for handshaking on multiple port operations,

CTL is set for each port sequentially, beginning at the lowest numbered
port.

Figure 2-5. Flag Combine Switches

Configuring the HP E1330B Digital I/O Module 21Chapter 2

Digital I/O Module Peripheral Pinout

Figure 2-6 shows pinouts for the Digital I/O module connectors. Each is
compatible with easy cr imp connections to ri bbon cables for standar d digital
I/O interfacing. Figure 2-7 shows the data line location on the supplied
ribbon cables. Figure 2-8 shows how to connect the cables. Detail s about the

functioning of these pins i s covered in Chapt er 4 — “Understandin g the HP
E1330B Digital I/O Module but line names are as follows:

RES

STS Status Line - used as an auxiliary hand shake line. Input

PIR Peripheral Interrupt Line - used to si gnal a peripheral

FLG Flag Line - used to handshake data between a

CTL Control Line - used to handshake data between a

I/O

Reset Line - used to res et a peripheral. Output from the

Digital I/O module.

to the Digital I/ O module.

interrupt. Input to the Digital I/O module.

peripheral and the Digital I/O module. Controlled by
the peripheral. Input to the Digital I/O module.

peripheral and the Digital I/O module. Controlled by
the Digital I/O module. Output from the Digital I/O
module.

Input/Output Line - used to establish input or output
on a port. Controlled by the Digital I/O module. Input
to the Digital I/ O module.

22 Configuring the HP E1330B Digital I/O Module Chapter 2

Figure 2-6. J1 and J2 Connector Pinouts

Configuring the HP E1330B Digital I/O Module 23Chapter 2

Figure 2-7. Data Line Location on Ribbon Cables

Figure 2-8. Connecting the Digital I/O Cable

24 Configuring the HP E1330B Digital I/O Module Chapter 2

Configuring for Isolated Digital I/O

The two Digital I/O module per iph era l connectors, J1 and J2, each have 60
pins. An industry standar d isolated di gital I/O peri pheral, like the Opto 22

16 Position Single Channel Mounting Rack, is a 50-pin connection. The
connector is either a card edge or a header connector (similar to J1 on the

Digital I/O module). For exa m ple, the Opto 22
edge connector; PB16H uses a header connector. They both have the same
pin-out for the ribbon ca ble. Both can accommodate up to 16 single chann el
I/O lines.

12 of the wires on the supplied ribbon cable are not connected. Figure 2-8
shows the ribbon cable connect ions. The method of connection to the ribbon
cable can be faci lit ated by the use of sp ecial ty f ixtur es fo r th ese connec tors ,
but there is no standard for connector keys or spacing.



For the Opto 22

Pins 27–57 on the ri bbon cable, od d numbered pins on ly, correspo nd to pins
17–47 on the Opto 22
connect pins 1 and 49 on the Opto 22

Procedure 1. Carefully cut lines 1-11 on the ribbon cable and line 59. A tan wire

should be the first wire on the ribbon cable after you make the cut.

rack, lines 1–10 are not used on th e peripher al conne ctor.



rack. All even numbered pins are ground. Do not



rack, PB16C, uses a card



rack connector.



2. Select the 50-pin connector you need , either edg e connecto r or heade r
connector and attach the ribbon cable.

3. Connect the ribbon cable to the Opto 22
digital operation.

Opto 22 is a registered trademark of Opto 22, Huntington B each, CA 92649



rack for optically isolated

Configuring the HP E1330B Digital I/O Module 25Chapter 2

Connecting to a GPIO Peripheral

The GPIO interface is a widely used standard parallel interface for
connecting computers to peri pherals. The GPIO interface may em ploy up to
32-bits of bi-directional data transfer. The Digital I/O module and the GPIO
interface have identical line definitions but diff erent pin assignments.
Ports A-D on the GPIO are defined as ports 0-3 on the Digital I/O module.

Procedure 1. Connect the ribbon cable to connector J1 and/or J2 on the Digi ta l I/O

module.

2. Connect the wires on the ribbon cable to the peripheral as described
in Table 2-1 for the GPIO interface.

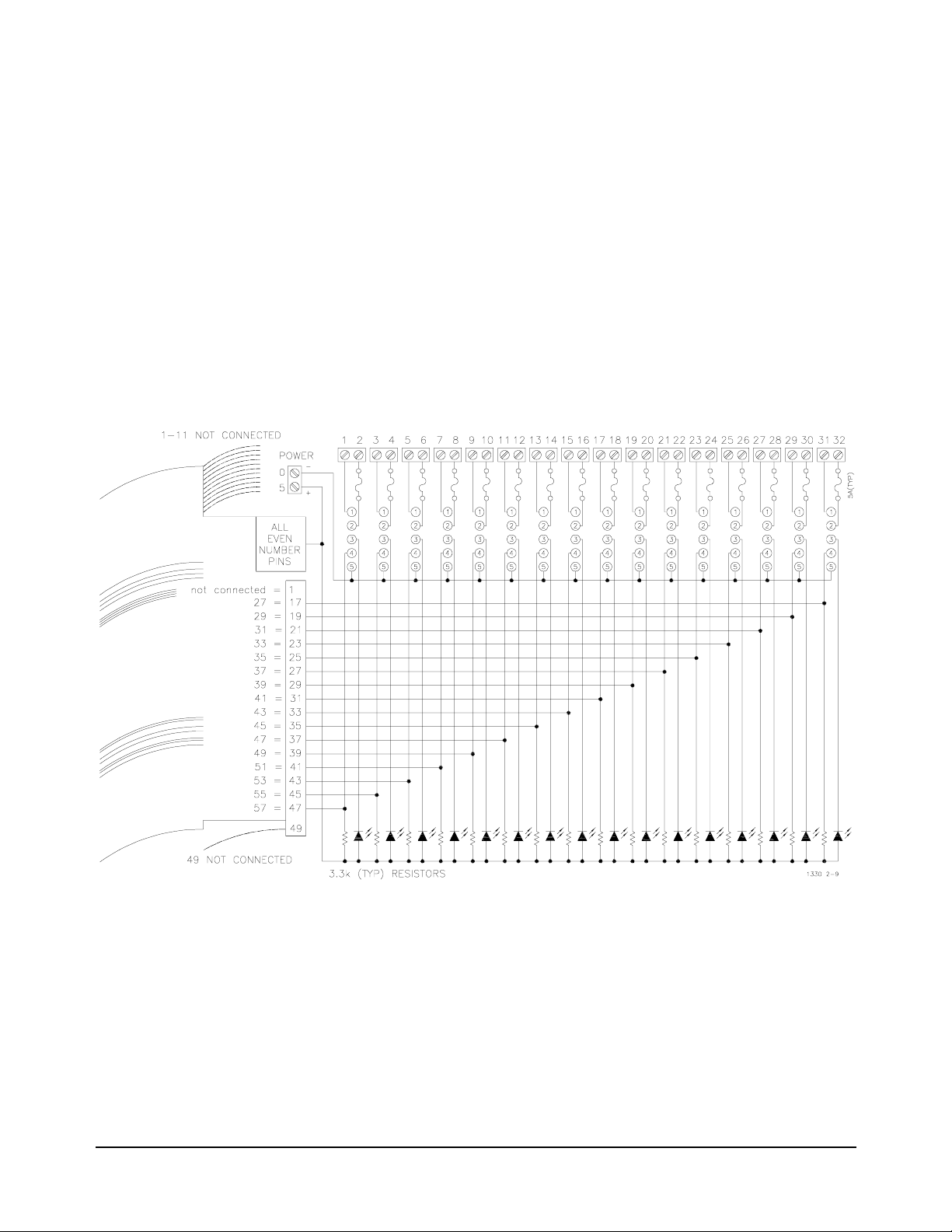

Figure 2-9. Typical Isolated Peripheral Hookup

26 Configuring the HP E1330B Digital I/O Module Chapter 2

Table 2-1. Digital I/O Pinout to GPIO Pinout

Port 0

Digital I/O GPIO

Connector J1 J2 Connector J1 J2

Name Pin # Pin# Name Pin# Pin#

D00
D01
D02
D03
D04
D05
D06
D07

RES0

STS0

PIR0
FLG0
CTL0

I/O0

Connector J2 J1 Connector J2 J1

43
45
47
49
51
53
55
57

5

9
13
17
21
25

Port 2

Digital I/O GPIO

33
15
34
16
35
17
36
18
12
26

9
27
13
31

D10
D11
D12
D13
D14
D15
D16

D17
RES1
STS1

PIR1

FLG1

CTL1

I/O1

Port 1

Digital I/O GPIO

27
29
31
33
35
37
39
41

3

7
11
15
19
23

Port 3

Digital I/O GPIO

22
21
20
19

29
25
30

11

4
3
2
1

8
7

Name Pin # Pin# Name Pin# Pin#

D20
D21
D22
D23
D24
D25
D26
D27

RES2

STS2

PIR2
FLG2
CTL2

I/O2

For the Digital I/O connectors, all even numbered pins are ground.

For the GPIO connector, pins 5, 6, 10, 14, 23, 24, 28 and 32 are ground.

43
45
47
49
51
53
55
57

13
17
21
25

33
15
34
16
35
17
36

18
5
9

12

26

9
27
13
31

D30
D31
D32
D33
D34
D35
D36

D37
RES3
STS3

PIR3

FLG3

CTL3

I/O3

27
29
31
33
35
37
39
41

11
15
19
23

4

22

3

21

2

20

1

19
3
7

29

8

25

7
30
11

Configuring the HP E1330B Digital I/O Module 27Chapter 2

Using with External Pull-ups

The Digital I/O module data lines can be used in an open collector
configuration. Connections for open collector require the use of external
power supplies and pull-up resistors. The internal pull-up mode of the
Digital I/O module should be d isabled for open collecto r output. Figure 2-10
shows a single data line connection. The value of the pull-up resistor is
calculated as follows:

Vcc 5.0 Vdc=

Imax Iout

Vcc

----------- -

R

Imax

The value of TTL high with the 200 Ω pull-up resistor is calculated as
follows:

V

High

Vcc

safety_factor× 48mA 0.52× 25mA===

Low

5

------------ -

0.025

-------------------------- -

× 4.84Vdc==

6200 200+

200Ω== =

6200

Figure 2-10. T ypical Open Collector Data Line

28 Configuring the HP E1330B Digital I/O Module Chapter 2

Typical Connection

Figure 2-11 shows a typical driver/receiver connection for data transfer.
The FLG, PIR, and STS lines have a discrete r esisti ve pull-up network. The
data lines do not have a discrete resistive pull-up, but can use an internal
pull-up in the 75ALS160. The internal pull-up requires that the data lines
sink 3.2 mA to pull the line to less th an 0.4 V. The I/O
are open collector, and require external pull-up to logic high.

, CTL, and RES lines

Figure 2-11. Typical Driver/Receiver Connections

Configuring the HP E1330B Digital I/O Module 29Chapter 2

Notes:

30 Configuring the HP E1330B Digital I/O Module Chapter 2

Using the HP E1330B Digital I/O Module

Using This Chapter

Chapter 3

This chapter is divi ded into eight sectio ns about transferring dat a to and from
the Digital I/O Module and a peripheral:

• Addressing the Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 31

• Operation Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 32

• Default and Reset States . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 33

• Setting the Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 33

• Setting the Handshake Mode . . . . . . . . . . . . . . . . . . . . . . . . Page 34

• Inputting Data Bytes and Bits. . . . . . . . . . . . . . . . . . . . . . . . Page 35

• Outputting Data Bytes and Bits . . . . . . . . . . . . . . . . . . . . . . Page 36

• Multiple Port Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 37

• Using Trace Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 38

Addressing the Module

The examples shown in this chapter use the default addresses for the
interface, Command module , and Digital I/O module . The address us es both
HP-IB primary and secondary addresses. The default address is:

Interface Select Code Command module

To establish these defaults as an I/O path in HP BASIC, the program
examples use this code:

10 ASSIGN @Dio TO 70918

Each Digital I/O module in a system must have a different logical address.
Additionally, no two instruments in the same system can have the same

logical address. Sett ing the logical address is described in Chapter 2 —
“Configuring the HPE1330B Digital I/O Module”.

70 91 8

HP-IB Primary Address HP-IB Secondary

Address

Digital I/O module

HP-IB Address

address

LADDR



------------------- -



8

Using the HP E1330B Digital I/O Module 31Chapter 3

Operation Overview

The following steps illustrate general operation of the Digital I/O module.

Figure 3-1. HP E1330B General Operation

32 Using the HP E1330B Digital I/O Module Chapter 3

Default and Reset States

At initial power-on and following the *RST command, the Digital I/O
module is set to the following states:

CTL line: 0 = TTL Low
I/O

line: TRUE = input = TTL High
Data, FLG, and CTL line Polarity: POSitive
Handshake mode: NONE

Setting the Polarity

The logical true level of the control (CTL) line, the flag (FLG) line, and the
data lines of each port can be set to either TTL high (> 2.5V) or TTL Low
(< 1.4V) levels. SCPI commands use the

[SOURce:]DIGital:CONTroln:POLarity <POSitive or NEGative>

to set the control line’s (CTL) polarity on port n.

[SOURce:]DIGital:FLAGn:POLarity <POSitive or NEGative>

to set the flag line’s (FLG) polarity on port n.

POLarity keyword as:

[SOURce:]DIGital:DATAn:POLarity <POSitive or NEGative>

to set the da ta line’s polarity on port n.

Example 10 ASSIG N @Di o TO 70918

20 DIM Pol$ [3]
30 Pol$ = "POS"
40 OUTPUT @Dio; "DIG:DATA1:POL "&Pol$
50 END

This program sets the polarity to positive on port 1 data lines. A TTL high
will be input as a 1, or a bit set to 1 will output a TTL High level.

*RST (reset) condition is positive polarity for control (CTL), flag

The
(FLG), and data lines on all ports.

Using the HP E1330B Digital I/O Module 33Chapter 3

Setting the Handshake Mode

Handshaking ensures corr ect transfer of data between devices. You mus t set
both the mode and the timing to establish correct handshaking. Most
handshake modes use the FLG and CTL lines to control the data transfer.
SCPI commands support the following modes of handshaking:

-- LEADing Edge

-- TRAiling Edge

-- PULSe

-- P ARTial

-- STRobe

-- NONE

These SCPI commands set the type of handshake mode used:

[SOURce:]DIGital:DATAn[:type]:HANDshake[:MODE] <mode>

[SOURce:]DIGital:HANDshake

n[:MODE] <mode>

Handshake Timing Some handshake modes require that a timing value be set.Primarily, the

timing applies to only output functions (the exception is STRobe Input
handshaking mode). These SCPI commands se t the timing of the hands hake
(where timing applies):

[SOURce:]DIGital:DATAn[:type]:HANDshake:DELay <time>
[SOURce:]DIGital:HANDshakenDELay <time>

Example 10 ASSIG N @Di o TO 70918

20 DIM Hand$ [4]
30 Hand$ = "LEAD"
40 Delay = 0.015
50 OUTPUT @Dio;"DIG:DATA0:BYTE:HAND "&Hand$
60 OUTPUT@Dio;"DIG:DATA0:BYTE:HAND:DEL ";Delay
70 END

Sets the 8-bit por t 0 handshake mode to the LEADing Edge handshak e mode
and sets the output timing handshake delay to 0.015 seconds.

Detailed descripti ons of the ha ndshake modes, t iming diagrams, and the use

of the FLG and CTL lines are given in Chapter 4 —“Understanding the
HP E1330B Digital I/O Module”.

34 Using the HP E1330B Digital I/O Module Chapter 3

Inputting Data Bytes and Bits

Data input is performed using commands in the SCPI

MEASure:DIGital:DATAn subsystem. The returned value of an input will

depend upon the POLarity programmed for the port.
Both Input and Output operations will attempt to comple te the handshake

mode set for the port and may "hang" if required handshake operations are
not completed. To unhang a hung transfer, is sue a IEEE 488 sele cted device
clear. In HP BASIC this is

Input Input operations ca n involve single bits, 8 -bit bytes, or multip le bytes. Single

bit operati ons always return a value of 1 or 0. Byte or mult iple byte input s
always return values in de cimal format.

CLEAR 70918.

Example 10 ASSIGN @Dio TO 70918

20 INTEGER Bits, Bytes, Ready
30 OUTPUT @Dio;"*RST;*OPC?"

40 ENTER @Dio;Ready
50 OUTPUT @Dio;"MEAS:DIG:DATA0:BIT7?"

60 ENTER @Dio;Bits
70 OUTPUT @Dio;"MEAS:DIG:DATA1?"
80 ENTER @Dio;Bytes

90 DISP "Port 0, Bit 7 is "&Bits
100 DISP "Port 1 byte is "&Bytes
110 END

!Establish I/O path to module.
!Reset the module to establish

defaults.
!Wait for completion.

!Input a bit on port 0.
!Input a byte on port 1.
!Show the results.

This example first sets the module to the default state (positive polarity and
no handshake). The state of data line 7 (Bit 7) of port 0 is read. A byte is
input from port 1. The displayed state of the bit input will be either 0 or 1,
depending upon the electric al state of port 0 data line 7. The displ ayed value
of the byte input will range from 0 (all port 1 data lin es lo w) to 255 (all po rt
1 data lines high).

Note Following a *RST command, the port data lines will be configured as

inputs, with the ports terminating resistors pulling them high. Bits will be
read as a 1 and a byte as 255.

Using the HP E1330B Digital I/O Module 35Chapter 3

Outputting Data Bytes and Bits

Data output is performed us ing the commands in SCPI

[SOURce:]DIGital:DATAn subsystem. The TTL levels of an output will

depend upon the POLarity programmed for the port.
Both Input and Output operations will attempt to comple te the handshake

mode set for the port and may "hang" if required handshake operations are
not completed. To unhang a hung transfer, is sue a IEEE 488select ed device
clear. In HP BASIC this is

Output Output operations can involve single bits, 8-bit bytes, or multiple bytes.

Single bit output operat ions always expect a value of 0 or 1. Byte or multiple
byte output operations can accept numbers in decimal, hexadecimal, octal,
or binary formats. The choice of output format is indicated by a special
character (#) in the value to be output. If the # character is not used, the
output value is assumed to be in decimal format.

CLEAR 70918.

Example 10 ASSIGN @Dio TO 70918

20 INTEGER Bits, Bytes, Ready

30 Bits= 1

40 Bytes = 255

50 OUTPUT @Dio;"*RST;*OPC?"

60 ENTER @Dio;Ready

70 OUTPUT@Dio;"DIG:DATA0:BIT5 "&VAL$(Bits)&";*OPC?"

80 ENTER @Dio;Ready

90 OUTPUT@Dio;"DIG:DATA1 "&VAL$(Bytes)&";*OPC?"
100 ENTER @Dio;Ready

110 END

This example sets bit 5 on port 0 to a logical true value (with the default
polarity establi shed, th e data li ne is set to TTL high). The example th en sets
all the data lines on por t 1 to TTL high. Port 0, bit 5 and port 1 data lines will
remain in the TTL high condition until another output command or input
command at the same port is received.

!Establish I/O path to module.

!Reset the module to establish
defaults.
!Wait for completion.

!Set port 0 bit 5 true.
!Wait for completion.

!Output a byte on port 1.
!Wait for completion.

36 Using the HP E1330B Digital I/O Module Chapter 3

Multiple Port Operations

The Digital I/O module supports multiple port operations using a single
SCPI command. Multiple port operations are shown in the SCPI command
syntax as the optional keyword
syntax initiates a handshake and returns a value:

MEAS:DIG:DATAn[:type]?

The optional keyword [:type] is re placed by one of the foll owing keywords :

[:type]. For example, this SCPI command

:BYTE

This keyword, or no keyword (default), is used for 8-bit port
operations.

:WORD This ke yword is used to combine 2 adjace nt ports for 16-bit port

:LWORd

operations.
This keyword is used to combine all 4 ports for 32-bit operations.

Example 10 ASSIGN @Dio TO 70918

20 DIM Pat_1$[8], Pat_2$[8], Hand$[4]

30 Pat_1$="AAAAAAAA"

40 Pat_2$ = "55555555"

50 Hand$ = "LEAD"

60 OUTPUT @Dio;"*RST;*OPC?"

70 ENTER @Dio;Ready

80 OUTPUT@Dio;"DIG:DATA0:LWORD:HAND "&Hand$&";*OPC?"

90 ENTER @Dio;Ready
100 OUTPUT@Dio;"DIG:DATA0:LWORD:HAND:DEL .015;*OPC?"

110 ENTER @Dio;Ready
120 OUTPUT@Dio;"DIG:DATA0:LWORD #H"&Pat_1$&";*OPC?"

130 ENTER @Dio;Ready
140 OUTPUT@Dio;"DIG:DATA0:LWORD #H"&Pat_2$&";*OPC?"

150 ENTER @Dio;Ready
160 END

!Establish I/O path to module.
!Alternating 1 and 0.

!Alternating 0 and 1.
!Reset the module to establish

defaults.
!Wait for completion.

!Set LEADing handsh ake for 32
bit operations.
!Wait for completion.

!Set handshake delay time.
!Wait for completion.

!Set 32 bits, use handshake,
alternating 1 and 0.
!Wait for completion.

!Set 32 bits, use handshake,
alternating 0 and 1.
!Wait for completion.

This example combines all four ports for handshaking and output
operations. The handshake mode is set to LEADing. The output data is given
in hexadecimal as specifi ed by the

#H characters. When using mult iple port

handshaking, use the highest numbered port CTL line to ensure a correct
handshake.

Using the HP E1330B Digital I/O Module 37Chapter 3

Using Trace Memory

Trace memory can speed input and output operations and free your system
controller during multiple byte input or output operations. A portion of
system memory is set aside and data is read or written as blocks. Trace
memory allows the fastest operation of the Digital I/O module. The rate of
transfer of each block of data is determined by the handshake speed of the
Digital I/O module and the peripheral.

Note Byte swapping may occur when using the :TRACe commands. If you are

using a Motorola processor, the bytes are written or read to memory with
the lowest port receiving the least significant byte (the case when directly
addressing the po rt through SCPI commands) . An Intel processo r , ho wever ,
when used with the
bytes. The bytes are written or read from memory with the lowest port
receiving the most si gnificant byte and the highest port t he l east significant
byte.

Trace Memory Example 1 This example writes 20 bytes as 10 WORDS at ports 0 and 1.

10 RE-SAVE "Trace_1"

20 ASSIGN @ Dio TO 70918

30 INTEGER A(1:10) , Ready

40 DATA 65,66,67,68,69,70,71,72 ,73, 74

50 READ A(*)

60 OUTPUT @Dio;"*RST;*OPC?"

70 ENTER @Dio;Ready

80 OUTPUT@Dio;"SOUR:DIG:TRAC :DEF alpha,100;*OPC?"

90 ENTER @Dio;Ready
100

OUTPUT @Dio USING"K,10(W)";"SOUR:DIG:TRAC alpha,#220";A(*)

110 OUTPUT@Dio;"SOUR:DIG:DATA0:WORD:TRAC alpha;*OPC?"
120 ENTER @Dio;Ready

130 OUTPUT @Dio;"SOUR:DIG:TRAC:DEL alpha;*OPC?"
140 ENTER @Dio;Ready

150 END

:TRACe commands will swap the order the of the

!A, B, C, D, E, F, G, H, I, J.

!Wait for completion.
!Define memory name alpha.

!Wait for completion.
!Fill memory alpha with 20

bytes.
!Output the 20 bytes.

!Wait for completion.
!Delete memory alpha.

!Wait for completion.

38 Using the HP E1330B Digital I/O Module Chapter 3

Trace Memory Example 2 This example writes 20 bytes as 10 WORDS at ports 0 and 1 as in the first

example, it uses an external VME memory board.

10 RE-SAVE "Trace_2"

20 ASSIGN @ Dio TO 70918

30 INTEGER A(1:10) , Ready

40 DATA 65,66,67,68,69,70,71,72 ,73, 74

50 READ A(*)

60 OUTPUT @Dio;"*RST;*OPC?"

70 ENTER @Dio;Ready

80 OUTPUT @Dio;"MEM:VME:ADDR #H200000"

90 OUTPUT @Dio;"MEM:VME:SIZE 100"
100 OUTPUT @Dio;"MEM:VME:STAT ON"
110 OUTPUT@Dio;"SOUR:DIG:TRAC:DEF alpha,100;*OPC?"

120 ENTER @Dio;Ready
130

OUTPUT @Dio USING"K,10(W)";"SOUR:DIG:TRAC alpha,#220";A(*)

140 OUTPUT@Dio;"SOUR:DIG:DATA0:WORD:TRAC alpha;*OPC?"
150 ENTER @Dio;Ready

160 OUTPUT@DIO;"SOUR:DIG:TRAC:DEL alph a,*OPC?"
170 ENTER @Dio;Ready

180 END

!A, B, C, D, E, F, G, H, I, J.

!Wait for completion.
!Define memory location.

!Reserve 100 bytes.
!Enable memory.

!Define memory name alpha.
!Wait for completion.

!Fill memory alpha with 20
bytes.

!Output the 20 bytes.
!Wait for completion.

!Delete memory alpha.
!Wait for completion.

Trace Memory Example 3 This example reads 40 WORDS from ports 0 and 1.

10 RE-SAVE "Trace_3"

20 ASSIGN @ Dio TO 70918

30 DIM Head$[4]

40 INTEGER A(1:20) , Ready

50 OUTPUT @Dio;"*RST;*OPC?"

60 ENTER @Dio;Ready

70 OUTPUT@Dio;"SOUR:DIG:TRAC :DEF alpha,80;*OPC ?"

80 ENTER @Dio;Ready

90 OUTPUT@Dio;"MEAS:DIG:DATA0:WORD:TRAC alpha;*OPC?"
100 ENTER @Dio;Ready

110 OUTPUT @Dio;"SOUR:DIG:TRAC:DATA ? alpha"
120 ENTER @Dio USING "4A,40(W)";Head$;A(*)

130 OUTPUT @Dio;"SOUR:DIG:TRAC:DEL alpha;*OPC?"
140 ENTER@Dio;Ready

150 END

!Wait for completion.
!Define memory name alpha.

!Wait for completion.
!Output 80 bytes.

!Wait for completion.
!Request the data.

!Remove memory block.
!Wait for completion.

Using the HP E1330B Digital I/O Module 39Chapter 3

Notes:

40 Using the HP E1330B Digital I/O Module Chapter 3

Chapter 4

Underst anding the HP E1330B Digital I/O

Module

Using This Chapter

This chapter provides explanations of the signal lines, handshake modes,
and port combining for the Digital I/O Module. This chapter has the
following topics.

• Port Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 41

• Default and Reset States . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 43

• Setting the Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 43

• Using the Handshake Modes. . . . . . . . . . . . . . . . . . . . . . . . . Page 44

• Inputting Data Bytes and Bits. . . . . . . . . . . . . . . . . . . . . . . . Page 50

• Outputting Data Bytes and Bits . . . . . . . . . . . . . . . . . . . . . . Page 51

• Multiple Port Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 53

Port Description

Data Lines Each port has 8 data lines, numbered from 0 to 7. The data lines can be set

Each of the Digital I/O modul e ports has 8 data lines and 6 control lines . Not
all these lines are required for every application. A simplified diagram of a
port is shown in Figure 1-1. The following subsections describe the use of
these lines.

as an 8-bit group, as part of a larger group, or individually using SCPI
commands.

The logical TRUE condition of the data lines can be controlled with SCPI
commands. Positive polarity is the default. The following table shows the
effect of changing the polarity with Input and Output operations for each
data line.

Input Operations Output Operations

TTL High = 1 1 = TTL High

POSitive Polarity

NEGative Polarity

TTL Low = 0 0 = TTL Low

TTL High = 0 0 = TTL High

TTL Low = 1 1 = TTL Low

Understanding the HP E1330B Digital I/O Module 41Chapter 4

The FLG Line (Input) Each port has a flag ( FLG) line. A flag li ne is an input line from a pe ripheral

and has two states: READY and BUSY. A flag line is normally used in
conjunction with the corresponding control line (CTL) to establish a
handshake between a peripheral and the Digital I/O Module. SCPI
commands that define handshake modes typically use the FLG and CTL
lines. The state of the FLG line can also be read with a SCPI command to
implement custom handshakes. Positive polarity is the default. The
following shows the effect of changing the polarity of the FLG line.

POSitive Polarity TTL High = BUSY = 1

TTL Low = READY = 0

NEGative Polarity TTL High = READY = 0

TTL Low = BUSY = 1

The CTL Line

(Output)

Each port has a control line (CTL). A control line is an open collector output
line from the Digital I /O module to the perip heral and has two states: TRUE
and FALSE. A control line is normally used in conjunction with the
corresponding flag lin e on the same port to establi sh a handshake betw een a
peripheral and the Digital I/O Module. SCPI commands that define
handshake modes typicall y use the FLG and CTL lines. Th e state of the CTL
line can be read and set with SCPI commands to implement custom
handshakes. Positive polar ity is the default. The fo llowing shows the effect
of changing the polarity of the CTL line.

POSitive Polarity TTL High = TRUE = ON = 1

TTL Low = FALSE = OFF = 0

NEGative Polarity TTL High = FALSE = OFF = 0

TTL Low = TRUE = ON = 1

The I/O Line (Output) Each port has an open collector I/ O line which is output fr om the Digita l I/O

module to the peripher al and has two states: TRUE or FALSE. The state of
the I/O

The data transceiver of that port is enabled for input. The peripheral may
respond to the signal by enabling itself to send data.

line is not directly programmable.

When the I/O

line is: TTL High = TRUE = 1 = Input

When the I/O line is: TTL Low = FALSE = 0 = Output

The data transceiver of that port is enabl ed for output. The per ipheral should
respond to the signal by enabling itself to receive data.

Caution To prevent damage to the Digital I/O module, when the I/O line

is set for Output (TTL Low), the peripheral MUST NOT attempt
to source on any data lines.

42 Understanding the HP E1330B Digital I/O Chapter 4

The STS Line Each port has a status line labeled STS. The STS line is an input line to the

Digital I/O module. The use of the STS line is only at the register leve l, and
is not supported by SCPI commands. Refer to Appendix B for more
information about this line.

The PIR Line Each port has a peripheral interrupt request line l abeled PIR. The PI R line is

an input line to th e Digital I/O module. The use of t he PIR li ne is only at the
register level, and is not supported by SCPI commands. Refer to Appendix
B for more information about this line.

The RES Line Each port has a reset line labeled RES. The RES line is an open collector

output line to the peripheral. Cont rol of the RES
level and is not supported by SCPI commands. Refer to Appendix B for
more information about this line.

Default and Reset States

At initial power-on and following the *RST command, the Digital I/O
module is set to the following states:

CTL line: 0 = TTL Low

line is only at the register

Setting the Polarity

Example DIG:DATA1:POL POS

line: TRUE = input = TTL High

I/O
Data, FLG, and CTL line Polarity: POSitive
Handshake mode: NONE

The logical true level of the control (CTL) line, the flag (FLG) line, and the
data lines of each port can be set to either TTL high (>2.5V) or TTL Low
(<1.4V) levels. SCPI commands use the POLarity keyword as:

[SOURce:]DIGital:CONTroln:POLarity <POSitive or NEGative>

to set the control line’s (CTL) polarity on port n.

[SOURce:]DIGital:FLAGn:POLarity <POSitive or NEGative>

to set the flag line’s (FLG) polarity on port n.

[SOURce:]DIGital:DATAn:POLarity <POSitive or NEGative>

to set the da ta lines polarity on port n.

Sets the polarity to posit ive o n port 1 dat a line s, a TTL high wi ll be input as
a 1, or a bit set to 1 will output a TTL High level.

*RST (reset) condition is positive polarity for control (CTL),

The
flag (FLG), and data lines on all ports.

Understanding the HP E1330B Digital I/O Module 43Chapter 4

Using the Handshake Modes

Handshaking ensures corr ect transfer of data between devices. You mus t set
both the mode and the timing to establish correct handshaking. SCPI
commands support the following modes of handshaking:

-- LEADing Edge

-- TRAiling Edge

-- PULSe

-- PART ial

-- STRobe

-- NONE

These SCPI commands set the type of handshake mode used:

[SOURce:]DIGital:DATAn[:type]:HANDshake[:MODE] <mode>

[SOURce:]DIGital:HANDshake

These SCPI commands set the timing of the handshake (where timing
applies):

[SOURce:]DIGital:DATAn[:type]:HANDshake:DELay <time>

[SOURce:]DIGital:HANDshake

n[:MODE] <mode>

n:DELay <time>

44 Understanding the HP E1330B Digital I/O Chapter 4

Handshake Modes The operation of each handshake mode for input or output operations is

described in the following subsections. In these discussions, only the FLG,
CTL, and DATA lines a re included. Ot her port control lines, contr olled only
through register access, are described in Appendix B of this manual.

LEADing Edge The LEADing Edge handshake makes use of both the CTL and FLG lines.

The input and output operations are described below.

INPUT OUTPUT

1 The Digital I/O module sen ses the

FLG line and waits for READY.

2 The Digital I/O module sets the

I/O line HIGH.

3 The Digital I/O module sets CTL

TRUE.

4 The peripheral senses the CTL

line and places data on the dat a
lines.

5 The peripheral sets the FLG line

to BUSY indicating data is valid.

6 The Digital I/O module sen ses the

FLG line and latches the data.

7 The Digital I/O module returns

CTL to FALSE.

8 The peripheral senses the CTL

line and returns the FLG line to
READY.

1 The Digital I/O mo dule ch ecks the

state of the FLG line (must be
READY).

2 The Digital I/O module sets the

I/O line LOW.

3 The Digital I/O module places the

data on the data lines.

4 After waiting the programmed

delay time, Td, the Digital I/O
module sets CTL to TRUE.

5 The peripheral senses the CTL

line and sets the FLG line to
BUSY while it latches the data.

6 When the Digital I/O module

senses the FLG line in the BUSY
state, it sets the CTL line to
FALSE and monitors the FLG line.

7 When the peripheral returns the

FLG line to READY (indicating it
has latched the data ) the next
handshake can begin.

Understanding the HP E1330B Digital I/O Module 45Chapter 4

TRAiling Edge The TRAiling Edge handshake makes use of both the CTL and FLG lines.

The input and output operations are described below.

INPUT OUTPUT

1 The Digital I/O module sen ses the

FLG line and waits for READY.

2 The Digital I/O module sets the

line HIGH.

I/O

3 The Digital I/O module sets CTL

TRUE.

4 The peripheral senses the CTL

line and sets the FLG line to
BUSY.

5 The Digital I/O module sen ses the

FLG BUSY and sets the CTL line
FALSE.

6 The peripheral senses the CTL

line change and places data on
the data lines.

7 The peripheral indicates the data

is valid by returning the FLG line
to READY.

8 The Digital I/O module sen ses the

FLG READY and latc hes th e data.

1 The Digital I/O mo dule ch ecks the

state of the FLG line (must be
READY).

2 The Digital I/O module sets the

I/O line LOW.

3 The Digital I/O module places the

data on the data lines.

4 After waiting the programmed

delay time, Td, the Digital I/O
module sets CTL to TRUE.

5 The peripheral senses the CTL

line and sets the FLG line to
BUSY while it latches the data.

6 The peripheral returns the FLG

line to READY indicating the end
of data transfer.

7 The Digital I/O modul e senses th e

FLG line in the READY state and
returns CTL to FALSE.

46 Understanding the HP E1330B Digital I/O Chapter 4

PULSe The PULSe handshake makes use of both the CTL an d FLG lines. The input

and output operations are described below.

INPUT OUTPUT

1 The Digital I/O module sen ses the

FLG line and waits for READY.

2 The Digital I/O module sets the

line HIGH.

I/O

3 The Digital I/O module sets CTL

TRUE.

4 The peripheral senses the CTL

line and sets the FLG line to
BUSY.

5 The peripheral places the dat a on

the data lines and indicates valid
data by setting the FLG line to
READY.

6 The Digital I/O module sen ses the

FLG READY, returns CTL to
FALSE, and latches the input
data.

1 The Digital I/O mo dule ch ecks the

state of the FLG line (must be
READY).

2 The Digital I/O module sets the

I/O line LOW.

3 The Digital I/O module places the

data on the data lines.

4 After waiting the programmed

delay time, Td, the Digital I/O
module sets CTL to TRUE.

5 The Digital I/O module then waits

another delay time, Td, and sets
the CTL line to FALSE.

6 The peripheral senses the CTL

line change, sets the FLG line to
BUSY and latches the data.

7 When the data is entered, the

peripheral returns the FLG line to
READY.

Understanding the HP E1330B Digital I/O Module 47Chapter 4

PARTial The PARTial handshake makes use of both the CTL and FLG lines. The

input and output operations are described below.

INPUT OUTPUT

1 The Digital I/O module sets the

line HIGH.

I/O

2 The Digital I/O module sets CTL

TRUE.

3 The peripheral senses the CTL

line and sets the data lines.

4 The peripheral holds the FLG

line READY for at least
250 nsecs and the n set s the FL G
line BUSY to indicate the data is
valid.

5 The Digital I/O module senses

the FLG line change to BUSY
and latches the data.

6 The Digital I/O module then sets

the CTL line FALSE.

1 The Digital I/O module sets the

I/O line LOW.

2 The Digital I /O module places the

data on the data lines.

3 After waiting the programmed

delay time, Td, the Digital I/O
module sets CTL to TRUE.

4 The peripheral senses the CTL

line change, sets the FLG line to
READY for a minimum of
250 nsecs, latches the data, and
sets the FLG line to BUSY.

5 The Digital I/O module senses

the change of the FLG line and
sets CTL to FALSE.

48 Understanding the HP E1330B Digital I/O Chapter 4

STRobe The STRobe handshake makes use t he CTL l ine, but not the FLG line. The

input and output operations are described below.

INPUT OUTPUT

1 The Digital I/O module sets the

2 The Digital I/O m odule sets CTL

3 The peripheral senses the CTL

4 The Digita l I/O mod ule wa its the

5 The Digital I/O module then

line HIGH.

I/O

TRUE.

line and sets the data lines.

programmed time delay, Td,
after setting CTL TRUE and then
latches the data.

returns CTL to FALSE.

1 The Digital I/O module sets

the I/O line LOW.

2 The Digita l I/O module pl aces

the data on the data lines.

3 After waiting the programmed

delay time, Td, the Digital I/O
module sets CTL to TRUE.

4 The peripheral senses the

CTL line and latches the data.

5 After waiting the programmed

delay time, Td, the Digital I/O
module sets CTL to FALSE.

NONE When handshake is set to NONE, no control or flag lines are used. The

Digital I/O module will inpu t data or output data when programmed. The I /O
line is set for output (LOW) before data is output. Data lines programmed
for output will remain as output until another command is received.

Handshake NONE can be combined with the SCPI commands

MEASure:DIGital:FLAGn and [SOURce:]DIGital:CONTroln to create

custom handshakes.

Handshake Timing Handshake timing is set through the SCPI commands

[SOURce:]DIGital:DATAn[:type]:HANDshake:DELay <time> or
[SOURce:]DIGital:HANDshakenDELay <time

generally used for data output operations. Timing for data input affects only
STRobe handshake modes.

Understanding the HP E1330B Digital I/O Module 49Chapter 4

>

. Handshake timing is

Inputting Data Bytes and Bits

Data input is performed using commands in the SCPI

MEASure:DIGital:DATAn subsystem. The returned value of an input will

depend upon the POLarity programmed for the port.
Input operations ca n involve single bits, 8 -bit bytes, or multip le bytes. Single

bit input operations always return a decimal value of
byte input operations alw ays return num bers in decimal format.

Both Input and Output operations will attempt to comple te the handshake
mode set for the port and may "hang" if required handshake operations are
not completed. To unha ng a hun g tran sfer iss ue a I EEE 488 sel ecte d devic e
clear. In HP BASIC this is

Bit Input The SCPI command for inputting the state of a single bit on a data port is:

MEASure:DIGital:DATAn[:type]:BITm

0 or 1. Byte or multiple

CLEAR 70918.

This command instruc ts the Digi tal I/O modul e to retur n a val ue of eith er

1, indicating the condition of b it m on port n, following comple tion of the

or
input handshake. The value returned depe nds upon the prog rammed state of
the port POLarity. I n the def ault st ate (POSit ive pola rity) a TTL high on the
data line specified by m will return a
HP BASIC program code will request and display the state of data line 3
(bit-3) on po rt 4.

120 OUTPUT @Dio;"MEAS:DIG:DATA4:BIT3? "
130 ENTER @Dio;Bits
140 DISP "State of bit 3 on port 4" &Bits

Bit numbers range from 0 to 7 for single port operations. For multiple port

operations, bit numbers can range from 0 to 31. The section “Multiple Port
Operations” beginning on pa ge 53 describes bit numberi ng for multiple port
operations. For a single port, the data line numbers and bit numbers
correspond:

Dn-7 Dn-6 Dn-5 Dn-4 Dn-3 Dn-2 Dn-1 Dn-0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

In this manual the p hysical dat a lines are indicated as Dn-1. The n should be
replaced with the por t number f or th e in put oper ation . For exa mple, bi t 3 of
port 2 affects the state of data line D2-3.

1. For example, the following

0

Byte Input The SCPI command requesting an 8-bit byte from a data port is:

MEASure:DIGital:DATAn[:BYTE][:VALue]?

This command instructs the Digital I/O module to return a decimal value
between 0 and 255, indicating the condition of the data lines on port n,
following completion of the input handshake. The value returned depends
upon the programmed state of the port POLarity. In the default state

50 Understanding the HP E1330B Digital I/O Chapter 4

(POSitive polarity) if all data lines are at a TTL low level , the returned val ue
will be

0; if all lines are at a TTL hig h level, the retur ned value will be 255.

For example, the following HP BASIC program code will request and
display the decimal value of the data lines on port 2.

120 OUTPUT @Dio;"MEAS:DIG:DATA2?"
130 ENTER @Dio;Result
140 DISP "Decimal value of port 2 data lines ";Result

Port numbers range from 0 to 3 for single port operations. The section

“Multiple Port Operations” beginning on page 53 descri bes port nu mbering
for multiple port operations. For a single port, the returned decimal value
will have the following correspondence to the port data lines:

Dn-7 Dn-6 Dn-5 Dn-4 Dn-3 Dn-2 Dn-1 Dn-0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

MSB LSB

Outputting Data Bytes and Bits

Data output is performed us ing the commands in SCPI

[SOURce:]DIGital:DATAn subsystem. The TTL levels of an output will

depend upon the POLarity programmed for the port.
Output operations can involve single bits, 8-bit bytes, or multiple bytes.

Single bit output operations always expect a value of

0 or 1. Byte or

multiple byte output operations can accept numbers in decimal,
hexadecimal, octal, or binary formats.

Both Input and Output operations will attempt to comple te the handshake
mode set for the port and may "hang" if required handshake operations are
not completed. To unha ng a hun g tran sfer iss ue a I EEE 488 sel ecte d devic e
clear. In HP BASIC this is

CLEAR 70918.

Bit Output The SCPI command for setting the state of a single bit on a data port is:

[SOURce:]DIGital:DATAn[:type]:BITm <value>

This command instructs the Digital I/O module to set bit m on port n to

<value

>

, using the output handshake. The actual TTL level set on the
corresponding data line depends upon the programmed state of the port
polarity. If

<value

the data line corresponding to bit m will be set to a TTL high level. For
example, the following HP BASIC program code will set the state of data
line 2 (bit-2) on port 3 to a value of 1.

120 OUTPUT @Dio;"DIG:DATA3:BIT2 1"

Bit numbers range from 0 to 7 for single port operations. For multiple port
operations, bit numbers can range from 0 to 31. The section “Multiple Port
Operations” beginning on pa ge 53 describes bit numberi ng for multiple port

>

is 1 and the default pol arit y (POSit ive po lari ty) is used,

Understanding the HP E1330B Digital I/O Module 51Chapter 4

operations. For a single port, the data lines number and bit numbers are:

Dn-7 Dn-6 Dn-5 Dn-4 Dn-3 Dn-2 Dn-1 Dn-0

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

In this manual the p hysical dat a lines are indicated as Dn-1. The n should be
replaced with the por t number f or th e in put oper ation . For exa mple, bi t 3 of
port 2 affects the state of data line D2-3.

Byte Output The SCPI command syntax to send an 8-bit byte to a data port is:

[SOURce:]DIGital:DATAn[:BYTE][:VALue] [<base>]<value>

This command instr ucts the Digi tal I/O module to se t the port n data lines to

<value

>

using the output hands hake. The optional parame ter <base> defines
the numbering system to use to impl ement

<base

>

are four values allowed for

no parameter decimal format
#H hexadecimal format
#Q octal format

:

<value

>

on the data lines. There

#B binary format

The TTL levels set on the data lines depends upon the programmed port
polarity. In t he de fault sta te ( POSiti ve pol arit y) a TTL high l evel will be s et
for any bit set to 1. For example, the following four HP BASIC program
lines all perform the same function and set the same data lines on port 3:

120 OUTPUT @Dio;"DIG:DATA3 170"
120 OUTPUT @Dio;"DIG:DATA3 #HAA"
120 OUTPUT @Dio;"DIG:DATA3 #Q252"
120 OUTPUT @Dio;"DIG:DATA3 #B10101010"

If port 3 is in the default POSitive polarity mode, the TTL levels set on the
data lines by any of the program lines above will be:

TTL level High Low High Low High Low High Low

Data line D3-7 D3-6 D3-5 D3-4 D3-3 D3-2 D3-1 D3-0

Port numbers range from 0 to 3 for single port operations. The section

“Multiple Port Operations” beginning on page 53 descri bes port nu mbering
and byte order for multiple port operations. For single port operations, the
most significant bit is bit 7. The table below sh ows the bit numbers and data
lines.

n-7 Dn-6 Dn-5 Dn-4 Dn-3 Dn-2 Dn-1 Dn-0

D

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

MSB LSB

52 Understanding the HP E1330B Digital I/O Chapter 4

Multiple Port Operations

The Digital I/O module suppo rts multiple port ope rations. You can combi ne
operations using 2 or 4 ports with a single SCPI command. Multiple port
operations are shown in th e SCPI command sy ntax as the op tional key word

[:type]. For example, this SCPI command syntax initiates a handshake and

returns a valu e:

MEAS:DIG:DATAn[:type]?

The optional keyword [:type] is re placed by one of the foll owing keywords :

:BYTE

This keyword, or no keyword (default), is used for 8-bit port
operations.

:WORD

This keyword is used to combine 2 adjacent port s for 16-bit port
operations.

:LWORd

The SCPI keyword

This keyword is used to combine all 4 ports for 32-bit operations.

:DATAn specifies the port to be used for operations by

replacing n with the port number. Mu ltiple port operatio ns have fixed values
allowed for n. For all op erations, if n is omitted, port 0 is assumed. The
values allowed for n are:

Operation

:BYTE 0, 1, 2, or 3
:WORD 0 or 2
:LWORd 0

Values of n

For example, the foll owi ng HP BASIC pr ogr am c ode wil l obt ai n a decimal
value of the state of the 32 data lines contained in physical por ts 0, 1, 2 and 3.

120 OUTPUT @Dio;"MEAS:DIG:DATA0:LWORD?"
130 ENTER @Dio;Result
140 DISP "32 bit longword at port 4 ";Result

Multiple Port

Handshaking

The SCPI command syntax to establish a multiple port handshake and set
handshake timing is:

[SOURce:]DIGital:DATAn[:type]:HANDshake[:MODE] <mode>

[SOURce:]DIGital:DATA

n[:type]:HANDshake:DELay <time>

The optional keyword [:type], parameter DATAn, handshake <mode>, and

<time

>

handshake delay

, are all described earlier in this chapter. See the

sections “Handshak e Modes”, “Handshake Ti ming”, and the intr oduction to
“Multiple Port Operations” for explanations of these keywords and
parameters.

Understanding the HP E1330B Digital I/O Module 53Chapter 4

Multiple port handshaking has the following two abnormalities regarding
the CTL and FLG control lines:

•Input or Output handshaking using the CTL line. The CTL line is

set TRUE or FALSE sequentially on all ports involved in the
operation, from the lowest numbered port to the highest numbered
port. A slight time de la y exists between each port setting the CTL l in e
TRUE or FALSE. When using handshaking on multiple port
operations, use the highest numbered port CTL line to ensure correct
data transfer.

•Input or Output handshaking using the FLG line. A change in the

state of any FLG line on any combined port continues the handshake
operation for all the c ombined ports . FLG lines can also be electric ally
combined through a jumper setting (see Chapter 2).

Multiple Port

Input/Output

Data input is performed using commands in the SCPI

MEASure:DIGital:DATAn subsystem. Data output is performed using the

commands in SCPI

[SOURce:]DIGital:DATAn subsystem.

The returned value of an input, or the TTL levels of an output, will depend
upon the POLarity programmed.

Both Input and Output operations will attempt to comple te the handshake
mode set and may "hang" if required handshake operations are not
completed.

The sections “Byte Input” and “Byte Output”, earlier in this chapter,
describe operations that also apply to multiple port commands. The values
used for input and output operations depend upon the

[:type] used in the

command. Values for multiple port output operations are given below.

Input Operations Output Operations

Format Range Format Range

BYTE Decimal 0 to 255 Decimal

#H
#Q
#B

WORD Decimal -32768

to

32767

Decimal

#H
#Q
#B

-128 to 255
00 to FF
000 to 377
8-bits

-32768 to 32767
0000 to FFFF
00000 to 177777
16-bits

LWORd Decimal -2147483648

to

2147483647

Table 4-1 shows allowable port combinations for each value of

Decimal

#H
#Q
#B

-2147483648 to 2147483647
00000000 to FFFFFFFF
0 to 37777777777
32-bits

[:type].

You can combine multi pl e po rt ope rations on the same Digital I/O module.
For example, you could define two independent 16-bit ports at port 0 and
port 2.

54 Understanding the HP E1330B Digital I/O Chapter 4

Table 4-1. Port Combinations for [:type] Values

8-bit (BYTE) operations

Port # 0123
Bit Designations 7–0 7–0 7–0 7–0

Data Lines D0_7–D0_0 D1_7–D1_0 D2_7–D_0 D3_7–D3_0
Parameters <

Port # 02
Bit Designations 15–8 7–0 15–8 7–0
Data Lines D0_7–D0_0 D1_7–D1_0 D2_7–D_0 D3_7–D3_0
Parameters <

Port # 0
Bit Designations 31–24 23–16 15–8 7–0
Data Lines D0_7–D0_0 D1_7–D1_0 D2_7–D_0 D3_7–D3_0
Parameters <

value><value><value><value>

16-bit (WORD) operations

value><value>

32-bit (LWORd) ope ra t i o n s

value>

Understanding the HP E1330B Digital I/O Module 55Chapter 4

Notes:

56 Understanding the HP E1330B Digital I/O Chapter 4

HP E1330B Digit al I/O Module Command

Using This Chapter

This chapter describes Standard Commands for Programmable Instrumentation
(SCPI) and summarizes IEEE 488.2 Common (*) Commands applicable to the
Digital I/O Module.

• Command Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 57

• SCPI Command Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 60

• IEEE 488.2 Common Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 98

• Command Quick Reference. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 99

Command Types

Commands are separated into two types: IEEE 488.2 Common Commands and SCPI
Commands.

Chapter 5

Reference

Common

Command

Format

SCPI

Command

Format

The IEEE 488.2 standard defines the Common Commands that perform functions
like reset, self-test, status byte query, etc. Common Commands are four or five
characters in length, always begin with the asterisk character (*), and may include
one or more parameters. The command keyword is separated from the first
parameter by a space character. Some examples of Common Commands are shown
below:

*RST *ESR 32 *STB?

SCPI commands perform functions like closing switches, making measurements,
querying instrument states, or retrieving data. A subsystem command structure is a
hierarchical structure that usually consists of a top level (or root) command, one or
more lower level commands, and their parameters. The following example shows
part of a typical subsystem:

[SOURce:]

DIGital

:DATA

n

[:VALue]?

m?

:BIT

[SOURce:]

third level command (where n is the port number 0–3), and [
fourth level commands (where m is the queried bit location).

is the root co mmand, DIGital is a second level command, :DATAn is a

:VALue] and :BITm are

HP E1330B Digital I/O Module Command Reference 57Chapter 5

Command

Separator

A colon (:) always separ ates one command from th e next lower level command. This
is illustrated as follows:

MEASure:DIGital:DATAn:VALue?

Colons separate the root command from the second level ( MEASur e:DIGit al) and the
second from third level (

DIGital:DATAn), and so forth.

Abbreviated

Commands

Implied

Commands

The command syntax shows most commands as a mixture of upper and lower case
letters. The upper ca se letters i ndicate the abbrevi ated spelling for the command. For
shorter program lines, send the abbreviated form. For bet ter program readability, you
may send the entire command. The instrument will accept either the abbreviated
form or the entire command .

For example, if the command syntax shows
are both acceptable forms. Other forms of

MEASure, then MEAS and MEASURE

MEASure, such as MEASU or MEASUR

will generate an error. You may use upper or lower case letters. Therefore,

MEASURE, measure, and MeAsUrE are all acceptable.

Command keywords can be entered in their full form, as shown above, or can be
entered in their short form. In this manual, the entry required in short form
commands is always capitalized. The short form is generally used for examples in
this manual.

Implied commands are those which appear in square brackets ([]) in the command
syntax. (Note that the brackets are not part of the command and are not sent to the
instrument.) Suppose you send a second level command but do not send the
preceding implied command. In thi s case, the inst rument as sumes you int end to use
the implied command and it responds as if you ha d sent it. Examine thi s excerpt from

[SOURce:] subsystem shown below:

the

[SOURce:]

DIGital

:DATA

n

[:VALue] <parameter>

m <parameter>

:BIT

Both the root command [SOURce:], and fo rth level co mmand [:VALue], are implied
commands. To set the inst rument to output a logi cal 1 to bit 0 of port 3, yo u may send
either:

SOURce:DIGital:DATA3:BIT0 1 or DIGital:DATA3:BIT0 1

Note You must include a space between the keywords and any parameters.

58 HP E1330B Digital I/O Module Command Chapter 5

Parameters Parameter Types. The following table contains explanations and examples of

parameter types you might see later in this chapter.

Parameter

Type

Numeric Accepts all commonly used decima l represe nta tions of nu mbers

including optional signs, decimal points, and scientific notation.
123, 123E2, -123, -1.23E2, .123, 1.23E-2 , 1.23000E-01 . Special

cases include MIN, MAX, and DEF. MIN selects minimum value
available, MAX selects maximum value available, and DEF
selects default or reset value.

Boolean Represents a single binary condition that is either true or false.

1 or ON; 0 or OFF.

Discrete Selects from a finite number of values. These parameters use

mnemonics to represent each valid setting.

An example is the DIGital:CONTrol
command where polarity can be either POS or NEG.

Optional Parameters. Parameters shown within square brackets (

Explanations and Examples

n:POLarity <polarity>

[]) are optional

parameters. (Note that the brackets are not part of the command and are not sent to
the instrument.) If you do not specify a value for an optional parameter, the
instrument chooses a default value. For example, consider the

DISPlay:MONitor:PORT? [<MIN|MAX|DEF>] command. If you send the command

without specifying a parameter, the command returns the state of the port last
addressed. If you send the
returns

0. If you send the MAX parameter, the command returns 3. Be sure to place

MIN parameter or the DEF parameter, the command

a space between the command and the parameter.

Keyword

Substitutions

Linking

Commands

Some commands indicat e a keyword substituti on by showing the keyword bold type
with an all lower case keyword. For example, in the SCPI command

MEASure:DIGital:DATAn[:type] the keyword [:type] should be replaced by one

these parameters:

:BYTE
:WORD
:LWORd

Linking IEEE 488.2 Common Commands with SCPI Commands.
Use a semicolon between the commands. For example:

*RST;DIG:CONT2 1 or DIG:CONT2:POL POS;*OPC?

Linking Multiple SCPI Commands.
Use both a semicolon and a colon between the commands. For example:

DIG:DATA2:POL NEG;:DIG:DATA2:BIT3 1

HP E1330B Digital I/O Module Command Reference 59Chapter 5

SCPI Command Reference

This section describes the Standard Commands for Programmable Instruments
(SCPI) commands for the Digital I/O Module. Commands are listed alphabetically
by subsystem and within each subsystem.

60 HP E1330B Digital I/O Module Command Chapter 5

The DISPlay subsystem turns on the Monitor mode. Monitor mode enables the HP
E1301 Mainframe display, or an external terminal connected to either a B-size or a
C-size mainframe. Parameters related to th e state of the d ata and control lines are
shown. Refer to the appropri ate Command Module User’s Guide (HP E1405/E1406)
for supported terminal types. The parameters displayed are:

-- port number

-- polarity

-- handshake mode

-- state of the control line

-- state of the flag line

-- values on the data lines in both decimal and hexadecimal

Syntax DISPlay

:MONitor

:PORT <
:PORT? [<MAX|MIN|DEF>]
[:STATe] <
[:STATe]?

port>[AUTO|MIN|MAX|DEF]

mode>

DISPlay Subsystem

:MONitor:PORT

Parameters

Comments •In the AUTO mode of operation, the display shows the state of the port last

Example DISP:MON:PORT 3 sets the port to be moni tored to 3.

DISPlay:MONitor:PORT <port>[AUTO|MIN|MAX|DEF] sets the displayed port

number.

Parameter Name Parameter Type Range of Values Default

<port>

programmed.

AUTO mode of operation.

MIN sets port 0. MAX sets port 3. No parameter or DEF sets the

Numeric

or

Discrete

none, 0 through 3

MIN, MAX, AUTO, DEF

AUTO

•Related Commands: DISPlay:MONitor[:STATe], DISPlay:MONitor:PORT?

•*RST Condition: DISPlay:MONitor:PORT AUTO

HP E1330B Digital I/O Module Command Reference 61Chapter 5

:MONitor:PORT?

Parameters

DISPlay:MONitor:PORT? [<MAX|MIN|DEF>], with no parameter, returns a

decimal number indicati ng the port being monitored. If
port parameter in the

DEF is specified, the query always returns -1. If MAX is specified , the query

If
returns the maximum port (always
minimum port (always

Parameter Name Parameter Type Range of Values Default

DISP:MON:PORT AUTO command, the query returns a -1.

3). If MIN is specified, the query returns the

0).

AUTO was selected as the

Comments •Related Commands: DISPlay:MONitor:PORT, DISPlay:MONitor[:STATe]

Example DISP:MON:PORT? identifies the port bei ng monitored.

:MONitor[:STATe]

Parameters

Comments •DISPlay:MONitor ON or DISPlay:MONitor 1 enables the terminal display of

MAX|MIN|DEF Optional

or

Discrete

None

MAX, MIN, or DEF

•*RST Condition: Not applicable.

DISPlay:MONitor[:STATe] <mode

Parameter Name Parameter Type Range of Values Default

<mode>

port parameters. The parameters are updated to the terminal followin g each
new command accessing a port.

DISPlay:MONitor 0 turns the monitor mode OFF.

>

turns the moni tor mode ON or O FF.

Boolean 0|1|ON|OFF 0|OFF

DISPlay:MONitor OFF or

None

•A keyboard entry at the terminal will set DISP:MON OFF.

•This command does not perform an actual readback of the port data lines.

It returns the last programmed state of the data lines.

•Related Commands: DISPlay:MONitor:PORT, DISPlay:MONitor:PORT?

•*RST Condition: DISPlay:MONitor[:STA Te] OFF|0

Example DISP:MON ON displays the state of the last port programmed.

62 HP E1330B Digital I/O Module Command Chapter 5

:MONitor[:STATe]?

DISPlay:MONitor[:STATe]? returns a number indi cating whether the monitor mode

is enabled or disabled:

Parameters None.

1 = ON, 0 = OFF.

HP E1330B Digital I/O Module Command Reference 63Chapter 5

The MEASure subsystem defines the command set for the Digita l I/O Module i npu t
statements.

Syntax MEASure

:DIGital

:DATA

[:BYTE]

:LWORd

:WORD

:FLAG

n

m?

:BIT
:TRACe <
[:VALue]?

m?

:BIT
:TRACe
[:VALue]?

:BIT

m?

:TRACe <
[:VALue]?

n?

name>

<name

name>

MEASure Subsystem

>

:DIGital:DATAn[:type]:BITm?

MEASure:DIGital:DATAn:BYTE:BITm

after the completion of the handshake.

MEASure:DIGital:DATAn:WORD:BITm

after the completion of the handshake.

MEASure:DIGital:DATAn:LWORd:BITm

port n after the completio n of the handshake.

Parameters

Parameter Name Parameter Type Range of Values Default

n

DATA

m

BIT

Comments •Input data is always assumed to be in binary format, since only a single bit of

data is being read. The command returns either a 0 or 1.

?

reads the state on bit m of 8-bit port n

?

reads the state on bit m of 16-bit port n

?

reads the state on bit m of the 32-bit

Numeric BYTE

WORD
LWORd

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0–7
0–15
0–31

0

0

•The keyword :LW32 may be used instead of :LWORd when using the

downloaded version of the SCPI driver.

•:DATAn is the keyword used for commands relating to the data at port n. The

port number n must be the last character of the keyword without spaces.

64 HP E1330B Digital I/O Module Command Chapter 5

•If n is omitted, bit 0 is used.

•:BITm is the keyword that specifies the bit read by this command. Like the

:DATAn keyword, no space can be between the keyword :BIT and the bit

number m parameter.

•Related Commands: [SOURce:]DIGital:DATAn:POLarity

•*RST Condition: Set to input on all ports.

Example MEAS:DIG:DATA2:BIT4? reads port 2 , bit 4 (data line D2–4).

:DIGital:DATA n[:type]:TRACe

MEASure:DIGital:DATAn[:BYTE]:TRACe <name

completion of the handshake and stores the data block in

MEASure:DIGital:DATAn:WORD:TRACe <name

completion of the handshake and stores the data block in

MEASure:DIGital:DATAn:LWORd:TRACe <name

the completion of the handshake and stores the data block in

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

<name>

Comments •:TRACe <name

block where the data should be stored. This block must have been previously
defined by the

•This command will completely fill the named block. The defi ned block size

sets the amount of data rea d. The bloc k si ze mus t by a n int ege r mul ti pl e of t he

[:type] keyword used in this command. For example,valid block sizes for
:LWORd are 4, 8, 12, 16, etc.

>

reads 8-bit port n after the

<name>.

>

reads 16-bit port n after the

<name>.

>

reads the 32-bit port n after

<name>.

Numeric BYTE

WORD
LWORd

String previously defined block

name (max 12 characters)

>

is the keyword (maximum 12 characters) that specifies the

[SOURce:]DIGital:TRACe:DEFine command.

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

None

0

•Input data is returned in decimal format. Other formats are not supported for

input, however, data output may be in binary, octal, decimal or hexadecimal.

•The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•:DATAn is the keyword used for commands relating to the data at port n. The

port number n must be the last character of the keyword without spaces.

•Related Commands: MEASure:DIGital:DATAn[:VALue]?,

[SOURce:]DIGital:TRACe:DEFine

•*RST Condition: Set to input on all ports.

Example MEAS:DIG:DATA0:WORD:TRACe first_block reads 16-bit data from port 0 and

stores it in the predefined user memory location first_block.

HP E1330B Digital I/O Module Command Reference 65Chapter 5

:DIGital:DATA n[:type][:VALue]?

MEASure:DIGital:DATAn[:BYTE][:VALue]? reads one byte from 8-bit port n after

the completion of the handshake and returns a decimal number between 0 and 255.

MEASure:DIGital:DATAn:WORD[:VALue]? reads 2 byt es ( one wor d) fr om 16-b it

port n after the completion of the handshake and ret urns a decimal number be tween

-32768 and 32767.

MEASure:DIGital:DATAn:LWORd[:VALue]? reads 4 bytes (one long word) from

the 32-bit port n after the c ompletion of the handshake and ret urns a decimal numbe r

31

between -2

Parameters

Parameter Name Parameter Type Range of Values Default

and (231-1).

DATAn

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

Comments •Input data from the Digital I /O is retu rned in de cimal format . Other form ats are

not supported for input, however, data output to the Digital I/O may be in
binary, octal, decimal, or hexadecimal.

•The keyword :LW32 may be used instead of :LWORd when using the

downloaded version of the SCPI driver.

•Chapter 4 - “Understanding the HP E1330B Digital I/O Module ” descri bes the

byte order of multiple byte reads.

•:DATAn is the keyword used for commands relating to the da ta at port n.

The port number n must be the last character of the keyword without spaces.

•If n is omitted, port 0 is used.

•Related Commands: [SOURce:]DIGital:DATAn[:type][:VALue],

MEASure:DIGital:DATAn[:type]:BITm

?

•*RST Condition: Set to input positive true on all ports.

Examples MEAS:DIG:DATA1? reads 8-bit port 1 data. If all data lines are set to 1, this

command returns the value

255.

MEAS:DIG:DATA0:LWORd? reads 32-bit port 0 data. If all data lines are set to 1,

this command returns the value

66 HP E1330B Digital I/O Module Command Chapter 5

-1.

:DIGital:FLAGn?

MEASure:DIGital:FLAGn

?

reads the status of the flag line on port n and returns a

0 or 1 to show whether a peripheral has set the flag line to READY or BUSY.

Parameters

Parameter Name Parameter

Type

n

FLAG

Comments •MEASure:DIGital:FLAGn

The handshake mode must be set to

Numeric none, 0, 1, 2, or 3 0

?

is used to implement custom handshakes.

•:FLAGn is the keyword used for commands relating to the flag line at port n.

The port number n must be the last character of the keyword without spaces.

•If n is omitted, FLAG0 is used.

•MEASure:DIGital:FLAGn

combining jumpers. Refer to Chapter 2 for additional information.

?

may be affected by the condition of the flag

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity?,

[SOURce:]DIGital:CONTroln[:VALue], [SOURce:]DIGital:FLAGn:POLarity,
[SOURce:]DIGital:FLAGn:POLarity?

Example MEAS:DIG:FLAG1? reads the port 1 flag line.

Range of Values Default

NONE to use these commands.

HP E1330B Digital I/O Module Command Reference 67Chapter 5

Syntax MEMory

:DELete:MACRo

MEMory Subsystem

The MEMory subsystem defines the command set for enabling the use of external
VME memory for storing traces and macros. The addressable range is #H200000
through #HDFFFF8 in A24 space.

:DELete

:MACRo <

:VME

:ADDRess [<
:ADDRess? [MIN|MAX]
:SIZE [<
:SIZE? [MIN|MAX]
:STATe <
:STATe?

name>

base>]<address>

base>]<size>

state>

MEMory:DELete:MACRo <name

using the

*DMC common command.

>

deletes a single macr o previously recorded

Parameters

Parameter Name Parameter Type Range of Values Default

<name>

String Prev io us ly d efi ned block name

(maximum 12 characters)

None

Comments •name must have been pre viousl y defi ned by a *DMC (Define Macro) common

command.

•The maximum length for name is 12 characters.

•This command purges a single, specific macro; the *PMC common command

purges all macros.

Example MEM:DEL:MACR test_macro deletes macro named test_macro previously defined

using the

*DMC common command.

68 HP E1330B Digital I/O Module Command Chapter 5

:VME:ADDRess

MEMory:VME:ADDRess [<base

VME memory in the system which can then be used to st ore block data in commands
with the

:TRACe keyword.

>]<

address> establishes the address of add-on

Parameters

Parameter Name Parameter Type Range of Values Default

<base>

<address>

Discrete none, #H, #Q, or #B Decimal

Numeric

or

Discrete

200000

MIN or MAX

–DFFFF8

16

16

None

Comments •base specifies the numeric format as decimal, hexadecimal, octal, or binary.

IEEE-488.2 specifies the following values for this parameter:

Decimal = no parameter
Hexadecimal = #H
Octal = #Q
Binary = #B

•Valid values for base and address are #H200000 (2,097,152 decimal) through

#HDFFFF8 (14,680,056 decimal).

•For this memory to actually be used it must also have a defined length and

have been turned ON using the

MEMory:VME:STATe command.

Example MEM:VME:ADDR #H200000 sets the starting VME address to 200000

:VME:ADDRess?

Parameters

Comments •This command always returns the address in decimal format.

•Related Commands: [SOURce:]DIGital:TRACe:DEFine,

MEMory:VME:ADDress?, MEMory:VME:SIZE, MEMory:VME:STATe

•*RST Condition: #H200000

.

16

MEMory:VME:ADDRess? [<MIN|MAX>] queries for the current VME memory

address. The optional par ameter lets you query for the fix ed minimum o r maximum
address.

Parameter Name Parameter Type Range of Values Default

MIN|MAX Discrete none, MIN, or MAX None

•The address returned using MIN is always 2,097,152.

•The address returned using MAX is always 14,680,056.

•Related Commands: MEMory:VME:ADDRess, MEMory:VME:SIZE?,

MEMory:VME:STATe?

HP E1330B Digital I/O Module Command Reference 69Chapter 5

:VME:SIZE

Parameters

MEMory:VME:SIZE [<base>]<size> sets the size, in bytes, of the external memory.

Parameter Name Parameter Type Range of Values Default

Comments •Address plus size must not exceed #HE00000.

:VME:SIZE?

<base>

<

size>

Discrete none, #H, #Q, or #B Decimal

Numeric

or

Discrete

000000

MIN or MAX

- C00000

16

or

16

None
None

•base specifies the numeric format as decimal, hexadecimal, octal, or binary.

IEEE-488.2 specifies the following values for this parameter:

Decimal = no parameter
Hexadecimal = #H
Octal = #Q
Binary = #B

•Related Commands: MEMory:VME:ADDRess?, MEMory:VME:SIZE?,

MEMory:VME:STATe?

•*RST Condition: #H000000.

MEMory:VME:SIZE? [<MIN|MAX>] queries for the current VME memory size .

The optional parameter le ts you query for the fixed maximum or minimum VME
memory size.

Parameters

Parameter Name Parameter Type Range of Values Default

MIN|MAX Discrete none, MIN, or MAX None

Comments •This command alw ays returns the memory size in decimal format.

•The size returned using MIN is always 0.

•The size returned using MAX is always 12582912.

•Related Commands: MEMory:VME:ADDRess?, MEMory:VME:SIZE,

MEMory:VME:STATe?

70 HP E1330B Digital I/O Module Command Chapter 5

:VME:STATe

Parameters

Comments •Related Commands: [SOURce:]DIGital:TRACe:DEFine,

Example MEM:VME:STAT ON enables access to the VME memory.

:VME:STATe?

Parameters None.

MEMory:VME:STATe <state

storage.

Parameter Name Parameter Type Range of Values Default Value

<state>

[SOURce:]DIGital:TRACe[:DATA], MEMory:VME:ADDress,
MEMory:VME:SIZE

>

enables/disables the use of VME memory for

Boolean 0|1|ON|OFF 0|OFF

•*RST Condition: Set to OFF.

MEMory:VME:STATe? queries the state of the external memory.

Comments This command returns 0 or 1, indicating external memory is OFF or ON.

Related Commands:

MEMory:VME:ADDRess?, MEMory:VME:SIZE?

HP E1330B Digital I/O Module Command Reference 71Chapter 5

[SOURce:] Subsystem

The [SOURce:] subsystem defines the command set for the Digital I/O module
output statements . It also def ines the state an d polarit y of the c ontrol line (CTL), the
polarity of the flag line (FLG), the hands haking mode, and handshake del ay for both
data input and output. The root command,

[SOURce:]

DIGital

:CONTrol

:DATA

n

:POLarity <POS|NEG>
:POLarity?
[:VALue] <0|1
[:VALue]?

n

[:BYTE]

m <0|1>

:BIT

m?

:BIT
:HANDshake

:DELay <
:DELay?
[:MODE] <NONE|LEADing|TRAiling

[:MODE]?
:POLarity <POS|NEG>
:POLarity?
:TRACe <
[:VALue] [<
[:VALue]?

:LWORd

m <0|1>

:BIT

m?

:BIT
:HANDshake

:DELay <

:DELay?

[:MODE] <NONE|LEADing|TRAiling

[:MODE]?
:POLarity <POS|NEG>
:POLarity?
:TRACe <
[:VALue] [<
[:VALue]?

or ON|OFF>

name>

base>]<value>

name>

base>]<value>

[SOURce:], is optional.

time>

|PULSe|PARTial|STRobe>

time>

|PULSe|PARTial|STRobe>

72 HP E1330B Digital I/O Module Command Chapter 5

[SOURce:]

DIGital

:DATA

n

:WORD

m <0|1>

:BIT

m?

:BIT
:HANDshake

:DELay <

:DELay?

[:MODE] <NONE|LEADing|TRAiling

[:MODE]?
:POLarity <POS|NEG>
:POLarity?
:TRACe <
[:VALue] [<
[:VALue]?

:FLAG

n

:POLarity <POS|NEG>
:POLarity?

:HANDshake

:DELay <time>
:DELay?
[:MODE] <NONE|LEADing|TRAiling

[:MODE]?

:IO

n?

:TRACe

:CATalog?
[:DATA] <
[:DATA]? <
:DEFine <
:DEFine? <
:DELete

n

name>,<block_data>

name>,<size>,[<fill>]

:ALL
[:NAME] <

time>

|PULSe|PARTial|STRobe>

name>

base>]<value>

|PULSe|PARTial|STRobe>

name>

name>

name>

HP E1330B Digital I/O Module Command Reference 73Chapter 5

DIGital:CONTroln:POLarity

[SOURce:]DIGital:CONTroln:POLarity <polarity> se ts the CTL line volta ge level

for logical true in port n to either TTL high for

NEGative polarity.

Parameters

Parameter Name Parameter Type Range of Values Default

POSitive polarity or TTL low for

CONTroln

<

polarity>

Comments •Control lines are always accessed by their 8-bit port number.

•:CONTroln is the keyword used for commands relating to the control (CTL)

line at port n. The port number n must be the last character of the keyword
without spaces.

•If n is omitted, port 0 is used.

•The c ontrol line is used with the flag line to handshake data to and from

peripherals.

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity?

[SOURce:]DIGital:CONTroln[:VALue]
[SOURce:]DIGital:FLAGn:POLarity
[SOURce:]DIGital:FLAGn:POLarity?

•*RST Condition: POLarity = POSitive.

Example DIG:CONT0:POL POS sets logical true to TTL high on port 0 control line.

DIGital:CONTroln:POLarity?

Numeric none, 0, 1, 2, or 3 0

Discrete POSitive or NEGative None

,

,

,

[SOURce:]DIGital:CONTroln:POLarity? returns a three character string, either

POS or NEG, indicating the logical true co ndition of t he control (C TL) line at po rt n.

Parameters

Parameter Name Parameter Type Range of Values Default

CONTroln

Numeric none, 0, 1, 2, or 3 0

Comments •:CONTroln is the keyword used for commands relating to the control (CTL)

line at port n. The port number n must be the last character of the keyword
without spaces.

•If n is omitted, port 0 is used.

Example DIG:CONT0:POL? queries the state of the logical true condition on port 0.

74 HP E1330B Digital I/O Module Command Chapter 5

DIGital:CONTroln[:VALue]

[SOURce:]DIGital:CONTroln[:VALue] <value> sets or clears the control line on

the selected port n.

Parameters

Parameter Name Parameter Type Range of Values Default

CONTroln

<

value>

Comments •This command is used to create custom handshakes when the HANDshake is

NONE.

set to

•:CONTroln is the keyword used for commands relating to the control (CTL)

line at port n. The port number n must be the last character of the keyword
without spaces.

•The c ontrol line is used with the flag line to handshake data to and from

peripherals.

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity,

[SOURce:]DIGital:CONTroln:POLarity?, [SOURce:]DIGital:FLAGn:POLarity,
[SOURce:]DIGital:FLAGn:POLarity?

•*RST Condition: Clears the control line; i.e ., sets the cont rol li ne to logi cal 0.

Example DIG:CONT2 1 sets the 8-bit port 2 control line true.

DIGital:CONTroln[:VALue]?

[SOURce:]DIGital:CONTroln[:VALue]? reads the state of the control line on port

n and returns a 0 or 1, indicating the logical condition of the CTL line.

Numeric none, 0, 1, 2, or 3 0

Boolean 0 or 1, OFF or ON None

Parameters

Parameter Name Parameter Type Range of Values Default

CONTroln

Numeric none, 0, 1, 2, or 3 0

Comments •This command is only available when using the downloaded SCPI driver.

•This command is used to create custom handshakes when the HANDshake is

NONE.

set to

•The condition of the CTL line returned by this command is the logical true

value set by the

Example DIG:CONT2? returns the curr ent state of t he 8-bit port 2 control line.

DIGital:CONTroln:POLarity command.

HP E1330B Digital I/O Module Command Reference 75Chapter 5

DIGital:DATAn[:type]:BITm

[SOURce:]DIGital:DATAn[:BYTE]:BITm <value> sets bit m on 8-bit port n.
[SOURce:]DIGital:DATAn:WORD:BITm <value> sets bit m on 16-bit port n.
[SOURce:]DIGital:DATAn:LWORd:BITm <value> sets bit m on 32-bit port n.

Parameters

Parameter Name Parameter Type Range of Values Default

DATA

BIT

value>

<

Comments •:DATAn and :BITm are the keywords used to write data to port n and bit m.

The port number n and bit number m must be the last character of the k eyword
without spaces.

n

m

Numeric BYTE

WORD
LWORd

Numeric BYTE

WORD
LWORd

Numeric 0 or 1 None

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0–7
0–15
0–31

0

0

•For 16-bit operations using :WORD, n must be 0 or 2.

•For 32-bit operations using :LWORd, n must be 0.

•The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•Related Commands: [SOURce:]DIGital:DATAn:POLarity,

[SOURce:]DIGital:DATAn[:VALue]

•*RST Condition: All ports are set for data input.

Example DIG:DATA3:BIT4 1 sets bit 4 (the 5th bit) of port 3 to logical 1.

76 HP E1330B Digital I/O Module Command Chapter 5

DIGital:DATAn[:type]:BITm?

[SOURce:]DIGital:DATAn[:BYTE]:BITm? returns a 0 or 1 indicating the current

programmed state of bit m on 8-bit port n.

[SOURce:]DIGital:DATAn:WORD:BITm? returns a 0 or 1 indicating the current

programmed state of bit m on 16-bit port n.

[SOURce:]DIGital:DATAn:LWORd:BITm? returns a 0 or 1 indicating the c u r ren t

programmed state of bit m on 32-bit port n.

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

BITm

Numeric BYTE

WORD
LWORd

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0–7
0–15
0–31

0

0

Comments •This command is only available when using the downloaded SCPI driver.

•This command performs a readback of the data line register, not the actual

condition of the data lines.

•The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•:DATAn and :BITm are the keywords used to write data to port n and bit m.

The port number n and bit number m must be the last character of the k eyword
without spaces.

•For 16-bit operations using :WORD, n must be 0 or 2.

•For 32-bit operations using :LWORd, n must be 0.

•Related Commands: [SOURce:]DIGital:DATAn:POLarity,

[SOURce:]DIGital:DATAn[:VALue]

Example DIG:DATA3:BIT4:VAL? returns a 0 or 1 indicating the last programmed s tate of bit

4 on port 3.

HP E1330B Digital I/O Module Command Reference 77Chapter 5

DIGital:DATAn[:type]:HANDshake:DELay

[SOURce:]DIGital:DATAn[:BYTE]:HANDshake:DELay <time> sets the delay

between data output and control line for data output at 8-bit port n.

[SOURce:]DIGital:DATAn:WORD:HANDshake:DELay <time> sets the delay

between data output and control line for data output at 16-bit port n.

[SOURce:]DIGital:DATAn:LWORd:HANDshake:DELay <time> sets the delay

between data output and the control line for data output at 32-bit port n.

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

<time>

Numeric BYTE

WORD
LWORd

Numeric

Discrete MIN|MAX|DEF

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

2 µs to 15 µs

20

µs to 150 µs

200

µs to 1.5 ms

2ms to 15ms

0

None

Comments •This command is r elated to the h andshake mod e in use. Chapter 3 describ es the

handshake modes and timing.

•This command sets strobe pulse width for input and output STRobe

handshakes.

•The delay time must be set to the same value on all ports used in a multiple

port operation.

•MAX sets a 15ms delay. DEF sets 2µs delay. MIN sets 0.0 delay and is illegal

for PULse or STRobe handshake modes.

•DIGital:DATAn:HANDshake[:MODE] NONE command ignores any

programmed delay time. For all other modes of handshaking, 2
minimum recommended.

µs is the

•Specific bands of delay settings are NOT allowed. These are:

µs > <time

0

µs> <time

15

The controller us es a rounded-up value for

> <

2µs150µs> <time

> <

20 µs1.5ms> <time

> <

<time

200µs

> <

2.0ms

>

if these valu es are specified.

•The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•DIGital:DATAn[:type]:HANDshake is the sequence used for commands

relating to data handshaking at ports defined by n. The port number n must be
the last character of the keyword without spaces.

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity,

[SOURce:]DIGital:CONTroln[:VALue], [SOURce:]DIGital:FLAGn:POLarity,
[SOURce:]DIGital:HANDshaken[:MODE]

•*RST Condition: Delay is set to 2µs.

Example DIG:HAND3:DEL .005 sets the delay between the data output and the assertion of

the control line to true on 8-bit port 3 to 5ms.

78 HP E1330B Digital I/O Module Command Chapter 5

DIGital:DATAn[:type]:HANDshake:DELay?

[SOURce:]DIGital:DATAn[:BYTE]:HANDshake:DELay? queries for the delay

time between data output and the control line for data output at 8-bit port n and
returns a decimal number between 0 and .015.

[SOURce:]DIGital:DATAn:WORD:HANDshake:DELay? queries for the delay

time between data output and the control line for data output at 16-bit port n and
returns a decimal number between 0 and .015.

[SOURce:]DIGital:DATAn:LWORd:HANDshake:DELay? queries for the delay

time between data output and the control line for data output at 32-bit port n and
returns a decimal number between 0 and .015.

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

MIN|MAX|DEF Discrete None or MIN|MAX|DEF None

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

Comments •The delay time must be set to the same value on all ports used in a multiple

port operation.

•The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•DIG:DATAn[:type]:HANDshake is the sequence used for commands relating

to data handshaking at ports defined by n. The port number n must be the last
character of the keyword without spaces.

•MIN or DEF returns 0.000002. MAX returns 0.015.

HP E1330B Digital I/O Module Command Reference 79Chapter 5

DIGital:DATAn[:type]:HANDshake[:MODE]

[SOURce:]DIGital:DATAn[:BYTE]:HANDshake[:MODE] <mode> selects the

type of handshake and defines the timing relationship between the control (CTL)
line, the flag (FLG) line , and when data is transf erred in eit her direction bet ween the
Digital I/O Module and a peripheral on the 8-bit port n.

[SOURce:]DIGital:DATAn:WORD:HANDshake[:MODE] <mode> selects the

handshake mode used on the 16-bit port n.

[SOURce:]DIGital:DATAn:LWORd:HANDshake[:MODE] <mode> selects the

handshake mode used on the 32-bit port n.

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

<mode>

Numeric BYTE

WORD
LWORd

Discrete NONE, LEADing, TRAiling,

PULse, PARTial, or STRobe

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

NONE

•Handshake modes are described in Chapter 3.

•The handshake mode must be the same on all ports used in a multiple port

operation.

•The keyword :LW32 may be used instead of :LWORd when using the

downloaded version of the SCPI driver.

•DIGital:DATAn[:type]HANDshake is the sequence used for commands

relating to data handshaking at port n. The port number n must be the last
character of the keyword without spaces.

• NONE deletes all automatic data handshaking between the Digital I/O module

and the peripheral. For custom handshaking, the control and the flag lines are
controlled by the

MEASure:DIGital:FLAGn commands.

[SOURce:]DIGital:CONTroln and

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity,

[SOURce:]DIGital:CONTroln[:VALue], [SOURce:]DIGital:FLAGn:POLarity,
[SOURce:]DIGital:HANDshaken:DELay

•*RST Condition: Mode is NONE on all ports.

Example DIG:DATA3:HAND LEAD sets the handshake mode to LEADing on 8-bit port 3.

80 HP E1330B Digital I/O Module Command Chapter 5

DIGital:DATAn[:type]:HANDshake[:MODE]?

[SOURce:]DIGital:DATAn[:BYTE]:HANDshake[:MODE]? returns a string

indicating the type of handshake set on the 8-bit port n.

[SOURce:]DIGital:DATAn:WORD:HANDshake[:MODE]? returns a string

indicating the type of handshake set on the 16-bit port n.

[SOURce:]DIGital:DATAn:LWORd:HANDshake[:MODE]? returns a string

indicating the type of handshake set on the 32-bit port n.

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

Comments •The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•The handshake mode must be the same on all ports used in a multiple port

operation.

•This command will return one of the following strings:

NONE
LEAD
TRA
PULS
PART
STR

•:DAT An[:type]HANDshake? is the sequence used for commands relating to

data handshaking at port n. The port number n must be the last charac ter of the
keyword without spaces.

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity,

[SOURce:]DIGital:CONTroln[:VALue], [SOURce:]DIGital:FLAGn:POLarity,
[SOURce:]DIGital:HANDshaken:DELay

0

•*RST Condition: Mode is NONE on all ports.

Example DIG:DATA3:HAND? returns the handshake mode set on port 3.

HP E1330B Digital I/O Module Command Reference 81Chapter 5

DIGital:DATAn[:type]:POLarity

[SOURce:]DIGital:DATAn[:BYTE]:POLarity <polari ty> sets the data line voltage

level for logi cal true in the 8-bit port n to either TTL high for
TTL low for

[SOURce:]DIGital:DATAn:WORD:POLarity <polarity> sets the data line voltage

level for logical true in t he 16-bi t port n to ei ther TTL high for
TTL low for

[SOURce:]DIGital:DATAn:LWORd:POLarity <polarity> sets the data li ne voltage

level for logical true in t he 32-bi t port n to ei ther TTL high for
TTL low for

Parameters

Parameter Name Parameter Type Range of Values Default

Comments •:DATAn is the keyword used for commands relating to the data lines at port n.

The port number n must be the last character of the keyword without spaces.

NEGative polarity.

NEGative polarity.

NEGative polarity.

n

DATA

polarity>

<

POSitive pola ri ty or

POSitive polarity or

POSitive polarity or

Numeric BYTE

WORD
LWORd

Discrete POSitive or NEGative None

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

•Related Commands: [SOURce:]DIGital:DATAn:BITm,

[SOURce:]DIGital:DATAn:POLarity?, [SOURce:]DIGital:DATAn[:VALue]

•*RST Condition: POLarity = POSitive

Example DIG:DATA0:POL POS sets logical true to TTL high on 8-bit port 0 data lines.

DIGital:DATAn[:type]:POLarity?

[SOURce:]DIGital:DATAn[:BYTE]:POLarity? returns a string, either POS or NEG,

indicating the logical true condition of the data lines of 8-bit port n.

[SOURce:]DIGital:DATAn:WORD:POLarity? returns a string, either POS or NEG,

indicating the logical true condition of the data lines of 16-bit port n.

[SOURce:]DIGital:DATAn:LWORd:POLarity? returns a string, either POS or
NEG, indicating the logical true condition of the data lines of 32-bit port n.

Parameters

Parameter Name Parameter Type Range of Values Default

DATAn

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

Example DIG:DATA0:POL? returns the state of the logical true condition on port 0 as either

POS or NEG.

82 HP E1330B Digital I/O Module Command Chapter 5

DIGital:DATAn[:type]:TRACe

[SOURce:]DIGital:DATAn[:BYTE]:TRACe <name> writes the named block of

data to 8-bit port n whenever the port is ready to start a new handshake.

[SOURce:]DIGital:DATAn:WORD:TRACe <name> writes the named block of data

to 16-bit port n whenever the port is ready start a new handshake.

[SOURce:]DIGital:DATAn:LWORd:TRACe <name> writes the named block of

data to 32-bit port n whenever the port is ready to start a new handshake.

Parameters

Parameter Name Parameter Type Range of Values Default

n

DATA

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

<name>

String Name of user memory block

(maximum 12 characters)

None

Comments •The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•:DATAn and :TRACe are the keywords used to write data to port n from block

name. The port number n must be the last character of the keyword without

spaces.

•Related Commands: [SOURce:]DIGital:DATAn:POLarity,

[SOURce:]DIGital:DATAn[:VALue]

•*RST Condition: All ports are set for data input.

Example DIG:DATA2:TRAC:WORD first_block writes data from the user memory block

first_block to 16-bit port 2.

HP E1330B Digital I/O Module Command Reference 83Chapter 5

DIGital:DATAn[:type][:VALue]

[SOURce:]DIGital:DATAn[:BYTE][:VALue] [<base>]<value> writes data to 8-bit

port n. Values can be binary, octal, decimal, or hexadecimal.

[SOURce:]DIGital:DATAn:WORD[:VALue] [<base>]<value> write s data to 16-b it

port n. Values can be binary, octal, decimal, or hexadecimal.

[SOURce:]DIGital:DATAn:LWORd[:VALue] [<base>]<value> writes data to

32-bit port n. Values can be binary, octal, decimal, or hexadecimal.

Parameters

Parameter Name Parameter Type Range of Values Default

n

DATA

base>

<

<value

>

Numeric BYTE

WORD
LWORd

Discrete None, #H, #Q, or #B Decimal
Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

7

to (28-1)

-2

-215 to (216-1)

31

-2

to (231-1)

0

None

Comments •The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•base specifies the numeric format as decimal, hexadecimal, octal, or binary.

IEEE-488.2 specifies the following values for this parameter:

Decimal = no parameter
Hexadecimal = #H
Octal = #Q
Binary = #B

•:DATAn is the keyword used for commands relating to data output at port n.

The port number n must be the last character of the keyword without spaces.

•Related Commands: [SOURce:]DIGital:DATAn:BITm,

[SOURce:]DIGital:DATAn:POLarity

•*RST Condition: All ports are set for data input.

Examples DIG:DATA3 27 writes the binary equivalent of the decimal number 27 (00011011)

to 8-bit port 3.

DIG:DATA3 #B00011011 writes the same byte of data as in the example above to

port 3, but in binary format.

84 HP E1330B Digital I/O Module Command Chapter 5

DIGital:DATAn[:type][:VALue]?

[SOURce:]DIGital:DATAn[:BYTE][:VALue]? returns the programmed state of

8-bit port n as a decimal number between 0 and 255.

[SOURce:]DIGital:DATAn:WORD[:VALue]? returns the programmed state of

16-bit port n as a deci mal number between -32768 and 32767.

[SOURce:]DIGital:DATAn:LWORd[:VALue]? returns the programmed state of

32-bit port n as a deci mal number between -2

Parameters

Parameter Name Parameter Type Range of Values Default

31

and (231- 1).

DATAn

Numeric BYTE

WORD
LWORd

none, 0, 1, 2, or 3
none, 0 or 2
none or 0

0

Comments •This command is only available when using the downloaded SCPI driver.

•The keyword :LW32 may be used instead of :LWORd when using the

download version of the SCPI driver.

•This command returns the programmed state of the data lines, not the actual

state of the d ata lines.

•:DATAn is the keyword used for commands relating to data output at port n.

The port number n must be the last character of the keyword without spaces.

•Related Commands: [SOURce:]DIGital:DATAn:BITm,

[SOURce:]DIGital:DATAn:POLarity

•*RST Condition: All ports are set for data input.

Example DIG:DATA3? returns the decimal equivalent of the data lines on 8-bit port 3.

HP E1330B Digital I/O Module Command Reference 85Chapter 5

DIGital:FLAGn:POLarity

[SOURce:]DIGital:FLAGn:POLarity <polarity> sets the voltage level for logical

true to either TTL high,
line.

Parameters

Parameter Name Parameter Type Range of Values Default

POSitive, or TTL low, NEGative on the FLG handshake

FLAGn

<

polarity>

Comments •:FLAGn is the keyword u sed for commands relating to the flag line at p ort n.

The port number n must be the last character of the keyword without spaces.

•Related Commands: [SOURce:]DIGital:CONTroln:POLarity,

[SOURce:]DIGital:CONTroln:POLarity?, [SOURce:]DIGital:FLAGn:POLarity?

•*RST Condition: POLarity = POSitive

Example DIG:FLAG0:POL POS sets logical true to TTL high on the port 0 flag line.

DIGital:FLAGn:POLarity?

[SOURce:]DIGital:FLAGn:POLarity? re turns a string, either POS or NEG,

indicating the logical true condition of the flag (FLG) line.

Parameters

Parameter Name Parameter Type Range of Values Default

FLAG

Numeric none, 0, 1, 2, or 3 0
Discrete POSitive or NEGative None

n

Numeric none, 0, 1, 2, or 3 0

Example SOURCE:DIGITAL:FLAG0:POLARITY? uses long commands to query the state o f

the logical true condition on port 0.

DIG:FLAG0:POL? performs the same function as the example above with short

commands.

86 HP E1330B Digital I/O Module Command Chapter 5

DIGital:HANDshaken:DELay

[SOURce:]DIGital:HANDshaken:DELay <time> sets the time between data valid

and the assertion of the cont rol line to TRUE for port n. This form of the command
operates on 8-bit ports only.

Parameters

Parameter Name Parameter Type Range of Values Default

HANDshaken

<

time

>

Numeric None, 0, 1, 2, or 3 None
Numeric

Discrete MIN|MAX|DEF

2µs to 15µs

20

µs to 150µs

200

µs to 1.5ms

2ms to 15ms

Comments •:HANDshaken is the keyword used for commands relatin g to data

handshaking at port n. The port number n must be the last character of the
keyword without spaces.

•This command sets the strobe pulse width for both input and output STRobe

handshakes.

•The delay time must be set to the same value on all ports used in a multiple

port operation.

•MAX sets a 15ms delay. DEF sets 2µs delay. MIN sets a delay of 0, and is

illegal for PULse and STRobe handshakes.

•DIGital:HANDshaken NONE command sets the delay to 0. For all other

modes of handshaking, 2

µs is the minimum.

•Specific bands of delay settings are NOT allowed. These are:

µs > <time

0

µs> <time

15

The controller us es a rounded-up value for

> <

2µs150µs> <time

> <

20 µs1.5ms> <time

> <

<time

200µs

> <

2.0ms

>

if these valu es are specified.

None

•Related Commands: [SOURce:]DIGital:CONTroln

[SOURce:]DIGital:CONTroln
[SOURce:]DIGital:HANDshaken

[:VALue]

[:MODE]

, [SOURce:]DIGital:FLAGn

:POLarity

,

:POLarity

,

•*RST Condition: Delay is set to 2 µs.

Example DIG:HAND3:DEL .005 sets the delay between the data output and the assertion of

the control line to true on 8-bit port 3 to 5 ms.

HP E1330B Digital I/O Module Command Reference 87Chapter 5

DIGital:HANDshaken:DELay?

[SOURce:]DIGital:HANDshaken:DELay? queries for the ti me be tween data valid

and the assertion of the con trol li ne to TRUE. Thi s command ope rates on 8-bit por ts
and returns a decimal value between 0 and 0.015.

Parameters

Parameter Name Parameter Type Range of Values Default

HANDshaken

MIN|MAX|DEF Discrete None or MIN|MAX|DEF None

Comments •The delay time must be set to the same value on all ports used in a multiple

port operation.

•:HANDshaken is the keyword u sed for commands relating to data

handshaking at 8-bit port n. The port number n must be the last character of the
keyword without spaces.

•MIN or DEF returns 0.000002. MAX returns 0.015.

Example DIG:HAND0:DEL? queries the delay time between data valid and the assertion of

the control line to TRUE on 8-bit port 0.

DIGital:HANDshaken[:MODE]

[SOURce:]DIGital:HANDshaken[:MODE] <mode> selects the type of handshake

mode to use to transfer data in either direction between the Digital I/O module and a
peripheral on 8-bit port n. Handshakes are i nitiated by execution of a

MEASure:DIGital:DATAn

or
operates only on 8-bit ports.

Numeric None, 0, 1, 2, or 3 0

DIGital:DATAn

?

command. This form of the HANDshake command

Parameters

Parameter Name Parameter Type Range of Values Default

HANDshaken

mode>

<

Numeric None, 0, 1, 2, or 3 0

Discrete NONE, LEADing, TRAi ling,

PULSe, PARTial, or STRobe

NONE

Comments •:HANDshaken is the keyword used for commands relatin g to data

handshaking at port n. The 8- bit port number n must be the last character of the
keyword without spaces.

•NONE deletes all automatic data handshaking be tween the Digita l I/O Module

and peripheral. For custom handshaking, the control and flag lines are
controlled by the

DIGital:CONTroln and DIGital:FLAGn commands.

•Related Commands: [SOURce:]DIGital:HANDshaken:DELay,

[SOURce:]DIGital:CONTroln:POLarity

•*RST Condition: Mode is NONE on all ports.

Example DIG:HAND3 LEAD sets the handshake mode to LEADing on 8-bit port 3.

88 HP E1330B Digital I/O Module Command Chapter 5

DIGital:HANDshaken[:MODE]?

[SOURce:]DIGital:HANDshaken[:MODE]? returns a s tring indicating the curren t

handshake mode of 8-bit port n. This form of the
only on 8-bit ports.

Parameters

Parameter Name Parameter Type Range of Values Default

HANDshake command operates

Comments •This command will return one of the following strings:

DIGital:IOn?

Parameters

HANDshaken

Numeric None, 0, 1, 2, or 3 0

NONE
LEAD
TRA
PULS
PART
STR

•:HANDshaken is the keyword used for comman ds relating to data

handshaking at port n. The port number n must be the last character of the
keyword without spaces.

[SOURce:]DIGital:IOn

line on port n.

?

returns a 0 or 1 i ndi cating the current condition of the I/ O

Parameter Name Parameter Type Range of Values Default

IOn

Numeric None, 0, 1, 2, or 3 0

Comments •This command is only available when using the downloaded SCPI driver.

•The I/O line’s polarity is fixed and is as follows:

-- When Digital I/O module is programmed to output data, the I/O
low.

-- When Digital I/O module is programmed to input data, the I/O
high.

line is set

line is set

•:IOn is the keyword used for commands relating to the I/O line at port n. The

port number n must be the last character of the keyword without spaces.

HP E1330B Digital I/O Module Command Reference 89Chapter 5

DIGital:TRACe:CATalog?

[SOURce:]DIGital:TRACe:CATalog? lists the currently available data blocks.

Parameters None.

Comments •This command catalogs all blocks in VME memory and all blocks in the

mainframe system memory.

•The command returns a string.

Example DIG:TRAC:CAT? would return this string if both alpha and beta had been

previously d efined; "alph a","beta".

DIGital:TRACe[:DATA]

[SOURce:]DIGital:TRACe[:DATA] <name>,<block_data> writes a block of data

to a previously defined user memory block.

Parameters

Parameter Name Parameter Type Range of Values Default

<name

>

<block_data>

String Name of user memory

block (maximum 12

characters)

Numeric/String Numeric header and

ASCII block data

None

None

Comments •<name> must have been previously defined by a DIGital:TRACe:DEFine

command.

•The maximum length for <name> is 12 characters.

•<block_data> is of the form <#digits

<#digits> tells how many digits are used to define <length
<length
<block

Example DIG:TRAC:DATA first_block,#210ABCDEFGHIJ sends the data “ABCDEFGHIJ”

to the user memory blo ck first_block. Since the ASCII character A has a decimal
value of 65, the equivalent of 65 is stored in the first byt e of first_block (and so on).

>

tells how many bytes are to be transferred in <block>;

>

contains the actual da ta to transfer.

><

length><block> where:

>

;

90 HP E1330B Digital I/O Module Command Chapter 5

DIGital:TRACe[:DATA]?

[SOURce:]DIGital:TRACe[:DATA]? <name

previously defined user memory block.

Parameters

Parameter Name Parameter Type Range of Values Default

Comments •name must have been previously defined by a DIGit al:TRACe:DEFine

command.

•The maximum length for name is 12 characters.

Example DIG:TRACe? first_block reads data from a block na med first_block. If the

previous command example is sent, this command will return the string

#210ABCDEFGHIJ.

DIGital:TRACe:DEFine

[SOURce:]DIGital:TRACe:DEFine <name>,<size>,[<fill>] defines a bl ock of data

as a user memo ry block, names th e block for future reference, and fills the block with
the last parameter. If the last parameter is absent, the block is filled w ith zeros.

<name

>

reads a block of data from a

>

String Name of user memory blo ck

(maximum 12 characters)

None

Parameters

Parameter Name Parameter Type Range of Values Default

name

<

size>

<

<

fill>

>

String Name of user memory blo ck

(maximum 12 characters)

Numeric Up to 12 Mbytes (depending

on memory installed)

Numeric 0–255 0

None

None

Comments •The firmware can hand le blocks wi th a tot al memory sp ace of up t o 12 Mbytes

of memory space. The actual amount available depends on the memory
installed.

•If the MEMory:VME:STATe ON command has been used, this command will

create blocks in the external add-on memory.

MEMory:VME:STATe OFF command has been used, this command will

If the
create blocks in the system memory.

Example DIG:TRAC:DEF first_block, 256 defines a 256 byte user memory block named

first_block and fills each byte with a zero.

HP E1330B Digital I/O Module Command Reference 91Chapter 5

DIGital:TRACe:DEFine?

[SOURce:]DIGital:TRACe:DEFine? <name> returns the size of a previously

defined user memory block in byte s. The command return s a deci mal nu mber i n the
range of 0 to 12,582,912.

Parameters

Parameter Name Parameter Type Range of Values Default

<name

>

Comments •<name> must have been previously defined by a DIGital:TRACe:DEFine

command. The maximum length for

DIGital:TRACe:DELete:ALL

[SOURce:]DIGital:TRACe:DELete:ALL deletes all previously defined user

memory data blocks.

Parameters None.

DIGital:TRACe:DELete[:NAME]

[SOURce:]DIGital:TRACe:DELete[:NAME] <name> deletes a previously defined

user memory data block.

String Name of user memory blo ck

(maximum 12 characters)

<name> is 12 characters.

None

Parameters

Parameter Name Parameter Type Range of Values Default

<

name

>

String Name of user memory blo ck

(maximum 12 characters)

None

Comments <name> must have been previously defin ed by a DIGital:TRACe:DEFine command.

The maximum length for

<name> is 12 characters.

Example DIG:TRACe:DEL first_block deletes a user memory block named first_block.

92 HP E1330B Digital I/O Module Command Chapter 5

The STATus subsystem controls the SCPI-defined Operation and Questionable
Signal Status Registers and the Standard Event Registers. Each is comprised of a
Condition Register, an Event Register, an enable mask, and transition filters.

Each Status Register works as foll ows: when a condit ion occu rs, the a ppropri ate bi t
in the Condition Regist er is set or cl eared. If the corresponding transition filter is
enabled for that bit, the same bit is set in the associated Event Register. The contents
of the Event Register and t he enable mask are l ogically ANDed bit-f or-bit; if any bi t
of the result is set, the summary bit for that register is set in the status byte. The status
byte summary b it for the Operation Status Register is bit 7 ; for the Questionable
Signal Status Register, bit 3; and for the Standard Event Register, bit 5.

Syntax STATus

:OPERation

:PRESet
:QUEStionable

STATus Subsystem

:CONDition?
:ENABle
:ENABle?
[:EVENt]?

:CONDition?
:ENABle
:ENABle?
[:EVENt]?

Note This subsystem is provided for compatibility. The Digital I/O module does not use

the Operation Status or Questionable Status Registers.

HP E1330B Digital I/O Module Command Reference 93Chapter 5

:OPERation:CON Dition ?

STATus:OPERation:CONDition? returns the contents of the Operation Status

Condition Register. Readi ng the regi ster does no t affect its contents . This command
does not affect the HP E1330 Digital I/O module.

:OPERation:ENABle

STATus:OPERation:ENABle <mask> specifies which bits of t he associated Even t

Register are included in its summary bit. The summary bit is the bit-for-bit logical
AND of the Event Register and the unmasked bit(s). This command does not aff ec t
the HP E1330 Digital I/O module.

Parameters

Parameter Name Parameter Type Range of Values Default

The non-decimal numeric forms are the #H, #Q, or #B formats specified by
IEEE-488.2.

mask

<

>

Numeric or

non-decimal

numeric

0 through +32767 None

:OPERation:ENA B le?

STATus:OPERation:ENABle? returns the mask set for the Operation Status

Register. This command does not affect the HP E1330 Digital I/O module.

:OPERation[:EVENt]?

STATus:OPERation[:EVENt]? returns the contents of the Operation Event Status

Register. Reading the register clears all bits in the register. This command does not
affect the HP E1330 Digital I/O module.

:PRESet

STATus:PRESet clears both the Operation Status Enable and Questionable Status

Enable Registers. This command does not affect the HP E1330 Digital I/O module.

94 HP E1330B Digital I/O Module Command Chapter 5

:QUEStionable:CONDition?

STATus:QUEStionable:CONDition? returns the contents of the Questionable

Status Condition Register. Reading the register does not affect its contents. This
command does not affect the HP E1330 Digital I/O module.

:QUEStionable:ENABle

STATus:QUEStionable:ENABle <mask> specifies which bits of the asso ciated

Event Register are included in its summary bit. The summary bit is the bit-for-bit
logical AND of the Event Reg ister and th e unmasked bit( s). This command doe s not
affect the HP E1330 Digital I/O module.

Parameters

Parameter Name Parameter Type Range of Values Default

<

The non-decimal numeric forms are the #H, #Q, or #B formats specified by
IEEE-488.2.

mask

>

Numeric or

non-decimal

numeric

0 through +32767 None

:QUEStionable:ENABle?

STATus:QUEStionable:ENABle? returns the mask set for the Quest ionable Status

Register. This command does not affect the HP E1330 Digital I/O module.

:QUEStionable[:EVENt]?

STATus:QUEStionable[:EVENt]? returns the contents of the Questionable Status

Event Register. Reading the register clears all bits in the register. This command
does not affect the HP E1330 Digital I/O module.

HP E1330B Digital I/O Module Command Reference 95Chapter 5

Syntax SYSTem

:CDEScription?

Parameters

SYSTem Subsystem

The SYSTem subsystem returns information about the module.

:CDEScription? <
:CTYPe? <
:ERRor?
:VERsion?

SYSTem:CDEScription? <number> returns the module description.

Parameter Name Parameter Type Range of Values Default

number

number

>

>

Comments •This command is only available when using the downloaded SCPI driver.

:CTYPe?

Parameters

Comments •This command is only available when using the downloaded SCPI driver.

<number

>

Numeric 1 None

•<number> is the instrument number. Because each Digital I/O module is a

single instrument,

<number> is always 1.

•The command returns the following string:

Quad 8-bit Digital I/O

SYSTem:CTYPe? <number

Parameter Name Parameter Type Range of Values Default

<

number

>

>

returns the module number and manufacturer.

Numeric 0 to 99 None

•The command returns the following string (revision number may vary and the

serial number is always set to 0):

HEWLETT-PACKARD,E1330B,0,A.05.00

96 HP E1330B Digital I/O Module Command Chapter 5

:ERRor?

Comments •Returns the error number and error string. If no errors are in the error buffer,

Example SYST:ERR? queries the mainframe for errors.

:VERSion?

Comments Returns a decimal value in the form:

SYSTem:ERRor? queries the Error Register for the error value and returns a string

error message to identify the error type. The errors are held in an error buffer and
read in a First-In-First-Ou t manner by this command.

returns:

+0,"No error".

•Related Commands: *ERR

•*RST Condition: None.

SYSTem:VERsion? returns the SCPI version to which this instrument complies.

YYYY.R

where YYYY is the year, and R is the revision number within that year.

HP E1330B Digital I/O Module Command Reference 97Chapter 5

IEEE 488.2 Common Commands

The following table lists the IEEE 488.2 Common (*) Commands that can be
executed by the HP E1330B Digital I/O Module. For more information on Common
Commands, refer to ANSI/IEEE Standard 488.2-1987.

Note These commands apply to many instruments a nd are not docu ment ed in det ail her e.

See ANSI/IEEE Standard 488.2-1987 for more information.

*IDN? Identification query Returns identification string of the Digital I/O Module.
*RST Reset Sets all ports to input mode, handshake NONE, and polarity POS.
*TST? Self-Test Query Always returns 0.
*OPC Operation Complete Sets the request for OPC flag when all pending operations have been

*OPC? Operation Complete Query Returns a 1 to th e output queue when all pe nding operations are co mplete.
*WAI Wait to Continue Halts execution of commands and queries until the "No Operation

*CLS Clear status Clears all Event Registers, the Request for OPC flag, and all queues

mask> Event status enable Sets the bits in the Event Status Enable Register.

*ESE<
*ESE? Event status enable query Queries the Event Status Enable Register.
*ESR? Event status register query Queries and clears the contents of the Standard Event Status Register.

mask> Service request enable Sets the Service Request Enable Register bits, and corresponding Serial

*SRE<

*SRE? Service request enable query Queries the contents of the Service Request Enable Register.
*STB? Read status byte query Queries the contents of the Status Byte Register.
*TRG Trigger

n> Recall saved state Recalls stored module configuration in the memory location set by <n>.

*RCL<

n> Save state Stores the module configuration in the memory location set by <n>.

*SAV<
*EMC <n> Enable macro Enable execution of macro <n>.

completed. Also sets the OPC bit in the Standard Event Register.

Pending" message is true.

(except output queue).

Poll Status Byte Register bits, to generate a service request.

*EMC? <
*RMC Remove macros Removes all macros.
*LMC List macros Lists macros by name.
*DMC Define macro Defines a macro.
*GMC Menu query Get results of menu query.
*PMC Purge macros Purges all system macros.

n> Enable macro query Queries execution state of macro <n>.

98 HP E1330B Digital I/O Module Command Chapter 5
