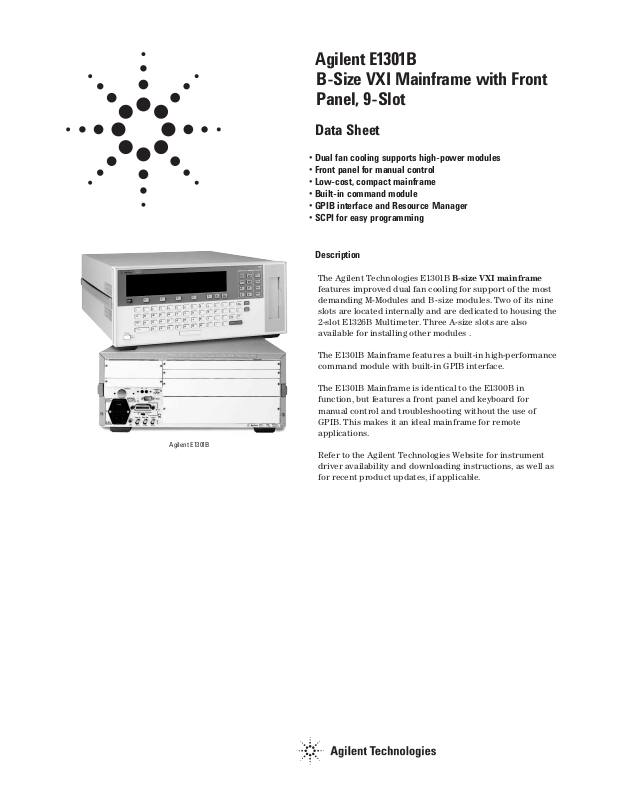

Data Sheet
B-Size VXI Mainframe with Front
Panel, 9-Slot
Agilent E1301B
•
Dual fan cooling supports high-power modules
•
Front panel for manual control
•
Low-cost, compact mainframe
•
Built-in command module
•
GPIB interface and Resource Manager
•
SCPI for easy programming
Agilent E1301B
Description
The Agilent Technologies E1301B B-size VXI mainframe
features improved dual fan cooling for support of the most
demanding M-Modules and B- size modules. Two of its nine
slots are located internally and are dedicated to housing the
2-slot E1326B Multimeter. Three A-size slots are also
available for installing other modules .
The E1301B Mainframe features a built-in high-performance
command module with built-in GPIB interface.
The E1301B Mainframe is identical to the E1300B in
function, but features a front panel and keyboard for
manual control and troubleshooting without the use of
GPIB. This makes it an ideal mainframe for remote
applications.
Refer to the Agilent Technologies Website for instrument
driver availability and downloading instructions, as well as
for recent product updates, if applicable.
2
Product Specifications
Mechanical Specifications
mm inches
Height without bottom feet: 177 6.97
Height with bottom feet: 189 7.44
Width: 426 16.75
Depth: 510 20.1
Depth with terminal blocks: 569 22.38
Weight: 7.8 kg/17 lbs
Power Specifications
Power output:
The power supply generates backplane logic signals ACFAIL* and SYSRESET* in
full compliance with the VXI Specification, Revision 1.4.
dc Output Voltage PK Current I
MP
+5 V: 12.2 A
+12 V: 4.6 A
–12 V: 0.9 A
Usable power: 120 W maximum at 40° C
Power Supply Protection
All outputs are protected from over-temperature, overvoltage, over-current, and short-to-ground.
Power Input
Input voltage: 115 Vac to 230 Vac (250 V max)
Input frequency: 50 Hz to 400 Hz
Cooling
Temperature rise: 10° C (through the module for a 25 W
module with typical density)
Environmental and Regulatory
Acoustic noise: Less than 40 dBA sound pressure at
bystander position (measured 1 m. in
front of product per DIN 45635T.1)
General Specifications
VXI Characteristics
VXI device type: Mainframe
Data transfer bus: 16 bits
Size: B
Slots: 9 (7 external, 2 internal, 3 external
A-size)
Connectors: P1
Shared memory: n/a
VXI buses: none
Cooling/Slot
Watts/slot: 25 W (10° C rise)
∆P mm H
2
O: n/a
Air flow liter/s: n/a
Available Current
IMP(A) IMD(A)
+5 V: 50.00 3.50
+12 V: 8.00 1.50
–12 V: 4.00 0.50
+24 V: 00
–24 V: 00
–5.2 V: 00
–2 V: 00
Optional Features
The E1301B Mainframe offers 1 or 2 MB non-volatile
memory for program and data storage.
Air Flow and Power Supply Serviceability
• Power Input and cooling air intake through the right side
• Cooling air exhaust through the left side
3
Configuration Checklist
Find the column (A, B, or C) that contains the desired rackmounting components, then follow the column down for
ordering information.
Description Product No.
9-Slot, B-Size VXI Mainframe w/Front Panel E1301B
E1326B Multimeter Installed Internally E1301B 009
512 KB Nonvolatile Memory Installed E1301B 010
1 MB Nonvolatile Memory Installed* E1301B 011
2 MB Nonvolatile Memory Installed E1301B 012
Front Handle Kit for E1301B Mainframe E1301B 907
Rack-Mount Flanges and Rails for E1301B E1301B 908
Rack-Mount Flanges, Handles and Rails E1301B 909
Germany-German Localization E1301B ABD
France-French Localization E1301B ABF
Japan-Japanese Localization E1301B ABJ
Italy-Italian Localization E1301B ABZ
ANSI Z540 Compliant Calibration E1301B A6J
Ordering Information
ABC
For reorders use part
number
Option 907 handle kit: • 5062-3900
Option 908 rack-mount
rails/flanges: • E1300-80908
Option 909 rack-mount
rail/flanges/handles: • E1300-80909
You Need to Order
ABC
Rack-mount: ••
Handles: ••
Rails and flanges: ••
Recommended Configurations
Rack-Mounting Details
Cover Parts Kit
Field Install Kit 512 K Memory
Field Install Kit 1 Mbyte Memory
Internal Installation Kit for E1326B DVM
Kit-Binding Post
Firmware Update to A.07 w/o IBASIC
Rack Mount Kit w/Rails
Rack Mount & Handle Kit
Service Manual
*Option 011 is required if you ar using the E1313A,
However, Option 012 is recommended.
E1300-06102
E1300-80002
E1300-80003
E1326-80004
E1326-80005
E1300-80070
E1300-80908
E1300-80909
E1300-90015
