Infiniium 8000 Series Oscilloscopes
1-GHz and 600-MHz Real-Time Oscilloscopes
with Integrated Digital Channels
Superior mixed-signal analysis and debug for
your applications
Data Sheet
Specifications
• 1 GHz and 600 MHz bandwidth
models
• MSO models with integrated
16 digital channels
• 4 GSa/s sample rate
• Up to 128 Mpts of MegaZoom
fastest, most responsive memory
• Standard touch screen with
high-definition XGA display
• Extensive application software
suite
• Unrivaled InfiniiMax active
probes and accessories
• Open Windows
®
XP Pro
operating system
• Now LXI class C
compliant
Key features
• Validate physical and protocol
layers of your I
2
C, SPI, CAN and
FlexRay communications buses
quickly
• Validate your DDR, USB,
Ethernet applications quickly
with automated compliance test
software
• Quickly debug your FPGA
designs (Xilinx and Altera) with
core-based debug software
capability
• User-defined function provides
seamless gateway to powerful
MATLAB
®
real-time analysis
functionality
• Find subtle glitches with
3-dimensional viewing (256-level
intensity display)
• Find errors faster using your
finger tip with Infiniiscan Zone
Qualify feature
• Find signal-integrity-based logic
errors with built-in state
decoding for serial, parallel and
wideband signals
• Analyze single-shot events and
wideband RF signals with
integrated wireless 89601A
vector signal analysis test
software
• Apply trend analysis techniques
with Chart Mode to see how
digital characteristics (i.e. ADC,
counter, address lines, etc.) vary
over time
• Maximize your tool investment
with segmented memory on your
analog and digital signals to
ensure you can capture events
widely spaced in time
• Debug your high-speed designs
with advanced jitter, clock
recovery and eye-diagram
analysis tools
Infiniium 8000 Series oscilloscopes
Model Bandwidth Channels Sample rate Standard memory Maximum memory
DSO8064A 600 MHz 4 analog 4 GSa/s 8 Mpts 128 Mpts
MSO8064A 600 MHz 4 analog + 16 logic 4 GSa/s 8 Mpts 128 Mpts
DSO8104A 1 GHz 4 analog 4 GSa/s 8 Mpts 128 Mpts
MSO8104A 1 GHz 4 analog + 16 logic 4 GSa/s 8 Mpts 128 Mpts
The Infiniium 8000 Series
oscilloscopes offer designers
the industry’s first oscilloscope
family with responsive deep
memory, superior signal viewing
and advanced analysis. The four
digital storage oscilloscopes
(DSOs) and mixed signal
oscilloscopes (MSOs) combine
the best in signal viewing with
patented next-generation
MegaZoom technology that
maps the industry’s deepest and
most responsive memory to a
high-definition display system
that uncovers even the most
subtle details in long, complex
waveforms. Next-generation
MegaZoom technology helps you
The Standard in General Purpose Lab Scopes
capture analog and digital signals
over long time spans, easily view
critical events, and perform
robust signal analysis all with
a single instrument. Several
memory options are available and
are affordably priced to meet
your performance needs and fit
within your budget.
2
Infiniium Benefits
Dramatically speed debug time
with mixed signal oscilloscope
(MSO) models that integrate
16 digital channels
As embedded designs continue
to increase in complexity with
integration of higher-speed digital
buses such as SDRAM and PCI,
along with 16- or 32-bit processors,
it becomes increasingly important
for engineers to have flexible test
instrumentation at their
fingertips. When you need to
isolate events of interest or
monitor critical relationships
between multiple signals, you
need an instrument that is
capable of viewing and triggering
on more than just two or four
signals at a time.
Agilent’s Infiniium MSOs tightly
integrate 4 channels and 16
digital channels in the same
acquisition system to provide
time-correlated viewing and
triggering across 20 channels.
Since an MSO is first and
foremost an oscilloscope, no
trade-offs in scope functionality
are made; the instrument retains
the usability and the real-time
waveform capture of an
oscilloscope. MSOs reduce the
need for expensive multi-box
solutions and can dramatically
speed debug time.
MSO viewing and triggering
No matter how complicated the
signals you are dealing with,
the Infiniium MSO comes with
powerful viewing and triggering
capabilities to help you untangle
them. The Infiniium MSO can
trigger across all 16 digital
channels and four scope channels.
There are no limitations on the
combination of analog and digital
channels that can be used for
a particular pattern or state
trigger setting. This enables you
to easily isolate and analyze
complex interactions between
digital signals and analog content
in your design. Once your trigger
condition is set, seamlessly view
the cause-and-effect relationships
and make measurements across
all 20 channels.
MSO application
With more sophisticated memory
buses such as SDRAM being
deployed in embedded designs, it
is important to be able to isolate
a particular cycle of the memory
bus that may be causing a
problem. Isolating a SDRAM write
cycle requires triggering across
four digital channels when CS,
CAS, and WE signals are low and
RAS is high, along with one analog
channel on a rising edge of Clk.
You need a second analog channel
to capture a data bit of the
SDRAM bus that you suspect has
signal integrity problems. With
the write cycle isolated, you can
create an eye diagram of the data
bit with fast waveform update
rates and then you can make
worst-case setup and hold time
measurements to reveal
anomalies or glitches. Doing this
type of analysis with a traditional
two- or four-channel oscilloscope,
or with a two-box logic analyzer
and traditional oscilloscope,
would be difficult or impossible.
3
Up to 128 Mpts fast deep memory
Sample rate and memory depth
go hand in hand. Deep memory
in oscilloscopes sustains a high
sample rate over longer time
spans. With up to 128 Mpts
of acquisition memory, the
Infiniium 8000 Series offers
superior resolution for capturing
long, complex waveforms. Deep
memory is critically important in
embedded designs implementing
slow analog with fast digital,
serial buses, and RF
communication.
Infiniium’s segmented memory
acquisition mode adds additional
capability to deep memory
acquisition when you are
capturing bursted or packetized
signals. With segmented memory,
only the packets of interest
are captured and stored into
acquisition memory for viewing
and analysis — no valuable
memory is consumed during
periods of inactivity between
packets. Coupled with 128 Mpts
of acquisition memory, thousands
of packets can be captured at the
oscilloscope’s maximum sample
rate over seconds or even days.
With precise time-tags on each
segment, segmented memory
acquisition mode effectively
provides gigabytes of
acquisition memory in a single,
high-sample-rate acquisition
by efficiently utilizing the real
acquisition memory it has.
Infiniium Benefits (continued)
4
Infiniium Benefits (continued)
MegaZoom technology enables
ultra-fast waveform update rates
Responsiveness and waveform
update rate slow down
dramatically on traditional
deep-memory oscilloscopes
when they capture longer
memory records, making them
difficult and frustrating to use.
The Infiniium 8000 Series
oscilloscopes feature patented
MegaZoom technology that
provides the fastest waveform
update rates, even when using
the deepest memory records
up to 128 Mpts. At the heart of
MegaZoom technology is a custom
ASIC built into the acquisition
With the Infiniium 8000 Series, you can have it all — deepest memory acquisition
with fast waveform update rates, a high-definition display system, a powerful suite
of application solutions, and integrated mixed-signal analysis capabilities.
5
system that performs data
acceleration from the ADC to
waveform memory and display.
With MegaZoom, deep memory
is always available and always
fast, so you never have to think
about manually turning it on and
incurring reduced responsiveness.
Next-generation MegaZoom
provides best-in-class
waveform viewing
In addition to providing the
fastest, most-responsive deep
memory, the Infiniium 8000
Series oscilloscopes feature
best-in-class waveform viewing
powered by next-generation
MegaZoom technology.
Next-generation MegaZoom
supports a high-resolution XGA
display system and maps up to
128 Mpts of memory to 256
levels of color intensity grades,
delivering unmatched real-time
insight into signal details.
Next-generation MegaZoom’s
dynamic range in the Z-axis
provides designers a
third-dimensional view of
subtle details never before seen
in an analysis-based oscilloscope.
Up to this point, responsive deep
memory capture, waveform
analysis, and superior signal
viewing have not coexisted.
Infiniium Features
DSO8064A/MSO8064A, DSO8104A/MSO8104A
InfiniiScan – next generation of
trigger capability
InfiniiScan makes triggering easy.
Just draw boxes with the Zone
Qualify trigger to track signal
behavior. InfiniiScan scans
through thousands of acquired
waveforms per second to help
you isolate anomalous signal
behaviors.
Chart mode feature
Chart mode applies trend
analysis techniques to see how
the digital output (ADC, counter,
address lines, etc.) vary over
time. This method is effective to
quickly find anomalies of the
digital signals. You can also apply
math operators such as “FFT” to
view the frequency domain of the
analog values.
Serial, parallel and wideband
signal decode
Whether you are working on
serial, parallel or wideband
signals, you can use the 8000
Powerful frequency and
modulation analysis
The 8000 Series provides superior
frequency domain analysis,
RF-signal demodulation and
extensive standard-specific
analysis coverage including
WiMAX™, WLAN, 3GPP, RFID and
UWB with the optional 89601A
Series VSA software. With digital
and wireless applications merging,
you can use the 8000 Series
one-box solution to validate the
time and frequency domains.
Series to decode your waveforms.
When you are working on parallel
waveforms, you can even
customize the bus states to be
displayed on the decode table.
6
Extensive application software suite
The 8000 Series provides wide
application coverage for you to
quickly and easily verify your
designs. Application packages
include DDR, USB, Ethernet,
FlexRay, CAN, SPI, I2C, and FPGA
standards.
Infiniium Features (continued)
DSO8064A/MSO8064A, DSO8104A/MSO8104A

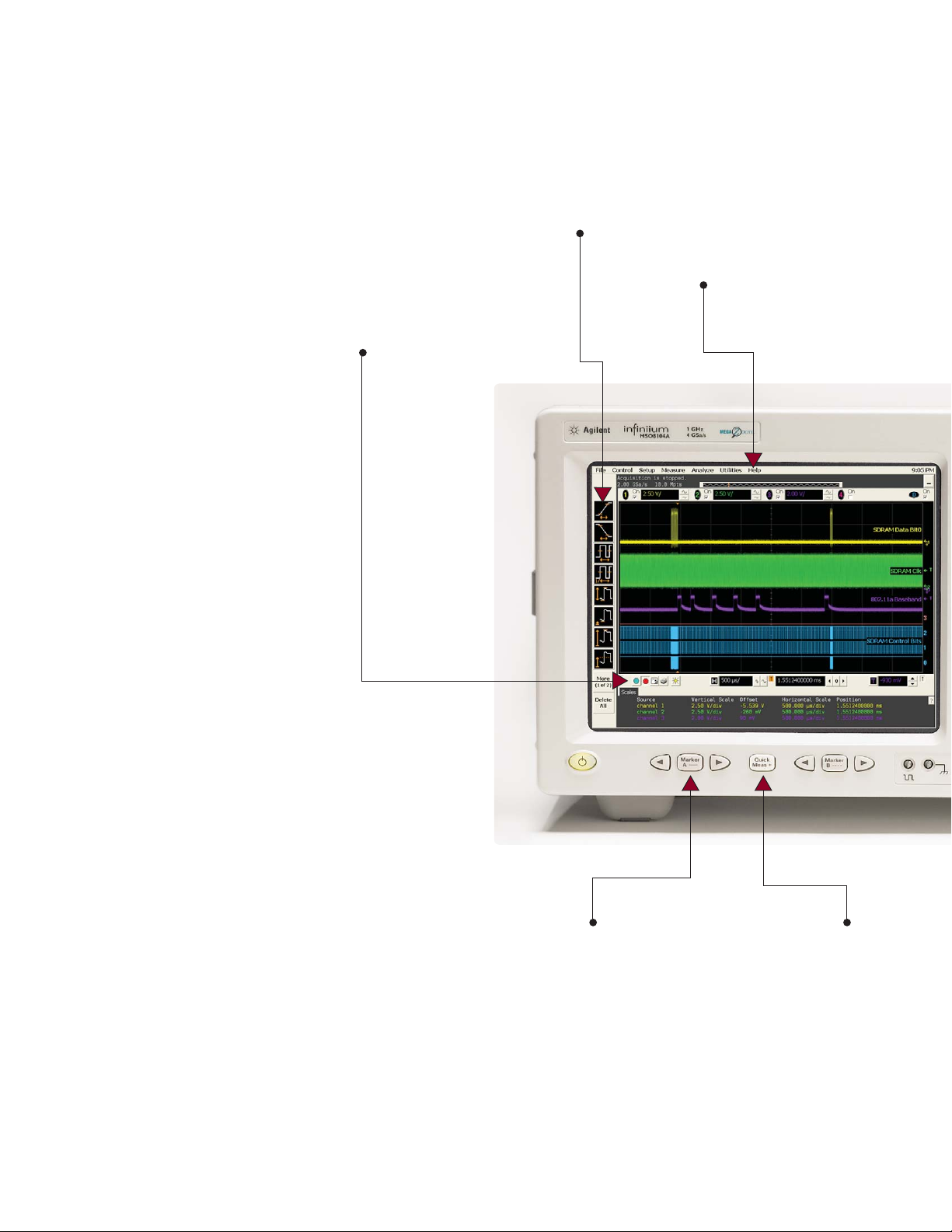

Drag-and-drop measurements
It’s simple: drag an icon from
the measurement bar and drop
it on the cycle you want to
measure. You can make up to
five measurements on your
waveforms, on up to five different
cycles. All the measurements
appear at the bottom of the
display with statistics and are
color coded to the channel
you are measuring. Scope
measurements have never been
this powerful or this easy.
Dialog boxes for easy setup
With Infiniium, you don’t need
to navigate through annoying
softkey menus. Dialog boxes
display all the choices you need
for measurement setups, all in
one place. Help is available for
each field, guiding you through
each step.
Bus mode display
Bus mode display on MSOs
allows quick and easy read-out
of hexadecimal representation
of logic signals. Bus state mode
display allows the bus readout
to be updated only upon the edge
of the clock source you select.
Available only with Infiniium
MSO models.
Simple zooming
Zooming with Infiniium’s
graphical user interface is simple
and convenient. Just use the
mouse to draw a box around the
area of interest and click inside.
Zoom uses the full display so you
get meaningful vertical as well as
horizontal resolution gains. Use
multiple zoom boxes to see deep
inside your signal. Zooming
couldn’t be simpler or faster.
Industry’s only segmented memory for
both analog and digital channels
The segment memory acquisition
mode allows you to capture short
bursts at maximum sample rate
while not consuming memory
during periods of inactivity. The
8000 is the industry’s only
oscilloscopes that support
segmented memory capture on
both analog and digital channels
so you can obtain critical and
correlated timing information
between them.
7
Infiniium Features (continued)
DSO8064A/MSO8064A, DSO8104A/MSO8104A
AutoMask and mask test
Mask testing is simplified with
AutoMask. Acquire a waveform,
define tolerance limits, and
create a test envelope. Mask
testing provides a pass/fail
comparison of an incoming signal
to the test envelope. Easily test
your design’s conformance to
industry standards with the
communication mask test
kit option.
Advanced triggering
Advanced triggers are essential
when you are investigating known
problems. Infiniium offers a full
range of advanced triggers to
help you isolate and capture
the condition you need to
characterize. Advanced trigger
setups are simplified by using
intuitive dialog boxes with
descriptive graphics.
Color-graded persistence
with histograms
By providing seven levels of color
grades for a visual representation
of waveform distribution,
color-graded persistence makes it
easy to pick out signal anomalies
and see how often they occur.
Histograms quantify both noise
and jitter in your target system.
High/low pass filter
This function applies a real-time
digital filter to the source
waveform that you choose. This
filtering feature enhances your
ability to examine important
signal components by filtering out
unwanted frequency components.
QuickMeasure and statistics
Instantly make five common
measurements on your signal,
with easy-to-read statistics, by
pressing the QuickMeas+ button
on the front of your Infiniium.
The measurements displayed can
be easily customized.
Pseudo state
Convert digital timing waveforms
into state waveforms, specifying
the clock edge when your data is
valid. The MSO filters out all
invalid states leaving exclusively
valid states in the waveform
display.
8
Infiniium Features (continued)
DSO8064A/MSO8064A, DSO8104A/MSO8104A
E-mail on trigger
Infiniium can automatically send
an e-mail with a screen image
of the display when the scope
triggers. You can have your
Infiniium send an e-mail to you or
a message to your cell phone then
control your scope from any
Java™-enabled Web browser with
Infiniium’s Web-enabled feature.
Web-enabled control
For distributed teams, simply set
up Infiniium on your LAN, and
up to three users can access it
from any Java-enabled Web
browser. No special software is
required. You can easily grab
screen shots for a report, or
troubleshoot designs from a
remote location.
Dual monitor support
Dual monitor mode allows you
to run third-party applications
on a large, external monitor with
up to XGA resolution (1024 x
768 pixels) while using the
scope’s built-in monitor for
waveform display.
Infiniium IVI-COM driver
For a higher-level of instrument
control, use the Infiniium
IVI-COM instrument driver in
your application. This IVI-COM
driver takes full advantage of
industry-accepted standards
and is compatible in application
development environments
such as Visual Studio® as well
as in test and measurement
development environments such
as Agilent VEE Pro and National
Instruments LabVIEW®. The
Infiniium IVI-COM Instrument
driver allows for easier use,
higher performance, and
instrument interchangeability
in your oscilloscope control
program. Download the Infiniium
IVI-COM driver for free from
Agilent Developer’s Network at
www.agilent.com/find/adn.
Windows XP Pro open system
Want to run Windows applications
inside your Infiniium scope? All
Infiniium 8000 Series scopes are
based on a Windows XP Pro open
platform that allows you to run
Windows applications inside
the Infiniium to add advanced
analysis and functionality to
the scope.
9
Get fast answers to your questions
with the comprehensive built-in
information system. The task-oriented
setup guide provides step-by-step
instructions for several measurement
procedures.
QuickMeas+ key gives you any five
automated measurements with the
push of a button. You can also
configure this key to print/save screen
images among other functions.
Up to 128 Mpts of MegaZoom fast
deep memory sustains maximum
sample rates for the longest
time captures.
Remote access via Web browser or
programming environment with GPIB
commands over LAN allows you to
access your oscilloscope from any
networked PC.
E-mail-on-trigger allows you to leave
your oscilloscope, and when that
intermittent event is captured, Infiniium
sends you an e-mail that tells you
exactly when it happened with an
attached screen image.
10/100/1000 BaseT LAN interface
lets you easily print to network
printers, save files to network drives,
and control the oscilloscope remotely.
Label waveforms and add comments
to Infiniium’s display for thorough
documentation before saving
screen images.
Context-sensitive right-click menus
allow quick access to oscilloscope
settings, controls, and display
properties.
High-definition XGA color display
with 256 levels of intensity uncovers
subtle signal details that most
oscilloscopes won’t show
you…enabled by next-generation
MegaZoom technology.
Measurement markers can be easily
controlled via front-panel arrow keys
or dragging and dropping them with
the pointer.
Drag-and-drop measurements from
the measurement bar provide an
intuitive way to make a measurement
on a particular cycle of your waveform.
Touch screen display
comes standard for
mouse-free operation.
10
Infiniium: “The Agilent 8000 Saries has already
become the most coveted scope on our lab”
Ole Moyer
Application Engineer, On Semiconductor
11
USB 2.0 port directly on front panel
makes it easy to save files to a USB
mass storage device.
Next-generation MegaZoom
technology enables you to quickly
pan and zoom through the deepest
waveforms for detailed analysis.
Mixed signal oscilloscope (MSO)
models seamlessly integrate four
analog scope channels with 16 digital
channels that provide full-width
viewing and triggering across many
embedded signal interactions.
AutoProbe interface completely
configures your oscilloscope and
provides power to various current and
active probes, including InfiniiMax
active probes.
Hands-free operation is available with
Infiniium’s VoiceControl option.
Internal 40 GB hard drive provides
large storage capacity for storing
waveforms, screen images, and setup
files. An optional removable hard drive
is available for operation in secure
environments.
Fast 3.2 GHz CPU with 1 GB RAM
enables two times faster task
processing compared to previous
generations.
Option external DVD-RW drive allows
you to conveniently update system
software and install third-party
application packages.
Open Windows XP Pro platform
enables you to install third-party
applications such as Excel, LabVIEW,
and MATLAB to perform custom
analysis and processing, all inside
the oscilloscope.
XGA video monitor out provides the
ability to run third-party applications
on a large external display while the
internal display continues to display
acquired waveforms.
Easy access to advanced features
is enabled by the Windows-based
graphical user interface. In addition,
graphical equivalents to all front-panel
controls are available.
Award-winning ease-of-use is made
possible by attention to details like
Infiniium’s analog-like front panel
controls, color-coded to correspond to
displayed waveforms.
Infiniium Advanced Application Software
Xilinx and Altera FPGA dynamic
probe for Infiniium MSO (N5397A
and N5433A)
Agilent’s MSO FPGA dynamic
probe provides rapid internal
FPGA visibility and quick
instrument setup using an
innovative core-assisted
approach. Measurement tasks
that previously took hours can
be done in a few mouse clicks.
In a few seconds you can easily
measure a different set of
internal signals without changing
your FPGA design. The FPGA
dynamic probe also imports
signal names from your FPGA
design to the MSO digital channel
labels.
Low-speed serial data analysis
software (Option 007 or N5391A)
The N5391A low-speed serial
data analysis software provides
a fast and easy way to debug
inter-integrated circuit (I2C) and
2-, 3- or 4-wire serial peripheral
interface (SPI) serial
communication buses. The
low-speed SDA software provides
the ability to capture and
automatically display decoded
serial data in numerical format
synchronized with the analog
or digital waveform, display
decoded packets in a sortable
listing window view with
automatic click and zoom
capability, and perform search
functions for a particular packet
with navigator controls.
The Agilent 8000 Series Infiniium oscilloscope offers a broad portfolio of add-on
applications that enables you to customize your oscilloscope. These applications
are available as add-on options at your initial scope purchase or as user-installed
options at a later time. For more information about these options and to see if new
applications have been added to our portfolio, please visit
www.agilent.com/find/8000scope-apps.
12
Infiniium Advanced Application Software (continued)
High-speed serial data analysis
software (Option 003 or N5384A)
The N5384A high-speed serial
data analysis (SDA) software
provides an effective way to
validate signal integrity for
designs employing high-speed
serial interfaces with embedded
clocks. The high-speed SDA
software, when used with
Infiniium oscilloscopes, allows
you to:
• recover embedded clocks with
first-order PLL, second-order
PLL, or constant frequency
algorithms
• choose an external reference
clock input
• display the recovered clock
synchronized with the analog
waveform view of the serial
data stream
• build real-time eye diagrams
• unfold real-time eye diagrams
to easily locate failures
versus time
• perform custom mask testing
• make TIE jitter measurements
relative to the recovered clock
or external reference clock
multiple events simultaneously
with resolution down to 70-ps
events plus automated navigation
to failure events. InfiniiScan
software finders consist of:
measurement, zone qualify, generic
serial, non-monotonic edge and
runt. InfiniiScan goes beyond the
classic limitations of hardware
triggering and deep memory.
InfiniiScan event identification
software (Option 009 or N5415A)
The Agilent InfiniiScan event
identification software quickly and
easily identifies signal integrity
issues. This innovative software
scans through thousands of
acquired waveforms per second
to help isolate anomalous signal
behavior. InfiniiScan can scan for
Automotive serial data analysis
software (Option 008 or N5402A)
The N5402A automotive serial
data analysis software allows
engineers to view both protocol
layer information and physical
layer signal characteristics for
CAN and FlexRay buses inside a
single instrument, the Infiniium
oscilloscope. Numerical decode
values are automatically displayed
and synchronized below the
captured signal’s waveform. They
can also be viewed in a sortable
listing window which allows
automatic click and zoom
capability to the signal of interest
as well as performs search
functions for a particular packet.
The option also provides software
clock recovery and real-time eye
diagram measurements.
13
N5392A Ethernet electrical performance
validation and compliance software
The Agilent N5392A Ethernet
electrical performance validation
and compliance software performs
a wide range of electrical tests to
meet the Ethernet electrical
specifications for 1000Base-T,
100Base-TX and 10Base-T systems
as documented in the IEEE
802.3-2005 and ANSIX3.263-1995
standards.
Features:
• Test setup wizard guides you
through test selection,
configuration, connection,
execution and results reporting
• Fixtures available: N5395B
Ethernet test fixtures and
N5396A jitter test cable
• Supports 1000Base-T disturbing
signal measurements with the
use of 33250A arbitrary
waveform generators
• Supports return loss
measurements with most
HP/Agilent vector network
analyzers
14
Infiniium Advanced Application Software (continued)
the most powerful and
comprehensive set of tools for
exploratory debug of jitter, and
is remarkably easy to use. ASA’s
oscilloscope tools work in tandem
with Infiniium MSOs to provide
measurements never before
possible.
Oscilloscope tools
(E2690B and N5385B)
The Agilent E2690B (US
domestic) and N5385B
(international) advanced time
interval and jitter analysis
software, licensed from Amherst
Systems Associates (ASA), offers
measurement histograms,
measurement trending and
jitter spectrum. EZJIT provides
a setup wizard that guides you
through the setup of the jitter
measurement, explains how each
jitter measurement works, and
tells you when to use it.
EZJIT jitter analysis software
(Option 002 or E2681A)
The E2681A jitter analysis
option provides the most
commonly needed jitter
measurements, including
cycle-cycle jitter, N-cycle jitter,
period jitter, time interval
error, setup and hold time,
Infiniium Advanced Application Software (continued)
Vector signal analysis software for
Infiniium (89601A)
The 89601A vector signal analyzer
(VSA) software, used with the
Infiniium 8000 Series, enables
flexible signal analysis and
demodulation up to 1 GHz
bandwidth for troubleshooting
wideband modulated signals in
radar and communications
applications. The solution
provides:
• Flexible demodulation for
measuring constellation
diagrams, carrier offset, and
frequency error for QPSK
signals, 256 QAM signals and
much more
• Display formats including
spectrogram, phase vs. time,
and frequency vs. time for
rapid insight into complex
signal behavior
• Error vector magnitude
measurements (with 89601A
Option AYA)
• Markers to facilitate frequency,
amplitude, offset, power,
phase, other measurements
• Time gating that allows you
to select specific portion of
signals for signal analysis
• Variable frequency resolution
15
DDR1 compliance test application
(U7233A)
The Agilent U7231A DDR1
compliance test application
provides you with a fast and easy
way to characterize and evaluate
the electrical and timing
parameters of your DDR1 design.
The tests performed by U7231A
are based on the JEDEC JESD79E
DDR SDRAM Specification.
Features:
• Setup wizard for quick setup
and testing
• Automated measurement and
analysis to save you time and
effort
• Margin analysis to indicate
how close your device comes to
passing or failing the test
• Automatic HTML report
generation for easy
documentation
USB 2.0 performance validation and
compliance software (N5416A)
The Infiniium USB 2.0 electrical
performance validation and
compliance option provides a fast
and reliable way to verify USB
electrical specification
compliance for USB 2.0 devices,
hosts, and hubs. The Infiniium
USB 2.0 test option executes the
official USB-IF MATLAB scripts
with MATLAB’s runtime engine
embedded in the oscilloscope.
Results are displayed in a flexible
report format with margin
analysis. The Infiniium 8000
Series with bandwidths of
600 MHz and 1 GHz can
appropriately test USB 2.0 lowand full-speed buses. The E2646A
SQiDD test fixture is available for
making the physical connection
between the Infiniium oscilloscope
and the device under test.
Infiniium Advanced Application Software (continued)
front panel or graphical user
interface. Any program that can
be run under Windows XP can
be launched from the Infiniium
scope user interface or front
panel, including applications
such as Agilent VEE, Microsoft
Excel, or MATLAB.
My Infiniium integration package
(Option 006 or E2699A)
The E2699A My Infiniium
integration package option allows
you to extend the power of your
Infiniium oscilloscope by letting
you launch your application
directly from the oscilloscope’s
Communication mask test kit
(E2625A)
Take the frustration out of
communications testing and
prove your designs conform to
industry standards with the
communication mask test kit
option. Infiniium’s familiar
Windows interface makes it easy
for you to access the masks you
need and configure your tests.
In addition, the communication
mask test kit comes with a set of
electrical communication adapters
to ensure convenient, reliable,
and accurate connections to
your device under test. Includes
more than 20 industry-standard
ANSI T1.102, ITU-T G.703, and
IEEE 802.3 communication signal
mask templates.
Infiniium user-defined function
(Option 010 or N5430A)
The Agilent N5430A Infiniium
user-defined function opens
up new possibilities for
mathematical analysis features of
Infiniium by creating a gateway
to MATLAB from MathWorks
(www.mathworks.com/). You can
now add your favorite MATLAB
.m scripts as “math function
operators,” and use them just like
any other standard functions
provided with the Infiniium. The
scope passes data to MATLAB
and then displays the result back
on the screen in real time.
Requires MATLAB software
separately.
Features:
• Seamless gateway to powerful
MATLAB analysis functionality
• Real-time analysis, real-time
update
• Requires XML programming
and .m script file
• Supports 2 control variables,
and 2 sources
• Supports MATLAB version R14
SP1 and later
16
Infiniium Advanced Application Software (continued)
VoiceControl software (E2682A)
If you’re making measurements
on target systems with densely
packed ICs, your hands are tied
up holding probes, making it
difficult to turn knobs and press
buttons on the front panel of your
scope. Infiniium’s award-winning
VoiceControl option solves this
problem. Just speak into the
collar-mounted microphone to
operate your Infiniium’s
front-panel controls without
using your hands. Simply tell the
scope what you want it to do,
using natural English-language
commands, such as “set channel
one to 1.25 volts per division.”
The VoiceControl system does not
require the scope to be trained to
understand a particular user.
Logic analyzer and oscilloscope time
correlation (E5850A optional)
Easily make time correlated
measurements between an
Agilent 16900 Series logic
analysis system or Agilent 16800
Series benchtop logic analyzer
and an Infiniium oscilloscope
without a correlation fixture. All
that is needed are a cross-over
LAN cable and two BNC cables.
Set the logic analyzer to trigger
the oscilloscope or vice versa and
immediately view logic timing
waveforms aligned with
oscilloscope waveforms
simultaneously on the logic
analyzer display. Move global
markers on the logic analyzer
and watch Infiniium’s tracking
markers move automatically in
synch. Move Infiniium’s tracking
markers and watch the logic
analyzer’s global markers move
in synch. For the most precise
correlation, the optional E5850A
time correlation fixture can be
used to automatically deskew
logic and scope waveforms to the
best possible accuracy.
VEE Pro with Infiniium (W1140A)
Agilent VEE Pro is a highly
productive, intuitive, graphical
programming environment for
test-program development.
Looking for an alternative to
complex programming
environments? VEE simplifies
the tasks required for test
development. VEE comes
pre-installed with a 30-day free
trial license on all Infiniium
oscilloscopes. VEE runs inside
Infiniium’s open Windows XP Pro
operating system and uses the
PCI bus for fast data transfer
from the oscilloscope acquisition
system to the VEE application,
much faster than GPIB. Six
powerful sample programs are
provided on the Infiniium hard
drive to get you started with
VEE’s advanced measurement
and analysis capabilities with
embedded MATLAB scripts.
17
Infiniium Active Probing
Probing importance
If you are concerned about
accurate reproduction of your
signals as they appear on your
device under test, you need the
best end-to-end measurement
system starting at the probe
tip. To ensure that you achieve
the full bandwidth of your
oscilloscope, you need to ensure
you are using a probe that shows
you the details of the signal.
For example, the 1 GHz models
(DSO8104A and MSO8104A) will
need an active probe with the
bandwidth of at least 1 GHz. The
1156A or the 1130A active probes
are recommended to achieve the
full system bandwidth of your
scope. In addition, a selection of
probes that specifically enhances
or utilizes Infiniium 8000 Series
are also listed.
For more complete information
on Agilent probing solutions
please see the Oscilloscope
Probes and Accessories Selection
Guide (Agilent publication
number 5989-6162EN).
Recommended probes
Model Probe bandwidth System bandwidth
1156A 1.5-GHz active probe 1 GHz with MSO8104A and DSO8104A
600 MHz with MSO8064A and DSO8064A
1130A 1.5-GHz InfiniiMax probe amplifier 1 GHz with MSO8104A and DSO8104A
No probe heads included
1
600 MHz with MSO8064A and DSO8064
Other probe choices
Model Description
10070C 1:1, 1-MΩ passive probe
2
1165A 10:1, 10-MΩ 600-MHz passive probe
1147A 50-MHz, 15-A AC/DC current probe
N2780A 2-MHz/500-A AC/DC current probe
3
N2781A 10-MHz/150-A AC/DC current probe
3
N2782A 50-MHz/30-A AC/DC current probe
3
N2783A 100-MHz/30-A AC/DC current probe
3
1153A 200-MHz differential probe
1155A 750-MHz, 2-channel, low-mass active probe
E5396A Half-size (17 channel) soft touch connectorless logic probe for MSO models
N5450A InfiniiMax extreme temperature extension cable for temperature chamber testing
1 For a complete probing solution, also order a connectivity kit or individual probe head(s) (E2675A, E2668A, E2669A)
2 Fine-pitch and IC probing kits available (10072, 10075A)
3 Order N2779A 3-channel power supply for N2780A series current probe
18
Infiniium Performance Characteristics
Vertical: scope channels DSO8064A, MSO8064A, DSO8104A, MSO8104A
Input channels DSO8064A/DSO8104A: 4 analog
MSO8064A/MSO8104A: 4 analog + 16 digital
Analog bandwidth at 50 Ω (–3 dB)* DSO8064A/MSO8064A: 600 MHz
DSO8104A/MSO8104A: 1 GHz
Calculated rise time
1
at 50 Ω DSO8064A/MSO8064A: 583 ps
DSO8104A/MSO8104A: 350 ps
Input impedance* 1 MΩ ± 1% (13 pF typical), 50 Ω ± 1.5%
Sensitivity
2
1 mV/div to 5 V/div (1 MΩ)
1 mV/div to 1 V/div (50 Ω)
Input coupling 1 MΩ: AC, DC; 50 Ω:DC
Hardware bandwidth limit 20 MHz
Vertical resolution
3
8 bits, ≥12 bits with averaging
Channel-to-channel isolation DC to 50 MHz: 50 dB
(any two channels with >50 MHz to 500 MHz: 40 dB
equal V/div settings) >500 MHz to 1 GHz: 30 dB
DC gain accuracy*
2,4
± 1.25% of full scale at full resolution channel scale
Maximum input voltage*
1 MΩ 150 V RMS or DC, CAT I
± 250 V (DC + AC) in AC coupling
50 Ω 5 Vrms, CAT I
Offset range Vertical sensitivity Available offset
1 MΩ 1 mV to <10 mV/div ± 2 V
10 mV to <20 mV/div ± 5 V
20 mV to <100 mV/div ± 10 V
100 mV to <1 V/div ± 20 V
1 V to 5 V/div ± 100 V
50 Ω 1 mV to <5 mV/div ± 2 V
5 mV to <200 mV/div ± 5 V
200 mV to 1 V/div ± 20 V
Offset accuracy*
2
± (1.25% of channel offset +2% of full scale +1 mV)
Dynamic range ± 8 div from center screen (1 MΩ)
± 12 div from center screen (50 Ω)
DC voltage measurement accuracy*
2,4
Dual cursor ± [(DC gain accuracy)+(resolution)]
Single cursor ± [(DC gain accuracy)+(offset accuracy)+(resolution/2)]
Example for single cursor accuracy for 70 mV signal, 10 mV/div, 0 offset: Accuracy =
± [1.25% (80 mV) + (1.25% (0) + 2% (80 mV) + 1 mV ) + (0.4%/2) (80 mV)] = ±3.8 mV
19
20
Infiniium Performance Characteristics (continued)
Vertical: analog noise floor DSO/MSO8064A DSO/MSO8104A
Vrms Vrms Vp-p Vp-p Vrms Vrms Vp-p Vp-p
Volts/div 50 Ω 1 MΩ 50 Ω 1 MΩ 50 Ω 1 MΩ 50 Ω 1 MΩ
Full bandwidth 5 mV 204.8 µV 219.8 µV 1.61 mV 1.65 mV 285.4 µV 283.8 µV 2.30 mV 2.22 mV
10 mV 228.3 µV 243.9 µV 1.67 mV 1.75 mV 315.5 µV 312.7 µV 2.41 mV 2.36 mV
20 mV 341.9 µV 351.8 µV 2.44 mV 2.48 mV 456.6 µV 454.9 µV 3.45 mV 3.42 mV
50 mV 957 µV 966.1 µV 6.86 mV 6.91 mV 1.26 mV 1.25 mV 9.51 mV 9.45 mV
100 mV 1.61 mV 1.64 mV 11.56 mV 11.7 mV 2.13 mV 2.13 mV 16.06 mV 16.13 mV
200 mV 3.39 mV 3.22 mV 24.3 mV 22.9 mV 4.47 mV 4.19 mV 33.85 mV 31.8 mV
500 mV 9.59 mV 9.87 mV 69.1 mV 70.6 mV 12.59 mV 11.38 mV 95 mV 86 mV
1 V 16.2 mV 16.03 mV 116.3 mV 114.6 mV 21.39 mV 21.1 mV 160.9 mV 158.7 mV
20 MHz hardware 5 mV 210 µV 219 µV 1.53 mV 1.69 mV 126.0 µV 144.1 µV 931 µV 1.06 mV
bandwidth limit 10 mV 222 µV 237 µV 1.65 mV 1.72 mV 206.0 µV 212.1 µV 1.55 mV 1.59 mV
20 mV 365 µV 371 µV 2.67 mV 2.71 mV 378.0 µV 379.4 µV 2.85 mV 2.85 mV
50 mV 891 µV 897 µV 6.56 mV 6.66 mV 1.084 mV 1.08 mV 8.18 mV 8.16 mV
100 mV 1.47 mV 1.48 mV 10.65 mV 10.8 mV 1.97 mV 1.97 mV 14.7 mV 14.7 mV
200 mV 3.62 mV 2.91 mV 26.4 mV 21.0 mV 3.75 mV 3.93 mV 28.2 mV 29.3 mV
500 mV 8.92 mV 8.19 mV 65.7 mV 59.9 mV 10.9 mV 9.45 mV 82.0 mV 70.8 mV
1 V 14.68 mV 14.9 mV 106.8 mV 108.2 mV 19.8 mV 19.06 mV 149.5 mV 142.0 mV
Vertical: digital channels MSO8064A, MSO8104A
Number of channels 16 digital – labeled D15 – D0
Threshold groupings Pod 1: D7 – D0
Pod 2: D15 – D8
Threshold selections TTL, 5.0V CMOS, 3.3V CMOS, 2.5V CMOS, ECL, PECL, user defined
User-defined threshold range ±8.00 V in 10 mV increments
Maximum input voltage ±40 V peak CAT I
Threshold accuracy* ±(100 mV + 3% of threshold setting)
Input dynamic range ±10 V about threshold
Minimum input voltage swing 500 mV peak-to-peak
Input impedance 100 kΩ ± 2% (~ 8 pF) at probe tip
Channel-to-channel skew 2 ns typical, 3 ns maximum
Glitch detect ≥ 2.5 ns
Resolution 1 bit
Infiniium Performance Characteristics (continued)
Horizontal DSO8064A, MSO8064A, DSO8104A, MSO8104A
Main time base range DSO8064A/MSO8064A DSO8104A/MSO8104A
500 ps/div to 20 s/div 200 ps/div to 20 s/div
Horizontal position range 0 to ± 200 s
Delayed sweep range 1 ps/div to current main time base setting
Resolution 4 ps
Time scale accuracy* ±(15 + 2 • (years since manufacture)) ppm
Delta-time measurement accuracy* Values apply to period measurements of 0.5 Vpp sine waves with frequencies equal to 1/2
the oscilloscope bandwidth at 100 mV/div using ≥ 2 GSa/s and sinx/x interpolation
DSO8064A/MSO8064A DSO8104A/MSO8104A
≥ 256 averages, absolute (ps peak) 4.0 2.0
≥ 256 averages, standard deviation (ps rms) 1.2 0.38
No averaging, absolute (ps peak) 30 27
No averaging, standard deviation (ps rms) 6.8 5.7
Channel-to-channel deskew range –100 µs to 100 µs
Modes Main, delayed, roll
Reference positions Left, center, right
Jitter measurement floor DSO8064A/MSO8064A DSO8104A/MSO8104A
Time interval error 7 ps rms 5 ps rms
Period jitter 10 ps rms 7 ps rms
N-cycle, cycle-cycle jitter 15 ps rms 11 ps rms
21
Infiniium Performance Characteristics (continued)
Acquisition: scope channels DSO8064A, MSO8064A, DSO8104A, MSO8104A
Real time sample rate (max)
2 channels 4 GSa/s
Each channel 2 GSa/s
Equivalent time sample rate (max) 250 GSa/s
Memory depth
5
2 channels/4 channels
Standard 8 Mpts/4 Mpts
Option 080 16 Mpts/8 Mpts
Option 160 32 Mpts/16 Mpts
Option 320 64 Mpts/32 Mpts
Option 640 128 Mpts/64 Mpts
Sampling modes
Real time
Normal Successive single-shot acquisitions
Peak detect Captures and displays narrow pulses or glitches at all real time sample rates
High resolution Real-time boxcar averaging reduces random noise and increases resolution
Equivalent time Random repetitive sampling (higher time resolution at faster sweep speeds)
Segmented memory Captures bursting signals at maximum sample rate without consuming memory during
periods of inactivity. Selectable number of segments up to 32,768 depending on
memory option installed. Minimum inter-segment time (or the time between the end of
the previous acquisition and the beginning of the next acquisition) of 20 µs.
Averaging Selectable from 2 to 4096
Filters
(Sin[x])/x Interpolation Filter on/off selectable FIR digital filter. Digital signal processing adds points between
acquired data points to enhance measurement accuracy and waveform display quality.
BW = sample rate/4
Acquisition: digital channels MSO8064A, MSO8104A
Maximum input frequency 250 MHz
Maximum real time sample rate 1 GSa/s
Memory depth per channel 32 M
Minimum width glitch detection 2.5 ns
22
Infiniium Performance Characteristics (continued)
Trigger: scope channels DSO8064A, MSO8064A, DSO8104A, MSO8104A
Sensitivity
Internal
6
DC to 600 MHz: 0.6 div
600 MHz to 1 GHz: 1.5 div (50 Ω)
Auxiliary DC to 600 MHz: 300 mVp-p
Level range
Internal ± 8 div from center screen (1 MΩ)
± 8 div from center screen (50 Ω)
Auxiliary ± 5 V
Sweep modes Auto, triggered, single
Trigger coupling DC, AC, low frequency reject (50 kHz high pass filter), high frequency reject
(50 kHz low pass filter)
Trigger conditioning Noise reject adds hysteresis to trigger circuitry decreasing sensitivity to noise
Trigger holdoff range 50 ns to 10 s
Trigger jitter 8 ps ± 0.05 ppm x |delay setting| rms
Trigger actions Specify an action to occur, and the frequency of the action, when a trigger condition occurs.
Actions include: e-mail on trigger and QuickMeas+ functions
Trigger modes
Edge Triggers on a specified slope and voltage level on any channel, auxiliary trigger or line input.
Glitch Triggers on glitches narrower than the other pulses in your waveform by specifying a width
less than your narrowest pulse and a polarity. Minimum glitch width is 500 ps (scope
channels) or 2.5 ns (digital channels). Glitch range settings: <1.5 ns to <10 s (scope
channels), <5 ns to <10 s (digital channels).
Line Triggers on the line voltage powering the oscilloscope.
Pattern Triggers when a specified logical combination of the channels is entered, exited, is present
or absent for a specified period of time or is within a specified time range. Each channel
can have a value of high (H), low (L) or don’t care (X).
State Pattern trigger clocked by the rising or falling edge, or both, of one channel.
Logic type: AND or NAND.
Delay by time The trigger is qualified by an edge. After a specified time delay between 5 ns to 10 s, a
rising or falling edge on any one selected input will generate the trigger.
Delay by events The trigger is qualified by an edge. After a specified delay between 1 to 16,000,000 rising or
falling edges on any one selected input will generate the trigger.
TV Trigger on one of the three standard television waveforms: 525 lines/60 Hz (NTSC)
625 lines/50 Hz (PAL), or define a custom waveform.
Violation triggers
Pulse width See trigger mode/glitch for performance characteristics. Greater than and less than
selections available.
Setup/hold Triggers on setup, hold or setup and hold violations in your circuit. Requires a clock and
data signal on any two input channels as trigger sources. High and low thresholds and
setup and/or hold time must then be specified.
Transition Trigger on pulse rising or falling edges that do not cross two voltage levels in greater than or
less than the amount of time specified.
23
24
Infiniium Performance Characteristics (continued)
Software trigger (InfiniiScan event identification software (Option 009))
Trigger modes
Generic serial Software triggers on NRZ-encoded data up to 80-bit pattern. Supports multiple clock data
recovery methods including constant frequency, 1
st
order PLL, 2ndorder PLL, explicit clock,
explicit 1
st
order PLL, 2ndorder PLL (requires N5384A except for the constant frequency).
Measurements Software triggers on the results of the measurement values. For example, when the “pulse
width” measurement is turned on, InfiniiScan measurement software triggers on a glitch as
narrow as 250 ps.
Non-monotonic Software triggers on the non-monotonic edge. The non-monotonic edge is specified by
setting a hysteresis value.
Runt Software triggers on a pulse that crosses one threshold but fails to cross a second
threshold before crossing the first again.
Zone qualify Software triggers on the user-defined zones on screen. Zones can be specified as either
“must intersect” or “must not intersect.” Up to four zones can be defined.
Trigger: digital channels MSO8064A, MSO8104A
Threshold range (user defined) ±8.0 V in 10-mV increments
Threshold accuracy* ±(100 mV + 3% of threshold setting)
Predefined thresholds TTL=1.4 V, 5.0 V CMOS=2.5 V, 3.3 V CMOS=1.65 V, 2.5 V CMOS=1.25 V, ECL=–1.3 V, PECL=3.7 V
Infiniium Performance Characteristics (continued)
Measurements and math DSO8064A, MSO8064A, DSO8104A, MSO8104A
Waveform measurements
Voltage (scope channels only) Peak-to-peak, minimum, maximum, average, RMS, amplitude, base, top, overshoot,
preshoot, upper, middle, lower, runt (with InfiniiScan)
Time (all channels) Period, frequency, positive width, negative width, duty cycle, delta time
Time (scope channels only) Rise time, fall time, Tmin, Tmax, channel-to-channel phase, setup time, hold time
Mixed (scope channels only) Area, slew rate
Frequency domain FFT frequency, FFT magnitude, FFT delta frequency, FFT delta magnitude
Eye pattern Eye height, eye width, jitter, crossing %, Q-factor, duty cycle distortion
Jitter clock (scope only) Cycle-cycle jitter, N-cycle jitter, cycle-cycle +width, cycle-cycle –width, cycle-cycle duty
cycle (all with EZJIT)
Jitter data (scope only) Time interval error (TIE), data rate, unit interval (all with EZJIT)
Measurement modes
Automatic measurements Measure menu access to all measurements, five measurements can be displayed
simultaneously with statistics
QuickMeas+ Front-panel button activates five pre-selected or five user-defined automatic measurements
Drag and drop measurement toolbar Measurement toolbar with common measurement icons that can be dragged and dropped
onto a particular displayed waveform cycle
Statistics Displays the mean, standard deviation, minimum, maximum range, and number of
measurement values for the displayed automatic measurements
Histograms (scope channels only) Vertical (for timing and jitter measurements) or horizontal (noise and amplitude change)
modes, regions are defined using waveform markers. Measurements included: mean,
standard deviation, mode, peak-to-peak, median, total hits, peak (area of most hits), and
mean ± 1, 2, and 3 sigma
Mask testing Allows pass/fail testing to user-defined or Agilent-supplied waveform templates. AutoMask
allows user to create a mask template from a captured waveform and define tolerance
range in time/voltage or percentage. Test modes include test forever, test to specified time
or event limit, and stop on failure. Communications mask test kit option provides a set of
ITU-T G.703, ANSI T1.102, and IEEE 802.3 industry-standard masks for compliance testing.
Marker modes Manual markers, track waveform data, track measurements
Waveform math Four functions f1-f4. Select from add, average, common mode, differentiate, divide, FFT
magnitude, FFT phase, high pass filter, integrate, invert, low-pass filter, magnify, min, max,
multiply, smoothing, subtract, versus
FFT
Frequency range
7
DC to 2 GHz (2 channels), DC to 1 GHz (each channel)
Frequency resolution Resolution = sample rate/memory depth
Best resolution at maximum sample rate 4 GSa/s/32 M = 125 Hz
Frequency accuracy (1/2 frequency resolution)+(5x10
-5
)(signal frequency)
Signal-to-noise ratio
8
80 dB at 1 Mpts memory depth
Window modes Hanning, flattop, rectangular
25
Infiniium Performance Characteristics (continued)
Display
Display
Display 8.4 inch color XGA TFT-LCD with touch screen
Intensity grayscale: 256-level intensity-graded display
Resolution 1024 pixels horizontally x 768 pixels vertically
Annotation Up to 12 labels, with up to 100 characters each, can be inserted into the waveform area
Grids Can display 1, 2 or 4 waveform grids
Waveform styles Connected dots, dots, infinite persistence, color graded infinite persistence. Includes up to
256 levels of intensity-graded waveforms.
Waveform update rate
Real time mode (fastest) 5,600 waveforms/sec (memory depth: 16 pts, sampling rate: 2 GS/s, time/div: 500 ps,
connect dots: off, sin(x)/x: off, color graded: off)
Real time mode (nominal) 2,000 waveforms/sec (memory depth: 64 kpts, sampling rate: 4 GS/s, time/div: 500 ps,
connect dots: on, sin(x)/x: on, color graded: off)
Computer system and peripherals, I/O ports
Computer system and peripherals
Operating system Windows XP Pro
CPU Intel
®
Celeron™ 3.2-GHz microprocessor
PC system memory 1 GB DDR2
Drives ≥ 40-Gb internal hard drive (optional removable hard drive), external DVD-RW drive
(optional)
Peripherals Logitech optical USB mouse, compact keyboard and stylus supplied. All Infiniium models
support any Windows-compatible input device with a serial, PS/2 or USB interface.
File types
Waveforms Compressed internal format (*.wfm), comma separated values (*.csv), tab separated
values (*.tsv) and Y value files (*.txt)
Images BMP, PCX, TIFF, GIF or JPEG
I/O ports
LAN RJ-45 connector, supports 10Base-T, 100Base-T, and 1000Base-T. Enables Web-enabled
remote control, e-mail on trigger or demand, data/file transfers and network printing.
GPIB IEEE 488.2, fully programmable
RS-232 (serial) COM1, printer and pointing device support
Parallel Centronics printer port
PS/2 Two ports. Supports PS/2 pointing and input devices.
USB 2.0 Hi-Speed One port on front panel plus four ports on rear panel. All USB 2.0 Hi-Speed compatible.
Allows connection of USB peripherals like storage devices and pointing devices while the
oscilloscope is on.
Dual-monitor video output 15 pin XGA, full color output of scope waveform display or dual monitor video output (up to
SXGA resolution with a dual monitor use)
Auxiliary output DC (± 2.4 V); square wave (~715 Hz and 456 MHz); trigger output (255 mV p-p into 50 Ω)
Trigger output 5 V 50 Ω back-terminated
LXI compliance Functional Class C
26
Infiniium Performance Characteristics (continued)
General characteristics DSO8064A, MSO8064A, DSO8104A, MSO8104A
Temperature
Operating 0 °C to + 50 °C
Non-operating –40 °C to + 70 °C
Humidity
Operating Up to 95% relative humidity (non-condensing) at +40 °C
Non-operating Up to 90% relative humidity at +65 °C
Altitude
Operating Up to 4,600 meters (15,000 feet)
Non-operating Up to 15,300 meters (50,000 feet)
Vibration
Operating Random vibration 5-500 Hz, 10 minutes per axis, 0.3 g (rms)
Non-operating Random vibration 5-500 Hz, 10 minutes per axis, 2.41 g (rms); resonant search 5-500 Hz,
swept sine, 1 octave/minute sweep rate, (0.75 g), 5 minute resonant dwell at 4 resonances
per axis
Power 100-240 VAC, ± 10%, Cat II, 47 to 63 Hz; Max power dissipated: 440 W
Weight Net: 13.9 kg (30.6 lbs.)
Shipping: 16.4 kg (36.1 lbs.)
Dimensions (excluding handle) Height: 216 mm (8.5 in); width: 437 mm (17.19 in); depth: 440 mm (17.34 in)
Safety Meets IEC1010-1 +A2, CSA certified to C22.2 No.1010.1, Self certified to UL 3111
* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period and ±10 °C from firmware calibration temperature.
1 Rise time figures are calculated from t r = 0.35/bandwidth.
2 Magnification is used below 5 mV/div range. Below 5 mV/div, full scale is defined as 40 mV. Full scale is defined as the major attenuator setting above an intermediate setting.
(Major settings 50 Ω: 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1 V, 1 MΩ: all of the above plus 2 V).
3 Vertical resolution for 8 bits = 0.4% of full scale, for 12 bits = 0.024% of full scale.
4 The dc gain accuracy decreases 0.08% of full scale per degree C from the calibration temperature.
5 Maximum 2-channel memory depth only available at maximum 2-channel sample rate. Maximum each channel memory depth available at any selectable sample rate.
6 Valid for vertical ranges > 5 mV/div.
7 FFT amplitude readings are affected by input amplifier roll-off; DSO8064A and MSO8064A: –3 dB at 600 MHz, with amplitude decreasing as frequency increases above 600 MHz;
DSO8104A and MSO8104A: –3 dB at 1 GHz, with amplitude decreasing as frequency increases above 1 GHz.
8 Noise floor varies with memory depth and with averaging on or off.
27
Infiniium Ordering Information
8000 Series oscilloscopes
DSO8064A MSO8064A DSO8104A MSO8104A
Bandwidth 600 MHz 600 MHz 1 GHz 1 GHz
Input channels 4 analog 4 analog + 16 logic 4 analog 4 analog + 16 logic
Maximum sample 4 GSa/s 4 GSa/s 4 GSa/s 4 GSa/s
rate
Maximum memory 128 Mpts 128 Mpts 128 Mpts 128 Mpts
Standard memory 8 Mpts 8 Mpts 8 Mpts 8 Mpts
The above models include: optical USB mouse, condensed keyboard, User’s Quick Start Guide in English language (other languages also available),
documentation CD (Service Guide, Programmer’s Guide), information system in English language, accessory pouch (54810-68701), front panel cover, power
cord, one-year warranty, 10073C 10:1 passive probe (qty 4) and with MSO version 54826-68701 logic cable kit.
Recommended probes
Model Description
1156A 1.5 GHz active probe
1130A 1.5 GHz InfiniiMax probe amplifier – No probe heads included
1
1 For a complete probing solution, also order a connectivity kit or individual probe head(s) (E2675A, E2668A, E2669A)
For more information on selecting the right probe see page 17.
Memory options
Option number - factory installed Option number - user installed Description
080 N5407A-080 16 Mpts on 2 channels, 8 Mpts on 4 channels
160 N5407A-160 32 Mpts on 2 channels, 16 Mpts on 4 channels
320 N5407A-320 64 Mpts on 2 channels, 32 Mpts on 4 channels
640 N5407A-640 128 Mpts on 2 channels, 64 Mpts on 4 channels
Memory can be added both at the time of initial purchase and after with a user installed option.
For a comprehensive list and selection criteria, refer to the Oscilloscopes Probes and Accessories Selection Guide (Agilent publication
number 5989-6162EN). Or visit our Web site at www.agilent.com/find/scope_probes.
28
Infiniium Ordering Information (continued)
Application options
Options Description
Digital analysis
N5397A FPGA dynamic probe for Xilinx
N5433A FPGA dynamic probe for Altera
Serial data analysis
Option 007 or N5391A Low-speed serial data analysis software for I2C and SPI serial communication buses
Option 008 or N5402A Automotive serial data analysis software
Option 003 or N5384A High-speed serial data analysis software for CAN and FlexRay serial communication buses
Jitter analysis
Option 002 or E2681A EZJIT jitter analysis software
E2690B Oscilloscope tools including advanced time interval and jitter analysis software from
Amherst Systems Associates
Compliance testing
E2625A Communication mask test kit
N5392A Ethernet performance validation and compliance software
N5416A USB 2.0 electrical performance validation and compliance software
U7233A DDR1 compliance test application
Vector signal analysis
89601A VSA software for Infiniium
Advanced triggering
Option 009 or N5415A InfiniiScan event identification software
User customized analysis software
Option 010 or N5430A User-defined function - seamless linkage to MATLAB to support custom functions
Option 006 or E2699A My Infiniium integration package enabling you to launch and integrate Windows application
directly from your scope
Hands free operation
E2682A VoiceControl software
29
Other options
Option Description
017 (factory installed) ≥ 40 GB removable hard disk drive. Replaces ≥ 40 GB internal hard disk with a ≥ 40 GB
removable hard disk. Order the N5422A for additional hard disk drive cartridges that contain
the full Windows operating system and oscilloscope application.
Option 020 or N5437A External DVD-RW drive
E2609B Rackmount kit
A6J ANSI Z540-compliant calibration
R-51B-001-3C 1-year return-to-Agilent warranty extended to 3 years
Infiniium Ordering Information (continued)
30
Related Literature
Publication title Publication type Publication number
Infiniium Probes, Accessories and Options Data sheet 5968-7141EN/ENUS
Agilent Oscilloscope Probes and Accessories Selection guide 5989-6162EN
Agilent 8000 Series Oscilloscopes Brochure 5989-5806EN
Industry Compliance and Analysis Applications for Infiniium Oscilloscopes Brochure 5989-6704EN
N5450A InfiniiMax Extreme Temperature Extension Cable Data sheet 5989-7542EN
N5397A Xilinx FPGA Dynamic Probe for 8000 Series Data sheet 5989-1848EN
N5433A Altera FPGA Dynamic Probe for 8000 Series Data sheet 5989-5940EN
E2681A EZJIT Jitter Analysis Software Data sheet 5989-0109EN
E2690B Oscilloscope Tools Software with Advanced Jitter Analysis Data sheet 5989-3525EN
N5384A High-Speed Serial Data Analysis and Clock Recovery Software Data sheet 5989-0108EN
N5391A Low-Speed Serial Data Analysis Software for I2C and SPI Data sheet 5989-1250EN
N5402A Automotive Serial Data Analysis Software Data sheet 5989-3632EN
89601A Infiniium Oscilloscopes and 89601A Vector Signal Analysis Software Data sheet 5989-0947EN
N5392A Ethernet Electrical Performance Validation and Compliance Software Data sheet 5989-1527EN
N5416A USB 2.0 Electrical Performance Validation and Compliance Software Data sheet 5989-4044EN
U7233A DDR1 Compliance Test Application Data sheet 5989-7366EN
E2699A My Infiniium Integration Software Data sheet 5988-9934EN
N5415A InfiniiScan Event Identification Software Data sheet 5989-4605EN
N5430A Infiniium User-Defined Function Application Software Data sheet 5989-5632EN
Agilent Mixed Signal Oscilloscopes: 6-Minute Video Demonstration Video CD 5988-9288EN
31
Java is a U.S. trademark of Sun Microsystems, Inc.
MATLAB is a U.S. registered trademark of The MathWorks, Inc.
LabView is a U.S. registered trademark of National Instruments.
Intel is a U.S. registered trademark and Celeron is a U.S. trademark of Intel Corporation.
Visual Studio is a registered trademark of Microsoft Corporation in the United States
and/or other countries.
Windows is a U.S. registered trademark of Microsoft Corporation.
WiMAX is a trademark of the WiMAX Forum.
www.agilent.com
www.agilent.com/find/open
Agilent Open simplifies the process of
connecting and programming test systems
to help engineers design, validate and
manufacture electronic products. Agilent
offers open connectivity for a broad range
of system-ready instruments, open industry
software, PC-standard I/O and global
support, which are combined to more
easily integrate test system development.
www.agilent.com/find/emailupdates
Get the latest information on the products
and applications you select.
www.agilent.com/find/agilentdirect
Quickly choose and use your test
equipment solutions with confidence.
t
Remove all doubt
Our repair and calibration services
will get your equipment back to you,
performing like new, when promised.
You will get full value out of your Agilent
equipment throughout its lifetime. Your
equipment will be serviced by Agilenttrained technicians using the latest
factory calibration procedures, automated
repair diagnostics and genuine parts. You
will always have the utmost confidence
in your measurements.
Agilent offers a wide range of additional
expert test and measurement services
for your equipment, including initial
start-up assistance, onsite education
and training, as well as design, system
integration, and project management.
For more information on repair and
calibration services, go to:
www.agilent.com/find/removealldoubt
www.lxistandard.org
LXI is the LAN-based successor to GPIB,
providing faster, more efficient connectivity.
Agilent is a founding member of the LXI
consortium.
For more information on Agilent
Technologies’ products, applications or
services, please contact your local Agilent
office. The complete list is available at:
www.agilent.com/find/contactus
Americas
Canada (877) 894-4414
Latin America 305 269 7500
United States (800) 829-4444
Asia Pacific
Australia 1 800 629 485
China 800 810 0189
Hong Kong 800 938 693
India 1 800 112 929
Japan 0120 (421) 345
Korea 080 769 0800
Malaysia 1 800 888 848
Singapore 1 800 375 8100
Taiwan 0800 047 866
Thailand 1 800 226 008
Europe & Middle East
Austria 0820 87 44 11
Belgium 32 (0) 2 404 93 40
Denmark 45 70 13 15 15
Finland 358 (0) 10 855 2100
France 0825 010 700*
*0.125 € fixed network rates
Germany 01805 24 6333**
**0.14 €/minute
Ireland 1890 924 204
Israel 972-3-9288-504/544
Italy 39 02 92 60 8484
Netherlands 31 (0) 20 547 2111
Spain 34 (91) 631 3300
Sweden 0200-88 22 55
Switzerland (French)
44 (21) 8113811 (Opt 2)
Switzerland (German)
0800 80 53 53 (Opt 1)
United Kingdom 44 (0) 118 9276201
Other European countries:
www.agilent.com/find/contactus
Revised: October 24, 2007
Product specifications and descriptions
in this document subject to change
without notice.
© Agilent Technologies, Inc. 2008
Printed in USA, January 17, 2008
5989-4271EN
Agilent Email Updates
Agilent Direc
Agilent
Open
Loading...
