Infiniium DSO80000B Series Oscilloscopes and InfiniiMax Series Probes

2 GHz to 13 GHz Real-time Oscilloscope Measurement Systems

Data Sheet

• 2 GHz to 13 GHz bandwidth with

up to 40 GSa/s sample rate

• Up to 2 Mpts MegaZoom

memory at 40 GSa/s sample rates and 64 Mpts MegaZoom deep memory at 4 GSa/s

• Full bandwidth probe system for

all use models – up to 13 GHz bandwidth for differential solder-in, browser and SMA connections

• Industry’s lowest noise floor for

both oscilloscopes and probes

• Industry’s lowest jitter

measurement floor

• Industry’s lowest trigger jitter –

less than 500 fs rms

• Industry’s flattest frequency

response

• Industry’s only full bandwidth

economical lead-free solder-in probe solution

• Industry’s only bandwidth

upgradeable series from 2 GHz to 13 GHz

• Industry’s largest selection of

application software packages

• Industry’s first software event

finder “InfiniiScan” (option)

• Industry’s only server based

oscilloscope application software license solution (option)

• Now LXI functional

class C compliant

Infiniium 80000B Series

Superior Signal Integrity and Probing for Your Application

The superior signal integrity, probing and application software selection of Agilent Technologies’ Infiniium 80000B Series and InfiniiMax II probing system will lead to improved measurements and increased design margins.

The signal integrity advantages of Agilent’s Infiniium 80000B Series Scopes and InfiniiMax Probing System include the industry’s lowest noise floor, lowest jitter measurement floor, lowest trigger jitter and flattest frequency response. These foundational capabilities are crucial for achieving accurate and repeatable measurements. These superior signal integrity capabilities come from Agilent’s RF design experience, proprietary packaging technologies and unique CMOS ADC architecture. Superior signal integrity maximizes engineer’s design margins by not wasting any measurement accuracy due to the poor noise, jitter or frequency response of the scope or probing system.

Benefits

The probing advantages of the InfiniiMax Series probes include the low noise and flat frequency response mentioned above. The InfiniiMax Series also offers the industry’s widest selection of probe amplifier bandwidths (currently six) and the industry’s widest variety of different probe head types (currently ten). InfiniiMax is also the probing system to offer the full 13 GHz bandwidth for the differential solder-in, differential browsing and differential SMA use models. It now supports a unique environmental chamber probe extension solution as well. Since its inception, the award-winning InfiniiMax probe system has provided maximum performance with unmatched usability.

The application software for the Infiniium 80000B Series is the industry’s largest – currently offering a choice of 29 different application packages. Application specific software solutions include compliance test packages for industry standards such as: PCI-Express®, DDR, FBD, SATA, SAS, FC, DVI, HDMI, USB, FireWire, Ethernet, XAUI, Serial Rapid IO, CPRI, OBSAI RP3, and DisplayPort as well as more general purpose jitter and serial data analysis packages. Agilent is also the industry leading vendor to offer innovative packages for ultra-wideband vector signal analysis, noise reduction and bandwidth control, and InfiniiScan event identification software.

The industry leading signal integrity, probing and software application capabilities of the Infiniium 80000B Series scopes and InfiniiMax Series probes have recently won three industry awards.

U.S. Navy imagery used in illustration without endorsement expressed or implied.

Superior signal integrity and probing for your application

Agilent doesn’t only deliver industry leading oscilloscope performance. It also uses the company’s extensive technology base to provide superior signal integrity, probing and analysis software for the designer’s specific application. The most noteable benefits of the Agilent solution are:

Signal integrity

• Industry’s lowest scope noise floor

• Industry’s lowest jitter floor

• Industry’s lowest trigger jitter

• Industry’s flatest frequency response

• Industry’s leading hardware sensitivity

• Industry’s only bandwidth upgradeable series

Probing

• Industry’s lowest probe noise floor

• Industry’s widest range of probe amplifier bandwidths

• Industry’s widest range of probe head types

• Industry’s flatest probe frequency response

Applications

• Industry’s largest set of applications

• Industry’s only event identification software

• Industry’s only wideband spectrum analyzer software

• Industry’s first noise reduction software

• Industry’s only calibrated jitter measurement

• Industry’s only compliance test framework to support FibreChannel, DDR1, 2, and 3, XAUI, Serial Rapid IO, CPRI, OBSAI PR3, and DisplayPort

• Industry’s only application server license solution for the oscilloscopes

www.agilent.com/find/dso80000b

80000B Series Infiniium oscilloscopes

Real-time bandwidth on Equivalent-time bandwidth on Real-time bandwidth on

Model 2 channels and 40 GSa/s 4 channels 4 channels at 20 GSa/s

DSO81304B 13 GHz* 13 GHz 8 GHz

DSO81204B 12 GHz 12 GHz 8 GHz

DSO81004B 10 GHz 10 GHz 8 GHz

DSO80804B 8 GHz 8 GHz 8 GHz

DSO80604B 6 GHz 6 GHz 6 GHz

DSO80404B 4 GHz 4 GHz 4 GHz

DSO80304B 3 GHz 3 GHz 3 GHz

DSO80204B 2 GHz 2 GHz 2 GHz

* Real-time, user selectable DSP enhanced bandwidth

How much bandwidth do I need to measure a given rise/fall time accurately?

Rise/fall time (20 - 80%) 3% accuracy 10% accuracy 20% accuracy

100 ps 5.6 GHz 4.8 GHz 4.0 GHz

75 ps 7.5 GHz 6.4 GHz 5.3 GHz

60 ps 9.3 GHz 8.0 GHz 6.7 GHz

50 ps 11.2 GHz 9.6 GHz 8.0 GHz

40 ps 14.0 GHz 12.0 GHz 10.0 GHz

30 ps 18.7 GHz 16.0 GHz 13.3 GHz

Notes: Maximum signal frequency content = 0.4/rise time (20 - 80%)

Scope bandwidth required = 1.4 x maximum signal frequency for 3% accuracy measurements Scope bandwidth required = 1.2 x maximum signal frequency for 10% accuracy measurements Scope bandwidth required = 1.0 x maximum signal frequency for 20% accuracy measurements

InfiniiMax II Series probe amplifiers

Model Bandwidth Description

1169A 12 GHz (spec) 13 GHz (typical) InfiniiMax II probe amplifier – order one or more probe heads

1168A 10 GHz InfiniiMax II probe amplifier – order one or more probe heads

InfiniiMax II probe amplifier specifications: Dynamic range = 3.3 V, DC offset range = ± 16 V, maximum voltage = ± 30 V

InfiniiMax I Series probe amplifiers

Model Bandwidth Description

1134A 7 GHz InfiniiMax I probe amplifier – order one or more probe heads

1132A 5 GHz InfiniiMax I probe amplifier – order one or more probe heads

1131A 3.5 GHz InfiniiMax I probe amplifier – order one or more probe heads

1130A 1.5 GHz InfiniiMax I probe amplifier – order one or more probe heads

InfiniiMax I probe amplifier specifications: Dynamic range = 5 V, DC offset range = ± 12 V, maximum voltage = ± 30 V

Benefits (continued)

InfiniiMax II Series probe heads

InfiniiMax II Series probe heads are recommended for 1169A/68A probe amplifiers. The typical performance when used with a DSO81304B is shown below.

Differential measurement Single-ended measurement

Probe head Model number (BW, input C, input R) (BW, input C, input R)

Hi-BW differential SMA N5380A 12.5 GHz 12.5 GHz

Hi-BW differential solder-in N5381A 13 GHz, 0.21 pF, 50 kΩ 13 GHz, 0.35 pF, 25 kΩ

Hi-BW differential browser N5382A 13 GHz, 0.21 pF, 50 kΩ 13 GHz, 0.35 pF, 25 kΩ

Hi-BW differential replaceable ZIF N5425A/N5426A 13 GHz, 0.33 pF, 50 kΩ 13 GHz, 0.53 pF, 25 kΩ solder-in* (requires both N5425A

and N5426A)

InfiniiMax I Series probe heads (can be used with 1169A/68A probe amplifiers with limitations)

Differential measurement Single-ended measurement

Probe head Model number (BW, input C, input R) (BW, input C, input R)

Hi-BW differential replaceable ZIF N5425A/N5426A 12 GHz, 0.33 pF, 50 kΩ 12 GHz, 0.53 pF, 25 kΩ solder-in* (requires both N5425A

and N5426A)

Differential solder-in E2677A 12 GHz, 0.27 pF, 50 kΩ 12 GHz, 0.44 pF, 25 kΩ

(Higher loading, high frequency response variation)

Differential socket E2678A 12 GHz, 0.34 pF, 50 kΩ 12 GHz, 0.56 pF, 25 kΩ

(Higher loading)

Differential browser – wide span E2675A 6 GHz, 0.32 pF, 50 kΩ 6 GHz, 0.57 pF, 25 kΩ

Differential SMA E2695A 8 GHz 8 GHz

Single-ended solder-in E2679A N/A 6 GHz, 0.50 pF, 25 kΩ

(must bandlimit input to ≤ 6 GHz)

Single-ended browser E2676A N/A 6 GHz, 0.67 pF, 25 kΩ

Differential kit E2669A

(includes E2675A, E2677A and E2678A)

Single-ended kit E2668A

(includes E2676A, E2679A and E2678A)

High-impedance adapter E2697A

(includes 500 MHz passive probe)

* Number of insertions supported: 20 cycles (50 cycles (typical))

www.agilent.com/find/dso80000b

Benefits (continued)

What is the recommended bandwidth and Infiniium 80000B Series support for popular bus standards?

Serial data analysis (E2688A)

Recommended Jitter SW clock 8b/10b Mask Compliance

Bus standard Bit rate BW

analysis2recovery decode testing testing Test fixtures

Ethernet 250 Mbs 2 GHz Yes Yes N/A Yes N5392A N5395B

USB 2.0 up to 480 Mbs 2 GHz Yes Yes N/A Yes N5416A E2649A

DDR1 up to 400 MTs 2 GHz Yes N/A N/A No N5413A No

DDR2 up to 800 MTs 4 GHz Yes N/A N/A No N5413A No

DDR3 up to 1.6 GTs 6 GHz Yes N/A N/A No U7231A No

SATA 1.5 Gbps 1.5 Gbps 6 GHz Yes Yes Yes Yes N5411A COMAX

SAS 150 1.5 Gbps 6 GHz Yes Yes Yes Yes N5412A N5421A

DVI 1.65 Gbps 4 GHz Yes Yes Yes Yes N5394A Silicon Image

HDMI 1.0/1.1/1.2 up to 1.65 Gbps 4 GHz Yes Yes Yes Yes N5399A N5405A

Fibre Channel 2.125 Gbps 4 GHz Yes Yes Yes Yes N5410A No

HDMI 1.3a/b up to 3.4 Gbps 8 GHz Yes Yes Yes Yes N5399A N1080A

DisplayPort 1.1 2.7 Gbps 8 GHz Yes Yes Yes Yes U7232A

W2641A

PCI Express I 2.5 Gbps 6 GHz Yes Yes Yes Yes N5393A

PCI-SIG

ExpressCard 2.5 Gbps 6 GHz Yes Yes Yes Yes N5393A

PCMCIA.org

InfiniBand 2.5 Gbps 6 GHz Yes Yes Yes Yes No Fujikura

Advanced TCA 2.5 Gbps 6 GHz Yes Yes Yes Yes No No

SATA 3Gbps 3.0 Gbps 10 GHz Yes Yes Yes Yes N5411A

COMAX

SAS 300 3.0 Gbps 10 GHz Yes Yes Yes Yes N5412A

N5421A

10G Ethernet 3.125 Gbps 8 GHz Yes Yes N/A Yes No No

XAUI 3.125 Gbps 8 GHz Yes Yes Yes Yes N5431A No

Serial Rapid IO up to 3.125 Gbps 8 GHz Yes Yes Yes Yes N5431A No

FireWire up to 3.2 Gbps 8 GHz Yes Yes N/A N/A Yes - QP Quantum Para.

Fibre Channel 4.25 Gbps 10 GHz Yes Yes Yes Yes N5410A

FBD I up to 4.8 Gbps 12 GHz Yes Yes N/A Yes N5409A

N4235A/36/38A

PCI Express II 5.0 Gbps 12 GHz Yes Yes Yes No No No

InfiniBand II 5.0 Gbps 12 GHz Yes Yes Yes No No No

SATA 6Gbps 6.0 Gbps 13 GHz Yes Yes Yes No No No

SAS 600 6.0 Gbps 13 GHz Yes Yes Yes No No No

Fibre Channel 8.5 Gbps 13 GHz Yes Yes Yes No No No

FBD II up to 9 Gbps 13 GHz Yes Yes N/A No No No

1 Recommended bandwidth is derived from a combination of data rate and edge speed 2 Jitter analysis solutions: EZJIT (E2681A), EZJIT Plus (N5400A), oscilloscope tools (E2690B) 3 Requires E2688A serial data analysis 4 Requires E2688A serial data analysis and N5400A EZJIT Plus jitter analysis

The industry’s lowest noise floor delivers superior measurement results and maximizes design margins. (see page 13 for noise floor characteristics).

The industry’s lowest trigger jitter, less than 500 fs (rms) (typically, less than 200 fs (rms) on 5 Gbps PRBS signal), facilitates accurate waveform viewing of multiple waveforms.

Benefits (continued)

The industry’s lowest jitter measurement floor minimizes the oscilloscopes contribution to jitter measurements and results in superior compliance test results.

The industry’s flattest frequency response leads to excellent correlation between scope only (green trace) and scope plus probe (red trace) measurements as shown in this dual infinite persistence eye diagram.

The “true” ease of use. Just draw boxes and the scope will trigger. The industry’s only software event finder, “InfiniiScan Event Identification Tool” will provide the next level of ease of use for the scope triggering system.

The scope meets the spectrum analyzer. The industry’s only integrated vector signal analysis software (89600A) solution provides unmatched new frequency domain analysis capability for wide band signals.

www.agilent.com/find/dso80000b

Overview of Infiniium 80000B Series Application Software

Jitter

Application software package

E2681A EZJIT jitter analysis (Option 002)

N5400A EZJIT Plus jitter analysis (Option 004)

E2690B Amherst oscilloscope tools

Analysis

Application software package

E2688A SDA high-speed serial data analysis (Option 003)

N5414A InfiniiScan event identification software (Option 009)

N5391A I2C/SPI serial data analysis (Option 007)

N5402A CAN serial data analysis (Option 008)

N5430A Infiniium User Defined Function (Option 010)

89601A Vector signal analysis

Compliance

Application software package

N5392A Ethernet compliance

N5393A PCI Express compliance

N5394A DVI compliance

N5399A HDMI compliance

N5409A Fully Buffered DIMM compliance

N5410A Fiber channel compliance

N5411A SATA I/II compliance

N5412A SAS compliance

N5413A DDR2 compliance

N5416A USB compliance

N5431A XAUI Electrical Validation with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support

U7231A DDR3 compliance

U7232A DisplayPort compliance

Fire-wire compliance (Quantum Parametrics)

Utilities

Application software package

N5403A Noise reduction and bandwidth control option (Option 005)

N5435A Infiniium Application Server License

E2625A Communications mask test kit

E2699A My Infiniium integration package (Option 006)

E2682A Voice control option

Infiniium: “It’s like someone who sits down and actually uses a scope designed this one.”

Steve Montgomery, Director of Engineering, Linx Technologies

Up to 40 GSa/s sample rate on two channels

significantly reduces the chances of aliasing, increases measurement accuracy, and delivers the full real-time bandwidth of the oscilloscope on two channels simultaneously.

Four channels at 20 GSa/s with 8 GHz real-time

bandwidth or full bandwidth equivalent time modes are also available.

Get fast answers to your questions with

the built-in information system. Infiniium’s task-oriented Setup Guide provides step-by-step instructions for several advanced measurements and procedures. A 3.2 GHz CPU processes measurements quickly.

See your signal more clearly with an (8.4-inch)

XGA (1024 x 768) high-resolution touch screen color display. Infiniium’s bright TFT display with anti-glare coating lets you see the details of your signal from all angles.

≥ 40 Gb hard drive, a front-panel hi-speed USB 2.0 port and four rear panel hi-speed USB 2.0 ports

make it easy to save setup files, data files, screen shots, etc.

Identify anomalies easily with a 256 level intensity

graded or color-graded persistence display which provides a three dimensional view of your signals.

Label waveforms and add notes to your screen

captures – Infiniium’s keyboard makes it easy.

The built-in touch screen or a plug-in mouse

can be used to access all menus, drag and drop measurement icons or position markers.

Easy access to advanced features like

math functions and FFTs, is provided by the Windows®-based graphical user interface. This GUI also gives you unique capabilities like drag-and-drop measurements and zooming, and offers a graphical equivalent to all front panel controls.

Remote access with Web-enabled connectivity,

e-mail on trigger, and GPIB over LAN allows you to access your scope from remote locations. LXI Class C compliant.

64 Mpts acquisition memory at 4 GSa/s

sample rate on two channels allows you to capture long time windows at high resolution – such as identifying glitches due to a power supply start-up from reset.

QuickMeas+ key gives you any five automated

measurements with a push of a button. You can also configure this key to print/save screen shots, save waveforms, or load a favorite setup.

Infiniium: Award-winning scopes

Infiniium has received ten industry awards to date, including EDN’s “Innovation of the Year” award (twice) and T&M World’s “Best in Test.” Agilent is committed to breaking new ground and providing tools that bring unique value to our customers.

www.agilent.com/find/dso80000b

Zoom and search with instant response. Zoom into

your signal using the horizontal scale knob and search through your waveform with the position knob. MegaZoom technology allows you to find your area of interest quickly and easily – even with 64 Mpts waveforms.

Built-in CD-ROM drive on rear panel allows you to

update the system software conveniently and can be used to install third-party application packages.

Hands-free operation with the Infiniium

VoiceControl option. Just speak into the microphone to operate front-panel controls.

Segmented memory acquisition mode captures

bursting signals at maximum sample rate without consuming memory during periods of inactivity.

Removable hard disk drive option is available for

added data security.

Install third-party software packages such as

Excel, LabView, Agilent Vee, MATLAB®, anti-virus software, and more to perform customized processing and automation of your oscilloscope or to make the scope compliant to the network environment of your company.

An external monitor allows you to run third-party

applications on a large, high-resolution SXGA (1280 x 1024) display while using the scope’s built-in monitor for high-speed waveform display.

Windows XP Pro operating system.

A familiar interface makes simple tasks simple.

Infiniium’s analog-like front panel has a full set of controls color coded to the waveforms and measurements, making simple tasks simple.

One-year standard warranty and a variety of

Agilent support options protect your investment for the long term.

10 MHz reference clock can be input to or

output from the scope to allow precise timebase synchronization with RF instruments or logic analyzers.

An 18 GHz, BNC-compatible connector provides

a high signal fidelity connection to Agilent active probes, SMA adapters, and standard BNCs.

AutoProbe interface completely configures your

scope for use with the InfiniiMax probing system and previous generation Agilent active probes.

10/100/1000 BaseT LAN interface lets you easily

print waveforms on networked printers, save your results on your office PC, share information with others, and control the scope over the Web.

E2678A 12 GHz differential socket probe head can be used

to measure either differential or single-ended signals via a plug-on socket connection.

E2679A 6 GHz extremely small single-ended, solder-in probe heads for probing of

even the hardest-to-reach single-ended signals.

E2695A 8 GHz differential SMA probe head allows

you to connect two SMA cables to make a differential measurement on a single scope channel.

InfiniiMax II: The World’s Best High-Speed Probing System Just Keeps Getting Better

N5380A 13 GHz Hi-BW differential SMA probe head

provides maximum bandwidth for SMA fixtured differential pairs.

InfiniiMax offers you the highest performance

available for measuring differential and single-ended signals, with flexible connectivity solutions for today’s high-density ICs and circuit boards.

InfiniiMax probes have fully characterized performance for all of their various probe heads.

This includes:

• Swept frequency response plot

• Common mode rejection vs. frequency plot

• Impedance vs. frequency plot

• Time-domain probe loading plot

• Time-domain probe tracking plot

One-year standard warranty on active probes and

a variety of Agilent support options to choose from.

Controlled impedance transmission lines in every

probe head deliver full performance versus the performance limitations produced by traditional wire accessories.

Probe interface software allows you to save the

calibration information for up to 10 different probe heads per channel and will automatically retrieve calibration data for a probe amplifier as it is attached to the scope.

High-input impedance active probes minimize

loading, support differential measurements and DC offset, and can compensate for cable loss.

Probe calibration software delivers the most

accurate probe measurements, linear phase response and allows various probe combinations to be deskewed to the same reference time.

A flat frequency response over the entire probe

bandwidth eliminates the distortion and frequency-dependent loading effects that are present in probes that have an in-band resonance.

Probe Performance Plots Available

The InfiniiMax II probe manuals contain an extensive set of performance plots (bandwidth, probe tracking, CMRR, step response, impedance) for various probe configurations. See the following web site for this information

www.cos.agilent.com/manuals/scopes/01169-9700_man.pdf

N5380A

E2695A

E2679A

E2678A

N5382A 13 GHz Hi-BW differential browser

provides maximum bandwidth for hand-held

or probe holder use. Variable spacing from

0.2 to 3.3 mm (8 to 130 mills).

E2675A 6 GHz differential browser is the best

choice for general-purpose trouble-shooting of

differential or single-ended signals with z-axis

compliance and variable spacing from 0.25 -

5.80 mm (10 - 230 mills).

E2676A 6 GHz single-ended browser is the best

choice for general purpose probing of single-ended

signals when small size of the probe head is the

primary consideration.

E2677A 12 GHz solder-in differential probe

head can be attached to very small geometry

circuits for measuring both single-ended and

differential signals. External mini-coaxial resistors

facilitate wider span but have increased high-frequency

response variation relative to N5381A.

www.agilent.com/find/dso80000b

Six different InfiniiMax probe amplifiers from 1.5 GHz to 13 GHz are available for matching your probing solution to your performance and budget requirements. The 1168/69A InfiniiMax II amplifiers offer the highest bandwidth and the lowest noise floors. The 1134/32/31/30A offer a more cost effective solution and wider dynamic range.

N5381A 13 GHz Hi-BW solder-in differential

probe head provides maximum bandwidth and

minimizes capacitive loading to ≤ 210 fF. Variable

spacing from 0.2 to 3.3 mm (8 to 130 mills).

E2677A

N5381A

E2676A

E2675A

N5382A

A SMP microwave extension cable from Gore is available for extending the reach of InfiniiMax probes into tight environments or into test chambers (Gore part number PRP042105-01, page 26).

N5425A

5426A

N5425A 13 GHz Hi-BW solder-in differential ZIF probe head and N5426A ZIF Tip provides

maximum bandwidth with industry’s first lead-free solder-in probe solution in an economical replaceable tip form factor.

Infiniium 80000B Series Performance Characteristics

Vertical

Input channels 4

Analog bandwidth (–3 dB)*

80204B 80304B 80404B 80604B 80804B 81004B 81204B 81304B 2 GHz 3 GHz 4 GHz 6 GHz 8 GHz 10 GHz 12 GHz 12 GHz

DSP enhanced bandwidth

81304B: 13 GHz using DSP enhanced bandwidth mode

Rise time/fall time

80204B 80304B 80404B 80604B 80804B 81004B 81204B 81304B 10 - 90% 210 ps 140 ps 105 ps 70 ps 54 ps 42 ps 35 ps 32 ps 20 - 80% 158 ps 105 ps 79 ps 53 ps 38 ps 32 ps 26 ps 24 ps

Input impedance 50 Ω ±3%

Sensitivity

1 mV/div to 1 V/div

Input coupling DC

Vertical resolution

8 bits, ≥ 12 bits with averaging

Channel to channel isolation DC to 3 GHz: 60 dB (any two channels with 3 GHz to 8 GHz: 40 dB equal V/div settings) 8 GHz to BW: 35 dB

DC gain accuracy*

± 2% of full scale at full resolution channel scale

Maximum input voltage* ± 5 V

Offset range Vertical sensitivity: Available offset:

0 mV/div to ≤ 40 mV/div ± 0.4 V

> 40 mV/div to ≤ 75 mV/div ± 0.9 V

> 75 mV/div to ≤ 130 mV/div ± 1.6 V

> 130 mV/div to ≤ 240 mV/div ± 3.0 V

> 240 mV/div ± 4.0 V

Offset accuracy*

≤ 3.5 V: ± (2% of channel offset + 1% of full scale) +1 mV

> 3.5 V: ± (2% of channel offset + 1% of full scale)

Dynamic range ± 4 div from center screen

DC voltage measurement accuracy*

Dual cursor: ± [(DC gain accuracy)+(resolution)]

Single cursor: ± [(DC gain accuracy)+(offset accuracy)+(resolution/2)]

www.agilent.com/find/dso80000b

Infiniium 80000B Series Performance Characteristics (continued)

Vertical (continued)

RMS noise floor (scope only)

DSO80204B DSO80304B DSO80404B DSO80604B Volts/div 5 mV 131 µV 161 µV 188 µV 241 µV

10 mV 153 µV 186 µV 217 µV 274 µV 20 mV 224 µV 270 µV 314 µV 390 µV 50 mV 521 µV 628 µV 732 µV 904 µV 100 mV 1.01 mV 1.22 mV 1.42 mV 1.76 mV 200 mV 1.99 mV 2.39 mV 2.77 mV 3.42 mV 500 mV 5.26 mV 6.36 mV 7.39 mV 9.20 mV 1 V 10.2 mV 12.3 mV 14.4 mV 17.8 mV

DSO80804B DSO81004B DSO81204B DSO81304B Volts/div 5 mV 294 µV 342 µV 387 µV 419 µV

10 mV 329 µV 382 µV 438 µV 498 µV 20 mV 460 µV 529 µV 612 µV 737 µV 50 mV 1.06 mV 1.218 mV 1.39 mV 1.71 mV 100 mV 2.07 mV 2.34 mV 2.71 mV 3.34 mV 200 mV 4.01 mV 4.55 mV 5.26 mV 6.55 mV 500 mV 10.8 mV 12.3 mV 14.2 mV 17.3 mV 1 V 21.0 mV 23.9 mV 27.6 mV 33.9 mV

RMS noise floor (scope with probe)

80204B w/1131A 80304B w/1131A 80404B w/1132A 80604B w/1134A Volts/div 20 mV 3.2 mV 3.4 mV 3.6 mV 4.2 mV

50 mV 3.3 mV 3.4 mV 3.6 mV 4.2 mV 100 mV 3.4 mV 3.6 mV 3.8 mV 4.4 mV 200 mV 3.8 mV 4.2 mV 4.5 mV 5.3 mV 500 mV 6.0 mV 6.9 mV 7.9 mV 9.9 mV 1 V 10 mV 12 mV 14 mV 18 mV

80804B w/1168A 81004B w/1168A 81204B w/1169A 81304B w/1169A Volts/div 20 mV 2.7 mV 2.7 mV 2.9 mV 3.0 mV

50 mV 2.8 mV 2.9 mV 3.1 mV 3.4 mV 100 mV 3.3 mV 3.5 mV 3.8 mV 4.6 mV 200 mV 5.2 mV 5.6 mV 6.2 mV 7.8 mV 500 mV 12 mV 13 mV 14 mV 17 mV 1 V 22 mV 24 mV 27 mV 34 mV

Infiniium 80000B Series Performance Characteristics (continued)

Horizontal

Main timebase range 5 ps/div to 20 s/div real-time, 5 ps/div to 500 ns/div equivalent-time

Main timebase delay range –200 s to 200 s real-time, –25 µs to 200 s equivalent-time

Delayed timebase range 1 ps/div to current main time scale setting

Channel deskew ± 25 µs range, 100 fs resolution

Time scale accuracy

± 1 ppm pk

Delta-time measurement accuracy

6,7

80204B 80304B 80404B 80604B

≥ 256 Averages, rms 250 fs rms 150 fs rms 100 fs rms 80 fs rms ≥ 256 Averages, peak 500 fs peak 500 fs peak 500 fs peak 500 fs peak

Averaging disabled, rms 2.0 ps rms 2.0 ps rms 2.0 ps rms 1.0 ps rms Averaging disabled, peak 6 ps peak 6 ps peak 6 ps peak 5 ps peak

80804B 81004B 81204B 81304B

≥ 256 Averages, rms 55 fs rms 35 fs rms 35 fs rms 45 fs rms ≥ 256 Averages, peak 500 fs peak 500 fs peak 500 fs peak 500 fs peak

Averaging disabled, rms 0.9 ps rms 0.8 ps rms 0.8 ps rms 0.9 ps rms Averaging disabled, peak 5 ps peak 5 ps peak 5 ps peak 5 ps peak

Jitter measurement floor

80204B 80304B 80404B 80604B Time interval error 1.10 ps rms 0.90 ps rms 0.85 ps rms 0.75 ps rms Period jitter 1.6 ps rms 1.3 ps rms 1.1 ps rms 1.0 ps rms N-cycle, cycle-cycle jitter 2.6 ps rms 2.1 ps rms 1.9 ps rms 1.6 ps rms

80804B 81004B 81204B 81304B Time interval error 0.70 ps rms 0.65 ps rms 0.65 ps rms 0.70 ps rms Period jitter 0.9 ps rms 0.8 ps rms 0.8 ps rms 0.9 ps rms N-cycle, cycle-cycle jitter 1.4 ps rms 1.3 ps rms 1.3 ps rms 1.4 ps rms

Acquisition

Maximum real-time sample rate 40 GSa/s (2 channels simultaneously)

20 GSa/s (4 channels simultaneously)

Memory depth per channel

Standard 524,288 (2 channels) 262,144 (4 channels) Option 001 2,050,000 (2 channels) 1,025,000 (4 channels)

65,600,000 at 4 GSa/s (2 channels) 32,800,000 ≤ 2 GSa/s (4 channels)

www.agilent.com/find/dso80000b

Infiniium 80000B Series Performance Characteristics (continued)

Acquisition (continued)

Sampling modes

Real-time Successive single-shot acquisitions Real-time with averaging Selectable from 2 to 4096 Real-time with peak detect 2 GSa/s peak detect (4 channels), 4 GSa/s peak detect (2 channels) Real-time with hi resolution Real-time boxcar averaging reduces random noise and increases resolution Equivalent-time (alternating real-time) Resolution: 100 fs

Full bandwidth on all 4 channels, 262,144 sample points maximum memory. Acquires channels

1 and 3 simultaneously, followed by channels 2 and 4 simultaneously on subsequent triggers at

40 GSa/s each. Segmented memory Captures bursting signals at maximum sample rate without consuming memory during periods of

inactivity. Selectable number of segments up to 16,384 with Option 001 deep memory installed.

Minimum intersegment time (the time between the end of the previous acquisition and the

beginning of the next acquisition) of 20 µs. See the table below for various performance points.

Infiniium 80000B Series

Maximum number

of segments Standard memory Optional memory

4 channel 2 channel 4 channel 2 channel

Sample rate mode mode mode mode

40 GSa/s N/A 128 N/A 4096

20 GSa/s 64 128 4096 8192

5 GSa/s - 10 GSa/s 64 128 8192 8192

≤ 4 GSa/s 128 256 16384 16384

Maximum trigger

rate (typical) 1 channel on 2 channel on (2 ch mode)

Sample rate 1 k pts 10 k pts 1 k pts 10 k pts

40 GSa/s 33 kHz 22 kHz 31 kHz 21 kHz

20 GSa/s 41 kHz 24 kHz 37 kHz 22 kHz

5 GSa/s - 10 GSa/s 47 kHz 25 kHz 42 kHz 23 kHz

4 GSa/s 50 kHz 45 kHz 42 kHz 38 kHz

2 GSa/s 50 kHz 43 kHz 42 kHz 36 kHz

Filters

Sin(x)/x Interpolation On/off selectable FIR digital filter. Digital signal processing adds points between acquired data

points to enhance measurement accuracy and waveform display quality.

Hardware trigger

Sensitivity

Internal Low

2.0 div p-p 0 to 5 GHz

Internal High

0.3 div p-p 0 to 4 GHz, 1.0 div p-p 4 to 7.5 GHz

Auxiliary DC to 1 GHz: 200 mV p-p into 50 Ω

Level range

Internal ± 4 div from center screen or ± 4 Volts, whichever is smallest Auxiliary ± 5 V, also limit input signal to ± 5 V

Sweep modes Auto, triggered, single

Infiniium 80000B Series Performance Characteristics (continued)

Hardware trigger (continued)

Trigger jitter

6,8

≤ 500 fs rms for 8 GHz to 13 GHz models

≤ 1 ps rms for 2 GHz to 6 GHz models

Trigger holdoff range 100 ns to 10 s

Trigger actions Specify an action to occur and the frequency of the action when a trigger condition occurs.

Actions include e-mail on trigger and QuickMeas+.

Trigger modes

Edge Triggers on a specified slope (rising, falling or alternating between rising and falling) and

voltage level on any channel or auxiliary trigger. Glitch Triggers on glitches narrower than the other pulses in your waveform by specifying a width less

than your narrowest pulse and a polarity. Triggers on glitches as narrow as 500 ps. Glitch range

settings: < 1.5 ns to < 10 s. Line Triggers on the line voltage powering the oscilloscope. Pattern / pulse range Triggers when a specified logical combination of the channels is entered, exited, present for a

specified period of time or is within a specified time range. Each channel can have a value of

High (H), Low (L) or Don’t care (X). Triggers on patterns as narrow as 500 ps. State Pattern trigger clocked by the rising, falling or alternating between rising and falling edge of

one channel. Delay by time The trigger is qualified by an edge. After a specified time delay between 5 ns to 10 s, a rising or

falling edge on any one selected input will generate the trigger. Delay by events The trigger is qualified by an edge. After a specified delay between 1 to 16,000,000 rising or

falling edges, another rising or falling edge on any one selected input will generate the trigger.

Trigger shortcuts Provides easy shortcuts to all trigger features.

Violation triggers

Pulse width Trigger on a pulse that is wider or narrower than the other pulses in your waveform by

specifying a pulse width and a polarity. Triggers on pulse widths as narrow as 500 ps. Pulse

width range settings: 1.5 ns to 10 s. Setup/hold Triggers on setup, hold or setup and hold violations in your circuit. Requires a clock and data

signal on any two input channels as trigger sources. High and low thresholds and setup and/or

hold time must then be specified. Transition Trigger on pulse rising or falling edges that do not cross two voltage levels in > or < the amount

of time specified.

Software trigger (InfiniiScan event identification software (Option 009))

Trigger modes

Generic serial Software triggers on NRZ-encoded data up to 8.0Gbps, up to 80 bit pattern. Support multiple

clock data recovery methods including constant frequency, 1

order PLL, 2ndorder PLL,

explicit clock, explicit 1

order PLL, 2ndorder PLL (requires E2688A except for the constant

frequency). Measurements Software triggers on the results of the measurement values. For example, when the “pulse

width” measurement is turned on, InfiniiScan measurement software trigger triggers on a

glitch as narrow as 75 ps. Non-monotonic Software triggers on the non-monotonic edge. The non-monotonic edge is specified by setting

a hysteresis value. Runt Software triggers on a pulse that crosses one threshold but fails to cross a second threshold

before crossing the first again. Zone qualify Software triggers on the user defined zones on screen. Zones can be specified as either “must

intersect” or “must not intersect”. Up to four zones can be defined.

www.agilent.com/find/dso80000b

Infiniium 80000B Series Performance Characteristics (continued)

Measurements and math

Waveform measurements

Voltage Peak to peak, minimum, maximum, average, RMS, amplitude, base, top, overshoot, preshoot,

upper, middle, lower. Time Rise time, fall time, period, frequency, positive width, negative width, duty cycle, burst width,

Tmin, Tmax, setup time (requires Option 002 or 004), hold time (requires Option 002 or 004),

delta time, channel-to-channel phase. Mixed Area, slew rate. Frequency domain FFT frequency, FFT magnitude, FFT delta frequency, FFT delta magnitude. Level qualification Any channels that are not involved in a measurement can be used to level qualify all timing

measurements.

Statistics Displays the mean, standard deviation, minimum, maximum and number of measurements

value for the displayed automatic measurements.

Histograms Vertical (for timing and jitter measurements) or horizontal (noise and amplitude change) modes,

regions are defined using waveform markers. Measurements included: mean, standard

deviation, peak-to-peak value, median, min, max, total hits, peak (area of most hits), and

mean ± 1, 2, and 3 sigma.

Eye-diagram measurements Eye height, eye width, eye jitter, crossing percentage, Q factor, and duty-cycle distortion.

Jitter analysis measurements Cycle-cycle jitter, N-cycle jitter, cycle-cycle + width, cycle-cycle – width, cycle-cycle duty cycle,

(E2681A EZJIT or N5400A EZJIT Plus data rate, unit interval, time interval error data, time interval error clock, setup time, hold time, jitter analysis software) phase, period, frequency, + width, – width, duty cycle, rise time, fall time.

Mask testing Allows pass/fail testing to user-defined or Agilent-supplied waveform templates. AutoMask

lets you create a mask template from a captured waveform and define a tolerance range in

time/voltage or percentage. Test modes include test forever, test to specified time or event

limit, and stop on failure. Communications Mask Test Kit option provides a set of ITU-T G.703,

ANSI T1.102, and IEEE 802.3 industry-standard masks for compliance testing.

Waveform math Four functions, select from absolute value, add, average, common mode, differentiate, divide,

FFT magnitude, FFT phase, high pass filter, integrate, invert, low pass filter (4th order Bessel

Thompson Filter), magnify, max, min, multiply, smoothing, square, square root, subtract, versus,

and optional user defined function (Option 010).

FFT

Frequency range

DC up to 20 GHz (at 40 GSa/s) or 10 GHz (at 20 GSa/s) Frequency resolution Sample rate/memory depth = Resolution Best resolution at maximum sample rate 20 kHz Frequency accuracy (1/2 frequency resolution)+(1 x 10

-6

)(signal frequency)

Signal-to-noise ratio

60 dB to > 100 dB depending on settings Window modes Hanning, flattop, rectangular

Measurement modes

Automatic measurements Measure menu access to all measurements, five measurements can be displayed

simultaneously. QuickMeas+ Front-panel button activates five pre-selected or five user-defined automatic measurements. Drag-and-drop measurement toolbar Measurement toolbar with common measurement icons that can be dragged and dropped onto

the displayed waveforms.

Marker modes Manual markers, track waveform data, track measurements

Infiniium 80000B Series Performance Characteristics (continued)

Display

Display 8.4 inch color XGA TFT-LCD with touch screen Intensity grayscale: 256 level intensity graded display Resolution XGA: 1024 pixels horizontally x 768 pixels vertically Annotation Up to 12 labels, with up to 100 characters each, can be inserted into the waveform area Grids Can display 1, 2 or 4 waveform grids Waveform styles Connected dots, dots, infinite persistence, color graded infinite persistence. Includes up to 256

levels of intensity graded waveforms.

Waveform update rate

Fastest 4,800 waveforms/sec (memory depth: 64 pts, sampling: 10 GS/s, time/div: 50 ps,

connect dots: off, Sin (x)/x: off, color grade: off) Nominal 800 waveforms/sec (memory depth: 1000 pts, sampling: 40 GS/s, time/div: 500 ps,

connect dots: on, Sin (x)/x: on, color grade: off)

Computer system and peripherals, I/O ports

Computer system and peripherals

Operating system Windows XP Pro CPU Intel

Celeron 3.2 GHz microprocessor PC system memory 1 GB DDR2 Drives ≥ 40 Gb internal hard drive (optional removable hard drive), CD-ROM drive on rear panel Peripherals Logitech optical USB mouse, compact keyboard and stylus supplied. All Infiniium models

support any Windows-compatible input device with a serial, PS/2 or USB interface.

File types

Waveforms Compressed internal format (*.wfm), comma separated values (*.csv),

tab separated values (*.tsv) and Y value files (*.txt)

Images BMP, PCX, TIFF, GIF or JPEG

I/O ports

LAN RJ-45 connector, supports 10Base-T, 100Base-T, and 1000Base-T. Enables Web-enabled remote

control, e-mail on trigger or demand, data/file transfers and network printing. GPIB IEEE 488.2, fully programmable RS-232 (serial) COM1, printer and pointing device support Parallel Centronics printer port PS/2 Two ports. Supports PS/2 pointing and input devices. USB 2.0 Hi-Speed One port on front panel plus four ports on rear panel. All USB 2.0 Hi-Speed compatible. Allows

connection of USB peripherals like storage devices and pointing devices while the oscilloscope

is on. Dual-monitor video output 15 pin XGA, full color output of scope waveform display or dual monitor video output (up to

SXGA resolution with a dual monitor use) Auxiliary output DC (± 2.4 V); square wave (~715 Hz and 456 MHz); trigger output (255 mV p-p into 50 Ω) Trigger output 5 V 50 Ω back-terminated Time base reference output 10 MHz filtered sine wave with all harmonics ≤ –40 dBc. Amplitude into 50 Ω: 800 mV p-p to

1.26 V p-p (4 dBm ± 2 dB) if derived from internal reference. Tracks external reference input

amplitude ± 1 dB if applied and selected. Time base reference input Must be 10 MHz, input Z

= 50 Ω. Minimum 360 mV p-p (–5 dBm),

maximum 2.0 V p-p (+10 dBm)

LXI complaince Functional Class C

www.agilent.com/find/dso80000b

Infiniium 80000B Series Performance Characteristics (continued)

General characteristics

Temperature

Operating: 5° C to +40° C

Non-operating: –40° C to +70° C

Humidity Operating: Up to 95% relative humidity (non-condensing) at +40°C

Non-operating: Up to 90% relative humidity at +65°C

Altitude Operating: Up to 4,600 meters (15,000 feet)

Non-operating: Up to 15,300 meters (50,000 feet)

Vibration Operating: Random vibration 5-500 Hz, 10 minutes per axis, 0.3 g(rms).

Non-operating: Random vibration 5-500 Hz, 10 minutes per axis, 2.41 g(rms);

resonant search 5-500 Hz, swept sine, 1 octave/minute sweep rate, (0.75g),

5 minute resonant dwell at 4 resonances per axis.

Power 100 - 240 VAC @ 50/60 Hz; maximum input power 550 Watts

Weight Net: 13 kg (28.5 lbs.) Shipping: 16 kg (35.2 lbs.)

Dimensions (excluding handle) Height: 216 mm (8.5 in)

Width: 437 mm (17.19 in)

Depth: 440 mm (17.34 in)

Safety Meets IEC 61010-1 +A2, CSA certified to C22.2 No.1010.1, self-certified to UL 3111

* Denotes warranted specifications, all others are typical. Specifications are valid after a 30-minute warm-up period, and ± 5°C from annual calibration temperature. 1 Full scale is defined as 8 vertical divisions. Magnification is used below 5 mV/div. Below 5 mV/div, full-scale is defined as 40 mV. The major scale settings are 5 mV, 10 mV,

20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1 V.

2 Vertical resolution for 8 bits = 0.4% of full scale, for 12 bits = 0.024% of full scale. 3 Within one year of previous calibration. 4 FFT amplitude readings are affected by scope and probe bandwidth limitations and input amplifiers roll-off (e.g. –3 dB roll-off at specified bandwidth of scope/probe). 5 The FFT signal to noise ratio varies with volts/division setting, memory depth and use of time or frequency averaging. 6 Test signal amplitude ≥ 5 divisions peak-to-peak, test signal rise time ≤ 2 times scope rise time, vertical scale ≥ 20 mV/div, sample rate = 40 GSa/s; sin(x)/x interpolation

enabled, measurement threshold = fixed voltage at 50 % level.

7 Between two edges on a single channel. Rms value refers to the standard deviation of 256 consecutive measurements performed using an individual instrument. 8 Internal trigger. Trigger level contained within full scale display range of trigger channel. 9 13 GHz DSP enhanced bandwidth not applicable at 5 mV/div. 10 11.8 GHz analog bandwidth at 5 mV/div for DSO81304B and DSO81204B models. 11 Channel 1 limited to 11.5 GHz between 35° C and 40° C. 12 Calculated from the bandwidth.

InfiniiMax II Series Performance Characteristics

1169A, 1168A

Bandwidth* 1169A: > 12 GHz (13 GHz typical) 1168A: > 10 GHz

Rise and fall time

• Probe only 1169A: 28 ps (20 - 80%), 40 ps (10 - 90%) 1168A: 34 ps (20 - 80%), 48 ps (10 - 90%)

• When phase compensated by 1169A w/81204B: 25 ps (20 - 80%) 1168A w/80804B: 38 ps (20 - 80%)

80000B Series oscilloscope 36 ps (10 - 90%) 54 ps (10 - 90%)

1169A w/81304B: 23 ps (20 - 80%) 1168A w/81004B: 30 ps (20 - 80%)

33 ps (10 - 90%) 42 ps (10 - 90%)

System bandwidth (–3 dB) 1169A w/81304B: 13 GHz (typical) 1168A w/80804B: 8 GHz

1169A w/81204B: 12 GHz 1168A w/81004B: 10 GHz

Input capacitance

Cm = 0.09 pF Cm is between tips

Cg = 0.26 pF Cg is to ground for each tip

Cdiff = 0.21 pF Differential mode capacitance = Cm + Cg/2

Cse = 0.35 pF Single-ended mode capacitance = Cm + Cg

Input resistance* Differential mode resistance = 50 kΩ ±2%

Single-ended mode resistance = 25 kΩ ±2%

Input dynamic range 3.3 V peak to peak, ± 1.65 V

Input common mode range 6.75 V peak to peak dc to 100 Hz; 1.25 V peak to peak > 100 Hz

Maximum signal slew rate 25 V/ns when probing a single-ended signal

40 V/ns when probing a differential signal

DC attenuation 3.45:1

Zero offset error referred to input ± 1.5 mV

Offset range ± 16.0 V when probing single-ended

Offset gain accuracy < ± 1% of setting when probing single-ended

Noise referred to input 2.5 mV rms, probe only

Propagation delay ~6 ns (this delay can be deskewed relative to other signals)

Maximum input voltage 30 V peak, CAT I

ESD tolerance > 8 kV from 100 pF, 300 Ω HBM

Temperature Operating: 5° C to +40° C

Non-operating: 0° C to +70° C

* Denotes warranted specifications, all others are typical. 1 Measured using the probe amplifier and N5381A solder-in differential probe head.

www.agilent.com/find/dso80000b

InfiniiMax I Series Performance Characteristics

1134A, 1132A, 1131A, 1130A

Bandwidth* 1134A: > 7 GHz 1131A: > 3.5 GHz

1132A: > 5 GHz 1130A: > 1.5 GHz

Rise and fall time (10% to 90%) 1134A: 60 ps 1131A: 100 ps

1132A: 86 ps 1130A: 233 ps

System bandwidth (–3 dB) 1134A w/80604B: 6 GHz

1132A w/80404B: 4 GHz

1131A w/80304B: 3 GHz

1131A w/80204B: 2 GHz

1130A w/8104A: 1 GHz

Input capacitance

Cm = 0.10 pF Cm is between tips

Cg = 0.34 pF Cg is to ground for each tip

Cdiff = 0.27 pF Differential mode capacitance = Cm + Cg/2

Cse = 0.44 pF Single-ended mode capacitance = Cm + Cg

Input resistance* Differential mode resistance = 50 kΩ ±2%

Single-ended mode resistance = 25 kΩ ±2%

Input dynamic range 5.0 V peak to peak, ± 2.5 V

Input common mode range 6.75 V peak to peak dc to 100 Hz; 1.25 V peak to peak > 100 Hz

Maximum signal slew rate 18 V/ns when probing a single-ended signal

30 V/ns when probing a differential signal

DC attenuation 10:1 ± 3% before calibration on oscilloscope

10:1 ± 1% after calibration on oscilloscope

Zero offset error referred to input < 30 mV before calibration on oscilloscope

< 5 mV after calibration on oscilloscope

Offset range ± 12.0 V when probing single-ended

Offset accuracy < ± 1% of setting when probing single-ended

Noise referred to input 3.0 mV rms

Propagation delay ~6 ns (this delay can be deskewed relative to other signals)

Maximum input voltage 30 V peak, CAT I

ESD tolerance > 8 kV from 100 pF, 300 Ω HBM

Temperature Operating: 5° C to +40° C

Non-operating: 0° C to +70° C

* Denotes warranted specifications, all others are typical. 1 Measured using the probe amplifier and solder-in differential probe head with full bandwidth resistors.

Infiniium 80000B Series oscilloscopes

Model Bandwidth Channels Sample rate Standard acquisition memory

DSO81304B 13 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO81204B 12 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO81004B 10 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO80804B 8 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO80604B 6 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO80404B 4 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO80304B 3 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

DSO80204B 2 GHz 4 40 GSa/s (2 channels) 524 kpts (2 channels)

20 GSa/s (4 channels) 262 kpts (4 channels)

Note:

The DSO81304B uses DSP boost software to achieve 13 GHz bandwidth. It also adds a valuable DSP noise reduction feature to reduce noise at bandwidths of 10, 8, 6, 4, 2, and 1 GHz. The non-DSP boosted bandwidth of the DSO81304B is 12 GHz.

Standard accessories:

• Optical USB mouse

• Compact keyboard

• User’s quick-start guide

• Documentation CD (service guide, programmer’s guide, programmer’s quick reference guide)

• Accessory pouch

• Power cord

• High-performance calibration cable

• E2655B probe deskew and performance verification kit

• Two 54855-67604 BNC-compatible to precision 3.5 mm (f) adapters

• One-year warranty.

Note: No probes are included with the 80000B Series oscilloscopes. The InfiniiMax Series probes must be purchased separately.

Ordering Information

Infiniium 80000B Series Oscilloscopes and Accessories

www.agilent.com/find/dso80000b

Ordering Information (continued)

Infiniium 80000B Series Oscilloscopes and Accessories

After-Burner II Upgrade program

If you find you need a little more speed after you purchase your Infiniium 80000B Series oscilloscope, the After-Burner II Upgrade program is available. This upgrade program allows you to upgrade any 80000B Series scope to a higher bandwidth model, protecting your valuable Infiniium oscilloscope and probing system investment over the long term.

Upgrade Description Return to service center required

N5420A DSO81204B to DSO81304B upgrade (12 GHz to 13 GHz) No

N5420B DSO81004B to DSO81204B upgrade (10 GHz to 12 GHz) Yes

N5420C DSO80804B to DSO81004B upgrade (8 GHz to 10 GHz) Yes

N5420D DSO80604B to DSO80804B upgrade (6 GHz to 8 GHz) Yes

N5420E DSO80404B to DSO80604B upgrade (4 GHz to 6 GHz) Yes

N5420F DSO80304B to DSO80404B upgrade (3 GHz to 4 GHz) Yes

N5420G DSO80204B to DSO80304B upgrade (2 GHz to 3 GHz) Yes

Note: Order as many upgrades as needed to reach the desired final bandwidth of the instrument. For example, to upgrade from a DSO80804B to DSO81304B, order N5420C, N5420B, and N5420A.

Infiniium 80000B Series oscilloscope options and accessories

Options Description

001 2 M (2 channels), 1 M (4 channels) memory upgrade

64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)

002 EZJIT jitter analysis software (installed at the factory)

003 High-Speed Serial Data Analysis/Mask Testing with clock recovery and

8b/10b decoding (installed at the factory)

004 EZJIT Plus jitter analysis software (installed at the factory)

005 Noise reduction and bandwidth control option (installed at the factory).

Included standard for DSO81304B.

006 My Infiniium Integration Package (installed at the factory)

007 Low-speed serial data analysis for I2C/SPI (installed at the factory)

008 Low-speed serial data analysis for CAN (installed at the factory)

009 InfiniiScan event identification software (installed at the factory)

010 Infiniium User Defined Function Application Software (installed at the factory)

017 ≥ 40 Gb removable hard disk drive. Replaces internal hard disk with a removable

hard disk. Order the N5422A for additional hard disk drive cartridges.

Infiniium 80000B Series oscilloscope options and accessories (continued)

Instrument options Description

1CM (E2609B) Rack-mount kit

Service options Description

A6J ANSI Z540-compliant calibration

Accessories Description

N5404A After-purchase memory upgrade.

Order Option 001 when purchasing a new Infiniium oscilloscope.

N5422A Additional ≥ 40 Gb hard disk drive cartridge for Infiniium Option 017.

54855-67604 18 GHz BNC-compatible to precision 3.5 mm (f) adapter.

Allows highest fidelity connection of 3.5 mm or SMA cables.

E2655B Additional probe deskew/performance verification kit for InfiniiMax probes

E5850A Logic analyzer/oscilloscope time-correlation fixture

Now you can more effectively verify and track down problems between the analog and digital portions of a design. Easily make time-correlated measurements between an Agilent 16900 Series logic analysis system and an Infiniium Series oscilloscope. With the E5850A time-correlation fixture, you can trigger the Infiniium from the logic analyzer (or vice versa), and automatically deskew the waveforms. The Infiniium time markers and the 16900 Series time markers are time-correlated and track each others. You can relate information on the oscilloscope and the logic analyzer precisely.

Foot Switch Kinesis Savant 2-action programmable foot switch P/N FS20A-USB-UL

Allows you to easily program the 2-action foot pedals to perform the following scope functions: run, stop, toggle between run and stop, save waveform, save screenshot, measure any five waveform parameters and recall an instrument setup.

See http://www.kinesis-ergo.com/ for additional information and ordering instructions.

1184A Testmobile

Agilent’s 1184A testmobile provides a convenient solution for your portability and storage needs. The 1184A includes a drawer for accessories and a keyboard tray with a mouse extension for either right- or left-handed operation.

Ordering Information (continued)

Infiniium 80000B Series Oscilloscopes and Accessories

www.agilent.com/find/dso80000b

InfiniiMax I and II Series probing system

InfiniiMax II probe amplifiers Description

1169A 12 GHz InfiniiMax probe amp – order one or more probe heads

1168A 10 GHz InfiniiMax probe amp – order one or more probe heads

1134A 7 GHz InfiniiMax I probe amp – order one or more probe heads

1132A 5 GHz InfiniiMax I probe amp – order one or more probe heads

1131A 3.5 GHz InfiniiMax I probe amp – order one or more probe heads

1130A 1.5 GHz InfiniiMax I probe amp – order one or more probe heads

InfiniiMax II probe heads Recommended for use with InfiniiMax II probe amplifiers

N5380A InfiniiMax II 12 GHz differential SMA adapter. Includes semi-rigid coax to change

span between SMA connectors.

N5381A InfiniiMax II 12 GHz differential solder-in probe head and accessories. Includes

wire for replacement leads. Order 01169-21306 for 0.005 inch or 01169-81301 for

0.007 inch replacement nickel wire.

N5382A InfiniiMax II 12 GHz differential browser. Includes wire for replacement leads.

Order 01169-21304 for 0.007 inch replacement steel wire.

N5425A InfiniiMax I and II 12 GHz differential solder-in ZIF probe head. Requires N5426A ZIF Tip.

N5426A InfiniiMax I and II 12 GHz ZIF Tip (replaceable solder-in tip). Includes 10 replaceable ZIF Tip.

Order N5426A for more ZIF Tip.

InfiniiMax I probe heads* Recommended for use with InfiniiMax I probe amplifiers

E2675A InfiniiMax differential browser probe head and accessories. Includes 20 replaceable

tips and ergonomic handle. Order E2658A for replacement accessories.

E2676A InfiniiMax single-ended browser probe head and accessories. Includes 2 ground collar

assemblies, 10 replaceable tips, a ground lead socket and ergonomic browser handle. Order E2663A for replacement accessories.

E2677A InfiniiMax differential solder-in probe head and accessories. Includes 20 full bandwidth

and 10 medium bandwidth damping resistors. Order E2670A for replacement accessories.

E2678A InfiniiMax single-ended/differential socketed probe head and accessories. Includes 48 full

bandwidth damping resistors, 6 damped wire accessories, 4 square pin sockets and socket heatshrink. Order E2671A for replacement accessories. Order E5381-82103 for 34 damped wire accessories only.

E2679A InfiniiMax single-ended solder-in probe head and accessories. Includes 16 full bandwidth

and 8 medium bandwidth damping resistors and 24 zero ohm ground resistors. Order E2672A for replacement accessories.

E2695A Differential SMA probe head. Includes semi-rigid coax to change span between

SMA connectors.

* (See page 4 for specifications and limitations when used with InfiniiMax II Series probe amplifiers.)

Ordering Information (continued)

InfiniiMax Probing System

InfiniiMax II Series probing system (continued)

Connectivity kits model Description

E2669A InfiniiMax connectivity kit for differential/single-ended measurements. Includes a

differential browser, four solder-in differential probe heads and two socketed differential probe heads. Includes all necessary accessories.

E2668A InfiniiMax connectivity kit for single-ended measurements. Includes one

single-ended browser, one solder-in probe head and one socketed probe head. Includes all necessary accessories.

Adapters Description

N1022A Adapts 113x/115x/116x active probes to 86100 Infiniium DCA.

Others Description

A SMP microwave extension cable from Gore (W. L. Gore & Associates, Inc.) is available for extending the reach of InfiniiMax probes into tight environments or into test chambers (Part number PRP042105-01). Please contact Gore at 1-800-311-3060 or look up international contacts at http://www.gore.com/.

Operating temperature range:

When used with N5381A 12 GHz solder-in probe head: –55 to +105° C When used with E2677A 12GHz solder-in probe head: –25 to +80° C

Ordering Information (continued)

InfiniiMax Probing System

www.agilent.com/find/dso80000b

Ordering Information (continued)

Other Probes / Accessories

Accessories Description

E2697A High impedance adapter (includes 500 MHz passive probe)

The E2697A high impedance adapter allows connection of probes that require a high impedance input (e.g., passive probes, current probes) to the Infiniium 80000B Series of high-performance oscilloscopes. The E2697A provides switchable ac/dc coupling, as well as 10:1 and 1:1 attenuation settings.

Specifications/Characteristics

Bandwidth Analog BW (–3 dB) 500 MHz (with supplied 10073C passive probe)

System Bandwidth 500 MHz (with 10073C passive probe and

80000B Series oscilloscope)

DC attenuation 1.16:1 E2697A internal attenuator at 1:1 (at scale settings > 200 mV/div

signal size limited by input dynamic range)

11.6:1 E2697A internal attenuator at 10:1 (at scale settings > 200 mV/div signal size limited by input dynamic range)

Input dynamic range ± 0.8 V E2697A internal attenuator setting of 1:1

± 8 V E2697A internal attenuator setting of 10:1

Input dynamic range with ± 8 V E2697A internal attenuator setting of 1:1 10073C passive probe ± 80 V E2697A internal attenuator setting of 10:1

Input impedance* 1 MΩ ± 1% (~12 pF)

Input coupling dc, ac (7 Hz)

Maximum input voltage ± 100V [dc + ac] [ac < 10 kHz], CAT I

Offset range ± 5 V E2697A internal attenuator setting of 1:1

± 50 V E2697A internal attenuator setting of 10:1

* Denotes warranted specifications, all others typical. Specifications are valid after a 30 minute warm-up period and ± 5 °C from

calibration temperature.

Other compatible probes Description

1144A 800 MHz active probe. Requires 1142A probe power supply when used with Infiniium scopes.

Requires 01144-61604 probe power extender when using two or more 1144A active probes.

1145A 2-channel, 750 MHz active probe. Requires 1142A power supply when used with

Infiniium oscilloscopes.

1153A 200 MHz differential probe for Infiniium scopes

1156A 1.5 GHz single-ended active probe for Infiniium scopes

1157A 2.5 GHz single-ended active probe for Infiniium scopes

1158A 4 GHz single-ended active probe for Infiniium scopes

54006A 7.5 GHz (typical) passive resistive divider probe – 10:1 (500 ohms) or 20:1 (1 kohms)

EZ Probe Positioner

Includes base, joystick, and articulating arm available from Cascade Microtech Inc. (http://www.cascademicrotech.com)

Ordering Information (continued)

Other Probes / Accessories

www.agilent.com/find/dso80000b

Infiniium 80000B Series application software

Accessories Description

E2681A EZJIT jitter analysis software (Option 002)

EZJIT jitter analysis software, combined with Agilent’s Infiniium oscilloscopes, is a key tool for identifying and quantifying jitter components that affect the reliability of your design. Time correlation of jitter to the real-time signal makes it easy to trace jitter components to their sources.

Features:

• Includes: cycle to cycle jitter, n-cycle jitter, period jitter, time interval error, setup/hold time, data rate, unit interval

• Displays: measurement histogram, measurement trend, and jitter spectrum

• Jitter Setup Wizard

• Complete realtime integration to the scope application

• Selectable PLL clock recovery type

N5400A EZJIT Plus jitter analysis software (Option 004)

Building on the capabilities of the EZJIT software, EZJIT Plus adds additional compliance views and an expanded measurement setup wizard for simplifying and automating RJ/DJ separation for testing against industry standards.

Order N5401A to upgrade E2681A EZJIT to N5400A EZJIT Plus analysis software.

Features:

• Automated data rate and pattern detection of repetitive data signals

• Arbitrary data analysis mode allows for RJ/DJ separation on non-repetitive data waveforms

• PLL clock recovery (PCI Express, Fibre Channel, 1st order, 2nd order, or explicit clock (1st and 2nd order))

• Real-time trend, histogram and spectrum displays

• Composite histogram views of separated RJ, PJ, DJ, DDJ, DCD and ISI jitter subcomponents

• Bathtub curve of total jitter versus eye-opening down to 10

–18

BER

• Automated RJ/DJ setup wizard

E2690B Oscilloscope tools

ASA’s Oscilloscope Tools, licensed from Amherst Systems Associates (ASA), comprise the most powerful suite of analysis, debug, collaboration, and automation tools for Agilent real-time oscilloscopes (www.amherst-systems.com).

Features:

• AutoMeasure

automatically detects which scope channels have signals, scales

the signals, and sets the analysis software up

• Decompose jitter into random and deterministic jitter, including all components of jitter (Rj, Dj, Pj, DDj, DCD, and ISI)

• Locate repetitive phenomena with repetition interval analysis tools

• TestScript enables you to record repetitive sequences of measurements, button pushes, and limit comparisons

• Record/playback console allows you to collect full record-length cquisitions over hours or days, then replay and analyze them

• Powerful offline analysis feature sets

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

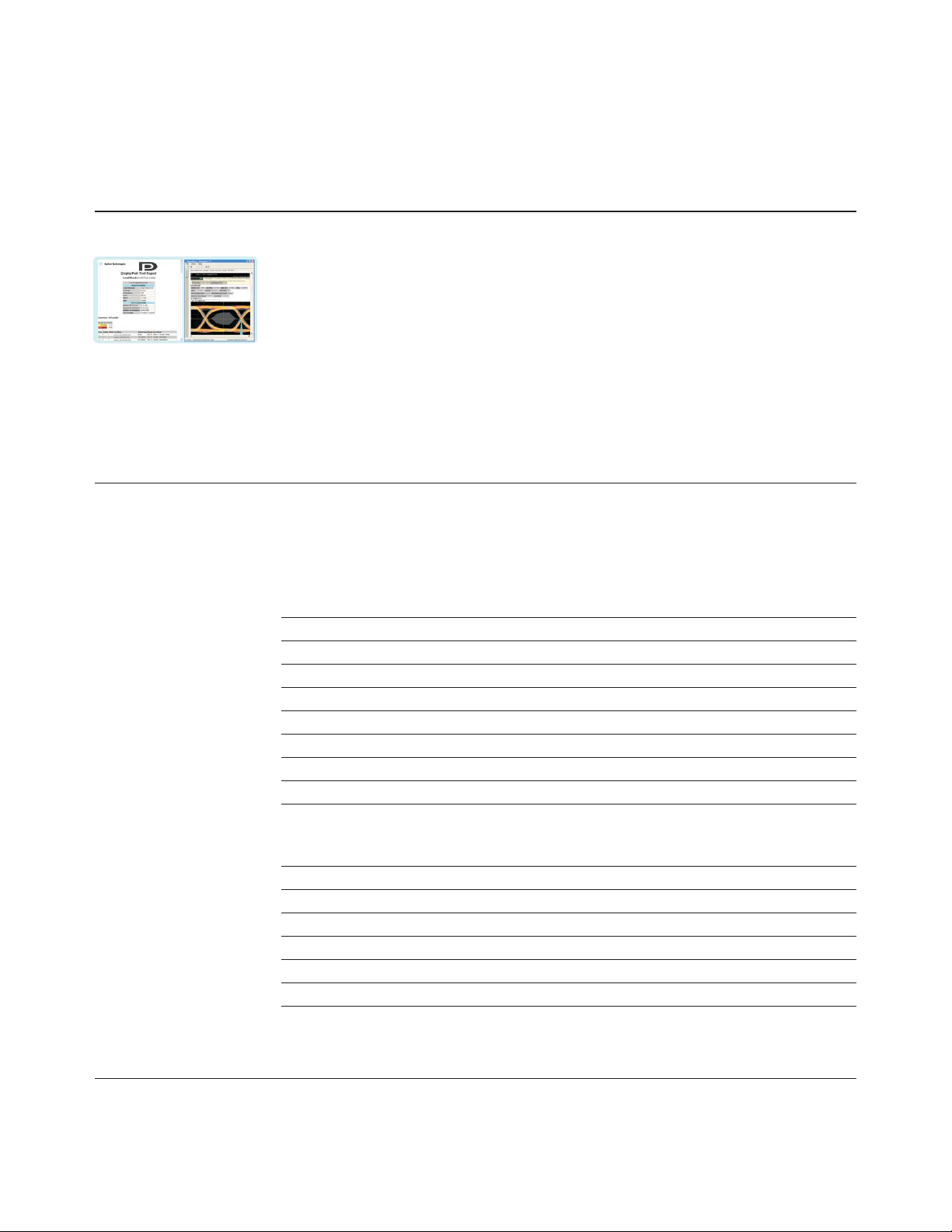

E2688A High-Speed Serial Data Analysis (with clock recovery feature) (Option 003)

Easily perform mask testing and characterize serial data streams that employ embedded clocks using built in “Serial Data Wizard.” The E2688A provides mask templates and selectable clock recovery for verifying compliance to popular standards. You can even characterize proprietary serial buses with the built-in, general purpose golden PLL clock recovery.

Features include:

• Golden PLL clock recovery

• Set up wizard to configure the clock recovery

• Real-time eye diagram display with eye-mask unfolding

• Recovered clock display

• Time interval error (TIE) jitter measurement with statistics on the data stream

• Mask template loading

• 8b/10b decode with symbol trigger and search

• Serial listing window for tabular view and navigation of 8b/10b codes

Clock recovery methods available:

• First Order PLL

• Second Order PLL

• Constant Frequency

• Explicit Clock

• Explicit Clock First Order PLL

• Explicit Clock Second Order PLL

Standard masks include: PCI Express (2.5 Gbps), Serial ATA (1.5 Gbps), Fibre Channel Electrical (1.0625, 2.125, 4.25 Gbps), Ethernet IEEE 802.3 (10/100/1000Base-T), Serial Attached SCSI, XAUI

Highlighted feature: Eye-Mask Unfolding

• Correlates eye diagram failures with live waveform locations with time stamped information relative to the trigger location

• The number of failed UI count on the last acquisition provided

• Navigation control allow users to scroll through each failed UI

• Restore Original Mask feature recreates the eye diagram from the unfolded waveform

N5414A InfiniiScan event identification software (Option 009)

The Agilent InfiniiScan event identification software quickly and easily identifies signal integrity issues. This innovative software scans through thousands of acquired waveforms per second to help isolate anomalous signal behavior. InfiniiScan can scan for multiple events simultaneously with resolution down to 70 ps events plus automated navigation to failure events.

InfiniiScan software finders consist of

• Measurement software finder

• Zone qualify (shown on the left)

• Generic serial pattern software finder

• Non-monotonic edge software finder

• Runt software finder

InfiniiScan goes beyond the classic limitations of hardware triggering and deep memory.

Ordering Information (continued)

Infiniium 80000B Series Application Software

www.agilent.com/find/dso80000b

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

N5391A I

C/SPI serial data analysis software (Option 007)

The N5391A low-speed serial data analysis (SDA) software provides a fast and easy way to debug Inter-Integrated Circuit (I

C) and 2-wire or 3-wire Serial Peripheral Interface (SPI) serial communication busses. The low-speed SDA software provides the ability to capture and automatically display decoded serial data in numerical format synchronized with the analog or digital waveform view of I

C or SPI serial data streams. The low-speed SDA software also features a listing window view with automatic click and zoom capability that contains a protocol decode list of all I

C or SPI packets that have been captured.

N5402A CAN serial data analysis software (Option 008)

The Agilent N5402A CAN serial data analysis (SDA) software allows engineers to view both protocol layer information and physical layer signal characteristics inside a single instrument, the Infiniium oscilloscope. Numerical decode values are automatically displayed and synchronized below the captured signal’s waveform. A listing window view with automatic click and zoom capability shows the index number, time stamp value, address, data/remote/error frame type, and data content of all CAN packets that have been captured.

N5430A Infiniium User-Defined Function (Option 010)

The Agilent N5430A Infiniium User-Defined Function will open up new possibilities to mathematical analysis features of Infiniium by creating the gateway to MATLAB from MathWorks (www.mathworks.com/). You can now add your favorite MATLAB .m scripts as “math function operators,” and use them just like any other standard functions provided with the Infiniium. The scope passes data to MATLAB and then displays the result back on the screen in real time. The screen shot is showing a signal equalization example using User-Defined Function.

Requires MATLAB software separately.

Features:

• Seamless gateway to powerful MATLAB analysis functionality

• Real-time analysis, real-time update

• Requires XML programming and .m script file

• Supports 2 control variables, and 2 sources

• Supports MATLAB version R14 SP1 and later

Visit www.agilent.com/find/scope_forum_hints and share your user defined function experiences!

E2699A My Infiniium integration package (Option 006)

My Infiniium allows you to customize Infiniium GUI by letting you launch user created applications, such as those written for Agilent VEE Pro, NI LabVIEW, MATLAB or Microsoft Excel, directly from the oscilloscope’s front panel or graphical user interface.

For more detailed information, please request Agilent publication number 5988-9934EN.

Visit www.agilent.com/find/scope_forum_hints and share your My Infiniium experiences!

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

N5435A Infiniium application server license

The Agilent N5435A Infiniium application server license allows you to transport your scope application licenses from one oscilloscope to another through your server. License files are supported by current Infiniium oscilloscope platforms, as well as the future-generation Infiniium platforms.

89600A Vector signal analysis software

Turn your scope into a wide band spectrum analyzer. Infiniium oscilloscopes team up with the 89600A vector signal analysis software to provide powerful, flexible, wideband signal analysis with up to 13 GHz bandwidth for applications including wideband ccommunications, modulated radar, and WiMedia based MB-OFDM Ultra Wide Band.

Features include:

• Measurement bandwidth up to 13 GHz, up to 2CH simultaneously

• Flexible analog and digital demodulation supports the most advanced, complex

modulation formats

• Flexible, powerful displays including spectrogram provide rapid insight into dynamic

signal behavior

• The newest demod feature includes support for Certified Wireless USB based on

WiMedia technology

N5392A Ethernet electrical performance validation and compliance software

The Agilent N5392A Ethernet Electrical Performance Validation and Ccompliance Software performs a wide range of electrical tests to meet the Ethernet electrical specifications for 1000Base-T, 100Base-TX and 10Base-T systems as documented in the IEEE 802.3-2005 and ANSI X3.263-1995 standards.

Features:

• Test setup wizard guides you through test selection, configuration, connection, execution,

and results reporting

• Supports 1000Base-T, 100Base-TX and 10Base-T standards

• Measurement connection setups are displayed when you must change the test setup

• Oscilloscope setup is automatically configured for each test

• Test results report formally documents your test configuration, measurements made,

pass/fail status, and waveforms

• Pass/fail margin analysis provides an indication of how close your device is to meeting

a test specification

• Fixtures available: N5395B Ethernet Test Fixtures and N5396A Jitter Test Cable

Ordering Information (continued)

Infiniium 80000B Series Application Software

www.agilent.com/find/dso80000b

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

N5393A PCI Express electrical performance validation and compliance software

The Agilent N5393A PCI Express electrical performance validation and compliance software provides you with a fast and easy way to verify and debug your PCI Express designs by automatically executing electrical checklist tests, and it displays the results in a flexible report format.

N5393A utilizes the clock recovery method used in the official PCI-SIG Signal Quality Test Methodology (“SigTest”) application, ensuring that your test results are consistent with results from the SigTest application.

N5393A supports PCI Express 1.0a electrical specifications for add-in cards and motherboard systems as documented in section 4 of the base specification and section 4 of the card electromechanical specification.

Features:

• Test setup wizard guides you through entire compliance test

• Wide-range of electrical tests are performed, significantly more than SigTest

• PCI-SIG SigTest clock recovery algorithm

• Measurement connection setups are displayed when you must change the test setup

• Automatic HTML report generation

• Pass/fail margin analysis

• Requires the E2688A Serial Data Analysis Software

• Compliance Test Fixtures available from PCI-SIG (CLB or CBB)

N5394A DVI electrical performance validation and compliance software

The Agilent N5394A DVI electrical performance validation and compliance software provides you with a fast and easy way to verify and debug your digital visual interface (DVI) designs for add-in cards, cables and motherboard systems. The software automatically configures the oscilloscope for each test, and provides the test result in HTML document including margin analysis.

N5394A uses explicit clock recovery (10x) in order to evaluate every data eye pattern against the clock signal to provide the most accurate test result.

Features:

• Test setup wizard guides you entire compliance test

• Automatic HTML report generation

• Measurement connection setups are displayed when you must change the test setup

• Pass/fail margin analysis

• Test fixture available from Silicon Image (hardware clock recovery)

Ordering Information (continued)

Infiniium 80000B Series Application Software

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

N5399A HDMI 1.1/1.2a transmitter compliance test software

The N5399A HDMI transmitter compliance test software handles all the electrical waveform tests as specified in the HDMI compliance test specification. These include, Data Eye, Under and Overshoot, Clock Jitter and Dutycycle as well as Inter and Intra pair Skew.

Features:

• Test setup wizard guides you entire compliance test

• Ultimate test execution speed supporting 4 probe testing

• Automatic HTML report generation

• SW clock recovery feature tailored to HDMI1.1/1.2a

• Supports HDMI1.1/1.2a

• Fixtures available: N1020A K12 and K13 HDMI Test Point Access Adapters (1.1/1.2a),

N5405A HDMI fixture (1.1)

N5409A Fully buffered DIMM

The Agilent N5409A fully buffered DIMM compliance application tool provides you with a fast and easy way to characterize and evaluate the signal integrity of both your high-speed FB-DIMM signals as well as your reference clock. The tests performed by the N5409A are based on the JEDEC high-speed point-to-point link specification.

Requires E2688A serial data analysis and N5400A EZJIT Plus jitter analysis software. Three fixtures are available for testing AMBs, DIMMs and mother boards.

Features:

• Easy-to-use graphical test selection and setup

• Automatic HTML report generation

• RJ/DJ jitter analysis at 10

-12

BER

• Supports both JEDEC and Intel eye masks

• Built-in AMB control for test setup (DIMM and AMB testing)

• User configurable margin analysis

• Debug mode allows changes in test parameters giving you better insight into problems

N5410A Fibre Channel compliance application

The Agilent N5410A Fibre Channel compliance application provides you with a fast and easy way to characterize and evaluate the signal integrity of your electrical Fibre-Channel devices. Supporting FC4, FC2, and FC1 speeds, the N5410A allows you to specify the measurement point at which you are probing your signal (Delta, Gama, etc.). The tests performed by the N5410A are based on the FC-PH (ANSI X3.230-1994) and FC-PH-2 Fibre Channel - Physical and Signaling Interface specification.

Features:

• Easy-to-use graphical test selection and setup

• Supports 4.250 GBit/s, 2.125 GBit/s, and 1.0625 GBit/s speeds

• Supports testing at Beta, Delta, and Gamma compliance points

• Automatic HTML report generation

• RJ/DJ jitter separation analysis at 10

-12

BER

• Physical layer measurements for rise/fall time, jitter, differential voltage, and eye mask

• Supports TCTF compliance load filter

• Debug mode allows changes in test parameters giving you better insight into problems

www.agilent.com/find/dso80000b

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

N5411A SATA compliance test software

The N5411A SATA electrical performance validation and compliance software provides you with a fast and easy way to validate and debug your SATA 1.5 Gbps (Gen 1) and 3.0Gbps (Gen 2) designs. N5411A allows you to automatically execute SATA II electrical checklist tests at each of the i, m and x interface points, and displays the results in a flexible report format. Agilent’s DSO81204B real-time scope based method of implementation (MOI) document for Serial ATA compliance testing, now available from SATA-IO website (www.sata-io.org/moi.asp), is based on N5411A.

For fixture solution, COMAX H303000202 iSATA test fixture is available from CRUZ System (www.cruzsystems.com).

Features:

• Available method of implementation (MOI) from SATA-IO

• Test setup wizard for ease-of-use

• Complete set of SATA transmitter electrical tests

• Measurement process configurability

• Automated scope measurement setup

• Test results report generation

• Debug mode provided

• Pass/fail margin analysis

N5412A Serial Attached SCSI (SAS)

Agilent’s N5412A Serial Attached SCSI (SAS) electrical performance validation and compliance software provides you with a fast and easy way to validate and debug your SAS 1.5 Gbps (SAS 150) and 3.0 Gbps (SAS 300) designs. N5412A allows you to automatically execute SAS electrical checklist tests at each of the IT, CT, IR and CR interface points, and displays the results in a flexible report format. In addition to the measurement data, the report provides a margin analysis.

Additionally, Agilent currently provides a full set of compliance test fixtures, N5421A, for the SFF-8482, SAS x2 Internal Drive/Backplane connector interfaces. The N5421A kit also includes the TX and RX Transient Circuit Test Loads.

Features:

• User configurable test setup wizard for ease-of-use

• Complete set of SAS IT/CT and IR/CR transmitter electrical tests

• Time-saving oscilloscope test setup automation

• Graphical HTML test results report generation

• Trials test capability for quick comparison of multiple port configurations

• Pass/fail margin analysis for simple characterization

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

N5413A / U7231A DDR2 / DDR3 Compliance Test Application

The Agilent N5413A DDR2 compliance test application tool and U7231A DDR3 compliance test application tool provides you with a fast and easy way to characterize and evaluate your DDR2/DDR3 design. The tests performed are based on the Intel DDR2 667/800 JEDEC Specification Addendum Rev 1.1 (DDR2 / N5413A) and JESD79-3 DDR3 SDRAM Specification (DDR3 / U7231A).

Features:

• Industry's only automated test executive saves you time and ensures you get accurate

repeatable result

• Automatic HTML report generation speeds the documentation of worst case conditions

• The “compliance mode” provides you the clock jitter tests and the electrical test

• The "advance debug mode" provides you the eye diagram analysis, the mask test, and the

ringing test

N5416A USB compliance test software

The N5416A USB 2.0 compliance test software makes USB signal integrity testing as simple as capturing the signals with your oscilloscope; eliminating the need to transfer scope waveforms to a PC.

Features:

• Uses the USB-IF organization developed MATLAB scripts

• User friendly / comprehensive test setup wizard and reports

• Fast execution speed

• The USB-IF certified solution, support for Hosts, Devices, Hubs and OTG

• Compatible with Infiniium DSO/MSO8000A/D Series and DSO80000B Series

• Available fixtures: For USB 2.0 hi-speed testing, order the N5416A test software as well

as the E2649A USB 2.0 hi-speed test fixtures. For low/full speed testing order the E2646A SQiDD board.

QP-SIGKit / QP-SIGKit4B IEEE-1394a/b Electrical Test Tools

A pre-compliance test solution is available from Quantum Parametrics for use in conjunction with Agilent 80000B Series oscilloscopes. This test solution automates the compliance test process for the IEEE-1394 standard.

See http://www.quantumparametrics.com for additional information.

www.agilent.com/find/dso80000b

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

U7232A DisplayPort Electrical Performance Validation and Compliance software

Verify and debug your DisplayPort designs more easily with industry's only solution for DisplayPort. Agilent U7232A provides you with a fast and easy way to verify and debug your DisplayPort interface designs for sink and source ICs, motherboard systems, computers and graphics cards. The DisplayPort electrical test software is designed for use in DisplayPort Authorized Compliance Test Houses, so you can confidently use it to execute DisplayPort electrical checklist tests as well as employ it as a development tool.

Features:

• DUT definition setup wizard for defining DUT capability

• Wide range of electrical tests

• Measurement process configurability

• Automated scope measurement setup

• Test results reports with pass/fail margin analysis

N5403A Noise reduction and bandwidth control option

DSP noise reduction capability to reduce noise for a given measurement bandwidth as shown in the tables below. Included standard for DSO81304B.

RMS noise floor (scope only)

Volts/div 1 GHz 2 GHz 3 GHz 4 GHz 6 GHz 8 GHz 10 GHz 12 GHz 13 GHz

5 mV 92 µV 131 µV 161 µV 188 µV 241 µV 294 µV 342 µV 387 µV 419 µV

10 mV 110 µV 153 µV 186 µV 217 µV 274 µV 329 µV 382 µV 438 µV 498 µV

20 mV 164 µV 224 µV 270 µV 314 µV 390 µV 460 µV 529 µV 612 µV 737 µV

50 mV 384 µV 521 µV 628 µV 732 µV 904 µV 1.06 mV 1.218 mV 1.39 mV 1.71 mV

100 mV 765 µV 1.01 mV 1.22 mV 1.42 mV 1.76 mV 2.07 mV 2.34 mV 2.71 mV 3.34 mV

200 mV 1.4 mV 1.99 mV 2.39 mV 2.77 mV 3.42 mV 4.01 mV 4.55 mV 5.26 mV 6.55 mV

500 mV 3.9 mV 5.26 mV 6.36 mV 7.39 mV 9.20 mV 10.8 mV 12.3 mV 14.2 mV 17.3 mV

1 V 7.6 mV 10.2 mV 12.3 mV 14.4 mV 17.8 mV 21.0 mV 23.9 mV 27.6 mV 33.9 mV

80000B scope with 1169A InfiniiMax II probe (typical in mV rms)

Volts/div 1 GHz 2 GHz 4 GHz 6 GHz 8 GHz 10 GHz 12 GHz 13 GHz

20 mV 2.2 mV 2.3 mV 2.4 mV 2.5 mV 2.7 mV 2.7 mV 2.9 mV 3.0 mV

50 mV 2.3 mV 2.4 mV 2.5 mV 2.6 mV 2.8 mV 2.9 mV 3.1 mV 3.4 mV

100 mV 2.5 mV 2.6 mV 2.9 mV 3.0 mV 3.3 mV 3.5 mV 3.8 mV 4.6 mV

200 mV 3.0 mV 3.4 mV 3.9 mV 4.4 mV 4.9 mV 6.6 mV 7.1 mV 8.5 mV

500 mV 6.6 mV 7.2 mV 8.7 mV 10 mV 12 mV 13 mV 14 mV 17 mV

1 V 11 mV 13 mV 16 mV 19 mV 22 mV 24 mV 27 mV 34 mV

Agilent offers the industry’s only noise reduction capability that allows you to reduce the noise in your measurement to match the required bandwidth of the measurement so you don’t include any more noise in your measurements than you have to.

The Agilent J-BERT generator N4903A provides high-speed digital stimulus and jitter testing to your device with PRBS or memory based patterns from 150 Mb/s up to 13.5 Gb/s. The J-BERT is the only solution in the world where the user can add specified and controlled amounts of deterministic and random jitter. For more information, see www.agilent.com/find/pulse-generators.

Ordering Information (continued)

Infiniium 80000B Series Application Software

Infiniium 80000B Series application software (continued)

Accessories (continued) Description

E2625A Communication mask test kit

Take the frustration out of communications testing and prove your designs conform to industry standards with the E2625A communications mask test kit option. Infiniium’s familiar Windows interface makes it easy for you to access the masks you need and configure your tests.

In addition, the E2625A communication mask test kit comes with a set of electrical communication adapters to ensure convenient, reliable and accurate connections to your device under test. Included are more than 20 industry standard ANSI T1.102 and ITU-T G.703 communication signal mask templates.

E2682A VoiceControl option

If you’re making measurements on target systems with densely packed ICs, your hands are tied up holding probes, making it difficult to turn knobs and press buttons on the front panel of your scope. Infiniium’s award-winning VoiceControl option solves this problem. Just speak into the collar-mounted microphone to operate your Infiniium’s front-panel controls without using your hands. Simply tell the scope what you want it to do, using natural English-language commands, such as “set channel one to 1 volt per division.” The VoiceControl system does not require the scope to be trained to understand a particular user.

www.agilent.com/find/dso80000b

Ordering Information (continued)

Related literature

Publication title Publication type Publication number

N5400 EZJIT Plus Jitter Analysis Software Data Sheet 5989-0109EN

E2681A EZJIT Jitter Analysis Software Data Sheet 5989-0109EN

E2690B Advanced Time Interval & Jitter Data Sheet 5989-3525EN Analysis Software

E2688A High-Speed Serial Data Data Sheet 5989-0108EN Analysis Software

InfiniiScan Event Identification Software Data Sheet 5989-4605EN for Infiniium 80000 and 8000 Series Oscilloscopes (N5414A and N5415A)

N5391A I2C and SPI Analysis Software Data Sheet 5989-1250EN

N5402A CAN Analysis Software Data Sheet 5989-3632EN

89601A Vector Signal Analysis Software Data Sheet 5989-0947EN

N5392A Ethernet Compliance Test Package Data Sheet 5989-1527EN

N5393A PCI-Express Test Package Data Sheet 5989-1240EN

N5394A DVI Compliance Test Software Data Sheet 5989-1526EN

N5399A HDMI Compliance Test Software Data Sheet 5989-3047EN

N5409A FBD Compliance Test Software Data Sheet 5989-4128EN

N5410A Fibre Channel Compliance Data Sheet 5989-4209EN

N5411A SATA Compliance Test Software Data Sheet 5989-3662EN

N5412A SAS Compliance Test Software Data Sheet 5989-4208EN

N5413A DDR2 Clock Characterization Data Sheet 5989-3195EN

N5416A USB Compliance Test Software Data Sheet 5989-4044EN

E2699A My Infiniium Integration Package Data Sheet 5988-9934EN

Using Agilent InfiniiMax Probes with Configuration Guide 5989-1869EN Test Equipment other than Agilent Infiniium Oscilloscopes

Infiniium 54800 Series Oscilloscope Selection Guide 5968-7141EUS Probes, Accessories and Options

Product Web site

For the most up-to-date and complete application and product information, please visit our product Web site at:

www.agilent.com/find/infiniimaxII

www.agilent.com/find/dso80000b

MATLAB®is a U.S. registered trademark of The MathWorks, Inc.

Windows

is a U.S. registered trademark of

Microsoft Corporation.

Intel

is a U.S. registered trademark of

Intel Corporation.

PCI Express

and PCI-SIG®are registered

trademarks of PCI-SIG.

www.agilent.com/find/open

Agilent Open simplifies the process of connecting and programming test systems to help engineers design, validate and manufacture electronic products. Agilent offers open connectivity for a broad range of system-ready instruments, open industry software, PC-standard I/O and global support, which are combined to more easily integrate test system development.

www.agilent.com/find/emailupdates

Get the latest information on the products and applications you select.

www.agilent.com/find/agilentdirect

Quickly choose and use your test equipment solutions with confidence.

Remove all doubt

Our repair and calibration services will get your equipment back to you, performing like new, when promised. You will get full value out of your Agilent equipment throughout its lifetime. Your equipment will be serviced by Agilent-trained technicians using the latest factory calibration procedures, automated repair diagnostics and genuine parts. You will always have the utmost confidence in your measurements.

Agilent offers a wide range of additional expert test and measurement services for your equipment, including initial start-up assistance onsite education and training, as well as design, system integration, and project management.

For more information on repair and calibration services, go to

www.agilent.com/find/removealldoubt

www.lxistandard.org

LXI is the LAN-based successor to GPIB, providing faster, more efficient connectivity. Agilent is a founding member of the LXI consortium.

www.agilent.com

For more information on Agilent Technologies’ products, applications or services, please contact your local Agilent office. The complete list is available at:

www.agilent.com/find/contactus

Phone

Americas

Canada (877) 894-4414 Latin America 305 269 7500 United States (800) 829-4444

Asia Pacific

Australia 1 800 629 485 China 800 810 0189 Hong Kong 800 938 693 India 1 800 112 929 Japan 81 426 56 7832 Korea 080 769 0800 Malaysia 1 800 888 848 Singapore 1 800 375 8100 Taiwan 0800 047 866 Thailand 1 800 226 008

Europe

Austria 0820 87 44 11 Belgium 32 (0) 2 404 93 40 Denmark 45 70 13 15 15 Finland 358 (0) 10 855 2100 France 0825 010 700 Germany 01805 24 6333*

*0.14€/minute Ireland 1890 924 204 Italy 39 02 92 60 8484 Netherlands 31 (0) 20 547 2111 Spain 34 (91) 631 3300 Sweden 0200-88 22 55 Switzerland (French)

44 (21) 8113811 (Opt 2) Switzerland (German)

0800 80 53 53 (Opt 1) United Kingdom 44 (0) 7004 666666 Other European countries: www.agilent.com/find/contactus

Revised: March 23, 2007

Product specifications and descriptions in this document subject to change without notice.

Agilent Email Updates

Agilent Direct

Agilent

Open

Agilent DSO80804B Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
