Excellent repeatability
High accuracy
Excellent reliability, long life
Features and description
• DC to 26.5 GHz, DC to 40 GHz
frequency coverage
• Optional calibration data
• 0 to 11 dB, 70 dB, 90 dB
• 1 dB steps, 10 dB steps
• Excellent repeatability
• High accuracy
• Excellent reliability, long life
• Exceptionally low insertion loss
These attenuators offer repeatability
of better than 0.03 dB and excellent
life (greater than 5 million switching
cycles per section).
This family of programmable step
attenuators offers coaxial measurements to 26.5 GHz (K models) or to
40 GHz (L models), in a compact,
rugged design. The first model in this
family is the Agilent Technologies
84906K/L, which offers outstanding
performance with an attenuation
range of 0 to 90 dB in 10 dB steps.
Other models include the Agilent
84904K/L, with 0 to 11 dB of attenuation in 1 dB steps, and the Agilent
84907K/L, with 0 to 70 dB of attenuation in 10 dB steps.
This latest design evolution sets new
standards for size and performance.
High attenuation accuracy and low
SWR are achieved through the use of
miniature thin-film attenuation cards
composed of high-stability tantalum
nitride film on a sapphire substrate.
Insertion loss performance is out-
standing, with less than 2 dB of loss
at 26.5 GHz and only 2.4 dB at 40 GHz
(figure 1). The compact size of the
units, 35% smaller than the 8495/7
(26.5 GHz) family, allows for easy
integration into instruments and ATE
systems.
This family of step attenuators offers
three connector types. For operation
to 40 GHz, the 84904/6/7L models
offer either the 2.4 mm connector,
which is recommended for top performance and for rugged and repeatable connections, or the 2.92 mm connector, which is compatible with SMA
and 3.5 mm connectors but is more
delicate. For operation to 26.5 GHz,
the 84904/6/7K models offer the
3.5 mm connector. This connector is
compatible with SMA and 2.92 connectors, but is more rugged. Each
model in the 84904/6/7K and L family
comes with two female connectors
(standard) or may be ordered with
one female and one male connector
for easy insertion into a microwave
chain or to combine the 1 dB step

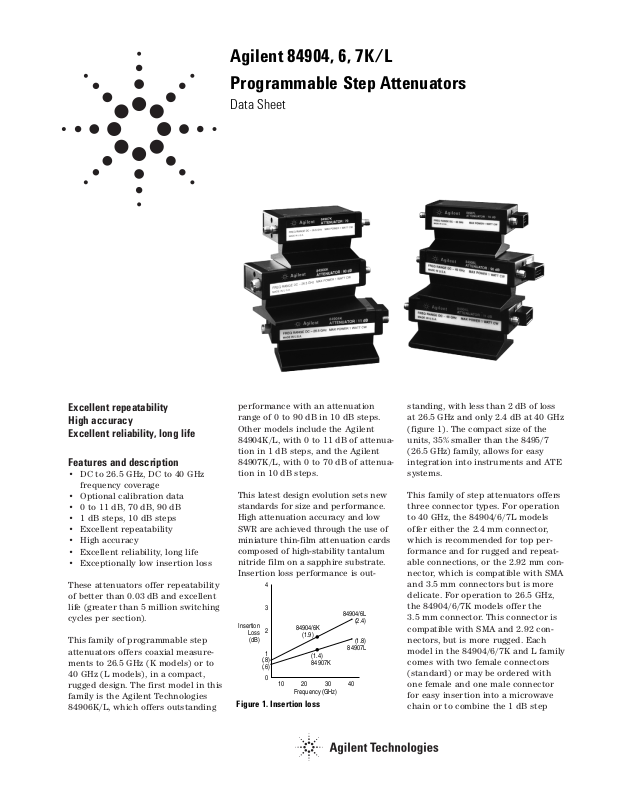

Agilent 84904, 6, 7K/L
Programmable Step Attenuators
Data Sheet
Figure 1. Insertion loss
4
Insertion
Loss
(dB)
(.8)
(.6)
3
2
1
0
84904/6K
(1.9)
10 20
Frequency (GHz)
(1.4)
84907K
30
84904/6L
(2.4)
(1.8)
84907L
40
2
84904 with a 10 dB step 84906 or
84907 to cover an attenuation range
of 121 dB or 81 dB in 1 dB steps.
Individual calibration data reports of
attenuation and SWR are available.
This data, measured with an Agilent
automatic network analyzer, can be
ordered as Option 8490xx-890.
Attenuation switching and control
These units feature the same
small solenoids and switching circuits
as the Agilent Technologies
8494/5/6/7 step attenuator family.
Switching time is a maximum of 20
milli-seconds, including contact settling time. Once switched, the units
are latched with permanent magnets,
capable of withstanding shocks over
10 Gs. The solenoids automatically
disconnect after switching, which
minimizes the attenuators’ power
requirements and simplifies the driver circuit design (figure 3). Solenoids
are available in either 24 volt (standard, Option 8490xx-024), 15 volt
(Option 8490xx-015), and 5 volt
(Option 8490xx-011) ranges to fit
your instrument or system
requirements.
The units come equipped with 10-pin
DIP headers for connecting dc control
lines. Available accessories include a
203 mm (8 inch) or 406 mm (16 inch)
ribbon cable with DIP-type connectors
that is compatible with standard 14pin DIP IC sockets (11764-60002 or
11764-60003, respectively). Alternatively, a 1524 mm (5 foot) cable with
free wires for direct soldering (11764-
60001), or a 1524 mm (5 foot) drive
cable that connects to the 11713A
attenuator/ switch driver, allowing for
easy integration into GPIB-controlled
automatic test systems (11764-60004),
may be ordered.
Selection switching
Figure 2 shows one attenuator section schematic. Each section utilizes
one solenoid with dual coil windings,
one coil to switch in the attenuator
card (e.g. 10 dB) and one coil to
switch in the thru line (0 dB).
Figure 2. Section electrical diagram
With positive voltage applied to the
common pin, the state (attenuator
card or thru line) of a particular section is determined by connecting its
attenuator card pin or thru pin to a
negative voltage or ground. Figure 4
defines the pin assignments and wire
color code for the 11764-60001/60002/
60003 drive cables. Table 1 is a solenoid drive pin and attenuation guide.
Table 2 (on page 4) defines recommended attenuator section activation.
As a section is switched, the internal
contacts of the activated coil open,
thus shutting off current f low. At the
same time, the internal contacts for
the other coil close so that it can be
activated when desired. Figure 3
shows a section that has been
switched to the attenuator card position (note the closed thru line coil
contact). The switching is “breakbefore-make” type, thus a momentary
interruption of the RF signal occurs
at switching.
Although all sections can be switched
simultaneously, the attenuator driver
must not allow both pins of the same
section (e.g. Section 1, pins 1 and 2)
to be activated concurrently, or else
that section would cycle rapidly. All
terminals are “floating,” so bipolar or
unipolar power supplies can be used.
Figure 3. Driver and indicator circuits for one section of an Agilent 8494/5/6/7
RF Connector
Drive Pin
Typical
External
Driver
RF Input
(e.g., pin 6)
Thru Line
Pin
(e.g., pin 5)
Attenuation
Card
Internal
Coil Contacts
To next
Section
next Section
of Output
RF to
LED Indicator Circuit
+5V
LED
5082-4880 (DM7406N*)
Switch Driver Circuit
TTL Input
+5V
Inverter
IC Relay Driver
(DM7404N*)
*National Semiconductor
part numbers, also supplied
by other vendors:
NOTE: Additional circuit
design information may
be required from the
component manufacturers.
(DS75451N*)
▲
▲
Driver
+24V
TTL Indicator Circuit
TTL Output
Inverter
(DM7404N*)
D
A
B
0.620.13
4.22
4.22K
0.62K
Attenuator Section
Drive
Cable
RF In
Thru Line
Drive Pin
Internal
Coil Contacts
RF
Connector
Drive Pin
Thru Line
Attenuation Card
To next Section
RF to next
Section
or Output
3
Typical driver circuit
Figure 3 shows an economical TTL
compatibility driver circuit for a single attenuation section which utilizes
and IC relay driver and an inverter. A
TTL “HI” input to the driver switches
in the attenuation card, while a “LO”
will activate the thru line for that section. This provides a complimentary
driver for the section which assures
that only one solenoid of the pair is
activated at a time. Diode protection
is required to protect the IC from the
solenoid voltage flyback.
Switch position can be indicated
remotely by utilizing the open and
closed states of the internal coil
contacts. Connected at A and B in
figure 3 are two indicator circuits, one
providing a TTL output and one that
activates an LED. These circuits will
output a TTL “HI (LED lamp ON”) if
the attenuation card is in the RF circuit, and will output a TTL “LO” (LED
lamp “OFF”) if the thru line is in the
RF circuit. Since current is drawn
through the coil for these circuits,
inadvertent switching is prevented by
limiting the current to 5 mA.
Agilent Technologies assumes no
responsibility for the use of any circuits described herein and makes no
representation or warranties, express
or implied, that such circuits are free
from patent infringement.
Drive cables
11764-60001 10 pin DIP to 60” long
ribbon cable
11764-60002 10 pin DIP to 14 pin DIP,
8” long
11764-60003 10 pin DIP to 14 pin DIP,
16” long
11764-60004 10 pin DIP to 12 pin Viking
connector, 60” long. Used
with 11713A driver
11764-60006 10 pin DIP to (4) 4 pin BERG
connectors, 30” long. Used
with 87130A or 70611A driver
Attenuator
Figure 4. Attenuator switching pinout
Section: Section 1 Section 2 Section3 Section 4
Thru Attn Thru Attn Thru Attn Thru Attn
Model Number Line Card Line Card Line Card Line Card
84906K/L
Attenuation (dB) 0 10 0 20 0 30 0 30
Actuating pin 1 2 5 8 4 9 6 7
11764-60004 plug
Pin number 5 6 7 8 9 10 11 12
11764-60002/60003 flat
Header pin number 13 2 11 5 3 9 4 10
84907K/L
Attenuation (dB) 0 10 0 20 0 40
Actuating pin 1 2 5 8 4 9
11764-60004 plug
Pin number 5 6 7 8 9 10
11764-60002/60003 flat
Header pin number 13 2 11 5 3 9
84904K/L
Attenuation (dB) 0 1 0 2 0 4 0 4
Actuating pin 1 2 5 8 4 9 6 7
11764-60004 plug
Pin number 5 6 7 8 9 10 11 12
11764-60002/60003 flat
Header pin number 13 2 11 5 3 9 4 10
Pin 10 is +24 volts
Table 1. Solenoid pin and attenuation guide
DIP plug
12
910
RF connector
11764-60002/3 header
114
213
312
411
510
69
78
11764-60001/2/3
14 pin header colors
114
213
Red
Yellow
312
411
Blue
510
Gray
6 9
Black
7 8
Brown
Orange
Green
Violet
White
11764-60001/2/3 wire colors
1. Brown 2. Red
3. Orange 4. Yellow
5. Green 6. Blue
7. Violet 8. Gray
9. White 10. Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
hite
W
Black
14
1
8
7
4
Recommended switching sequence: The following switching sequence (ie. which 30 dB section to use for the 84906K/L or which 4 dB section for the
84904K/L should be followed to insure performance to specs.
Attenuation selected
84906K/L 0 dB 10 dB 20 dB 30 dB 40 dB 50 dB 60 dB 70 dB 80 dB 90 dB
Section 1 (10 dB) X X X X
Section 2 (20 dB) X X X X
Section 3 (30 dB) X X X X X X X
Section 4 (30 dB) XX XX
84907K/L 0 dB 10 dB 20 dB 30 dB 40 dB 50 dB 60 dB 70 dB
Section 1 (10 dB) X X X X
Section 2 (20 dB) X X X X
Section 3 (40 dB) X X X X
84904K/L 0 dB 1 dB 2 dB 3 dB 4 dB 5 dB 6 dB 7 dB 8 dB 9 dB 10 dB 11 dB
Section 1 (1 dB) X X X X X X
Section 2 (2 dB) X X X X X X
Section 3 (4 dB) X X X X X X X X
Section 4 (4 dB) XXX X
Switching notes: Pins relate to 10-pin attenuator header as shown (Table 1), NOT terminating connector on any attached drive cable. Solenoids are magnetic
latching type; drive voltage may be removed after switching. Current is self-interrupting in less than 20 ms.
Table 2. Attenuator section activation guide
5
GPIB attenuator/switch driver
Employing programmable step attenuators and switches in an automatic
test system becomes an easy task
when the Agilent 11713A attenuator/
switch driver is specified into the
system.
The 11713A has all of the necessary
features to provide GPIB control of
up to two programmable attenuators
of the 8494/5/6/7 Series, and concurrently up to two electro-mechanical
switches (e.g., the 8671B or 8762
Series).
The 11713A includes an integral
power supply (with short circuit
protection) that can simultaneously
provide 125 millamps at 24 volts
to all contacts for control of the
attenuators and switches, so no
external power supply is needed.
Connecting between the 11713A
and the 84904/6/7 step attenuators
is easy with the 11764B drive cable.
The 11713A also features convenient
front panel keys so the user can manually activate the individual attenuation sections and switches when in
the “local” mode. Switching time for
the drivers is less than 10 milliseconds.
For test systems using the Agilent
70000 modular measurement system,
automatic control of these products is
easy using the 70611A attenuator/
switch driver. The 70611A has a versatile, easy to use manual interface
when used with the 70004 color display. Each 70611A is capable of controlling up to 31 SPDT switches or a
combination of several step attenuators and switches.
Optional calibration data for the
Agilent 84904/6/7
Use of calibration data (i.e., accuracy,
recorded, data of a device’s characteristics) has always been an effective
means of reducing measurement
uncertainty at RF and microwave
frequencies. Step attenuators have
long been used as reference standards in the measurement of gain,
attenuation, and receiver sensitivity.
Since the accuracy specifications
include margins for frequency
response and unit-to-unit variations,
calibration data can improve overall
measurement uncertainty.
Calibration data is available as
Option 8490xx-UK6 and is generated
from measurements made by an
Agilent network analyzer.
Option 8490xx-UK6 provides a tabular list of attenuation and reflection
coefficients in 250 MHz steps from
1500 MHz to 26.5 GHz and 270 MHz
steps from 26.5 GHz to 40GHz.
Measurements are traceable to NIST
(National Institute of Standards and
Technology, formerly NBS) standards
and feature very low measurement
uncertainties (See tables 3 and 4).
For devices with option 8490xx-006
and option 8490xx-106, option
8490xx-UK6 and NIST traceability are
not available.
Table 3. Agilent 84904/6/7K/L reflection
coefficient data uncertainty
Frequency Range (GHz)
dc to 12.4 ± .017
14.4 to 26.5 ± .023
26.5 to 34 ± .025
34 to 40 ± .028
Attenuation (dB) dc to 20 GHz 20 to 26.5 GHz 26.5 to 40 GHz
0 ± 0.12 ± 0.12 ± 0.15
10 ± 0.16 ± 0.24 ± 0.30
20 ± 0.16 ± 0.25 ± 0.30
30 ± 0.17 ± 0.30 ± 0.30
40 ± 0.32 ± 0.47 ± 0.30
50 ± 0.36 ± 0.54 ± 0.30
60 ± 0.36 ± 0.54 ± 0.30
70 ± 0.52 ± 0.72 ± 0.35
80 ± 0.50 ± 0.52 ± 0.60
90 ± 0.66 ± 0.91 ± 1.05
Table 4. Agilent 84904/6/7K/L attenuation data uncertainties
6
Attenuator setting
Attenuation accuracy (±dB; referenced from 0 dB setting):
84907K/L
84906K/L
Attenuator setting 10 20 30 40 50 60 70 80 90
Frequency range dc to 40 GHz
2
0.5 0.6 0.7 1.0 1.2 1.6 1.8 2.7 2.9
84904K/L
Attenuator setting (dB) 1234567891011
Frequency range
dc to 18 GHz 0.35 0.45 0.55 0.55 0.55 0.55 0.60 0.60 0.65 0.70 0.80
18 to 26.5 GHz 0.40 0.50 0.70 0.70 0.70 0.70 0.80 0.80 0.85 0.90 1.10
26.5 to 40 GHz
2
0.60 0.60 0.80 0.80 0.80 0.90 1.10 1.10 1.20 1.30 1.50
1 Step-to-step accuracy is the maximum variation from the nominal step size when changing attenuation values. It is a second specification on accuracy, and is used in combina-
tion with the absolute accuracy specifications to limit maximum allowable variation from nominal. Typical step-to-step accuracy for the 84906L and 84907L is ±0.6 dB to 26.5
GHz, ±0.9 dB to 40 GHz; for the 84904L is ±0.3 to 26.5 GHz, ±0.4 to 40 GHz.
2 Attenuation accuracy to 26.5 GHz for K models.
Specifications
Insertion loss
(in dB 0 dB position, f = freq. in GHz)
84904K/L (0.8 + 0.04xf)
84906K/L (0.8 + 0.04xf)
84907K/L (0.6 + 0.03xf)
SWR dc 12.4 GHz 34 GHz SWR dc 12.4 GHz
to 12.4 GHz to 34 GHz to 40 GHz to 12.4 GHz to 26.5 GHz
L models K models
84904L-101 1.3 1.7 1.8 84904K-101 1.3 1.7
84904L-106 (1.5) (1.9) (2.0) 84904K-106 (1.5) (1.9)
84906L-101 1.3 1.7 1.8 84906K-101 1.3 1.7
84906L-006 (1.5) (1.9) (2.0) 84906K-006 (1.5) (1.9)
84907L-101 1.25 1.5 1.7 84907K-101 1.25 1.5
84907L-006 (1.4) (1.7) (1.9) 84907K-006 (1.4) (1.7)
Attenuation temperature coefficient
Less that 0.0001 dB/dB/C°
Power sensitivity
0.001 dB/Watt
RF Input power (max.)
1 Watt average, 50 Watts peak
(10 µs max. pulse width)
Life (min.)
5 million cycles per section
Repeatibility
0.03 dB, typical
Environmental capabilities
(Up to 5 million cycles)
Temperature, operating
–20°C to +75°C
Temperature, non-operating
–55°C to +85°C
Altitude, operating
4,570 meters (15,000 ft.)
Altitude, non-operating
13,700 meters (50,000 ft.)
Humidity
Cycling 5 days, 40°C at 95% RH with
condensation
Shock operating
10 Gs, six ms, on six sides, three
blows
Shock, non-operating
500 Gs, 1.8 ms, in six directions
Vibration, operating
5 Gs, 34-2000 Hz
EMC
Radiated interference is within the
requirements of MIL -STD-461 method
RE02, VDE 0871 and CISPR
Publication II
7
Mechanical information
Net weight 84904K/L 84906K/L 84907K/L
291 grams 291 grams 229 grams
(10.3 oz) (10.3 oz) (8.1 oz)
Mounting position (any)
RF connectors
2.4 mm connectors standard, L models only
2.92 mm (SMA compatible), L models only
3.5 mm (SMA compatible), K models only
Switching speed
Maximum 20 msec including settling time
Switching Nominal coil
Solenoids Coil voltage Current
1
impedance
Standard 24 V 125 mA 190 Ω
(20 to 30 V) (at 24 V) (65 mh)
1 Current per section; approximately 10 msec duration before internal contacts open the coil circuit
Figure 5. Dimensions are in millimeters and inches.
94
(3.7)
73.3
(2.89)
41.8
(1.65)
*6.6
(.26)
10.4
(.41)
41.5
(1.63)
L models – 6.6 (0.3; 2.4 mm (f) connector (f)
*
L models, Opt. 006 – 2.92 mm (f) connector (SMA compatible)
K models – 9.8 (0.4); 3.5 mm (f) connector (SMA compatible)
**
L models – 6.6 (0.3); 2.4 mm (f) connector STD
L models, Opt. 006 – 2.92 mm (f) connector (SMA compatible)
L models, Opt. 100 – 5.7 (0.2); 2.4 mm male connector
L models, Opt. 106 – 7.4 (0.3); 2.92 mm male connector
K models – 9.8 (0.4); 3.5 mm (f) connector (SMA compatible)
K models, Opt. 104 – 10.6 (0.4); 3.5 mm (m) connector
84904,6K/L 84907K/L
Mounting holes
4X M3X0.5X6 deep
Ø 2.6 thru
104.3
(4.11)
2.4 mm Connector STD
or:
2.92 mm Connectors
(SMA Compatible)
Option 006
5.8
(.23)
13.3
(.52)
41.8
(1.65)
*6.6
(.26)
10.4
(.41)
41.5
(1.63)
74.5
(2.9)
53.8
(2.1)
Mounting holes
4X M3X0.5X6 deep
Ø 2.6 thru
84.8
(3.3)
2.4 mm Connector STD
or:
2.92 mm Connectors
(SMA Compatible)
Option 006
5.8
(.23)
13.3
(.52)
22.2
(.87)
7.4
(.30)
11.1
(.44)
21.7
(.85)
19.3
(.76)
Ordering information
Programmable step attenuators
84904K 0 to 11 dB, 1 dB steps; dc to 26.5 GHz
84904L 0 to 11 dB, 1 dB steps; dc to 40.0 GHz
84906K 0 to 90 dB, 10 dB steps; dc to 26.5 GHz
84906L 0 to 90 dB, 10 dB steps; dc to 40.0 GHz
84907K 0 to 70 dB, 10 dB steps; dc to 26.5 GHz
84907L 0 to 70 dB, 10 dB steps; dc to 40.0 GHz
Options
To add options to a product, use the following ordering scheme:
Model: 84904/6/7x (x = K, L)
Model options: 84904/6/7x-opt#1 or 84904/6/7x-opt#2
Supply voltage (must choose one)
84904/6/7x-011 5 V dc supply voltage
84904/6/7x-015 15 V dc supply voltage
84904/6/7x-024 24 V dc supply voltage (standard option)
RF connectors (must choose one)
84904/6/7K-004 • 3.5 mm female connector, 3.5 mm female connector (standard option)
84904/6/7K-104 • 3.5 mm male connector, 3.5 mm female connector
84904/6/7L-006 • 2.92 mm SMA compatible connectors (UK6 not available with this option)
84904/6/7L-100 • 2.4 mm male connector, 2.4 mm female connector
84904/6/7L-101 • 2.4 mm female connector, 3.5 mm female connector (standard option)
84904/6/7L-106 • 2.92 mm male connector, 2.92 mm female connector
(UK6 not available with this option)
Calibration documentation (optional)
84904/6/7x-UK6 Calibration data
Accessories (optional)
11764-60001 • 10-pin dip plug (for attenutor connection) to 1524 mm (5 foot) ribbon cable
11764-60002 • 203 mm (8 inch) ribbon cable with 14-pin headers, female 10-pin receptacle
11764-60003 • 406 mm (16 inch) ribbon cable with 14-pin headers, female 10-pin receptacle
11764-60004 • Interconnect cable 10-pin dip plug to “Viking” connector (for use with 11713A)
Agilent Technologies’ Test and Measurement Support,
Services, and Assistance
Agilent Technologies aims to maximize the value you
receive, while minimizing your risk and problems. We
strive to ensure that you get the test and measurement
capabilities you paid for and obtain the support you
need. Our extensive support resources and services can
help you choose the right Agilent products for your
applications and apply them successfully. Every instrument and system we sell has a global warranty. Support
is available for at least five years beyond the production
life of the product. Two concepts underlie Agilent’s overall support policy: “Our Promise” and “Your Advantage.”
Our Promise
Our Promise means your Agilent test and measurement
equipment will meet its advertised performance and
functionality. When you are choosing new equipment,
we will help you with product information, including
realistic performance specifications and practical recommendations from experienced test engineers. When you
use Agilent equipment, we can verify that it works properly, help with product operation, and provide basic
measurement assistance for the use of specified capabilities, at no extra cost upon request. Many self-help
tools are available.
Your Advantage
Your Advantage means that Agilent offers a wide range
of additional expert test and measurement services,
which you can purchase according to your unique technical and business needs. Solve problems efficiently and
gain a competitive edge by contracting with us for calibration, extra-cost upgrades, out-of-warranty repairs,
and on-site education and training, as well as design,
system integration, project management, and other professional engineering services. Experienced Agilent
engineers and technicians worldwide can help you maximize your productivity, optimize the return on investment
of your Agilent instruments and systems, and obtain
dependable measurement accuracy for the life of those
products.
By internet, phone, or fax, get assistance with all your
test and measurement needs.
Online assistance:
www.agilent.com/find/assist
Phone or Fax
Product specifications and descriptions in this document
subject to change without notice.
Copyright © 2002, 2004 Agilent Technologies, Inc.
Printed in U.S.A., January 14, 2004
5963-6944E
www.agilent.com/find/emailupdates
Get the latest information on the
products and applications you select.
United States:
(tel) 800 452 4844
Canada:
(tel) 877 894 4414
(fax) 905 282 6495
China:
(tel) 800 810 0189
(fax) 800 820 2816
Europe:
(tel) (31 20) 547 2323
(fax) (31 20) 547 2390
Japan:
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Korea:
(tel) (82 2) 2004 5004
(fax) (82 2) 2004 5115
Latin America:
(tel) (305) 269 7500
(fax) (305) 269 7599
Taiwan:
(tel) 0800 047 866
(fax) 0800 286 331
Other Asia Pacific
Countries:
(tel) (65) 6375 8100
(fax) (65) 6836 0252
Email:
tm_asia@agilent.com
Agilent Email Updates
Loading...
