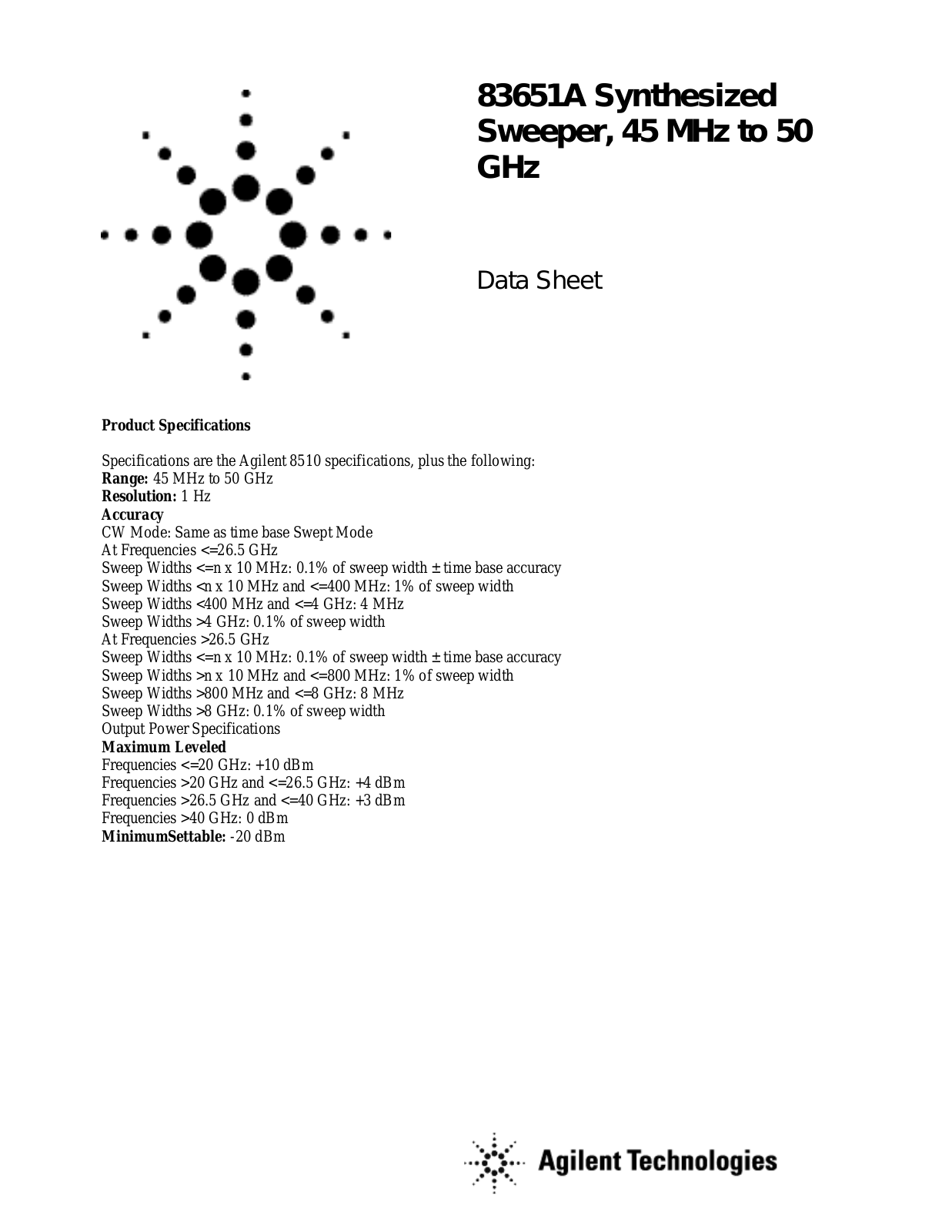

83651A Synthesized
Sweeper, 45 MHz to 50
GHz
Data Sheet
Product Specifications
Specifications are the Agilent 8510 specifications, plus the following:
Range: 45 MHz to 50 GHz
Resolution: 1 Hz
Accuracy
CW Mode: Same as time base Swept Mode
At Frequencies <=26.5 GHz
Sweep Widths <=n x 10 MHz: 0.1% of sweep width ± time base accuracy
Sweep Widths <n x 10 MHz and <=400 MHz: 1% of sweep width
Sweep Widths <400 MHz and <=4 GHz: 4 MHz
Sweep Widths >4 GHz: 0.1% of sweep width
At Frequencies >26.5 GHz
Sweep Widths <=n x 10 MHz: 0.1% of sweep width ± time base accuracy
Sweep Widths >n x 10 MHz and <=800 MHz: 1% of sweep width
Sweep Widths >800 MHz and <=8 GHz: 8 MHz
Sweep Widths >8 GHz: 0.1% of sweep width
Output Power Specifications
Maxi mum Level e d
Frequencies <=20 GHz: +10 dBm
Frequencies >20 GHz and <=26.5 GHz: +4 dBm
Frequencies >26.5 GHz and <=40 GHz: +3 dBm
Frequencies >40 GHz: 0 dBm
MinimumSettable: -20 dBm
