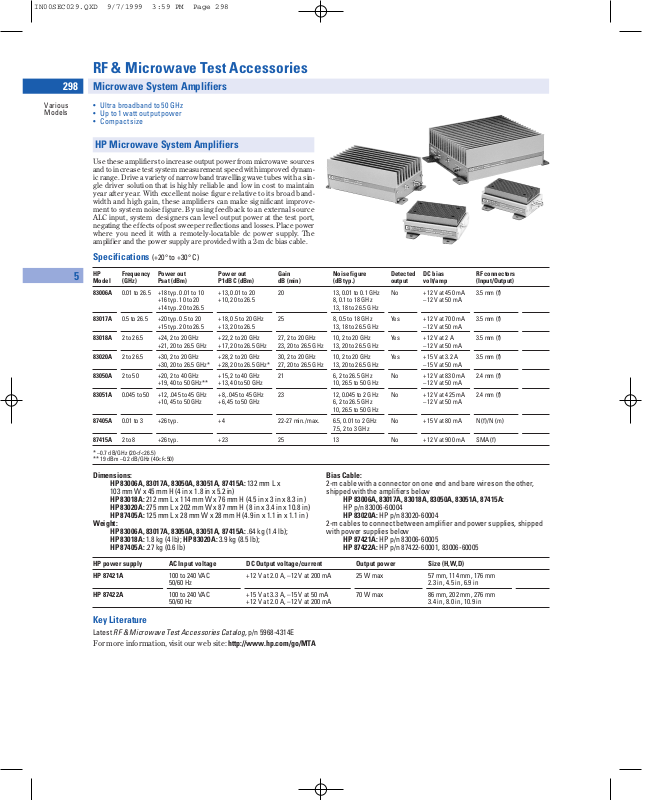

RF & Microwave Test Accessories
298 Microwave System Amplifiers
Various
Models
• Ultra broadband to 50 GHz
• Up to 1 watt output power
• Compact size
HP Microwave System Amplifiers
Use these amplifiers to increase output power from microwave sources
and to increase test system measurement speed with improved dynamic range. Drive a variety of narrowband travelling wave tubes with a single driver solution that is highly reliable and low in cost to maintain
year after year. With excellent noise figure relative to its broad bandwidth and high gain, these amplifiers can make significant improvement to system noise figure. By using feedback to an external source
ALC input, system designers can level output power at the test port,
negating the effects of post sweeper reflections and losses. Place power
where you need it with a remotely-locatable dc power supply. The
amplifier and the power supply are provided with a 2-m dc bias cable.
Specifications (+20° to +30° C)
HP Frequency Power out Power out Gain Noise figure Detected DC bias RF connectors
5
Model (GHz) Psat (dBm) P1dBC (dBm) dB (min) (dB typ.) output volt/amp (Input/Output)
83006A 0.01 to 26.5 +18 typ. 0.01 to 10 +13, 0.01 to 20 20 13, 0.01 to 0.1 GHz No +12 V at 450 mA 3.5 mm (f)
83017A 0.5 to 26.5 +20 typ. 0.5 to 20 +18, 0.5 to 20 GHz 25 8, 0.5 to 18 GHz Yes +12 V at 700 mA 3.5 mm (f)
83018A 2 to 26.5 +24, 2 to 20 GHz +22, 2 to 20 GHz 27, 2 to 20 GHz 10, 2 to 20 GHz Yes +12 V at 2 A 3.5 mm (f)
83020A 2 to 26.5 +30, 2 to 20 GHz +28, 2 to 20 GHz 30, 2 to 20 GHz 10, 2 to 20 GHz Yes +15 V at 3.2 A 3.5 mm (f)
83050A 2 to 50 +20, 2 to 40 GHz +15, 2 to 40 GHz 21 6, 2 to 26.5 GHz No +12 V at 830 mA 2.4 mm (f)
83051A 0.045 to 50 +12, .045 to 45 GHz +8, .045 to 45 GHz 23 12, 0.045 to 2 GHz No +12 V at 425 mA 2.4 mm (f)
87405A 0.01 to 3 +26 typ. +4 22-27 min./max. 6.5, 0.01 to 2 GHz No +15 V at 80 mA N (f)/N (m)
87415A 2 to 8 +26 typ. +23 25 13 No +12 V at 900 mA SMA (f)
*
–0.7 dB/GHz (20<f<26.5)
** 19 dBm –0.2 dB/GHz (40<f<50)
+16 typ. 10 to 20 +10, 20 to 26.5 8, 0.1 to 18 GHz –12 V at 50 mA
+14 typ. 20 to 26.5 13, 18 to 26.5 GHz
+15 typ. 20 to 26.5 +13, 20 to 26.5 13, 18 to 26.5 GHz –12 V at 50 mA
+21, 20 to 26.5 GHz +17, 20 to 26.5 GHz 23, 20 to 26.5 GHz 13, 20 to 26.5 GHz –12 V at 50 mA
+30, 20 to 26.5 GHz* +28, 20 to 26.5 GHz* 27, 20 to 26.5 GHz 13, 20 to 26.5 GHz –15 V at 50 mA
+19, 40 to 50 GHz** +13, 40 to 50 GHz 10, 26.5 to 50 GHz –12 V at 50 mA
+10, 45 to 50 GHz +6, 45 to 50 GHz 6, 2 to 26.5 GHz –12 V at 50 mA
10, 26.5 to 50 GHz
7.5, 2 to 3 GHz
Dimensions:
HP 83006A, 83017A, 83050A, 83051A, 87415A: 132 mm L x
103 mm W x 45 mm H (4 in x 1.8 in x 5.2 in)
HP 83018A: 212 mm L x 114 mm W x 76 mm H (4.5 in x 3 in x 8.3 in )
HP 83020A: 275 mm L x 202 mm W x 87 mm H ( 8 in x 3.4 in x 10.8 in)
HP 87405A: 125 mm L x 28 mm W x 28 mm H (4.9 in x 1.1 in x 1.1 in )
Weight:
HP 83006A, 83017A, 83050A, 83051A, 87415A: .64 kg (1.4 lb);
HP 83018A: 1.8 kg (4 lb); HP 83020A: 3.9 kg (8.5 lb);
HP 87405A: .27 kg (0.6 lb)
HP power supply AC Input voltage DC Output voltage/current Output power Size (H,W,D)
HP 87421A 100 to 240 VAC +12 V at 2.0 A, –12 V at 200 mA 25 W max 57 mm, 114 mm, 176 mm
HP 87422A 100 to 240 VAC +15 V at 3.3 A, –15 V at 50 mA 70 W max 86 mm, 202 mm, 276 mm
50/60 Hz 2.3 in, 4.5 in, 6.9 in
50/60 Hz +12 V at 2.0 A, –12 V at 200 mA 3.4 in, 8.0 in, 10.9 in
Bias Cable:
2-m cable with a connector on one end and bare wires on the other,
shipped with the amplifiers below
HP 83006A, 83017A, 83018A, 83050A, 83051A, 87415A:
HP p/n 83006-60004
HP 83020A: HP p/n 83020-60004
2-m cables to connect between amplifier and power supplies, shipped
with power supplies below
HP 87421A: HP p/n 83006-60005
HP 87422A: HP p/n 87422-60001, 83006-60005
Key Literature
Latest RF & Microwave Test Accessories Catalog, p/n 5968-4314E
For more information, visit our web site: http://www.hp.com/go/MTA
