Agilent 66101A
Comp on en t Le vel
Information
Agilent 66101A
DC Power Module 8V, 16A
Component Level Information
Information in this packet applies to the following assemblies:
1. 5060-3352 Bias Board Assembly
2. 66101-60022 Power Board Assembly
The following is included in this packet:
1. Component Locators

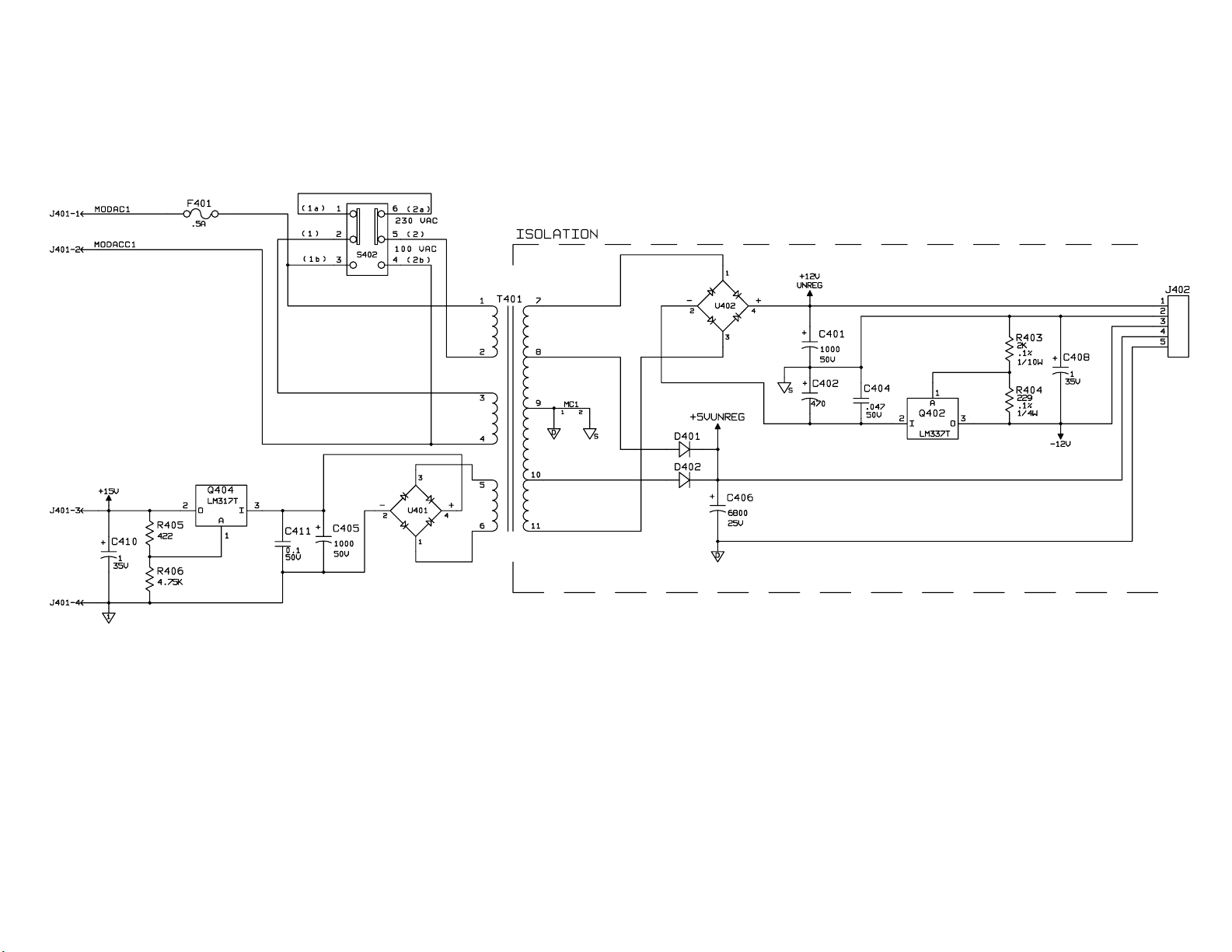

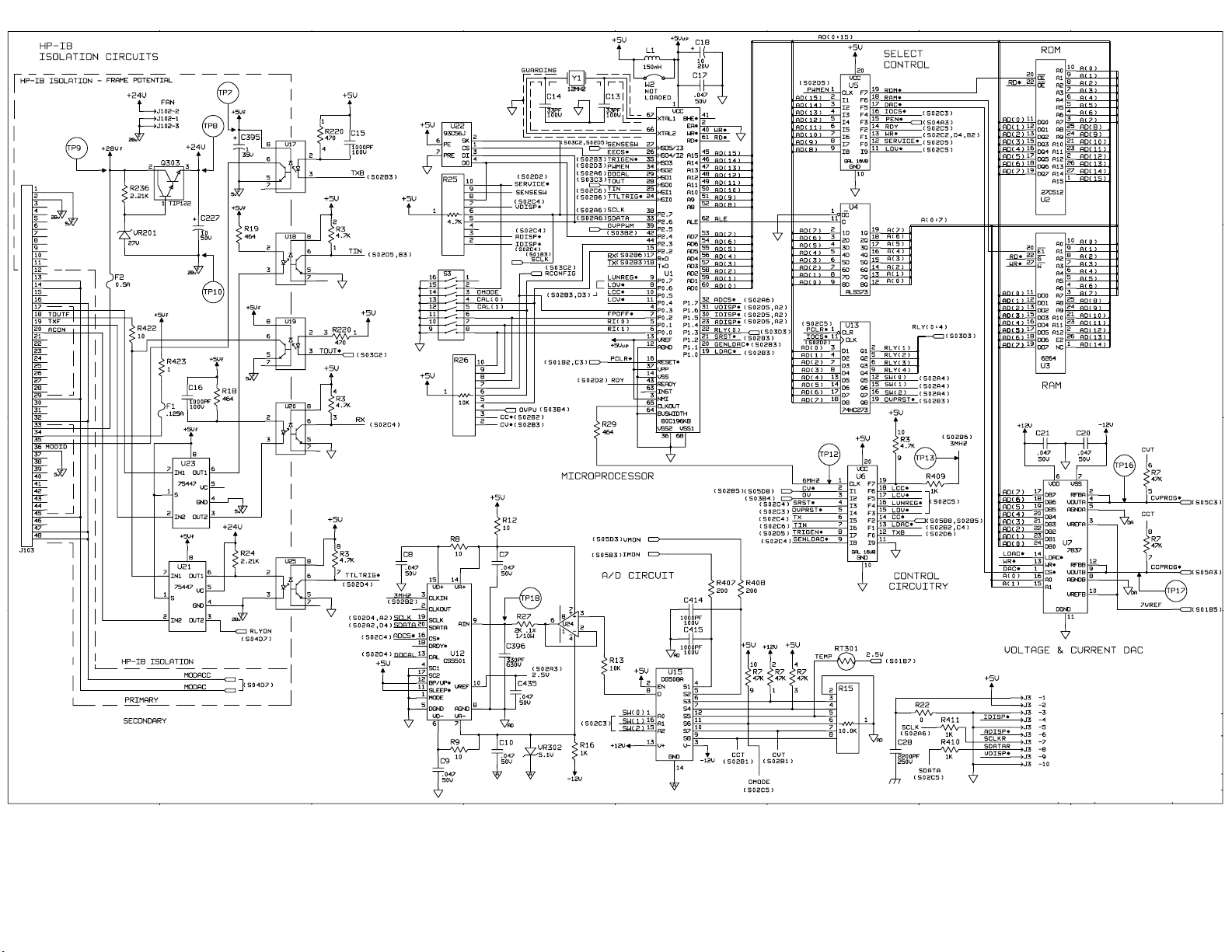

2. Schematics
3. Parts lists with Agilent and manufacturer’s part numbers
Agilent 66101A
DC Power Module,
5060-3352
Bias Board Assembly

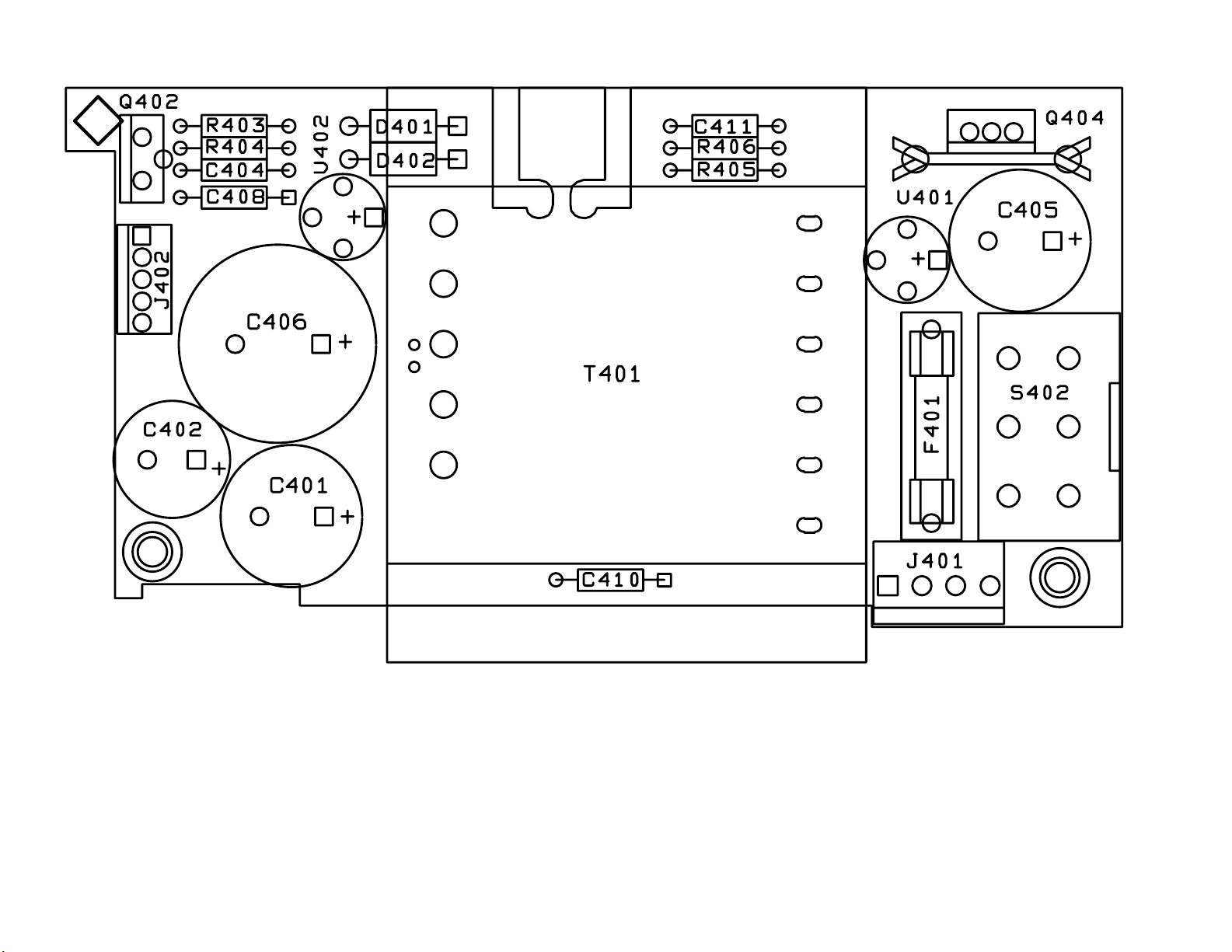

Component Locator
8V, 16A
Agilent 66101A
DC Power Module, 8V, 16A
5060-3352
Bias Board Assembly
Page 1 of 1
5060-3352 Bias Board Parts List
Reference Designator
QTY
Agilent P/N
Description
C401, 405 2 0180-3587 CAP-FXD 1000uF +-20pct 50 V AL-ELCTLT ELXZ500ELL102ML25S NIPPON CHEMI-CON
C402 1 0180-4273 CAP-FXD 1000uF +-20pct 50 V AL-ELCTLT SMG50VB102M12X25FT NIPPON CHEMI-CON
C404 1 0160-5422 CAP-FXD 0.047uF +-20pct 50 V CER X7R C420C473M5R5CA
DA13X7R1H473M
SA205C473MAAH
KEMET ELECTRONICS
TDK
AVX
C406 1 0180-4389 CAP-FXD 6800uF +-20pct 25 V AL-ELCTLT SMG25VB682M22X30LL
UVR1E682MRD6
C408, 410 2 0180-4129 CAP-FXD 1uF +-10pct 35 V TA TARR105K035
T322B105K035AS
C411 1 0160-4835 CAP-FXD 0.1uF +-10pct 50 V CER X7R C420C104K5R5CA
SA105C104KAAH
SA105C104KAAH
D401, 402 2 1901-0731 DIODE-PWR RECT 400V 1A 1N4004G
1901-0731
GP10G044
F401 1 2110-0820 FUSE (METRIC) .5A 250V FE UL-LST CSA 217.500P LITTELFUSE
F401a 1 2110-0925 FUSEHLDR-CLP-TYP 6.3A 250V UL/CSA OGN 031.8201 SCHURTER
J401 1 1252-0056 CONN-POST TYPE .156-PIN-SPCG-MTG-END 26-60-4040 MOLEX
J402 1 1251-8676 CONN-POST TYPE .100-PIN-SPCG-MTG-END 1107-8-105-01 METHODE ELECTRONICS
Q402 1 1826-0527 IC PWR MGT-V-REG-ADJ-NEG 1.2/37V 3 PINS LM337T-NOPB NATIONAL SEMICONDUCTOR
Q404 1 5060-2942 ASSY-HS 317T
Q404a 1 0361-1641 EYELET-RLD-FLG .121-OD .187-LG .0095-THK GS 4-6 STEEL-TIN PLATE STIMPSON EDWIN B
Q404b 1 1826-0393 IC PWR MGT-V-REG-ADJ-POS 1.2/37V 3 PINS LM317T-NOPB NATIONAL SEMICONDUCTOR
Q404c 1 1205-0282 HEAT SINK PLSTC-PWR-CS 6025D AAVID THERMALLOY
R403 1 0699-0486 RESISTOR 2K +-0.1pct .1W TF TC=0+-10 PR1/10TC102K0.1%
PTF-562K0BT-13
UXBB2K0000B
NIPPON CHEMI-CON
NICHICON
AVX
KEMET ELECTRONICS
KEMET ELECTRONICS
AVX
KYOCERA
ON SEMICONDUCTOR
TEMIC TELEFUNKEN
MICROELECTRON
VISHAY
PRECISION RESISTIVE
PRODUCTS
VISHAY
VISHAY BC COMPONENTS
R404 1 0699-1069 RESISTOR 229 +-0.1pct .125W TF TC=0+-25 B0207E229R0B
R405 1 0698-3447 RESISTOR 422 +-1pct .125W TF TC=0+-100 5053HD422R0F
1 of 2
CMF-552290BT-9
CMF-554220FT-1
NK4H.125W1%+/-
100PPM422R0
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
5060-3352 Bias Board Parts List
Reference Designator
Agilent P/N
R406 1 0757-0437 RESISTOR 4.75K +-1pct .125W TF TC=0+-100 5053HD4K750F
CMF-554751FT-1
NK4H.125W1%+/-
100PPM4751
S402 1 3101-2966 SWITCH-SL DPDT STD 5A 250VAC PC 4021.4922 MARQUARDT
T401 1 9100-4932 XFMR-BIAS 9100-4932 AGILENT TECHNOLOGIES
U401, 402 2 1906-0006 DIODE-FW BRDG 400V 1A W04G
W04M
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY
MICROSEMI
2 of 2
Magnify to see component reference designators.
NOTE
This assembly is used on the 66101A - 66106A. Not all components are loaded for every model. Each model is loaded
with the unique parts for the specified output of that model.
Please refer to the Parts List that follows the schematics for
the parts that are specific to the Agilent 66101A. The schematics indicate the parts loaded for the 66105A.
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly

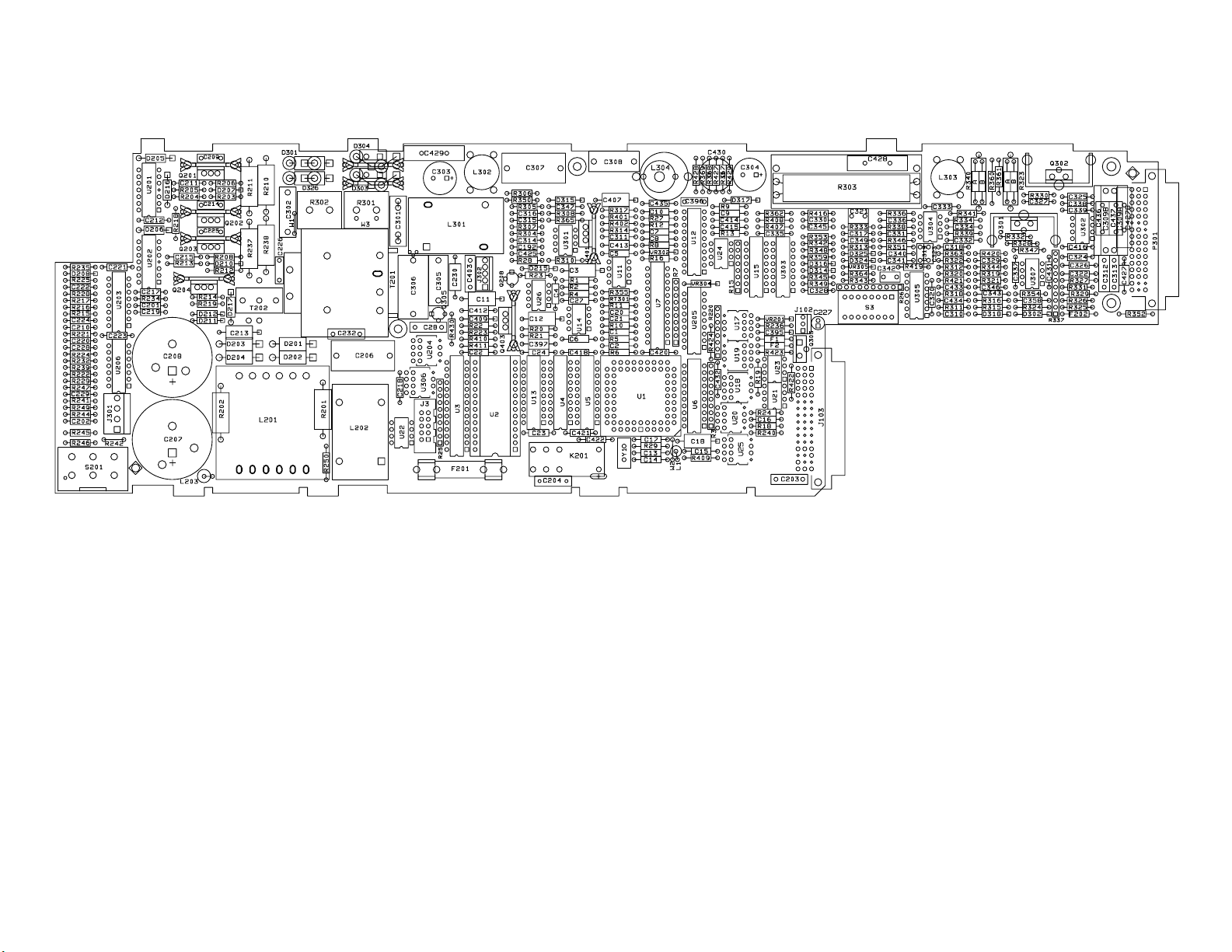

Component Locator
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly
Page 1 of 6
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly
Page 2 of 6
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly
Page 3 of 6
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly
Page 4 of 6
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly
Page 5 of 6
Agilent 66101A
DC Power Module, 8V, 16A
66101-60022
Power Board Assembly
Page 6 of 6
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
C001, 2, 4-10, 17, 20-24, 27,
192, C211, 212, 215, 217-
219, 221, 223, C325-327,
329, 332, 333, 338-341,
C418, 420-422, 431, 432,
434, 435
C003, 11, 12, 18, 213, 407 6.0 0180-4136 CAP-FXD 10uF +-10pct 20 V TA TARS106K020
C013, 14, 322, 334 4.0 0160-4807 CAP-FXD 33pF +-5pct 100 V CER C0G C410C330J1G5CA
C015, 16, 220, 328, 414, 415 6.0 0160-4822 CAP-FXD 1000pF +-5pct 100 V CER C0G C420C102J1G5CA
C028, 312, 313 3.0 0160-4281 CAP-FXD 2200pF +-20PCT 250 V PPR-MET MP3Y2-
C201, 228, 335, 337, 358 5.0 0160-4830 CAP-FXD 2200pF +-10pct 100 V CER X7R C410C222K1R5CA
43.0 0160-5422 CAP-FXD 0.047uF +-20pct 50 V CER X7R C420C473M5R5CA
DA13X7R1H473M
SA205C473MAAH
T322C106K020AS
SA102A330JAAH
SA102A330JAAH
SA201A102JAAH
SA201A102JAAH
2200F/250VAC/20%,4X8.5
X13.5, Pitch10mm
PME271Y422MR30
SA101C222KAAH
SA101C222KAAH
KEMET ELECTRONICS
TDK
AVX
AVX
KEMET ELECTRONICS
KEMET ELECTRONICS
AVX
KYOCERA
KEMET ELECTRONICS
AVX
KYOCERA
WIMA
EVOX/RIFA
KEMET ELECTRONICS
AVX
KYOCERA
C202, 310, 314, 315, 324,
325, 416
C203, 204, 403 3.0 0160-4183 CAP-FXD 1000pF +-20pct 250 V PPR-MET PME271Y410MR30 EVOX/RIFA
C206, 306, 307 3.0 0160-4259 CAP-FXD 0.22uF +-10pct 250 V PPR-MET PME271M622KR30 EVOX/RIFA
C207, 208 2.0 0180-4393 CAP-FXD 560uF +-20pct 250 V AL-ELCTLT 380LX561M250K022
C209, 214, 225, 226, 396 5.0 0160-7578 CAP-FXD 330pF +-5pct 630 V POLYP-FL
C210 1.0 0160-4814 CAP-FXD 150pF +-5pct 100 V CER C0G C410C151J1G5CA
7.0 0160-4808 CAP-FXD 470pF +-5pct 100 V CER C0G C410C471J1G5CA
SA101A471JAAH
SA101A471JAAH
LLS2E561MELB
SMH250VN561M30X30
SA101A151JAAH
SA101A151JAAH
1 of 13
KEMET ELECTRONICS
AVX
KYOCERA
CORNELL-DUBILIER
ELECTRONICS
NICHICON
NIPPON CHEMI-CON
WIMA
KEMET ELECTRONICS
AVX
KYOCERA
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
C222 1.0 0160-4803 CAP-FXD 68pF +-5pct 100 V CER C0G C410C680J1G5CA
SA101A680JAA
SA101A680JAA
C224, 347 2.0 0160-4801 CAP-FXD 100pF +-5pct 100 V CER C0G C410C101J1G5CA
SA102A101JAAH
SA102A101JAAH
C227 1.0 0180-3680 CAP-FXD 10uF +-20PCT 50V AL-ELCTLT EKMG500ELL100ME11D NIPPON CHEMI-CON
C229 1.0 0160-4833 CAP-FXD 0.022uF +-10pct 100 V CER X7R C420C223K1R5CA
SA201C223KAAH
SA201C223KAAH
C230 1.0 0160-5098 CAP-FXD 0.22uF +-10pct 50 V CER X7R C440C224K5R5CA
SA405C224KAAH
SA405C224KAAH
C232 1.0 0160-4439 CAP-FXD 4700pF +-20pct 1 kV PPR-MET PME271Y447MR30 EVOX/RIFA
C301 1.0 0161-1146 CAP-FXD 0.0047uF +-5PCT 630V POLYP-MET PHE450MA4470JR05 EVOX/RIFA
C303, 304 2.0 0180-4398 CAP-FXD 470uF +-20PCT 63 V AL-ELCTLT UPM1J471MHD NICHICON
C309A 1.0 0160-7562 CAP-FXD 6.8uF +-10pct 63 V POLYE-MET MKS4 6.8UF/+-
10%/63VDC
MKT 1822 568 06 5
MMK22.5685K63L4
C311, 317, 343 3.0 0160-4831 CAP-FXD 4700pF +-10pct 100 V CER X7R C410C472K1R5CA
SA101C472KAAH
SA101C472KAAH
KEMET ELECTRONICS
AVX
KYOCERA
KEMET ELECTRONICS
AVX
KYOCERA
KEMET ELECTRONICS
AVX
KYOCERA
KEMET ELECTRONICS
AVX
KYOCERA
WIMA
VISHAY
EVOX/RIFA
KEMET ELECTRONICS
AVX
KYOCERA
C316, 318 2.0 0160-4795 CAP-FXD 4.7pF +-10.64pct 100 V CER C0G C410C479D1G5CA
C319 1.0 0160-5467 CAP-FXD 0.01uF +-10PCT 100V POLYE-MET MKS 2
C320, 433 2.0 0160-4791 CAP-FXD 10pF +-5PCT 100V CER C0G C410C100J1G5CA
C321, 323, 342 3.0 0160-5892 CAP-FXD 0.22uF +-10PCT 63V POLYE-MET MKT 1817 422 065
2 of 13
SA102A4R7DAAH
SA102A4R7DAAH
MMK5103K100J01L
SA102A100JAA
SA102A100JAA
MMK5224K63J01L4 BULK
KEMET ELECTRONICS
AVX
KYOCERA
WIMA
EVOX/RIFA
KEMET ELECTRONICS
AVX
KYOCERA
VISHAY
EVOX/RIFA
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
C330, 346 2.0 0160-4832 CAP-FXD 0.01uF +-10pct 100 V CER X7R C410C103K1R5CA
SA101C103KAAH
SA101C103KAAH
C331, 336 2.0 0160-4787 CAP-FXD 22pF +-5pct 100 V CER C0G C410C220J1G5CA
SA101A220JAA
SA101A220JAA
C349 1.0 0160-4812 CAP-FXD 220pF +-5pct 100 V CER C0G C410C221J1G5CA
SA101A221JAAH
SA101A221JAAH
C395, 409 2.0 0180-4129 CAP-FXD 1uF +-10pct 35 V TA TARR105K035
T322B105K035AS
C397, 412, 413, 427A 4.0 0160-4835 CAP-FXD 0.1uF +-10pct 50 V CER X7R C420C104K5R5CA
SA105C104KAAH
SA105C104KAAH
D027, 208, 210-212,
215-217, 302, D314-316
D201-204 4.0 1901-1087 DIODE-PWR RECT 600V 3A 200NS GI856
12.0 1901-1098 DIODE-SWITCHING 1N4150 50V 200MA 4NS 1N4150
1N4150
MR856RLG
KEMET ELECTRONICS
AVX
KYOCERA
KEMET ELECTRONICS
AVX
KYOCERA
KEMET ELECTRONICS
AVX
KYOCERA
AVX
KEMET ELECTRONICS
KEMET ELECTRONICS
AVX
KYOCERA
FAIRCHILD SEMICONDUCTOR
ROHM
VISHAY
ON SEMICONDUCTOR
D205, 206 2.0 1901-1214 DIODE-PWR RECT 600V 1A 50NS MUR160RLG ON SEMICONDUCTOR
D303, 304 2.0 5060-3378 ASSY-HS MUR1520
D303, 304a 1.0 1205-0282 HEAT SINK PLSTC-PWR-CS 6025D AAVID THERMALLOY
D317, 318, 324, 325 4.0 1901-0880 DIODE-GEN PRP 200MA DO-35 FDH300 FAIRCHILD SEMICONDUCTOR
F001 1.0 2110-0671 FUSE-SUBMINIATURE .125A 125V NTD AX 025101.5____L LITTELFUSE
F002, 202 1.0 2110-0716 FUSE-SUBMINIATURE .5A 125V NTD AX UL-LST 0251.500____L LITTELFUSE
F201 1.0 2110-0056 FUSE (INCH) 6A 250V NTD FE UL-LST 0312006.
REF F201 2.0 2110-1107 FUHLR-CLP-TYP 1A1907-03 COOPER INDUSTRIES
J003 1.0 1252-1152 CONN-POST TYPE .100-PIN-SPCG-MTG-END 68794-118 FCI FRAMATOME BERG
J102 1.0 1252-0063 CONN-POST TYPE .100-PIN-SPCG-MTG-END 1100-8-103-01
3 of 13
AGC-6
SS6-6A
22-27-2031
LITTELFUSE
COOPER INDUSTRIES
SAN-O INDUSTRIAL
METHODE ELECTRONICS
MOLEX
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
J103 1.0 1251-8410 CONN-POST TYPE 2.54-PIN-SPCG-MTG-END 10-8457-048-002-025
254-63-04-802
413.865
650478-5
86093487313765E1LF
J103a 4.0 0361-1372 RIVET-SPCLY UNIV-HD .094DIA .392LG 1189-2512 TEXTRON
J301 1.0 1252-0056 CONN-POST TYPE .156-PIN-SPCG-MTG-END 26-60-4040 MOLEX
J302 1.0 1251-8676 CONN-POST TYPE .100-PIN-SPCG-MTG-END 1107-8-105-01 METHODE ELECTRONICS
K201 1.0 0490-1781 RELAY 2C 24VDC-COIL 5A 250VAC AZ2732-053-052
FBR621D024
RKS-11DX-24
L001 1.0 9100-1610 INDUCTOR RF-CH-MLD 150nH +-20pct 1537-00
15M150M
IM-4 .15UH 20%
L201 1.0 5080-2179 CHOKE-LINE
L202 1.0 5080-2180 CHOKE-CM INPUT
L203 1.0 9140-0137 INDUCTOR RF-CH-MLD 1mH +-5pct 19M104J
2500-28
9220-28
IM6-1000UH 5%
KYOCERA
LABINAL COMPONENTS &
SYSTEMS
ERNI-ELEKTRO-APPARATE
TYCO ELECTRONICS AMP
FCI FRAMATOME BERG
AMERICAN ZETTLER
FUJITSU
SIEMENS
AMERICAN PRECISION
INDUSTRIES
GOWANDA ELECTRONICS
VISHAY
GOWANDA ELECTRONICS
AMERICAN PRECISION
INDUSTRIES
ARROW ELECTRONICS
VISHAY
L204-211, 305-308 12.0 5080-2251 BEAD-FERRITE
L301 1.0 66101-80001 CHOKE-OUTPUT
L302, 303 2.0 5080-2219 CHOKE-OUTPUT CM
L304 1.0 9140-1064 INDUCTOR-FIXED L:4.5 UH MIN at 1 IH-14-01 3.8UH VISHAY
MFG. PN U1520 1.0 1901-1383 DIODE-ULT-FST-RCRY 200V 15A 35NS MUR1520 ON SEMICONDUCTOR
P301 1.0 1252-0167 CONN-POST TYPE 2.54-PIN-SPCG-MTG-END 5650868-5
P301a 4.0 0361-1372 RIVET-SPCLY UNIV-HD .094DIA .392LG 1189-2512 TEXTRON
Q201-204 4.0 5060-3457 ASSY-HS IRF830
Q201-204a 1.0 0361-1641 EYELET-RLD-FLG .121-OD .187-LG .0095-THK GS 4-6 STEEL-TIN PLATE STIMPSON EDWIN B
Q201-204b 1.0 1205-0282 HEAT SINK PLSTC-PWR-CS 6025D AAVID THERMALLOY
Q201-204c 1.0 1855-0510 TRANSISTOR MOSFET N-CHAN E-MODE TO-220 IRF830 VISHAY
Q208 1.0 1854-0087 TRANSISTOR NPN 2N3417 SI PD=360MW CEN897 CENTRAL SEMICONDUCTOR
Q301, 302 2.0 5060-3382 ASSY-FET HS
4 of 13
20-8477-048-002-025
TYCO ELECTRONICS AMP
KYOCERA
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
Q301, 302a 1.0 3050-0891 WASHER-FL MTLC 3.0 3.3-MM-ID 6.85-MM-OD ;
WASHER-FLAT ; FITS SCREW SIZE: 3.0 MM
Q301, 302b 1.0 1855-0670 TRANSISTOR MOSFET N-CHAN E-MODE
TO-220AB
Q301, 302c 1.0 1205-0298 HEAT SINK PLSTC-PWR-CS 6030D AAVID THERMALLOY
Q301, 302d 1.0 0515-0104 SCREW-MACH M3 X 0.5 8MM-LG PAN-HD ;
SCREW-MACHINE ; M3.0 X 0.50; 8 MM LONG
Q301, 302e 1.0 0535-0031 NUT-HEX; W/LOCKWASHER M3 X 0.5
2.4MM-THK; M3 X 0.5 THREAD; 5
Q303 1.0 1854-0828 TRANSISTOR NPN SI DARL TO-220AB PD=65W NTD560
Q305 1.0 1853-0569 TRANSISTOR PNP SI TO-92 PD 310MW 2N5087RLRAG ON SEMICONDUCTOR
Q401 1.0 5060-2942 ASSY-HS 317T
Q401a 1.0 0361-1641 EYELET-RLD-FLG .121-OD .187-LG .0095-THK GS 4-6 STEEL-TIN PLATE STIMPSON EDWIN B
Q401b 1.0 1826-0393 IC PWR MGT-V-REG-ADJ-POS 1.2/37V 3 PINS LM317T-NOPB NATIONAL SEMICONDUCTOR
Q401c 1.0 1205-0282 HEAT SINK PLSTC-PWR-CS 6025D AAVID THERMALLOY
Q403 1.0 5060-2948 ASSY 7805/340T-5
Q403a 1.0 1826-0122 IC PWR MGT-V-REG-FXD-POS 4.8/5.2V TO-220 LM340T-5
3050-0891 HOUSE OF METRICS
IRF540 VISHAY
0515-0104
0515-0104
0515-0104
0515-0104
0535-0031 HOUSE OF METRICS
TIP122G
MC7805CTG
HOUSE OF METRICS
ILLINOIS TOOL WORKS
MID-CONTINENT SCREW
PROD
TEXTRON
NEC ELECTRONICS
ON SEMICONDUCTOR
NATIONAL SEMICONDUCTOR
ON SEMICONDUCTOR
Q403b 1.0 1205-0282 HEAT SINK PLSTC-PWR-CS 6025D AAVID THERMALLOY
Q403c 1.0 0361-1641 EYELET-RLD-FLG .121-OD .187-LG .0095-THK GS 4-6 STEEL-TIN PLATE STIMPSON EDWIN B
R001 1.0 0757-0447 RESISTOR 16.2K +-1pct .125W TF TC=0+-100 5053HD16K20F
R002, 319, 320, 351, 363 5.0 0699-2246 RESISTOR 25K +-0.05pct .125W TF TC=0+-5 PR1/10T525K0.05%
R003, 337 2.0 1810-0483 NET-RES 5 4.7K OHM 10-PIN 4310R-4B4-472
R004 1.0 0699-3414 RESISTOR 45K +-0.05pct .1W TF TC=0+-5 PTF-5645K0AT-16
5 of 13
CMF-551622FT-1
NK4H.125W1%+/100PPM1622
PTF-5625K00AT-16
UXBA25K000A
MSP10A03-472G
750-103-R4.7K
UXBA45K000A
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
PRECISION RESISTIVE
PRODUCTS
VISHAY
VISHAY BC COMPONENTS
BOURNS
VISHAY
TT ELECTRONICS
VISHAY
VISHAY BC COMPONENTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
R005, 6, 21, 23, 421 5.0 0698-3155 RESISTOR 4.64K +-1pct .125W TF TC=0+-100 5053HD4K640F
CMF-554641FT-1
NK4H.125W1%+/-
100PPM4641
R007 1.0 1810-0355 NET-RES 5 47.0K OHM 10-PIN 4310R-7F1-473
MSP10A03-473G
750-103-R47K
SR547KOHMS +-2%
R008, 9, 12, 22, 422 5.0 0757-0346 RESISTOR 10 +-1pct .125W TF TC=0+-100 5053HD10R00F
CMF-5510R0FT-1
NK4H.125W1%+/100PPM10R0
R010 1.0 0698-4123 RESISTOR 499 +-1pct .125W TF TC=0+-100 5053HD499R0F
CMF-554990FT-1
NK4H.125W1%+/-
100PPM499R0
R011, 361 2.0 0698-6619 RES-FXD 15K +-0.1PCT 0.125W TC 0+-25 0207 CMF-551502BT-9
MBB0207-25 0.1%__15K
R013, 215-217, 224, 228,
229, 232, R239, 314, 355
11.0 0757-0442 RESISTOR 10K +-1pct .125W TF TC=0+-100 5053HD10K00F
CMF-551002FT-1
NK4H.125W1%+/100PPM1002
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
BOURNS
VISHAY
TT ELECTRONICS
STC
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
R015 1.0 1810-0206 NET-RES 7 10.0K OHM 8-PIN 750-81
R016, 247, 329, 330, 345,
409-411, R424, 430
R018, 19, 29 3.0 0698-0082 RESISTOR 464 +-1pct .125W TF TC=0+-100 5053HD464R0F
MSP08A01-103G
4308R-94Y-103LF
10.0 0757-0280 RESISTOR 1K +-1pct .125W TF TC=0+-100 5053HD1K000F
CMF-551001FT-1
NK4H.125W1%+/-
100PPM1001
CMF-554640FT-1
NK4H.125W1%+/-
100PPM464R0
6 of 13
TT ELECTRONICS
VISHAY
BOURNS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
R024, 236 2.0 0757-0430 RESISTOR 2.21K +-1pct .125W TF TC=0+-100 5053HD2K210F
CMF-552211FT-1
NK4H.125W1%+/-
100PPM2211
R025 1.0 1810-0279 NET-RES 9 4.7K OHM 10-PIN 750-101
MSP10A01-472G
4310R-6F4-472LF
R026 1.0 1810-0280 NET-RES 9 10.0K OHM 10-PIN 750-101
MSP10A01-103G
4310R-94Y-103LF
R027, 402 2.0 0699-0486 RESISTOR 2K +-0.1pct .1W TF TC=0+-10 PR1/10TC102K0.1%
PTF-562K0BT-13
UXBB2K0000B
R028, 206, 208 3.0 0698-3445 RESISTOR 348 +-1pct .125W TF TC=0+-100 5053HD348R0F
CMF-553480FT-1
NK4H.125W1%+/100PPM348R0
R201, 202 2.0 0764-0045 RESISTOR 22K +-5pct 2W MO TC=0+-200 FP69 22K0 5%
GS-3-2202J
MO2C__223J
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
TT ELECTRONICS
VISHAY
BOURNS
TT ELECTRONICS
VISHAY
BOURNS
PRECISION RESISTIVE
PRODUCTS
VISHAY
VISHAY BC COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY
TT ELECTRONICS
KOA
R203, 212, 399, 341 4.0 0698-3430 RESISTOR 21.5 +-1pct .125W TF TC=0+-100 5053HD21R50F
R204, 214 2.0 0757-0403 RESISTOR 121 +-1pct .125W TF TC=0+-100 5053HD121R0F
R205, 213 2.0 0683-0335 RESISTOR 3.3 +-5PCT .25W CF TC=0-400 CF 14 3R 5%
R210, 211, 237, 328 4.0 0698-3631 RESISTOR 330 +-5pct 2W MO TC=0+-200 FP69 330R 5%
7 of 13
CMF-5521R5FT-1
NK4H.125W1%+/100PPM21R5
CMF-551210FT-1
CF1/4C____3R3J
GS-33300
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
ASJ
KOA
VISHAY
TT ELECTRONICS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
R218, 219 2.0 0698-3432 RESISTOR 26.1 +-1pct .125W TF TC=0+-100 5053HD26R10F
CMF-5526R1FT-1
NK4H.125W1%+/-
100PPM26R1
R220 1.0 1810-0203 NET-RES 7 470.0 OHM 8-PIN 4308R-94Y-471
750-81
MSP08A01-471G
R221 1.0 0698-4470 RESISTOR 6.98K +-1pct .125W TF TC=0+-100 5053HD6K980F
CMF-55698FT-1
NK4H.125W1%+/100PPM6981
R222, 419 2.0 0757-0449 RESISTOR 20K +-1pct .125W TF TC=0+-100 5053HD20K00F
CMF-552002FT-1
NK4H.125W1%+/100PPM2002
R223 1.0 0698-3446 RESISTOR 383 +-1pct .125W TF TC=0+-100 5053HD383R0F
CMF-553830FT-1
NK4H.125W1%+/100PPM383R0
R225 1.0 0757-0279 RESISTOR 3.16K +-1pct .125W TF TC=0+-100 5053HD3K160F
CMF-553161FT-1
NK4H.125W1%+/-
100PPM3161
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
BOURNS
TT ELECTRONICS
VISHAY
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
R234 1.0 0757-0401 RESISTOR 100 +-1pct .125W TF TC=0+-100 5053HD100R0F
R235, 304, 307, 364 4.0 0698-3279 RESISTOR 4.99K +-1pct .125W TF TC=0+-100 5053HD4K990F
R240 1.0 0698-4406 RESISTOR 115 +-1pct .125W TF TC=0+-100 CMF-551150FT-1
8 of 13
CMF-551000FT-1
CMF-554991FT-1
NK4H.125W1%+/-
100PPM4991
5053HD115R0F
NK4H.125W1%+/-
100PPM115R0
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY
VISHAY BC COMPONENTS
E-SIL COMPONENTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
R241, 324, 354 3.0 0757-0283 RESISTOR 2K +-1pct .125W TF TC=0+-100 5053HD2K000F
CMF-552001FT-1
NK4H.125W1%+/-
100PPM2001
R244, 333 2.0 0698-3159 RESISTOR 26.1K +-1pct .25W TF TC=0+-100 MFS 1/4 D C ___ 2612 F
5053HD26K10F
CMF-552612FT-1
NK4H.125W1%+/100PPM2612
R245, 246, 316 3.0 0698-8827 RESISTOR 1M +-1pct .125W TF TC=0+-100 5053HD1M000F
CMF-551004FT-1
R249, 342 2.0 0757-0462 RESISTOR 75K +-1pct .125W TF TC=0+-100 5053HD75K00F
CMF-557502FT-1
NK4H.125W1%+/100PPM7502
R250 1.0 0698-4099 RESISTOR 139 +-1pct .125W TF TC=0+-100 CMF-551390FT-1
230618681391
NK4H.125W1%+/100PPM139R0
R302 1.0 0811-3896 RES 20 5pct 10W CPCP-10 20 5%
PV10SX-20 OHMS 5%
PWRN10-2R-5%
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
KOA
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY
VISHAY BC COMPONENTS
E-SIL COMPONENTS
VISHAY
RCD COMPONENTS
TT ELECTRONICS
R303 1.0 5080-2217 SHUNT .005 OHMS
R305, 306, 310, 343, 348 5.0 0757-0441 RESISTOR 8.25K +-1pct .125W TF TC=0+-100 5053HD8K250F
R308, 317, 349 3.0 0757-0472 RESISTOR 200K +-1pct .125W TF TC=0+-100 5053HD200K0F
R311 1.0 0757-0458 RESISTOR 51.1K +-1pct .125W TF TC=0+-100 5053HD51K10F
9 of 13
CMF-558251FT-1
NK4H.125W1%+/-
100PPM8251
CMF-552003FT-1
NK4H.125W1%+/100PPM2003
CMF-555112FT-1
NK4H.125W1%+/100PPM5112
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
R312, 322 2.0 0699-0070 RESISTOR 3.16M +-1pct .125W TF TC=0+-100 B0207C3M160F
CMF-553164FT-1
R313 1.0 0698-0085 RESISTOR 2.61K +-1pct .25W TF TC=0+-100 5043ED2K610F
CMF-552611FT-1
NK4H.25W1%+/-
100PPM2611
R315 1.0 0698-4435 RESISTOR 2.49K +-1pct .125W TF TC=0+-100 5053HD2K490F
CMF-552491FT-1
NK4H.125W1%+/-
100PPM2491
R318 1.0 0757-0349 RESISTOR 22.6K +-1pct .125W TF TC=0+-100 5053HD22K60F
CMF-552262FT-1
NK4H.125W1%+/100PPM2262
R321, 346 2.0 0699-2248 RESISTOR 47.5K +-0.05pct .125W TF TC=0+-5 PR1/10T547K5.05%
PTF-5647K50AT-16
UXBA47K500A
R325, 326 2.0 0699-3415 RES-FXD 5K +-0.05PCT .1W TF TC=0+-5 PTF-565K0AT-16
UXBA5K0000A
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
PRECISION RESISTIVE
PRODUCTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
R327, 328 2.0 0699-3103 RESISTOR 19K +-0.05pct .1W TF TC=0+-5 PTF-56-7
R331, 332 2.0 0698-6362 RESISTOR 1K +-0.1pct .125W TF TC=0+-25 CMF-551001BT-9
R334 1.0 0698-7933 RESISTOR 3.83K +-0.1pct .125W TF TC=0+-25 B0207E3K830B
R336 1.0 0699-3417 RESISTOR 3.85K +-0.05pct .1W TF TC=0+-5 PTF-563K850AT-16
R338 1.0 0699-3416 RES-FXD 100K +-0.05PCT .25W TC 0+-5 0207 PTF-56100K0AT-16
10 of 13
UXBA19K000A
MBB0207-25 0,1% CT 1K
CMF-553831BT-9
UXBA3K8500A
UXB02070G1003A__00
VISHAY
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY BC COMPONENTS
VISHAY
VISHAY
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
R344 1.0 0698-3450 RESISTOR 42.2K +-1pct .125W TF TC=0+-100 5053HD42K20F
CMF-554222FT-1
NK4H.125W1%+/-
100PPM4222
R347, 350, 360, 416 4.0 8159-0005 RESISTOR 0 CWM 106
L-2007-1
YZO 1/4
Z-25
Z25C
R352 1.0 0683-2255 RESISTOR 2.2M +-5pct .25W CF TC=0-830 CF 14 2M 5%
CF1/4C__225J
R353 1.0 0698-4443 RESISTOR 4.53K +-1pct .125W TF TC=0+-100 5053HD4K530F
CMF-554531FT-1
NK4H.125W1%+/100PPM4531
R359 1.0 0698-6360 RES-FXD 10K +-0.1PCT 0.125W TC 0+-25 0207 CMF-551002BT-9
MBB0207-25 0.1%__10K
R362 1.0 0757-0465 RESISTOR 100K +-1pct .125W TF TC=0+-100 5053HD100K0F
CMF-551003FT-1
NK4H.125W1%+/100PPM1003
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
MICRO-OHM
GETTIG ENGRG & MFG
TT ELECTRONICS
ASJ
KOA
ASJ
KOA
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
R365, 420 2.0 0698-6358 RES-FXD 100K +-0.1PCT 0.125W TC 0+-25 0207 RNS 1/8 E C ___ 1003 B
R367-369, 423, 427-429 7.0 0698-8812 RESISTOR 1 +-1pct .125W TF TC=0+-100 5053HD1R000F
R401 1.0 0699-1069 RESISTOR 229 +-0.1pct .125W TF TC=0+-25 B0207E229R0B
R407, 408 2.0 0757-0407 RESISTOR 200 +-1pct .125W TF TC=0+-100 5053HD200R0F
RT301 1.0 0837-0397 THERMISTOR CYL CHIP 10K-OHM 135-103LFW-J01 HONEYWELL
S003 1.0 3101-2243 SWITCH-DIP RKR 8-1A 0.05A 30VDC 76YY22318ST GRAYHILL
11 of 13
CMF-551003BT-9
MBB0207-25 0.1%__100K
CMF-551R0FT-1
CMF-552290BT-9
CMF-552000FT-1
NK4H.125W1%+/-
100PPM200R0
KOA
VISHAY
VISHAY BC COMPONENTS
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
S201 1.0 3101-2966 SWITCH-SL DPDT STD 5A 250VAC PC 4021.4922 MARQUARDT
T201 1.0 9100-5020 XFMR-SWITCHING 9100-5020 AGILENT TECHNOLOGIES
T202 1.0 9140-0974
U001 1.0 1821-1479 IC 16-BIT MCU 16-MHZ CMOS 68-PLCC C INTEL
U001a 1.0 1200-1274 SOCKET-IC-PLCC 68-CONT SQUARE DIP-SLDR 1-822473-6
U002 1.0 5080-2529 ROM-PRGMD 1818-4855
U002a 0.0 1818-4855 IC 512K-BIT OTP 90-NS CMOS M27C512-90B6 STMICROELECTRONICS
U002b 1.0 1200-0567 SOCKET-IC-DIP 28-CONT DIP DIP-SLDR 1-390262-2
U003 1.0 1818-4134 IC 64K BIT SRAM 20-NS CMOS 28-DIP CY7C185-20PXC CYPRESS SEMICONDUCTOR
U004 1.0 1820-2724 IC LCH TTL/ALS TRANSPARENT OCTL DM74ALS573BN
U005 1.0 5080-2236 PRGMD-GAL,DECODE 1820-5398
U005a 0.0 1820-5398 IC PLD EEPLD UNPRGMD CMOS GAL16V8 GAL16V8D-25QP LATTICE SEMICONDUCTOR
U005b 1.0 1200-0639 SOCKET-IC-DIP 20-CONT DIP DIP-SLDR 1-390261-6
U006 1.0 5080-2530 GAL-PRGMD 1820-5398
U006a 1.0 1820-5398 IC PLD EEPLD UNPRGMD CMOS GAL16V8 GAL16V8D-25QP LATTICE SEMICONDUCTOR
U007 1.0 1826-2402 D/A 12-BIT 24-PLASTIC CMOS MX7837KN+
PE-51718 TECHNITROL
TYCO ELECTRONICS AMP
PLCC68PT2
DILB28P223TLF
SN74ALS573CN
DILB20P-223TLF
AD7837BNZ
FCI FRAMATOME BERG
TYCO ELECTRONICS AMP
FCI FRAMATOME BERG
FAIRCHILD SEMICONDUCTOR
TEXAS INSTRUMENTS
TYCO ELECTRONICS AMP
FCI FRAMATOME BERG
MAXIM INTEGRATED
PRODUCTS
ANALOG DEVICES
U011 1.0 1826-2284 IC PWR MGT-V-REF-FXD 2.4/2.6V 8 PINS LT1019ACN8-2.5 LINEAR TECHNOLOGY
U012 1.0 1826-2484 A/D 16-BIT 20-PLASTIC CMOS CS5501-BP CIRRUS LOGIC
U013 1.0 1820-3399 IC FF CMOS/HC D-TYPE POS-EDGE-TRIG COM MM74HC273N
U014 1.0 1826-1409 IC OP AMP LOW-NOISE DUAL 8 PIN DIP-P LT1013CN8 LINEAR TECHNOLOGY
U015 1.0 1826-1021 ANALOG MULTIPLEXER CHNL 16 -DIP-P DG508ACJ
U017-20, 25, 204, 306 7.0 1990-1502 OPTO-ISOLATOR LED-PDIO IF=8MA-MAX
U021, 23 2.0 1820-2110 IC INTERFACE DRVR BIPOLAR NAND DUAL SN75477P TEXAS INSTRUMENTS
U024, 302 2.0 1826-1896 IC OP AMP PRCN 8 PIN DIP-P LT1001CN8
BVR=5V
12 of 13
FAIRCHILD SEMICONDUCTOR
SN74HC273N
MC74HC273ANG
ADG508AKNZ
HCPL-4503-000E AVAGO TECHNOLOGIES
LT1001CN8
TEXAS INSTRUMENTS
ON SEMICONDUCTOR
VISHAY
ANALOG DEVICES
LINEAR TECHNOLOGY
MAXIM INTEGRATED
PRODUCTS
66101-60022 Power Board Parts List
Reference Designator
Agilent P/N
Description
U026 1.0 1826-2341 IC PWR MGT-V-REG-SWG 8 PINS DIP-P PKG TL7702BCP TEXAS INSTRUMENTS
U201, 202 2.0 1820-8433 IC INTERFACE DRVR MOS GATED
HIGH VOLTAGE
U203 1.0 1826-2075 IC PWR MGT-V-REG-SWG 0/13.5V 16 PINS UC3825N TEXAS INSTRUMENTS
U205 1.0 1858-0069 TRANSISTOR ARRAY 18-LEAD PLSTC DIP ULN2803A STMICROELECTRONICS
U206 1.0 1826-0175 IC COMPARATOR GP DUAL 14 PIN DIP-P LM319NNOPB NATIONAL SEMICONDUCTOR
U22 1.0 1819-0161 IC 2K-BIT EEPROM 10-MS CMOS 8-PDIP AT93C56A-10PU-2.7 ATMEL
U301, 307 2.0 1826-0346 IC OP AMP GP DUAL 8 PIN DIP-P LM358NNOPB NATIONAL SEMICONDUCTOR
U303 1.0 1826-1370 IC COMPARATOR QUAD 16 PIN DIP-P
U304 1.0 1826-1895 IC OP AMP PRCN 8 PIN DIP-P LT1001ACN8 LINEAR TECHNOLOGY
U305 1.0 1826-1553 IC OP AMP PRCN QUAD 14 PIN DIP-P LT1014DN LINEAR TECHNOLOGY
VR201 1.0 1902-0968 DIODE-ZNR 27V 5pct DO-35 PD=.4W
TC=+.095pct
VR302 1.0 1902-0951 DIODE-ZNR 5.1V 5pct DO-35 PD=.4W
TC=+.035pct
VR304, 305 2.0 1902-0018 DIODE-ZNR 1N941 11.7V 5pct DO-7 PD=.5W 1N941 MICROSEMI
W001, 003, R242 3.0 7175-0057 RESISTOR 0 CWM 5020CX0R000S12AAZ
Y001 1.0 0410-2109 CRYSTAL-QUARTZ 12.000 MHZ AT-51-12.000MHZ
IR2110 INTERNATIONAL RECTIFIER
1N971B MICROSEMI
SZ30035-9RL
1N5231B
5020CX0R000S12AAZ
7175-0057
V-10-22
HC49S-12MHZ
KD2109
TAK CHEONG ELECTRONICS
MICRO COMMERCIAL
COMPONENTS
VISHAY BC COMPONENTS
VISHAY
DOVER
VESTAL ELECTRONIC
DEVICES
NIHON DEMPA KOGYO
FOX ELECTRONICS
KYUSHU DENTSU
2.0 0811-2568 RESISTOR 1 +-1pct 3W PWI TC=0+-50 RS-2B 1 1%
T2B-9-1R1%
1.0 0698-4202 RESISTOR 8.87K +-1pct .125W TF TC=0+-100 5053HD8K870F
CMF-558871FT-1
NK4H.125W1%+/100PPM8871
2.0 0160-4323 CAP-FXD 0.047uF +-20PCT 275V PPR-MET PME271M547MR30
MP3-X2-
0.047uF/275Vac/20%,7X1
5X19, Pitch15mm
13 of 13
VISHAY
TT ELECTRONICS
VISHAY BC COMPONENTS
VISHAY
E-SIL COMPONENTS
EVOX/RIFA
WIMA
Manual Part Number: 5989-6865EN
Printed in U.S.A. April 2007
Copyright © 2007 Agilent Technologies, Inc. All Rights Reserved.
Loading...
