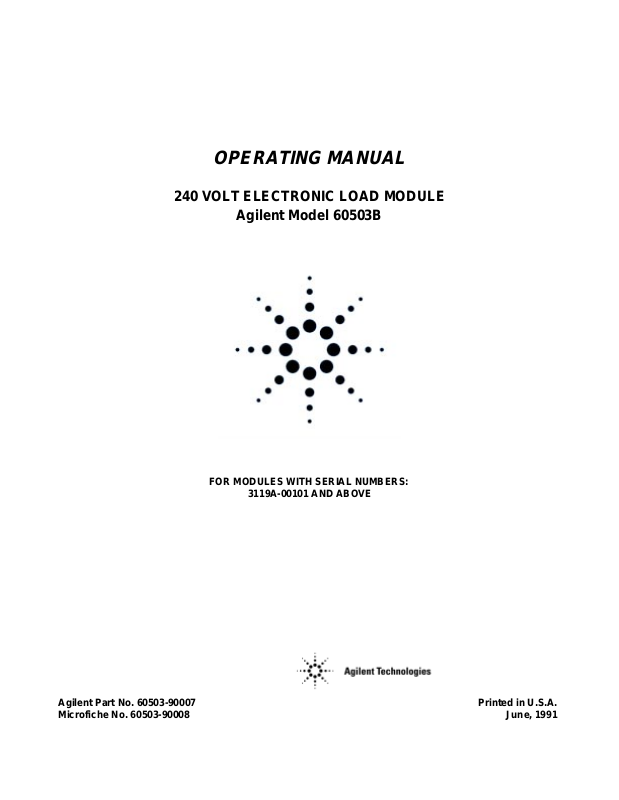

OPERATING MANUAL

240 VOLT ELECTRONIC LOAD MODULE

Agilent Model 60503B

FOR MODULES WITH SERIAL NUMBERS:

3119A-00101 AND ABOVE

Agilent Part No. 60503-90007 Printed in U.S.A.
Microfiche No. 60503-90008 June, 1991

DECLARATION OF CONFORMITY

according to ISO/IEC Guide 22 and EN 45014

Manufacturer’s Name: Agilent Technologies
Manufacturer’s Address: New Jersey Division

140 Green Pond Road
Rockaway, NJ 07866 U.S.A.

declares that the product

Product Name: Load mainframe and modules
Model Number(s): Agilent 6050A, 6051A mainframes with modules

Agilent 60501A/B, 60502A/B, 60503A/B, 60504A/B, 60507A/B

conform(s) to the following Product Specifications:

Safety: IEC 348:1978 / HD401 S1:1981

1

EMC: CISPR 11:1990 / EN 55011:1991 - Group 1, Class B

IEC 801-2:1991 / EN 50082-1:1992 - 4kV CD, 8 kV AD
IEC 801-3:1984 / EN 50082-1:1992 - 3 V/m
IEC 801-4:1988 / EN 50082-1:1992 - 0.5 kV Sig. Lines, 1 kV

Power Lines

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC
Directive 89/336/EEC and carries the CE-marking accordingly.

Note 1: The product family was introduced prior to 12/93

New Jersey January 1997
Location Date Bruce Krueger / Quality Manager

European Contact: Your local Agilent Technologies Sales and Service Office or Agilent Technologies GmbH,
Department TRE, Herrenberger Strasse 130, D-71034 Boeblingen (FAX:[phone])

240-Volt Module

About This Manual

This manual provides information for the Agilent 60503B 250-Watt Electronic Load Module. It is designed as a
supplement to the Agilent 6050A/6051A Multiple Input Mainframe Electronic Load Operating Manual (part number 06050-

90001). Four tables provide the following module-specific information:

Table 60503-1 lists both the specifications and supplemental characteristics of the module. Specifications indicate
warranted performance in the 25 °C ± 5 °C region of the total temperature range (0 to 55° C). Supplemental characteristics

indicate non-warranted, typical performance and are intended to provide additional information by describing performance
that has been determined by design or type testing.

Table 60503-2 lists the ranges that can be programmed in constant current, constant resistance, and constant voltage modes.
It shows the maximum and minimum programming values for each range. Refer to this table when programming the
module locally as described in Chapter 4, or remotely as described in Chapter 5 of the operating manual.

Table 60503-3 gives the factory default values of the module. Unless you have saved your own wake-up settings, the
module will be set to the factory default values whenever power is applied. See Chapter 4 in the operating manual.

Table 60503-4 provides calibration information for the module. This information is needed to perform the annual
calibration procedure described in Chapter 6 of the operating manual.

Module Installation and Operation

Except for the module-specific information in this manual, all installation, operation, and calibration instructions are given
in the Mainframe Operating Manual. The Agilent Electronic Load Family Programming Reference Manual (part number
06060-90005) contains complete programming details that apply to all Electronic Load models.

Note: The following information in Chapter 2 of the Mainframe Operating Manual does not apply to electronic

load modules with the serial numbers listed on the title page of this manual: The section titled "Extended
Power Operation", and the section titled "Extended Power Limit". Also for these modules, change the 3­second delay referred to under "Nominal Power Limit" to 50 milliseconds.

Items Supplied

In addition to this manual, a 10-pin connector plug is also shipped with your Electronic Load module. Refer to Chapter 3 in
the operating manual for more information.

1

Table 60503-1. Specification and Supplemental Characteristics

SPECIFICATIONS

DC Input Rating:

Current: 0 to 10 A
Voltage: 3 V to 240 V (minimum dc operation from 0 to 2 V for 0 to 10 A)
Power: 250 W at 40 °C (derated to 187 W at 55 °C)

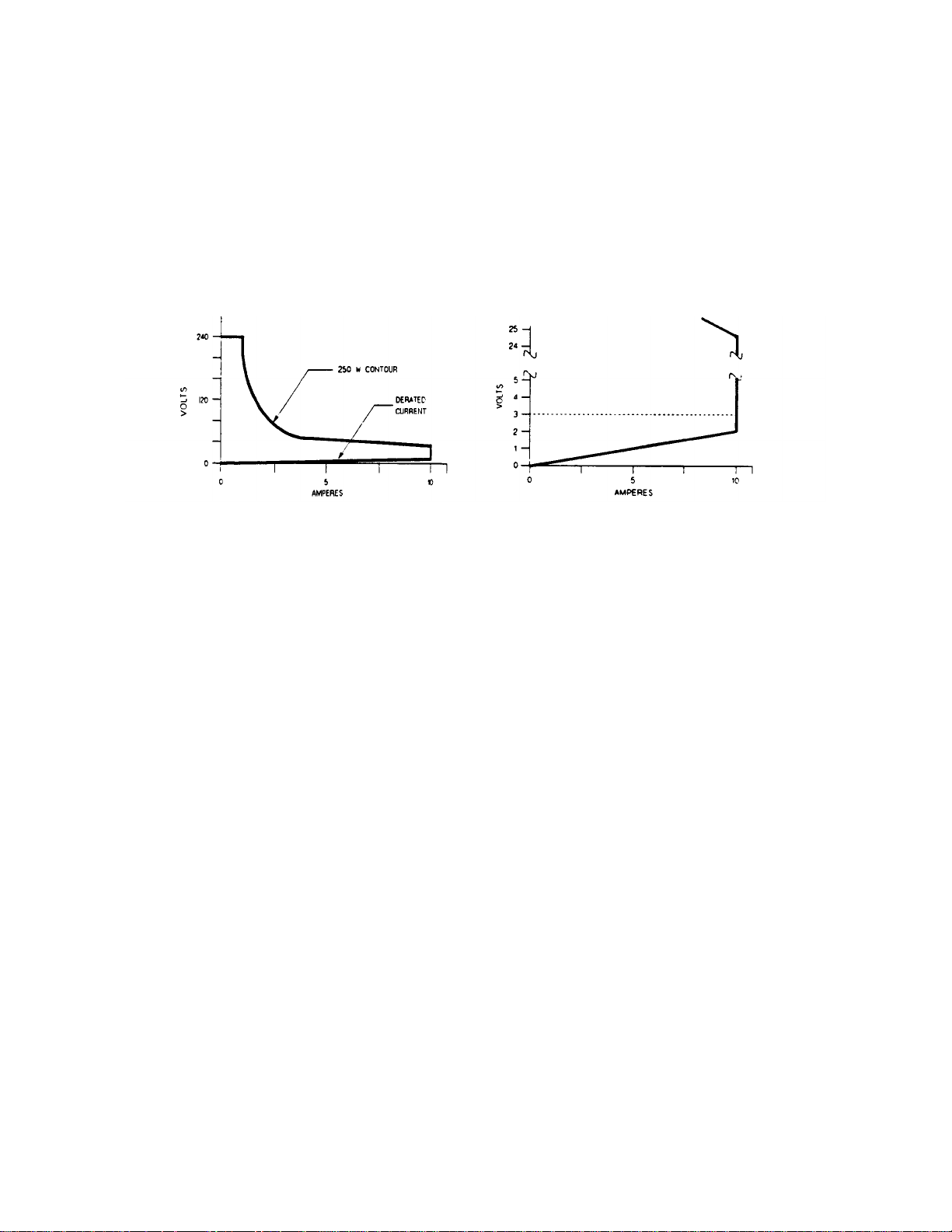

A. OPERATING CHARACTERISTICS B. DERATED CURRENT DETAIL

Constant Current Mode:

Ranges: 0 to 1 A; and 0 to 10 A
Accuracy: (after 30 second wait): ± 0.15% ± 10 mA (both ranges)
Resolution: 0.26 mA (1 A range); 2.6 mA (10 A range)
Regulation: 8 mA (both ranges)
Temperature Coefficient: 150 ppm/°C ± l mA/°C (both ranges)

Constant Resistance Mode:

Ranges: 0.20 to 24 Ω; 24 Ω to 10 kΩ; and 240 Ω to 50 k
Accuracy: ± 0.8% ± 200 mΩ with ≥ 1 A at input (24 Ω range);

Resolution: 6 mΩ (24 Ω range); 0.011 mS (10 kΩ range); 0.001 mS (50 kΩ range)
Regulation: 10 mV with remote sensing (24 Ω range); 8 mA (10 k and 50 kΩ ranges)
Temperature Coefficient: 800 ppm/°C ± 10 mΩ/°C (24 Ω range);

Constant Voltage Mode:

Range: 0 to 240 V
Accuracy: ± 0.12% ± 120 mV
Resolution: 64 mV
Regulation: 10 mV (remote sense); 40 mV (local sense)
Temperature Coefficient: 120 ppm/°C ± 10 mV/°C

Ω

± 0.3% ± 0.3 mS with ≥ 24 V at input (10 k and 50 kΩ ranges)

300ppm/°C ± 0.03 mS/°C (10 k and 50 kΩ ranges)

2

Table 60503-1 Specifications and Supplemental Characteristics (continued)

Transient Operation:

Continuous Mode

Frequency Range: 0.25 Hz to 10 kHz
Frequency Resolution: 4%
Frequency Accuracy: 3%
Duty Cycle Range: 3% to 97% (0.25 Hz to 1 kHz); 6% to 94% (1 kHz to 10 kHz)
Duty Cycle Resolution: 4%
Duty Cycle Accuracy: 6% of setting ± 2%

Pulsed Mode
Pulse Width: 50

Transient Current Level (0 to 1 A and 0 to 10 A ranges):

Resolution: 4 mA (1 A range); 43 mA (10 A range)
Accuracy: ± 0.18% ± 13 mA (1 A range); ± 0.18% ± 50 mA (10 A range)
Temperature Coefficient: 180 ppm/°C ± 1.2 mA/°C

Transient Resistance Level (0.20 to 24 Ω, 24 Ω to 10 kΩ, and 240 Ω to 50 kΩ ranges):

Resolution: 100 mΩ (24 Ω range); 0.18 mS (10 kΩ range); 0.018 mS (50 kΩ range)
Accuracy: ± 0.8% + 200 mΩ with > 1 A at input (24 Ω range)

µ

s ± 3% minimum; 4 s ± 3% maximum

± 0. 3% + 0.5 mS with ≥ 24 V at input (10 kΩ range)
± 0.3% + 0.4 mS with ≥ 24 V at input (50 kΩ range)

Transient Voltage Level (0 to 240 V):

Resolution: 1.0 V
Accuracy: ± 0.15% ± 1.1 V
Temperature Coefficient: 120 ppm/°C ± 10 mV/°C

Current Readback:

Resolution: 2.7 mA (via GPIB); 10 mA (front panel)
Accuracy: (after 30 minute wait): ± 0.12% ± 10 mA
Temperature Coefficient: 100 ppm/

Voltage Readback:

Resolution: 67 mV (via GPIB); 100 mV (front panel)
Accuracy: ± 0.1% ± 150 mV
Temperature Coefficient: 100 ppm/°C ± 8 mV/°C
Maximum Readback Capability: 260 V (typical)

Power Readback:

Accuracy: ± 0.2% ± 3 W

°

C ± l mA/ °C

3

Table 60503-1 Specifications and Supplemental Characteristics (continued)

External Analog Programming 0 to 10 V (dc or ac):

Bandwidth: 10 kHz (3 db frequency)
Accuracy: ± 3% ± 10 mA (0 to 1 A range)

± 3% ± 20 mA (0 to 10 A range)
± 0.5% ± 150 mV (0 to 240 V range)

Temperature Coefficient: 150 ppm/°C ± 1 mA/°C (current ranges)

120 ppm/°C ± 10 mV/°C (voltage range)

External Current Monitor (0 to 10 V):

Accuracy: ± 3% ± 10 mA (referenced to analog common)
Temperature Coefficient: 100 ppm/°C ± l mA/°C

External Voltage Monitor (0 to 10 V):

Accuracy: ± 0.4% ± 240 mV (referenced to analog common)
Temperature Coefficient: 70 ppm/

Remote Sensing: 5 Vdc maximum between sense and input binding posts

°

C ± 1.2 mV/ °C

Maximum Input Levels:

Current: 10.2 A (programmable to lower limits)
Voltage: 250 V

Minimum Operating Voltage: 2 V (derated to 0 V at 0 A)
PARD (20 Hz to 10 MHz noise):

Current: 1 mA rms/10 mA p-p
Voltage: 6 mV rms

DC Isolation Voltage: ± 240 Vdc between + or - input binding post and chassis ground

Digital Inputs:

Vlo: 0.9 V maximum at Ilo = -1 mA
Vhi 3.15 V minimum (pull-up resistor on input)

Digital Outputs:

Vlo: 0.72 V maximum at Ilo = 1 mA
Vhi: 4.4 V minimum at Ilo - 20 µA

SUPPLEMENTAL CHARACTERISTICS

Programmable Slew Rate (For any given input transition, the time required will be either the total slew time or a minimum
transition time, whichever is longer. The minimum transition time increases when operating with input currents under 0.2 A
and decreases with input currents over 2 A. The following are typical values; ± 25% tolerance):

4

Table 60503-1 Specifications and Supplemental Characteristics (continued)

Current Slew Rate:*

Rate # 10 A Range Step 1 A Range Step Transition Time

1 0.17 A/ms 17 A/s 8.0 ms
2 0.42 A/ms 42 A/s 3.2 ms
3 0.83 A/ms 83 A/s 1.6 ms
4 1.7 A/ms 0.17 A/ms

5 4.2 A/ms 0.42 A/ms
6 8.3 A/ms 0.83 A/ms
7 17 A/ms 1.7 A/ms
8 42 A/ms 4.2 A/ms

9 83 A/ms 8.3 A/ms
10
11
12

Voltage Slew Rate:

Rate # Voltage Range Step Transition Time*

1 4 V/ms 8.0 ms

2 10 V/ms 3.2 ms

3 20 V/ms 1.6 ms

4 40 V/ms

5 100 V/ms

6 200 V/ms

7

8

9

0.17 A/µs

0.42 A/µs

0.83 A/µs
*AC performance specified from 3 to 240 V.

0.4 V/µs 100 µs

1 V/µs 100 µS
2 V/µs 100 µS

*Transition time based on low capacitance current source.

17 A/ms
42 A/ms
83 A/ms

800 µs
320 µs
160 µs

800 µs
320 µs
160 µs
80 µs
32 µs
20 µs
20 µs
16 µs
16 µs

Resistance Slew Rate (24 Ω range): Uses the value programmed for voltage slew rate.

Resistance Slew Rate (10 k and 50 kΩ ranges): Uses the value programmed for current slew rate.

Transient Current Overshoot (When programmed from 0A):

Range Transient Current Level Current Slew Rate Overshoot*

10 A 2-10 A All slew rates 0

0.5 A

0.5 A 0.17 A/ms to 42 A/ms 0
1 A

1 A

1 A 0.5 A 8.3 A/ms 4%

0.5 A 0.17 A/s and 0.17 A/ms 0
1 A All slew rates 0

*All overshoot values assume a total inductance of lµH, or less, in the load leads connected to the D.U.T.

0.17 A/µs to 0.83 A/µs

0.83 A/µs

0.17 A/ms to 0.17 A/µs

5

5%

1%

0

Table 60503-1 Specifications and Supplemental Characteristics (continued)

Source Turn-On Current Overshoot: Less than 5% of final value (in CC and CR modes when connected to power

supplies with voltage rise times of greater than 500µs).

Programmable Short Circuit: 0.20 Ω (0.10 Ω typical)

Programmable Open Circuit: 80 kΩ (typical)

Drift Stability (over an 8 hour interval):

Current: ±0.03% ±1.5 mA
Voltage: ±0.01% ±20 mV

Reverse Current Capacity: 20 A when unit is on; 10 A when unit is off

Weight: 3.2 kg (7 lbs.)

Table 60503-2. Programming Ranges

Function Front Panel Front Panel HPSL Command Range of Values

Key Display (Short Form)

Constant Current

Set Range C:RNG value "CURR:RANG value"
Low Range
High Range
Set Main Level CURR value "CURR value"
Low Range 0 to 1 A

High Range 0 to 10 A
Set Slew Rate

Low Range
High Range
Set Transient Level C:TLV value "CURR:TLEV value" same as main level
*Set Triggered Level "CURR:TRIG value" same as main level

Constant Resistance

Set Range R:RNG value "RES:RANG value"
Low Range
Middle Range
High Range
Set Main Level RES value "RES value"
Low Range
Middle Range
High Range
Set Slew Rate
Low Range V:SLW value "VOLT:SLEW value" same as voltage slew

Middle/High Range C:SLW value "CURR:SLEW value" same as current slew
Set Transient Level R:TLV value "RES:TLEV value" same as main level

*Set Triggered Level "RES:TRIG value" same as main level

Constant Voltage

Set Main Level VOLT value "VOLT value" 0 to 240 V
Set Slew Rate
Set Transient Level V:TLV value "VOLT:TLEV value" same as main level
*Set Triggered Level "VOLT:TRIG value" same as main level

(shift)

(shift)

(shift)

C:SLW value "CURR:SLEW value"

V:SLW value "VOLT:SLEW value"

≥

0 and ≤ 1 A

> l A and ≤ 10 A

0.000007 to .083 (A/µs)

0.00017 to 0.83 (A/µs)

≥

0 and ≤ 24
> 24 Ω and ≤ 24 k
>24 kΩ and ≤ 24 k

0 to 24
24 Ω to 24 k
240 Ω to 240 k

0.004 to 2 (V/µs)

Ω

Ω

Ω

Ω

Ω

Ω

6

Table 60503-2. Programming Ranges (continued)

Function Front Panel Front Panel HPSL Command Range of Values

Key Display (Short Form)

Transient Operation

Set Frequency FREQ value "TRAN:FREQ value" 0.25 Hz to 10 kHz
Set Duty Cycle

*Set Pulse Width "TRAN:TWID value" 0.00005 to 4 s

Trigger Operation

*Set Trigger Period "TRIG:TIM value" 0.000008 to 4 s

Current Protection

*Set Current Level "CURR:PROT value" 0 to 10.2 A
*Set Delay Time "CURR:PROT:DEL value" 0 to 60 s

Function Settings Function Setting

CURR level 0 A Mode (CC, CR, CV) CC
CURR transient level 0 A Input (on/off) on
*CURR slew rate

CURR range 10 A

*CURR protection (on/off) off ***TRAN mode continuous
**CURR protection level 10.2 A (continuous, pulse, toggle)
**CURR protection delay 15 s TRAN frequency 1 kHz

RES level
RES transient level
RES range

VOLT level 240 V **TRIG period 0.001 s
VOLT transient level 240 V **PORT0 output (on/off) off (logic 0)
VOLT slew rate

The *RST command resets the CURR slew rate to 0.83 A/µ, not to the factory default.

(shift)

*Can only be programmed remotely via the GPIB.

DCYCLE value "TRAN:DCYC value" 3-97% (0.25 Hz-1 kHz)

6-94% (1 kHz-10 kHz)

Table 60503-3. Factory Default Settings

0.17 A/µs

Ω

50 k

Ω

50 k

Ω

50 k

2 V/µs

Short (on/off) off

Transient operation (on/off) off

TRAN duty cycle 50%
**TRAN pulse width 0.5 ms

**TRIG source hold
(bus, external, hold, timer, line)

**CAL mode (on/off) off

**Can only be programmed remotely via the GPIB.
***Continuous transient mode is the only mode available at the front panel. Pulsed, toggled, and continuous modes can
all be programmed remotely via the GPIB.

7

Table 60503-4. Calibration Information
Ranges and
Calibration Points

High Current Range Hi_curr_rng 10 25 V/10.5 A 15 A
High Current Offset Hi_curr_offset 0.0048
Low Current Range Lo_curr_rng 1 25 V/2 A 15 A
Low Current Offset Lo_curr_offset 0.0032
Voltage Range N/A N/A 246 V/0.6 A N/A
Voltage Hi point Volt_hipt 240
Voltage Lo point Volt_lopt 2
Low Resistance Range Lo_res_rng 24 60 V/1.82 A 15 A
Low Resistance Hi point Lo_res_hipt 23.9
Low Resistance Lo point Lo_res_lopt 0.88
Middle Resistance Range Mid_res_rng 240 43.6 V/4 A 15 A
Middle Resistance Hi point Mid_res_hipt 500
Middle Resistance Lo point Mid_res_lopt 24
High Resistance Range Hi_res_rng 24020 240 V/2 A 15 A
High Resistance Hi point Hi_res_hipt 2000
High Resistance Lo point Hi_res_lopt 240

Variables Variables

Value

Power Supply

Settings

Current

Shunt

8

Agilent Sales and Support Office

For more information about Agilent Technologies test and measurement products, applications, services, and for a current
sales office listing, visit our web site: http://www.agilent.com/find/tmdir

You can also contact one of the following centers and ask for a test and measurement sales representative.

United States:

Agilent Technologies
Test and Measurement Call Center
P.O. Box 4026
Englewood, CO 80155-4026
(tel) 1 800 452 4844

Canada:

Agilent Technologies Canada Inc.
5150 Spectrum Way
Mississauga, Ontario
L4W 5G1
(tel) 1 877 894 4414

Europe:

Agilent Technologies
Test & Measurement European Marketing Organisation
P.O. Box 999
1180 AZ Amstelveen
The Netherlands
(tel) (31 20) 547 9999

Latin America:

Agilent Technologies
Latin American Region Headquarters
5200 Blue Lagoon Drive, Suite #950
Miami, Florida 33126
U.S.A.
(tel) [phone]
(fax) [phone]

Australia/New Zealand:

Agilent Technologies Australia Pty Ltd
347 Burwood Highway
Forest Hill, Victoria 3131
(tel) 1-800 629 485 (Australia)
(fax) (61 3) 9272 0749
(tel) 0 800 738 378 (New Zealand)
(fax) (64 4) 802 6881

Asia Pacific:

Agilent Technologies
24/F, Cityplaza One, 1111 King’s Road,
Taikoo Shing, Hong Kong
tel: [phone]
fax: [phone]

Japan:

Agilent Technologies Japan Ltd.
Measurement Assistance Center
9-1, Takakura-Cho, Hachioji-Shi,
Tokyo 192-8510, Japan
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840
Technical data is subject to change.

9
