Agilent 3499A Specifications Sheet

HP 3499A/B Switch/Control Mainframe

product

Test at the speed of the Revolution

CONFIDENCE

It’s what switching means to your test system

HP 3499A/B Switch/Control Mainframe

HP 3499 family is a high speed, high density switching solution for automatic test (ATE) applications that
provides a 30% cost and space savings over its predecessor-the HP 3488A.

The HP 3499A can scan at rates up to 80 channels per second, or open/close 200 channels in less than 0.1 second.
It can accommodate up to 5 plug-in option modules, routing up to 200 channels in a test system. The user can
choose from 19 plug-in modules to switch signals from DC to 26 GHz, or 1 mV to 250 V, or 1 mA to 5 A. The HP
3499B is a half-rack-width, 2-slot mainframe, switching up to 80 channels for ATE or desktop operations. Both
units have a concise user interface that is extremely useful for manual operation on the manufacturing floor or in
desktop applications. High performance switching modules, multi-function modules, built-in relay cycle counters
and easy interconnections, all give you confidence in our switching solution for your test system.

Contents

What can you expect from a switching system ........................... 3

Overview of front panel and rear panel............................................ 4

HP 3499A/B mainframe specifications..............................................4

Ideal switching solution for automatic test .................................... .5

ATE feature checklist.......................................................................... .6

Applications .......................................................................................... 7

Customize your HP 3499A/B with plug-in modules.......................... 8

Plug-in module selection guide.......................................................... 9

Module specifications

Multiplexer modules

40-channel multiplexer module ..........................................10

10-channel multiplexer module .......................................... 17

20-channel multiplexer module .......................................... 17

General purpose relay modules

40-channel general purpose relay module ....................... 11

10-channel general purpose relay module ....................... 18

20-channel general purpose relay module ....................... 18

Matrix modules

4 x 8 matrix module .............................................................. 12

4 x 4 matrix module .............................................................. 19

Digital I/O modules

32-bit digital I/O module....................................................... 13

16-bit digital I/O module....................................................... 20

Multifunction modules.............................................................. 14

Dual 1 x 4 VHF multiplexer

(300 MHz, 50Ω) module........................................................ 19

Breadboard module..................................................................20

Microwave module...................................................................21

Microwave relay driver module..............................................21

Dual 1 x 4 RF multiplexer

(1.3GHz, 50/75 Ω) module..................................................... 22

Rack mounting kits............................................................................. 23

Ordering information.......................................................................... 24

2

What can you expect from a high-speed and
high-density switching system that’s this affordable ?

Performance you can trust

While traditional switching mainframes open/close
relays in sequence, the HP 3499A/B use innovative
parallel driving circuits to open/close switches
simultaneously. The HP 3499A can drive up to 50
channels in 25 ms. The parallel operation of the HP
3499A/B significantly increases the test throughput of
an automated test system.

HP 3499 family also provides high-density modules with
up to 40 channels per module. Two multi-function
modules integrate switching and digital I/O in one
module and enhance system performance.

Powerful flexibility to get your job done

We put in a lot of effort to make the HP 3499 switching
family products as flexible as possible, so that it can be
tailored to meet your needs.

HP 3499 family includes two mainframes. HP 3499A is a
5-slot mainframe and HP 3499B, a 2-slot mainframe.
These two mainframes will accommodate a full range
of 19 different modules, including multiplexer, general
purpose relay, matrix, digital I/O, VHF module, RF
module, microwave module, Form-C relay, and two
special multifunction modules. By combining these
mainframes and modules, test engineers can set up
their test system with fewer modules in less space and
also reduce the cost and complexity of the test system.

High throughput in a small space. You can

increase test throughput without adding floor

"Just enough" functionality. Wide range of

Multi-function modules integrating switching

increasing reliability. Users can now have

simple, robust interconnections for system set-

HP 3499 Family Main Features

space.

modules to select from.

and digital I/O.

Built-in relay cycle counters for ease of

preventative maintenance.

Easy wiring for simplifying cabling and

up and fast module exchange.

Easy to use

Easy-to-use interface means quick test system set-up in
an automatic test environment. From the simplified
configuration procedures, to the self-guiding front
panel interface, to the easy-to-use module connection
accessories, we put in extra time and energy to save
your time and energy. Simple things, like the built-in
relay cycle counters and well-organized user
documentation, allow you to operate the HP 3499A/B
within 20 minutes after taking it out of the box,
resulting in an increased productivity.

Standard RS-232 and GPIB interfaces and SCPI
programming language make your test system
integration easy.

3

Higher density, higher speed and more flexible
than you could have ever imagined at this price

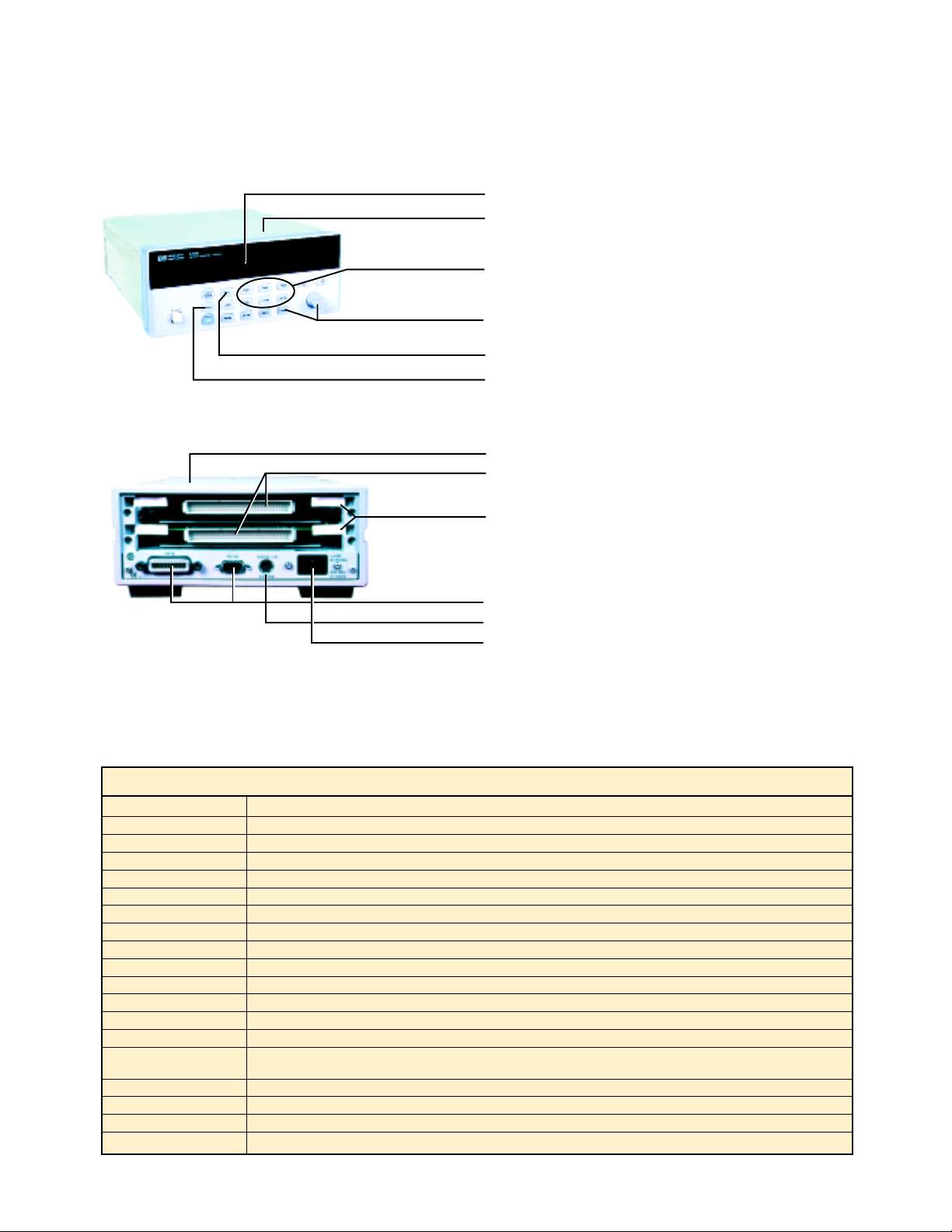

Easy to read display
Internal power supply to support parallel relay operation

Quick access to most-often-used functions

Intuitive self-guiding menu

Monitor display mode to make developing programs easier
Store/recall keys for easy/fast set up

Compatibility with all HP 3488A modules protects your investment
19 plug-in modules to choose from for switching and control

2-slot HP 3499B mainframe offers up to 80 channels
(5-slot HP 3499A mainframe offers up to 200 channels)

Built-in GPIB and RS-232 interfaces
Built-in digital I/O and external trigger link
Automatic line voltage sensing between 100-240 V

HP 3499 Mainframe Specification

Items Specifications
General

Display Vacuum Fluorescent
Rear Panel Connectors GPIB; RS-232; 8-pin mini DIN Connector (5 pins for Digital I/O, 3 pins for external trigger)
Power Supply 100 to 240 VAC universal input (47 Hz to 63 Hz); 100-127 VAC (400Hz); 40 VA maximum
Operating Environment 0° C to 55° C, <80% RH (0° C to 40° C)
Storage Environment -40° C to +70° C
Net Weight HP 3499A: 3.8 kg (8.4bs); HP 3499B: 2.5 kg (5.5bs)
Dimensions HP 3499A: H 89mm, W 426mm, L 348mm; HP 3499B: H 89mm, W 213mm, L 348mm
Safety Conforms to CSA, UL-1244, IEC 1010 Cat I
RFI and ESD CISPR 11, IEC 80 1/2/3/4
Warranty 1 year

System

Slot Capacity HP 3499A: 5 slots; HP 3499B: 2 slots.
Memory Battery backup, 4-year typical life (Temperature over 40°C will decrease battery life)

Relay Setting Time Automatically selected by the mainframe for each module.
Trigger Source External trigger (rear panel Mini-DIN connector); GPIB bus (GET,*TRG) or RS232 (*TRG)
External Trigger Trigger pulse width: >2us, External Trigger Delay: <2ms.
Built-in 4 digital I/O Input: TTL compatible; Vo (L): <0.8V@Io=-100mA;Vo (H): >2.4V@Io=1mA; Vout (H) ≤ 42V.

Store States: 10 states in SCPI mode; 40 states in HP3488A mode; Error store: 10 in SCPI mode, 1 in 3488 mode

4

High-speed and high-density switching solution ideal for automatic test

Customize your test system
with 2 mainframes and 19 modules

Test engineers want "just enough" testing and do not
want to pay extra for something they do not plan to use
immediately. The 2 mainframes and 19 modules allow
you to customize the HP 3499 switch and control
system to meet your unique requirements. Buy only
what you need - and add more modules later as your
application grows.

The HP 3499 family allows the user to select a cost­effective configuration for specific applications. Newly
designed high density switch modules reduce cost by
compacting a large number of channels on a single
module. The HP 3499A contains 5 slots that can
accommodate up to 200 channels switching for those
large switching applications on the manufacturing floor.
The HP 3499B contains 2 slots for switching up to 80
channels, a cost-effective solution for small
manufacturing or desktop applications. Both units are
designed for easy installation in a standard rack.

Use high-density modules or multifunction modules to
save money and space

HP 3499 family provides modules that contain up to 40
switching channels per module. This will greatly reduce
the per channel cost and save rack and floor space. T est
engineers can set up the test system with fewer
modules using less space and also reduce the cost and
complexity of the test system. The result is that users
spend less money without sacrificing performance and
quality.

Two multifunction modules are also introduced along
with the HP 3499 family. The N2264A includes 12
general purpose relay channels, 3 high current general
purpose relay channels, and 16 bits of digital I/O. The
N2265A combines a 4x4 matrix switch with 16 bits of
digital I/O on one module. With HP 3499B, users can
configure a small but versatile switching/control test
system. The 3 power relay channels in N2264A can
switch signals up to 5 A. These power relays are very
useful in test systems such as cellular phone test,
battery test and UPS test where only two or three high
current channels are required.

Easy wiring with versatile module connection
accessories

We understand that wiring requires a lot of your time
and energy, and the HP 3499 switching products have
been designed to make it easier for you. The HP 3499
family provides two connection accessories to minimize
your wiring time and effort. Both the removable screw
terminal blocks and crimp & insert terminal blocks are
detachable from the switching modules, eliminating the
need for rewiring the connector if a switching module
is replaced.

The six high-density modules use industry standard
DIN96 connectors for better flexibility. The modules
are equipped with DIN96-to-D50(25) cables for easy
connection to the DUT and test instruments. Using
these cables, you have completely eliminated all wiring.

Screw terminal block

Crimp & Insert terminal block

DIN96-to-D25 cable

5

Built-in relay cycle counter
to facilitate test system maintenance

In a high-speed automatic test equipment (ATE)
system, unplanned downtime can be fatal to a high­yield production line. To help test engineers perform
preventative maintenance by predicting relay end-of­life, there are built-in relay cycle counters on the 5
high-density switching modules, thereby avoiding
costly production line downtime. The relay cycle
counter automatically counts every individual relay
closure and stores the number in the on-board non­volatile memory. A simple "DIAG: CYC? Chan. xx "
command recalls the total number of cycles for
individual relays, making scheduled preventative
maintenance possible.

Take the guesswork

out of relay maintenance

The HP 3499A/B use our proprietary

relay maintenance systems to help you

predict relay end-of-life and avoid costly

production line down time. It

automatically counts every individual

switch closure and stores it in non-

Compatibility with HP 3488A

The HP 3499 family is both hardware and software
compatible to the world's most popular switch/control
unit -the HP 3488A. All 13 of the HP 3488A modules
will work in the HP 3499A/B mainframes. The HP
3499A/B can be operated with SCPI (Standard
Commands for Programmable Instruments) or the HP
3488A command sets. Upgrading from an HP 3488A to
an HP 3499A doubles your channel capacity and lowers
your cost per channel with no additional cost in
modules.

volatile memory on each module. You can

query the total number of cycles on any
individual channel so you can schedule

maintenance and avoid random end-of-

life failures.

ATE Feature Checklist

• Selection of full-rack-width and half-rack-width mainframes

• Total of 19 modules include multiplexers, general purpose relays, matrix switches, digital input
and output, VHF modules, RF modules, and microwave relays

• Switch signals from DC to 26 GHz, or from 1mV to 250 V, or from 1 mA to 5 A

• 2 multifunction plug-in modules integrating switching and digital I/O

• Built-in relay cycle counters for preventative maintenance

• Scan rates up to 80 channels/second

• Parallel open/close operation of 200 channels in 0.1 second

• Removable screw terminal blocks and crimp & insert terminal blocks available

• GPIB and 57.6 Kbaud RS-232 standard instrument interfaces

• One-year warranty for mainframes

6

Application examples

Cellular phone test

In a typical cellular phone final test system there is a
switch system, a GSM/CDMA test set, a DMM (digital
multimeter), a power supply, and a spectrum analyzer.
An HP 3499A with a multifunction module (N2264A), a
digital I/O module (N2263A), and a matrix module
(N2262A) provides the switching solution needed in
this test system. The 3 general purpose high current
relays in the N2264A switch the cellular phone power
supplies --- main battery, backup battery, or charger.
With the 3 relays on N2264A, the DMM tests the
sleeping, standby, and working current - between 0.1
mA and about 4 A. Eight bits of digital I/O drives the
external solenoid coils to simulate key pressing. Eight
additional bits of digital I/O are used to drive a coaxial
relay to route the RF signal coming from the phone
antenna to GSM/CDMA test set for camping, call setup,
power level, BER test, or to spectrum analyzer for
spectrum leakage tests. Three more bits of digital I/O
are used to communicate with the cellular phone under
test. Working with the DMM, the matrix module
switches the voice signals to/from the cellular phone for
audio testing.

Pager Test

A typical test system that tests the pager PC board
consists of an HP 3499B equipped with one multiplexer
module (N2260A), one matrix module (N2262A), one
DMM, and one power supply. This compact test system
can test one pager. In this configuration, one 2-meter
rack is capable of holding 6-8 test systems. One matrix
channel switches the DUT (pager) on/off. Using a
multiplexer channel, the DMM tests the bias voltage of
the mixer, front-end amplifier, and filters to ensure that
the different circuits of the pager are working properly.
Using a multiplexer channel, the DMM also tests the
working/standby current to ensure the battery
operating time specification is met.

HP 3499A

N2262A

N2263A

N2264A

DMM Power Supply

GSM/CDMA Test Set

Spectrum Analyzer

A typical cellular phone test system

HP 3499B

N2260A

N2262A

DMM

Power Supply

Monitor

A typical pager board test system

7

Customize your HP 3499A/B with plug-in modules

We invested a lot of time and energy in studying actual switching applications and tailoring the switching
modules for different applications. Six high density modules (HP N2260A, N2261A, N2262A, N2263A,
N2264A and N2265A) plus the 13 existing modules (HP 44470A/D, 44471A/D, 44472A, 44473A, 44474A,
44475A, 44476A/B, 44477A, and 44478A/B) for the HP 3488A can cover a wide variety of signals with
superior flexibility.

Different switching for applications

A general purpose relay is used to turn on/off the DUT
(device under test), instruments, motors, pumps and
LEDs, or to form an attenuation network with L, C, R
components.

A multiplexer is used for switching signal to
instrumentation by connecting many test points to an
instrument, or a DUT to many instruments. The
instruments can include multimeters, oscilloscopes,
spectrum analyzers, and counters, etc. There are one­wire, two-wire, three-wire or four-wire multiplexers. A
one-wire multiplexer is very useful in high frequency
(30 MHz - 26 GHz) applications and common ended
signal switching. The two-wire multiplexer is very
useful for floating measurements where you need to
switch both the "high" and "low" paths. The three-wire
multiplexer is mostly used for the guarded
measurements that have very high CMRR (Common
Mode Rejection Ratio). The four-wire multiplexer is
mainly used for 4-wire precision ohm measurements.

A matrix switch is used when one or more instruments
are connected to one or more test points at the same
time. By using a matrix switch, you can connect any
point on a column to any point on a row. A matrix
switch offers maximum flexibility, but you need to use
more relays and be careful to avoid crosstalk between
channels.

A digital I/O module has both input & output bits for
digital sensing and is mainly used to control external
devices, such as motors, LEDs, and microwave relays.
The digital I/O can also be used to send and receive
digital patterns to/from the DUT, and to communicate
with other devices.

Six high density modules

Now test engineers have a 40-channel 2-wire
multiplexer in roughly the same space as only one of
the HP 3488A's 10-channel switching modules. The six
high density modules reduce cost by compacting a large
number of channels on a single module. There are also
two multifunction modules for applications a that
require variety of functions in limited space. The
N2264A includes 12 general purpose relay channels, 3
high current channels and 16-bit digital I/O. The
N2265A includes a 4 x 4 matrix switch and 16-bit of
digital I/O. With these two modules and HP 3499B, the
half-rack-width mainframe, you will have a compact
switching unit in a small space and at a low cost!

Flexible channel capacity

The 19 modules in HP 3499 family provide a large
variety of channel selections to match your test system
application (10-200 channels in one mainframe). The
total channel count ranges from 10, 20, to 40 channels
per module. You can customize your HP 3499A/B with
these modules to match the channel count and
switching topologies to meet your individual needs.

8

There are 19 plug-in modules, including multiplexer, RF multiplexer, general-purpose relay, matrix, digital input/output,
Form-C, breadboard, and multifunction modules. Please refer to the following table for plug-in module selection.

Plug-in module selection table

Module Description Max. Max. Current Initial closed Thermal offset Bandwidth Connection Relay Cycle Page

Multiplexer modules

N2260A 40-channel 200V 1A <1 Ω <3 µV 10MHz T or C Yes 10
44470A 10-channel 250V 2A <1 Ω <3 µV 10MHz T 17
44470D 20-channel 250V 2A <1 Ω <3µV 10MHz T 17

General purpose relay modules

N2261A 40-channel 200V 1A <0.5 Ω <3uV 10MHz T or C Yes 11
44471A 10-channel 250V 2A <1 Ω <3uV 10MHz T 18
44471D 20-channel 250V 1A <1 Ω <3uV 10MHz T 18

Matrix modules

N2262A 4 x 8 matrix 200V 1A <1 Ω <3uV 10MHz T or C Yes 12
44473A 4 x 4 matrix 250V 2A <1 Ω <3uV 10MHz T 19

Digital I/O modules

N2263A 32-bit TTL 42V 0.6A NA NA NA T or C 13
44474 A 16-bit TTL 30V 0.125A NA NA NA T 20

Multi-function modules

N2264A 12 GP 200V 1A <0.5 Ω <3uV 10MHz T or C Yes 14

3 GP 125V 5A <0.1 Ω <3uV 10MHz T or C Yes
16-bit DIO 42V 0.6A NA NA NA T or C

N2265A 4 x 4 matrix 200V 1A <1 Ω <3uV 10MHz T or C Yes 16

16-bit DIO 42V 0.6A NA NA NA T or C

Form-C relay module

44477A 7-channel 250V 2A <1 Ω <3uV 10MHz T 23

Notes: GP = General Purpose; DIO = Digital I/O; T = Terminal Block; C = Cable.

Voltage Per chan. channel resistance per chan. type Counter

RF & Microwave modules

Modules Description Insertion loss Crosstalk SWR Bandwidth Impedance Connector

44472A Dual 1 x 4 <0.75dB <-85dB <1.12 300 MHz 50 Ω BNC 19
44478A Dual 1 x 4 <1.1dB <-70dB <1.35 1.3 GHz 50 Ω BNC 22
44478B Dual 1 x 4 <1.1dB <-70dB <1.35 1.3 GHz 75 Ω BNC 22
44476A Triple 1 x 2 <0.25dB <-90dB <1.15 18 GHz 50 Ω SMA 21
44476B Relay driver can support 2 microwave switches. Technical specs depend on the mounted relays. 21

Module Connection Accessories

Screw Terminal Blocks

N2290A Screw terminal block for N2260A 44480A Screw terminal block for HP44470A
N2291A Screw terminal block for N2261A 44480B Screw terminal block for HP44470D
N2292A Screw terminal block for N2262A 44481A Screw terminal block for HP44471A
N2293A Screw terminal block for N2263A 44481B Screw terminal block for HP44471D
N2294A Screw terminal block for N2264A 44483A Screw terminal block for HP44473A
N2295A Screw terminal block for N2265A 44484A Screw terminal block for HP44474A
N2296A Crimp & insert connector for N2260/1/2/3/4/5A 44485A Screw terminal block for HP44475A

44487A Screw terminal block for HP44477A

DIN96-to-D50/25 Cables

N2297A 1.5 m cable for connecting DUT to N2260/1/3/4/5A, terminated with one female DIN96 connector at one end and two male D50 connectors at the other end.
N2298A 1.5 m cable for connecting DUT to N2262A, terminated with one female DIN96 connector at one end and one male D25 connector at the other end.
N2299A 1.5 m cable for connecting DUT to N2260/1/3/4/5A, terminated with one female DIN96 connector at one end and four male D25 connectors at the other end.

9

2-wire, 40-channel Multiplexer Module

HP N2260A

Description

The HP N2260A is a re-configurable multiplexer (MUX)
module. The individual relays on this module are rated for
switching up to 200 V, 1 A and 60 W or 62.5 V A. Thanks for an
innovative driving circuit,10 switching channels can be
operated simultaneously, resulting in high throughput of an
automatic test system. It can be operated in either SCPI mode
or HP 3488A mode. In SCPI mode, it can be reconfigured as
either one 80-channel one-wire MUX, or one 40-channel 2­wire MUX, or dual independent 20-channel 2-wire MUXs, or
one 20-channel 4-wire MUX topologies. Y ou can use up to five
HP N2260As in one HP 3499A mainframe to build a 1-to-200
two-wire MUX. Screw terminal block, crimp & insert terminal
block and DIN96-to-D50/25 cables are available for ease of
wiring.

Specifications

General Specifications

Relays: Armature latching relay
Thermal Offset: <3µV
Relay Life Mechanical: 10

Electrical: 5x105 ( at 1A load)

Maximum Scan Rate: 80 ch/ sec

Input Characteristics

Maximum Current: 1A
Maximum Voltage: 200V
Maximum Power: 60W or 62.5VA
Initial Closed Channel Resistance: <1 Ω

DC Isolation

Open Channel, Channel-Channel:

<(40°C, 50% RH) >1010 Ω

HI-LO <(40°C, 50% RH) >1010 Ω
Channel-Chassis <(40°C, 50% RH) >1010 Ω

AC Isolation (2-wire mode)

Capacitance (with 1 channel closed):
Open Channel, Channel-Channe <7pF
HI-LO <75pF
Channel-Chassis <150pF
Insertion Loss ( with 50 Ohm termination):

100kHz <0.10dB

1MHz <0.20dB

10MHz <1.50dB

Crosstalk ( with 50 Ohm termination):

100kHz <-70dB

1MHz <-50dB

10MHz <-30dB

Accessories

N2290A Screw Terminal block
N2296A Crimp & insert terminal block
N2297A DIN96 -to-Twin-D50 cable
N2299A DIN96 -to-Quad-D25 cable

Note: All voltage and current are in DC or AC RMS if not specified.

8

• Re-configurable to 1-, 2- and 4-wire modes

• High speed switching with
parallel operation

• Built-in relay cycle counters

10

40-channel General Purpose Relay Module

HP N2261A

Description

The HP N2261A is a GP relay module, providing 40
independent Single-Pole-Single-Throw (SPST) latching
relays. Each channel can switch up to 200 V, 1 A, and 60 W or

62.5 VA. Thanks for an innovative driving circuit,10
switching channels can be operated simultaneously,
resulting in high throughput of an automatic test system. It
can be operated in either SCPI mode or HP 3488A mode. A

pair of signal can be switched together by using a pair of
channels on two HP N2261A modules. The HP N2261A can be
operated in single channel break-before-make (BBM) or
multiple channel open/close mode. Screw terminal block,
crimp & insert terminal block and DIN96-to-D25/50 cables are
available for ease of wiring.

Specifications

General Specifications

Relays: Armature latching relay
Thermal Offset: <3µV
Relay Life Mechanical: 10

Electrical: 5x105 ( at 1A load)

Maximum Scan Rate: 80 ch / sec

Input Characteristics

Maximum Voltage: 200V

Maximum Current:
Per channel 1A
Per module 20A
Maximum Power:
Per channel 60W or 62.5VA
Per module 1200W or 1250 VA
Initial Closed Channel Resistance: <0.5 Ω

DC Isolation

Open Channel, Channel-Channel:
<(40°C, 50% RH) >1010 Ω
Channel-Chassis:
<(40°C, 50% RH) >1010 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel <10pF
Channel-Chassis <20pF
Insertion Loss ( with 50 Ω termination):

100kHz <0.10dB

1MHz <0.20dB

10MHz <0.50dB

Crosstalk (with 50 Ω termination):

100kHz <-70dB

1MHz <-50dB

10MHz <-30dB

Module accessories

N2291A Screw terminal block

N2296A Crimp & insert terminal block

N2297A DIN-to-Twin-D50 cable

N2299A DIN-to-Quad-D25 cable

Note: All voltage and current are in DC or AC RMS if not specified

8

• 40 independent relays in one module

• High speed switching in parallel operation

• Built-in relay cycle counters

Note: Sheet metal covers for all plug-in modules are not shown
in the photos.

11

4 x 8 Matrix Switch Module

HP N2262A

Description

The HP N2262A is a 4 x 8 matrix module, containing 32 cross
points organized in a 4-row by 8-column configuration. It
provides the most convenient way to connect a group of test
instruments to multiple test points on DUTs. Each cross point
in the module switches 2 wires for the high and low of a
measurement. Multiple matrix modules can be connected
together for applications that require large matrixes. For
example, four N2262As can be combined as a 16 x 8 matrix.
HP N2262As can be used in conjunction with other modules
such as multiplexer modules to provide a wide variety of
switching combinations. More than one switch can be in closed
state, allowing any combination of rows connected to columns.
Up to 8 channels can be operated in parallel for high speed
switching. There are three accessories for ease of wiring.

Specifications

General Specifications

Relays: Armature latching relay
Thermal Offset: <3µV
Relay Life Mechanical: 10

Electrical: 5x105 ( at 1A load)

Input Characteristics

Maximum Voltage: 200V

Maximum Current:
Per channel 1A
Per module 4A

Maximum Power:
Per channel 60W or 62.5VA
Per module 240W or 250 VA

Initial Closed Channel Resistance: <1Ω

DC Isolation

Open Channel, Channel-Channel:
<(40°C,50% RH) >1010 Ω

HI-LO:
<(40°C, 50% RH) >1010 Ω

Channel-Chassis:
<(40°C, 50% RH) >1010 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel <7pF
HI-LO <30pF
Channel-Chassis <50pF
Insertion Loss (with 50 Ω termination):

100kHz <0.10dB

1MHz <0.20dB

10MHz <0.60dB

Crosstalk (with 50 Ω termination):

100kHz <-73dB

1MHz <-53dB

10MHz <-28dB

Accessories Available

N2292A Screw terminal block

N2296A Crimp & insert terminal block

N2298A DIN96-to-D25 cable

8

• Multiple inputs connecting to multiple
outputs

• High speed switching in parallel operation

• Built-in relay cycle counters

12

32-Bit Digital Input/Output Module

HP N2263A

Description

The HP N2263A is a 32-bit digital I/O module. It
provides 32-bit bi-directional lines and 3 handshake and
control lines. The 32-bit I/O lines are TTL compatible
input/output, or TTL compatible input and open
collector output up to 42 V. The 32-bit I/O lines can be
addressed individually, or as four independent 8-bit
ports, or as two independent 16-bit ports, or as one
32-bit port. A Zener diode is used in each channel for
input voltage-over protection (> 42V DC), including
ESD protection. Each I/O line can sink up to 0.6A to
control external devices, including:

• High voltage/high current relays;

• Microwave relays and attenuators
(HP 8710xx , HP 876xx and HP 849xx);

• Solenoid coils

The polarities of the I/O and handshake lines can be
operated in positive or negative logic mode. With the 3
control lines (PCTL, I-#O and PFLG), you can define
five handshake modes for communication with
peripherals. Screw terminal block, crimp & insert
terminal block and DIN96-to-D25/50 cables are
available for ease of wiring.

• TTL compatible, sinking up to 0.6 A

• Input /Output configurable byte-by-byte

• 3 I/O control modes-static, strobe and
handshake

Specifications

I /O Lines

Maximum Voltage(line-chassis): +42V DC
Maximum sink current(per bit): 0.6A
Output Characteristics:

V

(high) ≥ 2.4V @I≤10mA output

out

V

(low) ≤ 0.8V @I≤600mA input

out

Input Characteristics:
Vin (high) ≥ 2.0V
Vin (low) ≤ 0.8V

Handshake Lines

Maximum Voltage(line-chassis): +5V DC
Output Characteristics:

V

(high) ≥ 2.4V @I≤400µA output

out

V

(low) ≤0.5V @ I≤1mA input

out

I

(low) <25 mA ( when shorted to + 5V )

out

Input Characteristics:
Vin (high) ≥ 2.0V
Vin (low) ≤ 0.8V

Module accessories

N2293A Screw terminal block
N2296A Crimp & insert terminal block
N2297A DIN96-to-Twin-D50 cable
N2299A DIN96-to-Quad-D25 cable

13

Multifunction module

HP N2264A

Description

The HP N2264A multifunction module combines 12
general purpose relays, 3 high current relays and a 16­bit digital input/output in one module. The HP N2264A
is designed for applications that require multiple
functions in one module for space saving and system
cost saving. Its 3 high current channels are especially
useful in the automatic test system such as cellular
phone test or battery test where only two or three high
current channels are needed. There are four
connection accessories for ease of wiring.

The 12 general purpose channels are non-latching
relays which can switch up to 200 V, 1 A, 60 W or 62.5
VA .The 3 high current channels are non-latching
relays, switching up to 5 A, 125 V DC or 200 V AC RMS.
The 16-bit digital I/O provides 16 bi-directional data
lines (bits) plus 3 lines used for control and
handshaking. The 16-bit I/O lines are TTL compatible
input/output, or TTL compatible input and open
collector output. The 16 I/O bits can be addressed
individually, or as tw o independent 8-bit ports, or as
one 16-bit port. A Zener diode is used in each channel
for input voltage-over protection (>42V DC), including
ESD protection. Each I/O line can sink up to 0.6 A to
control external devices.

• 12 + 3 GP + 16-bit Digital I/O in one module

• High speed switching in parallel operation

• Built-in relay cycle counters

14

Specification

12-channel GP Relay
General Specifications

Relays: Armature non-latching relay
Thermal Offset: <3µV
Relay Life Mechanical: 10

Electrical: 5x105 ( at 1A load)

Maximum Scan Rate: 80 ch/ sec

Input Characteristics

Maximum Voltage: 200V
Maximum Current:

Per channel 1A

Maximum Power:

Per channel 60W or 62.5VA

Initial Closed Channel Resistance: <0.5 Ω

DC Isolation

Open Channel, Channel-Channel:

<(40°C, 50% RH) >1010 Ω

Channel-Chassis:

<(40°C, 50% RH) >1010 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel <10pF
Channel-Chassis <20pF

Insertion Loss ( with 50 Ω termination):

100kHz <0.10dB

1MHz <0.20dB

10MHz <0.50dB

Crosstalk ( with 50 Ω termination):

100kHz <-70dB

1MHz <-50dB

10MHz <-30dB

Note: All voltage and current are in DC or AC RMS if not specified

8

3-channel High Current Relay
General Specifications

Relays: Armature non-latching relay
Relay Life Mechanical: 5x10

7

Electrical: 105 ( at 5A load)

Thermal Offset: <3µV
Time to close one channel: 16ms

Input Characteristics

Maximum Voltage: 125V DC or 200 V AC
Maximum Current: 5A (per channel)
Maximum Power: 150W or 1250 VA (per channel)

Initial Closed Channel Resistance: <0.1 Ω

DC Isolation

Open Channel, Channel-Channel:

<(40°C, 50% RH) >1010 Ω

Channel-Chassis:

<(40°C, 50% RH) >1010 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channe <10pF
Channel-Chassis <20pF

Insertion Loss ( with 50 Ohm termination):

100kHz <0.10dB

1MHz <0.20dB

10MHz <0.50dB

Crosstalk ( with 50 Ohm termination):

100kHz <-70dB

1MHz <-50dB

10MHz <-30dB

Note: All voltage and current are in DC or AC RMS if not specified

16-bit Digital I/O
I /O Lines

Maximum Voltage(line-chassis): +42V DC

Maximum sink current(per bit): 0.6A

Output Characteristics:
V

(high) ≥ 2.4V @ I≤ 10mA output

out

V

(low) ≤ 0.8V @ I≤ 600mA input

out

Input Characteristics:
Vin (high) ≥ 2.0V
Vin (low) ≤ 0.8V

Handshake Lines

Max. Voltage(line-chassis): +5V

Max. I

(low): <25 mA (when shorted to +5V)

out

Output Characteristics:
V

(high) ≥ 2.4V @ I≤ 400µA output

out

V

(low) ≤ 0.5V @ I≤ 1mA input

out

Input Characteristics:
Vin (high) ≥ 2.0V
Vin (low) ≤ 0.8V

Accessories

N2294A Screw Terminal block

N2296A Crimp & insert terminal block

N2297A DIN96-to-Twin-D50 Cable

N2299A DIN96-to-Quad-D25 Cable

15

Multifunction module

HP N2265A

Description

An HP N2265A multifunction module combines a 4 x 4 matrix
(2-wire) and 16 bits of digital input/output in one module.
The HP N2265A is designed for applications that require
multiple functions in one module for space saving and system
cost saving. There are 4 connection accessories for ease of
wiring.

The 4 x 4 Matrix (including 16 crosspoints), provides the
most convenient way to connect a group of test instruments
to multiple test points on DUTs. Each crosspoint in a module
switches 2 wires for the high and low of a test point.

There are 16 bi-directional data lines (bits) plus 3 handshake
lines in HP N2265A. The 16-bit I/O lines are TTL compatible
input/output, or TTL compatible input and open collector
output. The 16 I/O bits can be addressed individually, or as
two 8-bit ports, or as one 16-bit port. A Zener diode is used in
each channel for input voltage over protection (>42 VDC),
and ESD protection. Each I/O line can sink up to 0.6 A to
control external devices.

Specifications

4 x 4 Matrix
General Specifications

Relays: Armature latching relay
Relay Life Mechanical: 10

Electrical: 5x105 ( at 1A load)

Maximum Scan Rate: 80 ch/ sec

Input Characteristics

Maximum Voltage: 200V

Maximum Current:
Per channel 1A
Per module 4A

Maximum Power:
Per channel 60W or 62.5VA
Per module 240W or 250 VA

Initial Closed Channel Resistance: <1 Ω

DC Isolation

Open Channel, Channel-Channel:
<(40°C, 50% RH) >1010 Ω

HI-LO: <(40°C, 50% RH) >1010 Ω

Channel-Chassis <(40°C, 50% RH) >1010 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel <7pF
HI-LO <25pF
Channel-Chassis <40pF

Insertion Loss ( with 50 Ohm termination):

100kHz <0.10dB

1MHz <0.20dB

10MHz <0.60dB

Crosstalk ( with 50 Ohm termination):

100kHz <-76dB

1MHz <-56dB

10MHz <-33dB

8

• 4x4 matrix
and 16-bit
Digital I/O
in one
module

• High speed
switching
in parallel
operation

• Built-in
relay cycle
counters

16-bit Digital I/O
I /O Lines

≤+42V DC I

V

in

V

(high)≥2.4V @ I≤10mA output V

out

(high)≥2.0V Vin(low)≤0.8V

V

in

Handshake Lines

≤5V DC

V

in

(high)≥2.4V @ I≤400µA output V

V

out

V

(high)≥2.0V Vin(low)≤0.8V

in

Accessories

N2295A Screw Terminal block
N2296A Crimp & insert terminal block
N2297A DIN96-to-Twin-D50 Cable
N2299A DIN96-to-Quad-D25 Cable

≤0.6A

sink

(low)≤0.8V @I≤0.6A input

out

(low)≤0.5V @ I≤1mA input

out

16

10-channel Multiplexer Module

20-channel Multiplexer Module

HP 44470A

•

Designed for low channel count application

• Switching up to 2 A, 250 V

Description

The HP 44470A multiplexer module provides 10­channel to switch both high and low input signals to a
common bus. It can switch signals up to 250 V, 2 A, and
60 W, or 125 VA per channel. This module exhibits low
thermal offset characteristics which make it ideal for
precision low level signal routing. It can be operated in
either a break-before-make mode or multiple channel
close mode. You can make 4-wire ohm measurements
by programming two HP 44470As to open/close in the
card pair mode. A screw terminal block is provided for
ease of wiring.

HP 44470D

•

Designed for low channel count application

• Switching up to 2 A, 250 V

Description

The HP 44470D multiplexer module provides 20­channel to switch both high and low input signals to a
common bus. It can switch signals up to 250 V, 2 A, and
60 W, or 125 VA per channel. This module exhibits low
thermal offset characteristics which make it ideal for
precision low level signal routing. It can be operated in
either a break-before-make mode or multiple channel
close mode. You can make 4-wire ohm measurements
by programming two HP 44470Ds to open/close in the
card pair mode. A screw terminal block is provided for
ease of wiring.

Specifications

General Specifications

Relays: Armature latching relay
Thermal Offset: <3µV /channel
Relay Life (mechanical): 10
Maximum Scan Rate: 43 ch/ sec

Input Characteristics

Maximum Current: 2A

Maximum Voltage: 250V

Maximum Power: 44470A 60W or 125VA

44470D 60W or 125VA

Initial Closed Channel Resistance: <1Ω

DC Isolation

Open Channel, Channel-Channel:
<(40°C, 60% RH) >1011 Ω
HI-LO:
<(40°C, 60% RH) 44470A >1010 Ω

44470D >5x1010 Ω
Channel-Chassis:
<(40°C, 60% RH) 44470A >1010 Ω

44470D >5x1010 Ω

8

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel

44470A <5pF

44470D <7pF
HI-LO: <27pF
Channel-Chassis: <80pF

Insertion Loss ( with 50 Ω termination):

100kHz <0.20dB

1MHz <0.25dB

10MHz 44470A <0.50dB

44470D <1.20 dB

Crosstalk (with 50 Ω termination):

100kHz <-73dB

1MHz <-53dB

10MHz 44470A <-33dB

44470D <-31dB

Module accessories

HP 44480A Screw terminal block for HP 44470A

HP 44480B Screw terminal block for HP 44470D

Note: All voltage and current are in DC or AC RMS if not specified

17

10-channel General Purpose Relay Module

20-channel General Purpose Relay Module

HP 44471A

• Switching up to 2 A, 250 V

• High isolation for mV level signal switching

Description

The HP 44471A is a 10-channel 1-wire Form A general
purpose relay module. It can be used to control DUT
power, to actuate external relay or to form an
attenuator. Each relay on the module is rated for
switching up to 250 V, 2 A, or up to 60 W or 125 VA. The
initial closed channel resistance is lower than 1 Ohm.
The HP 44471A exhibits low thermal characteristics,
which make it ideal for independent signal switching. A
screw terminal block is provided for ease of wiring.

HP 44471D

• Switching up to 1 A, 250 V

• High isolation for mV level signal switching

Description

The HP 44471D is a 20-channel 1-wire Form A general
purpose relay module. It can be used to control DUT
power, to actuate external relay or to form an
attenuator. Each relay on the module is rated for
switching up to 250 V, 1 A, or up to 60 W or 125 VA. The
initial closed channel resistance is lower than 1 Ohm.
The HP 44471D exhibits low thermal characteristics,
which make it ideal for independent signal switching. A
screw terminal block is provided for ease of wiring.

Specifications

General Specifications

Relays: Armature latching relay
Thermal Offset: <3µV /channel
Relay Life (mechanical): 10
Maximum Scan Rate: 43 ch/ sec

Input Characteristics

Maximum Current: 44470A 2A

44471D 1A
Maximum Voltage: 250V
Maximum Power:

Per channel 44471A 60W or 125VA

44471D 60W or 125VA

Per module 44471A 600W or 1250 VA

44471D 1200W or 2500 VA
Initial Closed Channel Resistance: <1 Ω

DC Isolation

Open Channel, Channel-Channel:

<(40°C, 60% RH) >1011 Ω

Channel-Chassis:

<(40°C, 60% RH) 44471A >5x10

44471D >5x1011 Ω

18

8

11

Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel <7pF
Channel-chassis <25pF
Insertion Loss ( with 50 Ω termination):

100kHz <0.20dB

1MHz <0.25dB

10MHz 44471A <0.50dB

44471D <1.0 dB

Crosstalk (with 50 Ω termination):

100kHz <-73dB

1MHz <-53dB

10MHz 44471A <-33dB

44471D <-31dB

Module accessories

HP 44481A Screw terminal block for HP 44471A
HP 44481B Screw terminal block for HP 44471D

Note: All voltage and current are in DC or AC RMS if not specified

Dual 1x4 VHF Multiplexer (300 MHz, 50Ω)

4x4 2-Wire Matrix Switch Module

HP 44472A

• DC to 300 MHz

• BNC connectors for ease of wiring

Description

The HP 44472A VHF module offers broadband
switching capability for high frequency and pulse
signals. Two independent 50 Ω characteristic
impedance, bi-directional 1 x 4 switches are provided
for signals from DC to 300 MHz. Very low crosstalk
makes the VHF module ideal for VHF signal
measurements using spectrum, network, or distortion
analyzers. You can also use the excellent signal integrity
of the VHF module for multiplexing inputs to your GPIB
oscilloscope or waveform analyzer. Each group of four
channels is isolated from the other and from the chassis
to prevent ground loops. BNC connectors provide ease
of connection to the module.

Specifications

Input Characteristics

Maximum Voltage
(center-center, center-low): 250V DC, 30V AC RMS or 42V AC peak
(Low-chassis or low-low): 42V DC

Maximum Current(per chan.): 30mA DC,300mA AC RMS

Thermal Offset: <15µV

Characteristic Impedance: 50 Ω

Initial Closed Channel Resistance: <1 Ω

DC isolation <(40°C, 95% RH): >107 Ω

AC Isolation/Performance

30MHz 100MHz 300MHz
Insertion loss(dB) <0.5 <0.75 <1.25
Crosstalk(dB)

Within a Group <-100 <-85 <-65
Group-Group <-85 <-85 <-50

VSWR <1.06 <1.12 <1.43
Capacitance:

Center-center, center-common <0.002pF
Center-low <70pF
Low-chassis <0.20µF

Rise Time: <0.7 nsec
Signal Delay: <2.5 nsec (channel match <90psec)

HP 44473A

• Switching signals up to 250 V, 2 A

Description

The HP 44473A module brings highly flexible matrix
switching to your test system. You can use the matrix
switch module to conveniently connect a group of
instruments to several points on DUT (device under
test). Individual module provides a 4 x 4, 2-wire matrix
that allows any combination of inputs and outputs to be
connected for signals up to 250 V or 2 A .

Specifications

Input Characteristics

Relays: Armature latching relay
Thermal Offset: <3µV

Maximum Scan Rate: 43 ch/ sec
Relay life (mechanical): 10
Maximum Voltage: 250V
Maximum Current: Per channel 2A

Per module 8A

Maximum Power: Per channel 60W or 125 VA

Per module 240W or 500VA

Initial Closed Channel Resistance: <1 Ω

DC Isolation <(40°C, 60%RH)

Open Channel: >1011 Ω
HI-LO: >1010 Ω
Channel-Chassis: >1010 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel: <5pF
HI-LO: <40pF
Channel-Chassis: <70pF

Note: All voltage and current are in DC or AC RMS if not specified

Insertion Loss <0.30dB <0.35dB <0.90dB
Crosstalk <-76dB <-56dB <-36dB

8

100kHz 1MHz 10MHz

19

16-Bit Digital Input/Output Module

Breadboard Module

HP 44474A

• 16-bit TTL compatible digital I/O

• Input /Output re-configurable byte-by-byte

Description

The HP 44474A is a digital I/O module, providing 16 bi­directional data lines (bits) plus 4 lines used for control
and handshaking. All lines are TTL compatible. The 16
data lines offer TTL compatible I/O or inputs and open
collector outputs. The 16 I/O lines or bits can be
addressed individually, or as two independent 8-bit
ports, or as one 16-bit port. For instance, one port can
be used for output operations, while the other for input.
Each I/O line can sink current up to 0.125 A from
external devices.

Specifications

I /O Lines

Maximum Voltage(line-chassis): +30V DC
Output Characteristics

V

(high): ≥ 2.4V @ I ≤ 8mA output

out

V

(low): ≤ 0.4V @ I ≤ 16mA input

out

I

(low): 125 mA@ V

out

Characteristics
Vin (high): ≥ 2.0V
Vin (low): ≤ 0.8V

Handshake Lines

Maximum Voltage(line-chassis): +5V DC

Output Characteristics
V

(high): ≥ 2.4V @ I≤ 400µA output

out

V

(low): ≤ 0.5V @ I≤ 2mA input

out

Input Characteristics
Vin (high): ≥ 2.0V
Vin (low) ≤ 0.8V

≤ 1.25 V

out

HP 44475A

• For custom designed special circuitry

Description

The HP 44475A is a breadboard module providing a
place for customer mounted circuits for special
applications. Occasionally, some desired functions may
not be available on a standard plug-in module. In such a
case, the HP 44475A provides the ideal solution. The
HP 44475A can be used in designing and building
special functions for your system. Filters, amplifiers,
and other custom circuitry can be implemented on the
breadboard's grid of plated holes. The supplied
documentation lets you interface your circuit directly
to the HP 3499A/B's internal bus control signals.

Specifications

Module Dimensions

Component Areas Available: 104mm x 74mm and 79mm x 74mm
Gird Hole Size (inside diameter): 1.17mm
Grid Hole Spacing(center-center): 2.54mm x 2.54mm
Maximum Component Height: 12.7mm (0.5")

(above Board)
Maximum Lead length: 3.2mm (0.125")

(below Board)

Input Characteristics

Maximum Voltage: 42V DC, 30V AC RMS

42V AC Peak

Maximum Power Dissipation: 2W
(per Modules)

Connection accessory

44485A Screw terminal block with

22 terminals for field wiring

20

Microwave Multiplexer Module

Microwave Relay Driver Module

HP 44476A

• Switching signals from DC to 18 GHz

• Triple 1-to-2 microwave multiplexers

Description

The HP 44476A is a microwave switch module. There
are three independent SPDT 50 Ω coaxial relays with
excellent electrical performance from DC to 18 GHz.
For general purpose microwave switching applications,
the module can be used to switch separate signal
sources for a multi-band receiver/transmitter testing
application. The 3-mm SMA connectors on the module
edge are for ease of wiring.

Specifications

Input Characteristics

Frequency Range: DC to 18 GHz
Characteristic Impedance: 50 Ω
Input Power Rating: 1 W average
(Also less than ± 7 V DC) 100 W peak
Repeatability (after 106 operation): 0.03 dB
Connector: SMA

AC Isolation / Performance

Isolation: DC-18GHz >90 dB
Insertion Loss: DC-2 GHz <0.25 dB

DC-18GHz <0.50 dB

VSWR (3 mm SMA): DC-2GHz <1.15
DC-12.4GHz <1.25
DC-18.0GHz <1.40

HP 44476B

• Supporting varieties of microwave
coaxial relays

• Two sets of mounting holes for coaxial relays

Description

The HP 44476B is a microwave relay driver module that
brings multi-port 50/75 Ω coaxial switching flexibility to
your test system. The HP 44476B panel has two sets of
mounting panels, so any two HP 876XX coaxial switches
can be mounted on this module. The HP coaxial switches
come in three-, four-, and five-port configurations. This
flexibility allows you to use the different switches for a
variety of applications, constructing transfer switches,
switch matrices, etc. Using the HP 876xx in conjunction
with the HP 44476B will allow you to extend your
automated three-port switching to 26.5 GHz. Coaxial
relays must be ordered separately. The HP coaxial
switches that can be used are listed below. The Option
011 designates the switches for a coil voltage of 5 V DC.

HP Coaxial Switch Port Frequency

HP 8762A/Option 011 3 DC to 4 GHz
HP 8762B/Option 011 3 DC to 18 GHz
HP 8762C/Option 011 3 DC to 26.5 GHz
HP 8762F/Option 011 3 DC to 4 GHz
HP 8763B/Option 011 4 DC to 18 GHz
HP 8763C/Option 011 4 DC to 26.5 GHz
HP 8764B/Option 011 5 DC to 18 GHz
HP 8764C/Option 011 5 DC to 26.5 GHz

For details of HP 876XX specification, please refer to
HP p/n 5964-9527E.

21

Dual 1 x 4 RF Multiplexer (1.3 GHz, 50/75Ω)

HP 44478A/B

Description

The HP 44478A/B multiplexer module is an ideal choice
for broadband switching of high frequency or fast pulse
signals. Dual 1-to-4 mulitplexers provide bi-directional
switching of signals from DC to 1.3 GHz. High channel
isolation (>55 dB @ 1 GHz) assures quality dynamic­range measurements using spectrum, network, or
distortion analyzers. Each 1-to-4 multiplexer consists of
7 relays in a "tree" structure, which provides high
isolation and low VSWR (voltage standing wave ratio).
All the connectors on the module's edge are female
BNC for ease of wiring. Off-channels can be terminated
in resistors to maintain proper operation of DUT
circuitry. Simply plug a 50/75 Ω SMB type resistive
termination onto the on-board male SMB connector
provided for each channel.

Specifications

Input Characteristics

Maximum Scan Rate: 43 ch/ sec
Maximum Voltage: 42V, DC+AC peak
Maximum Current: 1A
Maximum Power: Per channel 24W, 24VA or 44dBm
Characteristic Impedance: 44478A 50 Ω

44478B 75 Ω

DC Performance

Thermal Offset: <6µV (<2µV, Typ.)
Initial Closed Channel Resistance: <1 Ω
Insulation Resistance

(between terminals):
<(25°C, 40% RH) >1010 Ω

Capacitance:

Center-Center <0.006pF

Center-Shield <60pF

Rise Time: <300psec
Signal Delay: <3nsec

AC Performance 10MHz 100MHz 500 MHz 1.3GHz

Insertion Loss ≤(40°C, 95% RH) <0.3dB <0.7dB <1.5dB <3.0dB
≤(25°C, 40% RH) <0.2dB <0.5dB <1.1dB <1.9dB
Crosstalk

Channel-Channel, Channel-Common
Group-Group, Module-Module <-90dB <-80dB <-70dB <-60dB
VSWR <1.20 <1.25 <1.35 <1.55

<-90dB <-80dB <-65dB <-55dB

• Switching up to 1 A, 24 W or 24 VA

• Insertion loss less than 1.9 dB @1.3 GHz

HP 44478A/B

HP 44478A typical
performance diagram

HP 44478B typical performance diagram

22

Form-C relay Module Rack Mounting Kits

HP 44477A

• 7 Single-Pole-Double-Throw relays module

• Switching up to 2 A, 250 V

HP 3499A Rack Mount Kit with Handles (Opt. 1CP)

Description

The HP 44477A is a Form-C relay module providing
seven independent Single-Pole-Double-Throw relays
for general purpose switching and control of external
devices. Using an external power supply, you can use
the module to drive remote RF, coaxial, and microwave
devices such as the HP 876xx, HP 8710xx series, and
mercury relays. This module is normally set up to use
an external power supply for voltages up to 250 V DC,
and can be easily configured to use the internal 5 V DC
power supply. In applications where the module's
voltage or current specifications are going to be
exceeded, use the module to drive a properly rated
external relay to switch those signals.

Specifications

Input Characteristics

Thermal Offset: <3µV
Maximum Scan Rate: 43 ch/ sec
Relay life (mechanical): 10
Maximum Voltage: 250V
Maximum Current: Per channel 2A

Per module 14A

Maximum Power: Per channel 60W or 125VA

Per module 420W or 875VA

Initial Closed Channel Resistance: <1Ω

DC Isolation (<40°C, <60%RH):

Open Channel >1011 Ω
Channel-Chassis >5x1011 Ω

AC Isolation

Capacitance (with 1 channel closed):
Open Channel, Channel-Channel <10pF
Channel-Chassis <25pF

Insertion Loss <0.20dB <0.25dB <0.50dB

8

100kHz 1MHz 10MHz

HP 3499A Rack Mount Kit (Opt. 1CM)

To rack mount an HP 3499B with a fill panel, order
Option 1CM.

To rack mount two instruments in a sliding support
shelf, please order shelf (P/N 5063-9255) and slide kit
(P/N 1494-0015), and also use the included tie-down
clip (03499-21002).

23

H

Ordering Information

HP 3499A 5-slot full-rack-width Switch/Control mainframe, includes hard

copy manual and power cord. Plug-in modules are purchased separately
and are required to operate.

Option 0B0 Delete Hard Copy Manual
Option 1CP Rack Mount Kit with Handles
Option 1CM Rack Mount Kit

HP 3499B 2-slot half-rack-width Switch/Control mainframe, includes hard

copy manual and power cord. Plug-in modules are purchased separately
and are required to operate.

Option 0B0 Delete Hard Copy Manual

Option 1CM Rack Mount Kit with filler panel
HP N2260A 40-channel Multiplexer Module.
HP N2261A 40-channel General Purpose Relay Module
HP N2262A 4 x 8 Matrix Module
HP N2263A 32-bit Digital I/O Module
HP N2264A 12 + 3 GP + 16-bit Digital I/O Module
HP N2265A 4 x 4 Matrix + 16-bit Digital I/O Module
HP N2289A Mini-Din-to-D9 cable for built-in DIO in HP 3499A/B
HP N2290A Screw terminal block for HP N2260A
HP N2291A Screw terminal block for HP N2261A
HP N2292A Screw terminal block for HP N2262A
HP N2293A Screw terminal block for HP N2263A
HP N2294A Screw terminal block for HP N2264A
HP N2295A Screw terminal block for HP N2265A
HP N2296A Crimp & Insert terminal block for HP N2260-5A
HP N2297A DIN96-to-Twin-D50 cable for 6 modules (HP N2260-5A)
HP N2298A DIN96-to-D25 cable for 4x8 matrix (HP N2262A)
HP N2299A DIN96-to-Quad-D25 cable for 6 modules (HP N2260-5A)

All plug-in modules for HP 3488A will work in HP 3499A/B
HP 3488A Switch/Control Unit (Only supports 11 of the 13 4447xx plug-in

modules.

Option 023 New version HP 3488A mainframe with firmware

upgraded, supporting 44470D and 44471D, or order

HP 44488A used for upgrading existing HP 3488A at later time to support

44470D and 44471D.

Rackmount Kit for HP 3488A

Option 908 Rack Flange Kit (HP p/n 5061-1168)

Option 909 Rack Flange with Handles (HP p/n 5061-1169)
Plug-in modules (work in the HP 3488A and the HP 3499A/B )

Include screw terminal connectors

HP 44470A 10-channel Relay Multiplexer Module
HP 44470D 20-channel Relay Multiplexer Module
HP 44471A 10-channel GP Relay Module
HP 44471D 20-channel GP Relay Module
HP 44472A Dual 4-channel RF Multiplexer Module
HP 44473A 4x4 Matrix Switch Module
HP 44474A 16-bit Digital I/O Module
HP 44475A Breadboard Module
HP 44476A Microwave Multiplexer Module
HP 44476B Microwave Switch Driver Module
HP 44477A Form-C Relay Module
HP 44478A 1.3 GHz 50Ω RF Multiplexer
HP 44478B 1.3 GHz 75Ω RF Multiplexer

For more information about Agilent Technologies test
and measurement products, applications, services, and
for a current sales office listing, visit our web site:

http://www.agilent.com/

You can also contact one of the following centers and ask
for a test and measurement sales representative.

United States:

Agilent Technologies
Test and Measurement Call Center
P.O. Box 4026
Englewood, CO 80155-4026
(tel) 1 800 452 4844

Canada:

Agilent Technologies Canada Inc.
5150 Spectrum Way
Mississauga, Ontario
L4W 5G1
(tel) 1 877 894 4414

Europe:

Agilent Technologies
European Marketing Organisation
P.O. Box 999
1180 AZ Amstelveen
The Netherlands
(tel) (31 20) 547 9999

Japan:

Agilent Technologies Japan Ltd.
Measurement Assistance Center
9-1, Takakura-Cho, Hachioji-Shi,
Tokyo 192-8510, Japan
(tel) (81) 426 56 7832
(fax) (81) 426 56 7840

Latin America:

Agilent Technologies
Latin American Region Headquarters
5200 Blue Lagoon Drive, Suite #950
Miami, Florida 33126
U.S.A.
(tel) [phone]
(fax) [phone]

Australia/New Zealand:

Agilent Technologies Australia Pty Ltd
347 Burwood Highway
Forest Hill, Victoria 3131
(tel) 1-800 629 485 (Australia)
(fax) (61 3) 9272 0749
(tel) 0 800 738 378 (New Zealand)
(fax) (64 4) 802 6881

Asia Pacific:

Agilent Technologies
19/F, Cityplaza One, 1111 King’s Road,
Taikoo Shing, Hong Kong, SAR
(tel) (852) 2599 7889

(fax) (852) 2506 9233

Data subject to change
October 1999
Copyright 1999 Hewlett-Packard Company
Printed in Beijing, China
5968-6217E

24
