HP 34905A 50Ω
HP 34906A 75Ω
Dual 4-channel RF Multiplexers
• 2 GHz bandwidth
• BNC to SMB adapter
cables included
The HP 34905A and HP 34906A RF
multiplexers offer broadband
switching capabilities for highfrequency and pulsed signals. Use
them to route test signals between
your device under test and your
signal generator, oscilloscope,
spectrum analyzer, or other
instrumentation.
The RF multiplexers are arranged
as two independent 1x4
multiplexers, each with a common
shield and a switched center
conductor. Connections can be
made directly to SMB inputs with
2 GHz usable bandwidth, or to the
BNC-to-SMB adapters
provided with 1 GHz bandwidth.
Multiple banks may be cascaded
together for applications requiring
even larger topologies—create a
stubless 16:1 multiplexer in a single
frame.
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
11
12
Com
13
14
21
22
Com
23
24
Insertion Loss VSWR Crosstalk

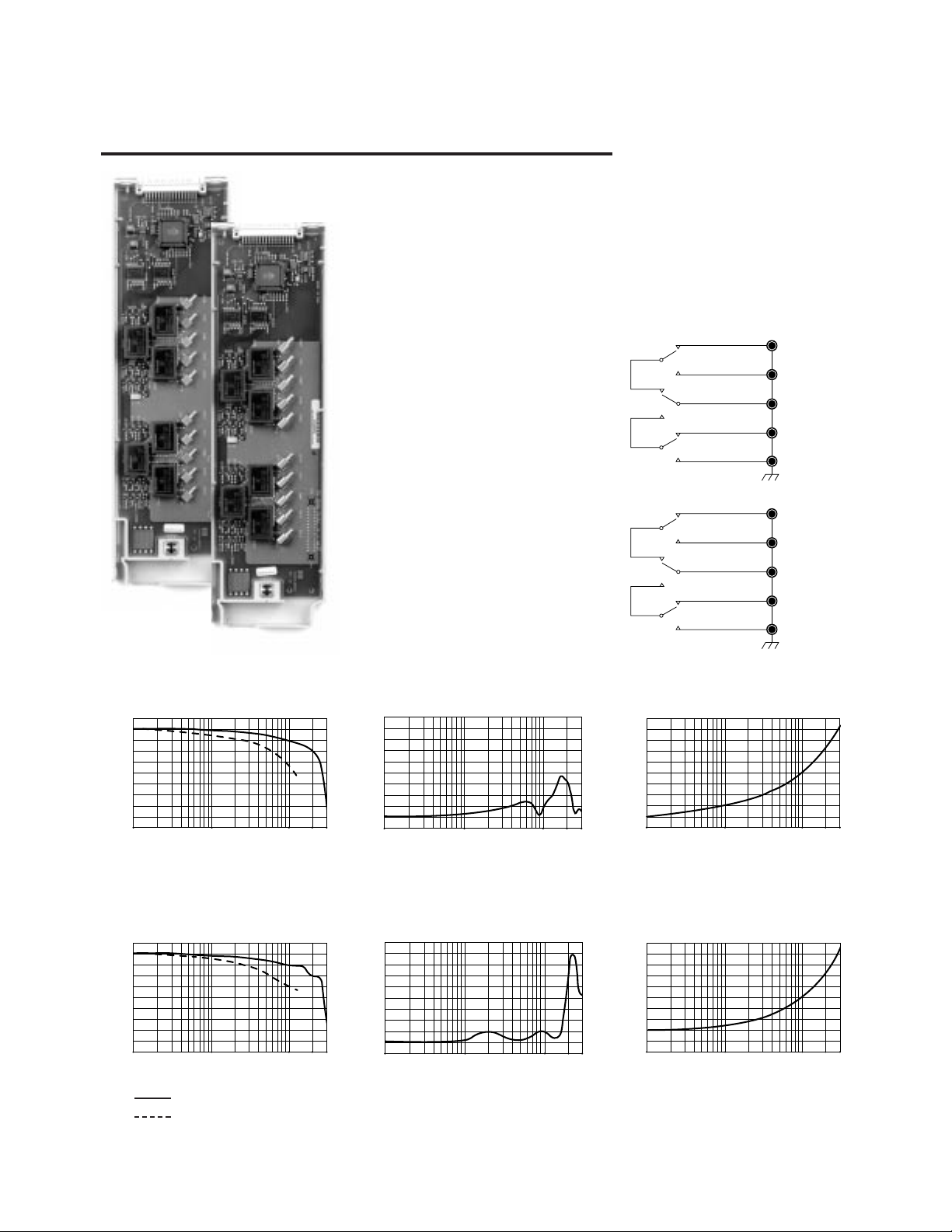

50Ω MUX Typical AC Performance Graphs
Insertion Loss VSWR Crosstalk
direct to card
using provided adapter cables
75Ω MUX Typical AC Performance Graphs
HP 34970A Data Acquisition/Switch Unit
