Agilent 34901A Data Sheet

Agilent 34970A
Data Acquisition/Switch Unit
Product Overview
Agilent performance at a fraction of the cost of other standalone data acquisition systems
4 6 7 8
9 10 11 11 12 13 14 16 16 17 18 20 20 21 22 23 24
Table of Contents
Features Using the 34970A for data logging applications Data Logging Feature Checklist Using the 34970A for ATE applications ATE Feature Checklist Using the 34970A for switching applications Customize your 34970A with plug-in modules Modules-at-a-Glance Selection Guide Agilent Quality Spec Interpretation Guide Accuracy Specifications System Specifications Software Modules Specifications
Multiplexers (34901A, 34902A, and 34908A) Actuator module (34903A) Matrix module (34904A) RF Multiplexer modules (34905A, 34906A)
Multifunction module (34907A) Rack Mounting and Dimensions Ordering Information
3
Price and performance beyond compare
Go ahead and compare the Agilent Technologies 34970A Data Acquisition/Switch Unit with other data acquisition systems currently available. You’ll find it hard to come up with a system that offers the powerful measurement performance, flexibility, and ease of use of the 34970A— even in systems costing three to five times as much.
How did we manage to pack so much performance into such a low-cost instrument? We borrowed tech­nology developed for our top-of-the-line products and put it into a package that cuts assembly time, incorporates custom ICs to reduce parts count, and simplifies production testing. That means it costs us less to make. The results? You spend less with­out sacrificing quality or performance.
What can you expect from a data acquisition system that’s this affordable?
Measurements you can trust
We took the measurement engine from our best­selling benchtop DMM and embedded it inside a 3-slot cardcage. You get the benefit of proven Agilent measurement performance, universal inputs with built-in signal conditioning, and modular flexibility, all in a low-cost, compact data acquisition package. The 34970A features 61/2 digits (22 bits) of resolution,
0.004% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 250 channels/sec, and you’ve got the speed and accuracy you need to get the job done right the first time.
Powerful flexibility to get your job done
Whether you need to measure temperature, ac/dc volts, resistance, frequency, or current, the 34970A can handle it. The internal autoranging DMM directly measures 11 different functions, eliminating the need for expensive external signal conditioning. And our unique design allows com­plete per-channel configurability for maximum flexibility and quick, easy set up. It’s like having an independent, high-performance DMM behind each channel.
Custom configurations that grow with you
Three module slots and eight switch/control modules allow you to customize the 34970A to meet your unique requirements. Buy only what you need—and add more modules later as your application grows.
Unequaled ease of use
From the simplified configuration procedures, to the self-guiding front panel interface, we put in extra time and energy to save yours. Simple things like on-module screw-terminal connectors, built-in thermocouple reference junctions, well­organized user documentation full of examples and hints, and a standard Getting Started kit that will have you making measurements 15 minutes out of the box all add up to increased productivity, whether you use the instrument every day or only now and then.
Free software to save you time and money
Now you don’t have to spend your valuable time writing or configuring software. Agilent BenchLink Data Logger II software gives you a familiar Microsoft Windows® interface for test configura­tion and real-time data display and analysis. Even better, the data logging application is included with every standard Agilent 34970A.
4
3-slot mainframe offers up to 96 matrix crosspoints or 120 single-ended channels
Agilent BenchLink Data Logger II
software included;
drivers available for Agilent VEE and
National Instruments LabVIEW

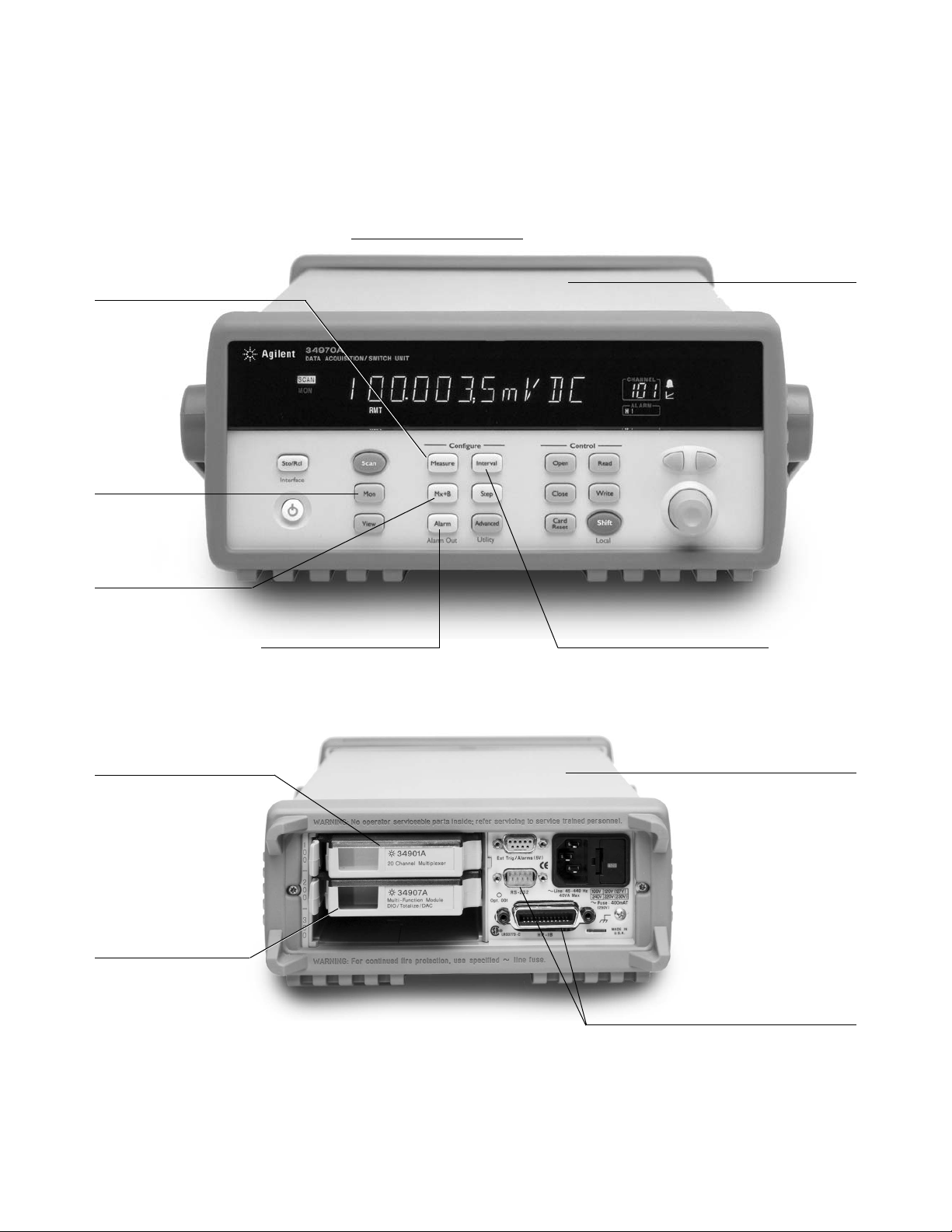

Intuitive front panel: task-oriented, self-guiding menus
50k readings of non-volatile
memory holds data when
power is removed
HI/LO alarm limits on each input channel, plus 4 TTL alarm outputs
Scaling function for converting raw inputs into user-defined units
61/2-digit (22-bit) internal DMM measures 11 functions without external signal conditioning
8 switch and control plug-in modules to choose from
Battery-backed real-time clock for pacing
scans and timestamping readings
Built-in GPIB and RS-232 interfaces
Monitor display mode lets you keep an eye on tests in progress
More power and flexibility than you ever imagined you could afford
5
The Agilent 34970A offers unequaled versatility for your data acquisition applications
In the past, you had to make a choice. On the one hand, you could choose the simple operation and low cost of a data logger. On the other hand, you had the flexibility and higher performance of a modular data acquisition system. The Agilent 34970A Data Acquisition/Switch Unit gives you the best of both worlds: a simple user interface with low per-channel cost, modular flexibility, and impressive measurement performance.
Whether you’re an R&D engineer working on char­acterizing your latest design, or a manufacturing engineer building a test system or troubleshooting a process, the 34970A Data Acquisition/Switch Unit offers the best combination of price and meas­urement performance.
It’s a data logger:
Configured with a 20-channel relay multiplexer, the 34970A becomes a powerful, low-cost data logger for simple characterization applications— one that’s quick to set up and easy to run. For more information on using the 34970A for data logging applications, see page 6.
It’s a data acquisition front-end:
The 34970A is an automated test system with excellent measurement performance—it’s got the accuracy, resolution, and speed you need. See page 8 for application information.
It’s a switch system:
Order the mainframe without the internal DMM and you’ve got an even lower cost, high-quality signal routing solution. See page 10 for details.
6
An easy-to-use data logger for monitoring and characterization applications
Data loggers are used to monitor multiple signals (temperature, voltage, etc.) over extended periods of time to identify irregularities. Example applica­tions include environmental chamber monitoring, component inspection, benchtop testing, process troubleshooting, and temperature profiling.
The Agilent 34970A is easy to use for a multitude of data logging and monitoring applications, either stand-alone or with a computer. Its flexible, modu­lar design makes it scalable from 20 to 120 chan­nels, and lets you add actuator, digital I/O, and analog output channels for simple control. Its small size and ruggedized features make it perfect for portable applications, and its small footprint makes it ideal for cramped benchtop testing. Standard GPIB (IEEE 488) and RS-232 interfaces let you pro­gram the instrument if you wish to automate tests.
Better measurements with fewer hassles
Tired of putting up with the mediocre measure­ment performance you get with most data loggers or plug-in data acquisition boards? The 34970A offers 61/2 digits of resolution and 0.004% basic 1-year dcV accuracy.
Simplify your data gathering with Agilent BenchLink Data Logger II software
Do you want PC-based data logging capability, but don’t want to spend hours programming? The BenchLink Data Logger II software is the answer. This Windows-based application is designed to make it a snap to use your PC for gathering and analyzing measurements. Use it to set up your test, acquire and archive meas­urement data, and perform real-time display and analysis of the incoming measurements.
A familiar spreadsheet environment makes it easy to configure and control your tests. And a rich set of colorful graphics provides many options for analyzing and displaying your data— all with point-and-click ease. Set up multiple graphics using strip charts, histograms, bar and scatter charts, individual channel results, and more. And of course you can use BenchLink Data Logger II to easily move data to other applications for further analysis, or for inclusion in your presentations and reports.
And the 34970A measures and converts 11 different input signals:
• temperature with thermocouples, RTDs, and thermistors
• dc and ac volts
• 2- and 4-wire resistance
• frequency and period
• dc and ac current
What’s more, each channel is independently config­urable. This means you can configure channel 1 for dcV, channel 2 for a K-type thermocouple, and channels 3 and 13 for a 4-wire RTD measurement— all on the same module, all in a single scan. For custom linear conversions, use the Mx+B scaling function on any channel. You can even display a custom 3-character engineering label like RPM or PSI to identify your measurement units.
Versatile alarms
Alarms are available on a per-channel basis as well. Enter a high limit, a low limit, or both. The 34970A compares each reading to its limits and flags any out-of-range measurements. You can assign one of four TTL alarm outputs to any input channel to trigger external alarm lights, sirens, or send a TTL pulse to your control system, all without a PC connected.
Scanning made simple
The 34970A automatically builds a scan list that includes all configured inputs (even digital inputs from the Agilent 34907A multifunction module) in ascending order by channel number. You can pace scans by setting the 34970A’s internal timer for automatic scanning at a specific interval, by manu­ally pressing a front-panel button, or by sending a software command or external TTL trigger pulse.
Monitor any input
A special display mode monitors a selected input channel, continuously updating the display with new readings—even during a scan. It’s great for keeping an eye on a key input, or for troubleshoot­ing your system before a test.
Nonvolatile memory adds convenience, portability
All readings are automatically time-stamped and stored in a nonvolatile 50,000-reading memory— enough memory to hold more than a week’s worth of data (20 channels scanned every five minutes). The nonvolatile memory holds your data even after power is removed, so you can use the 34970A to collect data at a remote location for later upload­ing to a PC. And because the nonvolatile memory also holds your system configuration, if you lose power in the middle of a test, the 34970A resumes scanning when power is returned.
7
Data Logging Feature Checklist
• From 1 to 120 channels of analog input
• Measurements include dc volts, ac volts, thermocouple, thermistor and RTD temperature measurements, 2- and 4-wire Ohms, dc current, ac current, frequency, and period
•6
1
/2 digits (22 bits) of resolution with
0.004% basic 1-year dcV accuracy
• 50k reading nonvolatile memory including timestamp
• Scaling and alarms available on each channel
• Full-featured front panel for stand-alone configuration, troubleshooting, and data viewing
• BenchLink Data Logger II software for configuration and data analysis
• Nonvolatile storage for five complete instrument states
A powerful, flexible data acquisition system for automated test
The 34970A gives you the resolution, accuracy, repeatability, and speed you’ve come to expect from an Agilent data acquisition system. It provides the measurement muscle you need, along with signal routing and control capability, in a flexible, modular format that can grow and change to match your varied applications.
Powerful measurements
The internal 6
1
/2 -digit DMM brings the power and performance of a world-class stand-alone DMM to the 34970A, but at a fraction of the cost and in a fraction of the space. It’s as accurate as the best bench DMM available: 0.004% basic 1-year dcV accuracy, 0.06% basic 1-year acV accuracy, and 0.01% basic 1-year resistance accuracy. Our patented Multi-slope III A-D technology offers incredible linearity (2 ppm of reading +1 ppm of range) along with 22 bits of real resolution. And since it is an integrating A/D, it provides excellent noise rejec­tion as well—a nice change from noisy PC plug-ins and sampling A/Ds. No more averaging lots of sam­ples just to see the real data you wanted. And if you need high scan rates, the 34970A is capable of delivering fully converted measurements at speeds up to 250 ch/s.
The input section of the DMM is optically isolated and shielded from the 34970A’s earth-referenced circuitry and computer interface, offering up to 300 V of input isolation. This is important for reducing ground loop and common mode voltage errors associated with long wiring runs and float­ing measurement sources.
Flexible functionality
The DMM is installed inside the chassis rather than in one of the slots, leaving all three main­frame slots free for switch and control modules. You can choose from eight different modules (see page 11) to get the precise functionality you need now—while giving you flexibility for future expansion.
The internal DMM gives you the flexibility to meas­ure 11 types of inputs easily and inexpensively. The built-in signal conditioning and conversion routines turn raw inputs directly into real informa­tion. Each measurement channel is independently configurable, so you can set different measurement functions, scale factors and alarm limits, even on adjacent channels. Advanced measurement fea­tures such as offset compensation, variable inte­gration time, and delay are also selectable on a per-channel basis.
8
Get better measurements with built-in signal conditioning
The Agilent 34970A architecture offers advantages over other data acquisition solu­tions which rely on external or plug-in signal conditioning modules for handling functions other than dcV:
• Minimizes external wiring and the resultant potential for noise and errors to enter your system
• Reduces hidden costs and overall system cost by avoiding unnecessary cables, breakout boxes and signal conditioning elements
• Simplifies your configuration—for faster, easier setup—with fewer connections and components
• Takes the guesswork out of error analysis. Measurement accuracies are specified to include all system-related errors
• Improves reliability, with fewer intercon­nects and fewer parts that can fail
9
Software drivers
Your months of test system software development time need not go to waste. Software drivers that support Agilent VEE and National Instruments LabView® are available for the 34970A to make integration into your test system easy. Standard RS-232 and GPIB interfaces and SCPI program­ming language make integration even easier.
Compact 60-channel data acquisition system
ATE Feature Checklist
• 3-slot cardcage with 6
1
/2 digit (22 bit)
internal DMM
• 0.004% basic 1-year dcV accuracy; 0.06% acV accuracy
• Up to 120 single-ended measurements or 96 matrix crosspoints in a 3
1
/2" high,
half-rack instrument
• Eight switch and control modules include low-frequency and RF multiplexers, matrix and actuation switches, digital input and output, analog output, and event recording
• Scan rates up to 250 ch/s
• GPIB and 115 kbaud RS-232 interfaces standard
• Software drivers available to support Agilent VEE and National Instruments LabView
• Relay maintenance feature for system maintenance
10
Low-cost, high-quality switching for automated test
If you don’t need the built-in measurement capability of the 34970A, save money by ordering it without the DMM. What you end up with is the lowest-cost switch unit on the market. It’s an ideal solution for routing test signals to and from your DUT and assorted instruments, including external DMMs, scopes, counters, and power supplies. Plus, you can add the DMM later if your needs change.
The functionality you need
We put a lot of thought into defining and designing the modules for the 34970A in order to cover a broad spectrum of switching and signal routing requirements with fewer modules. The result? Simplified ordering and easier configuration.
And while we were at it, we improved performance and density. The 34970A modules can switch from microvolts to 300 volts, dc to 2 GHz, and with den­sities as high as 120 single-ended channels or 96 matrix crosspoints per frame. Plus, simple control capabilities like analog outputs, open collector digi­tal outputs, and isolated Form-C relays for control­ling higher-powered devices are available.
Easy scanning
The 34970A can easily scan with external instru­ments. It builds a scan list that includes all enabled low-frequency multiplexer inputs. Scans are con­trolled with the external “channel advance” input, or with the front panel “Step” key.
Low-cost switching system for automated testing
11
Customize your Agilent 34970A with plug-in modules
A complete selection of plug-in modules gives you high-quality measurement, switching, and control capabilities to choose from. Modules include both low-frequency and RF multiplexers, a matrix switch, a general-purpose switch, and a multifunction module that includes digital input/output, analog output, and totalizer capabilities. You can mix and match modules to get just the functionality you need right now—then change or add more channels later as your application grows.
Modules for the 34970A are designed to make your testing easier, faster, and more reliable. Here’s how:
Higher throughput
Our unique architecture incorporates a high­performance microprocessor on each module, off­loading the mainframe processor and minimizing backplane communications for faster throughput.
More channels in less space
Surface mount construction and a highly inte­grated design minimize the space required for relay drive and interface circuitry. High density on-module connectors save both board and con­nector space normally required by a terminal block. We use the latest technology to squeeze the most out of the remaining board space, giving you up to 40 single-ended channels in roughly the same space used by many data acquisition system terminal blocks.
Convenient connections
On-module screw-terminal connectors make wiring more convenient. Built-in strain-relief cable routing and cable tie points keep your wiring secure and safe from accidental tugs and pulls. An internal analog bus routes signals from any of the low-frequency multiplexers directly to the internal DMM, without the need for external connections.
Use the chart below to help you pinpoint the modules that meet your needs.
Agilent Modules-at-a-Glance Selection Guide
Model Type Speed Max Max Bandwidth Thermal Comments Description (ch/sec) Volts Amps Offset Page

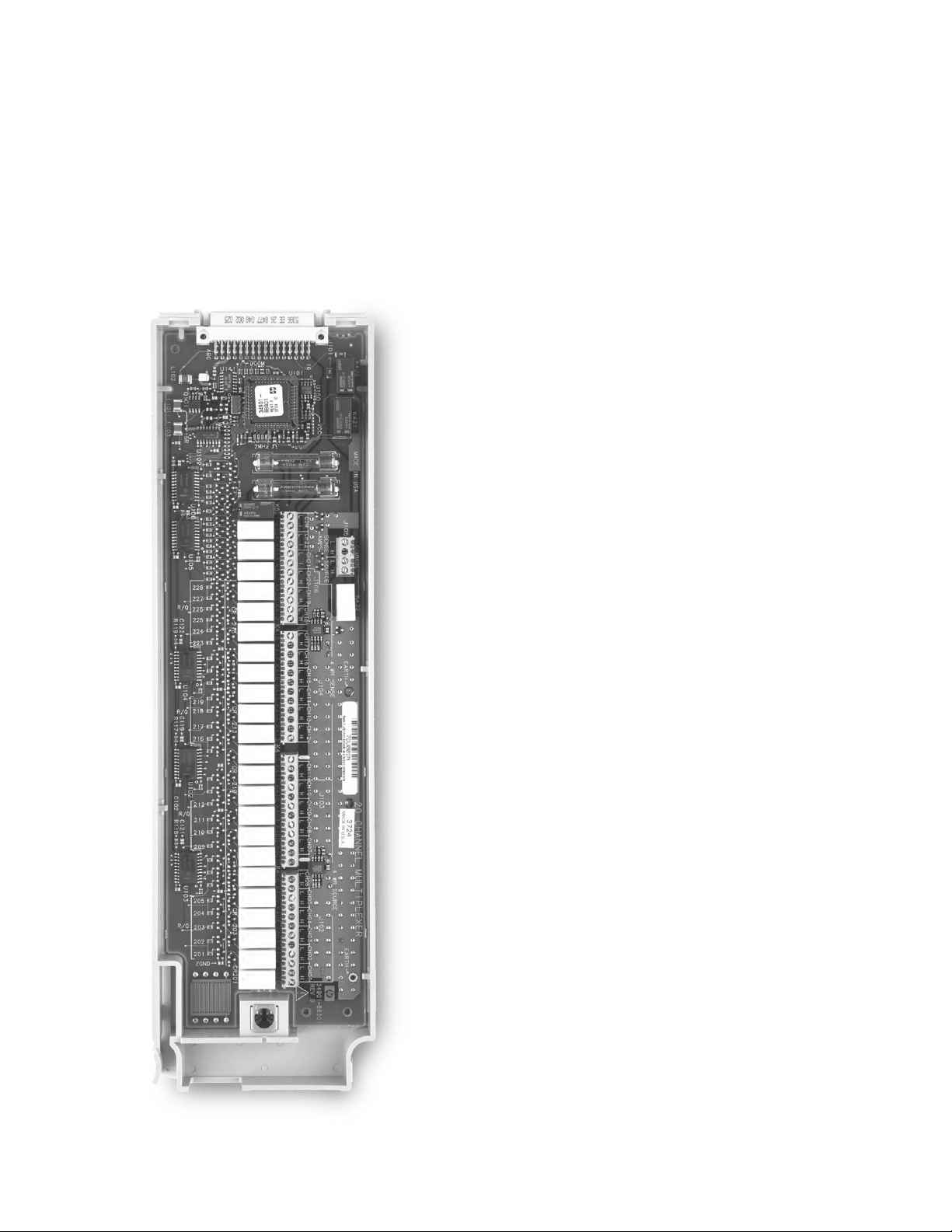

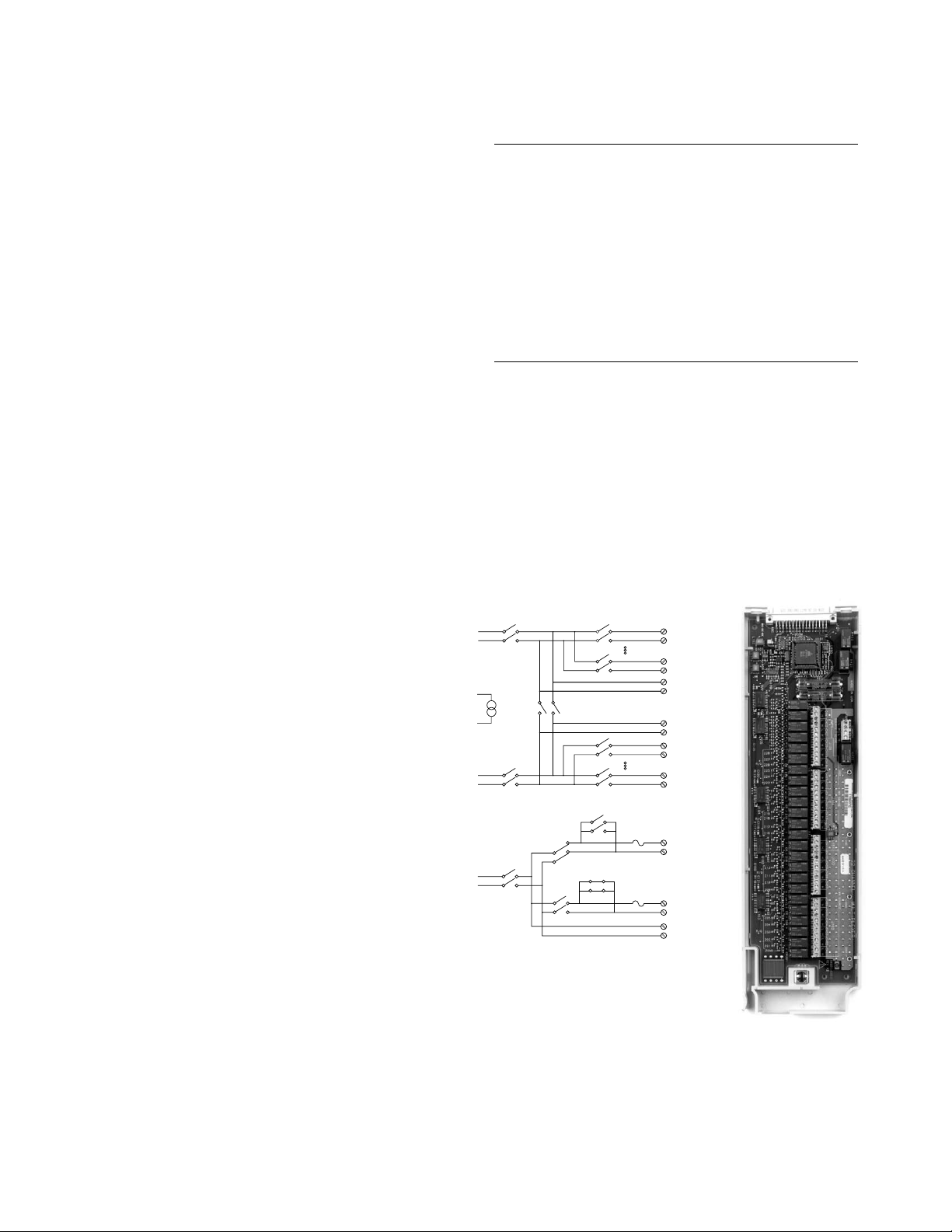

34901A 2-wire armature 60 300 V 1A 10 MHz < 3 µV Built-in cold junction reference 20 ch Multiplexer (4-wire selectable) 2 additional current channels (22 total) 18
34902A 2-wire reed 250 300 V 50 mA 10 MHz < 6 µV Built-in cold junction reference 16 ch Multiplexer (4-wire selectable) 19
34903A SPDT/form C 120 300 V 1A 10 MHz < 3 µV 20 ch Actuator/GP Switch 20
34904A 2-wire armature 120 300 V 1A 10 MHz < 3 µV 4 x 8 Matrix 20
34905A Common Low 60 42 V 0.7 A 2 GHz < 6 µV 1 GHz bandwidth through Dual 4 ch RF Mux 50 (unterminated) BNC-to-SMB adapter cable 21
34906A Common Low 60 42 V 0.7 A 2 GHz < 6 µV 1 GHz bandwidth through Dual 4 ch RF Mux 75 (unterminated) BNC-to-SMB adapter cable 21
34907A Two 8-bit digital I/O ports 42 V 400 mA Open drain Multifunction Module 26-bit Event Counter 42 V 100 KHz Selectable input threshold
Two 16-bit Analog outputs ±12 V 10 mA dc Max 40 mA total output per frame 22
34908A 1-wire armature 60 300 V 1A 10 MHz < 3 µV Built-in cold junction reference 40 ch Single-Ended Mux (common low) No four-wire measurements 19
12
Agilent Quality
We know you can’t afford instrument downtime due to hardware failures and unscheduled mainte­nance. That’s why our engineers designed reliability into the 34970A: A rugged enclosure, state-of-the­art surface mount construction throughout, reduced parts counts, and rigorous and thorough testing on all aspects of the product.
Take the guesswork out of relay maintenance
The 34970A uses our proprietary relay mainte­nance system to help you to predict relay end-of­life and avoid costly production-line downtime. It automatically counts every individual switch closure and stores it in nonvolatile memory on each module. You can query the total number of cycles on any individual channel so you can schedule maintenance and avoid erratic end-of­life failures.
13
Spec Interpretation Guide
The following pages list the technical specifications for the Agilent 34970A Data Acquisition/Switch Unit and its modules. The explanations and exam­ples below are helpful in understanding how to interpret these specifications:
• Measurement accuracy is specified as percent of reading plus percent of range, where reading is the actual measured value and range is the name of the scale (1V, 10V, etc.)—not the full scale value (1.2V, 12V, etc.).
• DMM measurement accuracies include all switch­ing errors. Switching errors are also listed separately in the module specifications section. Temperature measurement accuracies include ITS-90 conversion errors. The thermocouple accuracies include the reference junction error as well.
• Accuracies are listed as either 24-hour, 90-day, or 1-year specifications. This refers to the length of time since the instrument’s last cali­bration. Use the specification that matches your calibration cycle. The 24-hour specifica­tions are useful for determining short-term relative performance.
EXAMPLE 1: Basic dcV accuracy
Calculate the accuracy of the following measurement:
9 V dc input 10 V dc range 1-year accuracy specifications Normal operating temperature (18°C–28°C)
From the following page, the 1-year accuracy is:
0.0035% of reading + 0.0005% of range
Which translates into: (0.0035/100 x 9 V)+ (0.0005/100 x 10 V) = 365µV
For a total accuracy of:
365 µV / 9 V = 0.0041%
EXAMPLE 2: Extreme operating temperature
When the 34970A is used outside of its 18°C–28°C temperature range, there are additional tempera­ture drift errors to consider. Assume the same conditions in example 1, but at a 35°C operating temperature.
The basic accuracy is again:
0.0035% of reading + 0.0005% of range=365 µV.
Now, multiply the 10 V temperature coefficient from the following page by the number of degrees outside of operating range for additional error: (0.0005% reading + 0.0001% range)
/°C x (35°C - 28°C) =
(0.0005% reading + 0.0001% range)
/°C x 7°C =
0.0035% reading + 0.0007% range = 385 µV
Total error is then:
365 µV + 385 µV = 750 µV or 0.008%
EXAMPLE 3: Thermocouple measurement accuracy
Calculating the total thermocouple reading error is easy with the 34970A—just add the listed meas­urement accuracy to the accuracy of your trans­ducer. Switching, conversion, and reference junc­tion errors are already included in the measure­ment specification.
For this example, assume a J-type thermocouple input reading 150°C.
From the following page, total error is: Thermocouple probe accuracy + 1.0°C The probe vendor specifies accuracy of 1.1°C
or 0.4%, whichever is greater.
Total error is then:
1.0ºC + 1.1 ºC = 2.1ºC total, or 1.4%
EXAMPLE 4: acV Accuracy
The acV function measures the true RMS value of the input waveform, regardless of waveshape. Listed accuracies assume a sinewave input. To adjust accuracies for non-sinusoids, use the listed crest factor adder.
For this example, assume a ±1 V square wave input with 50% duty cycle and a 1 kHz frequency.
Accuracy for 1 V, 1 kHz sinusoid is:
0.06% reading + 0.04% range A 50% duty cycle squarewave has a crest factor of
Peak Value / RMS value = 1 V / 1 V = 1
From Crest Factor table, add:
0.05% of reading
The total accuracy is:
0.11% of reading + 0.04% of range = 1.5 mV or 0.15%
[1] Specifications are for 1 hr warm-up and 61/2 digits, Slow ac filter [2] Relative to calibration standards [3] 20% over range on all ranges except 300 Vdc and ac ranges and 1 Adc and ac
current ranges
[4] For sinewave input > 5% of range. For inputs from 1% to 5% of range and
< 50 kHz, add 0.1% of range additional error
[5] Typically 30% of reading error at 1 MHz, limited to 1 x 10
8
V Hz
[6] Specifications are for 4- wire ohms function or 2-wire ohms using Scaling
to remove the offset. Without scaling, add 4 additional error in 2-wire
Ohms function [7] Input > 100 mV. For 10 mV to 100 mV inputs multiply % of reading error x 10 [8] Specified only for inputs >10 mA [9] For total measurement accuracy, add temperature probe error [10] Thermocouple specifications not guaranteed when 34970A module is present
Accuracy Specifications ±(% of reading + % of range)
[1]
Includes measurement error, switching error, and transducer conversion error
Temperature
Range
[3]
Frequency, etc. 24 Hour
[2]
90 Day 1 Year Coefficient
23°C±1°C 23°C±5°C 23°C±5°C 0°C–18°C, 28°C–55°C
DC Voltage
100.0000 mV 0.0030 + 0.0035 0.0040 + 0.0040 0.0050 + 0.0040 0.0005 + 0.0005
1.000000 V 0.0020 + 0.0006 0.0030 + 0.0007 0.0040 + 0.0007 0.0005 + 0.0001
10.00000 V 0.0015 + 0.0004 0.0020 + 0.0005 0.0035 + 0.0005 0.0005 + 0.0001
100.0000 V 0.0020 + 0.0006 0.0035 + 0.0006 0.0045 + 0.0006 0.0005 + 0.0001
300.000 V 0.0020 + 0.0020 0.0035 + 0.0030 0.0045 + 0.0030 0.0005 + 0.0003
True RMS AC Voltage
[4]
100.0000 mV 3 Hz–5 Hz 1.00 + 0.03 1.00 + 0.04 1.00 + 0.04 0.100 + 0.004 to 100.0000V 5 Hz–10 Hz 0.35 + 0.03 0.35 + 0.04 0.35 + 0.04 0.035 + 0.004
10 Hz–20 kHz 0.04 + 0.03 0.05 + 0.04 0.06 + 0.04 0.005 + 0.004
20 kHz–50 kHz 0.10 + 0.05 0.11 + 0.05 0.12 + 0.05 0.011 + 0.005 50 kHz–100 kHz 0.55 + 0.08 0.60 + 0.08 0.60 + 0.08 0.060 + 0.008 100 kHz–300 kHz
[5]
4.00 + 0.50 4.00 + 0.50 4.00 + 0.50 0.20 + 0.02
300.0000V 3 Hz–5 Hz 1.00 + 0.05 1.00 + 0.08 1.00 + 0.08 0.100 + 0.008 5 Hz–10 Hz 0.35 + 0.05 0.35 + 0.08 0.35 + 0.08 0.035 + 0.008 10 Hz–20 kHz 0.04 + 0.05 0.05 + 0.08 0.06 + 0.08 0.005 + 0.008 20 kHz–50 kHz 0.10 + 0.10 0.11 + 0.12 0.12 + 0.12 0.011 + 0.012 50 kHz–100 kHz 0.55 + 0.20 0.60 + 0.20 0.60 + 0.20 0.060 + 0.020 100 kHz–300 kHz
[5]
4.00 + 1.25 4.00 + 1.25 4.00 + 1.25 0.20 + 0.05
Resistance
[6]
100.0000 1 mA current source 0.0030 + 0.0035 0.008 + 0.004 0.010 + 0.004 0.0006 + 0.0005
1.000000 k 1 mA 0.0020 + 0.0006 0.008 + 0.001 0.010 + 0.001 0.0006 + 0.0001
10.00000 k 100 µA 0.0020 + 0.0005 0.008 + 0.001 0.010 + 0.001 0.0006 + 0.0001
100.0000 k 10 µA 0.0020 + 0.0005 0.008 + 0.001 0.010 + 0.001 0.0006 + 0.0001
1.000000 M 5.0 µA 0.002 + 0.001 0.008 + 0.001 0.010 + 0.001 0.0010 + 0.0002
10.00000 M 500 nA 0.015 + 0.001 0.020 + 0.001 0.040 + 0.001 0.0030 + 0.0004
100.0000 M 500 nA/10 M 0.300 + 0.010 0.800 + 0.010 0.800 + 0.010 0.1500 + 0.0002
Frequency and Period
[7]
100 mV 3 Hz–5 Hz 0.10 0.10 0.10 0.005 to 300 V 5 Hz–10 Hz 0.05 0.05 0.05 0.005
10 Hz–40 Hz 0.03 0.03 0.03 0.001
40 Hz–300 kHz 0.006 0.01 0.01 0.001
DC Current (34901A only)
10.00000 mA <0.1 V burden 0.005 + 0.010 0.030 + 0.020 0.050 + 0.020 0.002+ 0.0020
100.0000 mA <0.6 V 0.010 + 0.004 0.030 + 0.005 0.050 + 0.005 0.002 + 0.0005
1.000000 A <2 V 0.050 + 0.006 0.080 + 0.010 0.100 + 0.010 0.005 + 0.0010
True RMS AC Current (34901A only)
10.00000 mA 3 Hz–5 Hz 1.00 + 0.04 1.00 + 0.04 1.00 + 0.04 0.100 + 0.006
and
[4]
1.000000 A 5 Hz–10 Hz 0.30 + 0.04 0.30 + 0.04 0.30 + 0.04 0.035 + 0.006
10 Hz–5 kHz 0.10 + 0.04 0.10 + 0.04 0.10 + 0.04 0.015 + 0.006
100.0000 mA
[8]
3 Hz–5 Hz 1.00 + 0.5 1.00 + 0.5 1.00 + 0.5 0.100 + 0.06 5 Hz–10 Hz 0.30 + 0.5 0.30 + 0.5 0.30 + 0.5 0.035 + 0.06 10 Hz–5 kHz 0.10 + 0.5 0.10 + 0.5 0.10 + 0.5 0.015 + 0.06
Temperature Type 1-Year Accuracy
[9]
Extended Range 1-Year Accuracy
[9]
Thermocouple
[10]
B 1100°C to 1820°C 1.2°C 400°C to 1100°C 1.8°C E -150°C to 1000°C 1.0°C -200°C to -150°C 1.5°C
J -150°C to 1200°C 1.0°C -210°C to -150°C 1.2°C
K -100°C to 1200°C 1.0°C -200°C to -100°C 1.5°C
0.03 °C
N -100°C to 1300°C 1.0°C -200°C to -100°C 1.5°C R 300°C to 1760°C 1.2°C -50°C to 300°C 1.8°C S 400°C to 1760°C 1.2°C -50°C to 400°C 1.8°C T -100°C to 400°C 1.0°C -200°C to -100°C 1.5°C
RTD R0from 49 to 2.1 k-200°C to 600°C 0.06°C 0.003 °C
Thermistor 2.2 k, 5k, 10k -80°C to 150°C 0.08°C 0.002 °C
15
Measurement Characteristics
[8]
DC Voltage
Measurement Method Continuously Integrating
Multi-slope III A-D Converter A-D Linearity 0.0002% of reading + 0.0001 % of range Input Resistance
100 mV, 1 V, 10 V ranges Selectable 10 Mor > 10,000 M 100 V, 300 V ranges 10 MΩ ±1%
Input Bias Current < 30 pA at 25°C Input Protection 300 V all ranges
True RMS AC Voltage
Measurement Method AC coupled True RMS — measures the
AC component of the input with up to
300 Vdc of bias on any range Crest Factor Maximum of 5:1 at Full Scale Additional Crest Factor
Errors (non-sinewave) Crest Factor 1-2 0.05 % of reading
Crest Factor 2-3 0.15 % of reading
Crest Factor 3-4 0.30 % of reading
Crest Factor 4-5 0.40 % of reading Input Impedance 1 M± 2% in parallel with 150 pF Input Protection 300 Vrms all ranges
Resistance
Measurement Method Selectable 4-wire or 2-wire Ohms
Current source referenced to LO input Offset Compensation Selectable on 100, 1k, 10kΩ ranges Maximum Lead Resistance 10% of range per lead for 100 Ω and
1 kranges. 1 kon all other ranges Input Protection 300 V on all ranges
Frequency and Period
Measurement Method Reciprocal counting technique Voltage Ranges Same as AC Voltage function Gate Time 1s, 100 ms, or 10 ms Measurement Timeout Selectable 3 Hz, 20 Hz, 200 Hz LF limit
DC Current
Shunt Resistance 5 for 10 mA, 100 mA; 0.1 for 1 A Input Protection 1A 250 V fuse on 34901A module
True RMS AC Current
Measurement Method Direct coupled to the fuse and shunt.
AC coupled True RMS measurement
(measures the ac component only) Shunt Resistance 5 for 10 mA; 0.1 for 100 mA, 1 A Input Protection 1A 250 V fuse on 34901A module
Thermocouple
Conversion ITS-90 software compensation Reference Junction Type Internal, Fixed, or External Open thermocouple Check Selectable per channel. Open >5k
Thermistor 44004, 44007, 44006 series
RTD = 0.00385 (DIN) and = 0.00391
Measurement Noise Rejection 60 (50) Hz
[1]
dc CMRR 140 dB ac CMRR 70 dB
Integration Time Normal Mode Rejection
[2]
200 plc/3.33s (4s) 110 dB
[3]
100 plc/1.67s (2s) 105 dB
[3]
20 plc/333 ms (400 ms) 100 dB
[3]
10 plc/167 ms (200 ms) 95 dB
[3]
2 plc/33.3 ms (40 ms) 90 dB 1 plc/16.7 ms (20 ms) 60 dB < 1 plc 0 dB
Operating Characteristics
[4]
Single Channel Measurement Rates
[5]
Function Resolution
[9]
reading/s
dcV, 2-wire Resistance 61/2 digits (10 plc) 6 (5)
51/2 digits (1 plc) 57 (47) 41/2 digits (0.02 plc) 490
Thermocouple 0.1°C (1 plc) 49 (47)
(0.02 plc) 280
RTD, Thermistor 0.01°C (10 plc) 6 (5)
0.1°C (1 plc) 47 (47) 1°C (0.02 plc) 280
acV 61/2 Slow (3 Hz) 0.14
61/2 Med (20 Hz) 1 61/2 Fast (200 Hz) 8 61/2
[6]
100
Frequency, Period 61/2 digits (1s gate) 1
51/2 digits (100 ms) 9 41/2 digits (10 ms) 70
System Speeds
[7]
INTO Memory ch/s
single channel dcV 490 34902A scanning dcV 250 34907A scanning digital in 250 34902A scanning dcV with scaling & 1 alarm fail 220 34907A scanning totalize 170 34902A scanning temperature 160 34902A scanning acV
[6]
100 34902A scanning dcV/Ohms on alternate channels 90 34901A/34908A scanning dcV 60
INTO and OUT of memory to GPIB or RS-232 (init, fetch)
34902A scanning dcV 180 34902A scanning dcV with timestamp 150
OUT of memory to GPIB
[10]
Readings 800 Readings with timestamp 450 Readings with all format options ON 310
OUT of memory to RS-232
Readings 600 Readings with timestamp 320 Readings with all format options ON 230
DIRECT to GPIB or RS-232
single channel dcV 440 34902A scanning dcV 200 single channel MEAS DCV 10 / MEAS DCV 1 25 single channel MEAS DCV/ MEAS OHMS 12
[1] For 1 Kunbalance in LO lead [2] For power line frequency ±0.1% [3] For power line frequency ±1% use 80 dB or ±3% use 60 dB [4] Reading speeds for 60 Hz and (50 Hz) operation [5] For fixed function and range, readings to memory, scaling and alarms off,
AZERO OFF [6] Maximum limit with default settling delays defeated [7] Speeds are for 4
1
/2 digits, delay Ø, display off, autozero off.
Using 115 kbaud RS-232 setting [8] Isolation voltage (ch - ch, ch - earth) 300 Vdc, ac rms [9] 6
1
/2 digits = 22 bits, 51/2 digits = 18 bits, 41/2 digits = 15 bits
[10] Assumes relative time format (time since start of scan)
16
System Specifications
Scanning Inputs
Analog 34901A, 34902A, and 34908A
multiplexer channels Digital 34907A digital in and totalize Scan list Scans channels in ascending order
Scan Triggering
Source Interval, external, button press, software,
or on monitor channel alarm Scan count 1 to 50,000 or continuous Scan interval 0 to 99 hours; 1ms step size Channel delay 0 to 60 seconds per channel; 1 ms step size External trig delay <300 µs. With monitor on <200 ms External trig jitter <2 ms
Alarms
Analog inputs Hi, Lo, or Hi + Lo evaluated each scan Digital inputs 34907A digital in maskable pattern match
or state change
34907A totalize: Hi limit only Monitor channel Alarm evaluated each reading Alarm Outputs 4 TTL compatible
Selectable TTL logic Hi or Lo on fail Latency 5 ms (typical)
Memory
Battery backed, 4 year typical life
[1]
Readings 50,000 with timestamp
Readable during scan States 5 instrument states with user label Alarm Queue Up to 20 events with channel number,
reading, and timestamp
System Features
Per-channel Math Individual Mx + B scaling and
Min/Max/Average calculated real time Power Fail Recovery Resumes scanning automatically Relay maintenance Counts each relay closure and stores
on module User resettable Real-time clock Battery-backed, 4-year typical life
[1]
General Specifications
Power Supply 100V/120V/220V/240V ±10% Power Line Frequency 45 Hz to 66 Hz automatically sensed Power Consumption 12 W (25 VA peak) Operating Environment Full accuracy for 0°C to 55°C
Full accuracy to 80% R.H. at 40°C Storage Environment -40°C to 70°C
[1]
Weight Net: 3.6 kg (8.0 lbs) Safety Conforms to CSA, UL-1244, IEC 1010 Cat I RFI and ESD CISPR 11, IEC 801/2/3/4
Software
Agilent BenchLink Data Logger II
(not included with Option 001)
System Requirements
[2]
Operating System Windows 98SE, NT® 4.0 SP6a, 2000 SP4, XP
Adobe®Acrobat®Reader V5.0 or higher (to view documentation) Microsoft®Internet Explorer V5.0 or higher (required when using Windows NT)
Controller Recommend Pentium®4, 800 MHz or
greater, Min: Pentium III, 500 MHz RAM Recommend 256MB or greater, Min 128MB Disk Space Recommend 200MB, Min 70MB Display 800x600 resolution, 256 colors
Computer Interfaces
[3]
GPIB Agilent and National Instruments PCI-GPIB LAN-to-GPIB E5810A USB-to-GPIB 82357A
RS-232 (Serial Port) PC COM 1-4
Agilent BenchLink Features
Configuration Spreadsheet-like setup page
Upload and Download instrument setups
Computed channels using + - */, dB, dBm,
dBV, x2, —x and full, 1/2, or
1
/4 bridge strain
Graphical Displays Real-time and historical data displays
Add, delete, size, and configure real time
Strip chart with markers and alarm indication,
bar and scatter charts, Histogram with
statistics, Bar meter, Digital meter, and
Data table Graphical Controls Sliders, switches, buttons, and LED lights Alarm / Limit testing Start/Stop scanning on alarm condition
Control 34903A relay state or 34907A
digital output on alarm Data Real time streamed (saved) to disk
Copy data or graphics to windows clipboard
Export user-selected data to .CVS, .XML,
or .TXT formats Event logging Automatic entry of alarms and errors
Enter user notes real time Printing Setup spreadsheet, all graphics, and
event log entries
Instrument Driver Support for Programming Languages
Universal Compatible with Windows 95 and NT Instrument Driver
[5]
Agilent VEE 3.2 or greater
Visual Basic 4.0,
LabWindows CVI 4.0,
LabVIEW 4.0 Labview Driver (VI) LabVIEW 4.0
[1] Storage at temperatures above 40°C will decrease battery life [2] Software provided on CD-ROM and includes utility to create floppy disks for
installation [3] Interface and driver must be purchased and installed separately [4] 90 MHz Pentium, 20 MB RAM [5] Requires VISA command library for IEEE-488
Microsoft, Windows, and Windows NT are U.S. registered trademarks of
Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Pentium is a U.S. registered trademark of Intel Corporation.
17
Modules Specifications
The Agilent 34970A accuracy specifications already include the switching offset and reference junction errors shown below. These errors are listed sepa­rately for determining system error with external measurement devices.
Up to three modules, in any combination, can be inserted into a single mainframe. The 34970A’s internal DMM connections are accessible only
through the 34901A, 34902A, and 34908A low­frequency multiplexers.
On-module screw terminals accept wire sizes from 16 gage to 22 gage. Twenty-gage wire is recom­mended for high channel count applications. The 34905A and 34906A RF Multiplexers use SMB connectors. A standard set of (10) BNC-to-SMB adapter cables is provided with each RF module for convenient BNC connections.
Multiplexer Actuator Matrix RF Multiplexer Multifunction
34901A 34902A
[1]
34908A 34903A 34904A 34905A 34906A 34907A
General
Number of Channels 20 + 2 16 40 20 4 x 8 Dual 1 x 4 See page 22
2/4 wire 2/4 wire 1 wire SPDT 2 wire 50 75 Ω for module
Connects to Internal DMM specifications Scanning Speed 60 ch/s 250 ch/s 60 ch/s Open/Close Speed 120/s 120/s 70/s 120/s 120/s 60/s
Input
Voltage (dc , ac rms)
[2]
300 V 300 V 300 V 300 V 300 V 42 V Current (dc , ac rms) 1A 50mA 1A 1A 1A 0.7A Power (W , VA) 50 W 2 W 50 W 50 W 50 W 20 W
DC Characteristics
Offset Voltage
[3]
< 3uV < 6uV < 3uV < 3uV < 3uV < 6uV Initial Closed Channel R
[3]
< 1 < 1 < 1 < 0.2 < 1 < 0.5 Isolation ch-ch, ch-earth > 10 G > 10 G > 10 G > 10 G > 10 G > 1 G
AC Characteristics
Bandwidth
[4]
10 MHz 10 MHz 10 MHz 10 MHz 10 MHz 2 GHz
[5]
2 GHz
[5]
Insertion Loss (dB) 10 MHz —————-0.1 -0.1
100 MHz —————-0.4 -0.4 500 MHz —————-0.6 -0.5
1 GHz—————-1 -1
1.5 GHz —————-1.2 -1.5 2 GHz—————-3 -2
SWR 10 MHz—————1.02 1.02
100 MHz —————1.05 1.05 500 MHz —————1.20 1.25
1 GHz—————1.20 1.40
1.5 GHz —————1.30 1.40 2 GHz—————1.40 2.00
ch-ch Cross Talk (dB)
[4]
10 MHz -45 -45 -18
[6]
-45 -33 -100 -85 100 MHz —————-85-75 500 MHz —————-65-65
1 GHz—————-55-50
1.5 GHz —————-45-40 2 GHz—————-35-35
Risetime < 300 ps Signal Delay < 3 ns Capacitance HI - LO < 50 pF < 50 pF < 50 pF < 10 pF < 50 pF < 20 pF
LO - Earth < 80 pF < 80 pF < 80 pF < 80 pF < 80 pF
Volt-Hertz limit 10
8
10
8
10
8
10
8
10
8
10
10
Other
T/C Cold Junction Accuracy
[3]
(typical)
0.8°C 0.8°C 0.8°C
[8]
Switch Life No Load (typical) 100M 100M 100M 100M 100M 5M 5M
Rated Load (typical)
[7]
100k 100k 100k 100k 100k 100k 100k
Temperature Operating all cards — 0°C to 55°C
Storage all cards — -20°C to 70°C
Humidity (non-condensing) all cards — 40°C/80% RH
[1] Not recommended for connection to ac line without external transient suppression [2] Channel-to-channel or channel-to-earth [3] Errors included in DMM measurement accuracy specifications [4] 50Ω source, 50Ω load [5] Bandwidth direct to card SMB connectors
[6] Isolation within channel 1 to 20 or 21 to 40 banks is -40 dB [7] Applies to resistive loads only [8] Thermocouple measurements not recommended with 34908A
module due to common lo configuration
18
Multiplexer Selection Guide
Choose between the broad functionality of the 34901A, the high speed scanning of the 34902A, or the single-ended density of the 34908A. These three modules are the only way to connect to the 34970A internal DMM. They can be used to scan with external instruments as well.
All multiplexer modules employ break-before­make scanning, ensuring only one closed channel (or channel pair) at a time. Multiple channel closures are allowed on the 34901A and 34902A modules when not configured for scanning.
The 34908A does not allow multiple channel clo­sures at any time.
34901A
20-Channel General-Purpose Multiplexer
• 60 ch/s scanning
• Two- and four-wire scanning
• Built-in thermocouple reference junction
• 300 V switching
The Agilent 34901A is the most versatile multi­plexer for general purpose scanning. It combines dense, multifunction switching with 60 channel/ second scan rates to address a broad spectrum of data acquisition applications.
Two- and four-wire channels can be mixed on the same module. Two additional fused inputs (22 channels total) route up to 1A of current to the internal DMM, allowing ac and dc current measurements without the need for external shunt resistors.
34901A 34902A 34908A
Number of Channels 20 + 2 16 40 Max scan speed 60 ch/s 250 ch/s 60 ch/s Number of contacts 2 or 4 2 or 4 1
Temperature
Thermocouple •••
2-wire RTD ••• 4-wire RTD ••
Thermistor ••• dc Volts ••• ac Volts ••• 2-wire Ohms ••• 4-wire Ohms •• Frequency ••• Period ••• dc current ac current
Backplane Switches
Internal DMM Input
01
10
Com
H
L
H
L
H
L
H
L
H
L
H
L
I
L
I
L
I
L
I
L
H
L
H
L
T
Com (4W Sense)
11
20
21
Current Channels
22
Com (Current)
Fuse
Fuse
Internal DMM Input (4W Sense)
Internal DMM Input (Current)
Reference Junction Sensor
Channel Switches
Bank Switch
Shunt Switches
19
34902A
16-Channel High-Speed Multiplexer
• 250 ch/s scanning
• Two- and four-wire scanning
• Built-in thermocouple reference junction
The Agilent 34902A employs reed relays to achieve scan rates up to 250 channels per second. Use this module for high-throughput automated test appli­cations as well as high-speed data logging and monitoring tasks.
Sixteen two-wire inputs switch up to 300 V. Two- and four-wire channels may be mixed on the same module. User provided shunt resistors are required for current measurements.
34908A
40-Channel Single-Ended Multiplexer
• 60 ch/s scanning
• Single-wire switching for common-low applications
• Built-in thermocouple reference junction
Use the Agilent 34908A for the greatest density in common-low applications, such as battery test, component characterization, and benchtop testing.
Each module switches 40 one-wire inputs. All two-wire internal measurements except current are supported. The module low connection is isolated from earth and can float up to 300 V.
Backplane Switches
Internal DMM Input
01
08
Com
H
L
H
L
H
L
H
L
H
L
H
L
H
L
H
L
T
Com (4W Sense)
09
16
Internal DMM Input (4W Sense)
Reference Junction Sensor
Channel Switches
Bank Switch
01
20
21
40
Com
Com
H
H
L
H
H
H
L
H
Channel Switches
Backplane
Switch
Bank Switch
Internal DMM Input
Reference Junction Sensor
T
Note: Thermocouples must be electri­cally isolated from each other to avoid current loops and subsequent meas­urement errors.
Note: Not recommended for connec­tion to ac line without external tran­sient suppression.
20
34903A
20-Channel Actuator/General Purpose Switch
• SPDT (Form C) latching relays
• 300 V, 1A actuation and control
This general-purpose switch module has 20 inde­pendent single-pole, double-throw (SPDT) relays. Use it to cycle power to products under test, con­trol indicator and status lights, and to actuate external power relays and solenoids. Combine it with matrix and multiplexer modules to build cus­tom switch systems. Its 300 V, 1A contacts can handle up to 50 W, enough for many power line switching applications.
34904A
4x8 Two-wire Matrix Switch
• 32 two-wire crosspoints
• 300 V, 1A switching
The Agilent 34904A gives you the most flexible connection path between your device under test and your test equipment, allowing different instru­ments to be connected to multiple points on your DUT at the same time.
Rows or columns may be connected between multi­ple modules to build 8x8, 4x16 or larger matrices, with up to 96 crosspoints in a single frame.
01
20
NC
COM
NO
NC
COM
NO
Row 1
Row 2
Row 3
Row 4
Channel 31 (Row 3, Column 1)
Col 1
H L
Col 2
H L
Col 8
H L
H
L
H
L
H
L
H
L
H
H
L
L
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
0 dB
-1 dB
-2 dB
-3 dB
-4 dB
10 MHz 100 MHz 1 GHz 3 GHz
1.80
1.60
1.40
1.20
1.00
10 MHz 100 MHz 1 GHz 3 GHz
-20 dB
-40 dB
-60 dB
-80 dB
-100 dB
10 MHz 100 MHz 1 GHz 3 GHz
21
34905A 50 34906A 75
Dual 4-channel RF Multiplexers
• 2 GHz bandwidth
• BNC to SMB adapter cables included
The Agilent 34905A and 34906A RF multiplexers offer broadband switching capabilities for high­frequency and pulsed signals. Use them to route test signals between your device under test and your signal generator, oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are arranged as two independ­ent 1x4 multiplexers, each with a common shield and a switched center conductor. Connections can be made directly to SMB inputs with 2 GHz usable bandwidth, or to the BNC-to-SMB adapters provided with 1 GHz bandwidth. Multiple banks may be cascaded together for applications requir­ing even larger topologies—create a stubless 16:1 multiplexer in a single frame.
11
12
Com
13
14
21
22
Com
23
24
Insertion Loss
VSWR
Crosstalk
Insertion Loss VSWR Crosstalk
50Ω MUX Typical AC Performance Graphs
direct to card using provided adapter cables
75Ω MUX Typical AC Performance Graphs
34907A
Multifunction Module
• 16 bits of digital input and output
• 100 kHz totalizer input
• Two ±12V analog outputs
The Agilent 34907A allows great flexibility for a variety of sense and control applications. It com­bines two 8-bit ports of digital input and output, a 100 kHz gated totalizer, and two ±12V analog out­puts—all on a single earth-referenced module. The digital inputs and totalizer input may be included in a scan. Alarm limits for the digital and event counter inputs are evaluated continuously, captur­ing and logging alarm conditions even between scans.
Digital Input/Ouput
Use the digital outputs with an external power supply to control microwave switches and attenua­tors, solenoids, power relays, indicators, and more. Use the digital inputs to sense limit switch and dig­ital bus status. There are no complex handshake modes; reads and writes are initiated either from the front panel or the bus.
Digital Input/Output
Port 1, 2 8 bit, input or output, nonisolated Vin(L) < 0.8V (TTL) Vin(H) > 2.0V (TTL) Vout(L) < 0.8V @ Iout = - 400 mA Vout(H) > 2.4V @ Iout = 1 mA Vin(H) max < 42V with external open drain pull-up Alarming Maskable pattern match or state change
Speed 4 ms (max) alarm sampling Latency 5 ms (typical) to 34970A alarm output
Read/Write Speed 95/s
Totalize Input
Count events from devices like photo interrupters, limit switches, and Hall-effect sensors.
It keeps an updated total which can be read via the front panel or programmatically at any time. With 26 bits of resolution, it can count events at full speed for nearly 11 minutes without an overflow.
Totalize Input
Max Count 226- 1 Totalize Input 100 kHz (max) Rising or falling edge,
programmable Signal level 1 Vp-p (min) 42 Vpk (max) Threshold 0V or TTL, jumper selectable Gate Input TTL-Hi, TTL-Lo, or none Count Reset Manual or Read + Reset Read Speed 85/s
Analog Output
Use the two electronically calibrated analog out­puts to source bias voltages to your device under test, to control your analog programmable power supplies, or use the outputs as setpoints for your control systems. The outputs are programmed directly in volts, either from the front panel or from the bus.
Analog Output
DAC 1, 2 ± 12V, nonisolated
Resolution 1 mV I
OUT
10 mA max Settling time 1 ms to 0.01% of output Accuracy ±(% of output + mV)
1 year ±5°C 0.25% + 20 mV
Temp. Coefficient ± ( 0.015%
+ 1 mV)/°C
22
Port 1 Channel 01
Port 2 Channel 02
Bit 0
Bit 7
8
Bit 0
Bit 7
16
8
Channel 03
Channel 04
28 Bits
+IN
-IN
Gate Gate
DIO
TOT
DAC 1
16
Channel 05
DAC 2
23
Rack Mounting and Dimensions
To rack mount a single instrument, order adapter kit 5063-9240 (Option 1CM).
To rack mount two instruments side-by-side, order lock-link kit 5061-9694 and flange kit 5063-9212.
To install one or two instruments in a sliding support shelf, order shelf 5063-9255, and slide kit 1494-0015 (for single instrument, also order filler panel 5002-3999).
Agilent Technologies’ Test and Measurement Support, Services, and Assistance
Agilent Technologies aims to maximize the value you receive, while minimizing your risk and problems. We strive to ensure that you get the test and measurement capabilities you paid for and obtain the support you need. Our extensive support resources and services can help you choose the right Agilent products for your applications and apply them successfully. Every instrument and system we sell has a global warranty. Two concepts underlie Agilent's overall support policy: "Our Promise" and "Your Advantage."
Our Promise
Our Promise means your Agilent test and measurement equipment will meet its advertised performance and functionality. When you are choosing new equipment, we will help you with product information, including realistic performance specifications and practical recommendations from experienced test engineers. When you receive your new Agilent equipment, we can help verify that it works properly, and help with initial product operation.
Your Advantage
Your Advantage means that Agilent offers a wide range of additional expert test and measurement services, which you can purchase according to your unique technical and business needs. Solve problems efficiently and gain a competitive edge by contracting with us for calibration, extra-cost upgrades, out-of-warranty repairs, and onsite education and training, as well as design, system integration, project management, and other professional engineering services. Experienced Agilent engineers and technicians worldwide can help you maximize your productivity, optimize the return on investment of your Agilent instruments and systems, and obtain dependable measurement accuracy for the life of those products.
Get assistance with all your test and measurement needs at:
www.agilent.com/find/assist
Agilent's IO Libraries Suite ships with the 34970A to help you quickly establish an error-free connection between your PC and instruments – regardless of the vendor. It provides robust instrument control and works with the software development environment you choose.
For additional description of Agilent's IO Libraries Suite features and installation requirements, please go to:
www.agilent.com/find/iosuite-datasheet
Ordering Information
Mainframe 34970A Data Acquisition/Switch Unit
Includes internal 61/2 digit DMM, Operating and Service Manuals, Test Report, power cord, and Quick Start package (includes Agilent Benchlink Data Logger II software, RS-232 cable, thermocouple, and screwdriver). Modules are purchased separately and are required to operate.
Option 001 Delete Internal DMM Same as above but deletes DMM and Quick Start package. Order 34970-80010 to retrofit DMM at a later time.
Option 1CM Rack mount kit Option A6J ANSI Z540 compliant calibration Option 0B0 Delete manual set Option AB0 Taiwan: Chinese manual Option AB1 Korea: Korean manual Option AB2 China: Chinese manual Option ABA English: English manual Option ABD Germany: German manual Option ABE Spain: Spanish manual Option ABF France: French manual Option ABJ Japan: Japanese manual Option ABZ Italy: Italian manual
Modules 34901A 20-Channel armature multiplexer 34902A 16-Channel reed multiplexer 34903A 20-Channel actuator/general purpose switch 34904A 4 x 8 Two-wire matrix switch 34905A Dual 4-Channel RF multiplexer, 50 Ohms 34906A Dual 4-Channel RF multiplexer, 75 Ohms 34907A Multifunction module 34908A 40-Channel single-ended multiplexer
Accessories 34307A 10-pack of J-type thermocouples 34308A 5-pack of 10 kthermistors 34161A Accessory pouch 34131A Hard carrying case (transit case) E5810A LAN/GPIB gateway 82357A USB/GPIB 34970-80010 DMM field installation kit. Fully calibrated with
test report and Quick Start kit
34905-60001 Kit of 10 SMB-to-BNC adapter cables, 50 34906-60001 Kit of 10 SMB-to-BNC adapter cables, 75
Related Literature Pub. number
Accessories for the 34970A Data 5966-4443EN Acquisition/Switch Unit, data sheet
Practical Temperature Measurements, 5965-7822E
application note
Agilent 34980A Multifunction 5989-1437EN Switch/Measure, data sheet
www.agilent.com/find/emailupdates
Get the latest information on the products and applications you select.
Agilent T&M Software and Connectivity
Agilent's Test and Measurement software and connectivity products, solutions and developer network allows you to take time out of connecting your instruments to your computer with tools based on PC standards, so you can focus on your tasks, not on your connections.
Visit www.agilent.com/find/connectivity for more information.
Product specifications and descriptions in this document subject to change without notice.
© Agilent Technologies, Inc. 1998, 2000, 2004, 2005 Printed in the U.S.A. March 14, 2005 5965-5290EN
Microsoft Windows is a U.S. registered trademark of Microsoft Corporation.
Loading...
